COVERAGE FOR 2018 MODEL VEHICLES (GVWR OF 14,000 LBS. OR LESS) UNDER LONG TERM DEFECTS WARRANTY(Coverage for up to 7 years/70,000 miles, whichever first occurs)
Part Name
1.0L Fiesta
1.0L Focus
1.0L Ecosport
1.5 Fusion
1.5L Escape
1.6L Fiesta
2.0L Fusion
2.0L Focus
2.0L Ecosport
2.0L Taurus
2.0L Escape
2.0L Edge
2.3L Focus
2.3L Mustang
2.3L Explorer
2.5L Fusion
2.5L Escape
2.5L Transit Connect
2.7L Fusion
2.7L Edge
2.7L F-150
3.0L F-150 Diesel
3.2L Transit Diesel
3.3L F-150
3.5L Taurus
3.5L Edge
3.5L Flex
3.5L Explorer
3.5L Expedition
3.5L F-150
3.5L Transit
3.7L Taurus
3.7L Explorer
3.7L Transit
5.0L Mustang
5.0L F-150
5.2L Mustang
6.2L Econoline
6.2L F-Superduty
6.7L F-Superduty Diesel
6.8L Econoline
6.8L F-Superduty
6.8L Strip Chassis
EGR Cooler Bypass Control Solenoid XX X X X X X X X X
EGR Valve, EGR System Module XX
EGR Valve Gasket, EGR inlet tube to joint XX
Turbo Charger Actuator X
Exhaust Adapter XXX
Fuel Injector Kit X
High Pressure Fuel Injector Pump XXX
Engine Air Shutoff Control Assembly X
Fuel Injector Manifold Return Line XXX
Fuel Injector XXX XX
Injection Pressure Sensor XXXXXX XX
Air Intake Throttle Body XX X XXX
Fuel Injector Wiring Harness XXXX
Instrument Cluster (1) X X X X X X XXXXXX XXXXX XX XXX XX XX XXX XX X
Glow Plug XX
Powertrain Control Wiring Harness (2) X X X X X XXX X X X XX X X X X X X
Engine Control Sensor & Fuel Charge Wrng Assy (2) X
Engine Electronic Control Coolant Sensor XXX
Powertrain Control Module (PCM)/
Engine Control Module (ECM) XXXXXXXX XXXXXX XXXXXXXXXX XX XXXXXXXXXXXXXXX
Engine Control Sensor Ext. Wire Assembly (2) XXX
Knock Sensor XXX
Main Body Wiring Harness (2) X X X X X X X X X X X XXXX XX XXX XX XX XXX XX X
Dash Panel & Headlamp Junction Wiring Assembly (2) X X X X X X X X X X X XX X X X X X
Battery Cable (2) X XX X X
Wiring Assembly - Interior (2) XX X X X XX XX
Roof Wiring Harness (2) X
Main Wiring Assembly (2) XXXXXXXX XXXXXXXXXXXXXXXXX XXX XXXXXXXXXXXXXXX
Rear Lamp Wiring Assembly (2) XX XXXX XXXXXX
Fuel Sender Wiring Assembly (2) X XXXXXXXXX X XX X X XXXXX
Jumper Harness (2) XXX
Heating Elements of Back Window Glass Assembly X
(1) for Service Engine Soon/Malfunction Indicator Lamp (MIL) functionality concerns only
(2) for MIL illumination only
(3) for EcoBoost Engine only
28

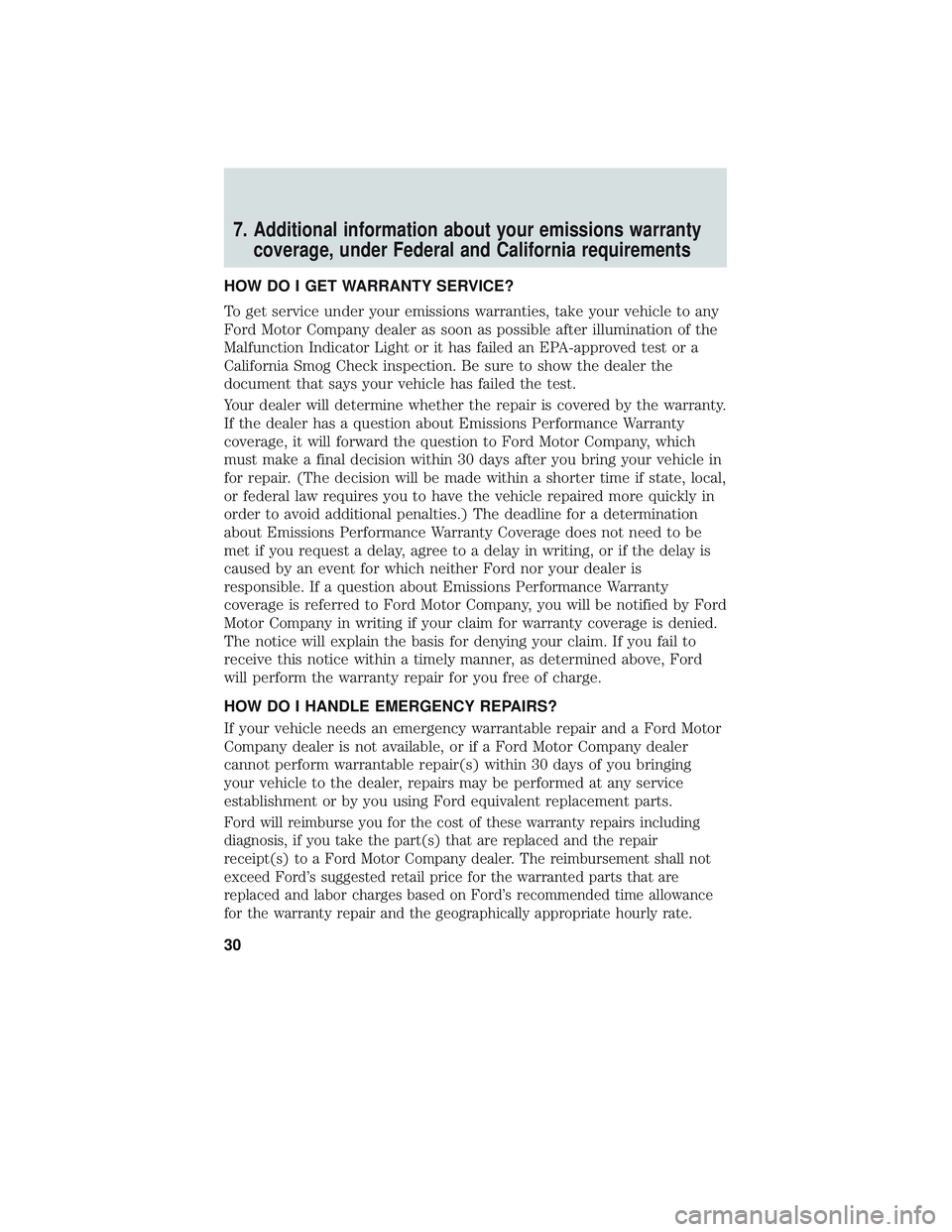

7. Additional information about your emissions warrantycoverage, under Federal and California requirements
HOW DO I GET WARRANTY SERVICE?
To get service under your emissions warranties, take your vehicle to any
Ford Motor Company dealer as soon as possible after illumination of the
Malfunction Indicator Light or it has failed an EPA-approved test or a
California Smog Check inspection. Be sure to show the dealer the
document that says your vehicle has failed the test.
Your dealer will determine whether the repair is covered by the warranty.
If the dealer has a question about Emissions Performance Warranty
coverage, it will forward the question to Ford Motor Company, which
must make a final decision within 30 days after you bring your vehicle in
for repair. (The decision will be made within a shorter time if state, local,
or federal law requires you to have the vehicle repaired more quickly in
order to avoid additional penalties.) The deadline for a determination
about Emissions Performance Warranty Coverage does not need to be
met if you request a delay, agree to a delay in writing, or if the delay is
caused by an event for which neither Ford nor your dealer is
responsible. If a question about Emissions Performance Warranty
coverage is referred to Ford Motor Company, you will be notified by Ford
Motor Company in writing if your claim for warranty coverage is denied.
The notice will explain the basis for denying your claim. If you fail to
receive this notice within a timely manner, as determined above, Ford
will perform the warranty repair for you free of charge.
HOW DO I HANDLE EMERGENCY REPAIRS?
If your vehicle needs an emergency warrantable repair and a Ford Motor
Company dealer is not available, or if a Ford Motor Company dealer
cannot perform warrantable repair(s) within 30 days of you bringing
your vehicle to the dealer, repairs may be performed at any service
establishment or by you using Ford equivalent replacement parts.
Ford will reimburse you for the cost of these warranty repairs including
diagnosis, if you take the part(s) that are replaced and the repair
receipt(s) to a Ford Motor Company dealer. The reimbursement shall not
exceed Ford’s suggested retail price for the warranted parts that are
replaced and labor charges based on Ford’s recommended time allowance
for the warranty repair and the geographically appropriate hourly rate.
