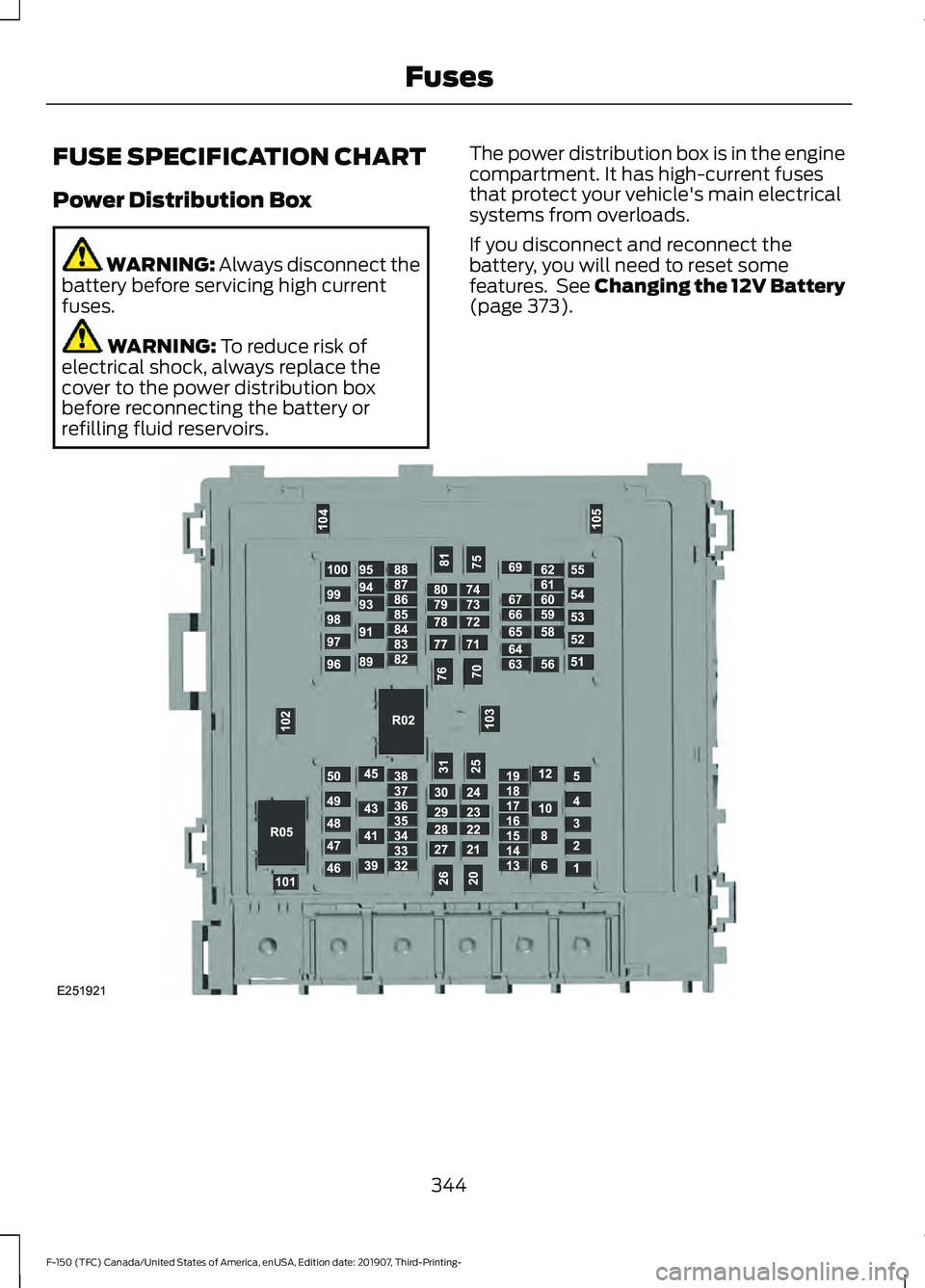

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses
that protect your vehicle's main electrical
systems from overloads.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page
373).
344
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- FusesE251921
Page 359 of 625
3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it is closed properly and fully
latched.
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™ Windshield washer fluid reservoir. See Washer Fluid Check (page 376).
A.
Power distribution box. See
Fuses (page 344).
B.
Battery.
See Changing the 12V Battery (page 373).
C.
Engine oil filler cap.
See Engine Oil Check (page 361).
D.
Engine oil dipstick.
See Engine Oil Dipstick (page 361).
E.
356
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- MaintenanceE190266 E307225
Page 360 of 625
Brake fluid reservoir. See Brake Fluid Check (page 372).
F.
Air filter assembly. See
Changing the Engine Air Filter (page 364).
G.
Engine coolant reservoir.
See Engine Coolant Check (page 366).
H.
UNDER HOOD OVERVIEW - 3.0L DIESEL Power distribution box. See
Fuses (page 344).
A.
Engine oil filler cap. See
Engine Oil Check (page 361).
B.
Engine oil dipstick. See
Engine Oil Dipstick (page 361).
C.
Brake fluid reservoir. See
Brake Fluid Check (page 372).
D.
Air filter assembly. See
Changing the Engine Air Filter (page 364).
E.
Engine coolant reservoir. See
Engine Coolant Check (page 366).
F.
Battery. See
Changing the 12V Battery (page 373).
G.
Windshield washer fluid reservoir. See
Washer Fluid Check (page 376).
H.
357
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- MaintenanceE247635
Page 361 of 625
UNDER HOOD OVERVIEW - 3.3L
Power distribution box. See Fuses (page 344).
A.
Engine oil filler cap. See
Engine Oil Check (page 361).
B.
Engine oil dipstick. See
Engine Oil Dipstick (page 361).
C.
Brake fluid reservoir. See
Brake Fluid Check (page 372).
D.
Air filter assembly. See
Changing the Engine Air Filter (page 364).
E.
Engine coolant reservoir. See
Engine Coolant Check (page 366).
F.
Battery. See
Changing the 12V Battery (page 373).
G.
Windshield washer fluid reservoir. See
Washer Fluid Check (page 376).
H.
358
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- MaintenanceE247636
Page 362 of 625
UNDER HOOD OVERVIEW - 3.5L ECOBOOST™
Windshield washer fluid reservoir. See Washer Fluid Check (page 376).
A.
Power distribution box.
See Changing a Fuse (page 353).
B.
Battery.
See Changing the 12V Battery (page 373).
C.
Engine oil filler cap.
See Engine Oil Check (page 361).
D.
Engine oil dipstick.
See Engine Oil Dipstick (page 361).
E.
Brake fluid reservoir. See
Brake Fluid Check (page 372).
F.
Air filter.
See Changing the Engine Air Filter (page 364).
G.
Engine coolant reservoir. See
Engine Coolant Check (page 366).
H.
359
