FORD F-150 2021 Owners Manual
Page 578 of 796

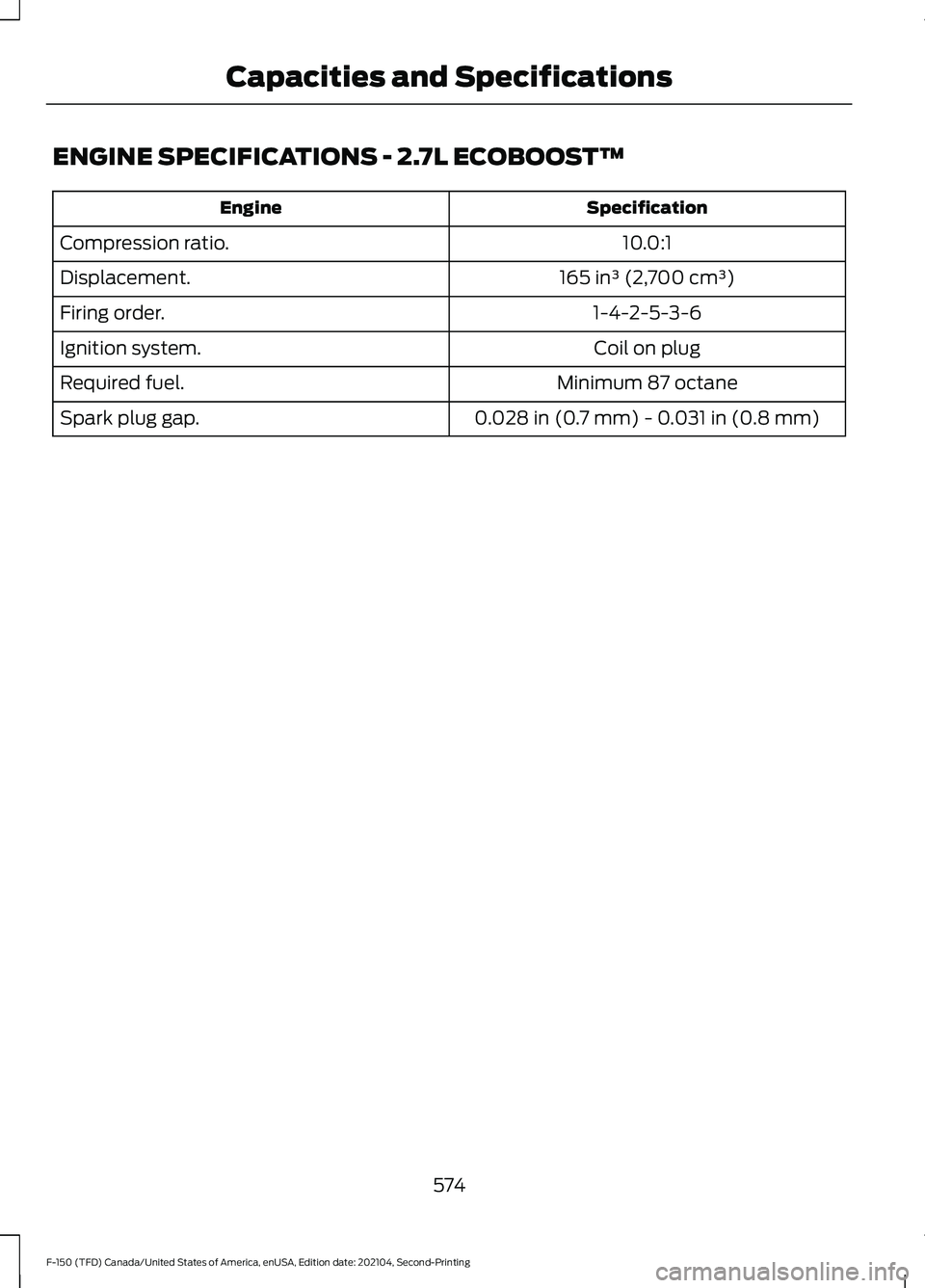

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™
Specification
Engine
10.0:1
Compression ratio.
165 in³ (2,700 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)
Spark plug gap.
574
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications
Page 579 of 796

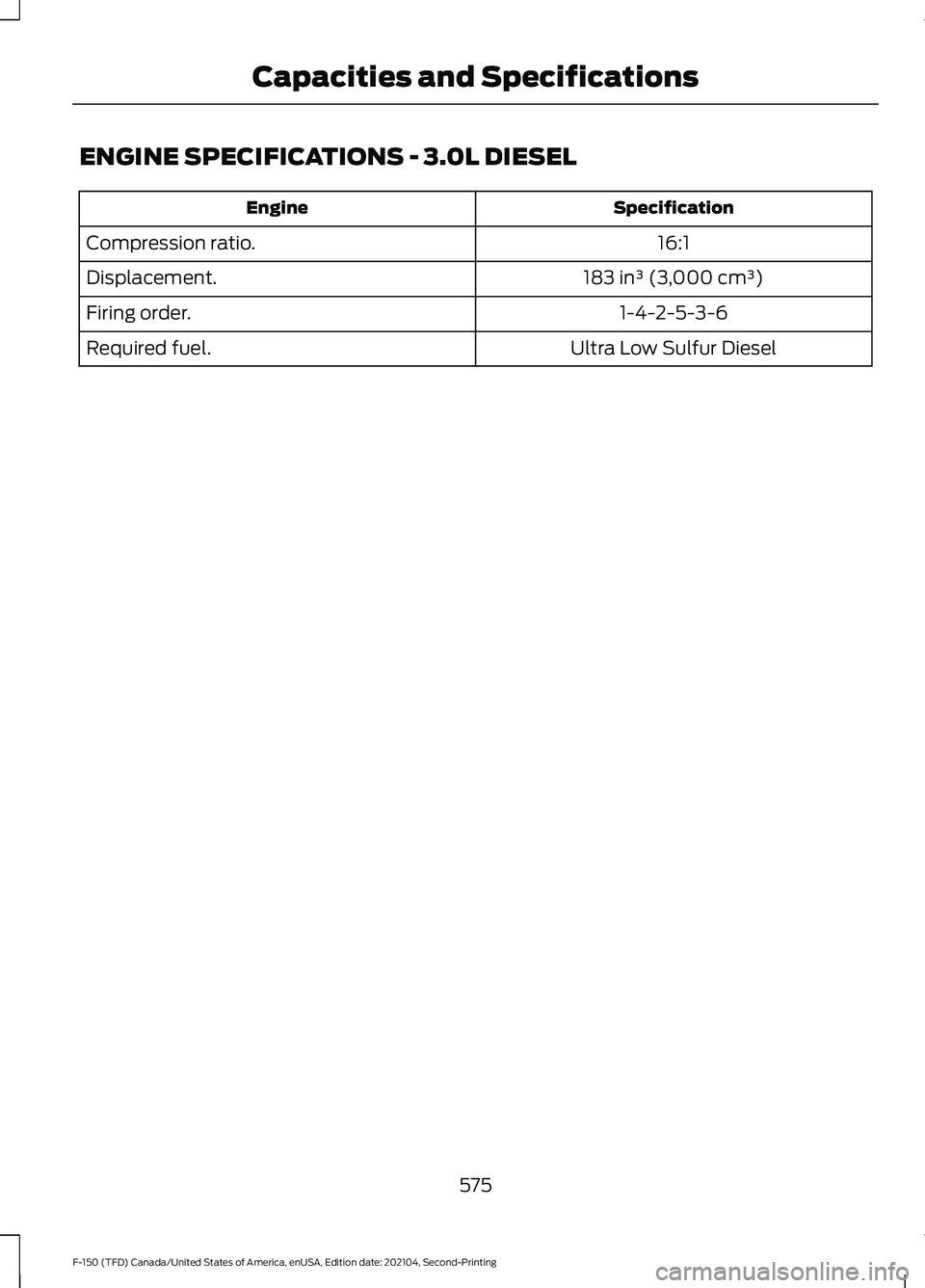

ENGINE SPECIFICATIONS - 3.0L DIESEL
Specification
Engine
16:1
Compression ratio.
183 in³ (3,000 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Ultra Low Sulfur Diesel
Required fuel.
575
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications
Page 580 of 796

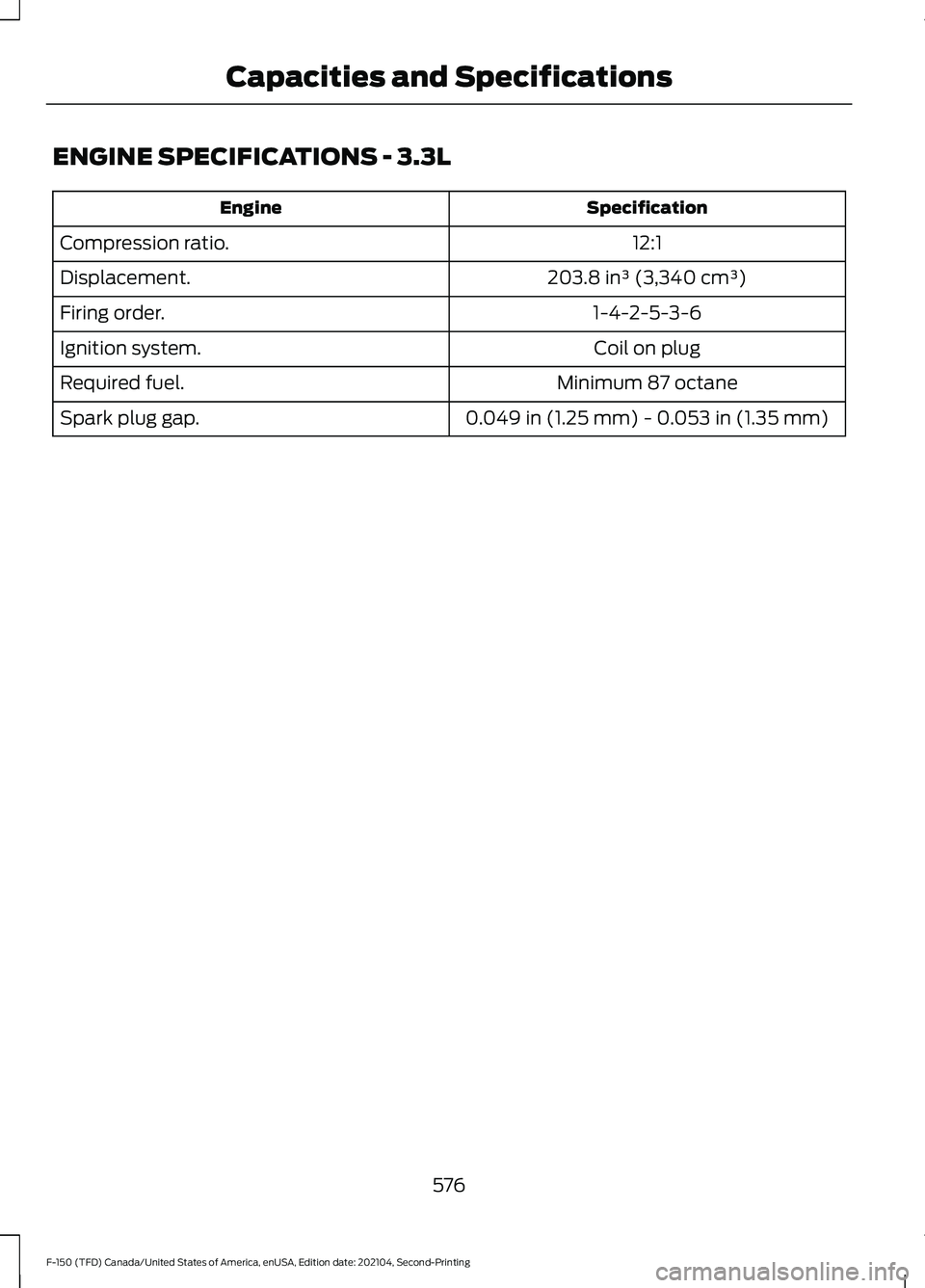

ENGINE SPECIFICATIONS - 3.3L
Specification
Engine
12:1
Compression ratio.
203.8 in³ (3,340 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.049 in (1.25 mm) - 0.053 in (1.35 mm)
Spark plug gap.
576
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications
Page 581 of 796

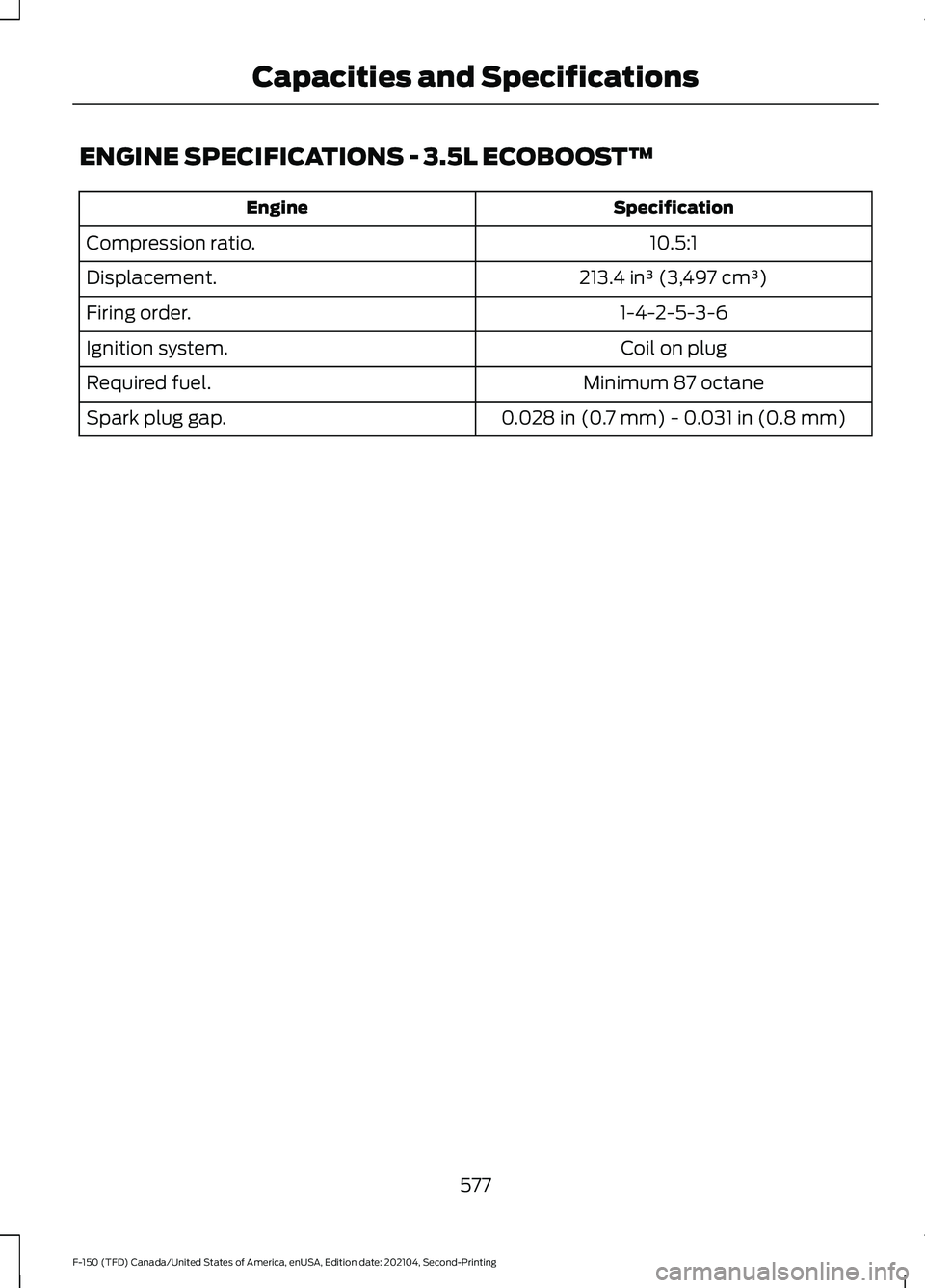

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™
Specification
Engine
10.5:1
Compression ratio.
213.4 in³ (3,497 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)
Spark plug gap.
577
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications
Page 582 of 796

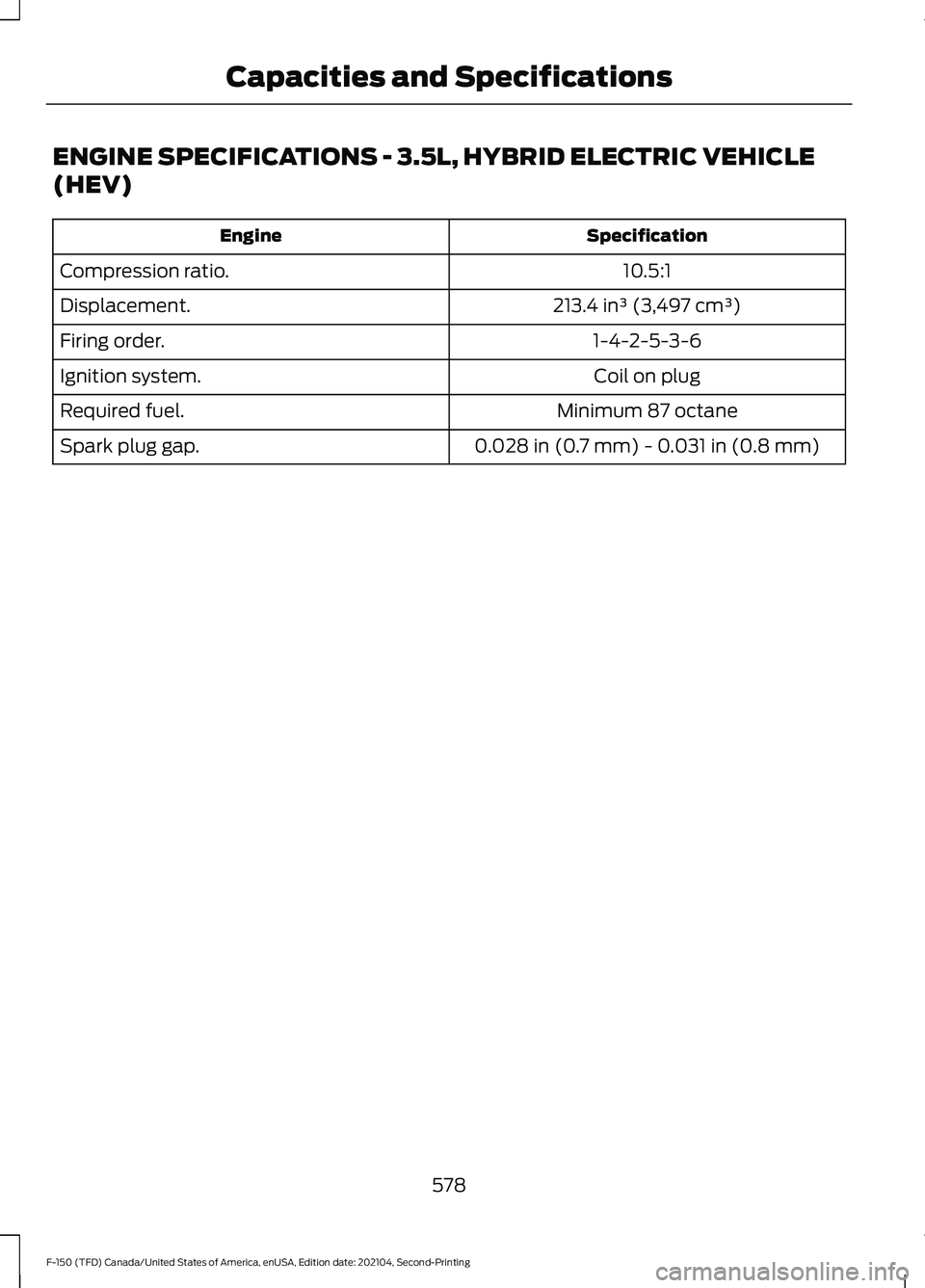

ENGINE SPECIFICATIONS - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Specification
Engine
10.5:1
Compression ratio.
213.4 in³ (3,497 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)
Spark plug gap.
578
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications
Page 583 of 796

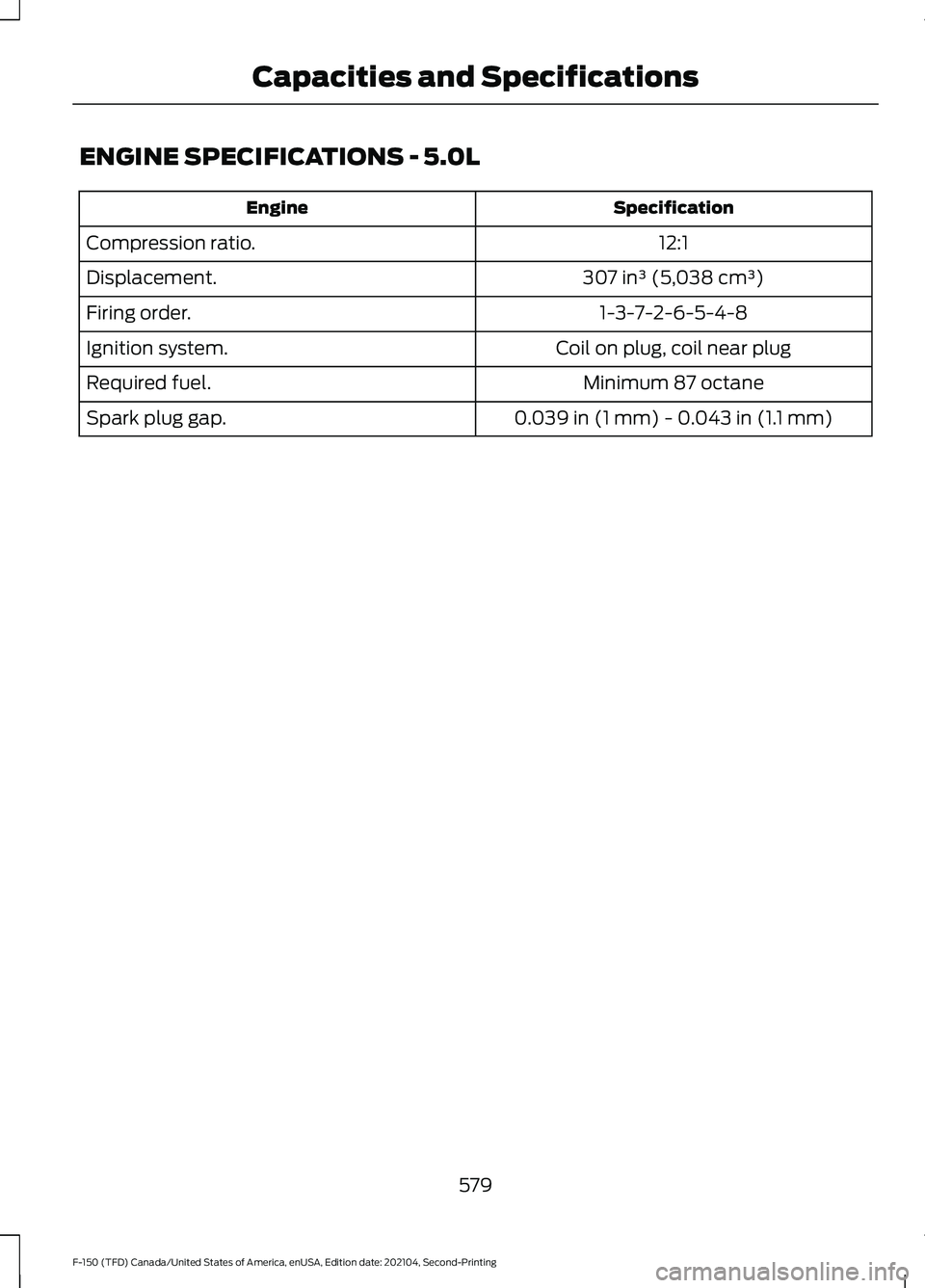

ENGINE SPECIFICATIONS - 5.0L
Specification
Engine
12:1
Compression ratio.
307 in³ (5,038 cm³)
Displacement.
1-3-7-2-6-5-4-8
Firing order.
Coil on plug, coil near plug
Ignition system.
Minimum 87 octane
Required fuel.
0.039 in (1 mm) - 0.043 in (1.1 mm)
Spark plug gap.
579
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications
