Page 17 of 750
Towing Weights and Dimensions
........406
Towing a Trailer – Troubleshooting .....
408
Integrated Trailer Brake Controller
What Is the Integrated Trailer Brake Controller ...................................................
410
Integrated Trailer Brake Controller Precautions ...............................................
410
Using the Integrated Trailer Brake Controller ...................................................
410
Adjusting the Integrated Trailer Brake Controller Mode ........................................
411
Integrated Trailer Brake Controller – Troubleshooting .......................................
412
Trailer Sway Control
How Does Trailer Sway Control Work ........................................................................\
.
414
Trailer Sway Control Precautions ..........
414
Switching Trailer Sway Control On and Off .................................................................
414
Trailer Hitching Assistance
What Is Trailer Hitching Assistance ......
415
How Does Trailer Hitching Assistance Work .............................................................
415
Trailer Hitching Assistance Precautions ........................................................................\
.
415
Trailer Hitching Assistance Limitations ........................................................................\
.
415
Switching Trailer Hitching Assistance On and Off ........................................................
416
Using Trailer Hitching Assistance ..........
416
Trailer Hitching Assistance Indicators ........................................................................\
.
417
Smart Hitch
What Is Smart Hitch ...................................
418
How Does Smart Hitch Work ..................
418
Smart Hitch Limitations ...........................
418
Using Smart Hitch .......................................
418On-Board Scale
What Is On-Board Scale
..........................
420
How Does On-Board Scale Work .........
420
On-Board Scale Limitations ..................
420
Using On-Board Scale ..............................
420
Trailer Backup Assistance
What is Trailer Backup Assistance .......
422
How Does Trailer Backup Assistance Work ............................................................
422
Trailer Backup Assistance Precautions ........................................................................\
422
Setting Up the Trailer Backup Assistance for a Conventional Trailer ....................
422
Switching Trailer Backup Assistance On and Off .......................................................
426
Using the Trailer Backup Assistance Controller ...................................................
427
Using the Trailer Backup Assistance Views ...........................................................
427
Trailer Backup Assistance – Troubleshooting .....................................
430
Trailer Reverse Guidance
What Is Trailer Reverse Guidance .........
437
How Does Trailer Reverse Guidance Work .............................................................
437
Trailer Reverse Guidance Precautions ........................................................................\
437
Setting Up Trailer Reverse Guidance for a Conventional Trailer ...........................
437
Switching Trailer Reverse Guidance On and Off .......................................................
440
Using Trailer Reverse Guidance Views ........................................................................\
.
441
Trailer Reverse Guidance – Troubleshooting .....................................
443
Driving Hints
Off-Road Driving ........................................
449
Cold Weather Precautions ......................
455
Driving on Snow and Ice ..........................
455
13
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Table of Contents
Page 83 of 750
•
The knee airbag(s) may deploy based
on crash severity and occupant
conditions.
• The Safety Canopy inflates in certain
side impact crashes or rollover events.
The Safety Canopy may activate in
other types of crashes if the vehicle
experiences sufficient sideways motion
or deformation, or a certain likelihood
of rollover.
Airbags and Police Equipment WARNING: Do not place objects
or mount equipment on or near the
airbag cover, on the side of the front or
rear seatbacks, or in areas that may
come into contact with a deploying
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash. WARNING:
Keep the areas in front
of the airbags free from obstruction. Do
not affix anything to or over the airbag
covers. Objects could become projectiles
during airbag deployment. Failure to
follow this instruction could result in
personal injury or death.
Dual driver and passenger airbags, side
airbags and knee airbags affect the way
police equipment can be mounted in police
vehicles.
Any surfaces that could come into contact
with an airbag, once it has deployed, must
not damage the airbag or alter its
deployment path. Once the airbag has fully deployed, any
peripheral equipment surfaces that could
come into contact with the airbag, such as
when the airbag deflates with the loading
of an occupant, must not damage the
airbag or alter its deployment path. Sharp
edges, corners or protrusions could
damage the nylon airbag material and
reduce the effectiveness of the airbag.
Some approximate dimensions for airbags,
at full inflation, are provided. These
dimensions are somewhat flexible and
represent free form deployments without
the loading of occupants. The shaded
areas in Figures 8 through 10 represent
available police equipment mounting
zones. These zones are shown for police
vehicles with standard bucket seats. The
zone dimensions provided in Figures 8
through 10 are approximate and will vary
with the loading of occupants in the seats.
All airbag and equipment mounting zone
dimensions are approximate due to
different airbag deployment
characteristics.
Do not mount equipment between the side
of the front seat and the door trim that will
block deployment of the side airbag.
Do not mount equipment between the
seats and the body side as shown in Figure
7 that would prevent the side curtain airbag
from achieving occupant coverage.
79
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Airbags
Page 84 of 750
Figure 1 - Driver and Passenger Airbag
Dimensions
9.5 in (240 mm) from the center
of the emblem.
1.
13.3 in (339 mm) from the center
of the airbag door.
2.
22.5 in (573 mm).
3.
Note: Do not place objects between the
airbags due to airbag variability.
Figure 2 - Side View of the Driver Airbag
at Full Inflation 27.5 in (700 mm).
1. Figure 3 - Top View of the Driver and
Passenger Airbags at Full Inflation
Front passenger airbag - 25.8 in
(656 mm).
1.
Front driver airbag – 17 in (430
mm).
2.
Note: Do not place objects between the
driver side steering wheel airbag and the
passenger side dash airbag.
Figure 4 -Top View of the Side Airbags
at Full Inflation - if equipped From the outermost side of the
seat - 8 in (200 mm).
1.
Forward of the seat backrest -
15 in (380 mm).
2.
80
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing AirbagsE201575 E201576 E201577 E201578
Page 403 of 750
CONNECTING A TRAILER
PRECAUTIONS
Do not tow a trailer until you drive your
vehicle at least 1,000 mi (1,600 km).
Consult your local motor vehicle laws for
towing a trailer.
See the instructions included with towing
accessories for the proper installation and
adjustment specifications.
Service your vehicle more frequently if you
tow a trailer. See
Normal Scheduled
Maintenance (page 645).
If you use a rental trailer, follow the
instructions the rental agency gives you.
When attaching the trailer wiring connector
to your vehicle, only use a proper fitting
connector that works with the vehicle and
trailer functions.
Account for the trailer coupler weight as
part of your vehicle load when calculating
the total vehicle weight.
Do not exceed the load limits. See
Calculating the Load Limit
(page 391).
HITCHES
HOOKING UP A TRAILER USING A
WEIGHT-DISTRIBUTING HITCH WARNING: Do not adjust the spring
bars so that your vehicle's rear bumper
is higher than before attaching the trailer.
Doing so will defeat the function of the
weight-distributing hitch, which may
cause unpredictable handling, and could
result in serious personal injury.
A weight-distributing hitch helps distribute
tongue load to all towing vehicle and trailer
wheels. For more information, visit the links
in the following table. Website
Market
ht tp s:/ /
www .fl e e t.f or d . c om/
t o wing-g uide s/United States of
America
ht tp s:/ /
www .fl e e t.f or d . c a/
t o wing-g uide s/Canada
CONNECTING A TRAILER
Recognizing a Trailer
1. Attach the trailer and wiring connector
to your vehicle.
2. Switch on your vehicle.
3. Set up a profile for the trailer using the
touchscreen.
Note: If your vehicle does not recognize the
trailer, press and hold the brake pedal for a
few seconds.
Note: Trailer profiles store trailer types,
dimensions, preferences, trailer specific
mileage and fuel economy.
Note: Disabling the trailer detection
notification makes the default trailer profile
active when the system detects a
connection.
399
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Connecting a Trailer

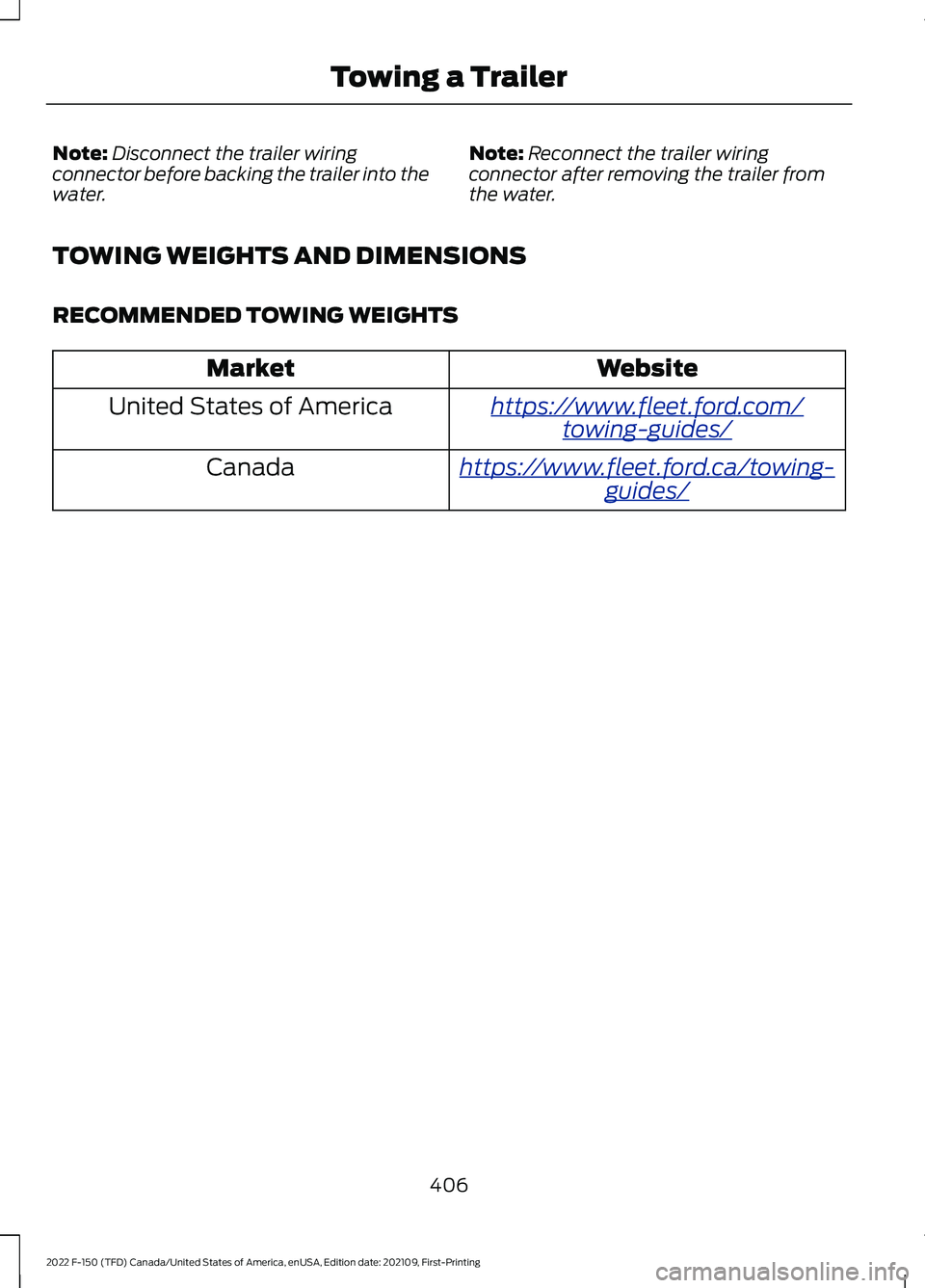

Page 410 of 750
Note:
Disconnect the trailer wiring
connector before backing the trailer into the
water. Note:
Reconnect the trailer wiring
connector after removing the trailer from
the water.
TOWING WEIGHTS AND DIMENSIONS
RECOMMENDED TOWING WEIGHTS Website
Market
ht tp s:/ / www .fl e e t.f or d . c om/
t o wing-g uide s/United States of America
ht tp s:/ / www .fl e e t.f or d . c a/ t o wing-
g uide s/Canada
406
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Towing a Trailer
Page 439 of 750
What does it mean if the trailer is
at its maximum angle or the
system deactivated by trailer
angle?
•
You are at the maximum controllable
trailer angle for the system. Place your
vehicle in drive (D) and pull forward to
get the truck and trailer back to an
in-line position.
• The trailer could need to be
recalibrated. Check that the correct
trailer is selected in the touchscreen.
Verify the sensor is installed according
to the instructions included in the
sensor kit and check that the drawbar
and the trailer dimensions are within
the allowed range. Then, delete the
trailer from the system and repeat the
setup process to calibrate the trailer.
• The drawbar or the trailer dimensions
are outside of the supported range. The
system is designed to work with
drawbars that have a license plate to
hitch ball center measurement of
9–18 in (23–46 cm) when installed.
The system is designed to work with
trailers that have a hitch point to center
of the axle or axles measurement of
6– 33 ft (1.85– 10.05 m)
. Do not
attempt to use drawbars or trailers that
have a length outside of this range as
the system performance degrades and
could cause improper system function.
• The sensor could be incorrectly
installed. Make sure the sensor is
correctly installed. What does it mean when the
system tells you to take control of
the steering wheel?
•
You have touched the steering wheel
when the system is steering. Avoid
touching the wheel during system
operation.
• You have exceeded the maximum
speed for the feature. The system is no
longer steering the vehicle and you
must take over steering.
• The system does not detect the trailer.
The system is no longer steering the
vehicle and you must take over
steering.
• An internal condition for system
operation is not met that requires your
vehicle to return to manual control of
the steering.
How do I use a sticker if I have
previously setup a trailer with the
sensor?
• Disconnect the sensor wiring and add
a new trailer to the system and follow
the instructions for setup with a sticker.
See Applying the Trailer Reversing
Aid Sticker (page 424). If your vehicle
does not support the sticker option, the
touchscreen instructs you to install the
sensor again.
435
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Trailer Backup Assistance
(If Equipped)
Page 451 of 750
What does it mean if the trailer is
at its maximum angle or the
system deactivated by trailer
angle?
•
You are at the maximum controllable
trailer angle for the system. Place your
vehicle in drive (D) and pull forward to
get the truck and trailer back to an
in-line position.
• The trailer could need to be
recalibrated. Check that the correct
trailer is selected in the touchscreen.
Verify the sensor is installed according
to the instructions included in the
sensor kit and check that the drawbar
and the trailer dimensions are within
the allowed range. Then, delete the
trailer from the system and repeat the
setup process to calibrate the trailer.
• The drawbar or the trailer dimensions
are outside of the supported range. The
system is designed to work with
drawbars that have a license plate to
hitch ball center measurement of
9–18 in (23–46 cm) when installed.
The system is designed to work with
trailers that have a hitch point to center
of the axle or axles measurement of
6– 33 ft (1.85– 10.05 m)
. Do not
attempt to use drawbars or trailers that
have a length outside of this range as
the system performance degrades and
could cause improper system function.
• The sensor could be incorrectly
installed. Make sure the sensor is
correctly installed. What does it mean when the
system tells you to take control of
the steering wheel?
•
You have touched the steering wheel
when the system is steering. Avoid
touching the wheel during system
operation.
• You have exceeded the maximum
speed for the feature. The system is no
longer steering the vehicle and you
must take over steering.
• The system does not detect the trailer.
The system is no longer steering the
vehicle and you must take over
steering.
• An internal condition for system
operation is not met that requires your
vehicle to return to manual control of
the steering.
How do I use a sticker if I have
previously setup a trailer with the
sensor?
• Disconnect the sensor wiring and add
a new trailer to the system and follow
the instructions for setup with a sticker.
See Applying the Trailer Reverse
Aid Sticker (page 438). If your vehicle
does not support the sticker option, the
touchscreen instructs you to install the
sensor again.
447
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Trailer Reverse Guidance
(If Equipped)
Page 453 of 750
OFF-ROAD DRIVING
WHAT IS OFF-ROAD DRIVING
Off-road driving is driving your vehicle on
unsurfaced roads or trails, made from dirt,
rocks, sand and mud.
OFF-ROAD DRIVING
PRECAUTIONS - RAPTOR
WARNING: If you continue to drive
your vehicle when the engine is
overheating, the engine could stop
without warning. Failure to follow this
instruction could result in the loss of
control of your vehicle.
Before going off-road driving, consult with
all the appropriate government entities to
determine where you are legally allowed
to operate your vehicle and what permits
or registrations are required to do so.
Inspect your vehicle before and after any
off-road driving.
Familiarize yourself with the dimensions
of your vehicle including approach angles,
breakover angles, and ground clearance.
Also familiarize yourself with the features
of your vehicle. Some of these features
such as drive modes and cameras can
improve your off-road driving experience.
Secure loose objects inside your vehicle
and in the cargo area. BASIC OFF-ROAD DRIVING
TECHNIQUES
Off-road Driving Hints
Before taking your vehicle off-roading, a
basic vehicle inspection should be done to
make sure that the vehicle is in top working
condition. It is always recommended that
at least two vehicles are used while
off-roading. The buddy system helps make
sure that help is close at hand should a
vehicle become stuck or damaged. It is also
wise to take supplies such as a first aid kit,
supply of water, tow strap, cell or satellite
phone with you any time an off-road
excursion is planned.
1. Grip the steering wheel with thumbs
on the outside of the rim. This will
reduce the risk of injury due to abrupt
steering wheel motions that occur
when negotiating rough terrain.
2. Throttle, brake and steering inputs should be made in a smooth and
controlled manner. Sudden inputs to
the controls can cause loss of traction
or upset the vehicle, especially while
on loose terrain or while crossing
obstacles such as rocks or logs.
3. Look ahead on your route noting upcoming obstacles, or any other
factors which may indicate a change
in available traction, and adjust the
vehicle speed and route accordingly.
4. When driving off-road, if the front or rear suspension is bottoming out
and/or excessive contact with the
skid-plates is encountered, reduce
vehicle speed to avoid potential
damage to the vehicle.
5. When with other vehicles, it is recommended that communication is
used, and the lead vehicle notify other
vehicles of obstacles that could cause
potential vehicle damage.
449
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Driving Hints
Page 636 of 750

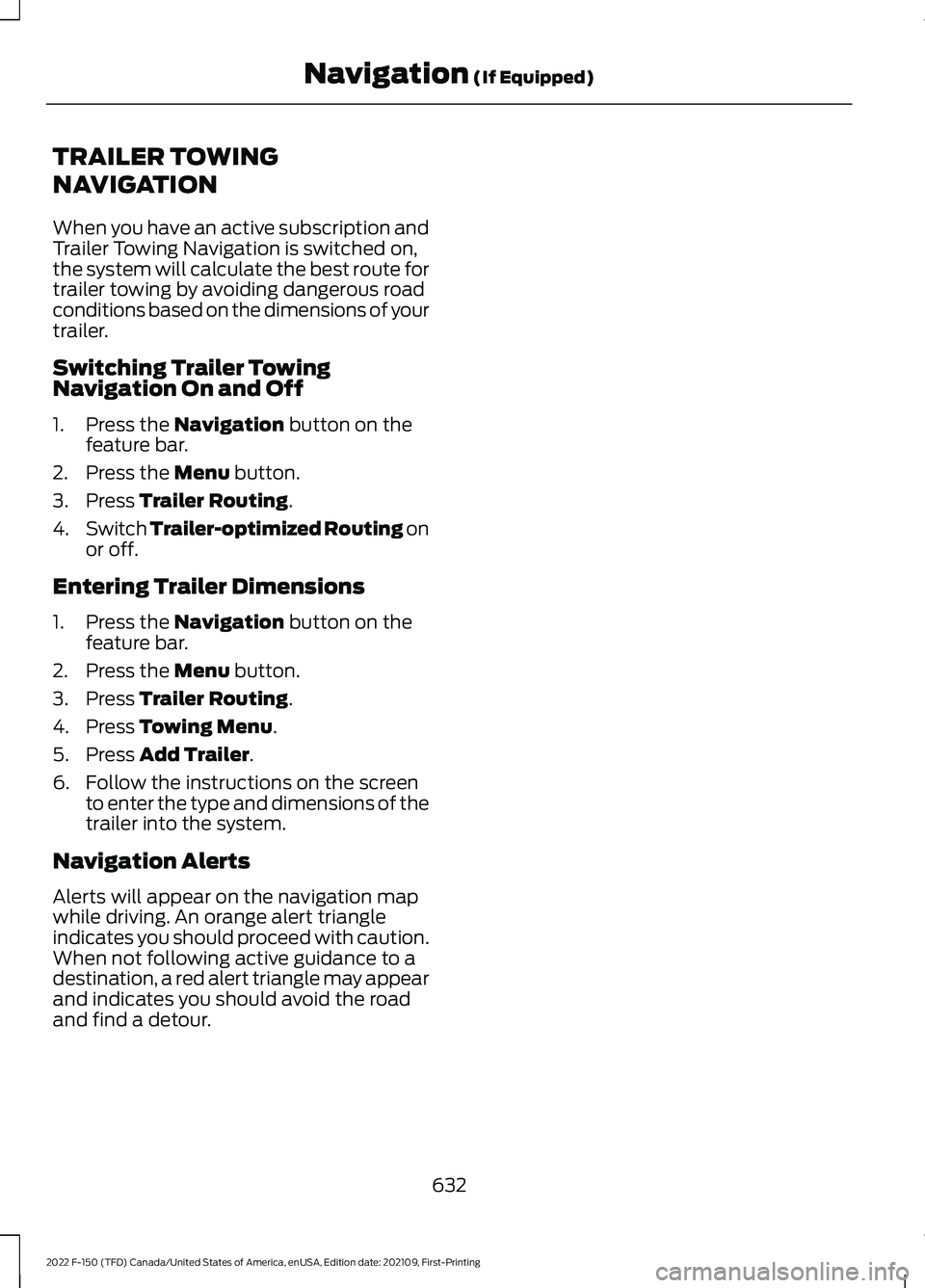

TRAILER TOWING
NAVIGATION
When you have an active subscription and
Trailer Towing Navigation is switched on,
the system will calculate the best route for
trailer towing by avoiding dangerous road
conditions based on the dimensions of your
trailer.
Switching Trailer Towing
Navigation On and Off
1. Press the Navigation button on the
feature bar.
2. Press the
Menu button.
3. Press
Trailer Routing.
4. Switch
Trailer-optimized Routing on
or off.
Entering Trailer Dimensions
1. Press the
Navigation button on the
feature bar.
2. Press the
Menu button.
3. Press
Trailer Routing.
4. Press
Towing Menu.
5. Press
Add Trailer.
6. Follow the instructions on the screen to enter the type and dimensions of the
trailer into the system.
Navigation Alerts
Alerts will appear on the navigation map
while driving. An orange alert triangle
indicates you should proceed with caution.
When not following active guidance to a
destination, a red alert triangle may appear
and indicates you should avoid the road
and find a detour.
632
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Navigation
(If Equipped)
Page 743 of 750
Switching the Heated Steering Wheel
On and Off - Vehicles With: Heated
Steering Wheel...........................................139
Switching the Heated Wiper Park On and Off...................................................................182
Switching the Lane Keeping System Mode.............................................................362
Switching the Lane Keeping System On and Off
..........................................................362
Switching the Rear Interior Lamps On and Off..........................................................158
Switching Traction Control On and Off..................................................................298
Switching Trail Control On and Off - Raptor...........................................................303
Switching Trailer Backup Assistance On and Off
.........................................................426
Switching Trailer Hitching Assistance On and Off..........................................................416
Switching Trailer Reverse Guidance On and Off
.........................................................440
Switching Trailer Sway Control On and Off...................................................................414
Switching Trail Turn Assist On and Off...................................................................307
Switching Utility Idle On and Off - Vehicles With: Flip Key
.............................214
Symbols Glossary..........................................24
Symbols Used on Your Vehicle.................24
T
Tachometer....................................................168
Tailgate Anchor Points..............................395 Locating the Tailgate Anchor Points..........395
Tailgate Anchor Point Load
Capacities........................................................ 395
Tailgate Precautions......................................111
Tailgate Step....................................................112 Accessing the Tailgate Step............................. 112
Stowing the Tailgate Step................................ 113
Tailgate
...............................................................111
Bed Extender......................................................... 113
Closing the Tailgate............................................. 117
Opening the Tailgate........................................... 111
Tailgate Step.......................................................... 112
Tailgate – Troubleshooting............................. 123Tailgate – Troubleshooting.......................123
Tailgate – Frequently Asked
Questions.......................................................... 124
Tailgate – Information Messages.................123
Tailgate – Warning Lamps.............................. 123
Tailgate Work Surface..................................115
Team RS
.............................................................19
Technical Specifications See: Capacities and Specifications............558
Temporary Neutral Mode.........................264 Entering Temporary Neutral Mode.............264
Exiting Temporary Neutral Mode.................265
Temporary Neutral Mode
Limitations...................................................... 264
What Is Temporary Neutral Mode...............264
The Better Business Bureau Auto Line Program.......................................................656
The Mediation and Arbitration Program........................................................657
Tire Care..........................................................532
Tire Pressure Monitoring System Limitations...................................................537
Tire Pressure Monitoring System Overview......................................................536
Tire Pressure Monitoring System Precautions.................................................537
Tire Pressure Monitoring System..........536 Tire Pressure Monitoring System –
Troubleshooting............................................. 541
Tire Pressure Monitoring System – Troubleshooting.........................................541
Tire Pressure Monitoring System – Information Messages................................ 542
Tire Pressure Monitoring System – Warning Lamps................................................................ 541
Tire Replacement Requirements..........526
Tire Rotation
..................................................534
Towing a Trailer Limitations....................404
Towing a Trailer Precautions...................403
Towing a Trailer............................................403 Towing a Trailer – Troubleshooting...........408
Towing Weights and Dimensions...............406
Towing a Trailer – Troubleshooting.......................................408
Towing a Trailer – Information Messages........................................................ 408
739
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index
