Page 331 of 666

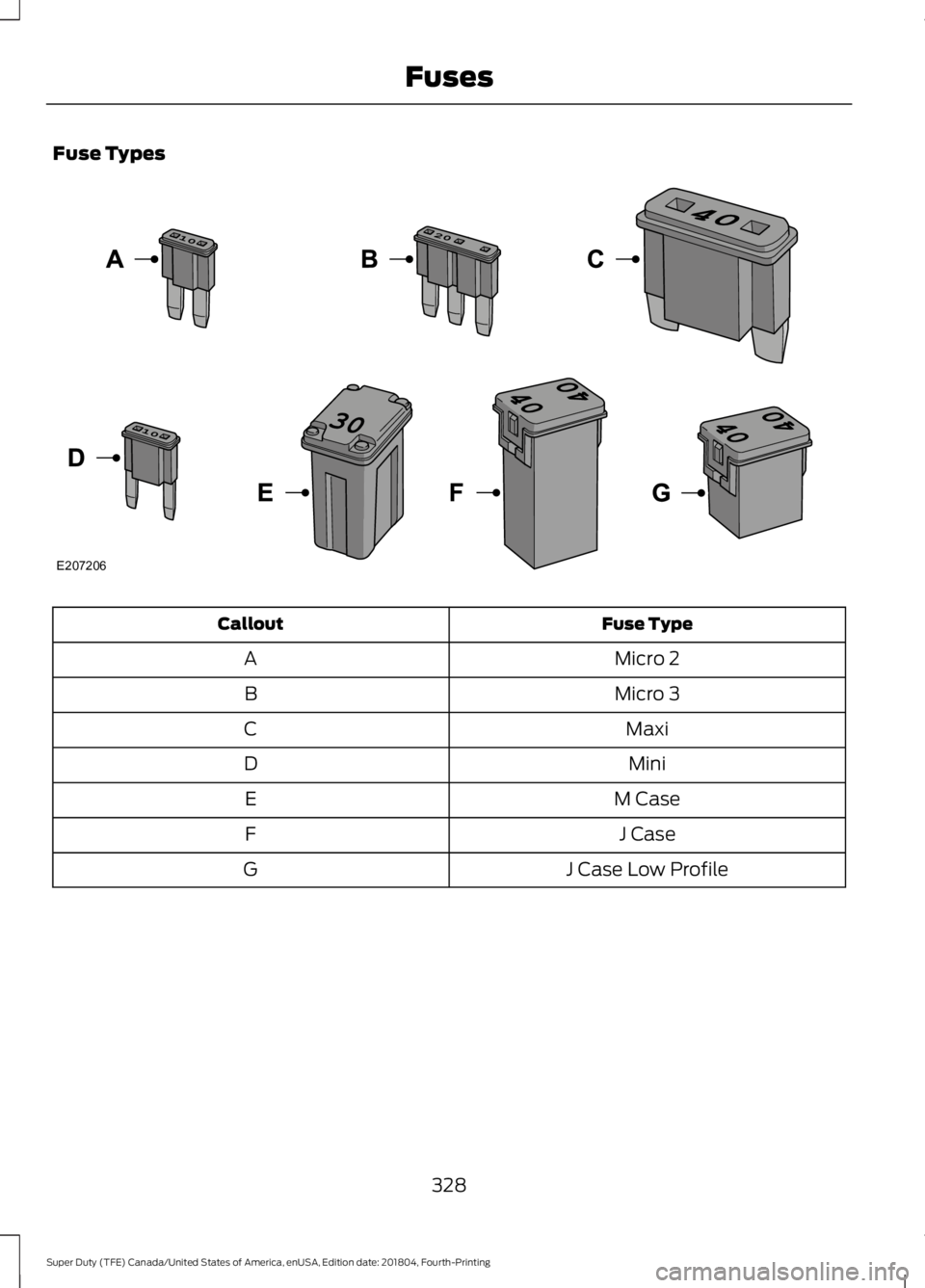

FORD F-250 2019  Owners Manual Fuse Types
Fuse Type
Callout
Micro 2
A
Micro 3
B
Maxi
C
Mini
D
M Case
E
J Case
F
J Case Low Profile
G
328
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201804, Fourth-Printing

Page 332 of 666

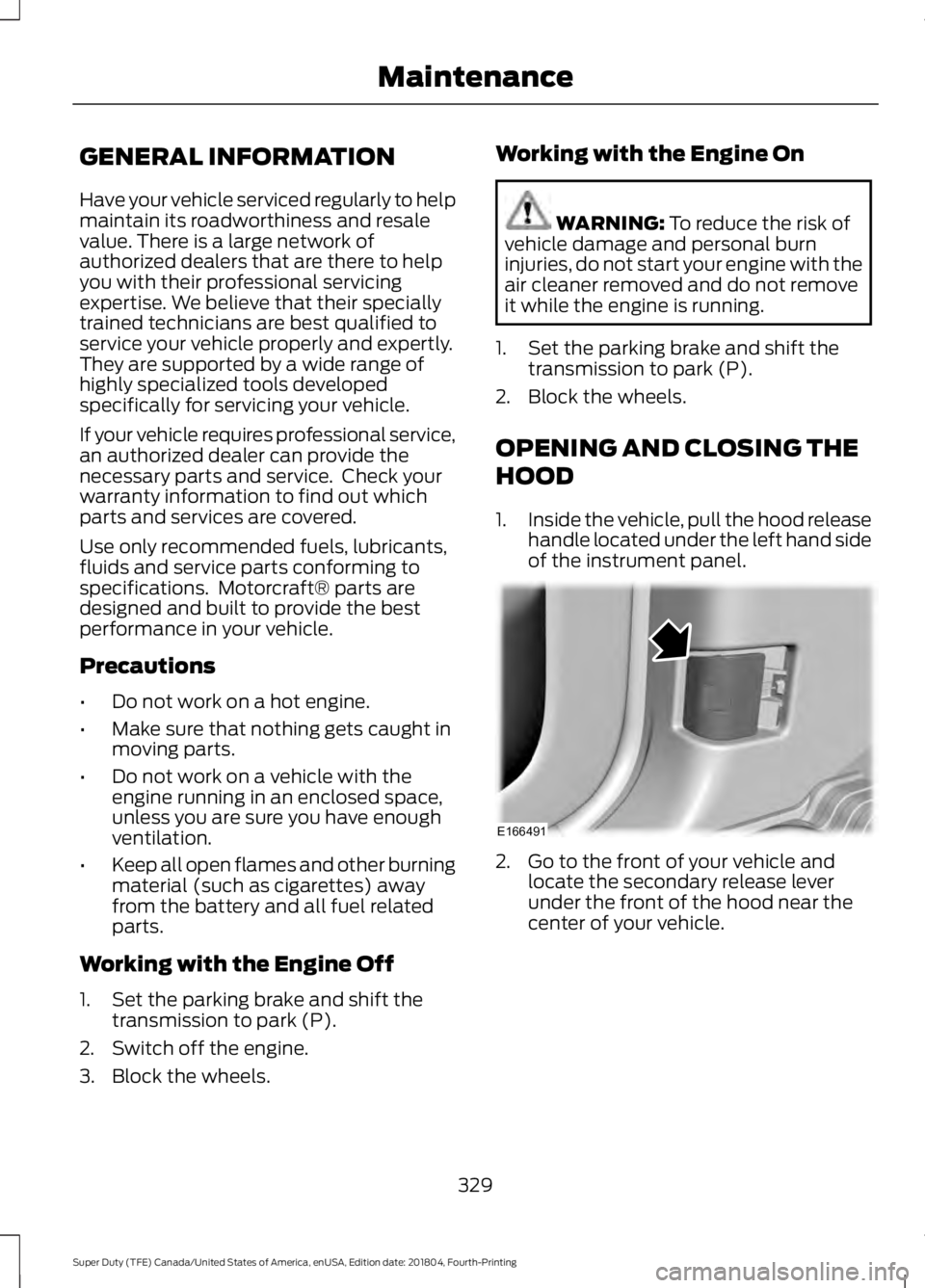

FORD F-250 2019  Owners Manual GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their prof

Page 333 of 666

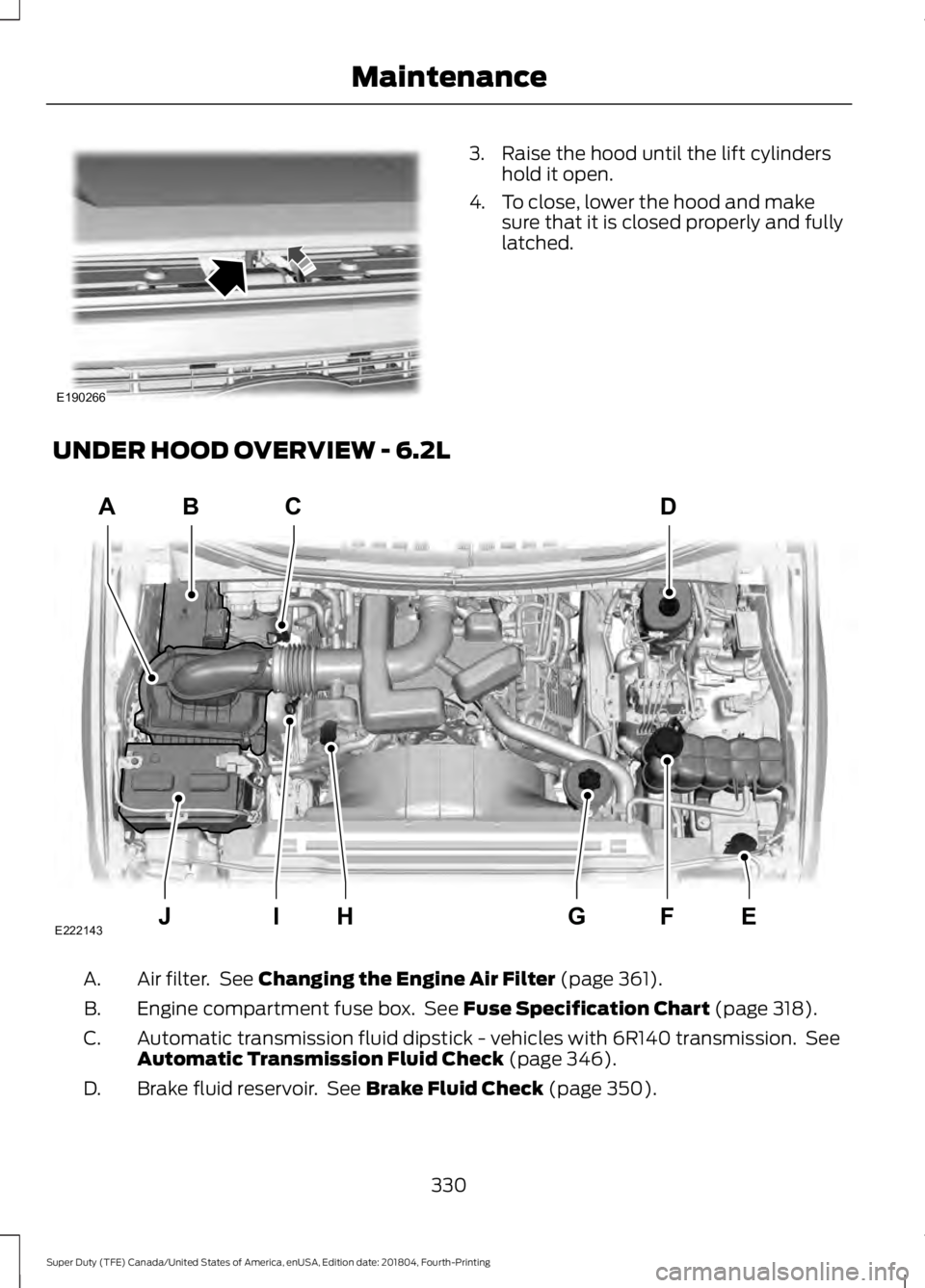

FORD F-250 2019  Owners Manual 3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it is closed properly and fully
latched.
UNDER HOOD OVERVIEW - 6.2L Air filter.  See Changing th

Page 334 of 666

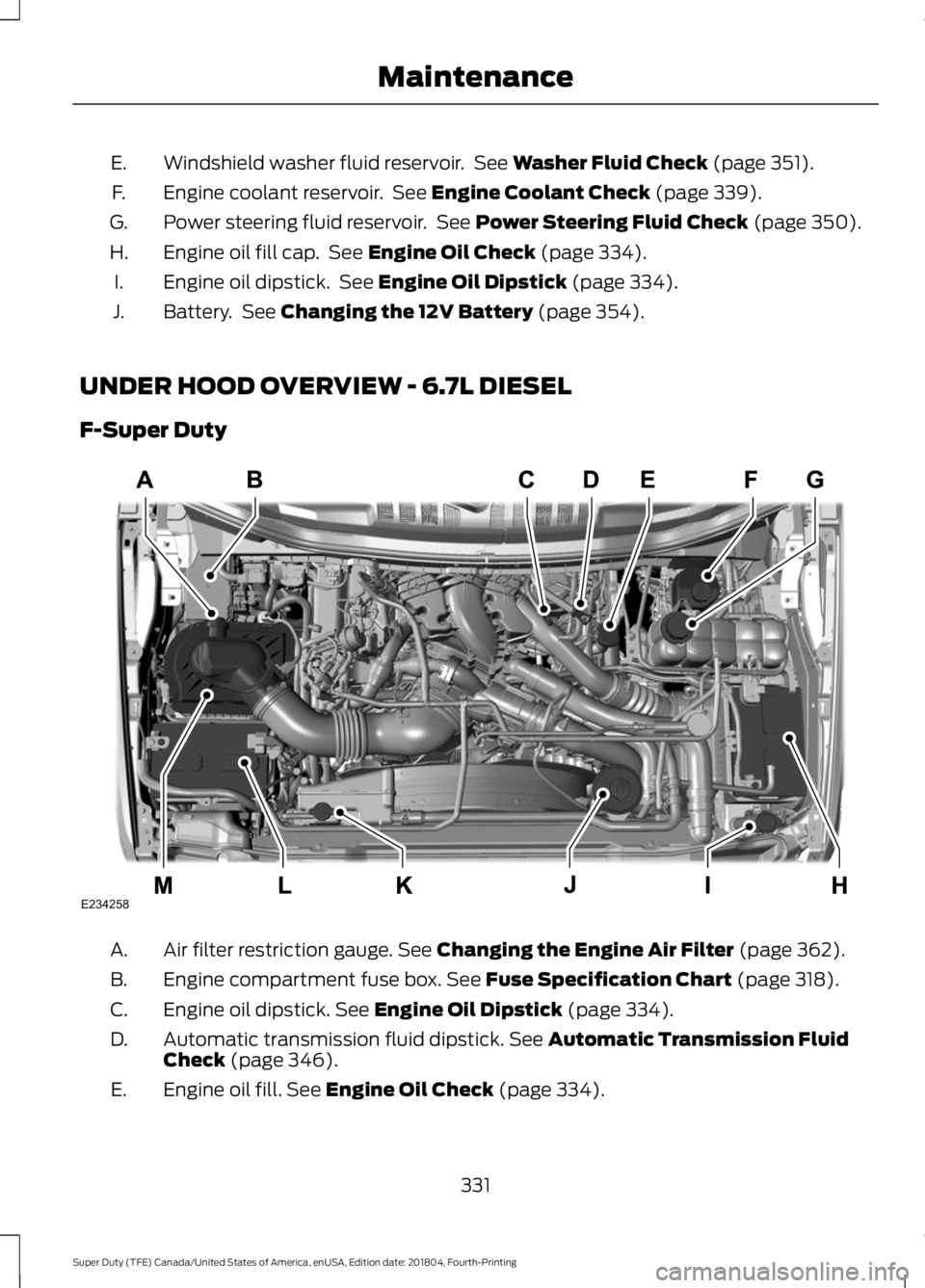

FORD F-250 2019  Owners Manual Windshield washer fluid reservoir.  See Washer Fluid Check (page 351).
E.
Engine coolant reservoir.  See
Engine Coolant Check (page 339).
F.
Power steering fluid reservoir.  See
Power Steering Fluid

Page 335 of 666

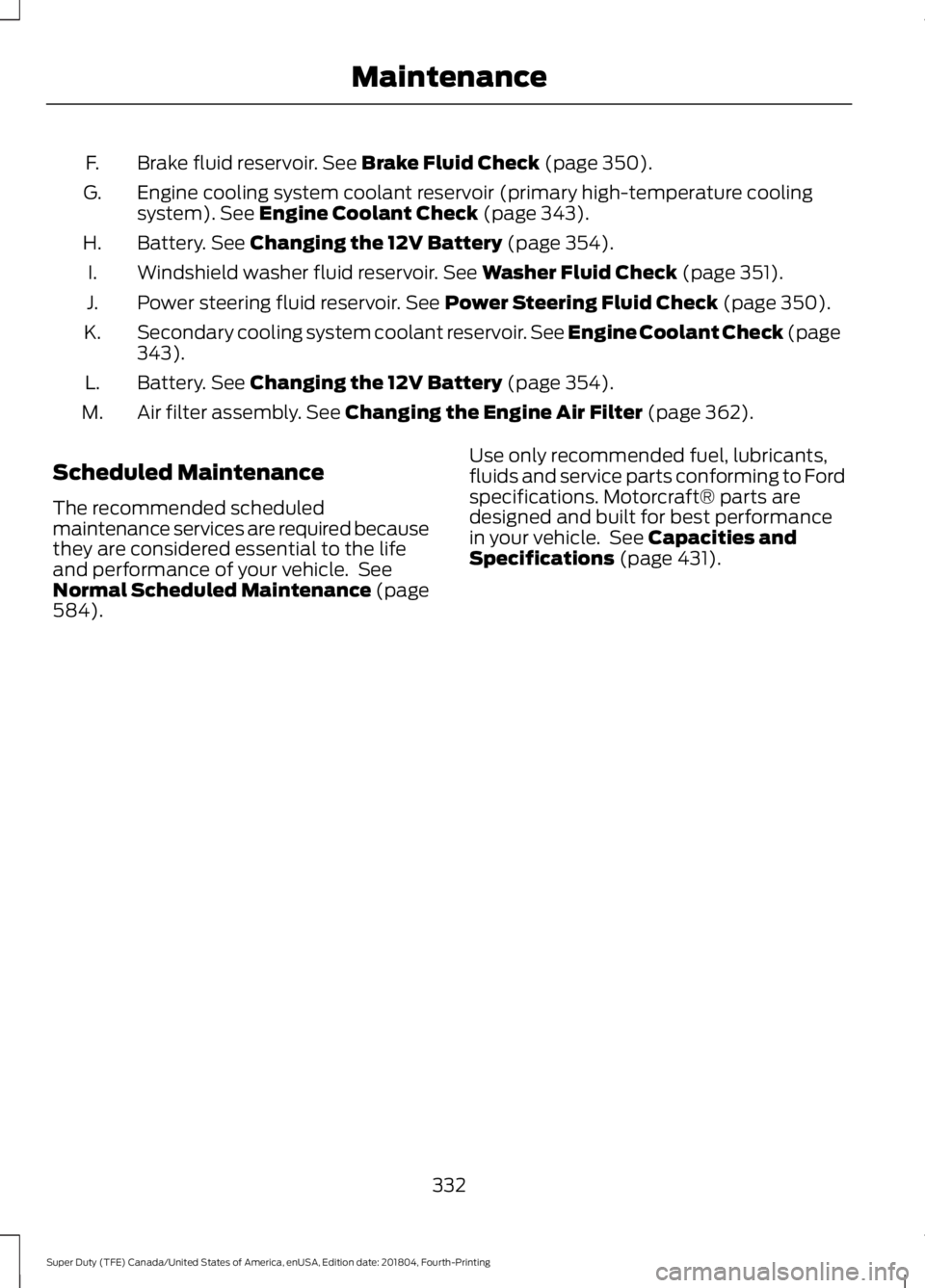

FORD F-250 2019  Owners Manual Brake fluid reservoir. See Brake Fluid Check (page 350).
F.
Engine cooling system coolant reservoir (primary high-temperature cooling
system).
 See Engine Coolant Check (page 343).
G.
Battery.
 See Ch

Page 336 of 666

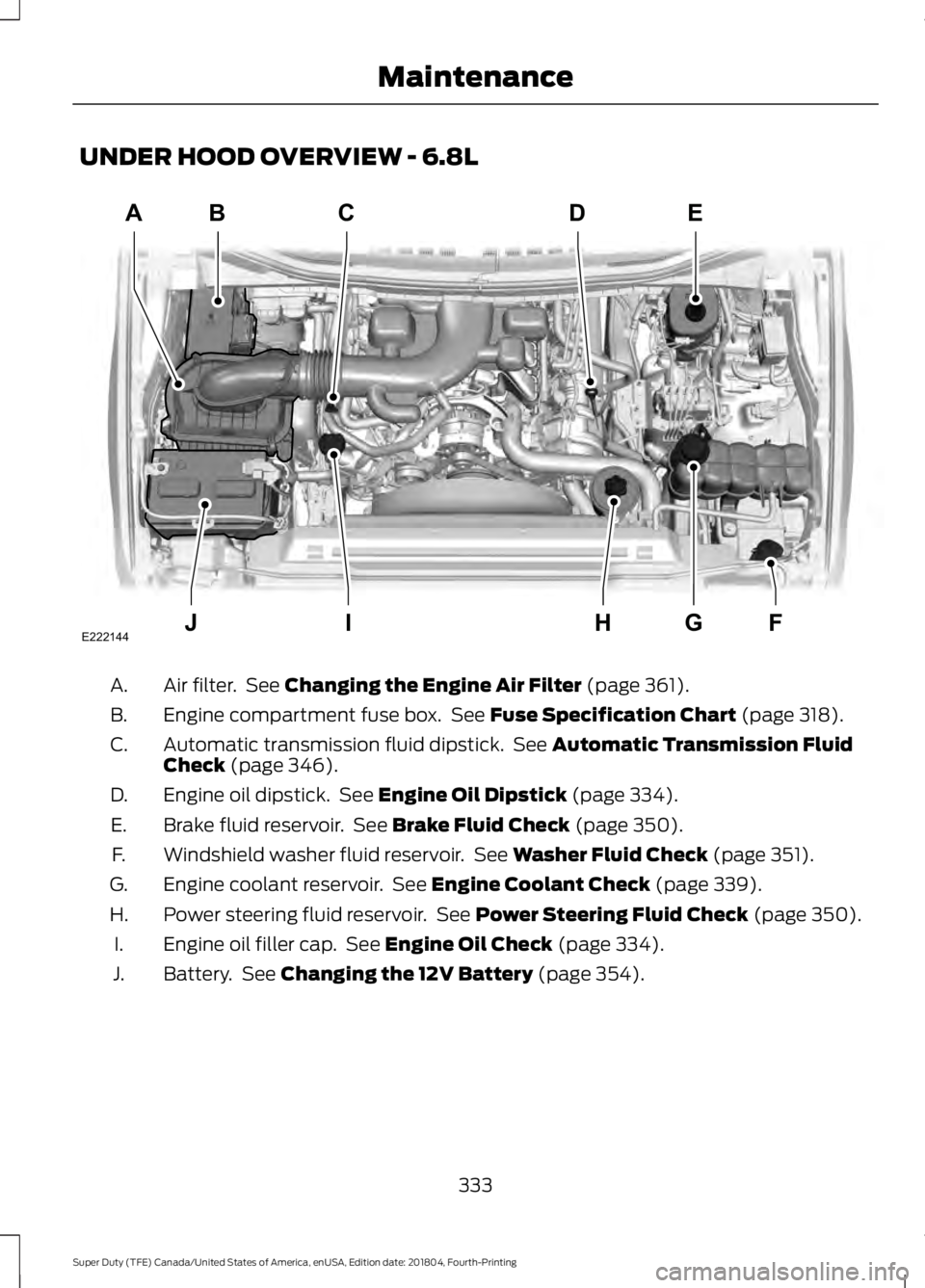

FORD F-250 2019  Owners Manual UNDER HOOD OVERVIEW - 6.8L
Air filter.  See Changing the Engine Air Filter (page 361).
A.
Engine compartment fuse box.  See
Fuse Specification Chart (page 318).
B.
Automatic transmission fluid dipsti

Page 337 of 666

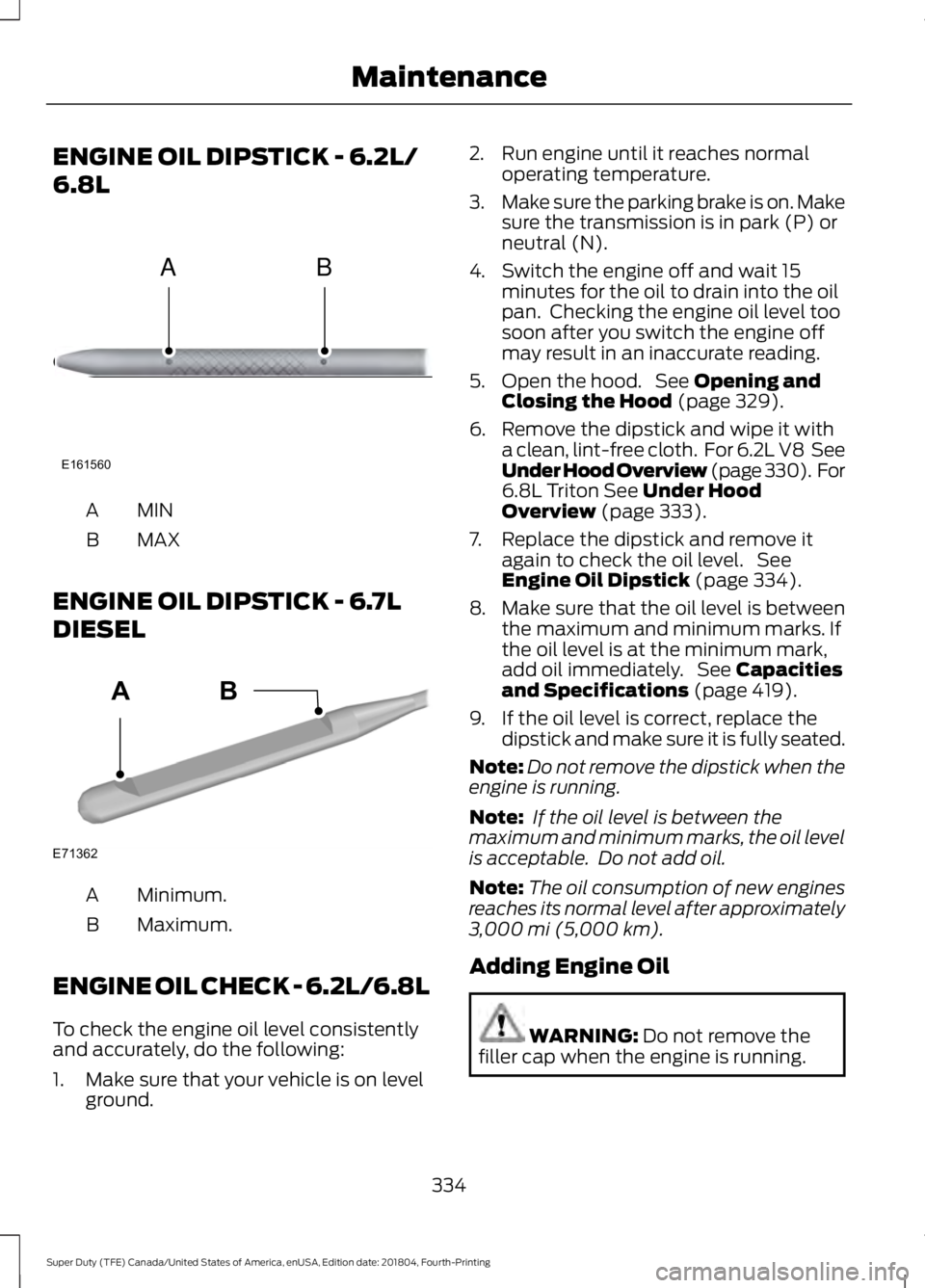

FORD F-250 2019  Owners Manual ENGINE OIL DIPSTICK - 6.2L/
6.8L
MINA
MAX
B
ENGINE OIL DIPSTICK - 6.7L
DIESEL Minimum.
A
Maximum.
B
ENGINE OIL CHECK - 6.2L/6.8L
To check the engine oil level consistently
and accurately, do the follo

Page 338 of 666

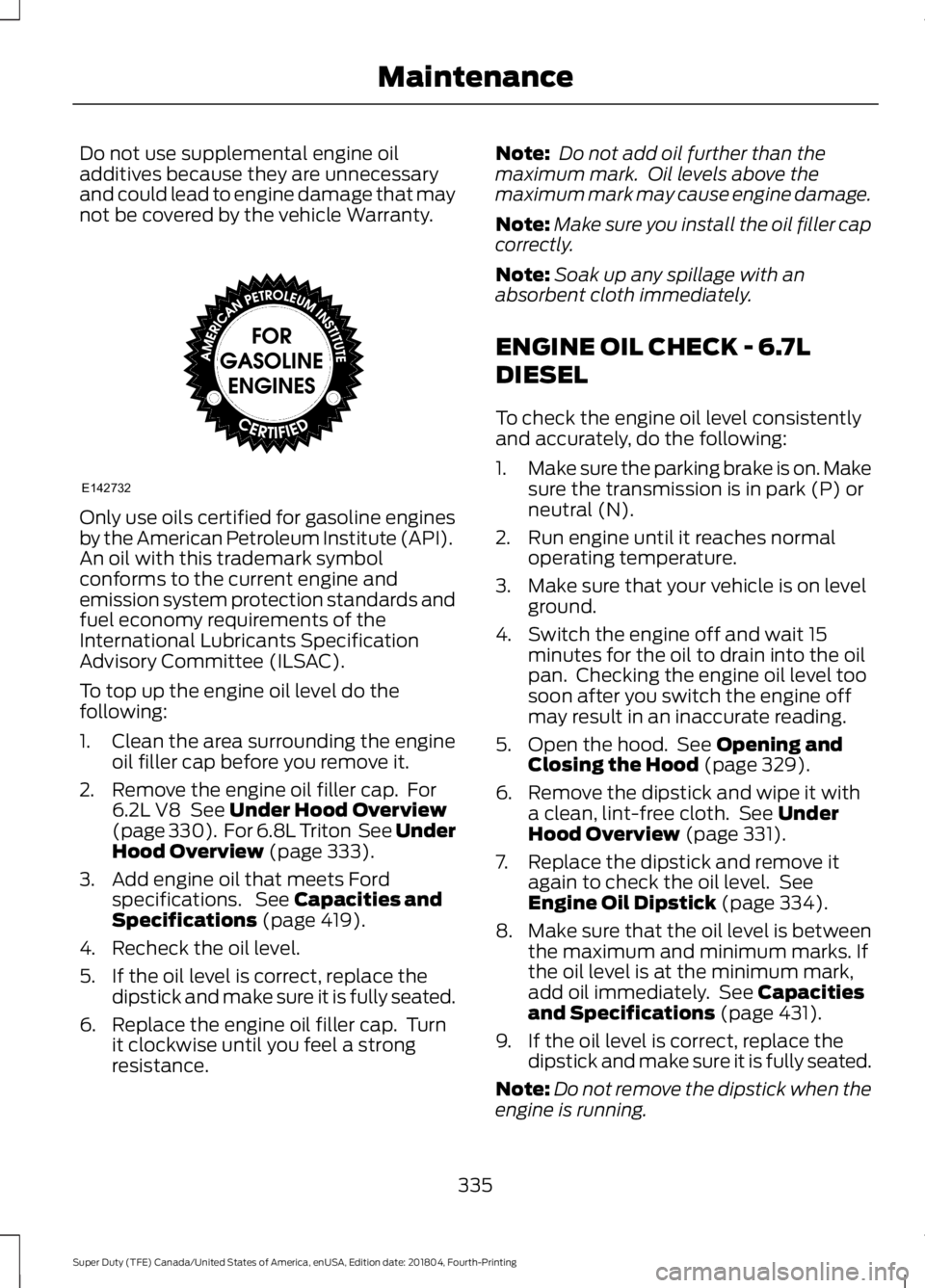

FORD F-250 2019  Owners Manual Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.
Only use oils certified for gasoline engines

Page 339 of 666

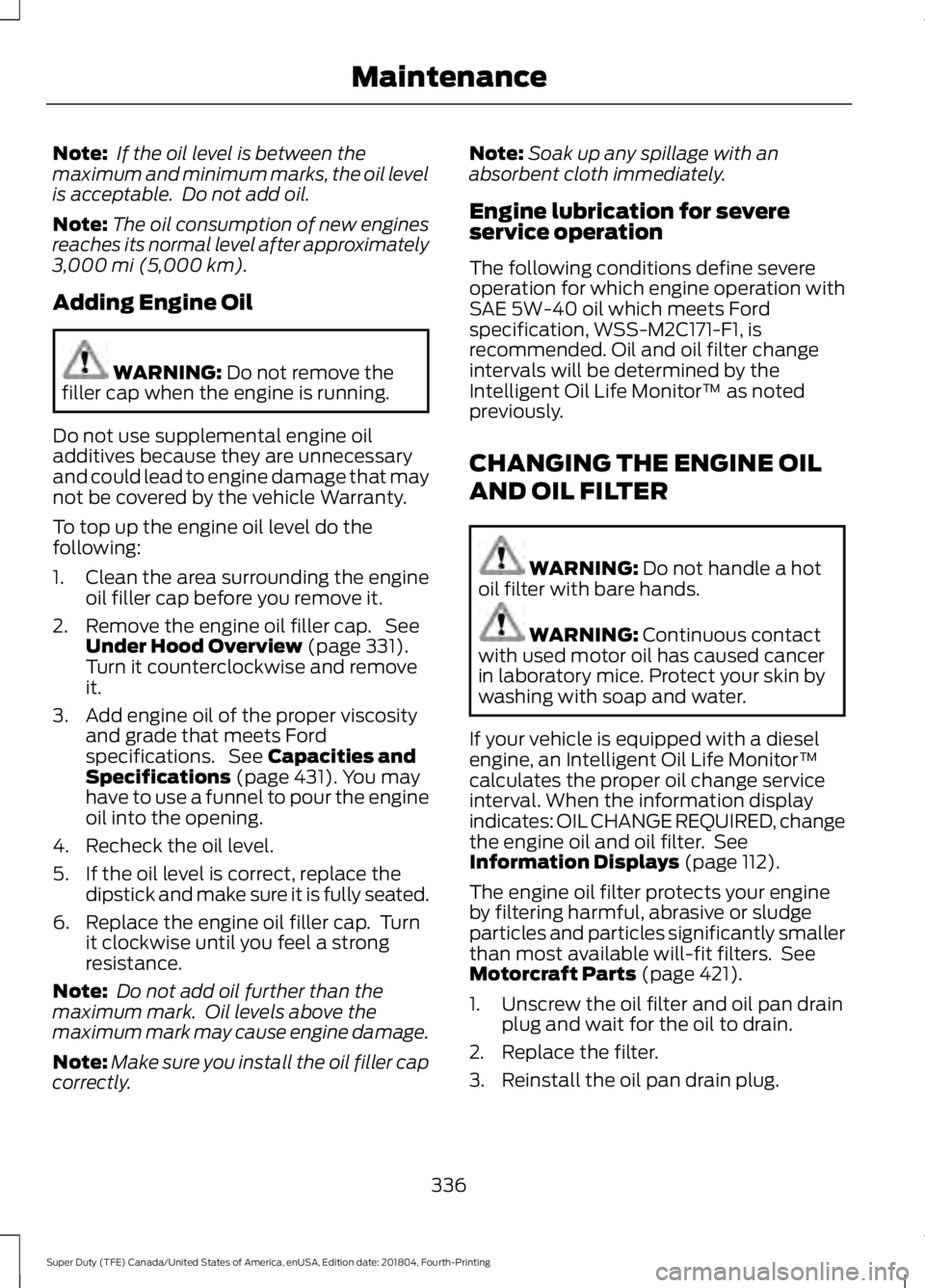

FORD F-250 2019  Owners Manual Note:
 If the oil level is between the
maximum and minimum marks, the oil level
is acceptable.  Do not add oil.
Note: The oil consumption of new engines
reaches its normal level after approximately
3,

Page 340 of 666

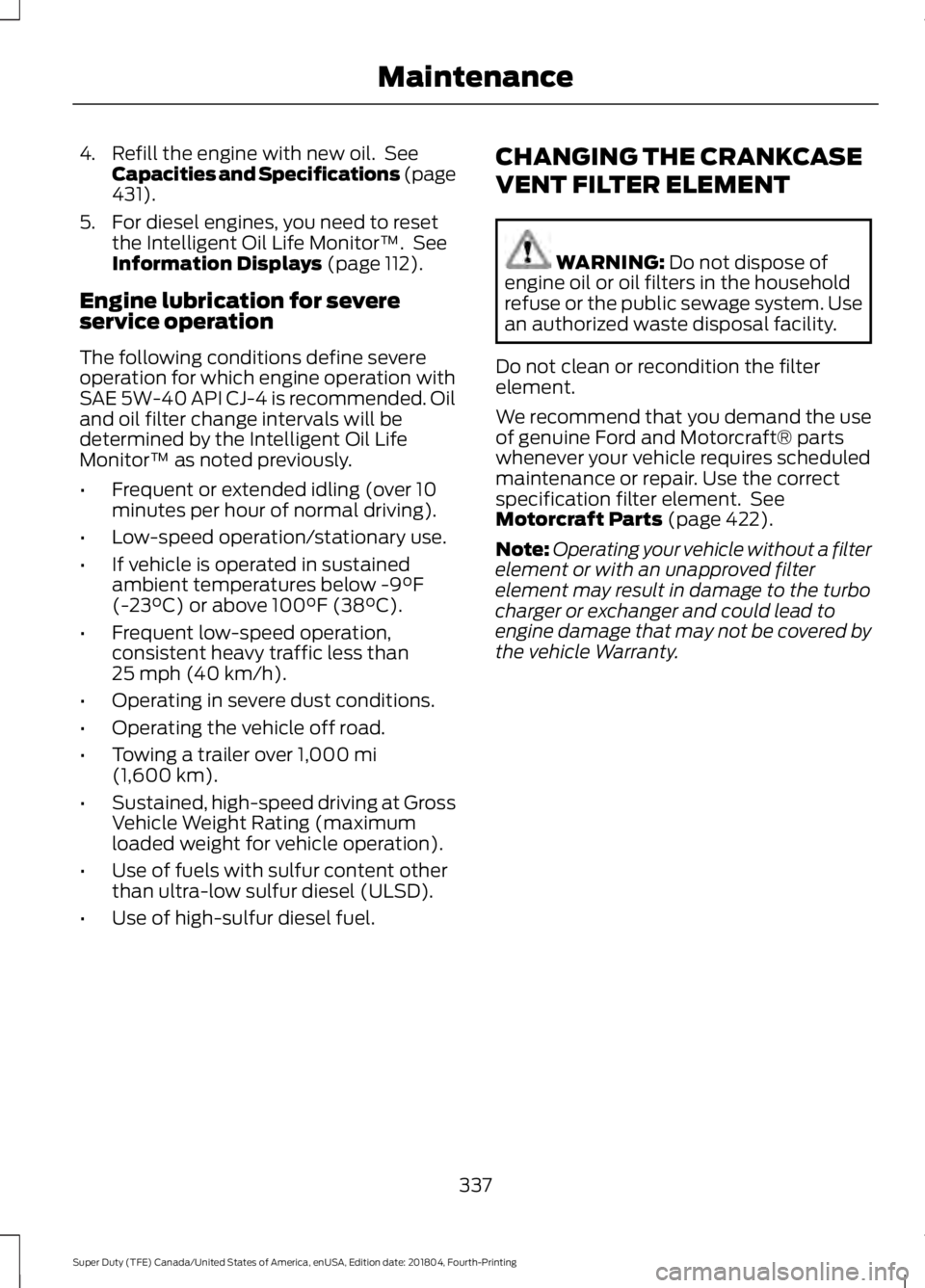

FORD F-250 2019  Owners Manual 4. Refill the engine with new oil.  See
Capacities and Specifications (page
431).
5. For diesel engines, you need to reset the Intelligent Oil Life Monitor™.  See
Information Displays
 (page 112).
E
