alarm FORD F-250 2022 Owners Manual

Contacting Us
Contacting Us
..................................................17
Introduction
About This Publication ................................
19
Using This Publication ................................
20
Symbols Glossary
Symbols Used on Your Vehicle .................
21
Data Privacy
Data Privacy ....................................................
24
Service Data ....................................................
25
Event Data .......................................................
25
Settings Data ..................................................
26
Connected Vehicle Data .............................
26
Mobile Device Data - Vehicles With: SYNC 3 ...........................................................
27
Mobile Device Data - Vehicles With: SYNC 4 ..........................................................
27
Emergency Call System Data ...................
28
Visual Search
Steering Wheel - Vehicles With: SYNC 4 ........................................................................\
..
29
Steering Wheel - Vehicles With: SYNC 3 ........................................................................\
..
30
Instrument Panel ............................................
31
Vehicle Interior ................................................
32
Front Exterior ..................................................
33
Rear Exterior ....................................................
34
Child Safety
Child Safety Precautions ............................
35
Child Restraint Anchor Points ..................
36
Child Restraints ..............................................
38
Installing Child Restraints ..........................
39
Booster Seats .................................................
46
Child Safety Locks ........................................
48Seatbelts
Seatbelt Precautions
...................................
49
Fastening and Unfastening the Seatbelts ........................................................................\
..
50
Sensitive Locking Mode ...............................
51
Automatic Locking Mode ............................
51
Adjusting the Seatbelts During Pregnancy ....................................................
52
Adjusting the Seatbelt Height ..................
52
Adjusting the Seatbelt Length .................
53
Seatbelt Reminder ........................................
53
Checking the Seatbelts ...............................
55
Seatbelt Extensions .....................................
56
Airbags
How Do the Front Airbags Work ..............
57
How Do the Side Airbags Work ................
57
How Does the Safety Canopy ™ Work
........................................................................\
..
58
Airbag Precautions .......................................
59
Switching the Passenger Airbag On and Off ..................................................................
60
Properly Adjusting the Driver and Front Passenger Seats .......................................
64
Children and Airbags ...................................
64
Crash Sensors and Airbag Indicator ......
65
Disposing of Airbags ....................................
66
911 Assist
What Is 911 Assist ..........................................
67
How Does 911 Assist Work .........................
67
Emergency Call Requirements .................
67
Emergency Call Limitations ......................
68
Keys and Remote Controls
Remote Control Limitations .....................
69
Using the Remote Control .........................
69
Opening and Closing the Flip Key ..........
69
Removing the Key Blade ............................
70
Sounding the Panic Alarm .........................
70
1
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Table of Contents

Security
Passive Anti-Theft System
......................106
Anti-Theft Alarm System ........................
106
Anti-Theft Alarm System Settings .......
107
Security – Troubleshooting .....................
108
Power Running Boards
Power Running Board Precautions ........
110
Power Running Board Settings ...............
110
Deploying and Stowing the Power Running Boards ........................................
110
Power Running Boards – Troubleshooting .......................................
110
Steering Wheel
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column ..........................................................
111
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column .........................................................
112
Resetting the Stopping Position - Vehicles With: Power Adjustable
Steering Column .......................................
112
Horn ...................................................................
112
Switching the Heated Steering Wheel On and Off ...................................................
112
Adjustable Pedals
Adjusting the Pedals ...................................
114
Wipers and Washers
Wipers ...............................................................
115
Autowipers ......................................................
115
Checking the Wiper Blades ......................
116
Replacing the Front Wiper Blades .........
116
Washers ...........................................................
116
Wipers and Washers – Troubleshooting ........................................................................\
..
117
Exterior Lighting
Exterior Lighting Control ............................
118Headlamps
.....................................................
118
Headlamps – Troubleshooting ...............
118
Autolamps ......................................................
119
Exterior Lamps ..............................................
119
Automatic High Beam Control ................
121
Automatic High Beam Control – Troubleshooting .......................................
123
Interior Lighting
Switching All of the Interior Lamps On and Off ........................................................
124
Switching the Front Interior Lamps On and Off ........................................................
124
Switching the Rear Interior Lamps On and Off ........................................................
124
Interior Lamp Function ..............................
124
Adjusting the Instrument Panel Lighting Brightness ...................................................
125
Ambient Lighting .........................................
125
Interior Lighting – Troubleshooting ......
125
Windows
Opening and Closing the Windows ......
126
Window Bounce-Back ...............................
126
Locking the Rear Window Controls .......
127
Opening and Closing the Sliding Windows .....................................................
127
Interior Mirror
Interior Mirror Precautions .......................
128
Manually Dimming the Interior Mirror ........................................................................\
.
128
Auto-Dimming Interior Mirror ..................
128
Exterior Mirrors
Adjusting the Exterior Mirrors ..................
129
Folding the Exterior Mirrors - Vehicles With: Manual Folding Mirrors ..............
129
Folding the Exterior Mirrors - Vehicles With: Power Folding Mirrors ................
129
Extending the Exterior Mirrors ................
130
Auto-Dimming Exterior Mirror ................
130
3
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Table of Contents

Fuse compartment
Hazard flashers
Heated rear window
Windshield defrosting system
Interior luggage compartment
release
Jack
Keep out of reach of children
Lighting control
Low tire pressure warning
Maintain correct fluid level
Note operating instructions
Horn control
Panic alarm
Parking aid
Passenger airbag activated Passenger airbag deactivated
Power steering fluid
Power windows front/rear
Power window lockout
Requires registered technician
Safety alert
See Owner's Manual
See Service Manual
Malfunction Indicator Lamp
(MIL)
Side airbag
Shield the eyes
Stability control
Hill descent control
Trail control
Windshield wiping system
22
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Symbols Glossary E161353 E270945 E139213 E270849 E270850 E231159 E65963 E231158 E167012 E138639 E163171 E332910 E270969

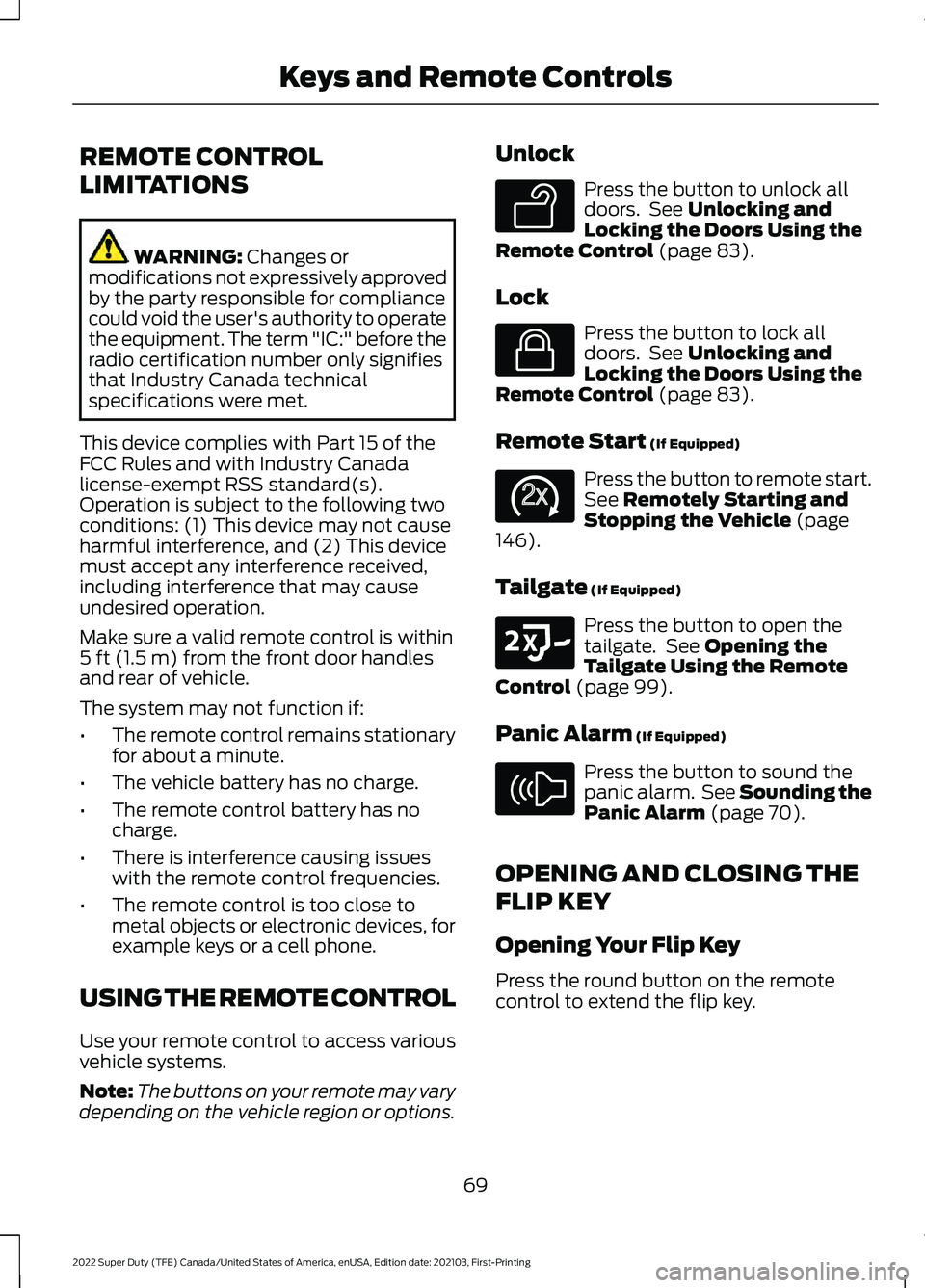

REMOTE CONTROL
LIMITATIONS
WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Make sure a valid remote control is within
5 ft (1.5 m)
from the front door handles
and rear of vehicle.
The system may not function if:
• The remote control remains stationary
for about a minute.
• The vehicle battery has no charge.
• The remote control battery has no
charge.
• There is interference causing issues
with the remote control frequencies.
• The remote control is too close to
metal objects or electronic devices, for
example keys or a cell phone.
USING THE REMOTE CONTROL
Use your remote control to access various
vehicle systems.
Note: The buttons on your remote may vary
depending on the vehicle region or options. Unlock Press the button to unlock all
doors. See
Unlocking and
Locking the Doors Using the
Remote Control
(page 83).
Lock Press the button to lock all
doors. See
Unlocking and
Locking the Doors Using the
Remote Control
(page 83).
Remote Start
(If Equipped) Press the button to remote start.
See
Remotely Starting and
Stopping the Vehicle (page
146).
Tailgate
(If Equipped) Press the button to open the
tailgate. See
Opening the
Tailgate Using the Remote
Control
(page 99).
Panic Alarm
(If Equipped) Press the button to sound the
panic alarm. See Sounding the
Panic Alarm
(page 70).
OPENING AND CLOSING THE
FLIP KEY
Opening Your Flip Key
Press the round button on the remote
control to extend the flip key.
69
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Keys and Remote ControlsE138629 E138623 E138625 E191530 E138624

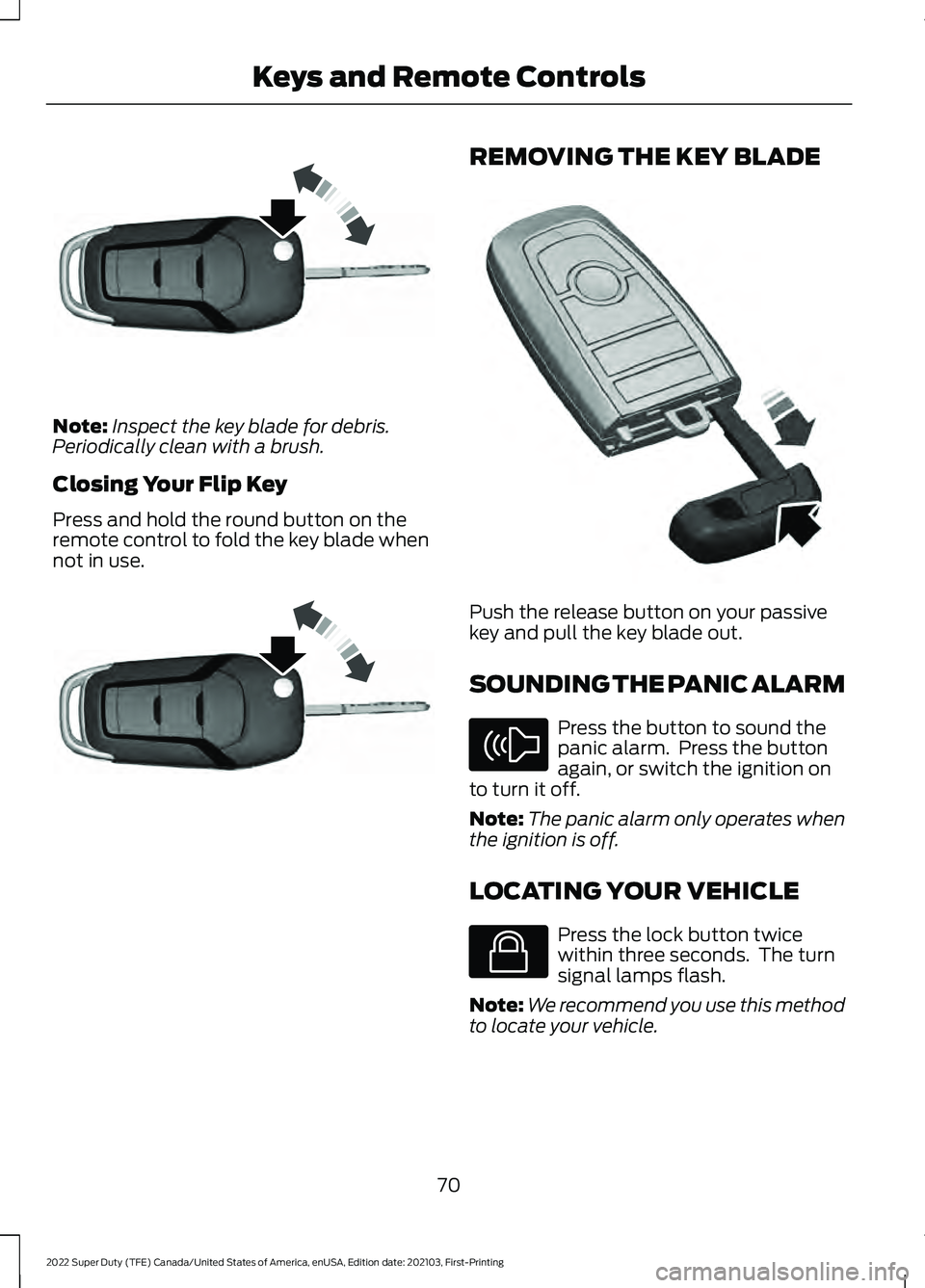

Note:
Inspect the key blade for debris.
Periodically clean with a brush.
Closing Your Flip Key
Press and hold the round button on the
remote control to fold the key blade when
not in use. REMOVING THE KEY BLADE
Push the release button on your passive
key and pull the key blade out.
SOUNDING THE PANIC ALARM
Press the button to sound the
panic alarm. Press the button
again, or switch the ignition on
to turn it off.
Note: The panic alarm only operates when
the ignition is off.
LOCATING YOUR VEHICLE Press the lock button twice
within three seconds. The turn
signal lamps flash.
Note: We recommend you use this method
to locate your vehicle.
70
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Keys and Remote ControlsE191532 E191532 E322866 E138624 E138623

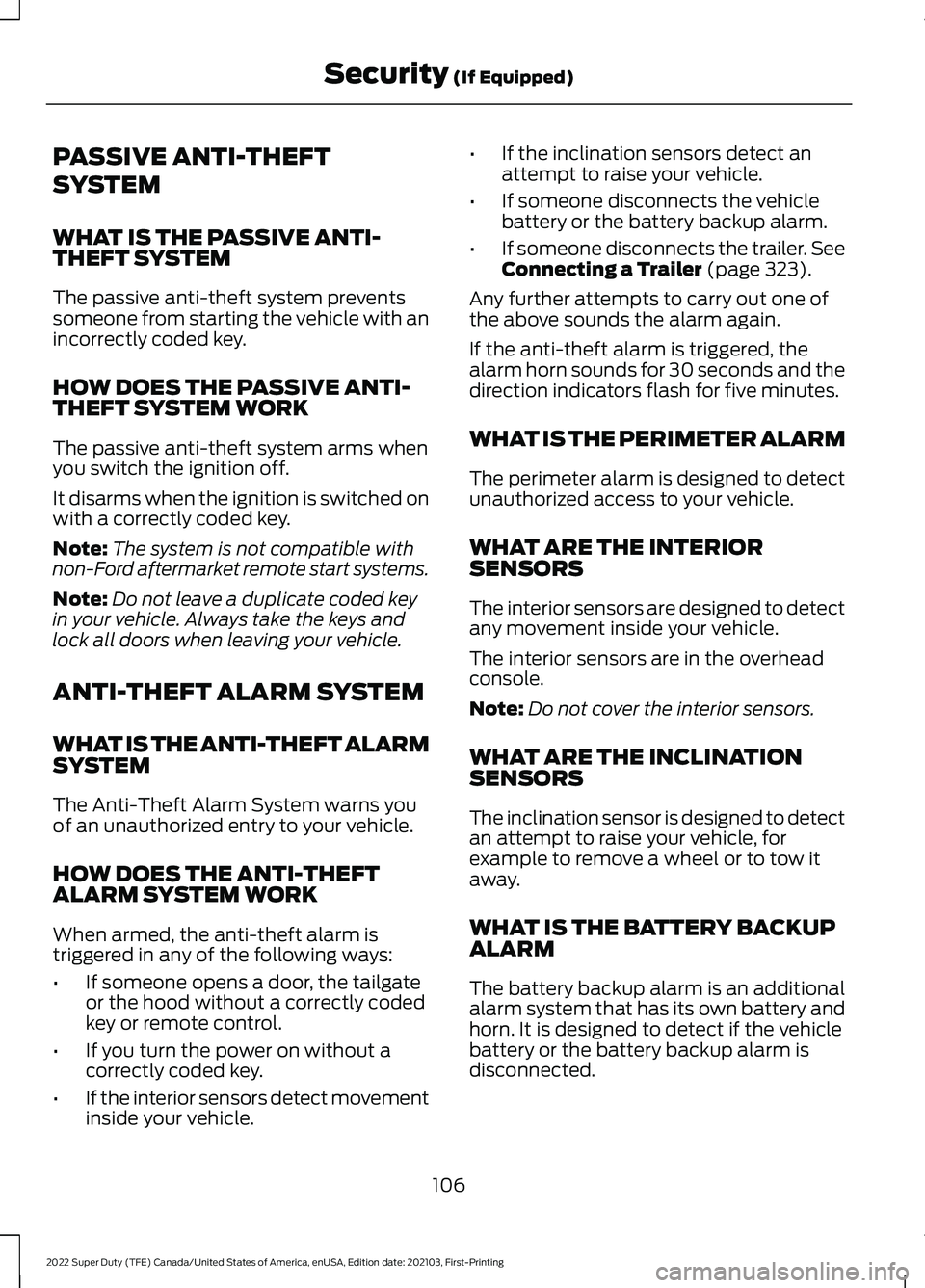

PASSIVE ANTI-THEFT
SYSTEM
WHAT IS THE PASSIVE ANTI-
THEFT SYSTEM
The passive anti-theft system prevents
someone from starting the vehicle with an
incorrectly coded key.
HOW DOES THE PASSIVE ANTI-
THEFT SYSTEM WORK
The passive anti-theft system arms when
you switch the ignition off.
It disarms when the ignition is switched on
with a correctly coded key.
Note:
The system is not compatible with
non-Ford aftermarket remote start systems.
Note: Do not leave a duplicate coded key
in your vehicle. Always take the keys and
lock all doors when leaving your vehicle.
ANTI-THEFT ALARM SYSTEM
WHAT IS THE ANTI-THEFT ALARM
SYSTEM
The Anti-Theft Alarm System warns you
of an unauthorized entry to your vehicle.
HOW DOES THE ANTI-THEFT
ALARM SYSTEM WORK
When armed, the anti-theft alarm is
triggered in any of the following ways:
• If someone opens a door, the tailgate
or the hood without a correctly coded
key or remote control.
• If you turn the power on without a
correctly coded key.
• If the interior sensors detect movement
inside your vehicle. •
If the inclination sensors detect an
attempt to raise your vehicle.
• If someone disconnects the vehicle
battery or the battery backup alarm.
• If someone disconnects the trailer. See
Connecting a Trailer (page 323).
Any further attempts to carry out one of
the above sounds the alarm again.
If the anti-theft alarm is triggered, the
alarm horn sounds for 30 seconds and the
direction indicators flash for five minutes.
WHAT IS THE PERIMETER ALARM
The perimeter alarm is designed to detect
unauthorized access to your vehicle.
WHAT ARE THE INTERIOR
SENSORS
The interior sensors are designed to detect
any movement inside your vehicle.
The interior sensors are in the overhead
console.
Note: Do not cover the interior sensors.
WHAT ARE THE INCLINATION
SENSORS
The inclination sensor is designed to detect
an attempt to raise your vehicle, for
example to remove a wheel or to tow it
away.
WHAT IS THE BATTERY BACKUP
ALARM
The battery backup alarm is an additional
alarm system that has its own battery and
horn. It is designed to detect if the vehicle
battery or the battery backup alarm is
disconnected.
106
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Security
(If Equipped)

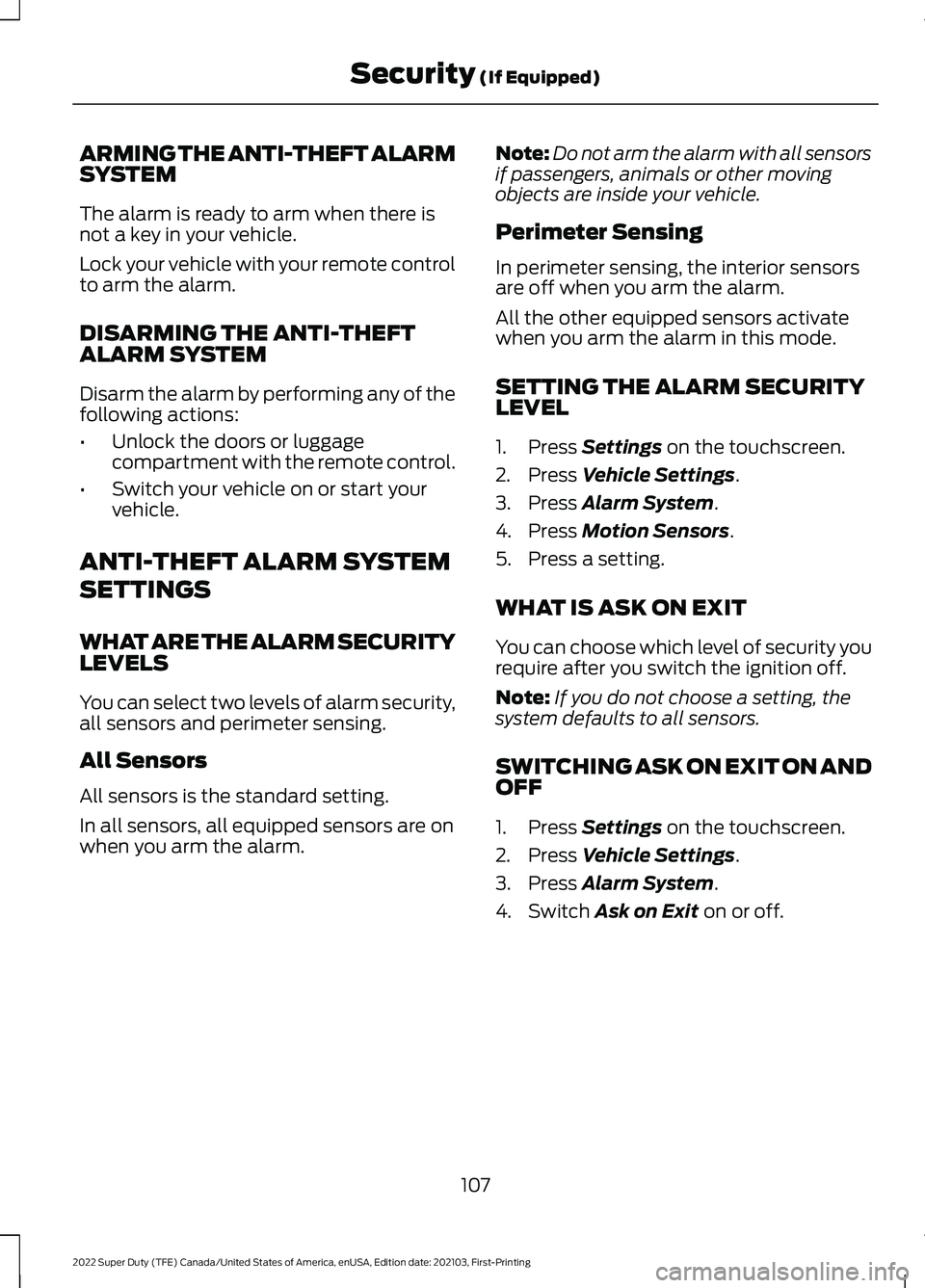

ARMING THE ANTI-THEFT ALARM
SYSTEM
The alarm is ready to arm when there is
not a key in your vehicle.
Lock your vehicle with your remote control
to arm the alarm.
DISARMING THE ANTI-THEFT
ALARM SYSTEM
Disarm the alarm by performing any of the
following actions:
•
Unlock the doors or luggage
compartment with the remote control.
• Switch your vehicle on or start your
vehicle.
ANTI-THEFT ALARM SYSTEM
SETTINGS
WHAT ARE THE ALARM SECURITY
LEVELS
You can select two levels of alarm security,
all sensors and perimeter sensing.
All Sensors
All sensors is the standard setting.
In all sensors, all equipped sensors are on
when you arm the alarm. Note:
Do not arm the alarm with all sensors
if passengers, animals or other moving
objects are inside your vehicle.
Perimeter Sensing
In perimeter sensing, the interior sensors
are off when you arm the alarm.
All the other equipped sensors activate
when you arm the alarm in this mode.
SETTING THE ALARM SECURITY
LEVEL
1. Press Settings on the touchscreen.
2. Press
Vehicle Settings.
3. Press
Alarm System.
4. Press
Motion Sensors.
5. Press a setting.
WHAT IS ASK ON EXIT
You can choose which level of security you
require after you switch the ignition off.
Note: If you do not choose a setting, the
system defaults to all sensors.
SWITCHING ASK ON EXIT ON AND
OFF
1. Press
Settings on the touchscreen.
2. Press
Vehicle Settings.
3. Press
Alarm System.
4. Switch
Ask on Exit on or off.
107
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Security
(If Equipped)

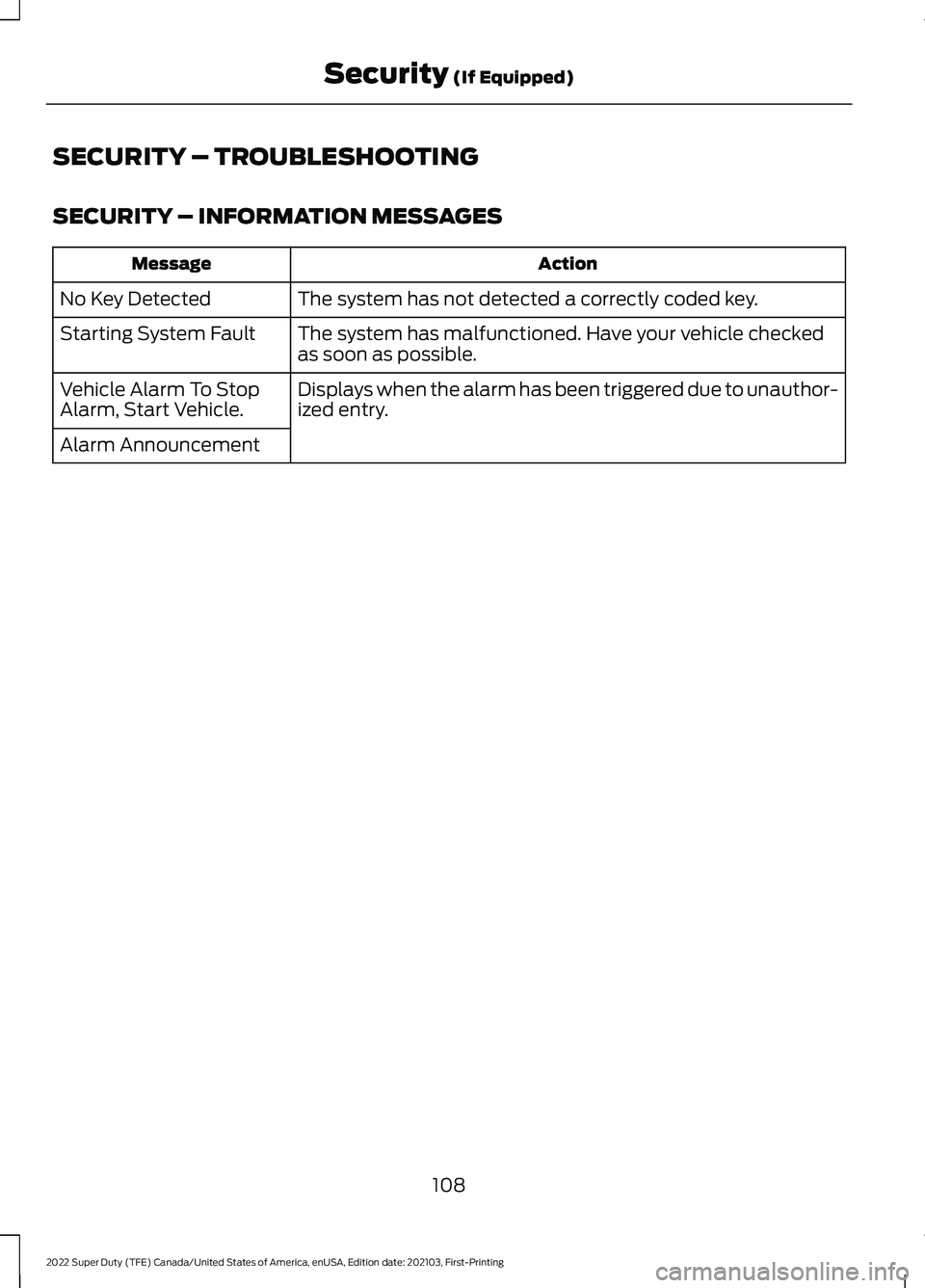

SECURITY – TROUBLESHOOTING
SECURITY – INFORMATION MESSAGES
Action
Message
The system has not detected a correctly coded key.
No Key Detected
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Starting System Fault
Displays when the alarm has been triggered due to unauthor-
ized entry.
Vehicle Alarm To Stop
Alarm, Start Vehicle.
Alarm Announcement
108
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Security (If Equipped)

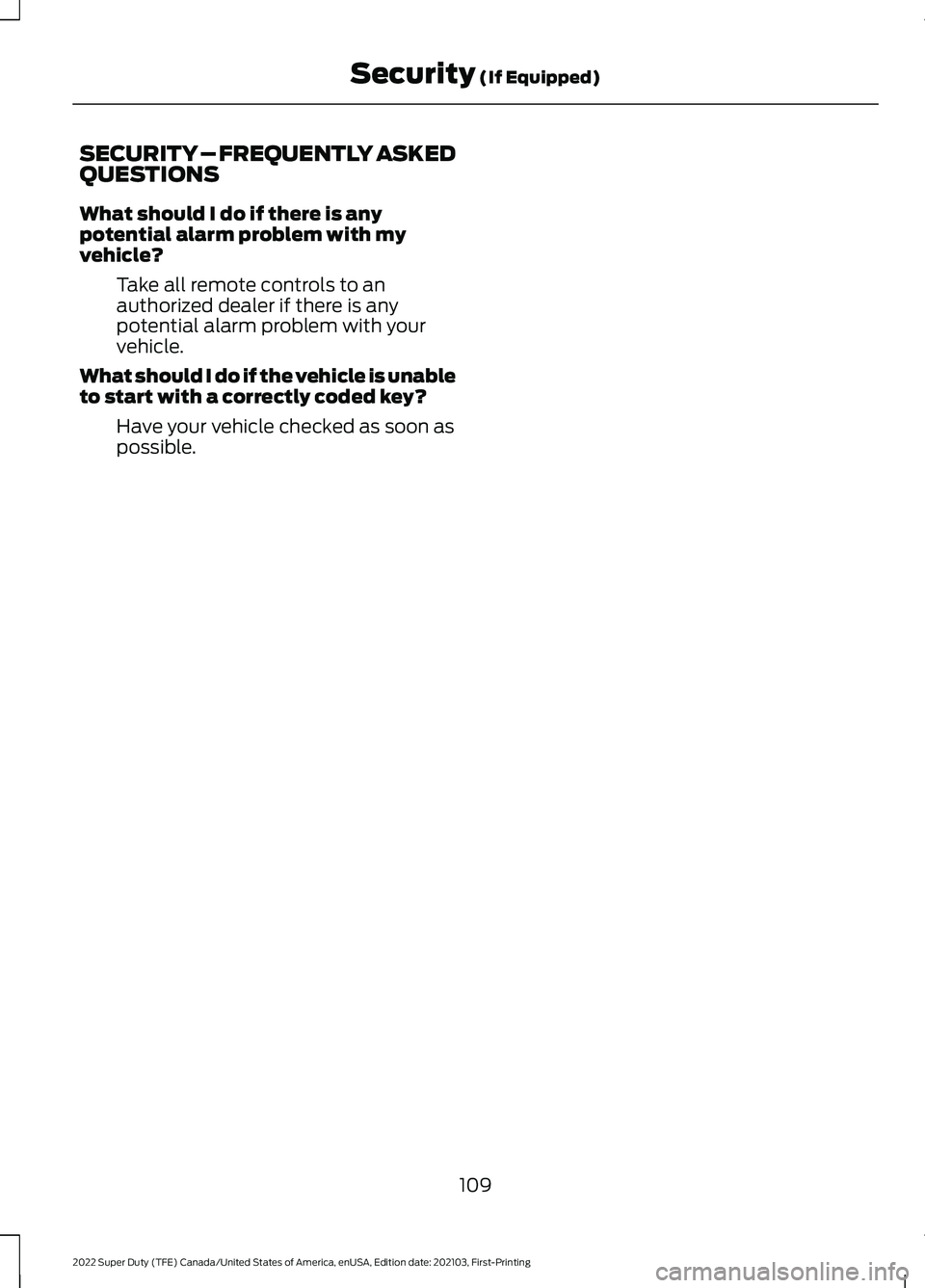

SECURITY – FREQUENTLY ASKED
QUESTIONS
What should I do if there is any
potential alarm problem with my
vehicle?
Take all remote controls to an
authorized dealer if there is any
potential alarm problem with your
vehicle.
What should I do if the vehicle is unable
to start with a correctly coded key? Have your vehicle checked as soon as
possible.
109
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Security (If Equipped)

WHAT IS REMOTE START
The system allows you to remotely start
your vehicle and to adjust the interior
temperature according to the settings that
you chose.
REMOTE START
PRECAUTIONS
WARNING: Do not start the engine
in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.
REMOTE START LIMITATIONS
Remote start does not work under the
following conditions:
• The alarm horn is sounding.
• The hood is open.
• The transmission is not in park (P).
• The ignition is on.
• The battery voltage is below the
minimum operating voltage.
Note: Do not use remote start if your fuel
level is low.
Note: You can use remote start with
FordPass. See Connecting the Vehicle to
a Wi-Fi Network (page 498).
ENABLING REMOTE START
1. Press
Settings on the touchscreen.
2. Press
Vehicle Settings.
3. Press
Remote Start Setup.
4. Switch
Remote Start on or off. Note:
To remote start with FordPass, make
sure that the modem is enabled.
See
Connecting FordPass to the Modem
(page
502).
REMOTELY STARTING AND
STOPPING THE VEHICLE
Remotely Starting the Vehicle Press the button on the remote
control.
Within three seconds, press the
button on the remote control.
Within three seconds, press the
button again.
Note: You can also use FordPass to start
the vehicle.
Note: The turn signal lamps flash twice.
Note: The parking lamps turn on when the
vehicle is running.
Note: The horn sounds if the system fails
to start.
Note: All other vehicle systems remain off
when you have remotely started the vehicle.
Note: The vehicle remains secured when
you have remotely started the vehicle. A
valid key must be inside your vehicle to
switch the ignition on and drive your vehicle.
Remotely Stopping the Vehicle Within three seconds, press the
button on the remote control.
Within three seconds, press the
button again.
146
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Remote Start
(If Equipped)E138623 E138625 E138625
