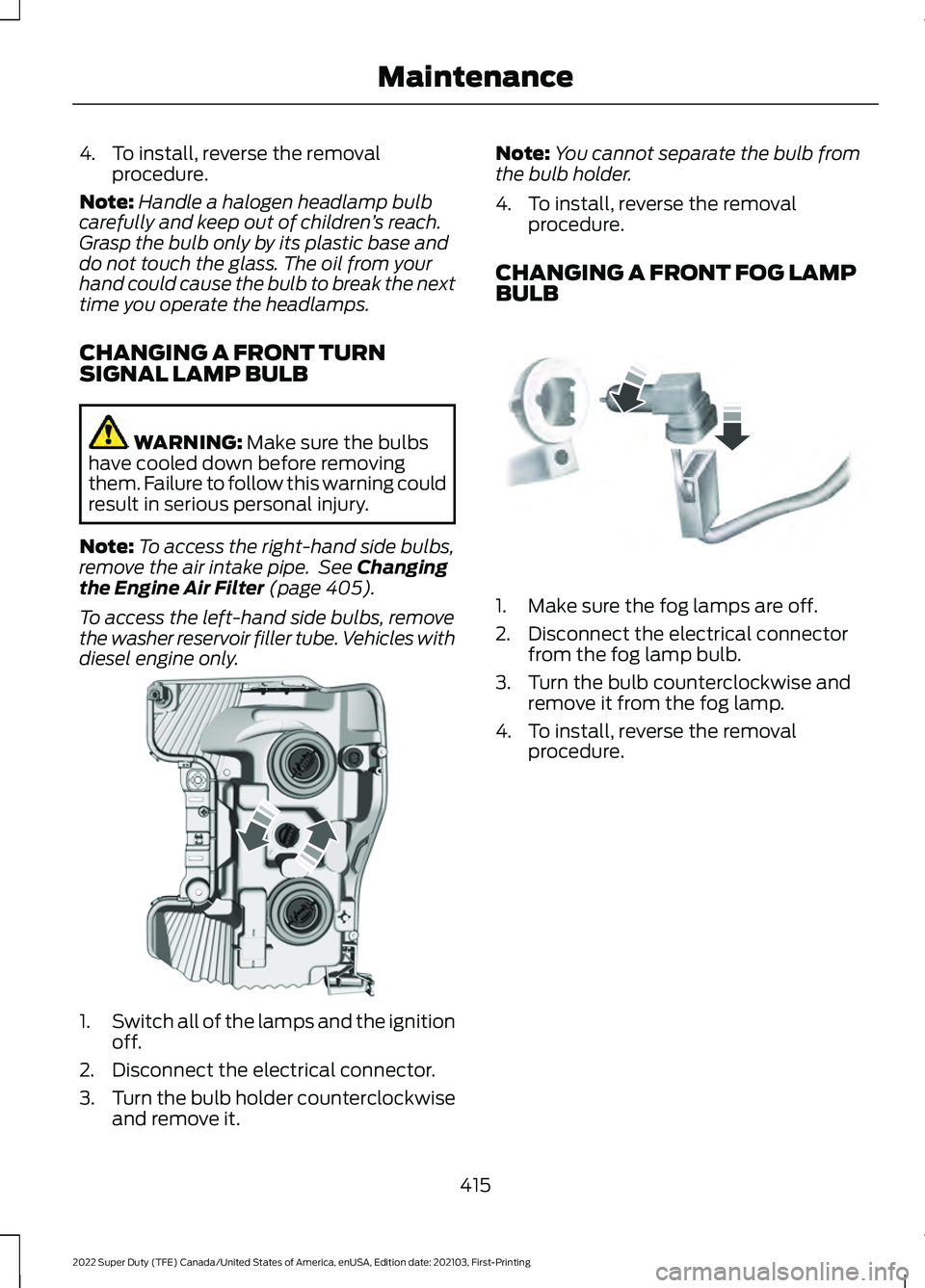

4. To install, reverse the removal
procedure.
Note: Handle a halogen headlamp bulb
carefully and keep out of children ’s reach.
Grasp the bulb only by its plastic base and
do not touch the glass. The oil from your
hand could cause the bulb to break the next
time you operate the headlamps.
CHANGING A FRONT TURN
SIGNAL LAMP BULB WARNING: Make sure the bulbs
have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.
Note: To access the right-hand side bulbs,
remove the air intake pipe. See
Changing
the Engine Air Filter (page 405).
To access the left-hand side bulbs, remove
the washer reservoir filler tube. Vehicles with
diesel engine only. 1.
Switch all of the lamps and the ignition
off.
2. Disconnect the electrical connector.
3. Turn the bulb holder counterclockwise
and remove it. Note:
You cannot separate the bulb from
the bulb holder.
4. To install, reverse the removal procedure.
CHANGING A FRONT FOG LAMP
BULB 1. Make sure the fog lamps are off.
2. Disconnect the electrical connector
from the fog lamp bulb.
3. Turn the bulb counterclockwise and remove it from the fog lamp.
4. To install, reverse the removal procedure.
415
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing MaintenanceE224990 E163826

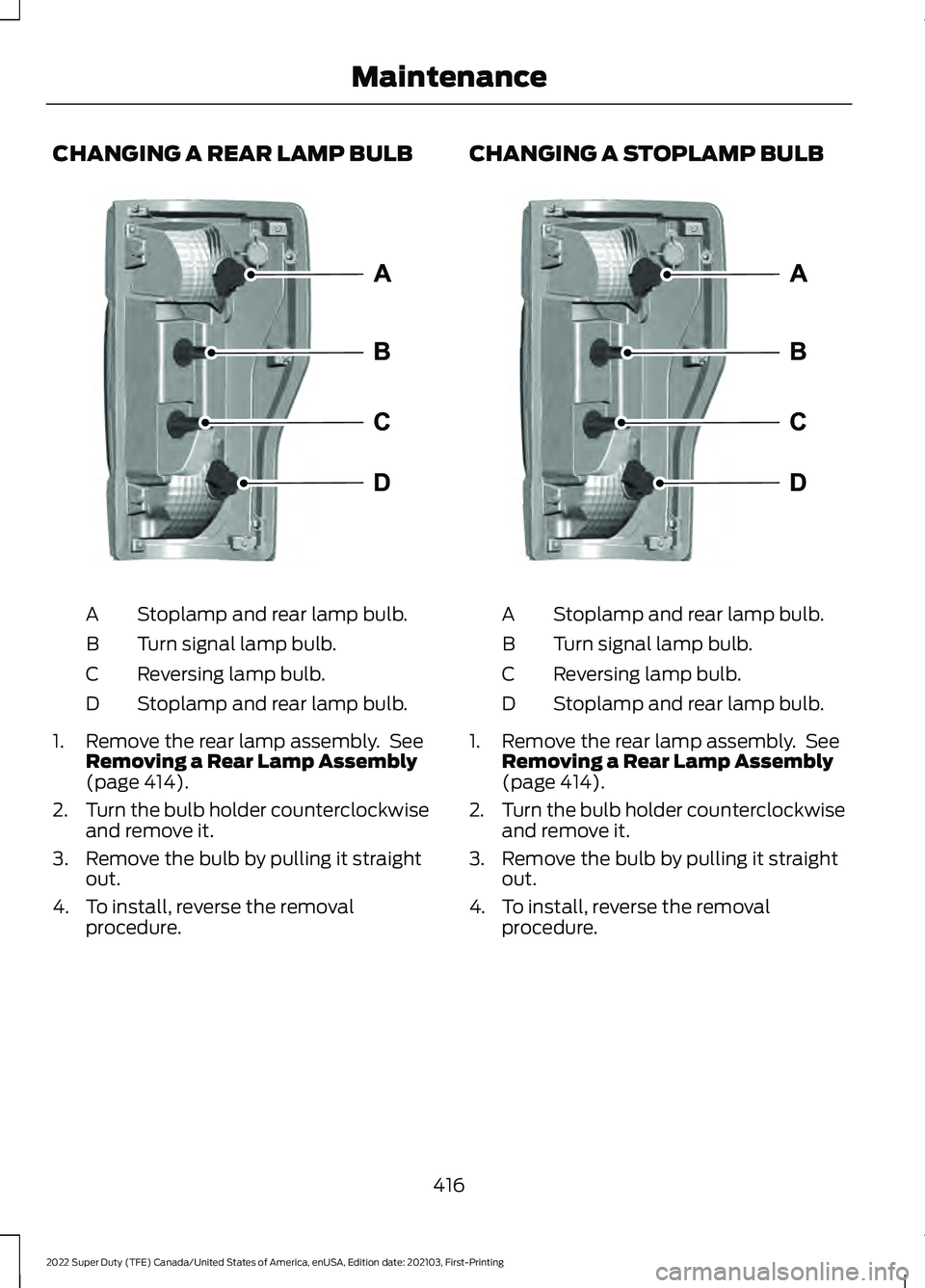

CHANGING A REAR LAMP BULB
Stoplamp and rear lamp bulb.
A
Turn signal lamp bulb.
B
Reversing lamp bulb.
C
Stoplamp and rear lamp bulb.
D
1. Remove the rear lamp assembly. See Removing a Rear Lamp Assembly
(page 414).
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight out.
4. To install, reverse the removal procedure. CHANGING A STOPLAMP BULB
Stoplamp and rear lamp bulb.
A
Turn signal lamp bulb.
B
Reversing lamp bulb.
C
Stoplamp and rear lamp bulb.
D
1. Remove the rear lamp assembly. See Removing a Rear Lamp Assembly
(page 414).
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight out.
4. To install, reverse the removal procedure.
416
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing MaintenanceE346947 E346947

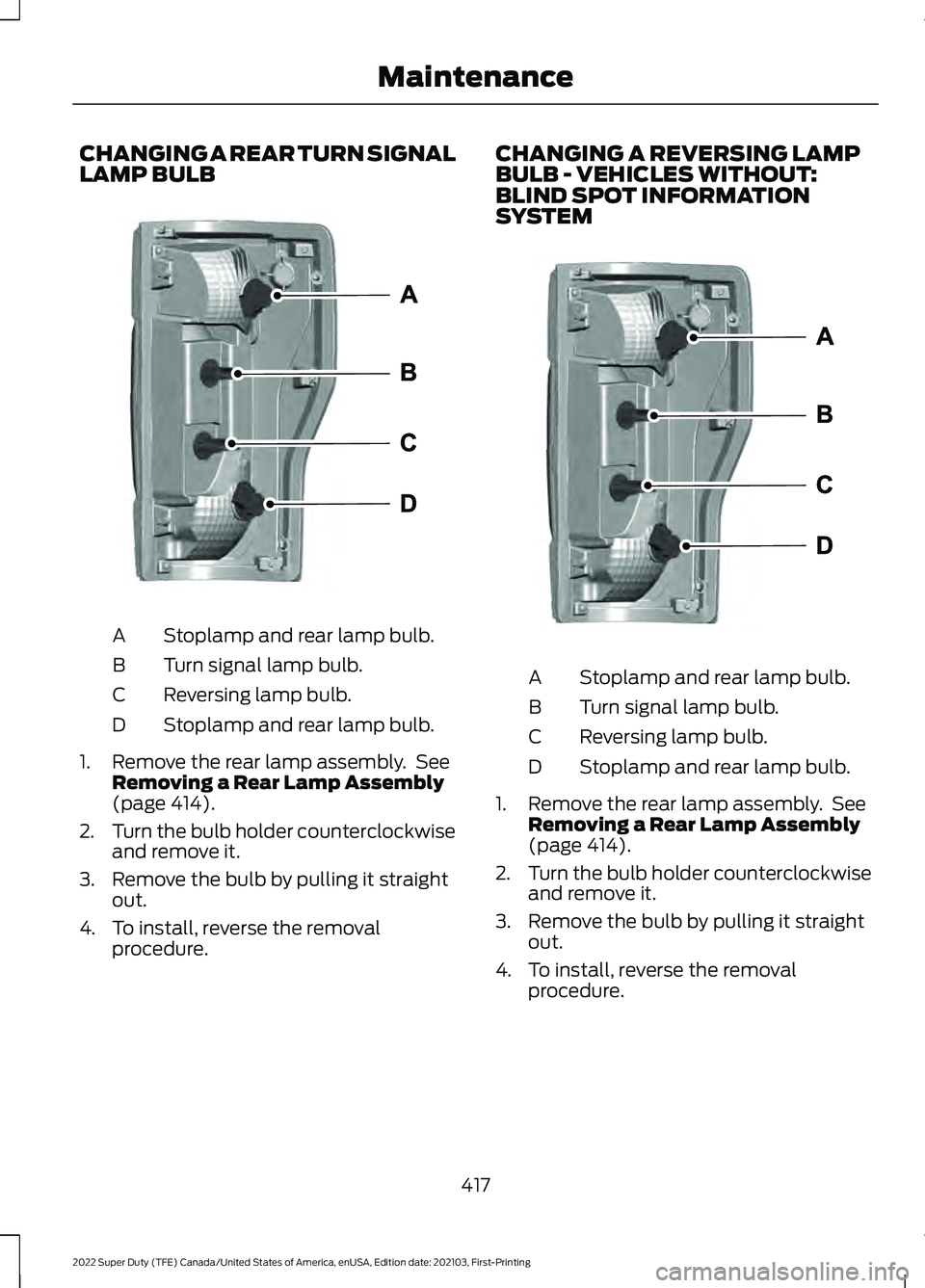

CHANGING A REAR TURN SIGNAL
LAMP BULB
Stoplamp and rear lamp bulb.
A
Turn signal lamp bulb.
B
Reversing lamp bulb.
C
Stoplamp and rear lamp bulb.
D
1. Remove the rear lamp assembly. See Removing a Rear Lamp Assembly
(page 414).
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight out.
4. To install, reverse the removal procedure. CHANGING A REVERSING LAMP
BULB - VEHICLES WITHOUT:
BLIND SPOT INFORMATION
SYSTEM
Stoplamp and rear lamp bulb.
A
Turn signal lamp bulb.
B
Reversing lamp bulb.
C
Stoplamp and rear lamp bulb.
D
1. Remove the rear lamp assembly. See Removing a Rear Lamp Assembly
(page
414).
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight out.
4. To install, reverse the removal procedure.
417
