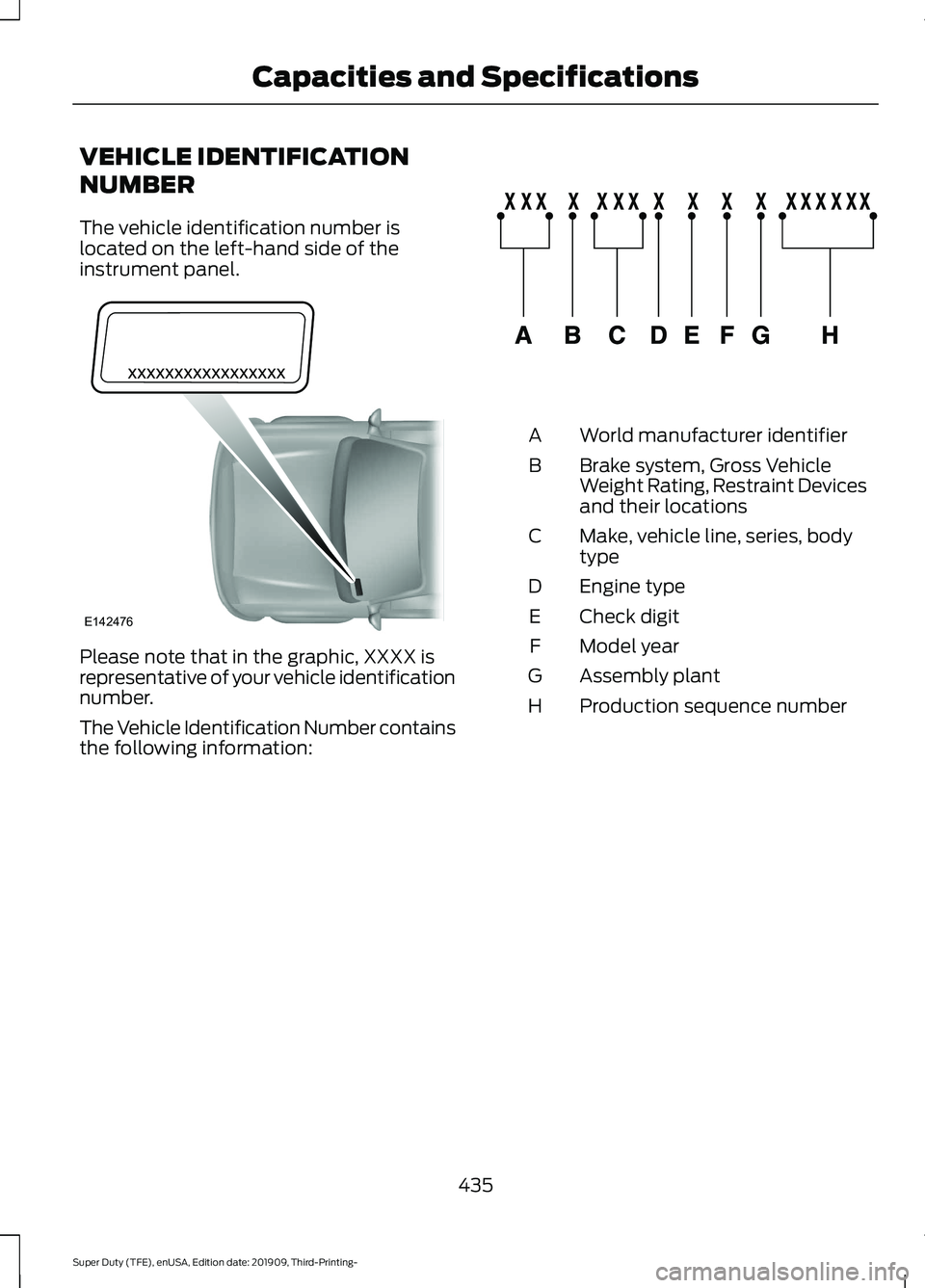

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information: World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
435
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Capacities and SpecificationsE142476 E142477

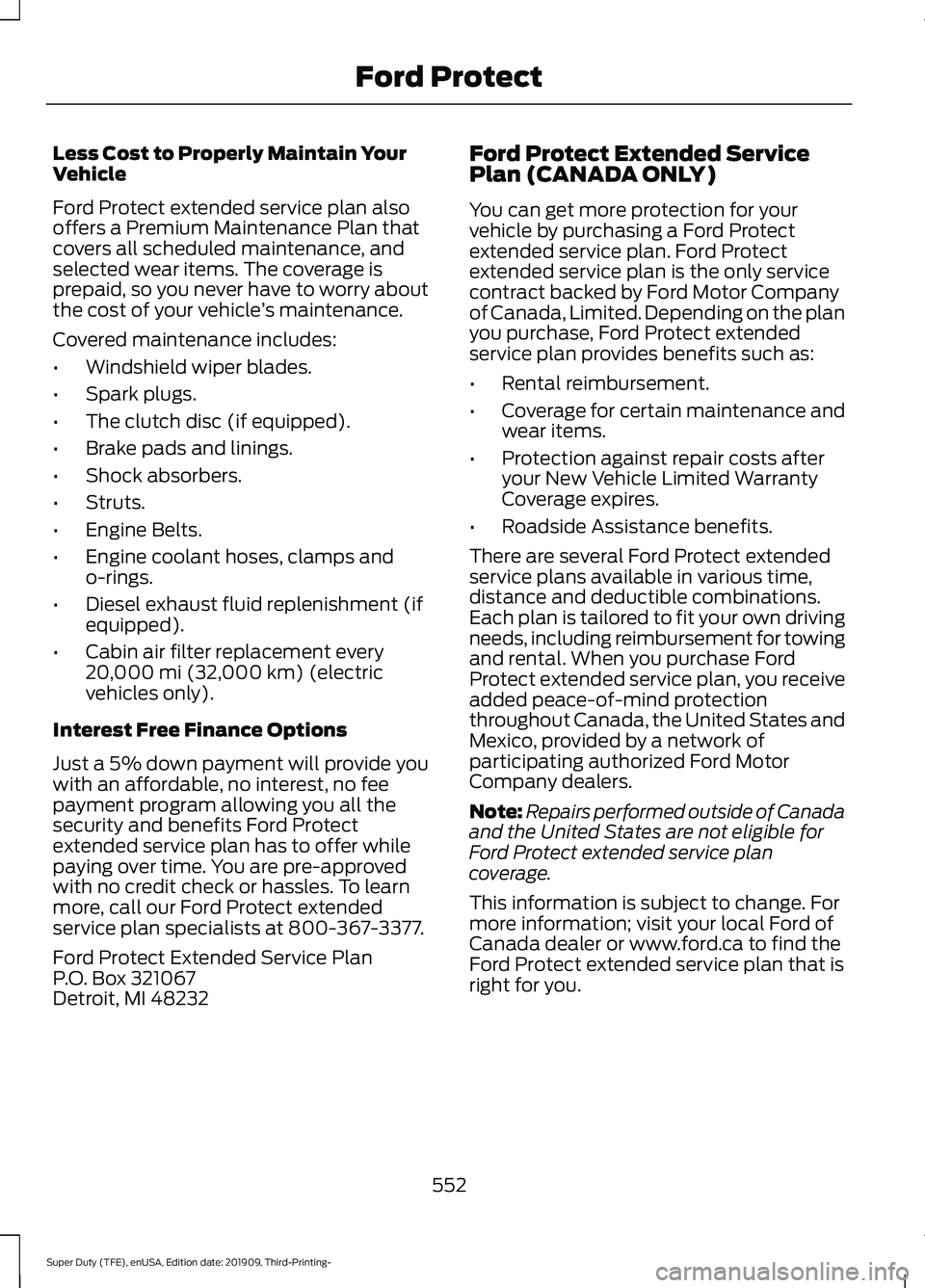

Less Cost to Properly Maintain Your
Vehicle
Ford Protect extended service plan also
offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle
’s maintenance.
Covered maintenance includes:
• Windshield wiper blades.
• Spark plugs.
• The clutch disc (if equipped).
• Brake pads and linings.
• Shock absorbers.
• Struts.
• Engine Belts.
• Engine coolant hoses, clamps and
o-rings.
• Diesel exhaust fluid replenishment (if
equipped).
• Cabin air filter replacement every
20,000 mi (32,000 km) (electric
vehicles only).
Interest Free Finance Options
Just a 5% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Ford Protect
extended service plan has to offer while
paying over time. You are pre-approved
with no credit check or hassles. To learn
more, call our Ford Protect extended
service plan specialists at 800-367-3377.
Ford Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232 Ford Protect Extended Service
Plan (CANADA ONLY)
You can get more protection for your
vehicle by purchasing a Ford Protect
extended service plan. Ford Protect
extended service plan is the only service
contract backed by Ford Motor Company
of Canada, Limited. Depending on the plan
you purchase, Ford Protect extended
service plan provides benefits such as:
•
Rental reimbursement.
• Coverage for certain maintenance and
wear items.
• Protection against repair costs after
your New Vehicle Limited Warranty
Coverage expires.
• Roadside Assistance benefits.
There are several Ford Protect extended
service plans available in various time,
distance and deductible combinations.
Each plan is tailored to fit your own driving
needs, including reimbursement for towing
and rental. When you purchase Ford
Protect extended service plan, you receive
added peace-of-mind protection
throughout Canada, the United States and
Mexico, provided by a network of
participating authorized Ford Motor
Company dealers.
Note: Repairs performed outside of Canada
and the United States are not eligible for
Ford Protect extended service plan
coverage.
This information is subject to change. For
more information; visit your local Ford of
Canada dealer or www.ford.ca to find the
Ford Protect extended service plan that is
right for you.
552
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Ford Protect

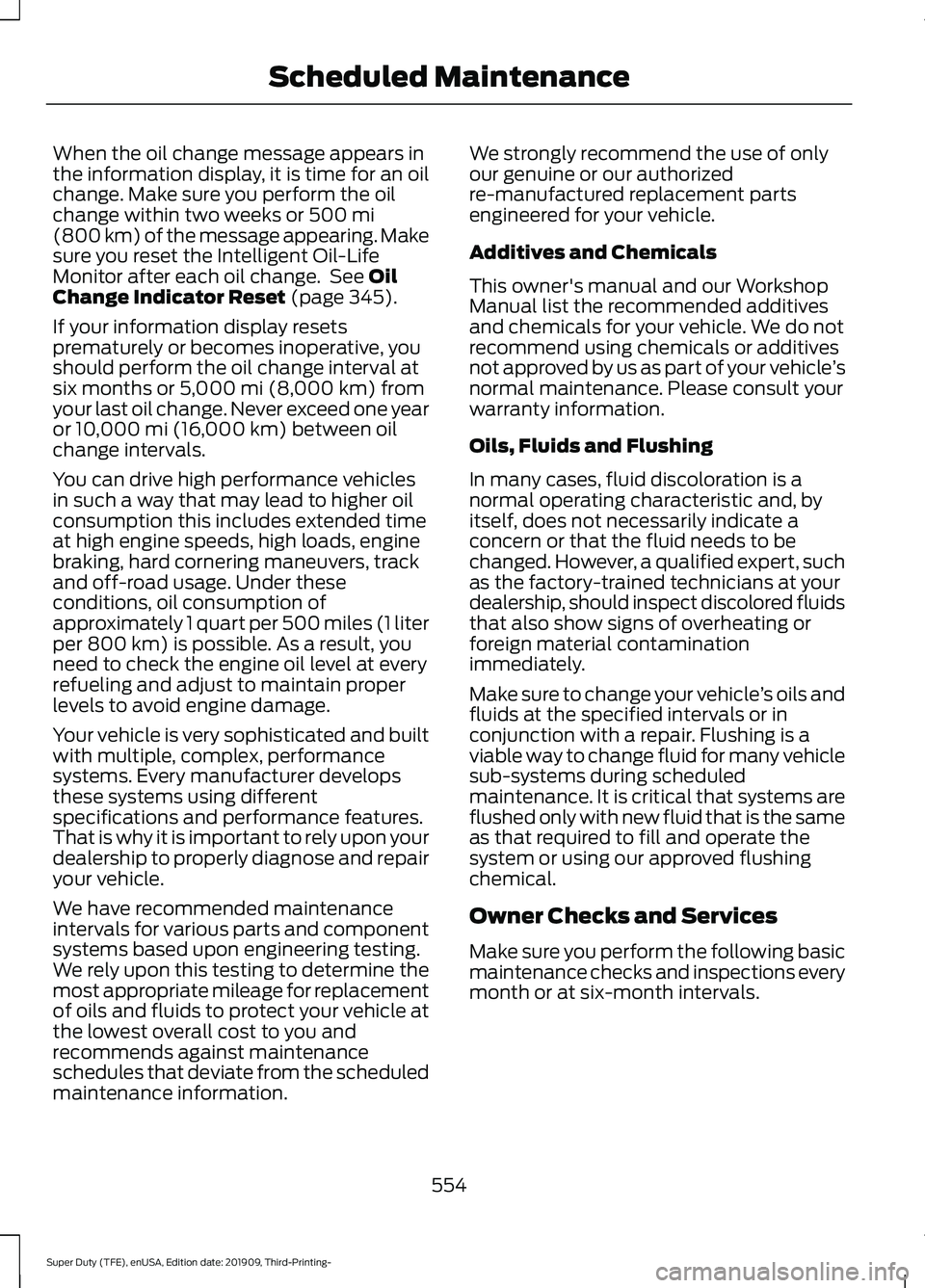

When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or 500 mi
(800 km) of the message appearing. Make
sure you reset the Intelligent Oil-Life
Monitor after each oil change. See
Oil
Change Indicator Reset (page 345).
If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or
5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or
10,000 mi (16,000 km) between oil
change intervals.
You can drive high performance vehicles
in such a way that may lead to higher oil
consumption this includes extended time
at high engine speeds, high loads, engine
braking, hard cornering maneuvers, track
and off-road usage. Under these
conditions, oil consumption of
approximately 1 quart per 500 miles (1 liter
per 800 km) is possible. As a result, you
need to check the engine oil level at every
refueling and adjust to maintain proper
levels to avoid engine damage.
Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to properly diagnose and repair
your vehicle.
We have recommended maintenance
intervals for various parts and component
systems based upon engineering testing.
We rely upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information. We strongly recommend the use of only
our genuine or our authorized
re-manufactured replacement parts
engineered for your vehicle.
Additives and Chemicals
This owner's manual and our Workshop
Manual list the recommended additives
and chemicals for your vehicle. We do not
recommend using chemicals or additives
not approved by us as part of your vehicle
’s
normal maintenance. Please consult your
warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle ’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using our approved flushing
chemical.
Owner Checks and Services
Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals.
554
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Scheduled Maintenance

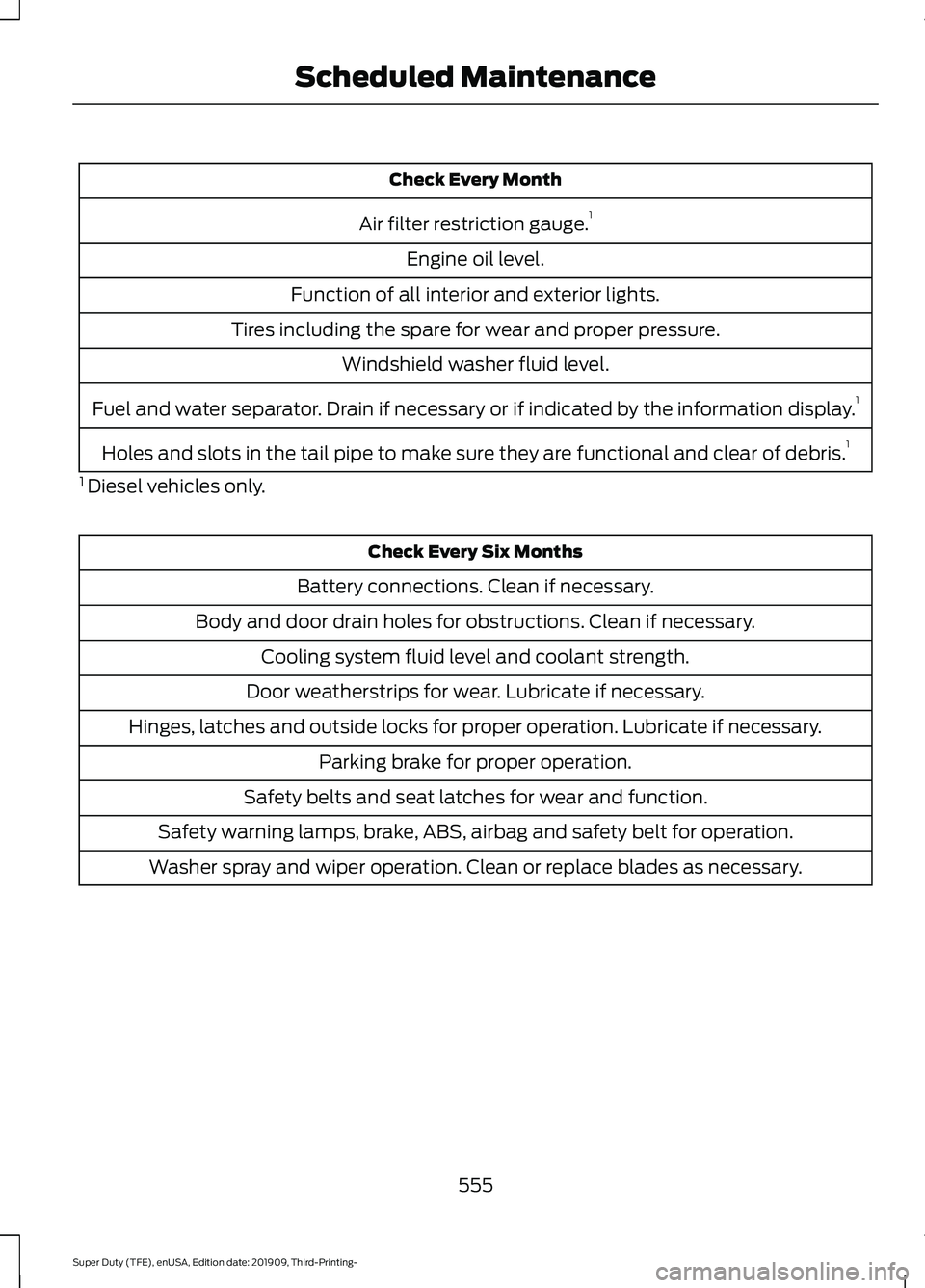

Check Every Month
Air filter restriction gauge. 1
Engine oil level.
Function of all interior and exterior lights.
Tires including the spare for wear and proper pressure. Windshield washer fluid level.
Fuel and water separator. Drain if necessary or if indicated by the information display. 1
Holes and slots in the tail pipe to make sure they are functional and clear of debris. 1
1 Diesel vehicles only. Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary. Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps, brake, ABS, airbag and safety belt for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.
555
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Scheduled Maintenance

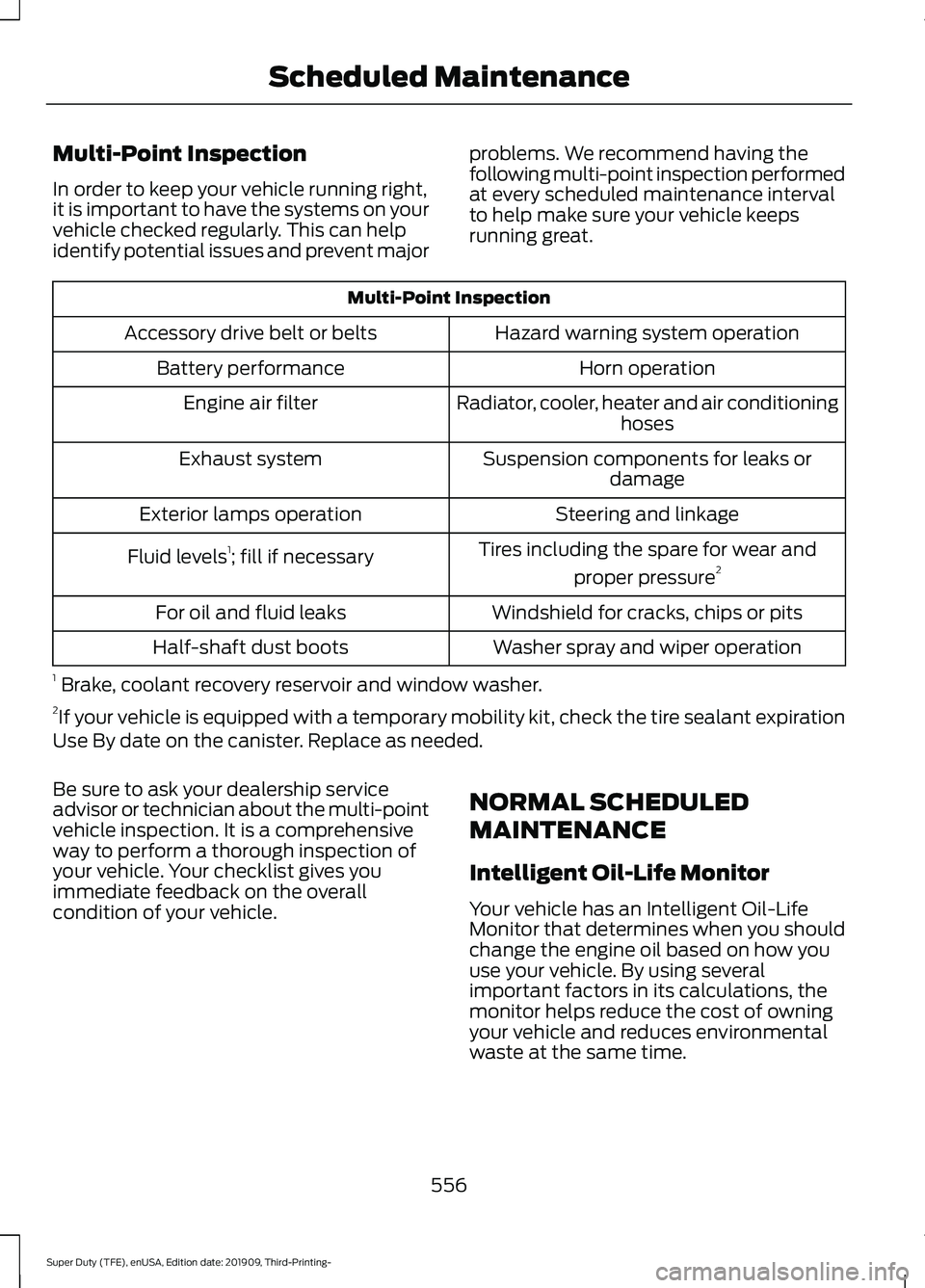

Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great.Multi-Point Inspection
Hazard warning system operation
Accessory drive belt or belts
Horn operation
Battery performance
Radiator, cooler, heater and air conditioninghoses
Engine air filter
Suspension components for leaks ordamage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires including the spare for wear andproper pressure 2
Fluid levels 1
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
1 Brake, coolant recovery reservoir and window washer.
2 If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle. NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you
use your vehicle. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental
waste at the same time.
556
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Scheduled Maintenance

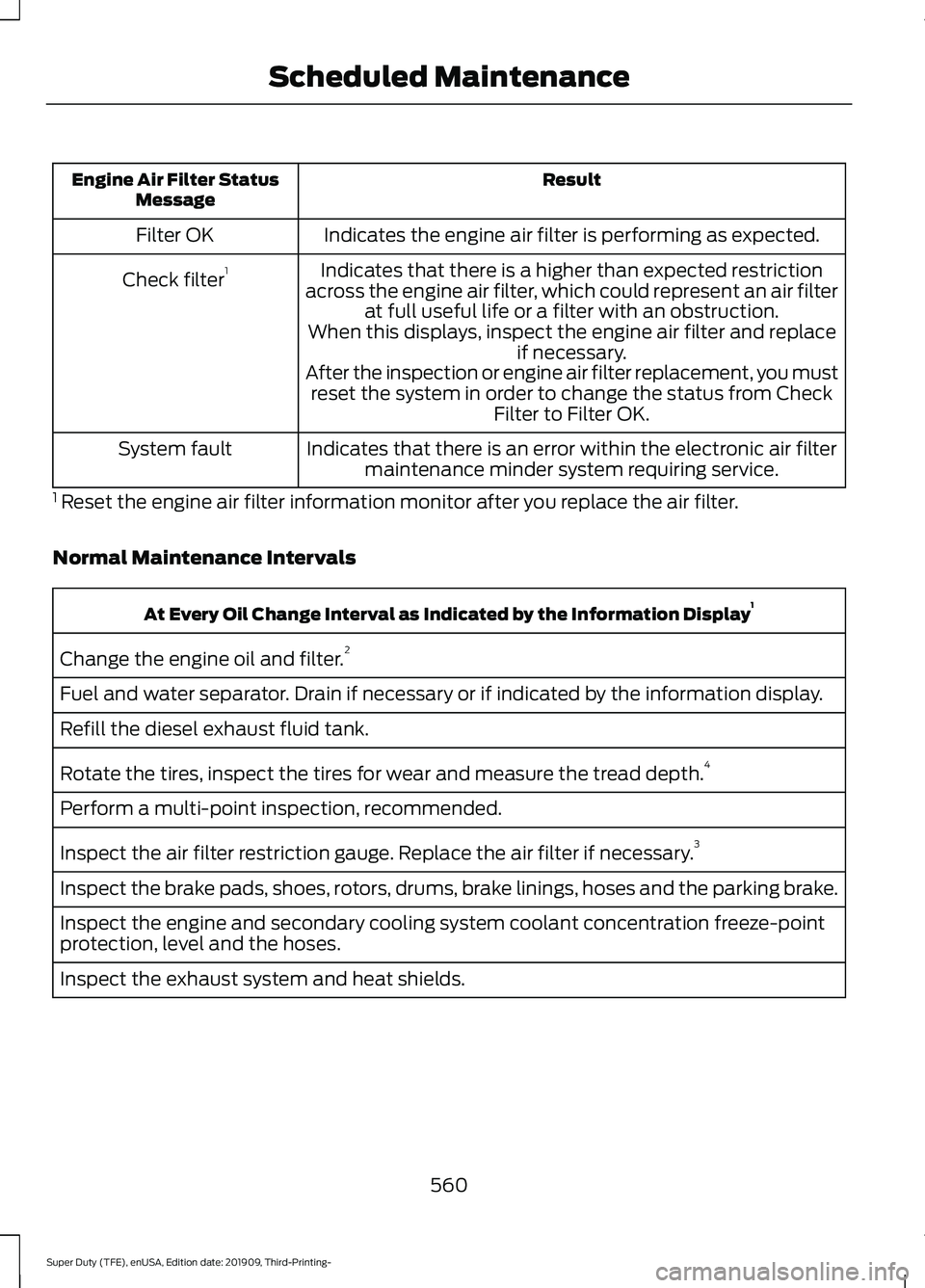

Result
Engine Air Filter Status
Message
Indicates the engine air filter is performing as expected.
Filter OK
Indicates that there is a higher than expected restriction
across the engine air filter, which could represent an air filter at full useful life or a filter with an obstruction.
Check filter
1
When this displays, inspect the engine air filter and replace if necessary.
After the inspection or engine air filter replacement, you must reset the system in order to change the status from Check Filter to Filter OK.
Indicates that there is an error within the electronic air filter maintenance minder system requiring service.
System fault
1 Reset the engine air filter information monitor after you replace the air filter.
Normal Maintenance Intervals At Every Oil Change Interval as Indicated by the Information Display
1
Change the engine oil and filter. 2
Fuel and water separator. Drain if necessary or if indicated by the information display.
Refill the diesel exhaust fluid tank.
Rotate the tires, inspect the tires for wear and measure the tread depth. 4
Perform a multi-point inspection, recommended.
Inspect the air filter restriction gauge. Replace the air filter if necessary. 3
Inspect the brake pads, shoes, rotors, drums, brake linings, hoses and the parking brake.
Inspect the engine and secondary cooling system coolant concentration freeze-point
protection, level and the hoses.
Inspect the exhaust system and heat shields.
560
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Scheduled Maintenance

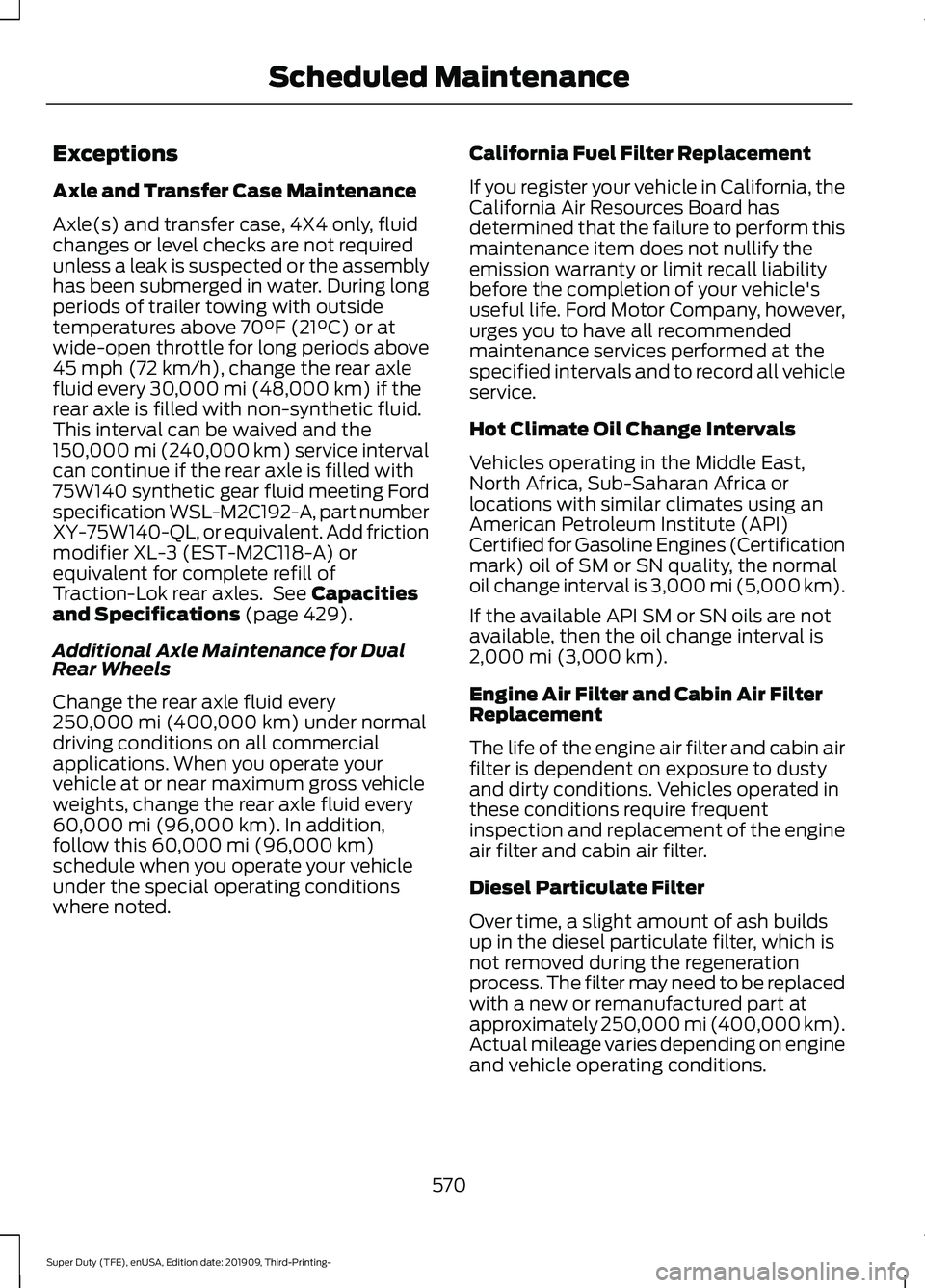

Exceptions
Axle and Transfer Case Maintenance
Axle(s) and transfer case, 4X4 only, fluid
changes or level checks are not required
unless a leak is suspected or the assembly
has been submerged in water. During long
periods of trailer towing with outside
temperatures above 70°F (21°C) or at
wide-open throttle for long periods above
45 mph (72 km/h)
, change the rear axle
fluid every 30,000 mi (48,000 km) if the
rear axle is filled with non-synthetic fluid.
This interval can be waived and the
150,000 mi (240,000 km) service interval
can continue if the rear axle is filled with
75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number
XY-75W140-QL, or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or
equivalent for complete refill of
Traction-Lok rear axles. See
Capacities
and Specifications (page 429).
Additional Axle Maintenance for Dual
Rear Wheels
Change the rear axle fluid every
250,000 mi (400,000 km)
under normal
driving conditions on all commercial
applications. When you operate your
vehicle at or near maximum gross vehicle
weights, change the rear axle fluid every
60,000 mi (96,000 km)
. In addition,
follow this 60,000 mi (96,000 km)
schedule when you operate your vehicle
under the special operating conditions
where noted. California Fuel Filter Replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service.
Hot Climate Oil Change Intervals
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 3,000 mi (5,000 km).
If the available API SM or SN oils are not
available, then the oil change interval is
2,000 mi (3,000 km)
.
Engine Air Filter and Cabin Air Filter
Replacement
The life of the engine air filter and cabin air
filter is dependent on exposure to dusty
and dirty conditions. Vehicles operated in
these conditions require frequent
inspection and replacement of the engine
air filter and cabin air filter.
Diesel Particulate Filter
Over time, a slight amount of ash builds
up in the diesel particulate filter, which is
not removed during the regeneration
process. The filter may need to be replaced
with a new or remanufactured part at
approximately 250,000 mi (400,000 km).
Actual mileage varies depending on engine
and vehicle operating conditions.
570
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Scheduled Maintenance

Changing the Engine Air Filter - 6.7L
Diesel.............................................................347
Air Filter Restriction Gauge............................ 348
Changing the Engine Air Filter - 7.3L.................................................................349
Changing the Engine-Mounted and Diesel Fuel Conditioner Module Fuel
Filters - 6.7L Diesel....................................375
Diesel Fuel Conditioner Module Filter........375
Engine-mounted Fuel Filter........................... 378
Changing the Engine Oil and Oil Filter...............................................................345
Engine Lubrication for Severe Service Operation......................................................... 345
Changing the Vehicle Wi-Fi Hotspot Name or Password...................................473
Changing the Wiper Blades......................371
Checking MyKey System Status...............63 MyKey Distance.................................................... 63
Number of Admin Keys...................................... 63
Number of MyKeys.............................................. 63
Checking the Wiper Blades.......................371
Child Restraint and Seatbelt Maintenance.................................................42
Child Restraint Positioning
.........................33
Child Safety......................................................20 General Information............................................ 20
Child Safety Locks
.........................................35
Left-Hand Side...................................................... 35
Right-Hand Side................................................... 35
Cleaning Leather Seats.............................385 With King Ranch Edition................................. 386
Without King Ranch Edition.......................... 385
Cleaning Products......................................380 Materials............................................................... 380
Cleaning the Engine....................................382
Cleaning the Exhaust - 6.7L Diesel.......382
Cleaning the Exterior...................................381 Cleaning the Headlamps................................. 381
Exterior Chrome Parts...................................... 381
Exterior Plastic Parts......................................... 381
Stripes or Graphics............................................. 381
Underbody........................................................... 382
Under Hood......................................................... 382
Cleaning the Instrument Panel and Instrument Cluster Lens
........................385
Cleaning the Interior...................................383
Cleaning the Wheels..................................387 Cleaning the Windows and Wiper
Blades...........................................................383
Clearing All MyKeys.......................................62
Climate.............................................................519 Accessing Rear Climate Controls.................521
Accessing the Climate Control Menu.........519
Directing the Airflow.......................................... 519
Rear Climate Control Lock Indicator...........521
Setting the Blower Motor Speed.................. 519
Setting the Temperature................................. 519
Switching Auto Mode On and Off................519
Switching Dual Zone Mode On and Off...................................................................... 520
Switching Maximum Air Conditioning On and Off............................................................. 520
Switching Maximum Defrost On and Off...................................................................... 520
Switching Rear Auto Mode On and Off........................................................................\
521
Switching Recirculated Air On and Off........................................................................\
521
Switching the Air Conditioning On and Off....................................................................... 519
Switching the Climate Controlled Seats On and Off............................................................. 520
Switching the Climate Control On and Off...................................................................... 520
Switching the Heated Exterior Mirrors On and Off............................................................. 520
Switching the Heated Rear Window On and Off...................................................................... 520
Switching the Heated Seats On and Off...................................................................... 520
Switching the Heated Steering Wheel On and Off............................................................. 520
Switching the Heated Windshield On and Off...................................................................... 520
Switching the Rear Climate Controlled Seats On and Off........................................... 521
Switching the Rear Heated Seats On and Off........................................................................\
521
Switching the Rear Ventilated Seats On and Off............................................................... 521
Switching the Ventilated Seats On and Off........................................................................\
521
Climate Control.............................................139
616
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index

Connecting the Vehicle to a Mobile
Network........................................................470
Enabling the Modem Using FordPass.......................................................... 470
Enabling the Modem Using the Touchscreen................................................... 470
What Is the Modem.......................................... 470
Coolant Check See: Engine Coolant Check - 6.2L...............353
See: Engine Coolant Check - 6.7L
Diesel................................................................. 357
See: Engine Coolant Check - 7.3L...............360
Crash Sensors and Airbag Indicator.........51
Creating a MyKey............................................61 Programming or Changing Configurable
Settings............................................................... 62
Creating a Vehicle Wi-Fi Hotspot..........473 Connecting a Device to the Wi-Fi
Hotspot............................................................. 473
Finding the Wi-Fi Hotspot Name and Password.......................................................... 473
Cross Traffic Alert........................................253
Cross Traffic Alert Behavior When Trailer
is Attached...................................................... 255
Cross Traffic Alert Indicator........................... 255
Cross Traffic Alert Information Messages......................................................... 255
Cross Traffic Alert System Limitations...................................................... 254
Cross Traffic Alert System Sensors............254
Switching the System On and Off..............255
Using Cross Traffic Alert.................................. 253
Cruise Control...............................................236
Cruise Control Indicators
...........................237
Cruise Control - Vehicles With: Adaptive Cruise Control................................................81
Cruise Control - Vehicles With: Cruise Control.............................................................81
Customer Assistance.................................322
D
Data Recording
................................................10
Comfort, Convenience and Entertainment
Data....................................................................... 12
Event Data................................................................. 11
Service Data............................................................. 11
Services That Third Parties Provide...............12 Services That We Provide..................................
12
Vehicles With a Modem...................................... 12
Vehicles With an Emergency Call System.................................................................. 13
Vehicles With SYNC............................................. 13
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps..............................................................87
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)............88
Declaration of Conformity.......................609
Declaration of Conformity - Vehicles With: SYNC 3.............................................609
Radio Frequency Statement........................ 609
Diesel Particulate Filter..............................196 Oxidation Catalytic Converter and Diesel
Particulate Filter System............................ 196
Regeneration........................................................ 196
Digital Radio..................................................478 HD Radio Reception and Station
Troubleshooting............................................ 479
Direction Indicators
.......................................89
Doors and Locks.............................................65
Draining the Fuel Filter Water Trap - 6.7L Diesel............................................................350
Draining the Diesel Fuel Conditioner Module............................................................... 351
Filter Location...................................................... 351
Drive Control..................................................262 Selectable Drive Modes.................................. 262
Driver Alert
.....................................................244
Using Driver Alert............................................... 244
Driver and Passenger Airbags...................44 Children and Airbags.......................................... 49
Passenger Airbag On and Off Switch ..........44
Proper Driver and Front Passenger Seating Adjustment....................................................... 48
Driving Aids....................................................244
Driving Hints
...................................................307
Driving Through Water...............................310
For Vehicles without Tremor Off-Road
Package............................................................. 310
For Vehicles with Tremor Off-Road Package.............................................................. 311
617
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index

DRL
See: Daytime Running Lamps - Vehicles With:
Configurable Daytime Running Lamps....87
See: Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)................88
E
Economical Driving.....................................307
Electromagnetic Compatibility...............581
Electronic Locking Differential.................215 Activating the Electronic Locking
Differential........................................................ 215
Operating ELD With a Spare or Mismatched Tires.................................................................... 216
Electronic Tailgate.........................................70
With the Outside Control Button................... 70
With the Remote Control.................................. 70
Emission Law.................................................188 Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance.........189
Tampering With a Noise Control System.............................................................. 188
End User License Agreement.................584 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 584
Engine Block Heater.....................................176 Using the Engine Block Heater....................... 177
Engine Coolant Check - 6.2L
...................353
Adding Coolant................................................... 353
Engine Coolant Temperature Management.................................................. 356
Fail-Safe Cooling............................................... 355
Recycled Coolant.............................................. 354
Severe Climates................................................. 354
Engine Coolant Check - 6.7L Diesel.............................................................357
Adding Coolant................................................... 357
Coolant Change................................................. 360
Engine and Secondary Cooling System Refill Procedure............................................. 359
Engine-driven Cooling Fan............................ 360
Recycled Coolant.............................................. 359
Severe Climates................................................. 360
Engine Coolant Check - 7.3L...................360 Adding Coolant................................................... 361
Coolant Change................................................. 363Engine Coolant Temperature
Management.................................................. 364
Engine-driven Cooling Fan (Fan Clutch).............................................................. 363
Fail-Safe Cooling............................................... 363
Recycled Coolant............................................... 362
Severe Climates................................................. 363
Engine Emission Control
...........................188
Engine Idle Shutdown.................................176
Engine Immobilizer See: Passive Anti-Theft System..................... 75
Engine Oil Check - 6.2L..............................341 Adding Engine Oil.............................................. 342
Engine Oil Check - 6.7L Diesel................343 Adding Engine Oil.............................................. 343
Engine lubrication for severe service operation ........................................................ 344
Engine Oil Check - 7.3L..............................344 Adding Engine Oil.............................................. 344
Engine Oil Dipstick - 6.2L...........................341
Engine Oil Dipstick - 6.7L Diesel..............341
Engine Oil Dipstick - 7.3L............................341
Engine Specifications - 6.2L....................429 Drivebelt Routing............................................... 429
Engine Specifications - 6.7L Diesel.......429 Drivebelt Routing............................................... 430
Engine Specifications - 7.3L....................430 Drivebelt Routing................................................ 431
Entertainment..............................................509 AM/FM Radio....................................................... 510
Apps........................................................................\
518
Bluetooth Stereo or USB.................................. 517
CD........................................................................\
..... 516
HD Radio ™ Information (If
Available).......................................................... 513
SiriusXM® Satellite Radio (If Activated).......................................................... 511
Sources.................................................................. 510
Supported Media Players, Formats and Metadata Information................................. 518
USB Ports.............................................................. 518
Environment......................................................17
Essential Towing Checks..........................295 Before Towing a Trailer.................................... 303
Dynamic Hitching Using the Rear View Camera System............................................ 296
Hitches................................................................... 297
Integrated Trailer Brake Controller.............300
618
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index
