heater FORD F-450 2022 Owners Manual

Recalling a Preset Position
.......................174
Garage Door Opener
What Is the Garage Door Opener ..........
176
How Does the Garage Door Opener Work ........................................................................\
.
176
Garage Door Opener Precautions .........
176
Garage Door Opener Limitations ...........
176
Programming the Garage Door Opener to Your Hand-Held Transmitter ..........
177
Programming the Garage Door Opener to Your Garage Door Opener Motor
........................................................................\
..
177
Programming the Garage Door Opener to Your Gate Opener Motor .................
178
Clearing the Garage Door Opener .........
178
Reprogramming the Garage Door Opener ........................................................................\
.
179
Garage Door Opener Radio Frequencies ........................................................................\
.
179
USB Ports
Locating the USB Ports ............................
180
Playing Media Using the USB Port .......
180
Charging a Device .........................................
181
Power Outlet - Vehicles With: 120V Power Outlet
What Is the Power Outlet .........................
182
Power Outlet Precautions ........................
182
Power Outlet Limitations .........................
182
Locating the Power Outlet .......................
182
Power Outlet Indicators ............................
182
Power Outlet - Vehicles With: 12V Power Outlet
What Is the Power Outlet .........................
184
Power Outlet Precautions ........................
184
Locating the Power Outlet .......................
184Wireless Accessory Charger
What Is the Wireless Accessory Charger
........................................................................\
.
185
Wireless Accessory Charger Precautions ........................................................................\
.
185
Locating the Wireless Accessory Charger ........................................................................\
.
185
Charging a Wireless Device .....................
185
Storage
Cup Holders ...................................................
187
Glove Compartment ...................................
187
Center Console ............................................
188
Under Seat Storage ....................................
188
Glasses Holder .............................................
190
Starting and Stopping the Engine
Starting and Stopping the Engine – Precautions .................................................
191
Ignition Switch ...............................................
191
Push Button Ignition Switch ....................
192
Starting the Engine .....................................
192
Engine Block Heater ...................................
194
Stopping the Engine ...................................
195
Automatic Engine Stop .............................
196
Accessing the Passive Key Backup Position ........................................................
197
Starting and Stopping the Engine – Troubleshooting ......................................
198
Fuel and Refueling
Fuel and Refueling Precautions ............
203
Fuel Quality ..................................................
204
Running Out of Fuel ..................................
208
Refueling .......................................................
209
Fuel Tank Capacity .......................................
211
Fuel and Refueling – Troubleshooting ........................................................................\
..
211
6
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Table of Contents

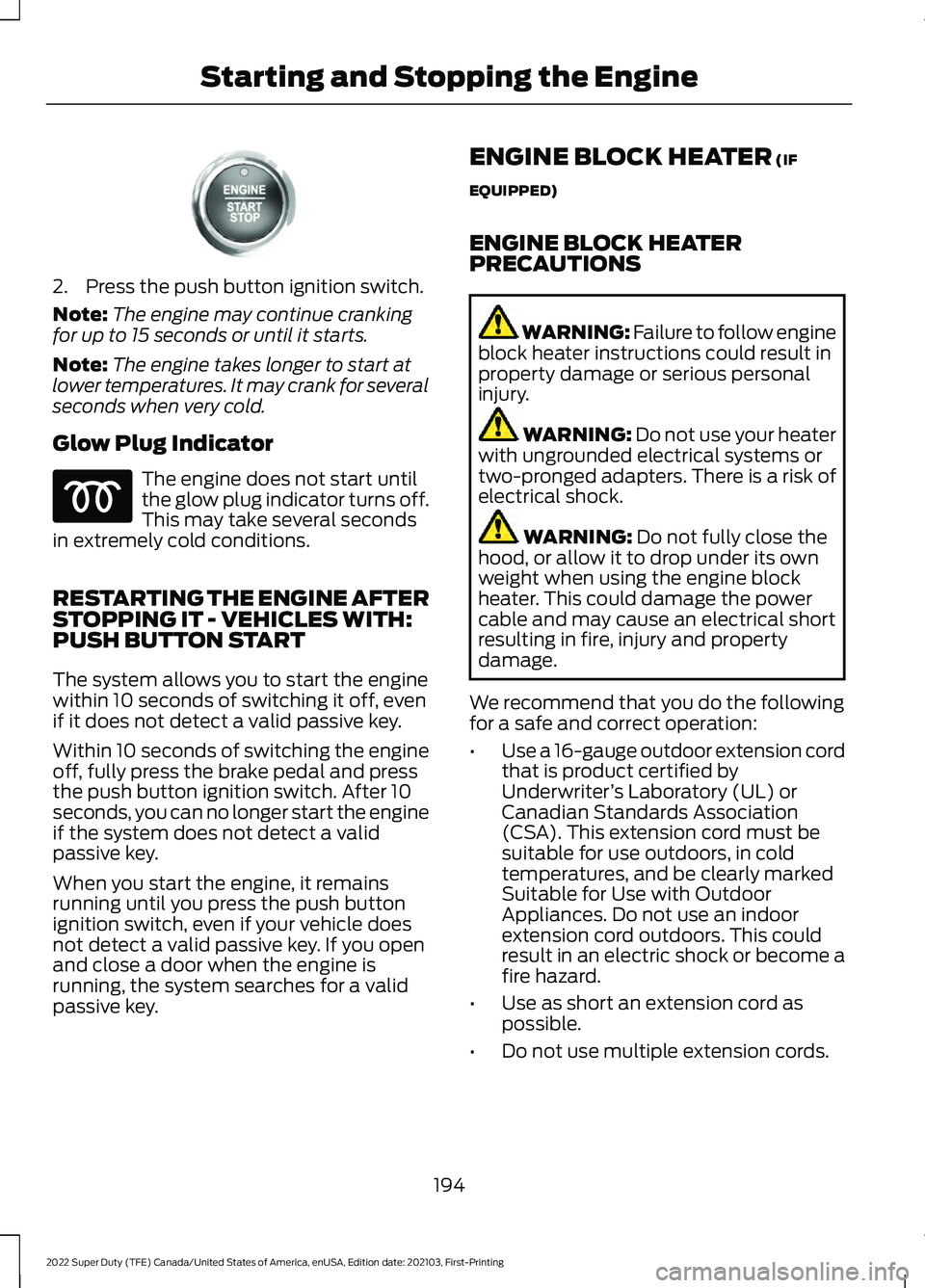

2. Press the push button ignition switch.
Note:
The engine may continue cranking
for up to 15 seconds or until it starts.
Note: The engine takes longer to start at
lower temperatures. It may crank for several
seconds when very cold.
Glow Plug Indicator The engine does not start until
the glow plug indicator turns off.
This may take several seconds
in extremely cold conditions.
RESTARTING THE ENGINE AFTER
STOPPING IT - VEHICLES WITH:
PUSH BUTTON START
The system allows you to start the engine
within 10 seconds of switching it off, even
if it does not detect a valid passive key.
Within 10 seconds of switching the engine
off, fully press the brake pedal and press
the push button ignition switch. After 10
seconds, you can no longer start the engine
if the system does not detect a valid
passive key.
When you start the engine, it remains
running until you press the push button
ignition switch, even if your vehicle does
not detect a valid passive key. If you open
and close a door when the engine is
running, the system searches for a valid
passive key. ENGINE BLOCK HEATER (IF
EQUIPPED)
ENGINE BLOCK HEATER
PRECAUTIONS WARNING:
Failure to follow engine
block heater instructions could result in
property damage or serious personal
injury. WARNING: Do not use your heater
with ungrounded electrical systems or
two-pronged adapters. There is a risk of
electrical shock. WARNING:
Do not fully close the
hood, or allow it to drop under its own
weight when using the engine block
heater. This could damage the power
cable and may cause an electrical short
resulting in fire, injury and property
damage.
We recommend that you do the following
for a safe and correct operation:
• Use a 16-gauge outdoor extension cord
that is product certified by
Underwriter ’s Laboratory (UL) or
Canadian Standards Association
(CSA). This extension cord must be
suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.
• Use as short an extension cord as
possible.
• Do not use multiple extension cords.
194
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Starting and Stopping the EngineE321258

•
Make sure that when in operation, the
extension cord plug and engine block
heater cord plug connections are free
and clear of water. This could cause an
electric shock or fire.
• If the engine block heater cord is under
the hood, do not remove the wiring
from its original location. Do not close
the hood on the extension wiring.
• Park your vehicle in a clean area, clear
of combustible materials.
• Firmly connect the engine block heater
cord and the extension cord.
• Check the extension cord for heat
anywhere when the system has been
operating for approximately 30
minutes.
• Unplug and properly stow the system
before starting and driving your vehicle.
The protective cover seals the
terminals of the engine block heater
cord plug when not in use.
• Check the engine block heater system
for proper operation before winter.
HOW DOES THE ENGINE BLOCK
HEATER WORK
The engine block heater warms the engine
coolant. This allows the climate control
system to quickly respond. The equipment
includes a heater element installed in the
engine block and a wire harness. You can
connect the system to a grounded
220-240 volt AC electrical source.
Note: The engine block heater is most
effective when outdoor temperatures are
below 0°F (-18°C).
USING THE ENGINE BLOCK
HEATER
Make sure the receptacle terminals are
clean and dry prior to use. Clean them with
a dry cloth if necessary. The heater uses 0.4 to 1.0 kilowatt-hours
of energy per hour of use. The system does
not have a thermostat. It achieves
maximum temperature after
approximately three hours of operation.
Using the engine block heater longer than
three hours does not improve system
performance and unnecessarily uses
electricity.
STOPPING THE ENGINE
STOPPING THE ENGINE WHEN
YOUR VEHICLE IS STATIONARY -
VEHICLES WITHOUT: PUSH
BUTTON START
1. Shift into park (P).
2. Apply the parking brake.
3. Wait until the engine reaches idle
speed. 4. Turn the key to position
0.
STOPPING THE ENGINE WHEN
YOUR VEHICLE IS STATIONARY -
VEHICLES WITH: PUSH BUTTON
START
1. Shift into park (P).
2. Apply the parking brake.
3. Wait until the engine reaches idle speed. 195
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Starting and Stopping the EngineE322405 E321258

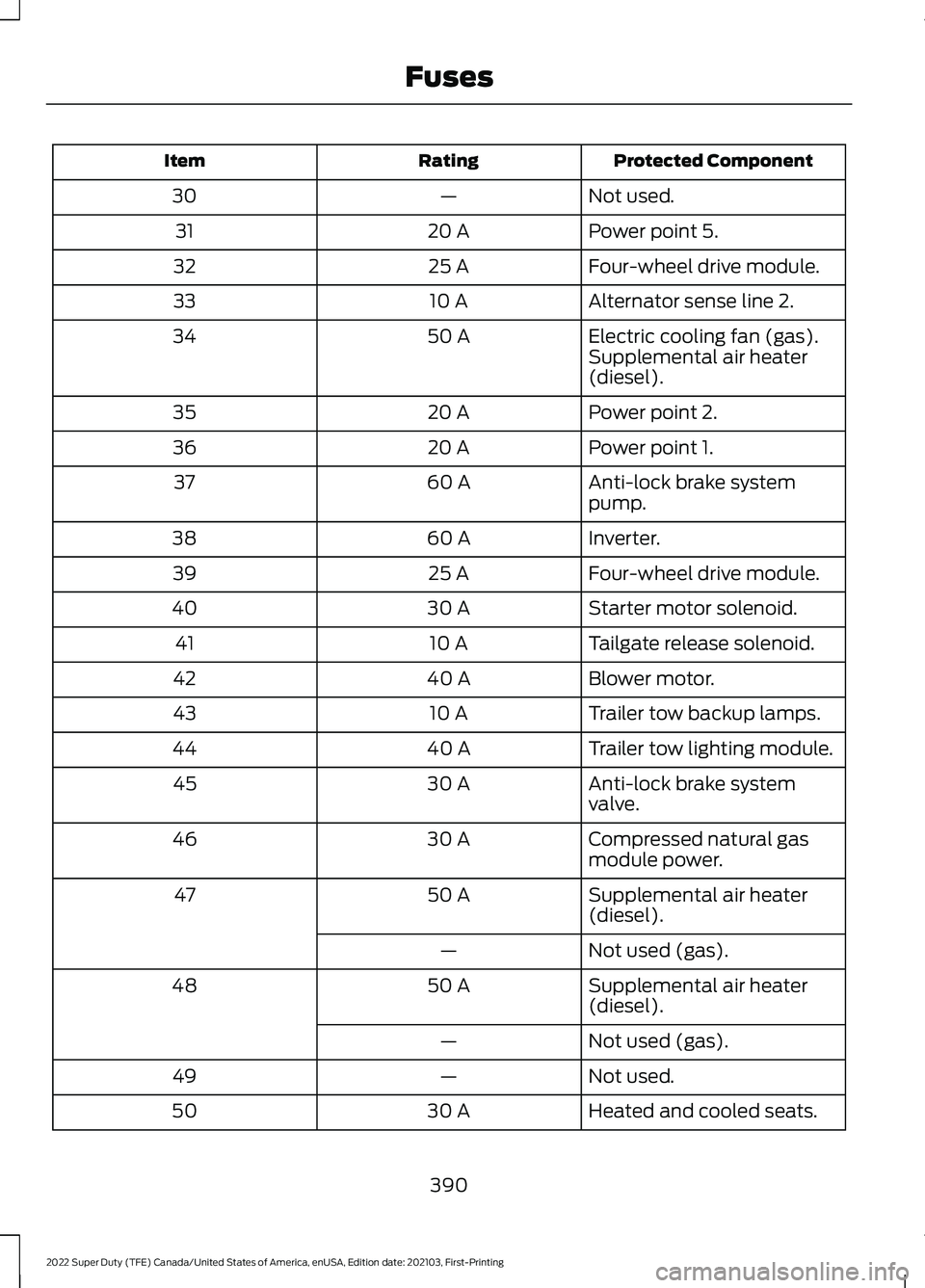

Protected Component
Rating
Item
Not used.
—
30
Power point 5.
20 A
31
Four-wheel drive module.
25 A
32
Alternator sense line 2.
10 A
33
Electric cooling fan (gas).
50 A
34
Supplemental air heater
(diesel).
Power point 2.
20 A
35
Power point 1.
20 A
36
Anti-lock brake system
pump.
60 A
37
Inverter.
60 A
38
Four-wheel drive module.
25 A
39
Starter motor solenoid.
30 A
40
Tailgate release solenoid.
10 A
41
Blower motor.
40 A
42
Trailer tow backup lamps.
10 A
43
Trailer tow lighting module.
40 A
44
Anti-lock brake system
valve.
30 A
45
Compressed natural gas
module power.
30 A
46
Supplemental air heater
(diesel).
50 A
47
Not used (gas).
—
Supplemental air heater
(diesel).
50 A
48
Not used (gas).
—
Not used.
—
49
Heated and cooled seats.
30 A
50
390
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Fuses

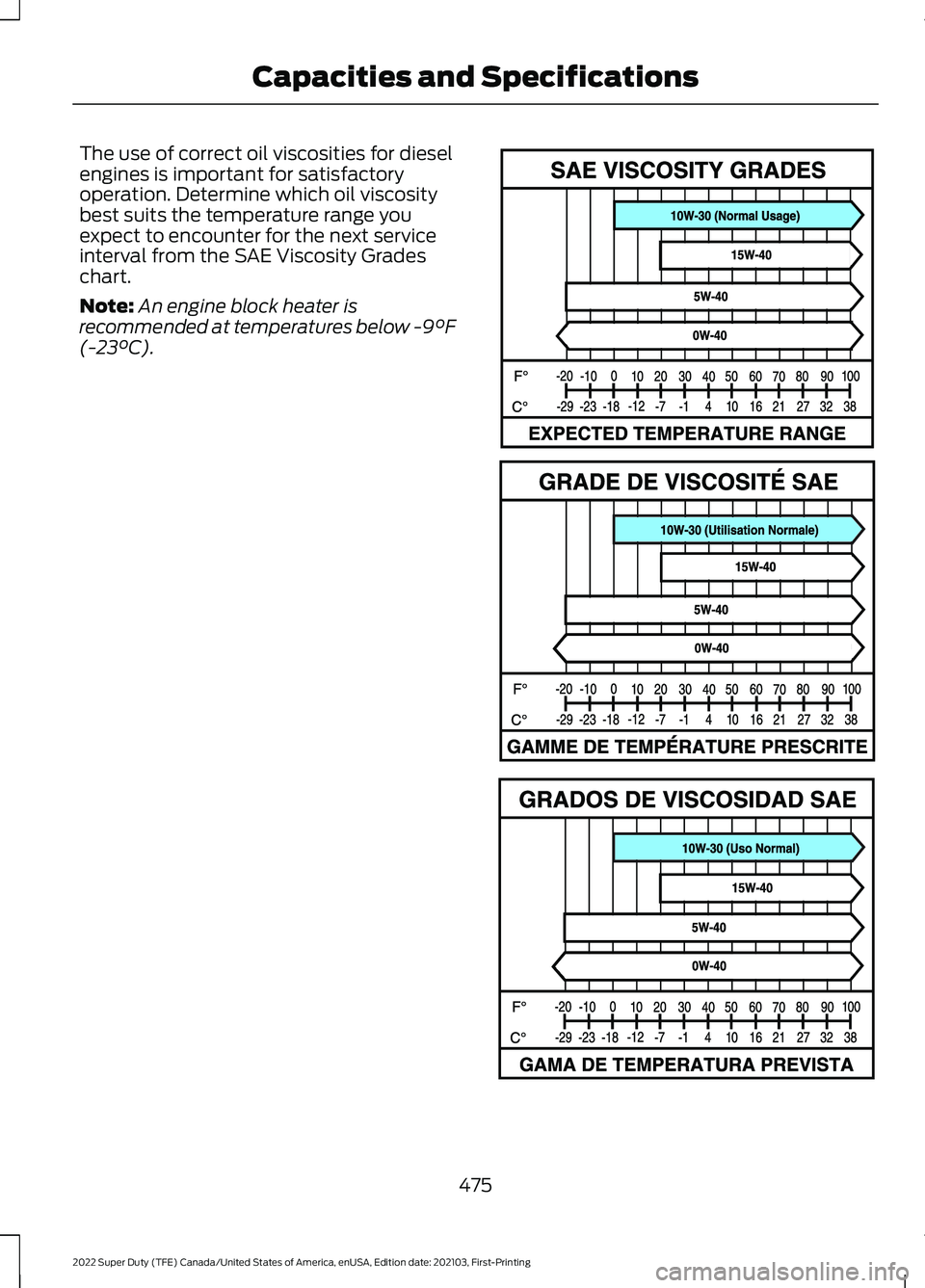

The use of correct oil viscosities for diesel
engines is important for satisfactory
operation. Determine which oil viscosity
best suits the temperature range you
expect to encounter for the next service
interval from the SAE Viscosity Grades
chart.
Note:
An engine block heater is
recommended at temperatures below -9°F
(-23°C). 475
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Capacities and SpecificationsE327351

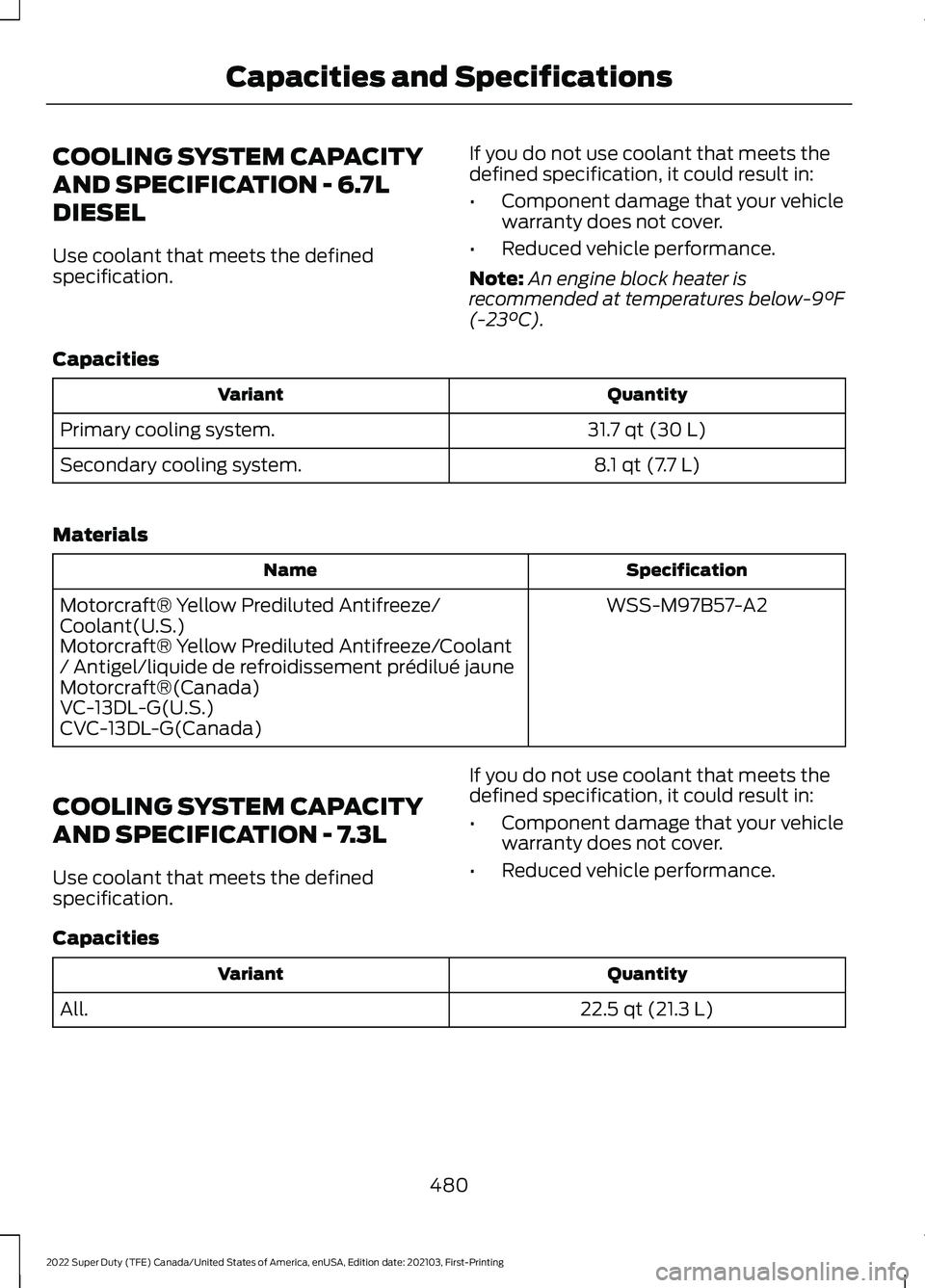

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 6.7L
DIESEL
Use coolant that meets the defined
specification.
If you do not use coolant that meets the
defined specification, it could result in:
•
Component damage that your vehicle
warranty does not cover.
• Reduced vehicle performance.
Note: An engine block heater is
recommended at temperatures below-9°F
(-23°C).
Capacities Quantity
Variant
31.7 qt (30 L)
Primary cooling system.
8.1 qt (7.7 L)
Secondary cooling system.
Materials Specification
Name
WSS-M97B57-A2
Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)
COOLING SYSTEM CAPACITY
AND SPECIFICATION - 7.3L
Use coolant that meets the defined
specification. If you do not use coolant that meets the
defined specification, it could result in:
•
Component damage that your vehicle
warranty does not cover.
• Reduced vehicle performance.
Capacities Quantity
Variant
22.5 qt (21.3 L)
All.
480
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Capacities and Specifications

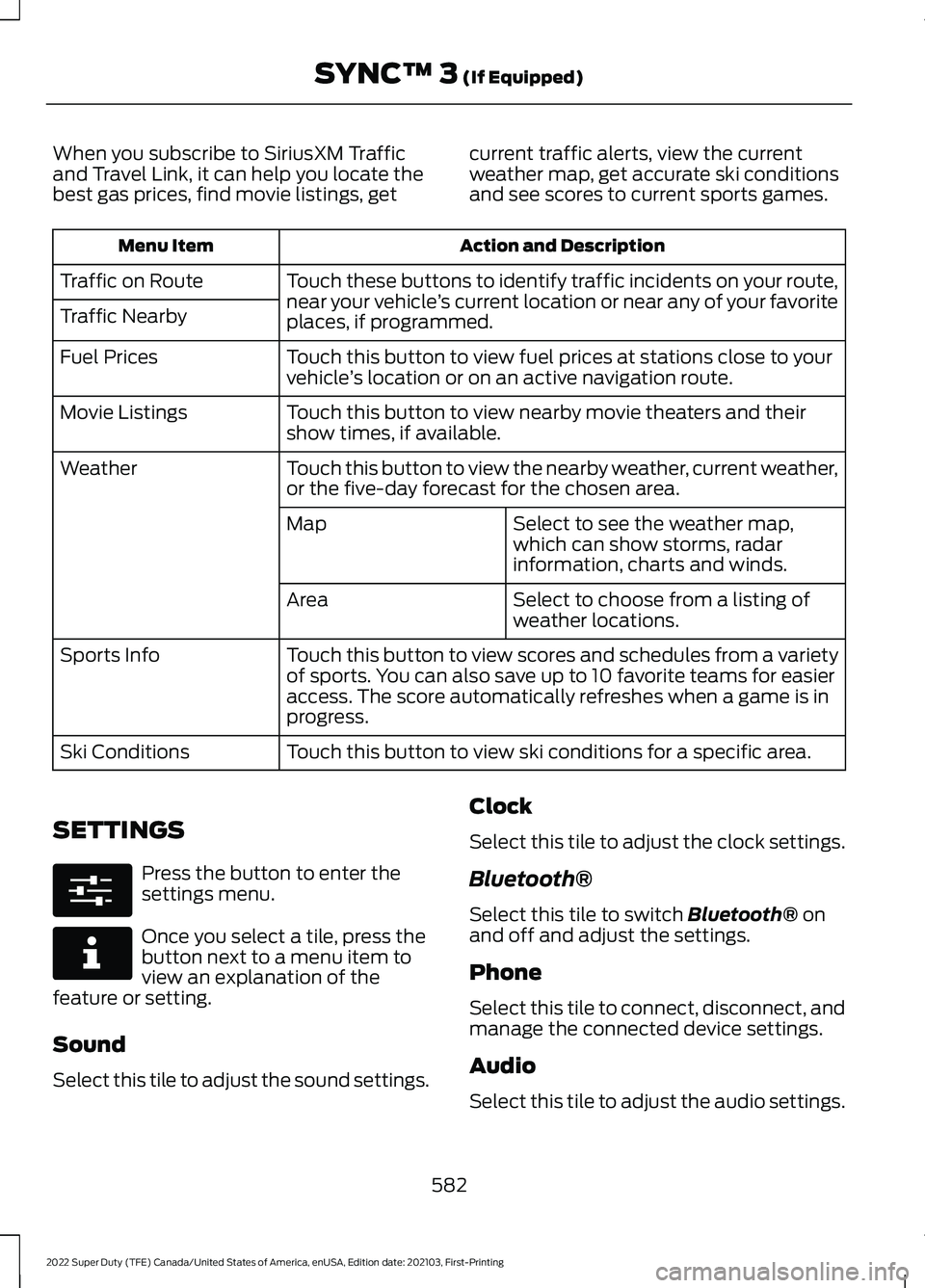

When you subscribe to SiriusXM Traffic
and Travel Link, it can help you locate the
best gas prices, find movie listings, get
current traffic alerts, view the current
weather map, get accurate ski conditions
and see scores to current sports games. Action and Description
Menu Item
Touch these buttons to identify traffic incidents on your route,
near your vehicle’s current location or near any of your favorite
places, if programmed.
Traffic on Route
Traffic Nearby
Touch this button to view fuel prices at stations close to your
vehicle’s location or on an active navigation route.
Fuel Prices
Touch this button to view nearby movie theaters and their
show times, if available.
Movie Listings
Touch this button to view the nearby weather, current weather,
or the five-day forecast for the chosen area.
Weather
Select to see the weather map,
which can show storms, radar
information, charts and winds.
Map
Select to choose from a listing of
weather locations.
Area
Touch this button to view scores and schedules from a variety
of sports. You can also save up to 10 favorite teams for easier
access. The score automatically refreshes when a game is in
progress.
Sports Info
Touch this button to view ski conditions for a specific area.
Ski Conditions
SETTINGS Press the button to enter the
settings menu.
Once you select a tile, press the
button next to a menu item to
view an explanation of the
feature or setting.
Sound
Select this tile to adjust the sound settings. Clock
Select this tile to adjust the clock settings.
Bluetooth®
Select this tile to switch Bluetooth® on
and off and adjust the settings.
Phone
Select this tile to connect, disconnect, and
manage the connected device settings.
Audio
Select this tile to adjust the audio settings.
582
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing SYNC™ 3
(If Equipped)E280315 E268570

Check Every Six Months
The battery connections. Clean if necessary.
The body and door drain holes for obstructions. Clean if necessary. The cooling system fluid level and the coolant system strength. The door weatherstrips for wear. Lubricate if necessary.
The hinges, latches and outside locks for proper operation. Lubricate if necessary. The parking brake for proper operation.
The seatbelts and seat latches for wear and function.
Safety warning lamps, brake, ABS, airbag and seatbelt for operation.
The washer spray and wiper operation. Clean or replace blades as necessary.
Multi-Point Inspection
It is important to have the systems on your
vehicle regularly checked. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great. Multi-Point Inspection
Hazard warning system operation
Accessory drive belt or belts
Horn operation
Battery performance
Radiator, cooler, heater and air conditioninghoses
Engine air filter
Suspension components for leaks ordamage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires including the spare for wear andproper pressure 2
Fluid levels 1
; fill if necessary
624
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Scheduled Maintenance

E
Easy Entry and Exit........................................93
Electromagnetic Compatibility................713
Electronic Locking Differential................237
Electronic Locking Differential –
Troubleshooting............................................ 239
Electronic Locking Differential Indicators.....................................................239
Electronic Locking Differential Precautions..................................................237
Electronic Locking Differential – Troubleshooting........................................
239
Electronic Locking Differential –
Information Messages................................ 239
Emergency Call Limitations.......................68
Emergency Call Requirements..................67
Emergency Call System Data....................28
Emergency Towing
.....................................386
Emission Law.................................................710
Enabling Apps on an Android Device...........................................................608
Enabling Apps on an iOS Device..........608
Enabling Remote Start
..............................146
End User License Agreement.................685
Engine Air Filter............................................405 Changing the Engine Air Filter...................... 405
Engine Air Filter - Information Messages........................................................ 406
Engine Block Heater
....................................194
Engine Block Heater Precautions.................194
How Does the Engine Block Heater
Work................................................................... 195
Using the Engine Block Heater...................... 195
Engine Oil Capacity and Specification - 6.2L
.................................................................473
Engine Oil Capacity and Specification - 6.7L Diesel
....................................................474
Engine Oil Capacity and Specification - 7.3L..................................................................477
Engine Oil
.......................................................400
Adding Engine Oil............................................... 401
Checking the Engine Oil Level...................... 400
Engine Oil Capacity and Specification................................................... 401
Engine Oil Dipstick Overview....................... 400
Resetting the Engine Oil Change Reminder.......................................................... 401Engine Specifications - 6.2L....................467
Engine Specifications - 6.7L Diesel.......467
Engine Specifications - 7.3L....................468
Entertainment..............................................560
Event Data
........................................................25
Export Unique Options................................711
Extending the Exterior Mirrors
.................130
Extending the Remote Start Duration.........................................................147
Exterior Bulbs.................................................412 Changing a Front Fog Lamp Bulb................415
Changing a Front Turn Signal Lamp
Bulb..................................................................... 415
Changing a Headlamp Bulb........................... 414
Changing a High Mounted Stoplamp Bulb.................................................................... 418
Changing a License Plate Lamp Bulb.........418
Changing a Rear Lamp Bulb.......................... 416
Changing a Rear Turn Signal Lamp Bulb..................................................................... 417
Changing a Reversing Lamp Bulb.................417
Changing a Stoplamp Bulb............................ 416
Exterior Bulb Specification Chart.................412
Removing a Rear Lamp Assembly...............414
Exterior Lamps
...............................................119
Exterior Lamp Audible Warning...................... 121
Exterior Lamp Indicators................................... 121
Switching the Cargo Lamps On.................... 120
Switching the Daytime Running Lamps On and Off.............................................................. 120
Switching the Front Fog Lamps On and Off....................................................................... 120
Switching the Spot Lamps On and Off........................................................................\
. 121
Switching the Turn Signal Lamps On and Off........................................................................\
119
Exterior Lighting Control.............................118
Exterior Lighting
.............................................118
Autolamps.............................................................. 119
Automatic High Beam Control....................... 121
Automatic High Beam Control – Troubleshooting............................................. 123
Exterior Lamps..................................................... 119
Headlamps............................................................ 118
Headlamps – Troubleshooting...................... 118
Exterior Mirrors...............................................129 Auto-Dimming Exterior Mirror....................... 130
723
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

Selective Catalytic Reduction System
Precautions...................................................217
Selective Catalytic Reduction System Requirements..............................................218
Selective Catalytic Reduction System............................................................217
Filling the Selective Catalytic Reduction
System Tank.................................................... 219
Selective Catalytic Reduction System – Troubleshooting............................................. 221
Selective Catalytic Reduction System – Troubleshooting.........................................221
Selective Catalytic Reduction System – Information Messages.................................. 221
Selective Catalytic Reduction System – Warning Lamps............................................... 221
Sending and Receiving a Text Message......................................................605
Sensitive Locking Mode
................................51
How Does Sensitive Locking Mode
Work...................................................................... 51
What is Sensitive Locking Mode...................... 51
Service Data
.....................................................25
Setting a Destination..................................610 Setting a Destination Using a Point of
Interest................................................................ 611
Setting a Destination Using a Predictive Destination........................................................ 611
Setting a Destination Using a Recent Destination........................................................ 611
Setting a Destination Using a Saved Destination........................................................ 611
Setting a Destination Using the Map Screen............................................................... 610
Setting a Destination Using the Text Entry Screen............................................................... 610
Setting a Memory Preset
..........................526
Settings Data...................................................26
Settings...........................................................582
Setting the Adaptive Cruise Control Gap.................................................................276
Setting the Adaptive Cruise Control Speed.............................................................275
Setting the Blower Motor Speed............150
Setting the Clock and Date......................526
Setting the Cruise Control Speed..........270
Setting the Hill Descent Speed..............254
Setting the Temperature...........................150 Setting the Trail Control Speed..............252
Setting the Wake Word............................600
Setting Up the Trailer Backup Assistance
for a Conventional Trailer......................339
Applying the Trailer Reversing Aid Sticker................................................................ 341
Calibrating the System.................................... 342
Configuring the Trailer..................................... 339
Setting Up the Trailer Backup Assistance for a Fifth-Wheel or Gooseneck
Trailer.............................................................343
Calibrating the System.................................... 345
Configuring the Trailer...................................... 343
Trailer Sensor Installation.............................. 344
Setting Up Trailer Reverse Guidance for a Conventional Trailer.............................357
Applying the Trailer Reverse Aid Sticker............................................................... 359
Calibrating the System................................... 360
Configuring the Trailer...................................... 357
Setting Up Trailer Reverse Guidance for a Fifth-Wheel or Gooseneck
Trailer............................................................360
Calibrating the System.................................... 362
Configuring the Trailer..................................... 360
Trailer Sensor Installation............................... 361
Shifting Your Vehicle Into Gear...............224
Sitting in the Correct Position..................158
Snow Plowing Precautions......................376
Snow Plowing...............................................376
Sounding the Panic Alarm
..........................70
Special Operating Conditions Scheduled Maintenance - Diesel
...............................631
Special Operating Conditions Scheduled Maintenance - Gasoline
........................636
Speed Control See: Cruise Control............................................ 270
Stability Control Indicator
.........................251
Stability Control...........................................249
Starter Switch See: Ignition Switch............................................ 191
Starting and Stopping the Engine – Precautions...................................................191
Starting and Stopping the Engine...........191 Automatic Engine Stop.................................... 196
Engine Block Heater.......................................... 194
Starting and Stopping the Engine – Troubleshooting............................................. 198
732
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index
