headlamp FORD F-53 2020 Owners Manual

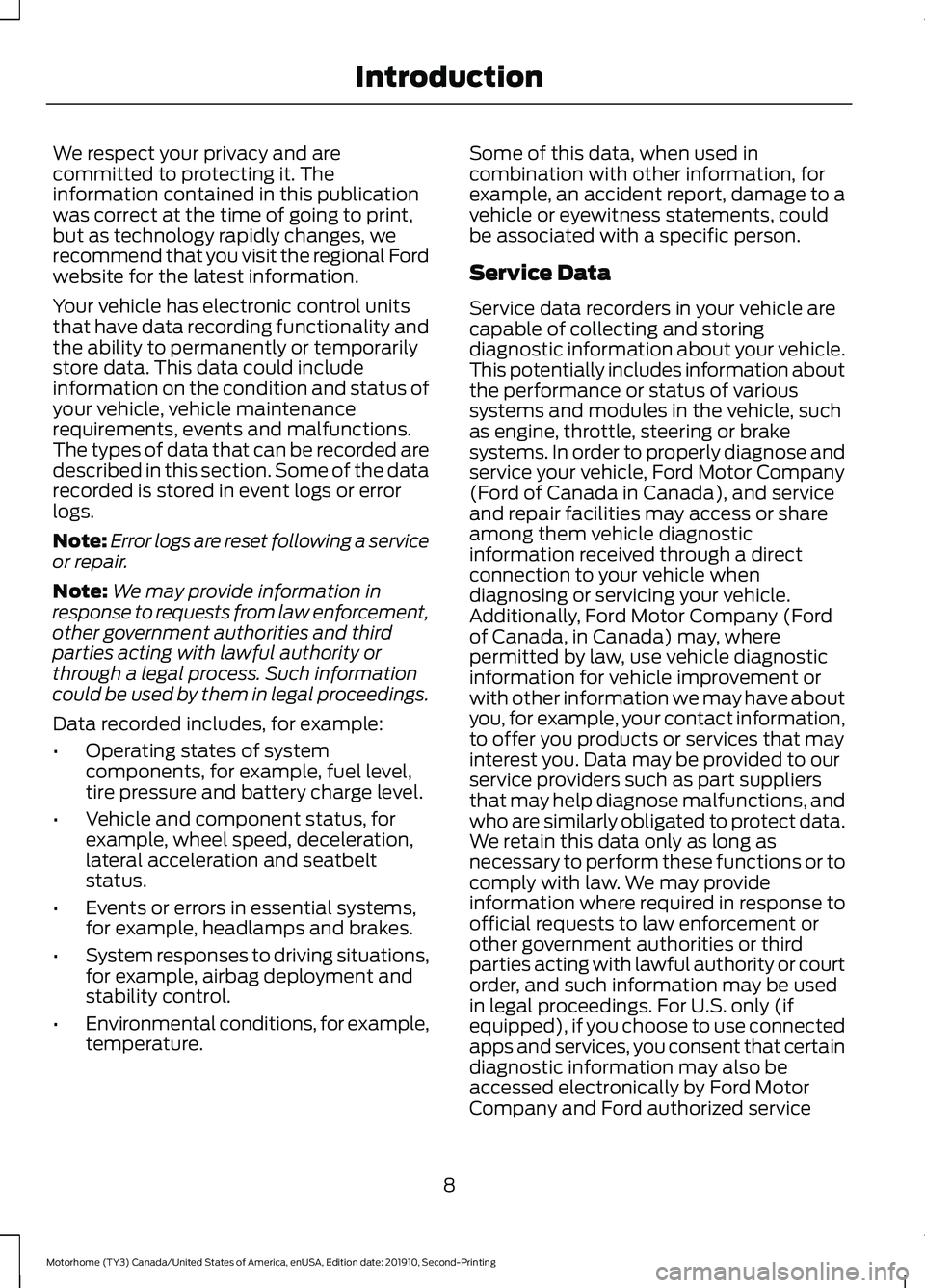

We respect your privacy and are
committed to protecting it. The
information contained in this publication
was correct at the time of going to print,
but as technology rapidly changes, we
recommend that you visit the regional Ford
website for the latest information.
Your vehicle has electronic control units
that have data recording functionality and
the ability to permanently or temporarily
store data. This data could include
information on the condition and status of
your vehicle, vehicle maintenance
requirements, events and malfunctions.
The types of data that can be recorded are
described in this section. Some of the data
recorded is stored in event logs or error
logs.
Note:
Error logs are reset following a service
or repair.
Note: We may provide information in
response to requests from law enforcement,
other government authorities and third
parties acting with lawful authority or
through a legal process. Such information
could be used by them in legal proceedings.
Data recorded includes, for example:
• Operating states of system
components, for example, fuel level,
tire pressure and battery charge level.
• Vehicle and component status, for
example, wheel speed, deceleration,
lateral acceleration and seatbelt
status.
• Events or errors in essential systems,
for example, headlamps and brakes.
• System responses to driving situations,
for example, airbag deployment and
stability control.
• Environmental conditions, for example,
temperature. Some of this data, when used in
combination with other information, for
example, an accident report, damage to a
vehicle or eyewitness statements, could
be associated with a specific person.
Service Data
Service data recorders in your vehicle are
capable of collecting and storing
diagnostic information about your vehicle.
This potentially includes information about
the performance or status of various
systems and modules in the vehicle, such
as engine, throttle, steering or brake
systems. In order to properly diagnose and
service your vehicle, Ford Motor Company
(Ford of Canada in Canada), and service
and repair facilities may access or share
among them vehicle diagnostic
information received through a direct
connection to your vehicle when
diagnosing or servicing your vehicle.
Additionally, Ford Motor Company (Ford
of Canada, in Canada) may, where
permitted by law, use vehicle diagnostic
information for vehicle improvement or
with other information we may have about
you, for example, your contact information,
to offer you products or services that may
interest you. Data may be provided to our
service providers such as part suppliers
that may help diagnose malfunctions, and
who are similarly obligated to protect data.
We retain this data only as long as
necessary to perform these functions or to
comply with law. We may provide
information where required in response to
official requests to law enforcement or
other government authorities or third
parties acting with lawful authority or court
order, and such information may be used
in legal proceedings. For U.S. only (if
equipped), if you choose to use connected
apps and services, you consent that certain
diagnostic information may also be
accessed electronically by Ford Motor
Company and Ford authorized service
8
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Introduction

LIGHTING CONTROL
Lamps off.
A
Parking lamps, instrument panel
lamps, license plate lamps and
rear lamps.
B
Headlamps.
C
Headlamp High Beam Push the lever away from you to
switch the high beam on.
Push the lever forward again or pull the
lever toward you to switch the high beams
off. Flashing the Headlamp High Beam
Slightly pull the lever toward you and
release it to flash the headlamps.
AUTOLAMPS
WARNING: The system does not
relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.
Autolamps turn the headlamps on in low
light situations or when the wipers operate. Switch the lighting control to the
autolamps position.
The headlamps remain on for a period of
time after you switch the ignition off. Use
the information display controls to adjust
the period of time that the headlamps
remain on.
Note: If you switch the autolamps on, you
cannot switch the high beams on until the
system turns the low beams on.
19
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing LightingE142449 E308790 E311233

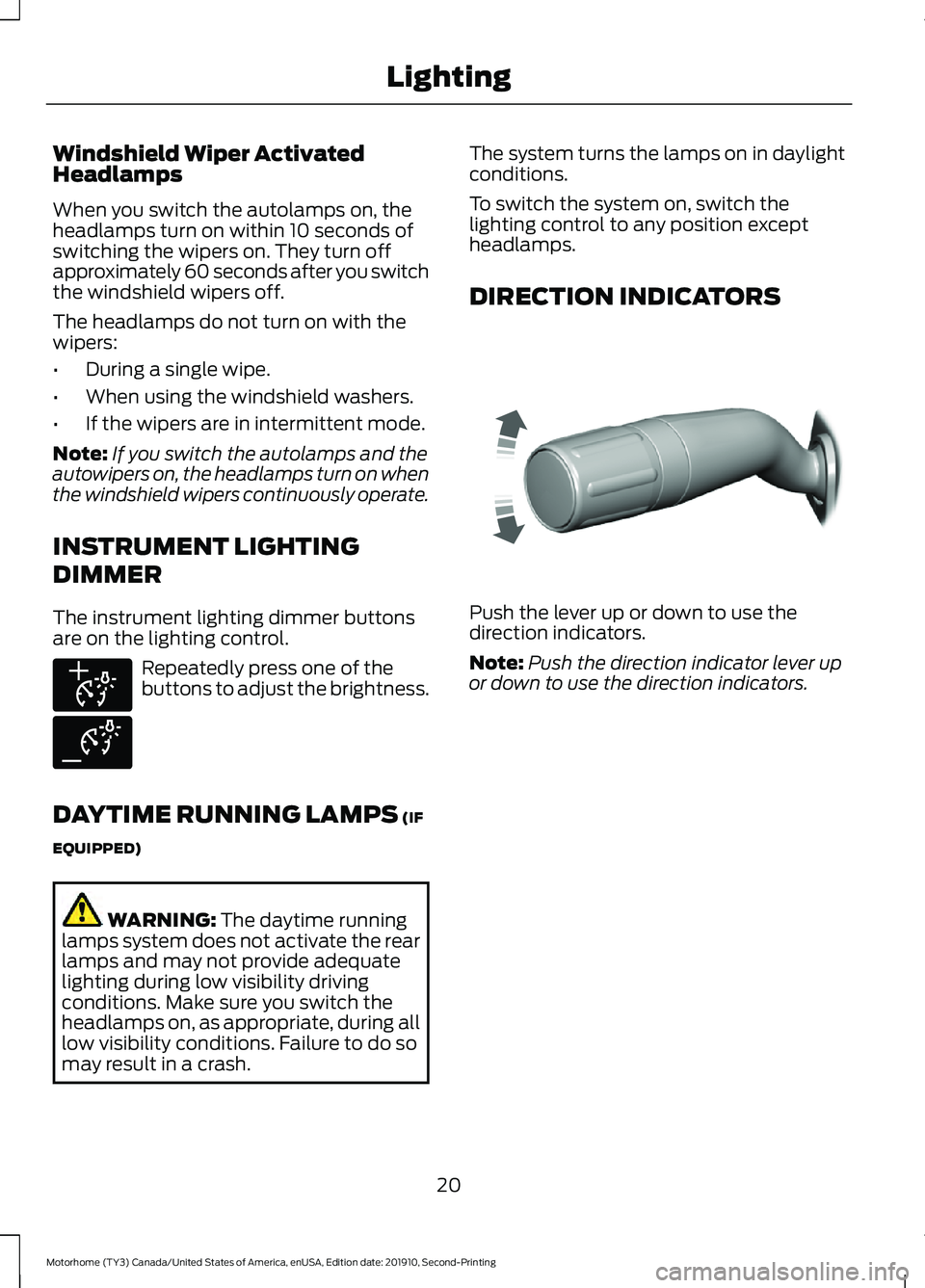

Windshield Wiper Activated
Headlamps
When you switch the autolamps on, the
headlamps turn on within 10 seconds of
switching the wipers on. They turn off
approximately 60 seconds after you switch
the windshield wipers off.
The headlamps do not turn on with the
wipers:
•
During a single wipe.
• When using the windshield washers.
• If the wipers are in intermittent mode.
Note: If you switch the autolamps and the
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.
INSTRUMENT LIGHTING
DIMMER
The instrument lighting dimmer buttons
are on the lighting control. Repeatedly press one of the
buttons to adjust the brightness.
DAYTIME RUNNING LAMPS (IF
EQUIPPED) WARNING:
The daytime running
lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash. The system turns the lamps on in daylight
conditions.
To switch the system on, switch the
lighting control to any position except
headlamps.
DIRECTION INDICATORS
Push the lever up or down to use the
direction indicators.
Note:
Push the direction indicator lever up
or down to use the direction indicators.
20
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing LightingE291299 E291298 E311431

Cruise Control Indicator
Illuminates when you switch this
feature on. See What Is Cruise
Control (page 57).
Direction Indicator Illuminates when you switch the
left or right direction indicator or
the hazard flasher on. If the
indicators stay on or flash faster, check for
a burned out bulb.
Electronic Throttle Control Illuminates when the engine has
defaulted to a limp-home
operation. See your authorized
dealer as soon as possible.
Engine Coolant Temperature
Warning Lamp Illuminates when the engine
coolant temperature is high.
Stop the vehicle as soon as
possible, switch off the engine and let cool.
Fasten Seatbelt Warning Lamp It illuminates and a chime
sounds until you fasten the
seatbelts.
Headlamp High Beam Indicator Illuminates when you switch the
high beam headlamps on. It will
flash when you use the
headlamp flasher. Hydromax
(If Equipped) Illuminates to indicate normal
hydromax booster reserve
system activation when the
engine is off and you apply the service
brake pedal. This light may also illuminate
momentarily if the engine is running and
the driver turns the steering wheel fully in
one direction when braking. If the light
remains on with the engine running, this
indicates inadequate hydraulic booster
pressure or reserve pump system failure.
Stop the vehicle as soon as possible and
seek service immediately by your
authorized dealer.
Lane Departure Warning Indicator
(If Equipped) Illuminates when the system
activates. See
Lane Keeping
System (page 66).
Low Fuel Level Warning Lamp Illuminates when the fuel level
is low or the fuel tank is nearly
empty. Refuel as soon as
possible.
Oil Pressure Warning Lamp If it illuminates with the engine
running or when you are driving,
this indicates a malfunction.
Stop your vehicle as soon as it is safe to
do so and switch the engine off. Check the
engine oil level. See
Engine Oil Check
(page 113).
Parking Lamps Illuminates when you switch the
parking lamps on.
25
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Instrument ClusterE71340 E71880 E146190 E173233

Service Engine Soon
If it illuminates when the engine
is running this indicates a
malfunction. The On Board
Diagnostics system has detected a
malfunction of the vehicle emission control
system.
If it flashes, engine misfire could be
occurring. Increased exhaust gas
temperatures could damage the catalytic
converter or other vehicle components.
Drive in a moderate fashion (avoid heavy
acceleration and deceleration) and have
your vehicle checked as soon as possible.
It illuminates when you switch the ignition
on prior to engine start to check the bulb
and to indicate whether your vehicle is
ready for Inspection and Maintenance
(I/M) testing.
Normally, it illuminates until the engine is
cranked and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.
See Emission Law (page 43).
Stability Control Indicator (If Equipped) Flashes during operation.
If it does not illuminate when you switch
the ignition on, or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.
Traction Control Indicator It flashes during a traction
control event. If it does not illuminate when you switch
the ignition on, or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.
Traction Control System Off Illuminates when you switch the
system off.
Tow Haul Indicator Illuminates when you switch the
tow/haul feature on. If the light
flashes steadily, immediately
have the system serviced, damage to the
transmission could occur.
AUDIBLE WARNINGS AND
INDICATORS
Headlamps On Warning Chime
Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.
Key in Ignition Warning Chime
Sounds when you open the driver's door
and you have left the key in the ignition.
Parking Brake On Warning Chime
Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by your authorized dealer
immediately.
26
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Instrument Cluster E138639 E138639 E130458 E246592

Before starting the engine check the
following:
•
Make sure all occupants have fastened
their safety belts.
• Make sure the headlamps and
electrical accessories are off.
• Make sure the parking brake is on.
• Make sure the transmission is in park
(P) or neutral (N).
• Turn the ignition key to the on position.
Note: Do not touch the accelerator pedal.
1. Fully press the brake pedal.
2. Turn the key to the start position to start the engine. Release the key when
the engine starts.
Note: The engine may continue cranking
for up to 15 seconds or until it starts.
Note: If you cannot start the engine on the
first try, wait for a short period and try again.
Failure to Start
If you cannot start the engine after three
attempts, wait 10 seconds and follow this
procedure:
1. Fully press the brake pedal.
2. Fully press the accelerator pedal and hold it there.
3. Start the engine.
Stopping the Engine When Your
Vehicle is Stationary
1. Shift into park (P) or neutral (N).
2. Turn the key to the off position.
3. Apply the parking brake. Stopping the Engine When Your
Vehicle is Moving WARNING: Switching off the
engine when the vehicle is still moving
will result in a loss of brake and steering
assistance. The steering will not lock, but
higher effort will be required. When the
ignition is switched off, some electrical
circuits, including air bags, warning lamps
and indicators may also be off. If the
ignition was turned off accidentally, you
can shift into neutral (N) and re-start the
engine.
1. Put the transmission into neutral (N) and use the brakes to bring your vehicle
to a safe stop.
2. When your vehicle has stopped, shift into park (P) or neutral (N) and switch
the ignition off.
3. Apply the parking brake.
Guarding Against Exhaust Fumes WARNING:
If you smell exhaust
fumes inside your vehicle, have your
vehicle checked by your authorized
dealer immediately. Do not drive your
vehicle if you smell exhaust fumes.
Carbon monoxide is present in exhaust
fumes. Take precautions to avoid its
dangerous effects.
Important Ventilating Information
If you stop your vehicle and then leave the
engine idling for long periods of time, we
recommend that you do one of the
following:
• Open the windows at least 1 in (3 cm).
• Set your climate control to outside air.
35
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Starting and Stopping the Engine

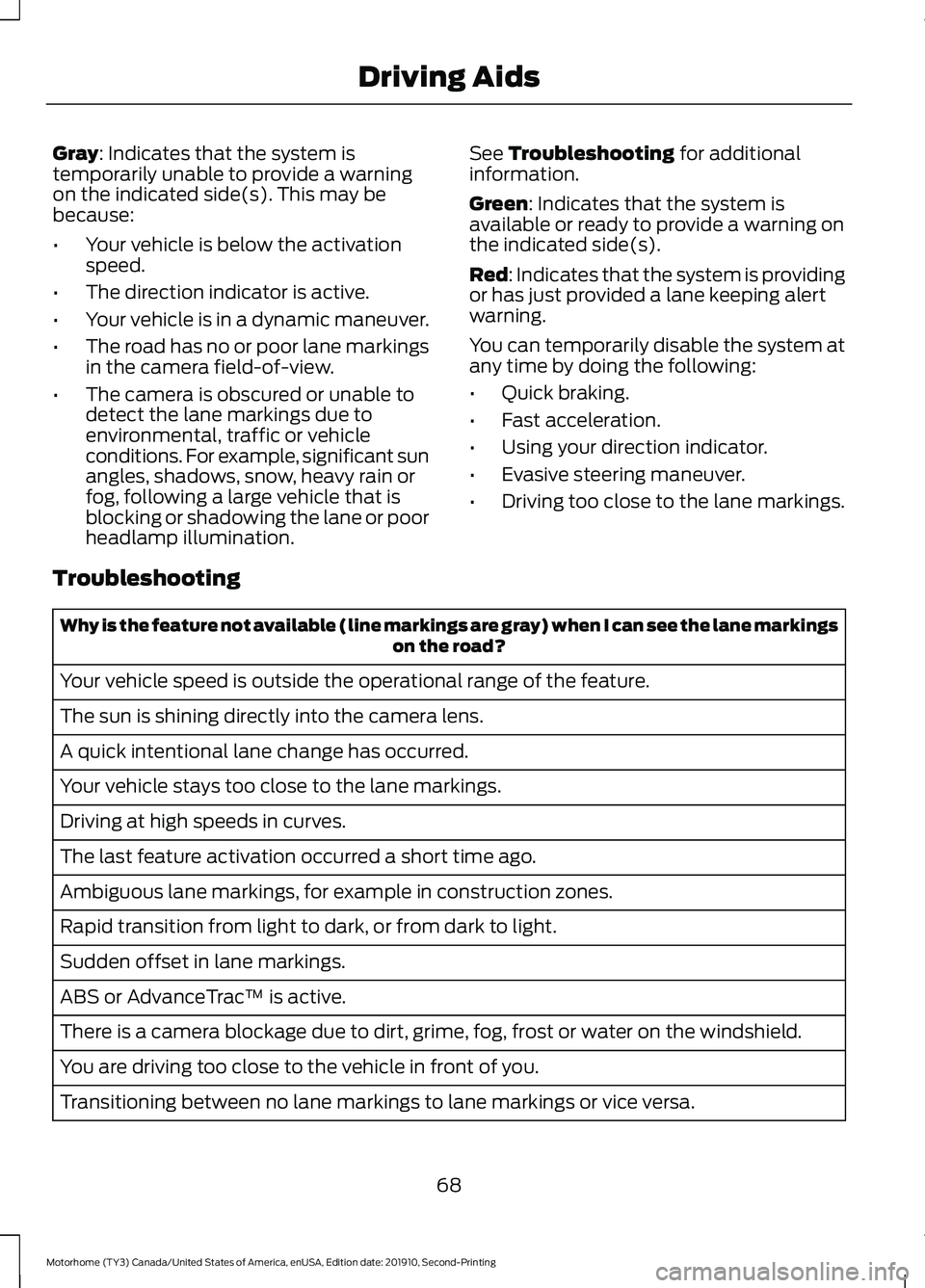

Gray: Indicates that the system is
temporarily unable to provide a warning
on the indicated side(s). This may be
because:
• Your vehicle is below the activation
speed.
• The direction indicator is active.
• Your vehicle is in a dynamic maneuver.
• The road has no or poor lane markings
in the camera field-of-view.
• The camera is obscured or unable to
detect the lane markings due to
environmental, traffic or vehicle
conditions. For example, significant sun
angles, shadows, snow, heavy rain or
fog, following a large vehicle that is
blocking or shadowing the lane or poor
headlamp illumination. See Troubleshooting for additional
information.
Green
: Indicates that the system is
available or ready to provide a warning on
the indicated side(s).
Red
: Indicates that the system is providing
or has just provided a lane keeping alert
warning.
You can temporarily disable the system at
any time by doing the following:
• Quick braking.
• Fast acceleration.
• Using your direction indicator.
• Evasive steering maneuver.
• Driving too close to the lane markings.
Troubleshooting Why is the feature not available (line markings are gray) when I can see the lane markings
on the road?
Your vehicle speed is outside the operational range of the feature.
The sun is shining directly into the camera lens.
A quick intentional lane change has occurred.
Your vehicle stays too close to the lane markings.
Driving at high speeds in curves.
The last feature activation occurred a short time ago.
Ambiguous lane markings, for example in construction zones.
Rapid transition from light to dark, or from dark to light.
Sudden offset in lane markings.
ABS or AdvanceTrac ™ is active.
There is a camera blockage due to dirt, grime, fog, frost or water on the windshield.
You are driving too close to the vehicle in front of you.
Transitioning between no lane markings to lane markings or vice versa.
68
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Driving Aids

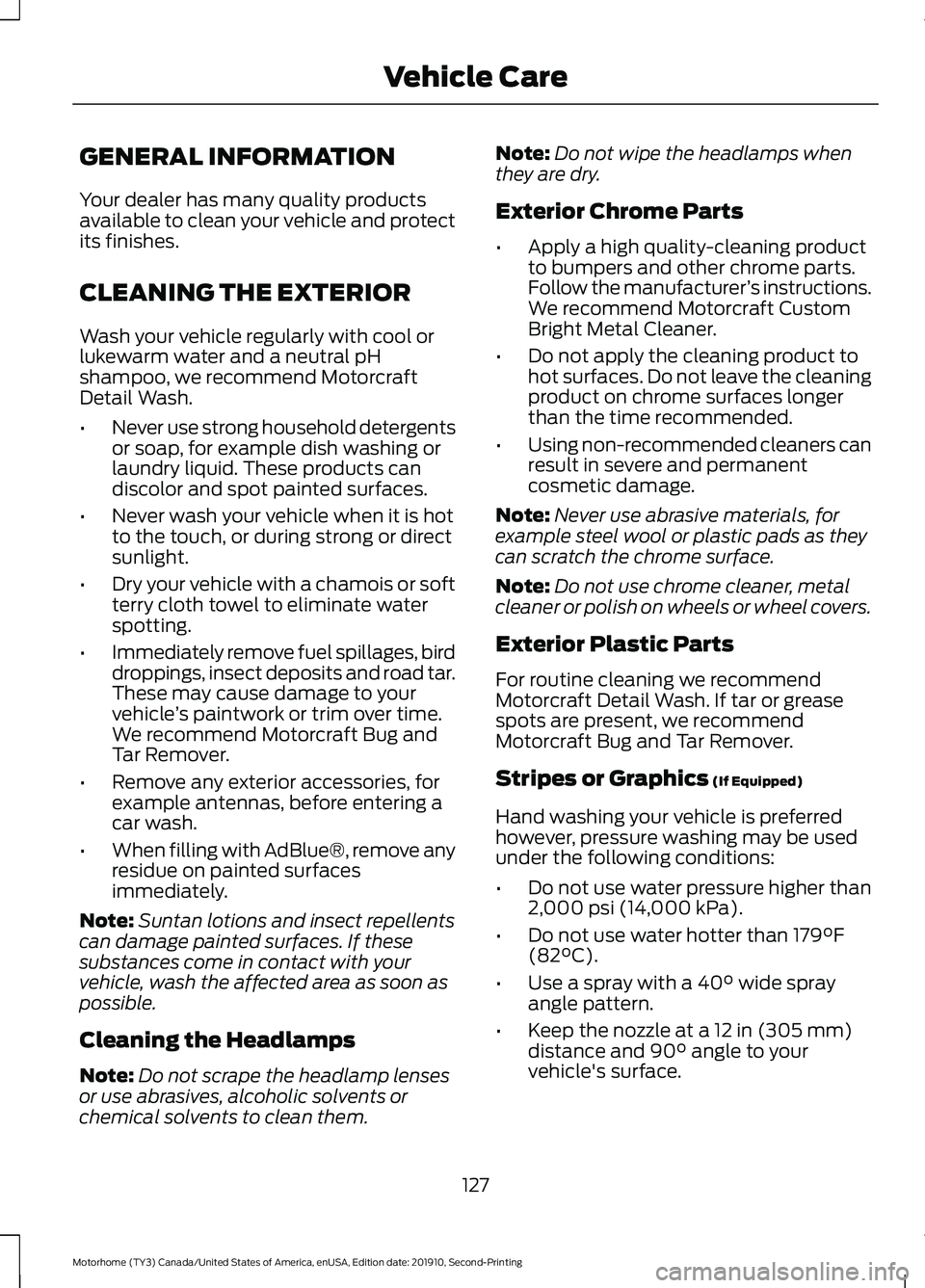

GENERAL INFORMATION
Your dealer has many quality products
available to clean your vehicle and protect
its finishes.
CLEANING THE EXTERIOR
Wash your vehicle regularly with cool or
lukewarm water and a neutral pH
shampoo, we recommend Motorcraft
Detail Wash.
•
Never use strong household detergents
or soap, for example dish washing or
laundry liquid. These products can
discolor and spot painted surfaces.
• Never wash your vehicle when it is hot
to the touch, or during strong or direct
sunlight.
• Dry your vehicle with a chamois or soft
terry cloth towel to eliminate water
spotting.
• Immediately remove fuel spillages, bird
droppings, insect deposits and road tar.
These may cause damage to your
vehicle ’s paintwork or trim over time.
We recommend Motorcraft Bug and
Tar Remover.
• Remove any exterior accessories, for
example antennas, before entering a
car wash.
• When filling with AdBlue®, remove any
residue on painted surfaces
immediately.
Note: Suntan lotions and insect repellents
can damage painted surfaces. If these
substances come in contact with your
vehicle, wash the affected area as soon as
possible.
Cleaning the Headlamps
Note: Do not scrape the headlamp lenses
or use abrasives, alcoholic solvents or
chemical solvents to clean them. Note:
Do not wipe the headlamps when
they are dry.
Exterior Chrome Parts
• Apply a high quality-cleaning product
to bumpers and other chrome parts.
Follow the manufacturer ’s instructions.
We recommend Motorcraft Custom
Bright Metal Cleaner.
• Do not apply the cleaning product to
hot surfaces. Do not leave the cleaning
product on chrome surfaces longer
than the time recommended.
• Using non-recommended cleaners can
result in severe and permanent
cosmetic damage.
Note: Never use abrasive materials, for
example steel wool or plastic pads as they
can scratch the chrome surface.
Note: Do not use chrome cleaner, metal
cleaner or polish on wheels or wheel covers.
Exterior Plastic Parts
For routine cleaning we recommend
Motorcraft Detail Wash. If tar or grease
spots are present, we recommend
Motorcraft Bug and Tar Remover.
Stripes or Graphics (If Equipped)
Hand washing your vehicle is preferred
however, pressure washing may be used
under the following conditions:
• Do not use water pressure higher than
2,000 psi (14,000 kPa)
.
• Do not use water hotter than
179°F
(82°C).
• Use a spray with a
40° wide spray
angle pattern.
• Keep the nozzle at a
12 in (305 mm)
distance and 90° angle to your
vehicle's surface.
127
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Vehicle Care

A
About This Manual...........................................5
ABS
See: Brakes.............................................................. 51
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................... 51
Accessories See: Replacement Parts
Recommendation............................................ 12
ACC See: Using Adaptive Cruise Control..............58
Adjusting the Steering Wheel....................16
Air Filter See: Changing the Engine Air Filter...............114
Appendices.....................................................184
Audible Warnings and Indicators.............26 Headlamps On Warning Chime...................... 26
Key in Ignition Warning Chime........................ 26
Parking Brake On Warning Chime.................. 26
Autolamps.........................................................19 Windshield Wiper Activated
Headlamps........................................................ 20
Automatic Transmission..............................47
Brake-Shift Interlock........................................... 49
If Your Vehicle Gets Stuck in Mud or Snow.................................................................... 50
Progressive Range Selection - PRS..............48
Understanding the Positions of Your Automatic Transmission............................... 47
Automatic Transmission Fluid Check..............................................................119
Adjusting automatic transmission fluid levels.................................................................... 121
Automatic transmission fluid filter................121
Correct fluid level................................................ 120
High fluid level....................................................... 121
Low fluid level...................................................... 120
B
Battery See: Changing the 12V Battery...................... 124
Brake Fluid Check..........................................121 Hydroboost............................................................ 122
Hydromax.............................................................. 122Brakes..................................................................51
General Information............................................. 51
Breaking-In.......................................................88
C
Canceling the Set Speed.............................57
Capacities and Specifications.................156 Air Conditioning System.................................. 156
Alternative Engine Oil for Extremely Cold Climates............................................................ 159
Automatic Transmission.................................. 156
Engine Coolant..................................................... 157
Engine Oil.............................................................. 158
Fuel Tank............................................................... 159
Grease..................................................................... 159
Hydroboost Brake System............................... 161
Hydromax Brake System................................. 160
Power Steering System..................................... 161
Rear Axle................................................................ 162
Washer Reservoir................................................ 162
Car Wash See: Cleaning the Exterior................................ 127
Catalytic Converter.......................................44
On-Board Diagnostics (OBD-II)..................... 45
Readiness for Inspection and Maintenance (I/M) Testing..................................................... 46
Changing a Fuse
...........................................108
Fuses....................................................................... 108
Changing a Road Wheel.............................147 Dissimilar Spare Wheel and Tire Assembly
Information....................................................... 147
Tire Change Procedure..................................... 149
Changing the 12V Battery..........................124 Battery relearn..................................................... 125
Changing the Engine Air Filter..................114
Cleaning the Engine.....................................128
Cleaning the Exterior....................................127 Cleaning the Headlamps.................................. 127
Exterior Chrome Parts....................................... 127
Exterior Plastic Parts.......................................... 127
Stripes or Graphics............................................. 127
Underbody............................................................ 128
Under Hood.......................................................... 128
Cleaning the Wheels...................................128
Connected Vehicle
.......................................163
Connecting the Vehicle to a Mobile
Network............................................................. 163
189
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Index

Fuel Consumption..........................................41
Advertised Capacity............................................. 41
Fuel Economy........................................................ 42
Fuel Filter.........................................................126
Fuel Quality......................................................38 Choosing the Right Fuel.................................... 38
Fuses..................................................................101
Fuse Specification Chart............................101 Engine Compartment Fuse Box..................... 101
Passenger Compartment Fuse Box............106
G
Gauges.................................................................21 2.3 Inch Display....................................................... 21
8 Inch Display......................................................... 22
Configurable Gauge............................................. 23
Engine Coolant Temperature Gauge.............23
Engine Oil Pressure Gauge................................ 23
Fuel Gauge.............................................................. 23
Voltmeter................................................................. 23
Gearbox See: Transmission................................................ 47
General Maintenance Information........166 Multi-point Inspection...................................... 168
Owner Checks and Services........................... 167
Protecting Your Investment........................... 166
Why Maintain Your Vehicle?.......................... 166
Why Maintain Your Vehicle at Your Dealership? ...................................................... 166
Getting Assistance Outside the U.S. and Canada...........................................................98
Getting the Services You Need.................95 Away From Home................................................ 95
H
Handbrake See: Parking Brake............................................... 52
Hazard Flashers...............................................91
Hill Start Assist
................................................52
Switching the System On and Off.................53
Using Hill Start Assist......................................... 53
Hints on Driving With Anti-Lock Brakes
...............................................................51
Horn......................................................................17 I
Ignition Switch.................................................34
In California (U.S. Only)...............................96
Information Display Control........................17
Information Displays
.....................................27
General Information............................................ 27
Information Messages
.................................30
Battery and Charging System......................... 30
Engine........................................................................\
31
Fuel........................................................................\
..... 31
Maintenance........................................................... 31
Power Steering...................................................... 32
Transmission.......................................................... 32
Instrument Cluster..........................................21
Instrument Lighting Dimmer.....................20
Introduction........................................................5
J
Jump Starting the Vehicle............................91 Connecting the Jumper Cables....................... 92
Jump Starting........................................................ 93
Preparing Your Vehicle........................................ 91
Removing the Jumper Cables......................... 93
L
Lane Keeping System..................................66 Switching the System On and Off.................67
System Display...................................................... 67
System Settings.................................................... 67
Troubleshooting................................................... 68
Lighting Control...............................................19 Flashing the Headlamp High Beam...............19
Headlamp High Beam......................................... 19
Lighting...............................................................19
Load Carrying
...................................................75
Load Limit..........................................................75
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................... 79
Vehicle Loading - with and without a Trailer.................................................................... 75
Lug Nuts See: Changing a Road Wheel......................... 147
191
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Index
