snow chains FORD F-53 2020 Owners Manual

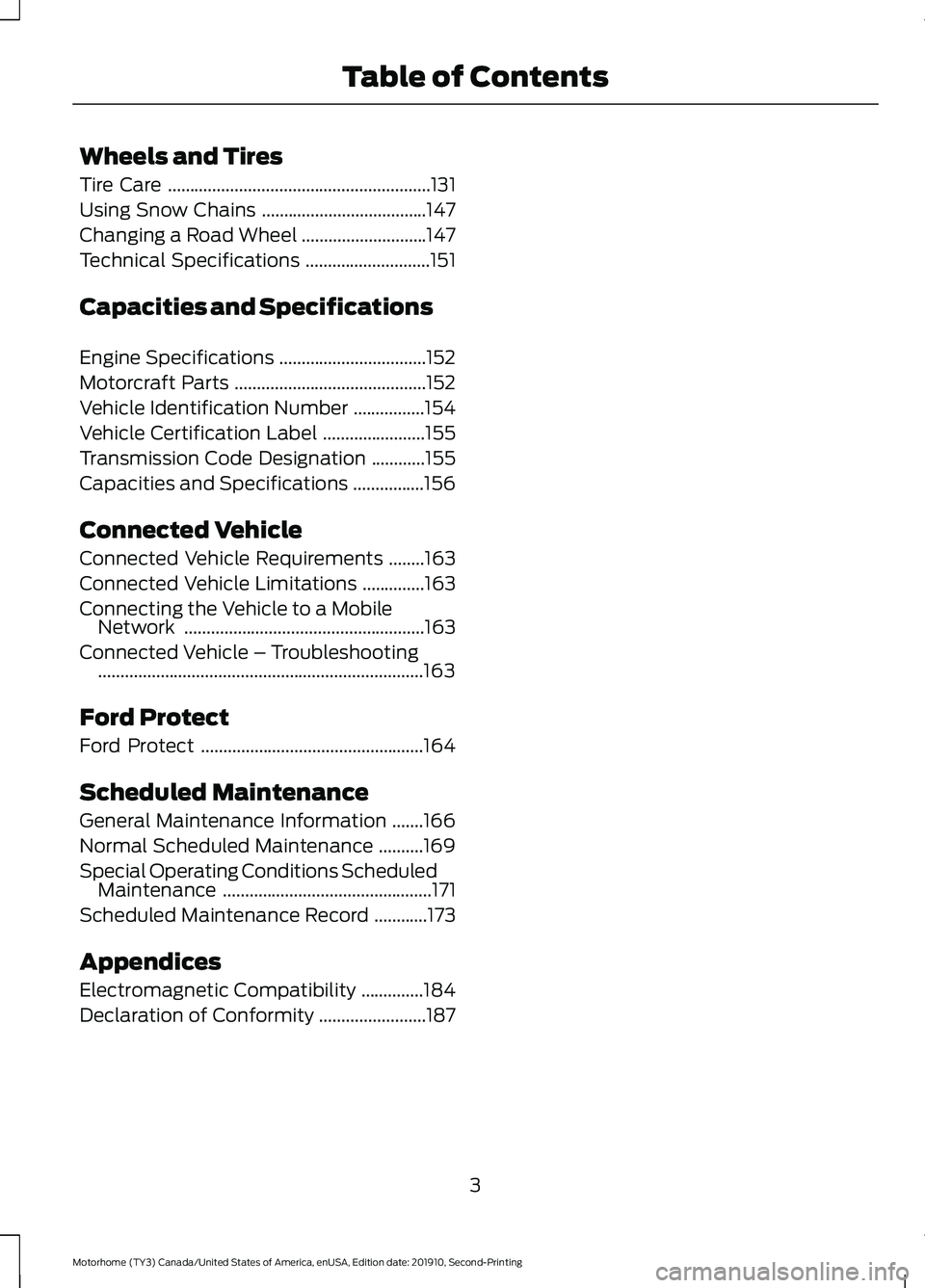

Wheels and Tires
Tire Care
...........................................................131
Using Snow Chains .....................................
147
Changing a Road Wheel ............................
147
Technical Specifications ............................
151
Capacities and Specifications
Engine Specifications .................................
152
Motorcraft Parts ...........................................
152
Vehicle Identification Number ................
154
Vehicle Certification Label .......................
155
Transmission Code Designation ............
155
Capacities and Specifications ................
156
Connected Vehicle
Connected Vehicle Requirements ........
163
Connected Vehicle Limitations ..............
163
Connecting the Vehicle to a Mobile Network ......................................................
163
Connected Vehicle – Troubleshooting ........................................................................\
.
163
Ford Protect
Ford Protect ..................................................
164
Scheduled Maintenance
General Maintenance Information .......
166
Normal Scheduled Maintenance ..........
169
Special Operating Conditions Scheduled Maintenance ...............................................
171
Scheduled Maintenance Record ............
173
Appendices
Electromagnetic Compatibility ..............
184
Declaration of Conformity ........................
187
3
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Table of Contents

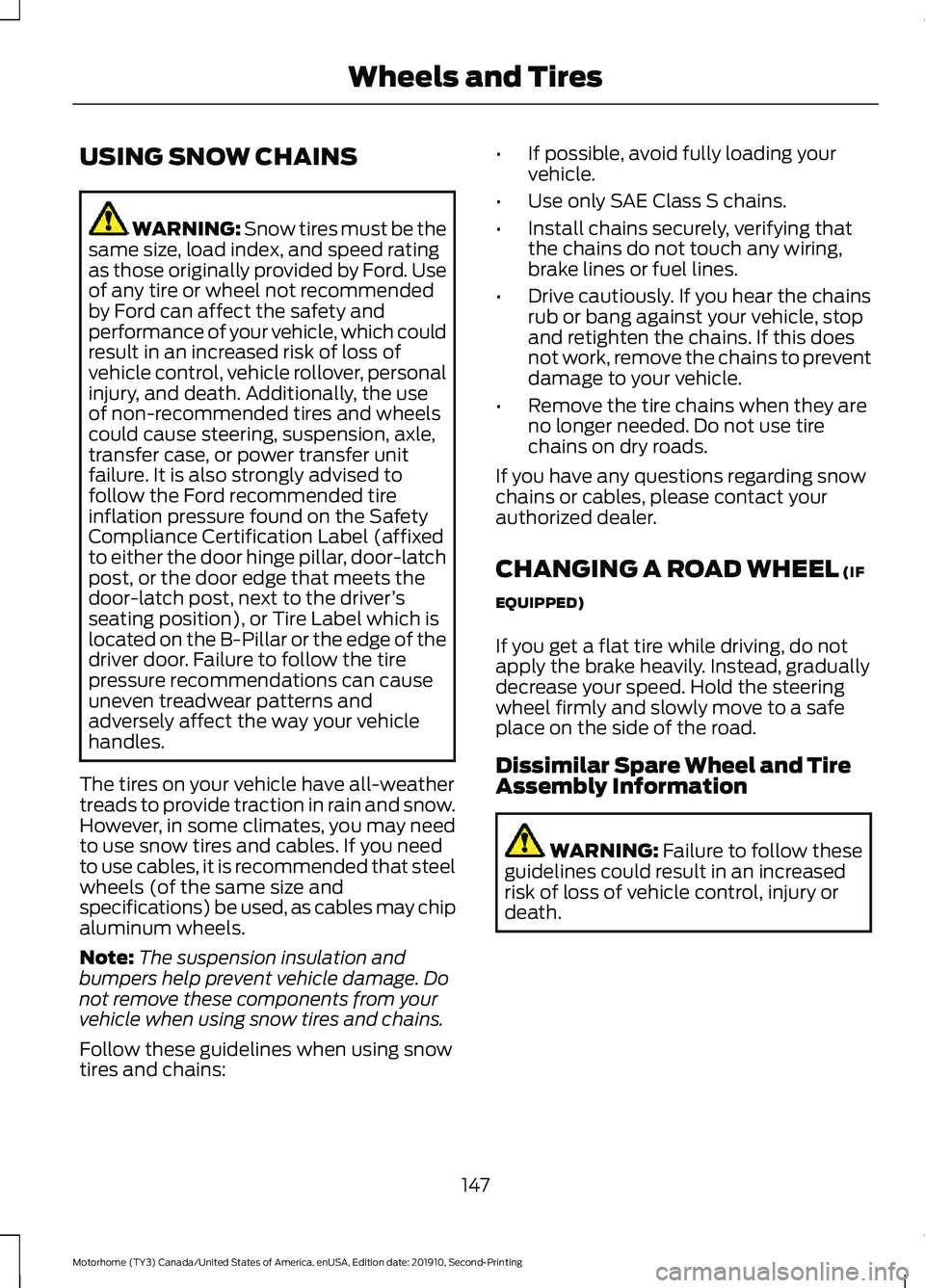

USING SNOW CHAINS
WARNING: Snow tires must be the
same size, load index, and speed rating
as those originally provided by Ford. Use
of any tire or wheel not recommended
by Ford can affect the safety and
performance of your vehicle, which could
result in an increased risk of loss of
vehicle control, vehicle rollover, personal
injury, and death. Additionally, the use
of non-recommended tires and wheels
could cause steering, suspension, axle,
transfer case, or power transfer unit
failure. It is also strongly advised to
follow the Ford recommended tire
inflation pressure found on the Safety
Compliance Certification Label (affixed
to either the door hinge pillar, door-latch
post, or the door edge that meets the
door-latch post, next to the driver ’s
seating position), or Tire Label which is
located on the B-Pillar or the edge of the
driver door. Failure to follow the tire
pressure recommendations can cause
uneven treadwear patterns and
adversely affect the way your vehicle
handles.
The tires on your vehicle have all-weather
treads to provide traction in rain and snow.
However, in some climates, you may need
to use snow tires and cables. If you need
to use cables, it is recommended that steel
wheels (of the same size and
specifications) be used, as cables may chip
aluminum wheels.
Note: The suspension insulation and
bumpers help prevent vehicle damage. Do
not remove these components from your
vehicle when using snow tires and chains.
Follow these guidelines when using snow
tires and chains: •
If possible, avoid fully loading your
vehicle.
• Use only SAE Class S chains.
• Install chains securely, verifying that
the chains do not touch any wiring,
brake lines or fuel lines.
• Drive cautiously. If you hear the chains
rub or bang against your vehicle, stop
and retighten the chains. If this does
not work, remove the chains to prevent
damage to your vehicle.
• Remove the tire chains when they are
no longer needed. Do not use tire
chains on dry roads.
If you have any questions regarding snow
chains or cables, please contact your
authorized dealer.
CHANGING A ROAD WHEEL
(IF
EQUIPPED)
If you get a flat tire while driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.
Dissimilar Spare Wheel and Tire
Assembly Information WARNING:
Failure to follow these
guidelines could result in an increased
risk of loss of vehicle control, injury or
death.
147
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Wheels and Tires

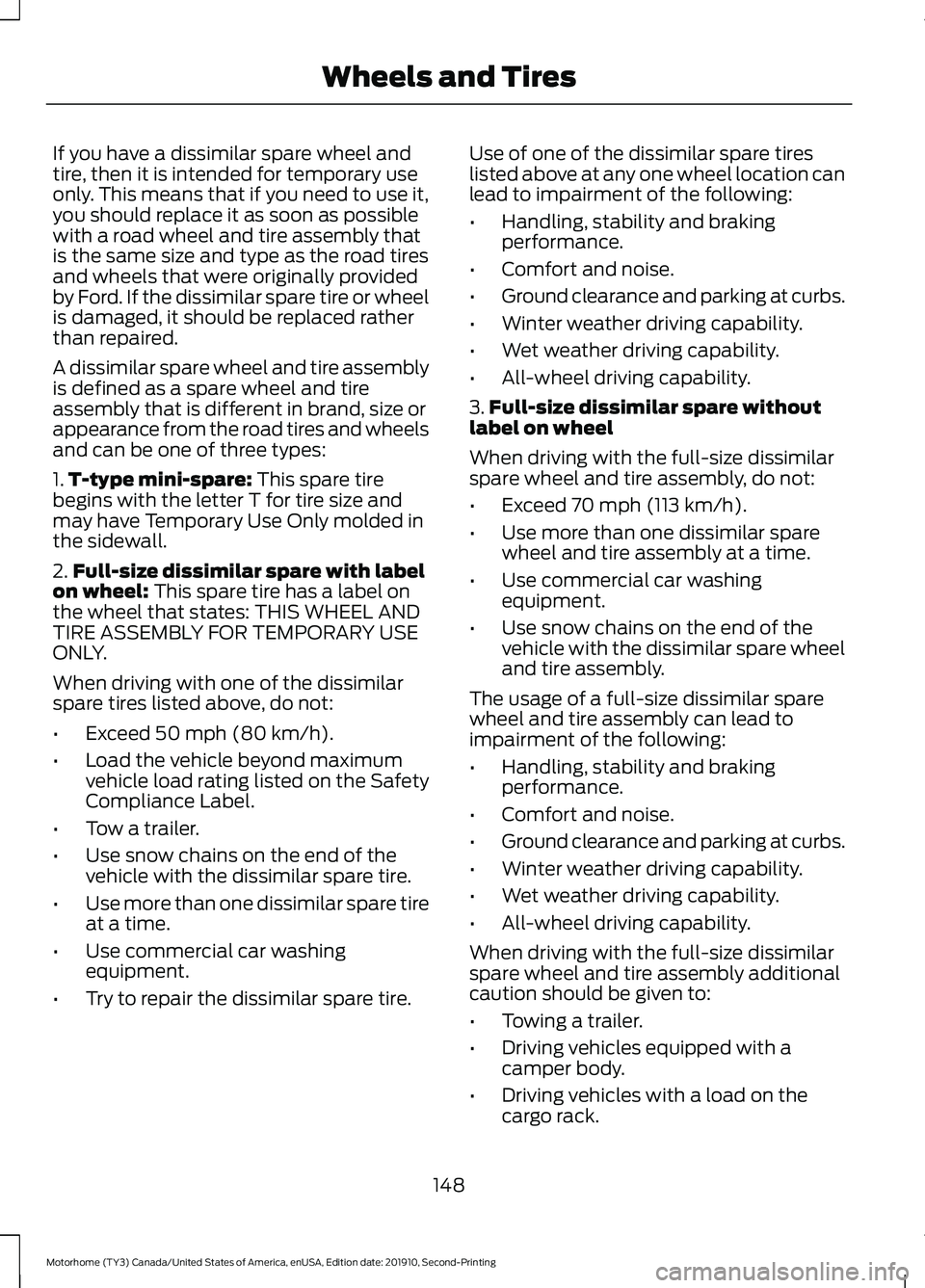

If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:
1.
T-type mini-spare: This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.
When driving with one of the dissimilar
spare tires listed above, do not:
• Exceed
50 mph (80 km/h).
• Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.
• Tow a trailer.
• Use snow chains on the end of the
vehicle with the dissimilar spare tire.
• Use more than one dissimilar spare tire
at a time.
• Use commercial car washing
equipment.
• Try to repair the dissimilar spare tire. Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
•
Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability.
3. Full-size dissimilar spare without
label on wheel
When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
• Exceed
70 mph (113 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time.
• Use commercial car washing
equipment.
• Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.
The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability.
When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
• Towing a trailer.
• Driving vehicles equipped with a
camper body.
• Driving vehicles with a load on the
cargo rack.
148
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Wheels and Tires

M
Maintenance...................................................110
General Information........................................... 110
Message Center See: Information Displays.................................. 27
Mobile Communications Equipment.......13
Motorcraft Parts............................................152
N
Normal Scheduled Maintenance
...........169
O
Oil Change Indicator Reset........................114 Resetting the Oil Life Monitoring
System................................................................ 114
Oil Check See: Engine Oil Check........................................ 113
Ordering Additional Owner's Literature........................................................99
Obtaining a French Owner ’s Manual...........99
P
Parking Brake
...................................................52
Perchlorate.........................................................11
Power Steering Fluid Check
......................123
Steering linkage lubrication points...............123
Pre-Collision Assist.......................................70 Adjusting the Pre-Collision Assist
Settings................................................................ 72
Blocked Sensors.................................................... 73
Distance Indication and Alert........................... 72
Using the Pre-Collision Assist System..........71
Protecting the Environment........................15
Puncture See: Changing a Road Wheel......................... 147
R
Recommended Towing Weights
...............81
Reduced Engine Performance...................87
Refueling...........................................................40
Replacement Parts Recommendation........................................12
Collision Repairs.................................................... 12Scheduled Maintenance and Mechanical
Repairs.................................................................. 12
Warranty on Replacement Parts..................... 12
Reporting Safety Defects (Canada Only)..............................................................100
Reporting Safety Defects (U.S. Only)................................................................99
Resuming the Set Speed............................58
Roadside Assistance....................................90 Vehicles Sold in Canada: Getting Roadside
Assistance........................................................... 91
Vehicles Sold in the United States: Getting Roadside Assistance..................................... 90
Vehicles Sold in the United States: Using Roadside Assistance..................................... 90
Roadside Emergencies
................................90
Running-In See: Breaking-In................................................... 88
Running Out of Fuel......................................39
S
Safety Precautions........................................38
Scheduled Maintenance Record
.............173
Scheduled Maintenance...........................166
Setting the Cruise Control Speed.............57 Changing the Set Speed.................................... 57
Snow Chains See: Using Snow Chains................................... 147
Spare Wheel See: Changing a Road Wheel......................... 147
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Notice to Owners of Pickup Trucks and Utility Type Vehicles........................................ 13
On Board Diagnostics Data Link Connector............................................................ 13
Special Instructions.............................................. 12
Using Your Vehicle as an Ambulance............13
Using Your Vehicle With a Snowplow............13
Special Operating Conditions Scheduled Maintenance.................................................171
Exceptions.............................................................. 172
Speed Control See: Cruise Control............................................... 57
Stability Control
..............................................55
Principle of Operation........................................ 55
192
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Index

Starter Switch
See: Ignition Switch............................................. 34
Starting a Gasoline Engine.........................34 Failure to Start....................................................... 35
Guarding Against Exhaust Fumes.................35
Important Ventilating Information................35
Stopping the Engine When Your Vehicle is Moving................................................................. 35
Stopping the Engine When Your Vehicle is Stationary........................................................... 35
Starting and Stopping the Engine...........34 General Information............................................ 34
Steering.............................................................69 Adaptive Learning................................................ 70
Adaptive Steering................................................. 70
Hydraulic Power Steering................................. 69
Steering Wheel................................................16
Switching Cruise Control On and Off......................................................................57
Switching Cruise Control Off............................ 57
Switching Cruise Control On............................ 57
Symbols Glossary.............................................5
T
Technical Specifications See: Capacities and Specifications.............152
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)..........................97
Tire Care
............................................................131
Glossary of Tire Terminology.......................... 132
Information About Uniform Tire Quality Grading............................................................... 131
Information Contained on the Tire Sidewall............................................................. 133
Temperature A B C............................................. 132
Traction AA A B C................................................. 131
Treadwear............................................................... 131
Tires See: Wheels and Tires....................................... 131
Towing a Trailer..............................................80 Load Placement................................................... 80
Towing the Vehicle on Four Wheels.......86 Emergency Towing.............................................. 86
Towing...............................................................80
Traction Control
..............................................54
Principle of Operation........................................ 54
Transmission Code Designation
.............155 Transmission....................................................47
Transporting the Vehicle.............................93
U
Under Hood Overview - Commercial
Chassis.............................................................111
Under Hood Overview - Motorhome Chassis............................................................112
Using Adaptive Cruise Control..................58 Automatic Cancellation...................................... 61
Blocked Sensor..................................................... 63
Canceling the Set Speed................................... 61
Changing the Set Speed.................................... 61
Detection Issues................................................... 62
Following a Vehicle............................................. 59
Hilly Condition and Trailer Tow Usage..........61
Overriding the Set Speed................................. 60
Resuming the Set Speed................................... 61
Setting the Adaptive Cruise Speed...............59
Setting the Gap Distance................................. 60
Switching Adaptive Cruise Control Off.........61
Switching Adaptive Cruise Control On........58
Switching to Normal Cruise Control.............64
System Not Available......................................... 63
Using Snow Chains......................................147
Using Traction Control
.................................54
System Indicator Light....................................... 54
V
Vehicle Care.....................................................127 General Information........................................... 127
Vehicle Certification Label........................155
Vehicle Identification Number
.................154
Vehicle Storage.............................................129
Body........................................................................\
. 129
Brakes..................................................................... 130
Cooling system.................................................... 129
Disconnecting Your 12 Volt Battery..............129
Engine..................................................................... 129
Fuel system........................................................... 129
General................................................................... 129
Miscellaneous...................................................... 130
Removing Vehicle From Storage.................. 130
Tires........................................................................\
. 130
VIN See: Vehicle Identification Number.............154
193
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Index
