horn FORD F-53 2021 Owners Manual

Introduction
About This Manual
..........................................5
Symbols Glossary ............................................
5
Data Recording ..................................................
7
Perchlorate ........................................................
11
Ford Credit .........................................................
11
Replacement Parts Recommendation ........................................................................\
....
12
Special Notices ...............................................
12
Mobile Communications Equipment ........................................................................\
....
13
Export Unique Options ................................
14
Environment
Protecting the Environment .......................
15
Steering Wheel
Adjusting the Steering Wheel ...................
16
Cruise Control - Vehicles With: Adaptive Cruise Control ..............................................
16
Cruise Control - Vehicles With: Cruise Control ...........................................................
16
Information Display Control .......................
17
Horn .....................................................................
17
Wipers and Washers
Windshield Wipers ........................................
18
Windshield Washers .....................................
18
Lighting
Lighting Control ..............................................
19
Autolamps ........................................................
19
Instrument Lighting Dimmer ....................
20
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL) ..........
20
Daytime Running Lamps - Vehicles With: Configurable Daytime Running Lamps
........................................................................\
..
20
Direction Indicators ........................................
21Automatic High Beam Control
What Is Automatic High Beam Control
........................................................................\
...
22
Switching Automatic High Beam Control On and Off ...................................................
22
Automatic High Beam Control Indicators ........................................................................\
...
22
Overriding Automatic High Beam Control ........................................................................\
...
23
Instrument Cluster
Gauges ..............................................................
24
Warning Lamps and Indicators ................
27
Audible Warnings and Indicators ............
29
Information Displays
General Information ....................................
30
Information Messages .................................
34
Starting and Stopping the Engine
General Information .....................................
37
Ignition Switch ................................................
37
Starting a Gasoline Engine .........................
37
Engine Block Heater .....................................
39
Fuel and Refueling
Safety Precautions ........................................
41
Fuel Quality ......................................................
41
Running Out of Fuel .....................................
42
Refueling ..........................................................
43
Fuel Consumption ........................................
44
Engine Emission Control
Emission Law .................................................
46
Catalytic Converter .......................................
47
Transmission
Automatic Transmission ............................
50
1
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Table of Contents

Lighting control
Low tire pressure warning
Maintain correct fluid level
Note operating instructions
Horn control
Panic alarm
Parking aid
Parking brake
Power steering fluid
Power windows front/rear
Power window lockout
Requires registered technician
Safety alert
See Owner's Manual
See Service Manual Malfunction Indicator Lamp
(MIL)
Passenger airbag activated
Passenger airbag deactivated
Side airbag
Shield the eyes
Stability control
Hill descent control
Trail control
Windshield wiping system
Windshield wash and wipe
DATA RECORDING WARNING: Do not connect
wireless plug-in devices to the data link
connector. Unauthorized third parties
could gain access to vehicle data and
impair the performance of safety related
systems. Only allow repair facilities that
follow our service and repair instructions
to connect their equipment to the data
link connector.
7
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Introduction E270945 E139213 E231159 E65963 E231158 E270849 E270850 E167012 E138639 E163957 E272858 E270969

INFORMATION DISPLAY
CONTROL
See Information Displays (page 30).
HORN 17
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Steering WheelE191336 E270945

•
Carry unnecessary weight
(approximately 1 mpg [0.4 km/L] is
lost for every 400 lb [180 kilogram] of
weight carried).
• Driving with the wheels out of
alignment.
Conditions
• Heavily loading a vehicle or towing a
trailer may reduce fuel economy at any
speed.
• Adding certain accessories to your
vehicle (for example bug deflectors,
rollbars, light bars, running boards, ski
racks or luggage racks) may reduce
fuel economy.
• To maximize the fuel economy, drive
with the tonneau cover installed (if
equipped).
• Using fuel blended with alcohol may
lower fuel economy.
• Fuel economy may decrease with lower
temperatures during the first 5–10 mi
(12 –16 km) of driving.
• Driving on flat terrain offers improved
fuel economy as compared to driving
on hilly terrain.
• Transmissions give their best fuel
economy when operated in the top
cruise gear and with steady pressure
on the gas pedal.
• Four-wheel-drive operation (if
equipped) is less fuel efficient than
two-wheel-drive operation.
BREAKING-IN
You need to break in new tires for
approximately
300 mi (480 km). During
this time, your vehicle may exhibit some
unusual driving characteristics. Avoid driving too fast during the first
1,000 mi (1,600 km)
. Vary your speed
frequently and change up through the
gears early. Do not labor the engine.
Do not tow during the first
1,000 mi
(1,600 km).
DRIVING THROUGH WATER WARNING:
Do not drive through
flowing or deep water as you may lose
control of your vehicle.
Note: Driving through standing water can
cause vehicle damage.
Note: Engine damage can occur if water
enters the air filter.
Before driving through standing water,
check the depth. Never drive through water
that is higher than the bottom of the wheel
hubs. When driving through standing water, drive
very slowly and do not stop your vehicle.
Your brake performance and traction may
be limited. After driving through water and
as soon as it is safe to do so:
•
Lightly press the brake pedal to dry the
brakes and to check that they work.
• Check that the horn works.
91
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Driving HintsE176913

Protected Component
Fuse
Rating
Fuse
Number
Horn.
20 A
1
Blower motor.
50 A
2
Not used.
—
3
Starter relay.
30 A
4
Not used.
—
5
Not used.
—
6
Not used.
—
8
Not used.
—
10
Not used.
—
12
Run/start feed climate controls.
10 A
13
Adaptive cruise control relay (commercial stripped chassis).
10 A
14
Not used (spare) (Motorhome stripped chassis).
Not used.
—
15
Not used.
—
16
Powertrain control module run/start feed.
10 A
17
Anti-lock brake system run/start feed.
10 A
18
Not used.
—
19
Wiper power.
40 A
20
Not used.
—
21
Wiper module.
10 A
22
Not used.
—
23
Body control module - battery power in feed 2.
40 A
24
Body control module - battery power in feed 1.
50 A
25
Not used.
—
26
B+ to body builder connector.
20 A
27
Not used.
—
28
105
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Fuses

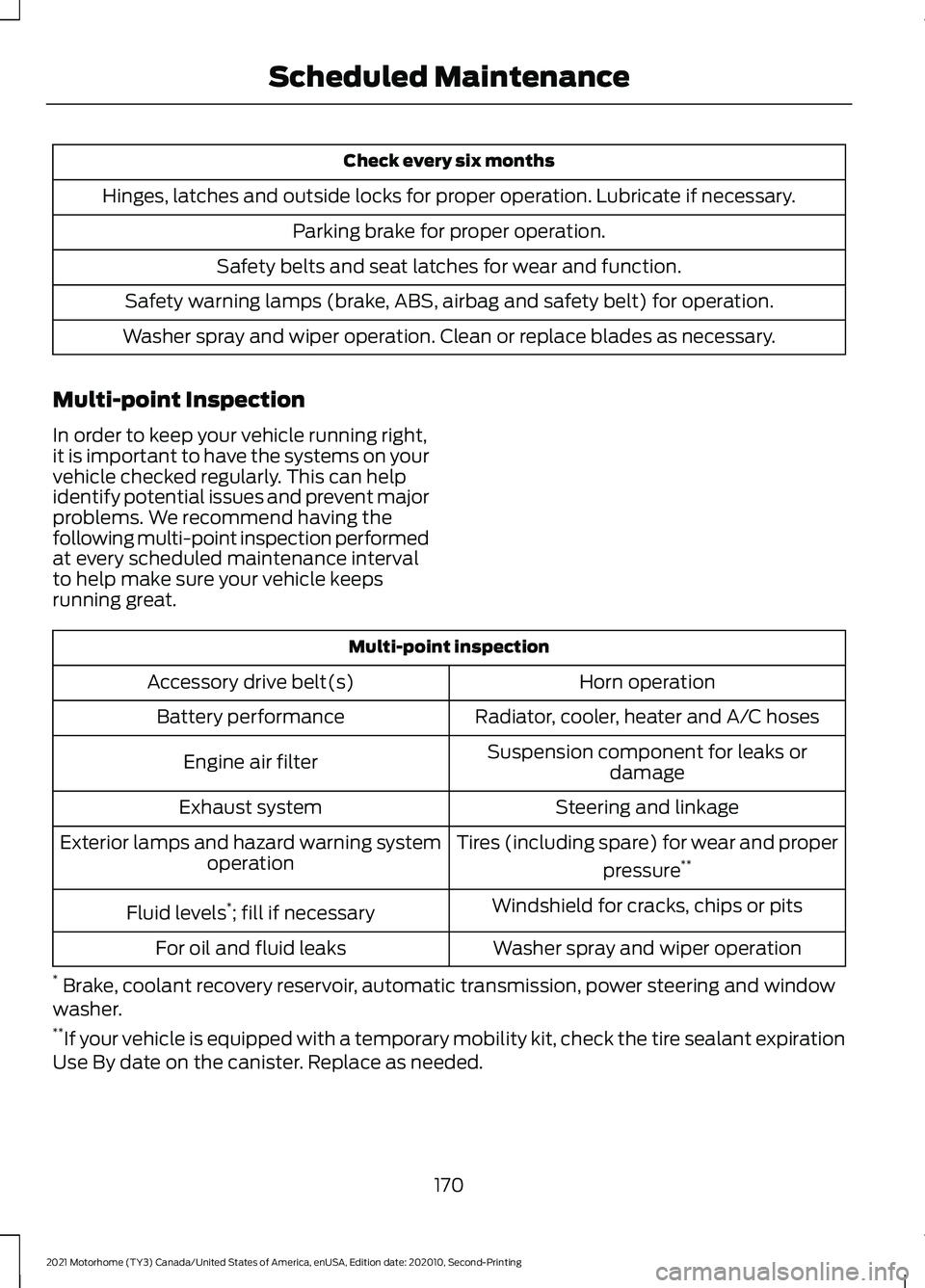

Check every six months
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag and safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.
Multi-point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great. Multi-point inspection
Horn operation
Accessory drive belt(s)
Radiator, cooler, heater and A/C hoses
Battery performance
Suspension component for leaks ordamage
Engine air filter
Steering and linkage
Exhaust system
Tires (including spare) for wear and properpressure**
Exterior lamps and hazard warning system
operation
Windshield for cracks, chips or pits
Fluid levels *
; fill if necessary
Washer spray and wiper operation
For oil and fluid leaks
* Brake, coolant recovery reservoir, automatic transmission, power steering and window
washer.
** If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
170
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Scheduled Maintenance

E
Economical Driving.......................................90
Electromagnetic Compatibility...............180
Emission Law..................................................46
Engine Block Heater......................................39
Engine Coolant Check.................................118
Engine Emission Control
.............................46
Engine Oil Check............................................116
Engine Oil Dipstick........................................116
Engine Specifications
..................................152
Environment......................................................15
Essential Towing Checks.............................87
Event Data Recording See: Data Recording............................................... 7
Export Unique Options.................................14
F
Ford Credit
..........................................................11
Ford Protect...................................................166
Fuel and Refueling..........................................41
Fuel Consumption
.........................................44
Fuel Filter.........................................................129
Fuel Quality.......................................................41
Fuses.................................................................104
Fuse Specification Chart...........................104
G
Gauges...............................................................24
Gearbox See: Transmission................................................ 50
General Maintenance Information........168
Getting Assistance Outside the U.S. and Canada...........................................................101
Getting the Services You Need.................98
H
Handbrake See: Parking Brake............................................... 55
Hazard Flashers..............................................94
Hill Start Assist
...............................................56
Hints on Driving With Anti-Lock Brakes..............................................................55
Horn......................................................................17 I
Ignition Switch
.................................................37
In California (U.S. Only)...............................99
Information Display Control........................17
Information Displays....................................30 General Information............................................ 30
Information Messages
..................................34
Instrument Cluster.........................................24
Instrument Lighting Dimmer.....................20
Introduction........................................................5
J
Jump Starting the Vehicle..........................94
L
Lane Keeping System
...................................70
Lighting Control...............................................19
Lighting...............................................................19
Load Carrying
...................................................78
Load Limit.........................................................78
M
Maintenance....................................................113 General Information........................................... 113
Message Center See: Information Displays................................. 30
Mobile Communications Equipment.......13
Motorcraft Parts
............................................152
N
Normal Scheduled Maintenance
.............171
O
Oil Change Indicator Reset
........................116
Oil Check See: Engine Oil Check........................................ 116
Ordering Additional Owner's Literature
......................................................102
Overriding Automatic High Beam Control.............................................................23
186
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Index
