technical specifications FORD F-53 2021 Owners Manual

Automatic Transmission Fluid Check
........................................................................\
.122
Brake Fluid Check ........................................
124
Power Steering Fluid Check .....................
126
Changing the 12V Battery ..........................
127
Fuel Filter ........................................................
129
Vehicle Care
General Information ...................................
130
Cleaning the Exterior ..................................
130
Cleaning the Engine .....................................
131
Cleaning the Wheels ...................................
131
Vehicle Storage .............................................
132
Wheels and Tires
Tire Care ..........................................................
134
Using Snow Chains .....................................
150
Technical Specifications ............................
151
Capacities and Specifications
Engine Specifications .................................
152
Motorcraft Parts ...........................................
152
Vehicle Identification Number ................
154
Transmission Code Designation ............
155
Capacities and Specifications ................
156
Connected Vehicle
Connected Vehicle Requirements ........
163
Connected Vehicle Limitations ..............
163
Connecting the Vehicle to a Mobile Network ......................................................
163
Connecting the Vehicle to a Wi-Fi Network ......................................................
163
Connected Vehicle – Troubleshooting ........................................................................\
.
164
Ford Protect
Ford Protect ..................................................
166Scheduled Maintenance
General Maintenance Information
.......
168
Normal Scheduled Maintenance ............
171
Special Operating Conditions Scheduled Maintenance ..............................................
173
Customer Information
Radio Frequency Certification Labels ........................................................................\
.
176
Appendices
Electromagnetic Compatibility ..............
180
Declaration of Conformity .......................
183
3
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Table of Contents

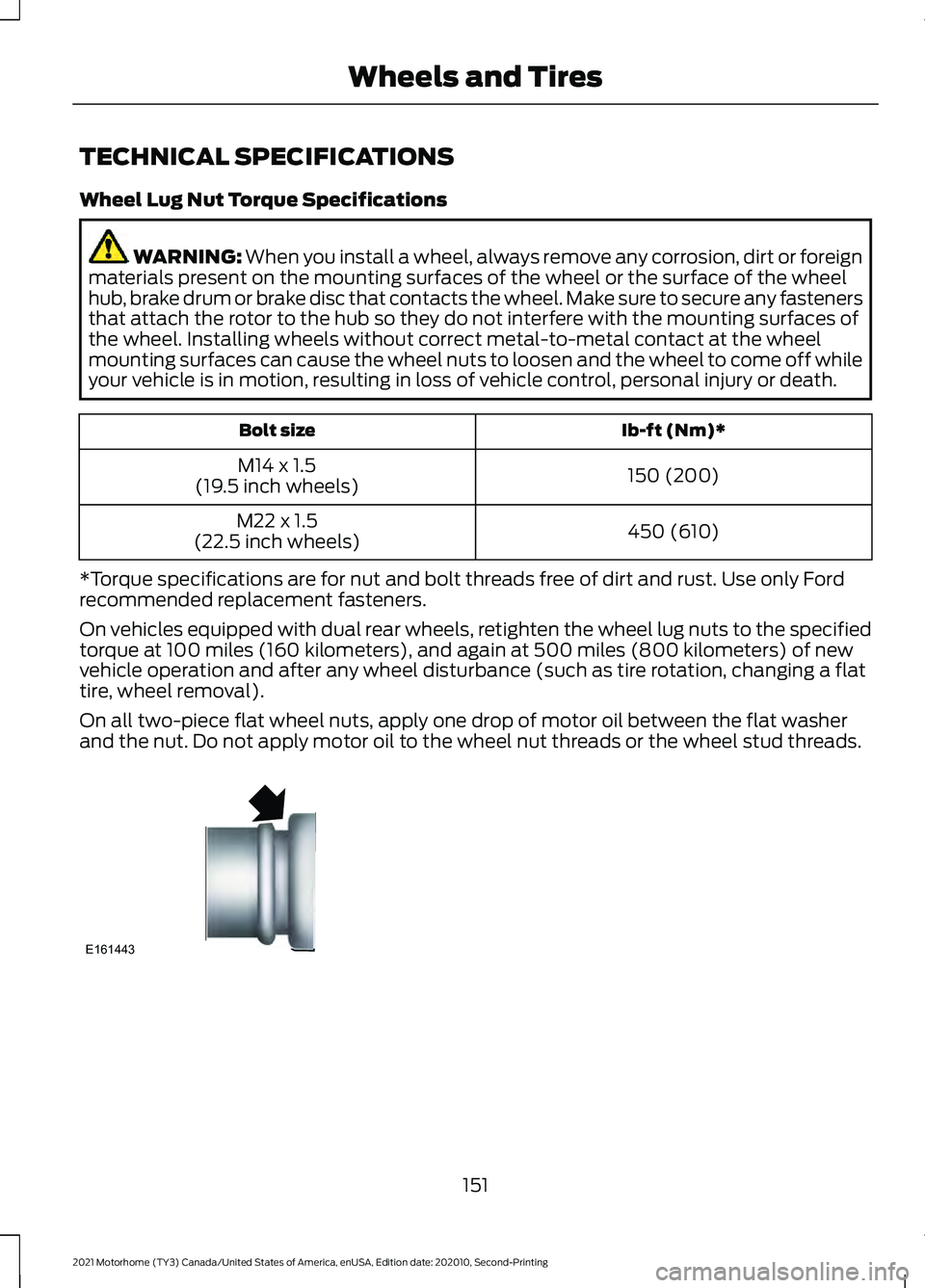

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign
materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death. Ib-ft (Nm)*
Bolt size
150 (200)
M14 x 1.5
(19.5 inch wheels)
450 (610)
M22 x 1.5
(22.5 inch wheels)
*Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
On vehicles equipped with dual rear wheels, retighten the wheel lug nuts to the specified
torque at 100 miles (160 kilometers), and again at 500 miles (800 kilometers) of new
vehicle operation and after any wheel disturbance (such as tire rotation, changing a flat
tire, wheel removal).
On all two-piece flat wheel nuts, apply one drop of motor oil between the flat washer
and the nut. Do not apply motor oil to the wheel nut threads or the wheel stud threads. 151
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Wheels and TiresE161443

Ukraine
United Arab Emirates
United States and Canada
WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
FCC ID: L2C0065TR
IC: 3432A-0065TR This device complies with Part 15 of the
FCC Rules and with Innovation, Science
and Economic Development Canada
’s
licence-exempt RSS(s). Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired
operation.
Zambia 179
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Customer InformationE308043 E308044 E340196

P
Parking Brake...................................................55
Perchlorate.........................................................11
Power Steering Fluid Check......................126
Pre-Collision Assist........................................74
Protecting the Environment........................15
R
Radio Frequency Certification Labels.............................................................176
Cruise Control Module...................................... 176
Recommended Towing Weights..............84
Reduced Engine Performance..................90
Refueling...........................................................43
Replacement Parts Recommendation........................................12
Reporting Safety Defects (Canada Only)...............................................................103
Reporting Safety Defects (U.S. Only)...............................................................102
Resuming the Set Speed.............................61
Roadside Assistance....................................93
Roadside Emergencies
................................93
Running-In See: Breaking-In.................................................... 91
Running Out of Fuel......................................42
S
Safety Precautions
.........................................41
Scheduled Maintenance...........................168
Setting the Cruise Control Speed............60
Snow Chains See: Using Snow Chains.................................. 150
Special Notices................................................12
Special Operating Conditions Scheduled Maintenance................................................173
Speed Control See: Cruise Control............................................. 60
Stability Control.............................................58 Principle of Operation........................................ 58
Starter Switch See: Ignition Switch............................................. 37
Starting a Gasoline Engine..........................37
Starting and Stopping the Engine............37 General Information............................................ 37Steering..............................................................73
Steering Wheel
................................................16
Switching Automatic High Beam Control On and Off
.....................................................22
Switching Cruise Control On and Off....................................................................60
Symbols Glossary.............................................5
T
Technical Specifications See: Capacities and Specifications.............152
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................100
Tire Care
...........................................................134
Tires See: Wheels and Tires...................................... 134
Towing a Trailer...............................................83
Towing the Vehicle on Four Wheels.......89
Towing................................................................83
Traction Control
..............................................57
Principle of Operation......................................... 57
Transmission Code Designation
.............155
Transmission...................................................50
Transporting the Vehicle.............................96
U
Under Hood Overview - Commercial Chassis............................................................114
Under Hood Overview - Motorhome Chassis............................................................115
Using Adaptive Cruise Control...................61
Using Snow Chains......................................150
Using Traction Control..................................57
V
Vehicle Care
....................................................130
General Information.......................................... 130
Vehicle Identification Number
.................154
Vehicle Storage..............................................132
VIN See: Vehicle Identification Number.............154
W
Warning Lamps and Indicators
.................27
187
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Index

Washers
See: Cleaning the Exterior............................... 130
See: Wipers and Washers.................................. 18
What Is Automatic High Beam Control.............................................................22
What Is Cruise Control.................................60
Wheels and Tires..........................................134 Technical Specifications................................... 151
Wi Fi See: Connecting the Vehicle to a Wi-Fi
Network............................................................. 163
Windshield Washers......................................18
Windshield Wipers.........................................18
Wipers and Washers......................................18
188
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Index
