Using Biodiesel, up to and Including 20% Biodiesel (B20)
Change the engine oil and filter as indicated by the
information display, and perform the services listed in the
scheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuel
filters.
Every 15,000 mi
(24,000 km), six months or
300 engine hours Using Fuel Other Than Ultra-low Sulfur Diesel Fuel - Vehicles Operated Where Ultra-low
Sulfur Diesel Fuel is not Required or Available
Change engine oil and filter.
Every
2,500 mi (4,000 km)
or three months (if using
high sulfur fuel with more
than 500 ppm sulfur)
Change engine oil and filter.
Every
5,000 mi (8,000 km)
or six months (if using high
sulfur fuel with fewer than
500 ppm sulfur)
Exceptions
Axle and Transfer Case Maintenance
Axle(s) and transfer case (4X4 only) fluid
changes or level checks are not required
unless a leak is suspected or the assembly
has been submerged in water. During long
periods of trailer towing with outside
temperatures above
70°F (21°C) or at
wide-open throttle for long periods above
45 mph (72 km/h)
, change the rear axle
fluid every 30,000 mi (48,000 km) if the
rear axle is filled with non-synthetic fluid.
This interval can be waived and the
150,000 mi (240,000 km) service interval
can continue if the rear axle is filled with
75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number
XY-75W140-QL, or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or
equivalent for complete refill of
Traction-Lok rear axles. See
Capacities
and Specifications (page 467).
Additional Axle Maintenance for Dual
Rear Wheels
Change rear axle fluid every
250,000 mi
(400,000 km) under normal driving
conditions on all commercial applications.
When operating your vehicle at or near
maximum gross vehicle weights, change
the rear axle fluid every
60,000 mi
(96,000 km). In addition, follow this
60,000 mi (96,000 km) schedule when
operating your vehicle under the special
operating conditions where noted.
635
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Scheduled Maintenance

Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter.
Every 5,000 mi (8,000 km)
or six months. Inspect and lubricate U-joints if equipped with grease
fittings.
Replace front wheel bearing grease and grease seals if
non-sealed bearings are used.
Every
30,000 mi
(48,000 km)
Change transfer case fluid (Four-wheel drive vehicles).
Every
60,000 mi
(96,000 km) Replace spark plugs.
1 Rotate the front wheels on vehicles with dual rear wheels when specified. Rotate the
rear wheels if unusual wear is noted. Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use
(Such as Delivery, Taxi, Patrol Car or Livery)
Replace engine air filter.
Inspect frequently, service
as required
Replace cabin air filter.
Inspect brake system.
Every
5,000 mi (8,000 km)
Inspect wheels and related components for abnormal
noise, wear, looseness or drag.
Lubricate control arm and steering ball joints if equipped
with grease fittings.
Rotate tires, inspect tires for wear and measure tread
depth.1
Inspect and lubricate U-joints if equipped with grease
fittings.
Every
5,000 mi (8,000 km)
or six months
Change engine oil and filter.
Every
5,000 mi (8,000 km)
or six months or 200 engine
hours.
Replace front wheel bearing grease and grease seals if
non-sealed bearings are used.
Every
30,000 mi
(48,000 km)
Replace spark plugs.
Every
60,000 mi
(96,000 km)
1 Rotate the front wheels on vehicles with dual rear wheels when specified. Rotate the
rear wheels if unusual wear is noted.
637
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Scheduled Maintenance

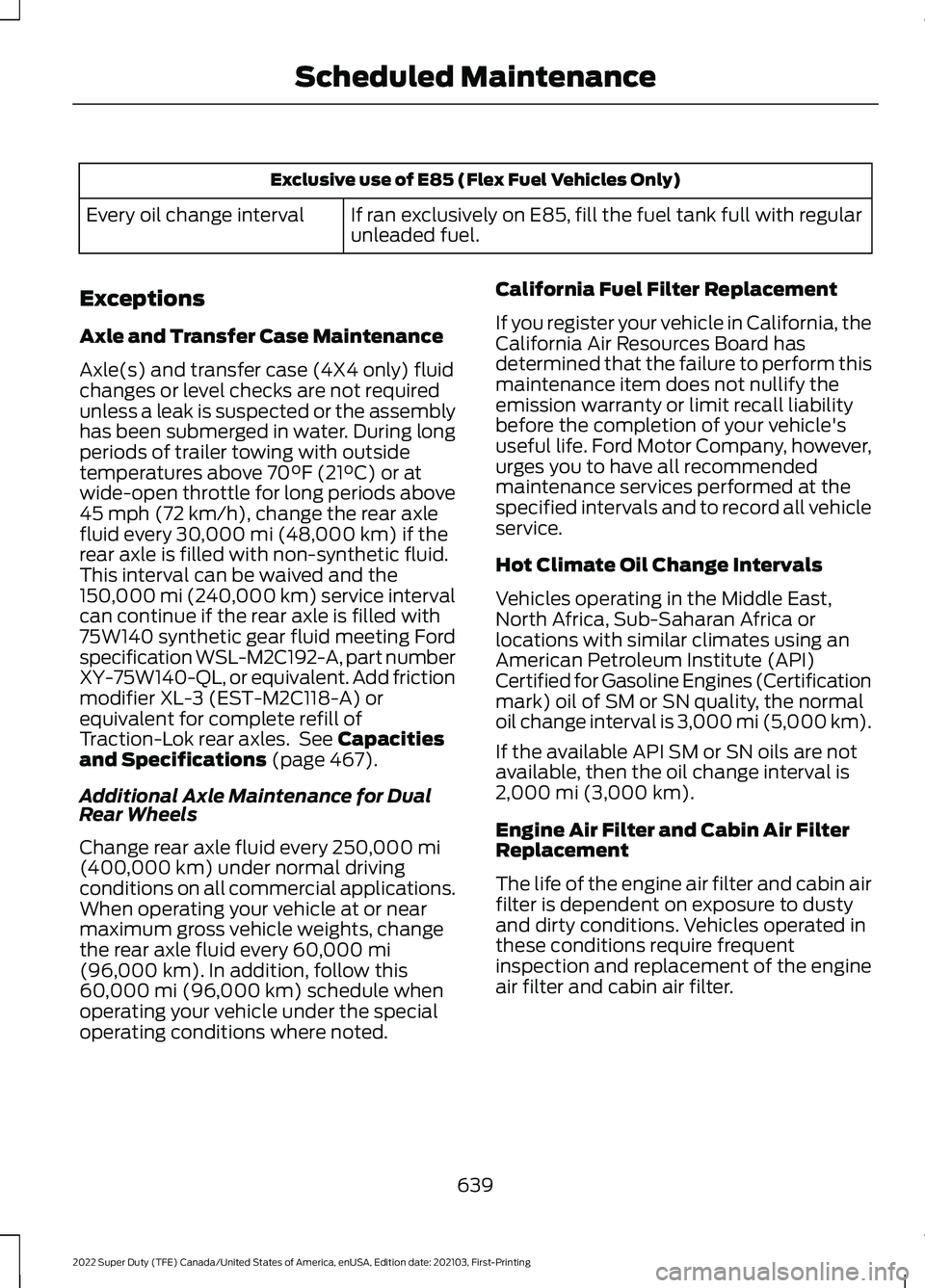

Exclusive use of E85 (Flex Fuel Vehicles Only)
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change interval
Exceptions
Axle and Transfer Case Maintenance
Axle(s) and transfer case (4X4 only) fluid
changes or level checks are not required
unless a leak is suspected or the assembly
has been submerged in water. During long
periods of trailer towing with outside
temperatures above 70°F (21°C) or at
wide-open throttle for long periods above
45 mph (72 km/h)
, change the rear axle
fluid every 30,000 mi (48,000 km) if the
rear axle is filled with non-synthetic fluid.
This interval can be waived and the
150,000 mi (240,000 km) service interval
can continue if the rear axle is filled with
75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number
XY-75W140-QL, or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or
equivalent for complete refill of
Traction-Lok rear axles. See
Capacities
and Specifications (page 467).
Additional Axle Maintenance for Dual
Rear Wheels
Change rear axle fluid every
250,000 mi
(400,000 km) under normal driving
conditions on all commercial applications.
When operating your vehicle at or near
maximum gross vehicle weights, change
the rear axle fluid every
60,000 mi
(96,000 km). In addition, follow this
60,000 mi (96,000 km) schedule when
operating your vehicle under the special
operating conditions where noted. California Fuel Filter Replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service.
Hot Climate Oil Change Intervals
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 3,000 mi (5,000 km).
If the available API SM or SN oils are not
available, then the oil change interval is
2,000 mi (3,000 km)
.
Engine Air Filter and Cabin Air Filter
Replacement
The life of the engine air filter and cabin air
filter is dependent on exposure to dusty
and dirty conditions. Vehicles operated in
these conditions require frequent
inspection and replacement of the engine
air filter and cabin air filter.
639
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Scheduled Maintenance

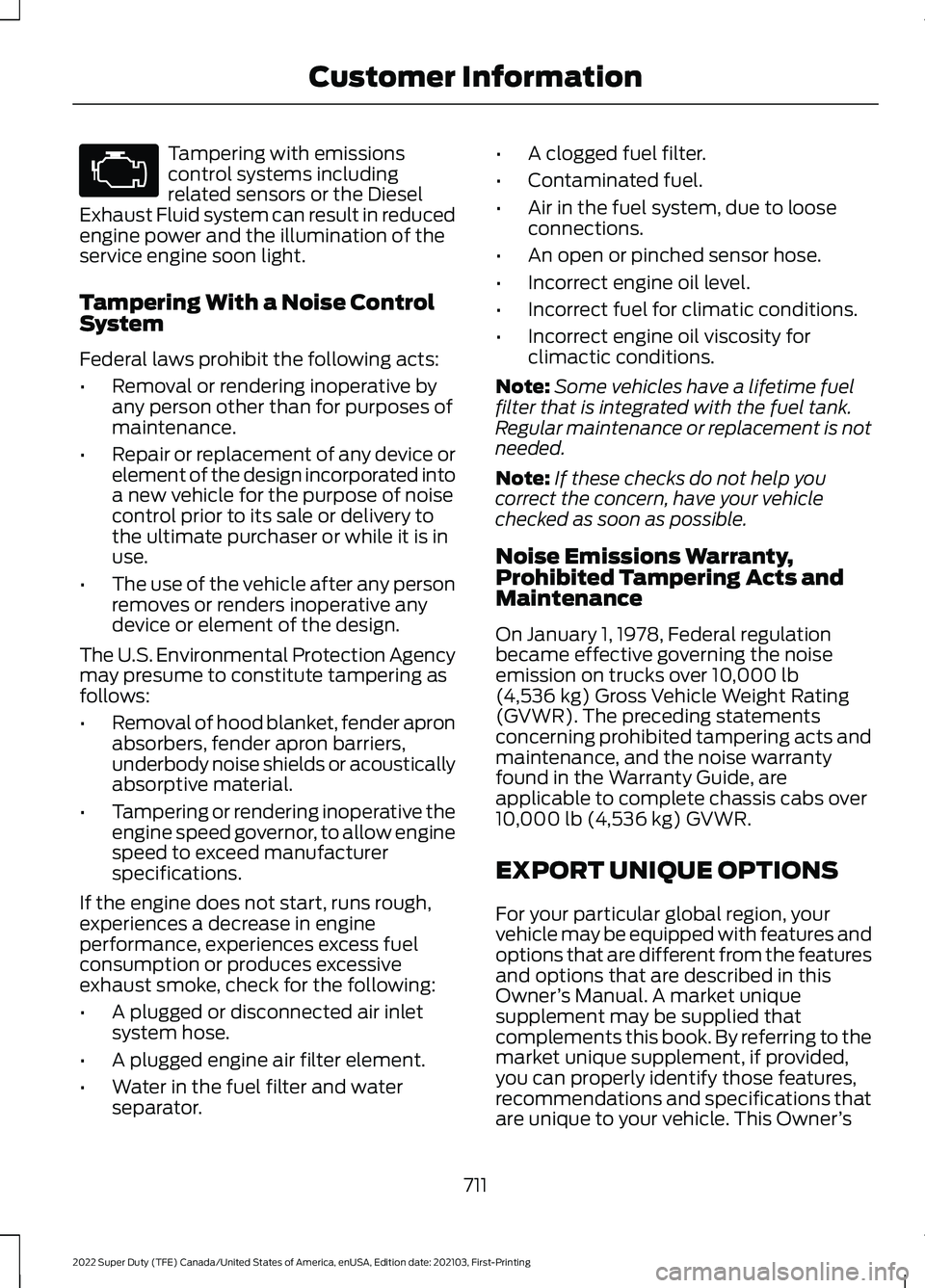

Tampering with emissions
control systems including
related sensors or the Diesel
Exhaust Fluid system can result in reduced
engine power and the illumination of the
service engine soon light.
Tampering With a Noise Control
System
Federal laws prohibit the following acts:
• Removal or rendering inoperative by
any person other than for purposes of
maintenance.
• Repair or replacement of any device or
element of the design incorporated into
a new vehicle for the purpose of noise
control prior to its sale or delivery to
the ultimate purchaser or while it is in
use.
• The use of the vehicle after any person
removes or renders inoperative any
device or element of the design.
The U.S. Environmental Protection Agency
may presume to constitute tampering as
follows:
• Removal of hood blanket, fender apron
absorbers, fender apron barriers,
underbody noise shields or acoustically
absorptive material.
• Tampering or rendering inoperative the
engine speed governor, to allow engine
speed to exceed manufacturer
specifications.
If the engine does not start, runs rough,
experiences a decrease in engine
performance, experiences excess fuel
consumption or produces excessive
exhaust smoke, check for the following:
• A plugged or disconnected air inlet
system hose.
• A plugged engine air filter element.
• Water in the fuel filter and water
separator. •
A clogged fuel filter.
• Contaminated fuel.
• Air in the fuel system, due to loose
connections.
• An open or pinched sensor hose.
• Incorrect engine oil level.
• Incorrect fuel for climatic conditions.
• Incorrect engine oil viscosity for
climactic conditions.
Note: Some vehicles have a lifetime fuel
filter that is integrated with the fuel tank.
Regular maintenance or replacement is not
needed.
Note: If these checks do not help you
correct the concern, have your vehicle
checked as soon as possible.
Noise Emissions Warranty,
Prohibited Tampering Acts and
Maintenance
On January 1, 1978, Federal regulation
became effective governing the noise
emission on trucks over 10,000 lb
(4,536 kg) Gross Vehicle Weight Rating
(GVWR). The preceding statements
concerning prohibited tampering acts and
maintenance, and the noise warranty
found in the Warranty Guide, are
applicable to complete chassis cabs over
10,000 lb (4,536 kg)
GVWR.
EXPORT UNIQUE OPTIONS
For your particular global region, your
vehicle may be equipped with features and
options that are different from the features
and options that are described in this
Owner ’s Manual. A market unique
supplement may be supplied that
complements this book. By referring to the
market unique supplement, if provided,
you can properly identify those features,
recommendations and specifications that
are unique to your vehicle. This Owner ’s
711
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Customer Information

Automatic Locking Mode.............................51
Disengaging Automatic Locking Mode........52
Engaging Automatic Locking Mode..............52
What Is Automatic Locking Mode................... 51
When to Use Automatic Locking Mode........51
Automatic Transmission...........................224 Automatic Transmission Positions.............224
Brake Shift Interlock......................................... 225
Manually Shifting Gears.................................. 225
Power Take-Off................................................... 227
Automatic Transmission Fluid Capacity and Specification - Diesel
.....................487
Automatic Transmission Fluid Capacity and Specification - Gasoline................487
Automatic Transmission Positions.......224 Drive (D)................................................................ 224
Manual (M).......................................................... 224
Neutral (N)........................................................... 224
Park (P)................................................................. 224
Reverse (R).......................................................... 224
Automatic Transmission Precautions.................................................224
Auto Mode
........................................................151
Auto Mode Indicators......................................... 151
Switching Auto Mode On and Off.................151
Switching Dual Mode On and Off.................152
Autounlock.......................................................84 Autounlock Requirements................................ 84
Switching Autounlock On and Off................84
What Is Autounlock............................................. 84
Autowipers.......................................................115 Adjusting the Sensitivity of the Rain
Sensor................................................................. 115
Autowipers Settings........................................... 115
What Are Autowipers......................................... 115
Auxiliary Switches........................................616
B
Battery See: Changing the 12V Battery.................... 409
Bed Extender...................................................96 Bed Extender Precautions................................ 96
Using the Bed Extender..................................... 97
Beginning a Voice Interaction................600
Blind Spot Information System.............293 Blind Spot Information System –
Troubleshooting............................................ 297Blind Spot Information System With Trailer
Coverage.......................................................... 295
Blind Spot Information System Indicators.....................................................296
Blind Spot Information System Limitations..................................................293
Blind Spot Information System Precautions.................................................293
Blind Spot Information System Requirements.............................................293
Blind Spot Information System – Troubleshooting........................................297
Blind Spot Information System – Information Messages................................. 297
Blind Spot Information System With Trailer Coverage
........................................295
Blind Spot Information System With Trailer
Coverage Limitations.................................. 295
Selecting a Trailer.............................................. 296
Setting a Trailer Length................................... 295
What Is Blind Spot Information System with Trailer Coverage............................................. 295
Bluetooth®....................................................607
Body Control Module Fuse Box..............392 Accessing the Body Control Module Fuse
Box...................................................................... 392
Identifying the Fuses in the Body Control Module Fuse Box.......................................... 393
Locating the Body Control Module Fuse Box...................................................................... 392
Bonnet Lock See: Opening and Closing the Hood..........396
Booster Seats
..................................................46
Brake Fluid Specification...........................241
Brake Over Accelerator
.............................240
Brake Precautions.......................................240
Brakes..............................................................240
Anti-Lock Braking System............................. 240
Brakes – Troubleshooting............................... 241
Brake Shift Interlock
...................................225
Brake Shift Interlock Precautions................225
Using Brake Shift Interlock............................. 226
What Is Brake Shift Interlock......................... 225
Brakes – Troubleshooting
.........................241
Brakes – Frequently Asked
Questions.......................................................... 241
Brakes – Warning Lamps................................. 241
Breaking-In.....................................................373
719
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

C
Calculating Payload.....................................314
Calculating the Load Limit........................314
Canceling the Set Speed..........................252
Capacities and Specifications................467
Catalytic Converter
......................................223
Catalytic Converter –
Troubleshooting............................................ 223
Catalytic Converter Precautions............223
Catalytic Converter – Troubleshooting........................................223
Catalytic Converter – Warning Lamps................................................................ 223
Center Console.............................................188 Opening the Center Console......................... 188
Center Display Limitations.......................597
Center Display Overview...........................597
Center Display Precautions......................597
Changing a Flat Tire...................................455
Changing a Road Wheel...........................455
Changing the 12V Battery........................409
Changing the Fuel Filter - Diesel...........408
Changing the Fuel Filter - Gasoline
.......................................................409
Changing the Remote Control Battery..............................................................71
Changing the Remote Control Battery - Vehicles With: Flip Key...............................72
Changing the Vehicle Wi-Fi Hotspot Name or Password
..................................506
Charging a Device..........................................181
Charging a Wireless Device......................185
Checking MyKey System Status..............80
Checking the Brake Fluid..........................240
Checking the Coolant................................402
Checking the Seatbelts
................................55
Checking the Selective Catalytic Reduction System Status.......................221
Checking the Tire Pressures
.....................441
Checking the Wiper Blades.......................116
Children and Airbags....................................64
Child Restraint Anchor Points
...................36
Locating the Child Restraint Lower Anchor
Points................................................................... 36
Locating the Child Restraint Top Tether Anchor Points.................................................... 37What Are the Child Restraint Anchor
Points................................................................... 36
Child Restraints
...............................................38
Child Restraint Position Information............38
Child Restraints Recommendation...............39
Child Safety
......................................................35
Child Restraint Anchor Points......................... 36
Child Restraints..................................................... 38
Installing Child Restraints................................. 39
Child Safety Locks.........................................48
Child Safety Precautions.............................35
Cleaning Products
........................................421
Cleaning the Exterior...................................421 Cleaning Camera Lenses and
Sensors............................................................. 423
Cleaning Chrome, Aluminium or Stainless Steel................................................................... 422
Cleaning Headlamps and Rear Lamps................................................................ 421
Cleaning Stripes or Graphics......................... 423
Cleaning the Engine Compartment............422
Cleaning the Exhaust....................................... 423
Cleaning the Exterior Precautions................421
Cleaning the Underbody................................. 423
Cleaning Wheels................................................ 422
Cleaning Windows and Wiper Blades............................................................... 422
Cleaning the Interior
...................................424
Cleaning Carpets and Floor Mats................425
Cleaning Displays and Screens.................... 424
Cleaning Moonroof Tracks............................. 426
Cleaning Plastic.................................................. 424
Cleaning Seatbelts............................................ 426
Cleaning Seats and the Headliner..............424
Cleaning the Instrument Panel.................... 424
Clearing All MyKeys
.......................................79
Clearing the Garage Door Opener..........178
Climate............................................................570
Climate Control
.............................................149
Auto Mode.............................................................. 151
Climate Control Hints..................................152
Cold Weather Precautions
........................373
Configuring the Trip Computer................145
Connected Vehicle
.....................................498
Connected Vehicle –
Troubleshooting............................................ 503
Connecting the Vehicle to a Mobile Network........................................................... 498
720
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

Connected Vehicle Data..............................26
Connected Vehicle Limitations..............498
Connected Vehicle Requirements........498
Connected Vehicle – Troubleshooting........................................503
Connected Vehicle – Frequently Asked Questions........................................................ 503
Connected Vehicle – Troubleshooting - Vehicles With: Modem
...........................499
Connected Vehicle – Troubleshooting - Vehicles With: SYNC 3...........................500
Connecting a Bluetooth® Device..........607
Connecting a Trailer....................................325 Connecting a Trailer –
Troubleshooting............................................. 327
Hitches................................................................... 323
Connecting a Trailer Precautions...........323
Connecting a Trailer – Troubleshooting.........................................327
Connecting a Trailer – Information Messages.......................................................... 327
Connecting the Vehicle to a Mobile Network.......................................................498
Connecting FordPass to the Modem.........498
Enabling and Disabling the Modem..........498
What Is the Modem......................................... 498
Connecting the Vehicle to a Wi-Fi Network.......................................................498
Connecting Your Phone............................602
Contacting Us...................................................17
Cooling System Capacity and Specification - 6.2L..................................479
Cooling System Capacity and Specification - 6.7L Diesel....................480
Cooling System Capacity and Specification - 7.3L..................................480
Crash and Breakdown Information.......378 Automatic Crash Shutoff................................ 381
Jump Starting the Vehicle.............................. 379
Post-Crash Alert System................................. 381
Recovery Towing................................................ 382
Crash Sensors and Airbag Indicator.......65
Creating a MyKey
............................................78
Creating a MyKey - Vehicles With: Flip Key.....................................................................79
Creating a Vehicle Wi-Fi Hotspot.........506 Cross Traffic Alert........................................298
Cross Traffic Alert –
Troubleshooting........................................... 300
Cross Traffic Alert Indicators..................300
Cross Traffic Alert Limitations................298
Cross Traffic Alert Precautions..............298
Cross Traffic Alert – Troubleshooting
.......................................300
Cross Traffic Alert – Information
Messages........................................................ 300
Cruise Control
...............................................270
Cruise Control Indicators............................271
Cup Holders....................................................187 Cup Holder Precautions................................... 187
Customer Information
..............................640
Radio Frequency Certification
Labels............................................................... 643
Customizing the Instrument Cluster Display - Vehicles With: 8 Inch
Screen............................................................142
D
Data Privacy.....................................................24
Department of Transportation Uniform Tire Quality Grades..................................429
Deploying and Stowing the Power Running Boards
...........................................110
Diesel Engine Exhaust Brake...................244 Diesel Engine Exhaust Brake –
Troubleshooting............................................ 245
Diesel Engine Exhaust Brake Indicators
.....................................................245
Diesel Engine Exhaust Brake – Precautions.................................................244
Diesel Engine Exhaust Brake – Troubleshooting........................................245
Diesel Engine Exhaust Brake – Warning Lamps............................................................... 245
Diesel Exhaust Fluid Capacity and Specification................................................221
Diesel Particulate Filter...............................212 Diesel Particulate Filter Manual
Regeneration................................................... 213
Diesel Particulate Filter – Troubleshooting............................................. 215
721
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

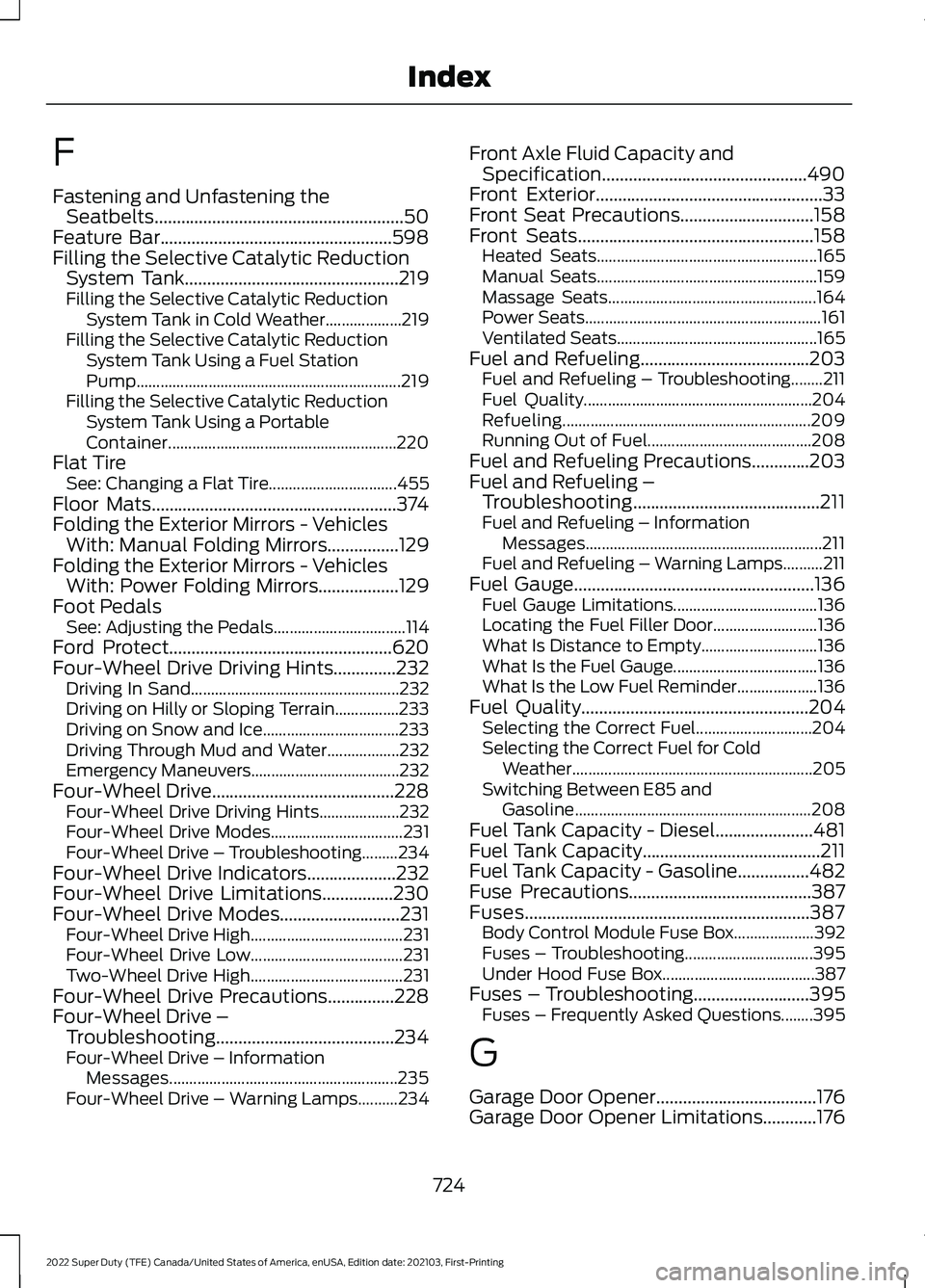

F
Fastening and Unfastening the
Seatbelts........................................................50
Feature Bar....................................................598
Filling the Selective Catalytic Reduction System Tank................................................219
Filling the Selective Catalytic Reduction System Tank in Cold Weather................... 219
Filling the Selective Catalytic Reduction System Tank Using a Fuel Station
Pump.................................................................. 219
Filling the Selective Catalytic Reduction System Tank Using a Portable
Container......................................................... 220
Flat Tire See: Changing a Flat Tire................................ 455
Floor Mats.......................................................374
Folding the Exterior Mirrors - Vehicles With: Manual Folding Mirrors................129
Folding the Exterior Mirrors - Vehicles With: Power Folding Mirrors..................129
Foot Pedals See: Adjusting the Pedals................................. 114
Ford Protect..................................................620
Four-Wheel Drive Driving Hints..............232 Driving In Sand.................................................... 232
Driving on Hilly or Sloping Terrain................233
Driving on Snow and Ice.................................. 233
Driving Through Mud and Water.................. 232
Emergency Maneuvers..................................... 232
Four-Wheel Drive.........................................228 Four-Wheel Drive Driving Hints.................... 232
Four-Wheel Drive Modes................................. 231
Four-Wheel Drive – Troubleshooting.........234
Four-Wheel Drive Indicators....................232
Four-Wheel Drive Limitations
................230
Four-Wheel Drive Modes...........................231 Four-Wheel Drive High...................................... 231
Four-Wheel Drive Low...................................... 231
Two-Wheel Drive High...................................... 231
Four-Wheel Drive Precautions...............228
Four-Wheel Drive – Troubleshooting........................................234
Four-Wheel Drive – Information Messages......................................................... 235
Four-Wheel Drive – Warning Lamps..........234 Front Axle Fluid Capacity and
Specification..............................................490
Front Exterior...................................................33
Front Seat Precautions..............................158
Front Seats
.....................................................158
Heated Seats....................................................... 165
Manual Seats....................................................... 159
Massage Seats.................................................... 164
Power Seats........................................................... 161
Ventilated Seats.................................................. 165
Fuel and Refueling......................................203 Fuel and Refueling – Troubleshooting........211
Fuel Quality......................................................... 204
Refueling.............................................................. 209
Running Out of Fuel......................................... 208
Fuel and Refueling Precautions.............203
Fuel and Refueling – Troubleshooting..........................................211
Fuel and Refueling – Information Messages........................................................... 211
Fuel and Refueling – Warning Lamps..........211
Fuel Gauge......................................................136 Fuel Gauge Limitations.................................... 136
Locating the Fuel Filler Door.......................... 136
What Is Distance to Empty............................. 136
What Is the Fuel Gauge.................................... 136
What Is the Low Fuel Reminder.................... 136
Fuel Quality
...................................................204
Selecting the Correct Fuel............................. 204
Selecting the Correct Fuel for Cold Weather............................................................ 205
Switching Between E85 and Gasoline........................................................... 208
Fuel Tank Capacity - Diesel......................481
Fuel Tank Capacity........................................211
Fuel Tank Capacity - Gasoline
................482
Fuse Precautions.........................................387
Fuses................................................................387 Body Control Module Fuse Box.................... 392
Fuses – Troubleshooting................................ 395
Under Hood Fuse Box...................................... 387
Fuses – Troubleshooting..........................395 Fuses – Frequently Asked Questions........395
G
Garage Door Opener....................................176
Garage Door Opener Limitations
............176
724
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

How Do the Front Airbags Work...............57
How Do the Side Airbags Work.................57
Hydraulic Power Steering Fluid Capacity and Specification.....................................496
Hydraulic Power Steering.........................256 Checking the Hydraulic Power Steering
Fluid.................................................................... 257
Hydraulic Power Steering Adaptive Steering............................................................ 258
Hydraulic Power Steering Guidelines.........256
Locating the Hydraulic Power Steering Fluid Reservoir........................................................... 257
I
Identifying Fuse Types
...............................395
Identifying the Audio Unit........................535
Identifying the Auxiliary Switch Wiring
.............................................................619
Identifying the Climate Control Unit.................................................................149
Ignition Switch
................................................191
Inflating the Tires..........................................441
Information On Demand Screen
...........599
Information on the Tire Sidewall..........430
Inspecting the Tire for Damage.............445
Inspecting the Tire for Wear
....................444
Inspecting the Wheel Valve Stems...........................................................446
Installing Child Restraints...........................39 Attaching the Front Seat Tether
Strap.................................................................... 44
Attaching the Rear Seat Tether Strap..........45
Combining the Seatbelt and Lower Anchors for Attaching Child Restraints.................... 44
Installing a Child Restraint in a Center Seat...................................................................... 43
Using Lower Anchors and Tethers for Children............................................................... 43
Using Seatbelts..................................................... 39
Using Tether Straps............................................. 44
Instrument Cluster Display
........................141
Personalized Settings....................................... 142
Instrument Cluster Display Main Menu - Vehicles With: 2.3 Inch Screen...............141
Instrument Cluster Display Main Menu - Vehicles With: 4.2 Inch Screen
..............141 Instrument Cluster Display Main Menu -
Vehicles With: 8 Inch Screen.................142
Instrument Cluster Indicators..................138
Instrument Cluster
.......................................133
Fuel Gauge............................................................ 136
Instrument Cluster Overview - Vehicles With: 2.3 Inch Screen................................133
Instrument Cluster Overview - Vehicles With: 4.2 Inch Screen
...............................134
Instrument Cluster Overview - Vehicles With: 8 Inch Screen...................................135
Instrument Cluster Warning Lamps.......137
Instrument Panel.............................................31
Integrated Trailer Brake Controller........334 Integrated Trailer Brake Controller –
Troubleshooting............................................ 336
Integrated Trailer Brake Controller Precautions.................................................334
Integrated Trailer Brake Controller – Troubleshooting........................................336
Integrated Trailer Brake Controller – Frequently Asked Questions..................... 337
Integrated Trailer Brake Controller – Information Messages................................ 336
Interior Air Quality.........................................157
Interior Bulbs
..................................................419
Interior Bulb Specification Chart.................. 419
Interior Lamp Function...............................124 Switching the Interior Lamp Function On
and Off............................................................... 124
What Is the Interior Lamp Function.............124
Interior Lighting..............................................124 Ambient Lighting................................................ 125
Interior Lamp Function..................................... 124
Interior Lighting – Troubleshooting..............125
Interior Lighting – Troubleshooting.......125 Interior Lighting – Frequently Asked
Questions.......................................................... 125
Interior Mirror..................................................128 Auto-Dimming Interior Mirror......................... 128
Interior Mirror Precautions........................128
Introduction .......................................................
19
J
Jump Starting the Vehicle
........................379
Jump Starting Precautions............................. 379
Jump Starting the Vehicle.............................. 380
726
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

Preparing the Vehicle......................................
380
K
Keyless Entry....................................................87
Keyless Entry – Troubleshooting................... 88
Keyless Entry Keypad...................................89 Keyless Entry Keypad –
Troubleshooting............................................... 91
Keyless Entry Keypad Limitations
...........89
Keyless Entry Keypad Master Access Code.................................................................89
Keyless Entry Keypad Personal Access Codes..............................................................90
Keyless Entry Keypad – Troubleshooting
...........................................91
Keyless Entry Keypad – Frequently Asked
Questions............................................................ 91
Keyless Entry Limitations............................87
Keyless Entry Settings
..................................87
Keyless Entry – Troubleshooting.............88 Keyless Entry – Frequently Asked
Questions........................................................... 88
Keys and Remote Controls........................69 Keys and Remote Controls –
Troubleshooting............................................... 76
Keys and Remote Controls – Troubleshooting...........................................76
Keys and Remote Controls – Information Messages............................................................ 76
L
Lane Keeping System Indicators...........289
Lane Keeping System................................286 Alert Mode........................................................... 288
Lane Keeping System – Troubleshooting............................................ 290
Lane Keeping System Limitations........286
Lane Keeping System Precautions................................................286
Lane Keeping System – Troubleshooting.......................................290
Lane Keeping System – Frequently Asked Questions......................................................... 291
Lane Keeping System – Information Messages......................................................... 290Launching or Retrieving a Boat or
Personal Watercraft
................................330
Live Traffic......................................................610
Switching Live Traffic On and Off................610
What Is Live Traffic............................................ 610
Load Carrying
..................................................311
Load Carrying Precautions.........................311
Loading Your Trailer....................................329
Locating the 360 Degree Cameras.......................................................266
Locating the Auxiliary Switches.............618
Locating the Auxiliary Switch Wiring.............................................................618
Locating the Blind Spot Information System Sensors
........................................294
Locating the Brake Fluid Reservoir.......240
Locating the Cross Traffic Alert Sensors........................................................299
Locating the Keyless Entry Keypad.........89
Locating the Memory Function Buttons
...........................................................174
Locating the Power Outlet........................182
Locating the Pre-Collision Assist Sensors........................................................303
Locating the Rear View Camera............263
Locating the Safety Compliance Certification Labels
...................................312
Locating the Tire label...............................429
Locating the USB Ports.............................180
Locating the Wireless Accessory Charger..........................................................185
Locating Your Vehicle...................................70
Locking and Unlocking the Tailgate........94
Locking the Rear Window Controls........127
M
Maintenance.................................................396 Engine Air Filter.................................................. 405
Engine Oil............................................................. 400
Exterior Bulbs....................................................... 412
Interior Bulbs........................................................ 419
Maintenance Precautions........................396
Making and Receiving a Phone Call................................................................604
Manually Dimming the Interior Mirror..............................................................128
727
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index
