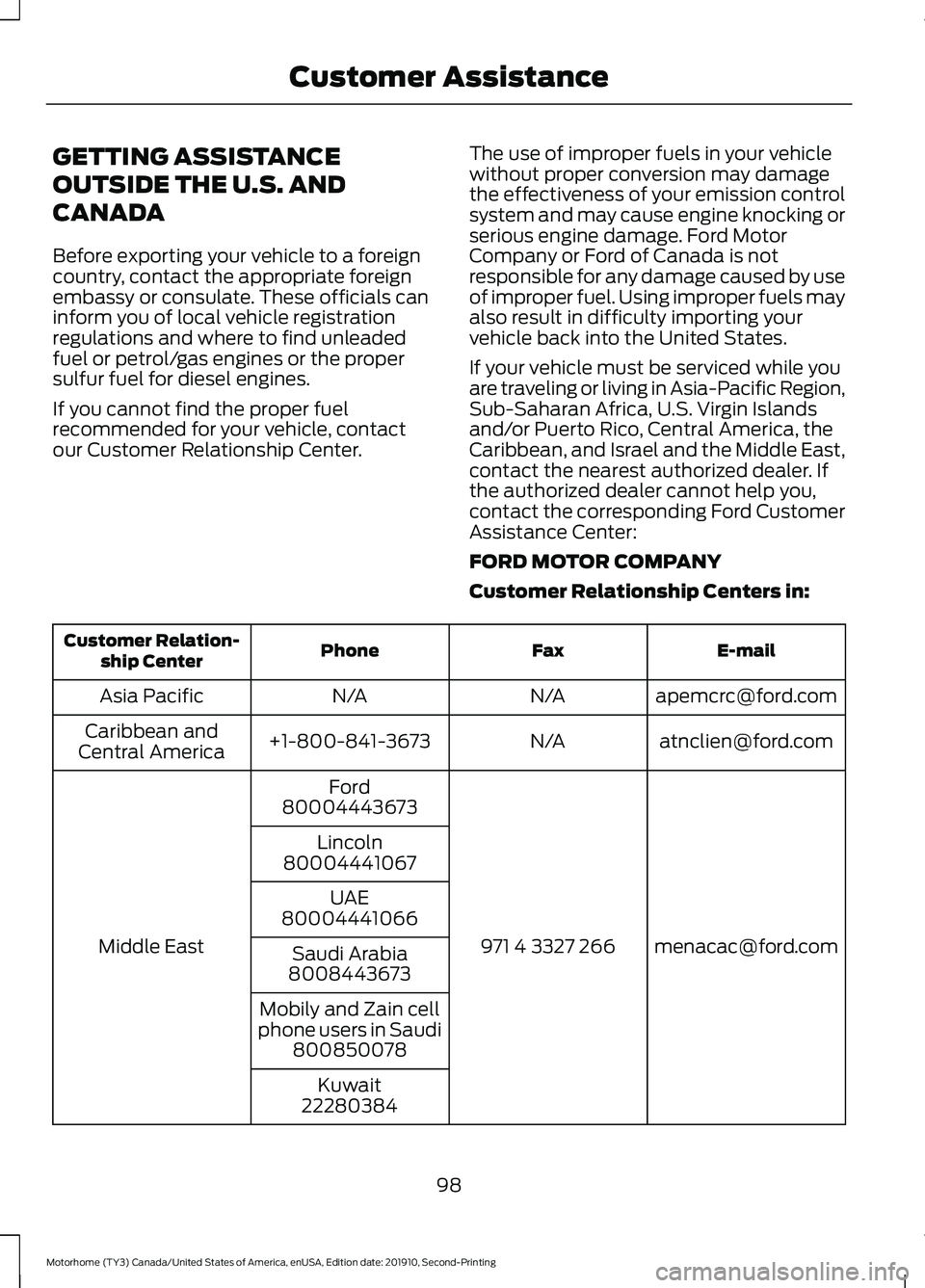

GETTING ASSISTANCE
OUTSIDE THE U.S. AND
CANADA
Before exporting your vehicle to a foreign
country, contact the appropriate foreign
embassy or consulate. These officials can
inform you of local vehicle registration
regulations and where to find unleaded
fuel or petrol/gas engines or the proper
sulfur fuel for diesel engines.
If you cannot find the proper fuel
recommended for your vehicle, contact
our Customer Relationship Center.
The use of improper fuels in your vehicle
without proper conversion may damage
the effectiveness of your emission control
system and may cause engine knocking or
serious engine damage. Ford Motor
Company or Ford of Canada is not
responsible for any damage caused by use
of improper fuel. Using improper fuels may
also result in difficulty importing your
vehicle back into the United States.
If your vehicle must be serviced while you
are traveling or living in Asia-Pacific Region,
Sub-Saharan Africa, U.S. Virgin Islands
and/or Puerto Rico, Central America, the
Caribbean, and Israel and the Middle East,
contact the nearest authorized dealer. If
the authorized dealer cannot help you,
contact the corresponding Ford Customer
Assistance Center:
FORD MOTOR COMPANY
Customer Relationship Centers in: E-mail
Fax
Phone
Customer Relation-
ship Center
[email protected]
N/A
N/A
Asia Pacific
[email protected]
N/A
+1-800-841-3673
Caribbean and
Central America
[email protected]
971 4 3327 266
Ford
Middle East 80004443673
Lincoln
80004441067
UAE
80004441066
Saudi Arabia
8008443673
Mobily and Zain cell
phone users in Saudi 800850078
Kuwait
22280384
98
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Customer Assistance

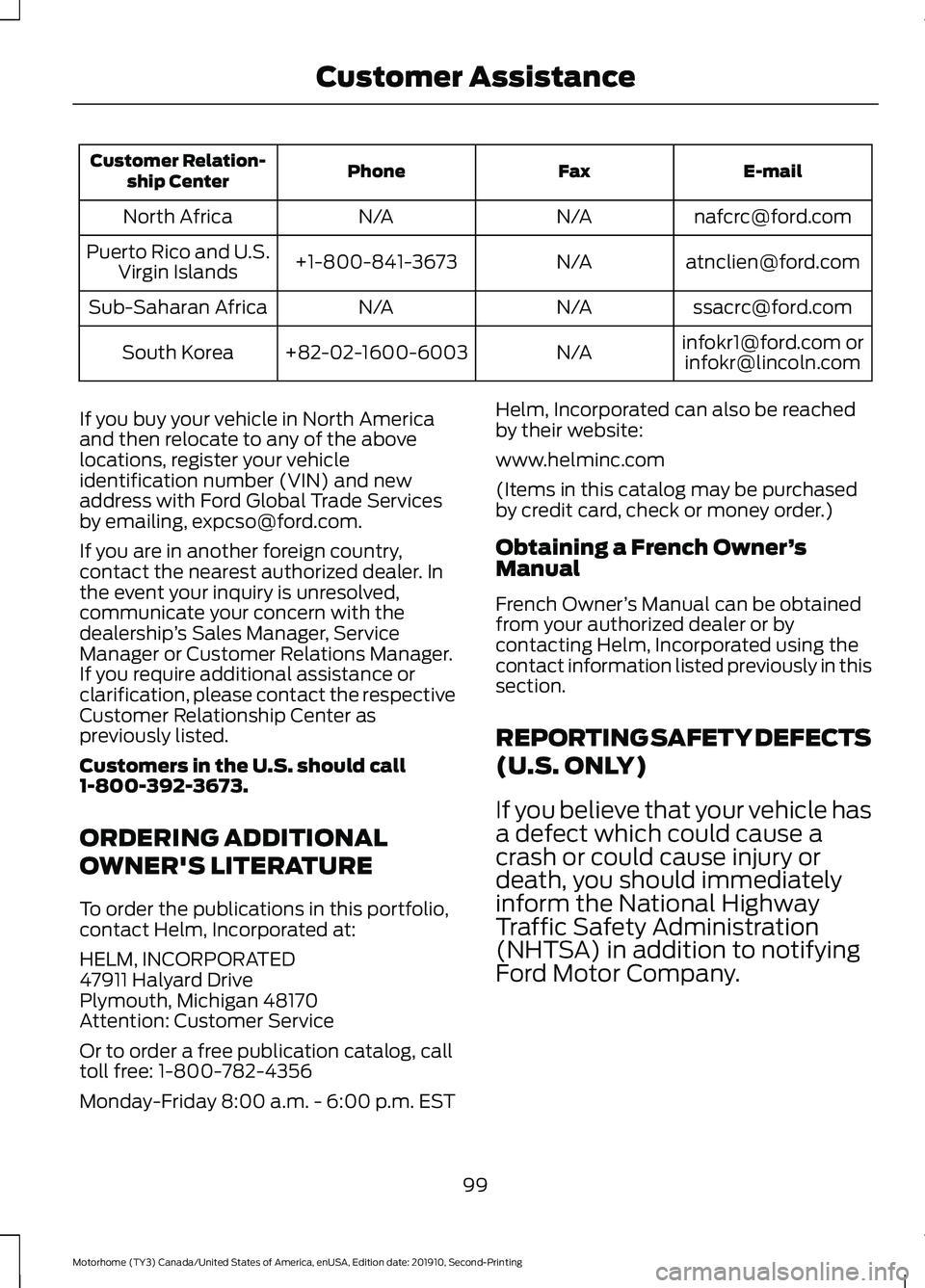

E-mail
Fax
Phone
Customer Relation-
ship Center
[email protected]
N/A
N/A
North Africa
[email protected]
N/A
+1-800-841-3673
Puerto Rico and U.S.
Virgin Islands
[email protected]
N/A
N/A
Sub-Saharan Africa
[email protected] [email protected]
N/A
+82-02-1600-6003
South Korea
If you buy your vehicle in North America
and then relocate to any of the above
locations, register your vehicle
identification number (VIN) and new
address with Ford Global Trade Services
by emailing, [email protected].
If you are in another foreign country,
contact the nearest authorized dealer. In
the event your inquiry is unresolved,
communicate your concern with the
dealership ’s Sales Manager, Service
Manager or Customer Relations Manager.
If you require additional assistance or
clarification, please contact the respective
Customer Relationship Center as
previously listed.
Customers in the U.S. should call
1-800-392-3673.
ORDERING ADDITIONAL
OWNER'S LITERATURE
To order the publications in this portfolio,
contact Helm, Incorporated at:
HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service
Or to order a free publication catalog, call
toll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m. EST Helm, Incorporated can also be reached
by their website:
www.helminc.com
(Items in this catalog may be purchased
by credit card, check or money order.)
Obtaining a French Owner
’s
Manual
French Owner ’s Manual can be obtained
from your authorized dealer or by
contacting Helm, Incorporated using the
contact information listed previously in this
section.
REPORTING SAFETY DEFECTS
(U.S. ONLY)
If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
Ford Motor Company.
99
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Customer Assistance

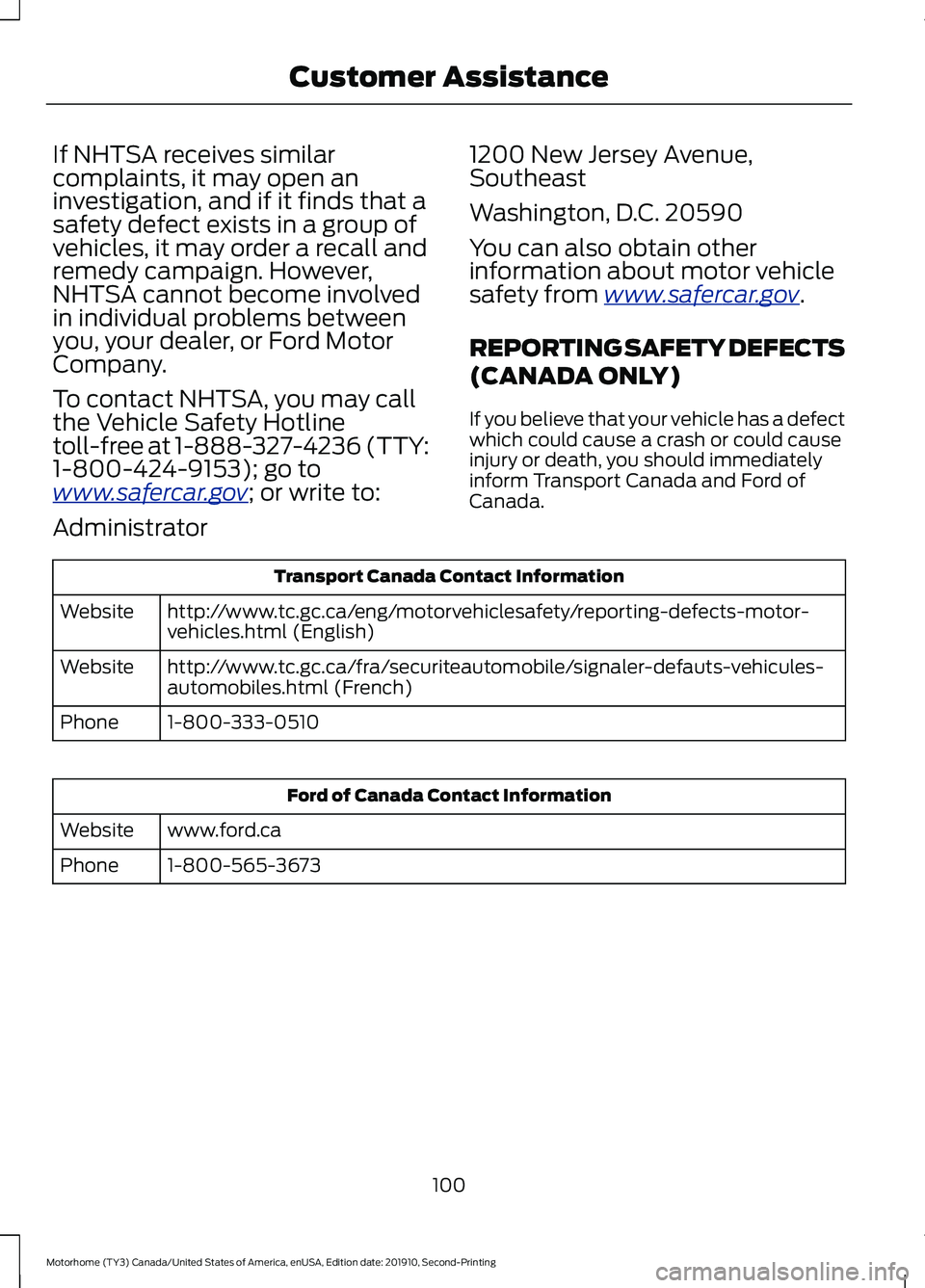

If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.
To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
www
.s a f er c ar .g o v ; or write to:
Administrator 1200 New Jersey Avenue,
Southeast
Washington, D.C. 20590
You can also obtain other
information about motor vehicle
safety from www .s a f er c ar .g o v .
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada. Transport Canada Contact Information
http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-
vehicles.html (English)
Website
http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-
automobiles.html (French)
Website
1-800-333-0510
Phone Ford of Canada Contact Information
www.ford.ca
Website
1-800-565-3673
Phone
100
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Customer Assistance

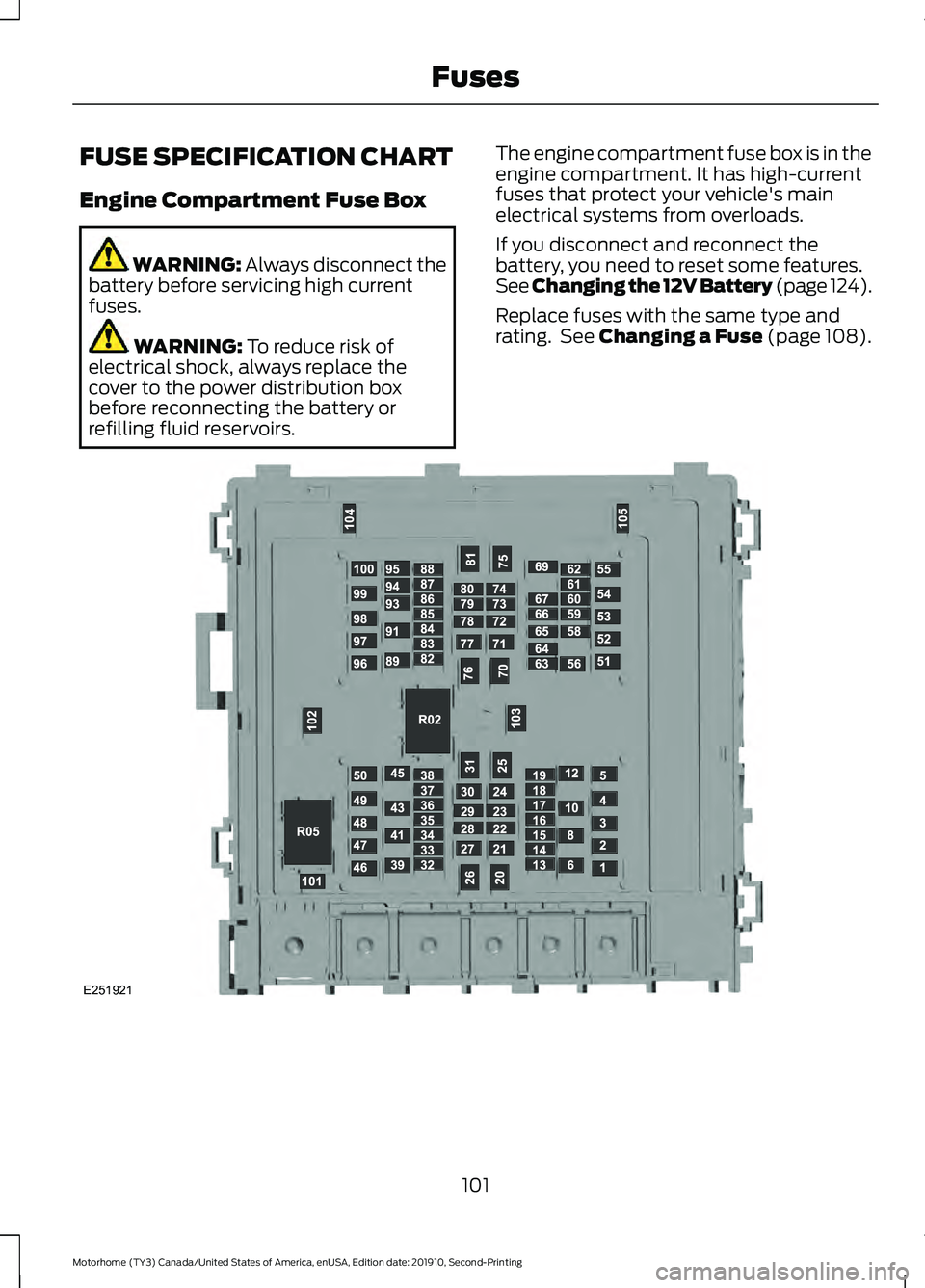

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The engine compartment fuse box is in the
engine compartment. It has high-current
fuses that protect your vehicle's main
electrical systems from overloads.
If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 124).
Replace fuses with the same type and
rating. See Changing a Fuse (page 108).
101
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing FusesE251921

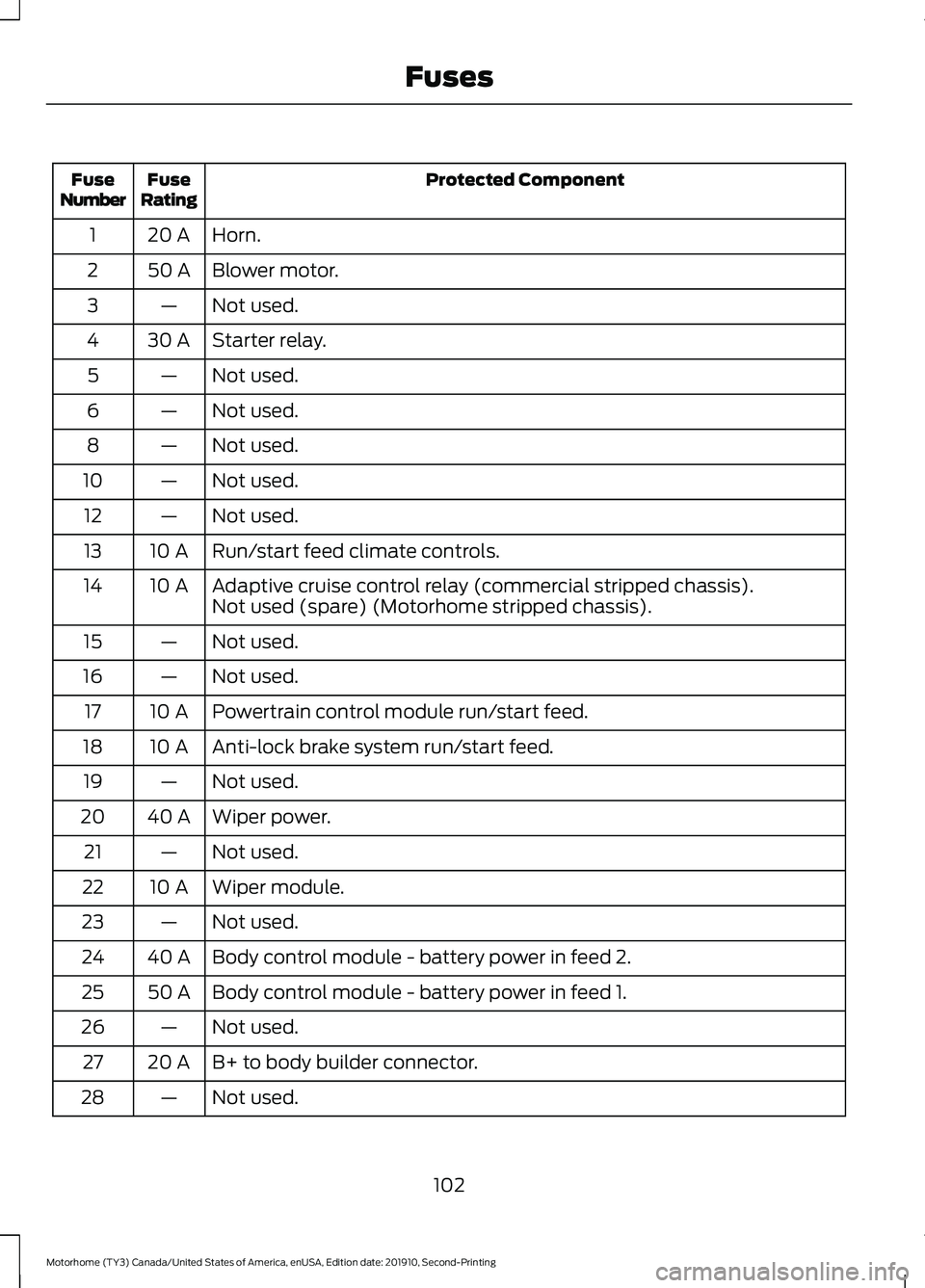

Protected Component
Fuse
Rating
Fuse
Number
Horn.
20 A
1
Blower motor.
50 A
2
Not used.
—
3
Starter relay.
30 A
4
Not used.
—
5
Not used.
—
6
Not used.
—
8
Not used.
—
10
Not used.
—
12
Run/start feed climate controls.
10 A
13
Adaptive cruise control relay (commercial stripped chassis).
10 A
14
Not used (spare) (Motorhome stripped chassis).
Not used.
—
15
Not used.
—
16
Powertrain control module run/start feed.
10 A
17
Anti-lock brake system run/start feed.
10 A
18
Not used.
—
19
Wiper power.
40 A
20
Not used.
—
21
Wiper module.
10 A
22
Not used.
—
23
Body control module - battery power in feed 2.
40 A
24
Body control module - battery power in feed 1.
50 A
25
Not used.
—
26
B+ to body builder connector.
20 A
27
Not used.
—
28
102
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Fuses

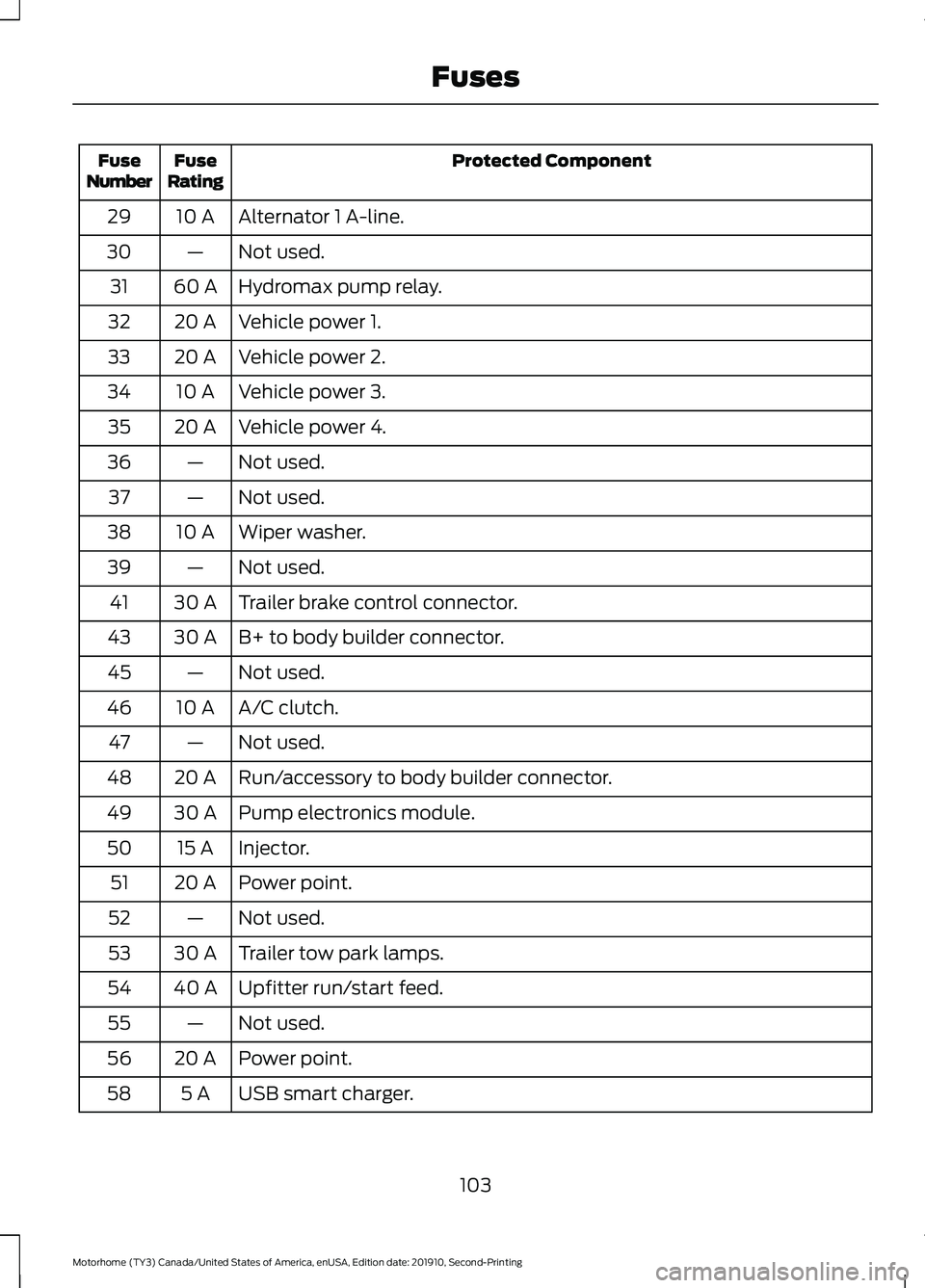

Protected Component
Fuse
Rating
Fuse
Number
Alternator 1 A-line.
10 A
29
Not used.
—
30
Hydromax pump relay.
60 A
31
Vehicle power 1.
20 A
32
Vehicle power 2.
20 A
33
Vehicle power 3.
10 A
34
Vehicle power 4.
20 A
35
Not used.
—
36
Not used.
—
37
Wiper washer.
10 A
38
Not used.
—
39
Trailer brake control connector.
30 A
41
B+ to body builder connector.
30 A
43
Not used.
—
45
A/C clutch.
10 A
46
Not used.
—
47
Run/accessory to body builder connector.
20 A
48
Pump electronics module.
30 A
49
Injector.
15 A
50
Power point.
20 A
51
Not used.
—
52
Trailer tow park lamps.
30 A
53
Upfitter run/start feed.
40 A
54
Not used.
—
55
Power point.
20 A
56
USB smart charger.
5 A
58
103
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Fuses

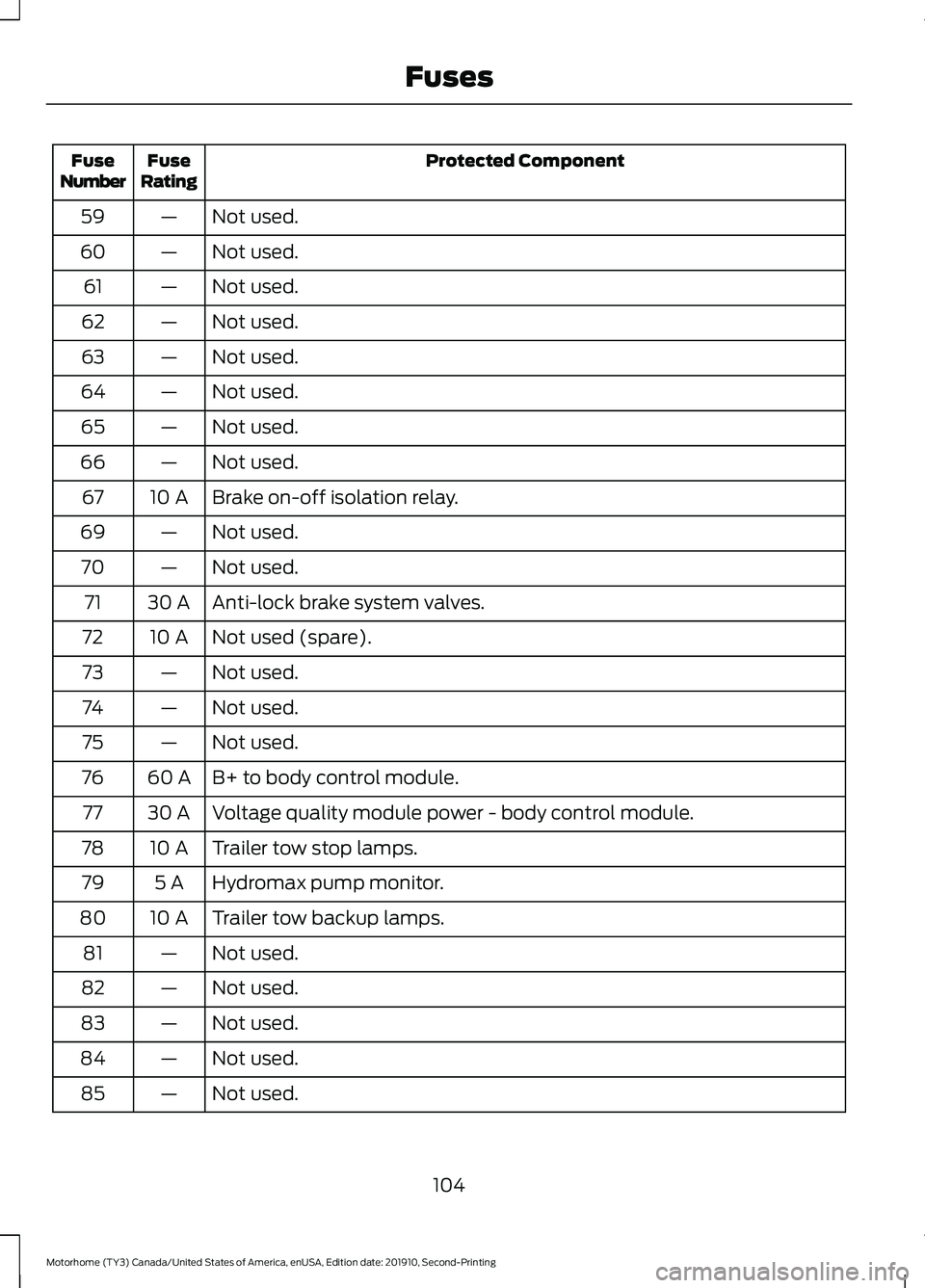

Protected Component
Fuse
Rating
Fuse
Number
Not used.
—
59
Not used.
—
60
Not used.
—
61
Not used.
—
62
Not used.
—
63
Not used.
—
64
Not used.
—
65
Not used.
—
66
Brake on-off isolation relay.
10 A
67
Not used.
—
69
Not used.
—
70
Anti-lock brake system valves.
30 A
71
Not used (spare).
10 A
72
Not used.
—
73
Not used.
—
74
Not used.
—
75
B+ to body control module.
60 A
76
Voltage quality module power - body control module.
30 A
77
Trailer tow stop lamps.
10 A
78
Hydromax pump monitor.
5 A
79
Trailer tow backup lamps.
10 A
80
Not used.
—
81
Not used.
—
82
Not used.
—
83
Not used.
—
84
Not used.
—
85
104
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Fuses

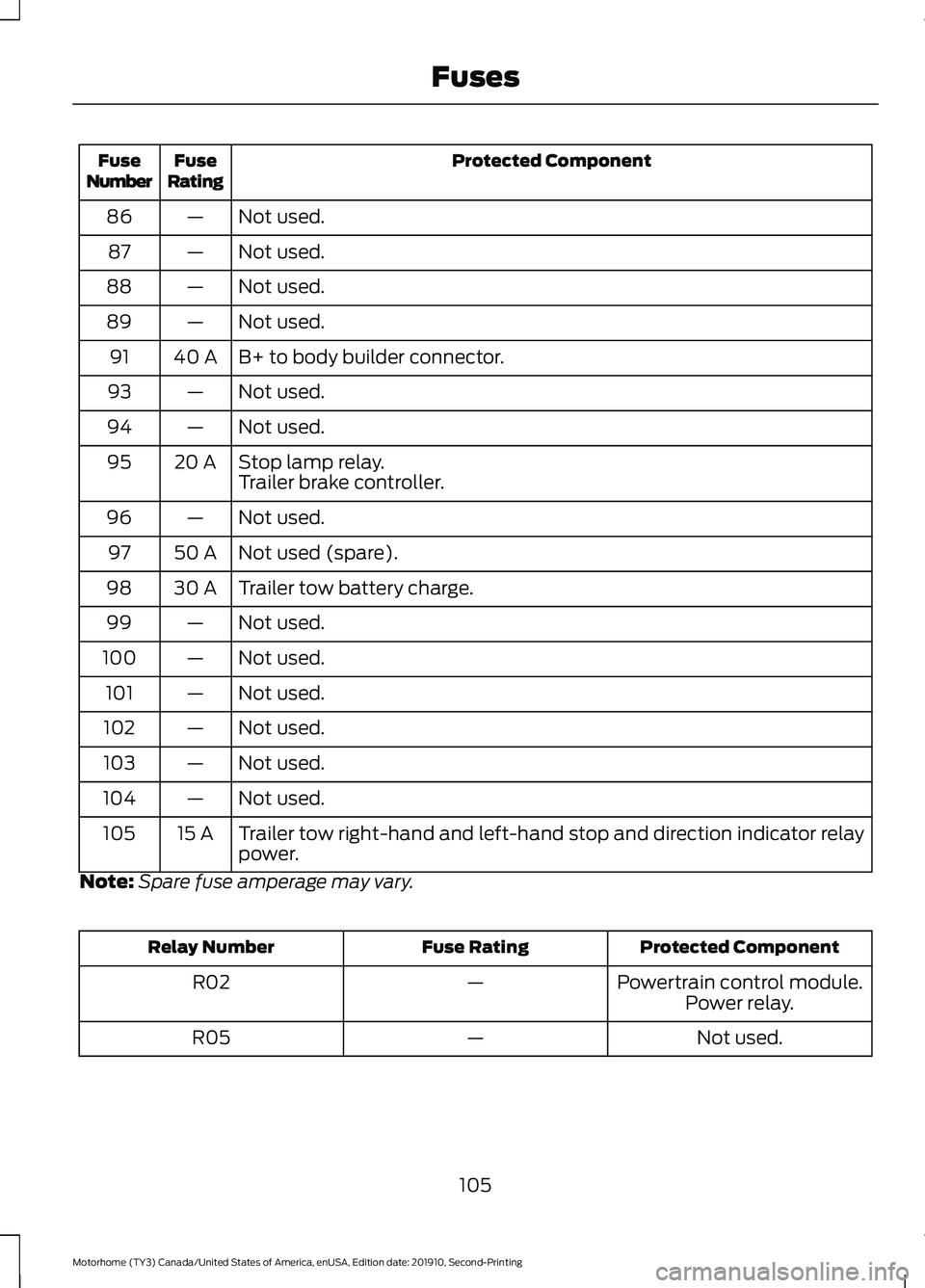

Protected Component
Fuse
Rating
Fuse
Number
Not used.
—
86
Not used.
—
87
Not used.
—
88
Not used.
—
89
B+ to body builder connector.
40 A
91
Not used.
—
93
Not used.
—
94
Stop lamp relay.
20 A
95
Trailer brake controller.
Not used.
—
96
Not used (spare).
50 A
97
Trailer tow battery charge.
30 A
98
Not used.
—
99
Not used.
—
100
Not used.
—
101
Not used.
—
102
Not used.
—
103
Not used.
—
104
Trailer tow right-hand and left-hand stop and direction indicator relay
power.
15 A
105
Note: Spare fuse amperage may vary. Protected Component
Fuse Rating
Relay Number
Powertrain control module.
—
R02
Power relay.
Not used.
—
R05
105
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Fuses

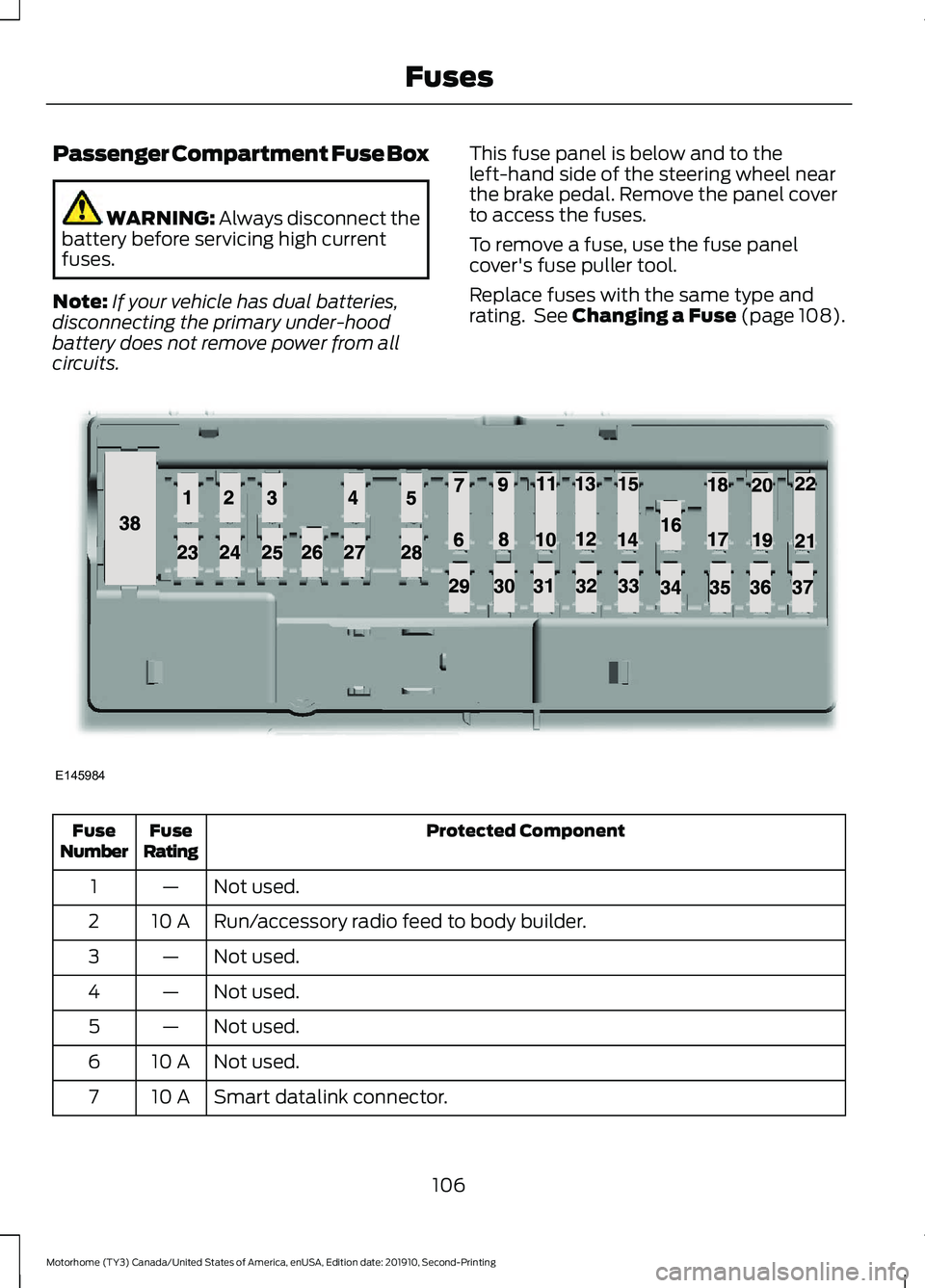

Passenger Compartment Fuse Box
WARNING: Always disconnect the
battery before servicing high current
fuses.
Note: If your vehicle has dual batteries,
disconnecting the primary under-hood
battery does not remove power from all
circuits. This fuse panel is below and to the
left-hand side of the steering wheel near
the brake pedal. Remove the panel cover
to access the fuses.
To remove a fuse, use the fuse panel
cover's fuse puller tool.
Replace fuses with the same type and
rating. See
Changing a Fuse (page 108).Protected Component
Fuse
Rating
Fuse
Number
Not used.
—
1
Run/accessory radio feed to body builder.
10 A
2
Not used.
—
3
Not used.
—
4
Not used.
—
5
Not used.
10 A
6
Smart datalink connector.
10 A
7
106
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing FusesE145984

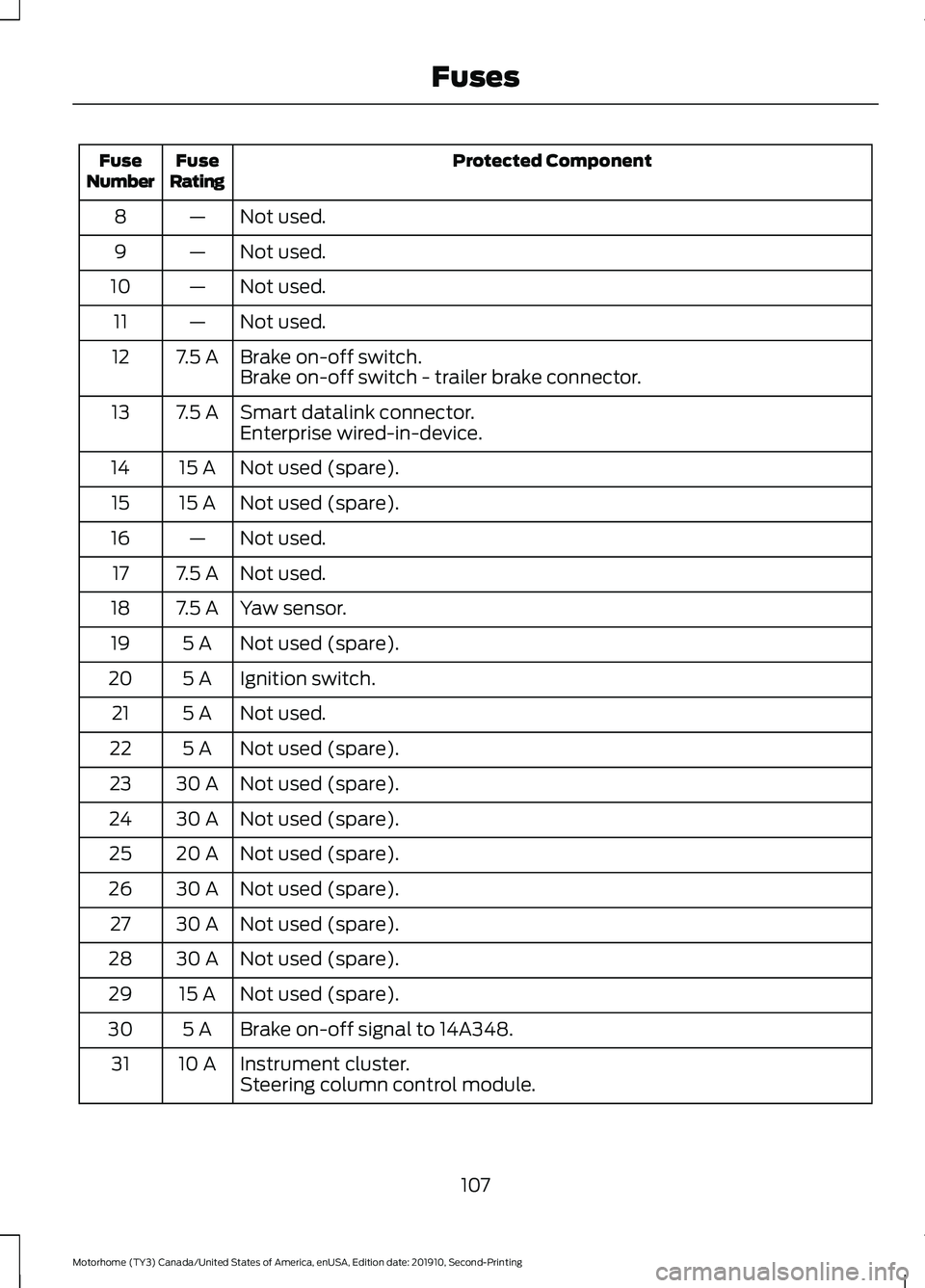

Protected Component
Fuse
Rating
Fuse
Number
Not used.
—
8
Not used.
—
9
Not used.
—
10
Not used.
—
11
Brake on-off switch.
7.5 A
12
Brake on-off switch - trailer brake connector.
Smart datalink connector.
7.5 A
13
Enterprise wired-in-device.
Not used (spare).
15 A
14
Not used (spare).
15 A
15
Not used.
—
16
Not used.
7.5 A
17
Yaw sensor.
7.5 A
18
Not used (spare).
5 A
19
Ignition switch.
5 A
20
Not used.
5 A
21
Not used (spare).
5 A
22
Not used (spare).
30 A
23
Not used (spare).
30 A
24
Not used (spare).
20 A
25
Not used (spare).
30 A
26
Not used (spare).
30 A
27
Not used (spare).
30 A
28
Not used (spare).
15 A
29
Brake on-off signal to 14A348.
5 A
30
Instrument cluster.
10 A
31
Steering column control module.
107
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Fuses
