technical specifications FORD F-59 2020 Owners Manual

Wheels and Tires
Tire Care
...........................................................131
Using Snow Chains .....................................
147
Changing a Road Wheel ............................
147
Technical Specifications ............................
151
Capacities and Specifications
Engine Specifications .................................
152
Motorcraft Parts ...........................................
152
Vehicle Identification Number ................
154
Vehicle Certification Label .......................
155
Transmission Code Designation ............
155
Capacities and Specifications ................
156
Connected Vehicle
Connected Vehicle Requirements ........
163
Connected Vehicle Limitations ..............
163
Connecting the Vehicle to a Mobile Network ......................................................
163
Connected Vehicle – Troubleshooting ........................................................................\
.
163
Ford Protect
Ford Protect ..................................................
164
Scheduled Maintenance
General Maintenance Information .......
166
Normal Scheduled Maintenance ..........
169
Special Operating Conditions Scheduled Maintenance ...............................................
171
Scheduled Maintenance Record ............
173
Appendices
Electromagnetic Compatibility ..............
184
Declaration of Conformity ........................
187
3
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Table of Contents

10. Use the lug nut wrench to screw the
lug nut snugly against the wheel.
11. Lower the vehicle.
12. Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page
151). 8-lug nut wheel
10-lug nut wheel
13. Replace any wheel trim.
14. Stow the jack, handle and lug wrench.
15. Unblock the wheels.
150
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Wheels and TiresE161440 E161441
13
4
27
6
5
8 1
2
3
4
5
6
7 8
9
10
E169375

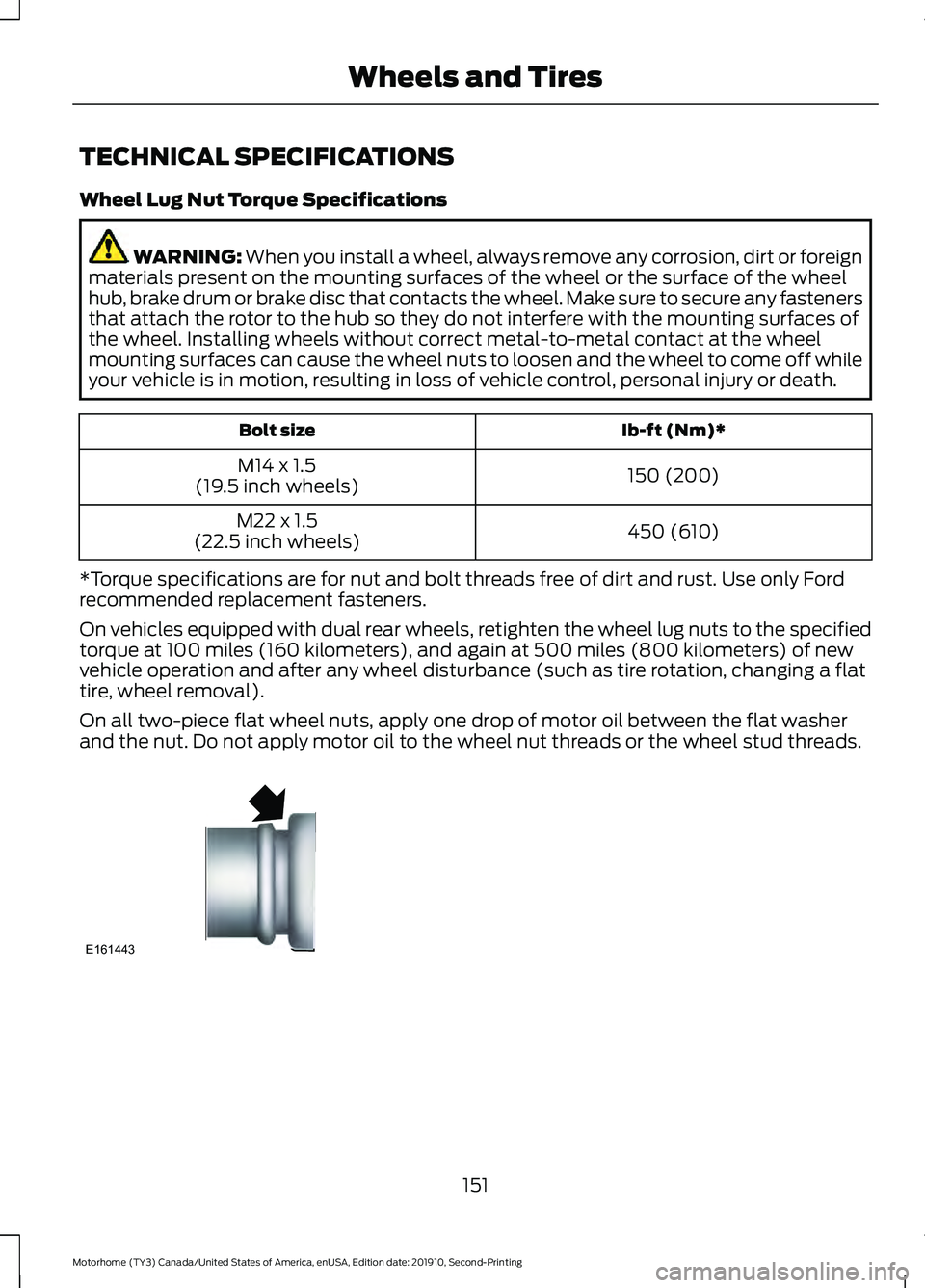

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign
materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death. Ib-ft (Nm)*
Bolt size
150 (200)
M14 x 1.5
(19.5 inch wheels)
450 (610)
M22 x 1.5
(22.5 inch wheels)
*Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
On vehicles equipped with dual rear wheels, retighten the wheel lug nuts to the specified
torque at 100 miles (160 kilometers), and again at 500 miles (800 kilometers) of new
vehicle operation and after any wheel disturbance (such as tire rotation, changing a flat
tire, wheel removal).
On all two-piece flat wheel nuts, apply one drop of motor oil between the flat washer
and the nut. Do not apply motor oil to the wheel nut threads or the wheel stud threads. 151
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Wheels and TiresE161443

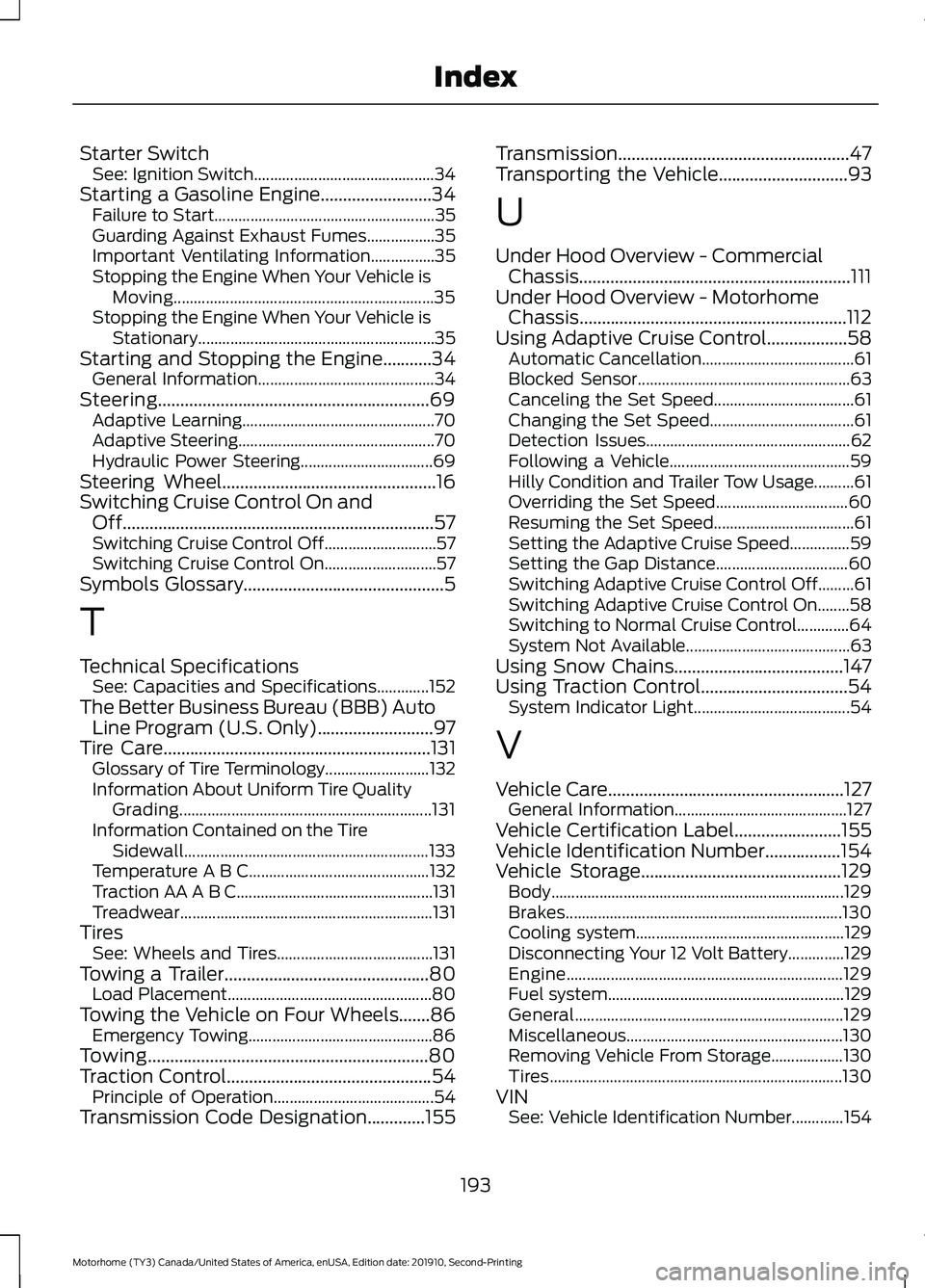

Starter Switch
See: Ignition Switch............................................. 34
Starting a Gasoline Engine.........................34 Failure to Start....................................................... 35
Guarding Against Exhaust Fumes.................35
Important Ventilating Information................35
Stopping the Engine When Your Vehicle is Moving................................................................. 35
Stopping the Engine When Your Vehicle is Stationary........................................................... 35
Starting and Stopping the Engine...........34 General Information............................................ 34
Steering.............................................................69 Adaptive Learning................................................ 70
Adaptive Steering................................................. 70
Hydraulic Power Steering................................. 69
Steering Wheel................................................16
Switching Cruise Control On and Off......................................................................57
Switching Cruise Control Off............................ 57
Switching Cruise Control On............................ 57
Symbols Glossary.............................................5
T
Technical Specifications See: Capacities and Specifications.............152
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)..........................97
Tire Care
............................................................131
Glossary of Tire Terminology.......................... 132
Information About Uniform Tire Quality Grading............................................................... 131
Information Contained on the Tire Sidewall............................................................. 133
Temperature A B C............................................. 132
Traction AA A B C................................................. 131
Treadwear............................................................... 131
Tires See: Wheels and Tires....................................... 131
Towing a Trailer..............................................80 Load Placement................................................... 80
Towing the Vehicle on Four Wheels.......86 Emergency Towing.............................................. 86
Towing...............................................................80
Traction Control
..............................................54
Principle of Operation........................................ 54
Transmission Code Designation
.............155 Transmission....................................................47
Transporting the Vehicle.............................93
U
Under Hood Overview - Commercial
Chassis.............................................................111
Under Hood Overview - Motorhome Chassis............................................................112
Using Adaptive Cruise Control..................58 Automatic Cancellation...................................... 61
Blocked Sensor..................................................... 63
Canceling the Set Speed................................... 61
Changing the Set Speed.................................... 61
Detection Issues................................................... 62
Following a Vehicle............................................. 59
Hilly Condition and Trailer Tow Usage..........61
Overriding the Set Speed................................. 60
Resuming the Set Speed................................... 61
Setting the Adaptive Cruise Speed...............59
Setting the Gap Distance................................. 60
Switching Adaptive Cruise Control Off.........61
Switching Adaptive Cruise Control On........58
Switching to Normal Cruise Control.............64
System Not Available......................................... 63
Using Snow Chains......................................147
Using Traction Control
.................................54
System Indicator Light....................................... 54
V
Vehicle Care.....................................................127 General Information........................................... 127
Vehicle Certification Label........................155
Vehicle Identification Number
.................154
Vehicle Storage.............................................129
Body........................................................................\
. 129
Brakes..................................................................... 130
Cooling system.................................................... 129
Disconnecting Your 12 Volt Battery..............129
Engine..................................................................... 129
Fuel system........................................................... 129
General................................................................... 129
Miscellaneous...................................................... 130
Removing Vehicle From Storage.................. 130
Tires........................................................................\
. 130
VIN See: Vehicle Identification Number.............154
193
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Index

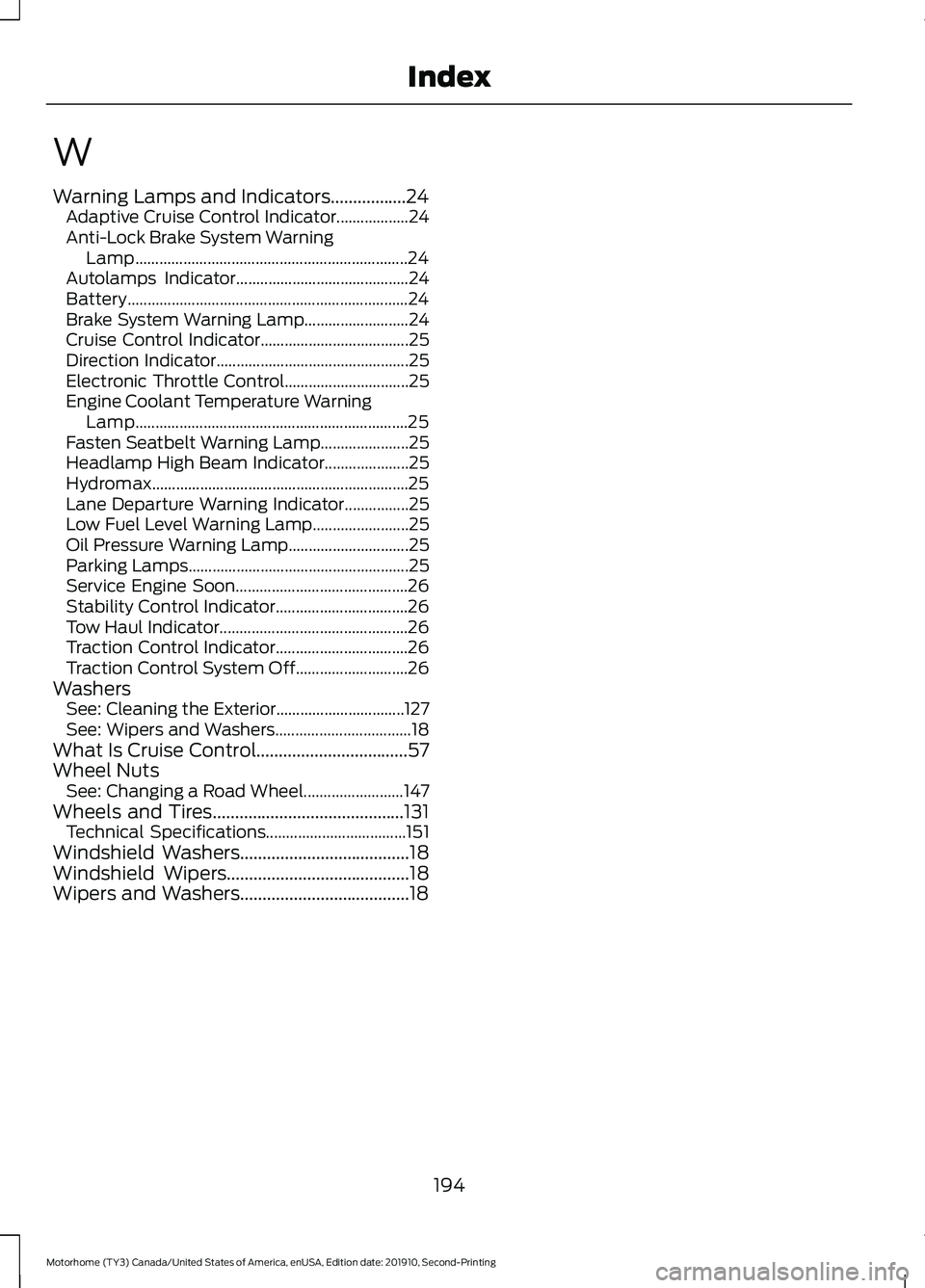

W
Warning Lamps and Indicators.................24
Adaptive Cruise Control Indicator.................. 24
Anti-Lock Brake System Warning Lamp.................................................................... 24
Autolamps Indicator........................................... 24
Battery...................................................................... 24
Brake System Warning Lamp.......................... 24
Cruise Control Indicator..................................... 25
Direction Indicator................................................ 25
Electronic Throttle Control............................... 25
Engine Coolant Temperature Warning Lamp.................................................................... 25
Fasten Seatbelt Warning Lamp...................... 25
Headlamp High Beam Indicator..................... 25
Hydromax................................................................ 25
Lane Departure Warning Indicator................25
Low Fuel Level Warning Lamp........................ 25
Oil Pressure Warning Lamp.............................. 25
Parking Lamps....................................................... 25
Service Engine Soon........................................... 26
Stability Control Indicator................................. 26
Tow Haul Indicator............................................... 26
Traction Control Indicator................................. 26
Traction Control System Off............................ 26
Washers See: Cleaning the Exterior................................ 127
See: Wipers and Washers.................................. 18
What Is Cruise Control..................................57
Wheel Nuts See: Changing a Road Wheel......................... 147
Wheels and Tires...........................................131 Technical Specifications................................... 151
Windshield Washers......................................18
Windshield Wipers.........................................18
Wipers and Washers......................................18
194
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201910, Second-Printing Index
