MAINTAIN YOUR VEHICLE PROPERLY
Your vehicle contains an Owner’s Manual which indicates the
scheduled maintenance required for your vehicle. Proper
maintenance guards against major repair expenses resulting
from neglect or inadequate maintenance, and may help increase
the value you receive when you sell or trade your vehicle.
It is your responsibility to make sure all of the scheduled
maintenance is performed and that the materials used meet Ford
engineering specifications. Failure to perform maintenance as
specified in the Owner’s Manual will invalidate warranty coverage on
parts affected by the lack of maintenance. Make sure that receipts
for completed maintenance work are retained with the vehicle.
Your Ford Motor Company dealer has factory-trained technicians
who can perform the required maintenance using genuine Ford
parts. The dealership looks forward to meeting your every service
need to maximize your satisfaction with your vehicle.
DO WARRANTIES APPLY IN OTHER COUNTRIES?
TheNew Truck Limited Warranty and theEmissions Warranty
described in this booklet apply to your vehicle if:
• it was originally purchased through Ford Export Operation dealers or the Military Sales Program; or
•
it was originally sold or leased by Ford Motor Company or one of
its dealers in the United States or U.S. Federalized Territories, and
it was originally registered/licensed and operated in the United
States, U.S. Federalized Territories, or Canada.
If you meet either of these two requirements, you do have warranty
coverage when you travel with this vehicle outside the United
States, U.S. Federalized Territories, or Canada. In some cases,
however, you may have to pay the servicing Ford dealer in a foreign
country for a repair that is covered under U.S. warranty. If this
happens, be sure to save the paid repair order or invoice. You
should present this document to a U.S. Ford Motor Company dealer
for warranty refund consideration. Refer to www.fleet.ford.com for
additional customer assistance reference information.
8

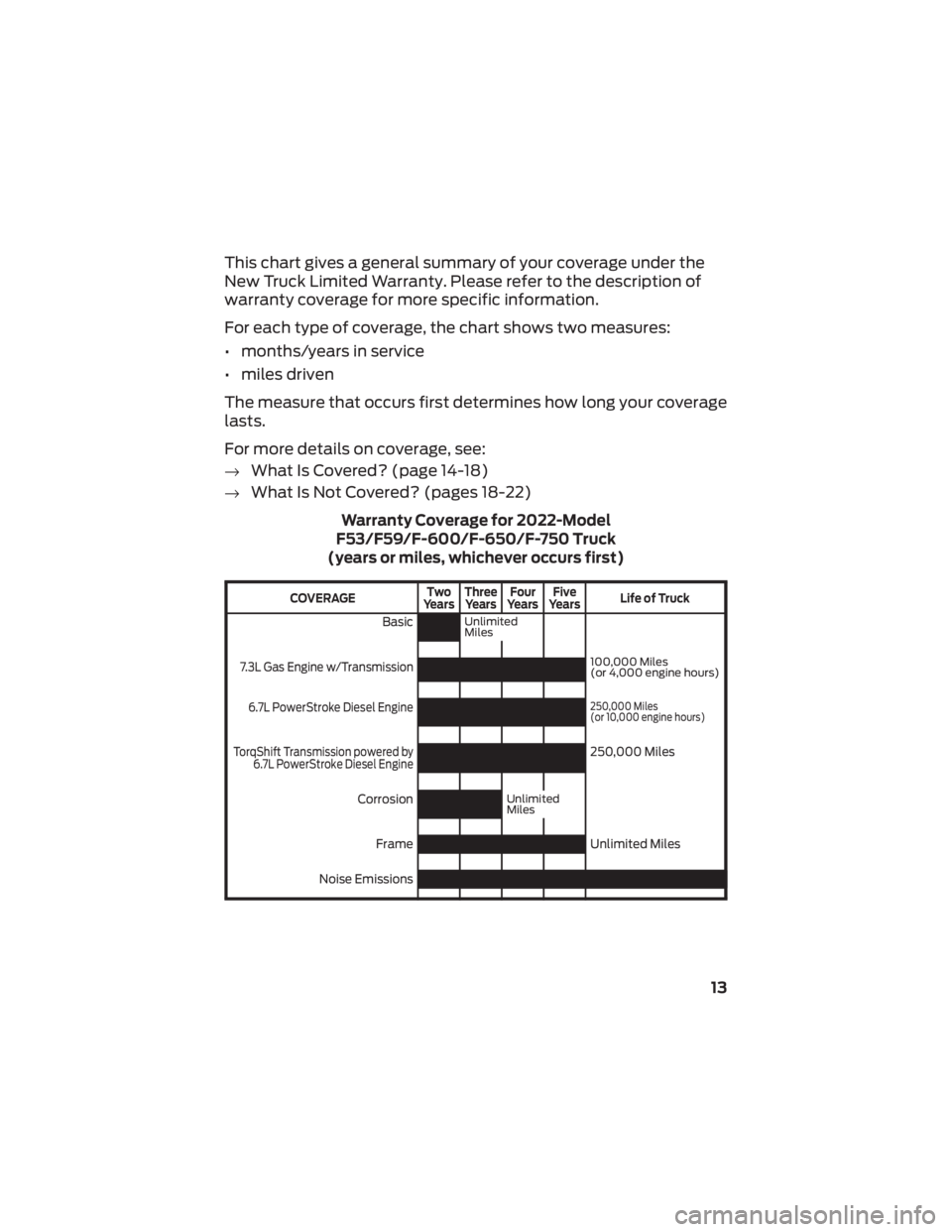

This chart gives a general summary of your coverage under the
New Truck Limited Warranty. Please refer to the description of
warranty coverage for more specific information.
For each type of coverage, the chart shows two measures:
• months/years in service
• miles driven
The measure that occurs first determines how long your coverage
lasts.
For more details on coverage, see:
→What Is Covered? (page 14-18)
→ What Is Not Covered? (pages 18-22)
Warranty Coverage for 2022-Model
F53/F59/F-600/F-650/F-750 Truck
(years or miles, whichever occurs first)
COVERAGE Two
Years Three
Years Four
Years Five
Years Life of Truck
BasicUnlimited
Miles
7.3L Gas Engine w/Transmission100,000 Miles
(or 4,000 engine hours)
6.7L PowerStroke Diesel Engine250,000 Miles
(or 10,000 engine hours)
TorqShift Transmission powered by
6.7L PowerStroke Diesel Engine250,000 Miles
Corrosion
Unlimited
Miles
Frame Unlimited Miles
Noise Emissions
13

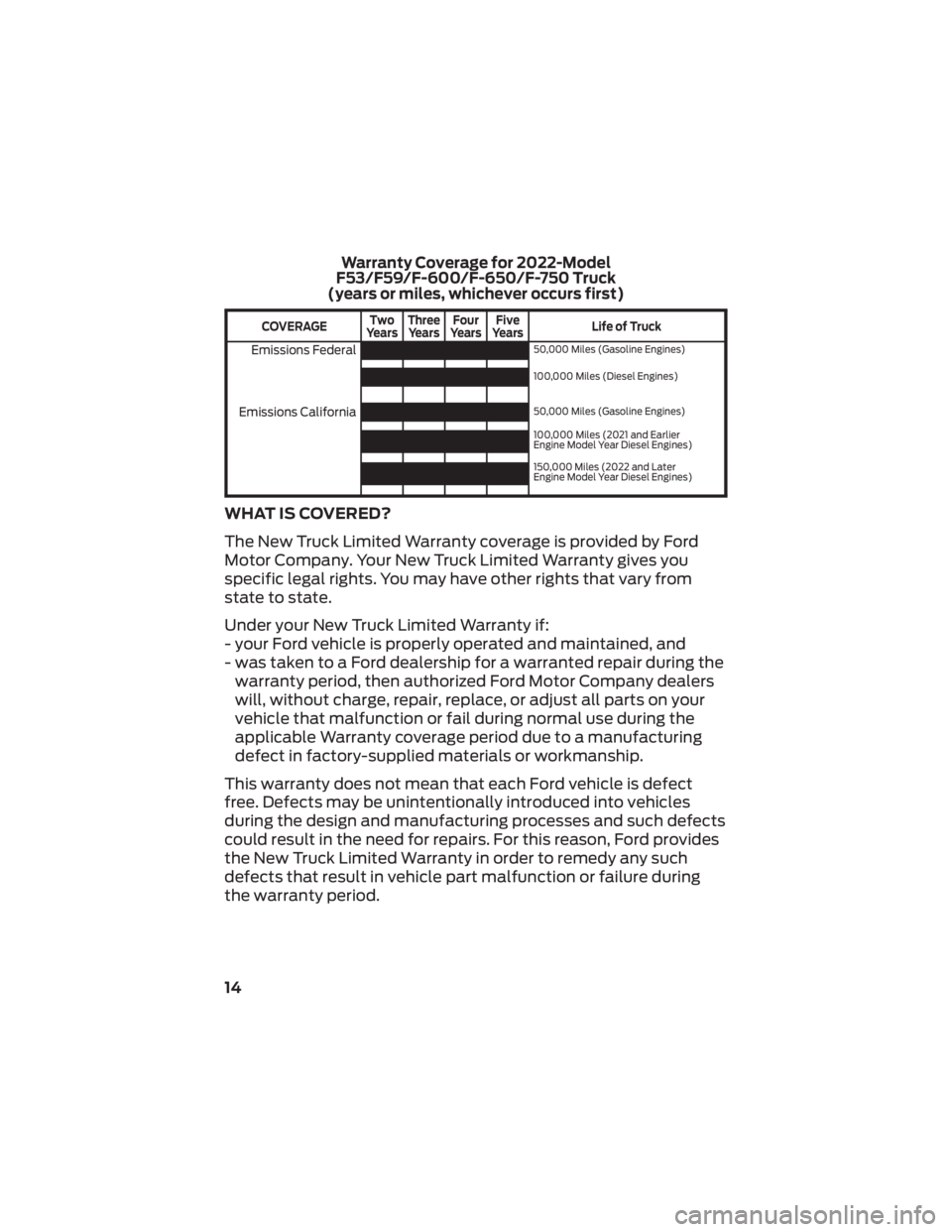

Warranty Coverage for 2022-Model
F53/F59/F-600/F-650/F-750 Truck
(years or miles, whichever occurs first)
COVERAGE Two
Years Three
Years Four
Years Five
Years Life of Truck
Emissions Federal50,000 Miles (Gasoline Engines)
100,000 Miles (Diesel Engines)
Emissions California50,000 Miles (Gasoline Engines)
100,000 Miles (2021 and Earlier
Engine Model Year Diesel Engines)
150,000 Miles (2022 and Later
Engine Model Year Diesel Engines)
WHAT IS COVERED?
The New Truck Limited Warranty coverage is provided by Ford
Motor Company. Your New Truck Limited Warranty gives you
specific legal rights. You may have other rights that vary from
state to state.
Under your New Truck Limited Warranty if:
- your Ford vehicle is properly operated and maintained, and
- was taken to a Ford dealership for a warranted repair during the
warranty period, then authorized Ford Motor Company dealers
will, without charge, repair, replace, or adjust all parts on your
vehicle that malfunction or fail during normal use during the
applicable Warranty coverage period due to a manufacturing
defect in factory-supplied materials or workmanship.
This warranty does not mean that each Ford vehicle is defect
free. Defects may be unintentionally introduced into vehicles
during the design and manufacturing processes and such defects
could result in the need for repairs. For this reason, Ford provides
the New Truck Limited Warranty in order to remedy any such
defects that result in vehicle part malfunction or failure during
the warranty period.
14

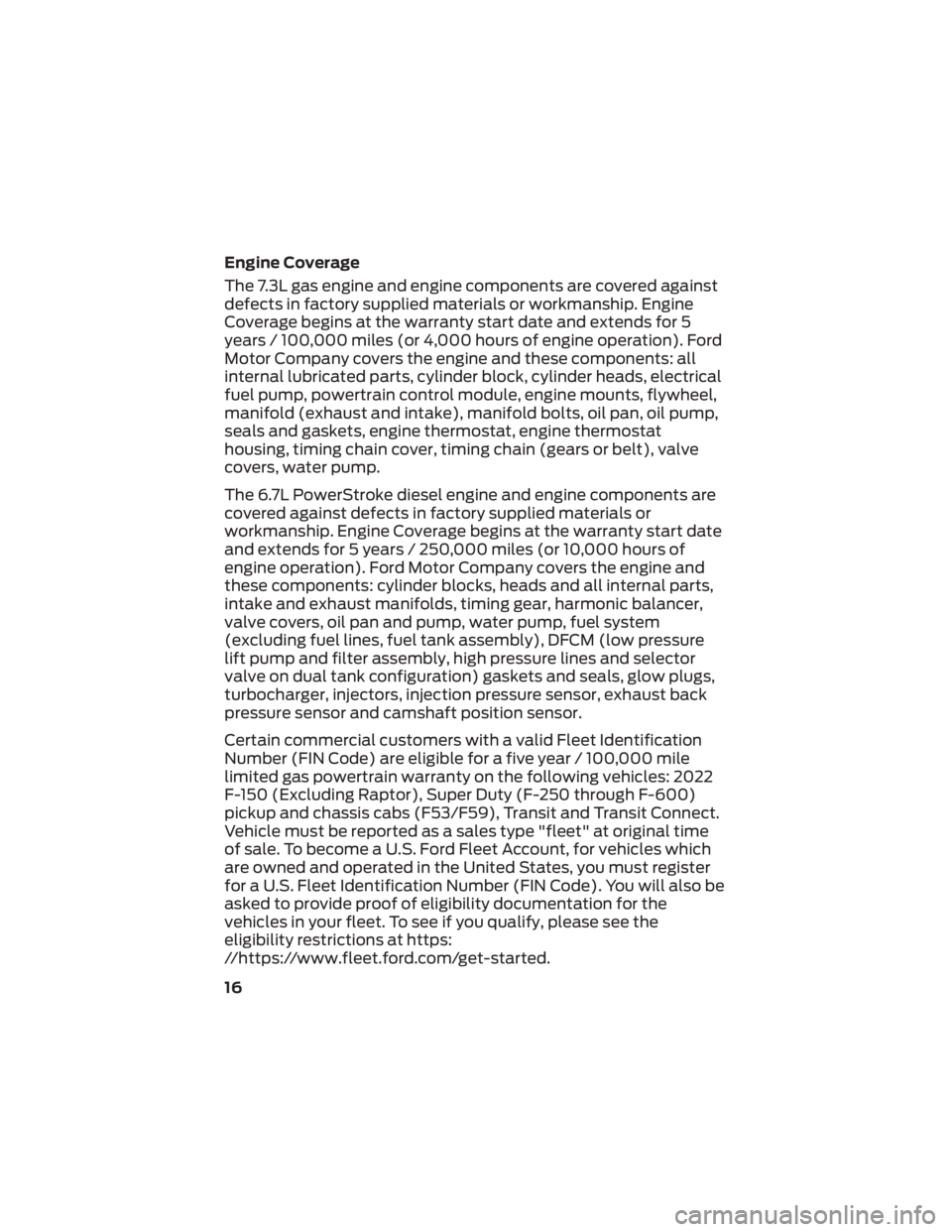

Engine Coverage
The 7.3L gas engine and engine components are covered against
defects in factory supplied materials or workmanship. Engine
Coverage begins at the warranty start date and extends for 5
years / 100,000 miles (or 4,000 hours of engine operation). Ford
Motor Company covers the engine and these components: all
internal lubricated parts, cylinder block, cylinder heads, electrical
fuel pump, powertrain control module, engine mounts, flywheel,
manifold (exhaust and intake), manifold bolts, oil pan, oil pump,
seals and gaskets, engine thermostat, engine thermostat
housing, timing chain cover, timing chain (gears or belt), valve
covers, water pump.
The 6.7L PowerStroke diesel engine and engine components are
covered against defects in factory supplied materials or
workmanship. Engine Coverage begins at the warranty start date
and extends for 5 years / 250,000 miles (or 10,000 hours of
engine operation). Ford Motor Company covers the engine and
these components: cylinder blocks, heads and all internal parts,
intake and exhaust manifolds, timing gear, harmonic balancer,
valve covers, oil pan and pump, water pump, fuel system
(excluding fuel lines, fuel tank assembly), DFCM (low pressure
lift pump and filter assembly, high pressure lines and selector
valve on dual tank configuration) gaskets and seals, glow plugs,
turbocharger, injectors, injection pressure sensor, exhaust back
pressure sensor and camshaft position sensor.
Certain commercial customers with a valid Fleet Identification
Number (FIN Code) are eligible for a five year / 100,000 mile
limited gas powertrain warranty on the following vehicles: 2022
F-150 (Excluding Raptor), Super Duty (F-250 through F-600)
pickup and chassis cabs (F53/F59), Transit and Transit Connect.
Vehicle must be reported as a sales type "fleet" at original time
of sale. To become a U.S. Ford Fleet Account, for vehicles which
are owned and operated in the United States, you must register
for a U.S. Fleet Identification Number (FIN Code). You will also be
asked to provide proof of eligibility documentation for the
vehicles in your fleet. To see if you qualify, please see the
eligibility restrictions at https:
//https://www.fleet.ford.com/get-started.
16

Damage Caused by Improper Maintenance
The New Truck Limited Warranty does not cover damage caused
by failure to maintain the vehicle, improperly maintaining the
vehicle, or using the wrong part, fuel, oil, lubricants, or fluids. See
the Owner’s Manual for proper ways to maintain the vehicle.
Failure to perform maintenance as specified in the Owner’s
Manual will invalidate or void warranty coverage on parts
affected by the lack of maintenance.
Maintenance/Wear
The New Truck Limited Warranty does not cover: (1) parts and
labor needed to maintain the vehicle; and (2) the replacement of
parts due to normal wear and tear. You, as the owner, are
responsible for these items. Here are examples:
• replacement of filters, windshield wiper blades, brake linings,clutch linings, and engine belts and hoses
• wheel alignment and tire balancing (unless required by a warranty repair)
• adjustments such as wheel balancing, wheel alignment, and headlight alignment
• adjustments to the mechanical valves, belts, transmission, clutch systems, and brake systems
• cleaning of fuel, cooling, and brake systems
• addition of fluids such as engine oil and washer fluid
• tightening of nuts, bolts, and fittings
Some maintenance and wear items have limited coverage, as
follows:
• wiper blade replacements are not covered beyond 6 months in service, regardless of miles driven
• brake pad/lining replacements are not covered beyond 12 months or 18,000 miles, whichever occurs first
20

5. Federal requirements for emissions warranties
FEDERAL EMISSIONS DEFECT WARRANTY
Under the Federal Emissions Defect Warranty, Ford warrants to
you, the owner of any 2022-model F-600/F-650/F-750/F53/F59
Over 19,500 lbs. GVWR truck that:
• Your truck or engine is designed, built, and equipped toconform, at the time it is sold, with the emissions regulations of
the U.S. Environmental Protection Agency (EPA).
• Your truck or engine is free from emission-related defects in factory-supplied materials and workmanship, which are
defects that could prevent the truck or engine from conforming
with applicable EPA regulations.
• You will not be charged for repair, replacement, or adjustment of parts containing an emissions-related defect listed in the
following What Is Covered? section.
WHAT IS COVERED?
F-600/F-650/F-750/F53/F59 Over 19,500 lbs. GVWR trucks are
provided Federal Emissions Defect Warranty for 5 years or
50,000 miles (whichever occurs first) for gasoline engines and 5
years or 100,000 miles (whichever occurs first) for Ford diesel
engines. Warranty coverage of 5 years or 100,000 miles
(whichever occurs first) is included for components whose
failure would increase the vehicle’s emissions of air conditioning
refrigerants. Trucks designated as a "VOCATIONAL TRUCK" on
the driver’s door "VEHICLE EMISSION CONTROL INFORMATION"
label receive tire warranty coverage for defects that affect
compliance with greenhouse gas requirements for 2 years or
24,000 miles (whichever occurs first). The following is a general
list of components that are covered by the Federal Emissions
Defect Warranty. If you would like more detailed information
concerning specific parts covered by Ford warranty, ask your
dealer.
25

For F-600/F-650/F-750/F53/F59 Over 19,500 lbs. GVWR
trucks,the Ford warranty covers the following if they are Ford
parts:
• Air Induction System
• Catalytic Converter (including Selective Catalytic Reduction and Diesel Oxidation Catalysts)
• Charge air cooler
• Diesel Exhaust Fluid (DEF) System
• Diesel glow plugs and control module
• Diesel particulate filter
• Diesel vacuum pump
• Electronic engine control sensors and switches
• Electronic Engine Control Unit (ECU)*
• Evaporative emission control system
• Exhaust Gas Recirculation (EGR) system
• Exhaust manifolds
• Exhaust pipe (manifold to catalyst)
• Fuel filler tube and cap (gasoline only)
• Fuel injection system
• Fuel injector driver module
• Fuel pump
• Fuel tank (gasoline only)
• Intake manifold
• Malfunction Indicator Light (MIL) system
• Oil filler cap
• Positive Crankcase Ventilation (PCV) system
• Supercharger assembly
• Spark ignition system
• Thermostat
• Throttle body
• Transmission Control Module (TCM)
26

6. California requirements for emissions warranty
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and Ford are pleased to
explain the emission control system warranty on your
2022-model vehicle. In California, new motor vehicles must be
designed, built, and equipped to meet the State's stringent
anti-smog standards. Ford must warrant the emission control
system on your vehicle for the periods of time listed below,
provided there has been no abuse, neglect, or improper
maintenance of your vehicle.
Your emission control system may include parts such as the fuel
injection system, the ignition system, catalytic converter, and
engine computer. Also included may be hoses, belts, connectors,
and other emission-related assemblies.
Where a warrantable condition exists, Ford will repair your
vehicle at no cost to you including diagnosis, parts, and labor.
MANUFACTURER'S WARRANTY COVERAGE
F-600/F-650/F-750/F53/F59 Over 19,500 lbs. GVWR trucks are
provided California emissions warranty coverage for 5 years or
50,000 miles (whichever occurs first) for gasoline engines, 5
years or 100,000 miles (whichever occurs first) for 2021 and
earlier engine model year diesel engines, and 5 years or 150,000
miles (whichever occurs first) for 2022 and later engine model
year diesel engines. Components whose failure would increase
the vehicle’s emissions of air conditioning refrigerants are
warranted for 5 years or 50,000 miles (whichever occurs first)
for gasoline engines and 5 years or 100,000 miles (whichever
occurs first) for diesel engines. Trucks designated as a
"VOCATIONAL TRUCK" on the driver’s door "VEHICLE EMISSION
CONTROL INFORMATION" label receive tire warranty coverage
for defects that affect compliance with greenhouse gas
requirements for 2 years or 24,000 miles (whichever occurs first)
28

If an emissions-related part on your vehicle is defective, the part
will be repaired or replaced by Ford. This is your emission control
systemDefects Warranty.
Vehicles Eligible For California Emissions Warranty Coverage
California emission warranty coverage applies if your vehicle
meets the following two criteria:
• Your vehicle is registered in California, Maine, New York (gasoline only), or Pennsylvania and
• Your vehicle is certified for sale in California, as indicated on the important engine information label.
OWNER'S WARRANTY RESPONSIBILITIES
As the vehicle owner, you are responsible for the performance of
the required maintenance listed in your owner's manual. Ford
recommends that you retain all receipts covering maintenance
on your vehicle, but Ford cannot deny warranty coverage solely
for the lack of receipts or for your failure to ensure the
performance of all scheduled maintenance.
You are responsible for presenting your vehicle to a Ford dealer
as soon as a problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30
days.
As the vehicle owner, you should also be aware that Ford may
deny you warranty coverage if your vehicle or a part has failed
due to abuse, neglect, improper maintenance, or unapproved
modifications.
If you have questions regarding your warranty rights and
responsibilities, or if you want to report what you believe to be
violations of the terms of this warranty, you may contact the
Fleet Customer Relationship Center at 1-800-343-5338 or
contact:
California Air Resources Board
9528 Telstar Avenue
El Monte, California 91731
29

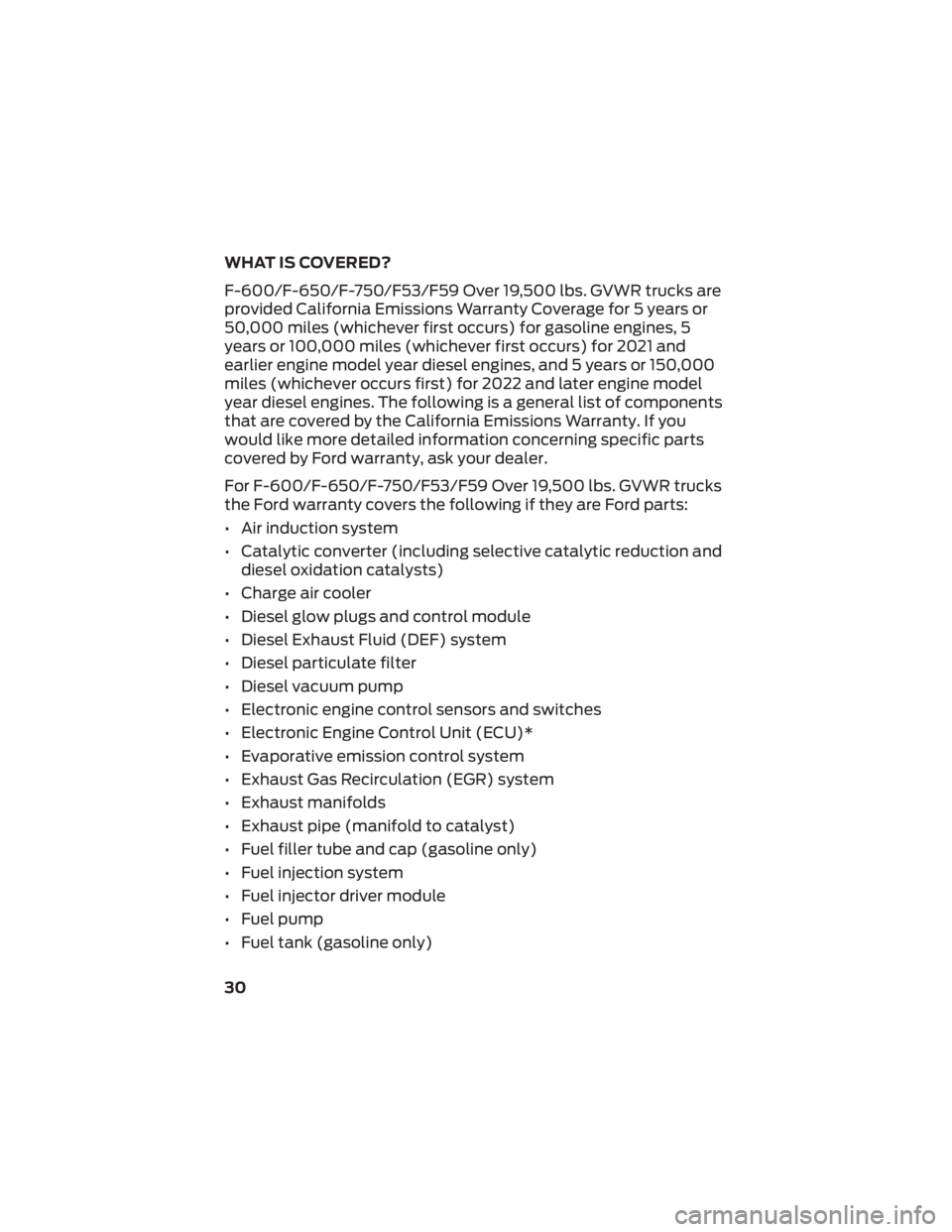

WHAT IS COVERED?
F-600/F-650/F-750/F53/F59 Over 19,500 lbs. GVWR trucks are
provided California Emissions Warranty Coverage for 5 years or
50,000 miles (whichever first occurs) for gasoline engines, 5
years or 100,000 miles (whichever first occurs) for 2021 and
earlier engine model year diesel engines, and 5 years or 150,000
miles (whichever occurs first) for 2022 and later engine model
year diesel engines. The following is a general list of components
that are covered by the California Emissions Warranty. If you
would like more detailed information concerning specific parts
covered by Ford warranty, ask your dealer.
For F-600/F-650/F-750/F53/F59 Over 19,500 lbs. GVWR trucks
the Ford warranty covers the following if they are Ford parts:
• Air induction system
• Catalytic converter (including selective catalytic reduction anddiesel oxidation catalysts)
• Charge air cooler
• Diesel glow plugs and control module
• Diesel Exhaust Fluid (DEF) system
• Diesel particulate filter
• Diesel vacuum pump
• Electronic engine control sensors and switches
• Electronic Engine Control Unit (ECU)*
• Evaporative emission control system
• Exhaust Gas Recirculation (EGR) system
• Exhaust manifolds
• Exhaust pipe (manifold to catalyst)
• Fuel filler tube and cap (gasoline only)
• Fuel injection system
• Fuel injector driver module
• Fuel pump
• Fuel tank (gasoline only)
30
