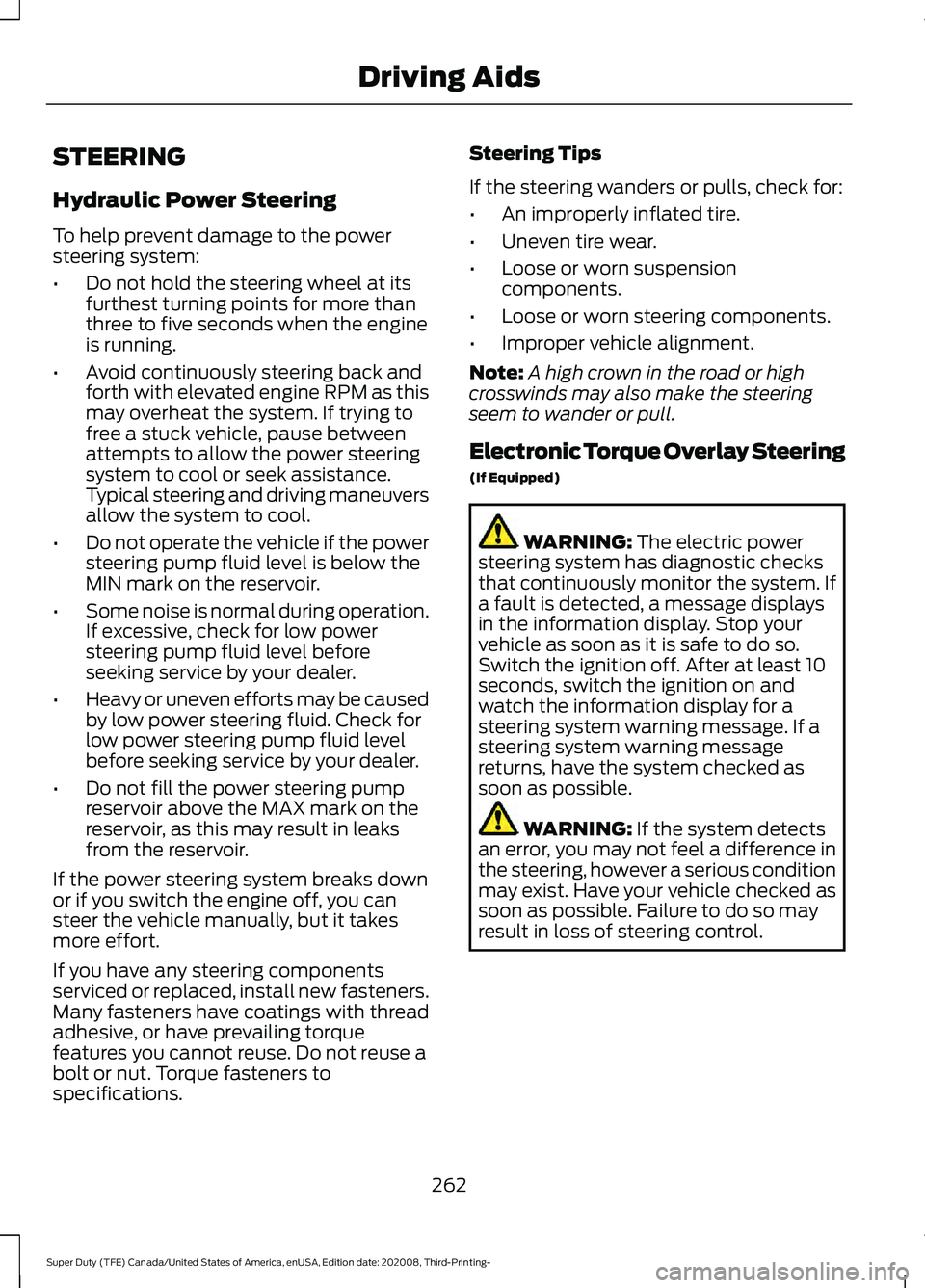

STEERING
Hydraulic Power Steering
To help prevent damage to the power
steering system:
•
Do not hold the steering wheel at its
furthest turning points for more than
three to five seconds when the engine
is running.
• Avoid continuously steering back and
forth with elevated engine RPM as this
may overheat the system. If trying to
free a stuck vehicle, pause between
attempts to allow the power steering
system to cool or seek assistance.
Typical steering and driving maneuvers
allow the system to cool.
• Do not operate the vehicle if the power
steering pump fluid level is below the
MIN mark on the reservoir.
• Some noise is normal during operation.
If excessive, check for low power
steering pump fluid level before
seeking service by your dealer.
• Heavy or uneven efforts may be caused
by low power steering fluid. Check for
low power steering pump fluid level
before seeking service by your dealer.
• Do not fill the power steering pump
reservoir above the MAX mark on the
reservoir, as this may result in leaks
from the reservoir.
If the power steering system breaks down
or if you switch the engine off, you can
steer the vehicle manually, but it takes
more effort.
If you have any steering components
serviced or replaced, install new fasteners.
Many fasteners have coatings with thread
adhesive, or have prevailing torque
features you cannot reuse. Do not reuse a
bolt or nut. Torque fasteners to
specifications. Steering Tips
If the steering wanders or pulls, check for:
•
An improperly inflated tire.
• Uneven tire wear.
• Loose or worn suspension
components.
• Loose or worn steering components.
• Improper vehicle alignment.
Note: A high crown in the road or high
crosswinds may also make the steering
seem to wander or pull.
Electronic Torque Overlay Steering
(If Equipped) WARNING: The electric power
steering system has diagnostic checks
that continuously monitor the system. If
a fault is detected, a message displays
in the information display. Stop your
vehicle as soon as it is safe to do so.
Switch the ignition off. After at least 10
seconds, switch the ignition on and
watch the information display for a
steering system warning message. If a
steering system warning message
returns, have the system checked as
soon as possible. WARNING:
If the system detects
an error, you may not feel a difference in
the steering, however a serious condition
may exist. Have your vehicle checked as
soon as possible. Failure to do so may
result in loss of steering control.
262
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Driving Aids

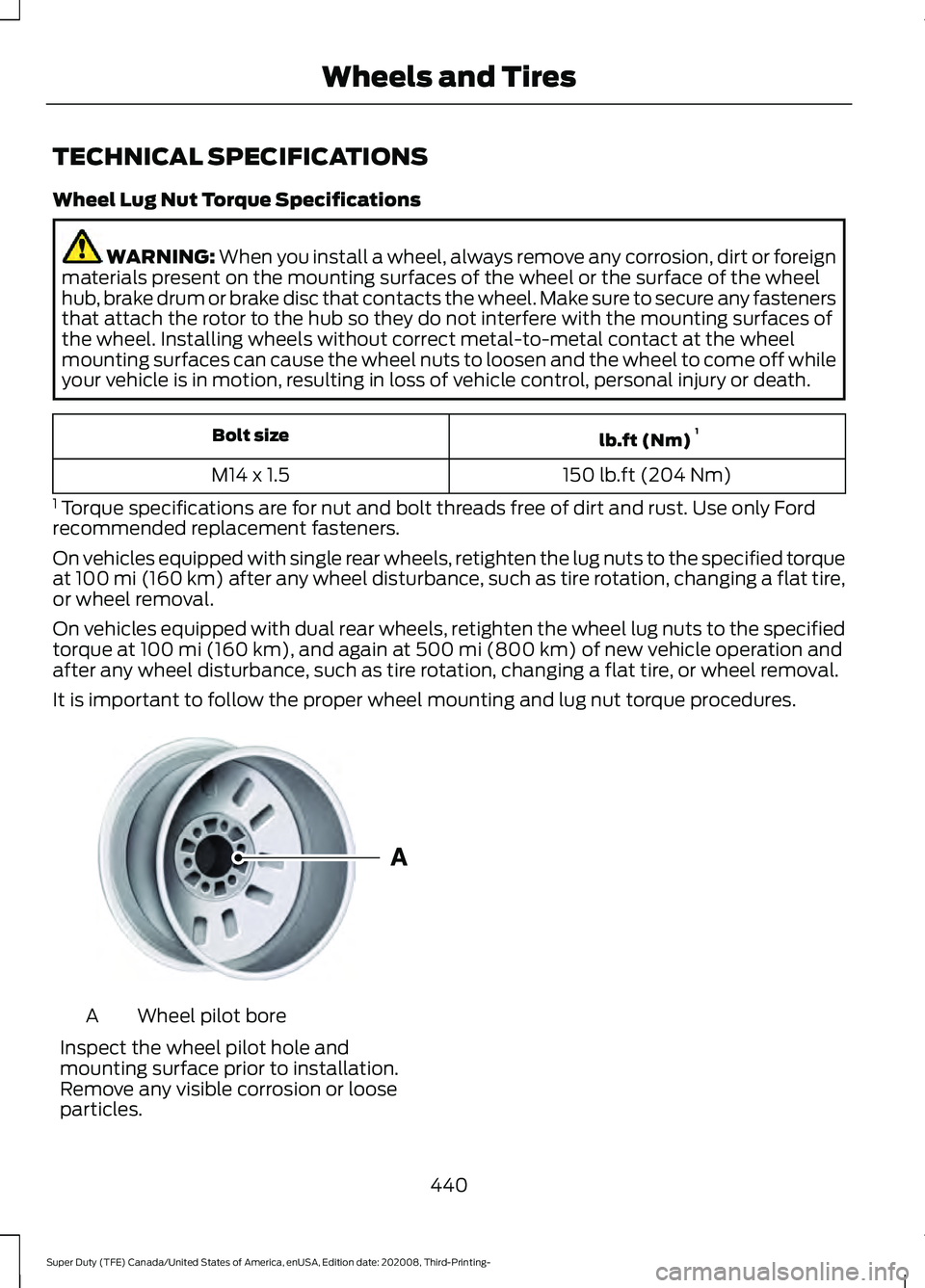

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign
materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death. lb.ft (Nm)
1
Bolt size
150 lb.ft (204 Nm)
M14 x 1.5
1 Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
On vehicles equipped with single rear wheels, retighten the lug nuts to the specified torque
at 100 mi (160 km) after any wheel disturbance, such as tire rotation, changing a flat tire,
or wheel removal.
On vehicles equipped with dual rear wheels, retighten the wheel lug nuts to the specified
torque at
100 mi (160 km), and again at 500 mi (800 km) of new vehicle operation and
after any wheel disturbance, such as tire rotation, changing a flat tire, or wheel removal.
It is important to follow the proper wheel mounting and lug nut torque procedures. Wheel pilot bore
A
Inspect the wheel pilot hole and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
440
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Wheels and TiresE145950

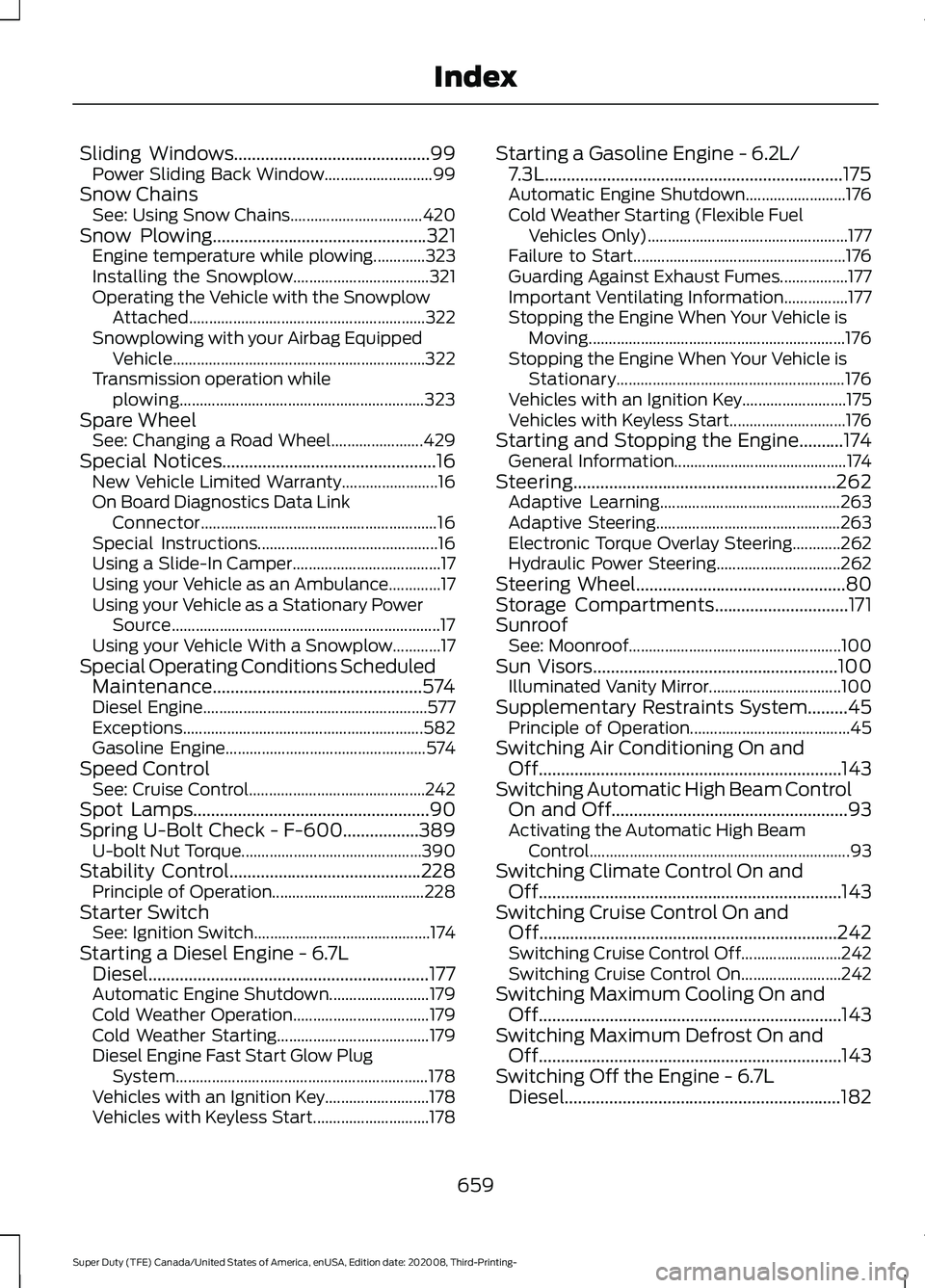

Sliding Windows............................................99
Power Sliding Back Window........................... 99
Snow Chains See: Using Snow Chains................................. 420
Snow Plowing................................................321
Engine temperature while plowing.............323
Installing the Snowplow.................................. 321
Operating the Vehicle with the Snowplow Attached........................................................... 322
Snowplowing with your Airbag Equipped Vehicle............................................................... 322
Transmission operation while plowing............................................................. 323
Spare Wheel See: Changing a Road Wheel....................... 429
Special Notices
................................................16
New Vehicle Limited Warranty........................ 16
On Board Diagnostics Data Link Connector........................................................... 16
Special Instructions............................................. 16
Using a Slide-In Camper..................................... 17
Using your Vehicle as an Ambulance.............17
Using your Vehicle as a Stationary Power Source................................................................... 17
Using your Vehicle With a Snowplow............17
Special Operating Conditions Scheduled Maintenance...............................................574
Diesel Engine........................................................ 577
Exceptions............................................................ 582
Gasoline Engine.................................................. 574
Speed Control See: Cruise Control............................................ 242
Spot Lamps.....................................................90
Spring U-Bolt Check - F-600.................389 U-bolt Nut Torque............................................. 390
Stability Control
...........................................228
Principle of Operation...................................... 228
Starter Switch See: Ignition Switch............................................ 174
Starting a Diesel Engine - 6.7L Diesel...............................................................177
Automatic Engine Shutdown......................... 179
Cold Weather Operation.................................. 179
Cold Weather Starting...................................... 179
Diesel Engine Fast Start Glow Plug System............................................................... 178
Vehicles with an Ignition Key.......................... 178
Vehicles with Keyless Start............................. 178Starting a Gasoline Engine - 6.2L/
7.3L...................................................................175
Automatic Engine Shutdown......................... 176
Cold Weather Starting (Flexible Fuel Vehicles Only).................................................. 177
Failure to Start..................................................... 176
Guarding Against Exhaust Fumes.................177
Important Ventilating Information................177
Stopping the Engine When Your Vehicle is Moving................................................................ 176
Stopping the Engine When Your Vehicle is Stationary......................................................... 176
Vehicles with an Ignition Key.......................... 175
Vehicles with Keyless Start............................. 176
Starting and Stopping the Engine..........174 General Information........................................... 174
Steering...........................................................262 Adaptive Learning............................................. 263
Adaptive Steering.............................................. 263
Electronic Torque Overlay Steering............262
Hydraulic Power Steering............................... 262
Steering Wheel
...............................................80
Storage Compartments..............................171
Sunroof See: Moonroof..................................................... 100
Sun Visors
.......................................................100
Illuminated Vanity Mirror................................. 100
Supplementary Restraints System.........45 Principle of Operation........................................ 45
Switching Air Conditioning On and Off....................................................................143
Switching Automatic High Beam Control On and Off.....................................................93
Activating the Automatic High Beam Control ................................................................. 93
Switching Climate Control On and Off....................................................................143
Switching Cruise Control On and Off
...................................................................242
Switching Cruise Control Off......................... 242
Switching Cruise Control On......................... 242
Switching Maximum Cooling On and Off....................................................................143
Switching Maximum Defrost On and Off....................................................................143
Switching Off the Engine - 6.7L Diesel..............................................................182
659
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Index
