WIPERS
WIPER PRECAUTIONS
Do not operate the wipers on a dry
windshield. This could scratch the glass or
damage the wiper blades. Use the
windshield washers before wiping a dry
windshield.
Fully defrost the windshield before you
switch the windshield wipers on.
Switch the windshield wipers off before
entering a car wash.
SWITCHING WINDSHIELD WIPERS
ON AND OFF
High-speed wipe.
A
Intermittent wipe.
B
Off.C Use the rotary control. AUTOWIPERS (IF EQUIPPED)
WHAT ARE AUTOWIPERS
Autowipers turns on and controls the
speed and frequency of the windshield
wipers.
AUTOWIPERS SETTINGS
1. Using the instrument cluster controls on the steering wheel, select Settings.
2. Select
Vehicle.
3. Select
Wipers.
4. Switch
Rain Sensing on or off.
Note: When you switch the feature off, the
wipers do not operate based on the rain
sensor. When you switch on the windshield
wipers to the intermittent wipe position with
the feature off, the wipers use the wipe
speed set by the rotary control.
ADJUSTING THE SENSITIVITY OF
THE RAIN SENSOR Low sensitivity.
A
High sensitivity.
B
Use the rotary control to set the sensitivity
of the rain sensor.
115
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Wipers and WashersE327739 E270969 E311292

When you select low sensitivity, the wipers
operate when the sensor detects a large
amount of water on the windshield.
When you select high sensitivity, the wipers
operate when the sensor detects a small
amount of water on the windshield.
CHECKING THE WIPER
BLADES
Run the tip of your fingers over the edge of
the blade to check for roughness.
REPLACING THE FRONT
WIPER BLADES
Make sure your vehicle is off before
beginning this procedure.
1. Pull the wiper blade and arm away
from the glass. Note:
Do not hold the wiper blade to lift the
wiper arm. 2. Press the wiper blade locking clip.
3. Remove the wiper blade.
Note:
Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.
4. To install, reverse the removal procedure.
Note: Make sure that the wiper blade locks
into place.
WASHERS
WASHER PRECAUTIONS WARNING: If you operate your
vehicle in temperatures below 41°F
(5°C), use washer fluid with antifreeze
protection. Failure to use washer fluid
with antifreeze protection in cold
weather could result in impaired
windshield vision and increase the risk
of injury or accident.
Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.
116
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Wipers and WashersE142463 E165804 E345993

Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects
hit the windshield.
USING THE WINDSHIELD WASHER
Press and hold the button at the
end of the lever to operate the
windshield washer.
Note: A courtesy wipe occurs a short time
after the wipers stop to clear any remaining
washer fluid when switched on. See
Switching the Courtesy Wipe On and Off
(page 117).
SWITCHING THE COURTESY WIPE
ON AND OFF
1. Using the instrument cluster controls on the steering wheel, select Settings.
2. Select
Vehicle.
3. Select
Wipers.
4. Switch
Courtesy Wipe on or off. ADDING WASHER FLUID
WASHER FLUID SPECIFICATION
See
Washer Fluid Specification (page
117).
WIPERS AND WASHERS –
TROUBLESHOOTING
WIPERS AND WASHERS –
WARNING LAMPS Illuminates when the windshield
washer fluid is low.
WIPERS AND WASHERS –
FREQUENTLY ASKED QUESTIONS
Why are there streaks and smears on
the windshield? The wiper blades could be dirty, worn
or damaged. Check the wiper blades.
See
Checking the Wiper Blades
(page 116). If the wiper blades are dirty,
clean them with washer fluid or water
applied with a soft sponge or cloth. If
the wiper blades are worn or damaged,
install new ones. See
Replacing the
Front Wiper Blades (page 116).
117
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Wipers and WashersE311291 E270967 E349287 E132353

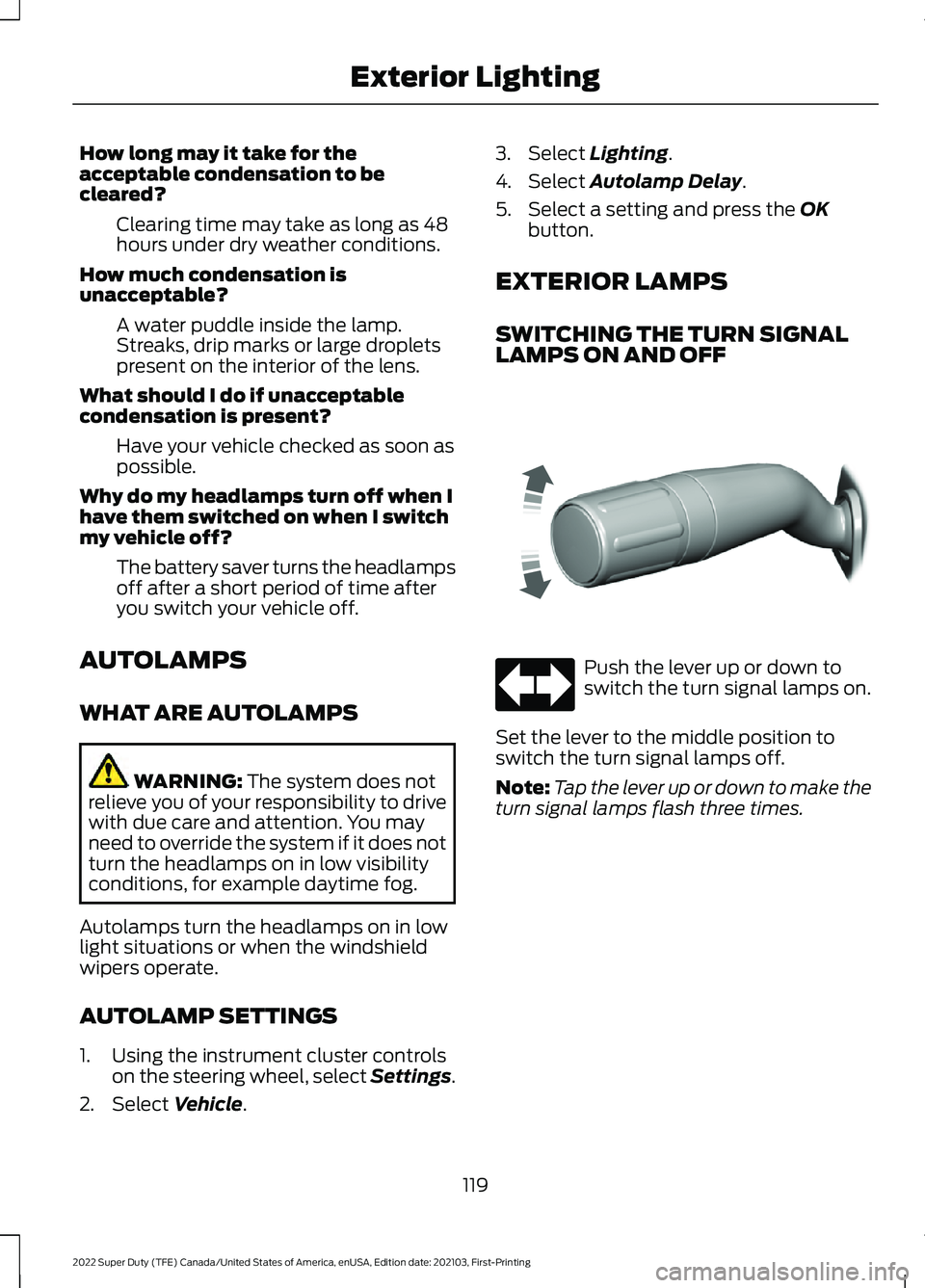

How long may it take for the
acceptable condensation to be
cleared?
Clearing time may take as long as 48
hours under dry weather conditions.
How much condensation is
unacceptable? A water puddle inside the lamp.
Streaks, drip marks or large droplets
present on the interior of the lens.
What should I do if unacceptable
condensation is present? Have your vehicle checked as soon as
possible.
Why do my headlamps turn off when I
have them switched on when I switch
my vehicle off? The battery saver turns the headlamps
off after a short period of time after
you switch your vehicle off.
AUTOLAMPS
WHAT ARE AUTOLAMPS WARNING: The system does not
relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.
Autolamps turn the headlamps on in low
light situations or when the windshield
wipers operate.
AUTOLAMP SETTINGS
1. Using the instrument cluster controls on the steering wheel, select Settings.
2. Select
Vehicle. 3. Select
Lighting.
4. Select
Autolamp Delay.
5. Select a setting and press the
OK
button.
EXTERIOR LAMPS
SWITCHING THE TURN SIGNAL
LAMPS ON AND OFF Push the lever up or down to
switch the turn signal lamps on.
Set the lever to the middle position to
switch the turn signal lamps off.
Note: Tap the lever up or down to make the
turn signal lamps flash three times.
119
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Exterior LightingE311431

Protected Component
Rating
Item
Powertrain control module.
20 A
51
Compressed natural gas
(gas).
15 A
52
Fuel rail pressure relief
control (diesel).
Exhaust gas recirculation
stepper motor (gas).
20 A
53
Universal exhaust gas
oxygen sensors (gas).
Exhaust gas recirculation
cooler bypass (diesel).
Urea pump motor controller
(diesel).
Oxygen sensors.
A/C clutch relay power.
20 A
54
Fan clutch.
Rain sensor.
5 A
55
Windshield wipers.
30 A
56
Upfitter interface module.
10 A
57
Alternator sense line.
10 A
58
Power running boards.
30 A
59
Body control module -
battery power in feed 2.
40 A
60
Telescopic mirror motors.
10 A
61
Trailer brake control.
40 A
62
Aftermarket e-brake access.
Multi-contour seats.
15 A
63
Ignition coil (gas).
20 A
64
Glow plug module (diesel).
Nitrogen oxide module
(diesel).
Urea level and quality sensor
(diesel).
Fuel pump.
30 A
65
A/C clutch solenoid.
10 A
66
391
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Fuses

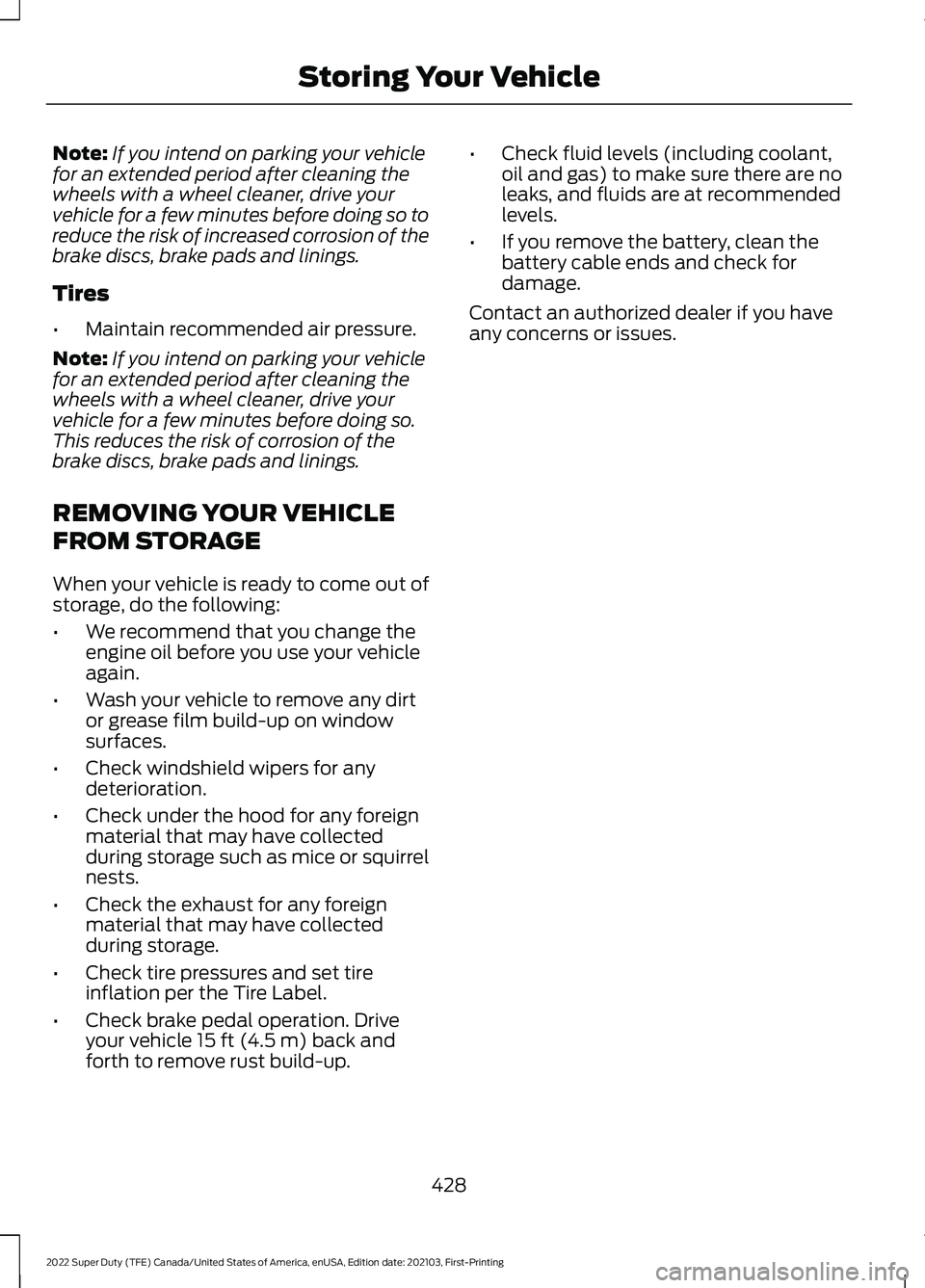

Note:
If you intend on parking your vehicle
for an extended period after cleaning the
wheels with a wheel cleaner, drive your
vehicle for a few minutes before doing so to
reduce the risk of increased corrosion of the
brake discs, brake pads and linings.
Tires
• Maintain recommended air pressure.
Note: If you intend on parking your vehicle
for an extended period after cleaning the
wheels with a wheel cleaner, drive your
vehicle for a few minutes before doing so.
This reduces the risk of corrosion of the
brake discs, brake pads and linings.
REMOVING YOUR VEHICLE
FROM STORAGE
When your vehicle is ready to come out of
storage, do the following:
• We recommend that you change the
engine oil before you use your vehicle
again.
• Wash your vehicle to remove any dirt
or grease film build-up on window
surfaces.
• Check windshield wipers for any
deterioration.
• Check under the hood for any foreign
material that may have collected
during storage such as mice or squirrel
nests.
• Check the exhaust for any foreign
material that may have collected
during storage.
• Check tire pressures and set tire
inflation per the Tire Label.
• Check brake pedal operation. Drive
your vehicle 15 ft (4.5 m) back and
forth to remove rust build-up. •
Check fluid levels (including coolant,
oil and gas) to make sure there are no
leaks, and fluids are at recommended
levels.
• If you remove the battery, clean the
battery cable ends and check for
damage.
Contact an authorized dealer if you have
any concerns or issues.
428
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Storing Your Vehicle

U
Under Hood Fuse Box................................387
Accessing the Under Hood Fuse Box.........387
Identifying the Fuses in the Under Hood
Fuse Box.......................................................... 388
Locating the Under Hood Fuse Box............387
Under Hood Overview - 6.2L...................397
Under Hood Overview - 6.7L Diesel............................................................398
Under Hood Overview - 7.3L...................399
Under Seat Storage.....................................188 Locating the Under Seat Storage
Compartment................................................. 188
Updating the Vehicle Systems Wirelessly.....................................................613
USB Ports
........................................................180
USB Port..........................................................516
Using a Slide-In Camper............................312
Using Keyless Entry.......................................87
Using MyKey With Remote Start Systems..........................................................80
Using Snow Chains.....................................438
Using SYNC™ With Your Media Player............................................................542
Using SYNC™ With Your Phone............539
Using the Diesel Engine Exhaust Brake.............................................................244
Using the Instrument Cluster Display Controls..........................................................141
Using the Integrated Trailer Brake Controller.....................................................334
Using the Keyless Entry Keypad
................91
Using the Remote Control..........................69
Using the Trailer Backup Assistance Controller.....................................................346
Using the Trailer Backup Assistance Views
.............................................................347
Using This Publication.................................20
Using Trailer Reverse Guidance Views.............................................................363
Using Voice Recognition............................537
V
Vehicle Care
....................................................421
Cleaning the Exterior......................................... 421
Cleaning the Interior......................................... 424Vehicle Identification Number
................497
Locating the Vehicle Identification
Number............................................................. 497
Vehicle Identification Number Overview.......................................................... 497
Vehicle Identification
..................................497
Vehicle Identification Number...................... 497
Vehicle Interior.................................................32
Vehicle System Updates............................613
Vehicle Wi-Fi Hotspot...............................506
Ventilated Seats
...........................................165
Switching the Ventilated Seats On and
Off....................................................................... 165
Ventilated Seat Precautions.......................... 165
Ventilation See: Climate Control - Vehicles With:
Automatic Temperature Control.............149
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 154
Venting the Moonroof..................................131
Viewing the Tire Pressures......................450
Visual Search...................................................29
Voice Interaction Examples
....................600
Voice Interaction.........................................600
W
Washer Fluid Specification......................485
Washers............................................................116 Adding Washer Fluid........................................... 117
Switching the Courtesy Wipe On and Off........................................................................\
. 117
Using the Windshield Washer......................... 117
Washer Fluid Specification............................... 117
Washer Precautions........................................... 116
Washers See: Wipers and Washers................................. 115
Waxing Your Vehicle
...................................426
Waypoints........................................................611 Adding a Waypoint.............................................. 611
Editing Waypoints............................................... 611
What Are the Auxiliary Switches
............618
What Are the Instrument Cluster Indicators......................................................138
What Are the Instrument Cluster Warning Lamps
...........................................137
What Is 911 Assist...........................................67
What Is a Connected Vehicle.................498
736
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

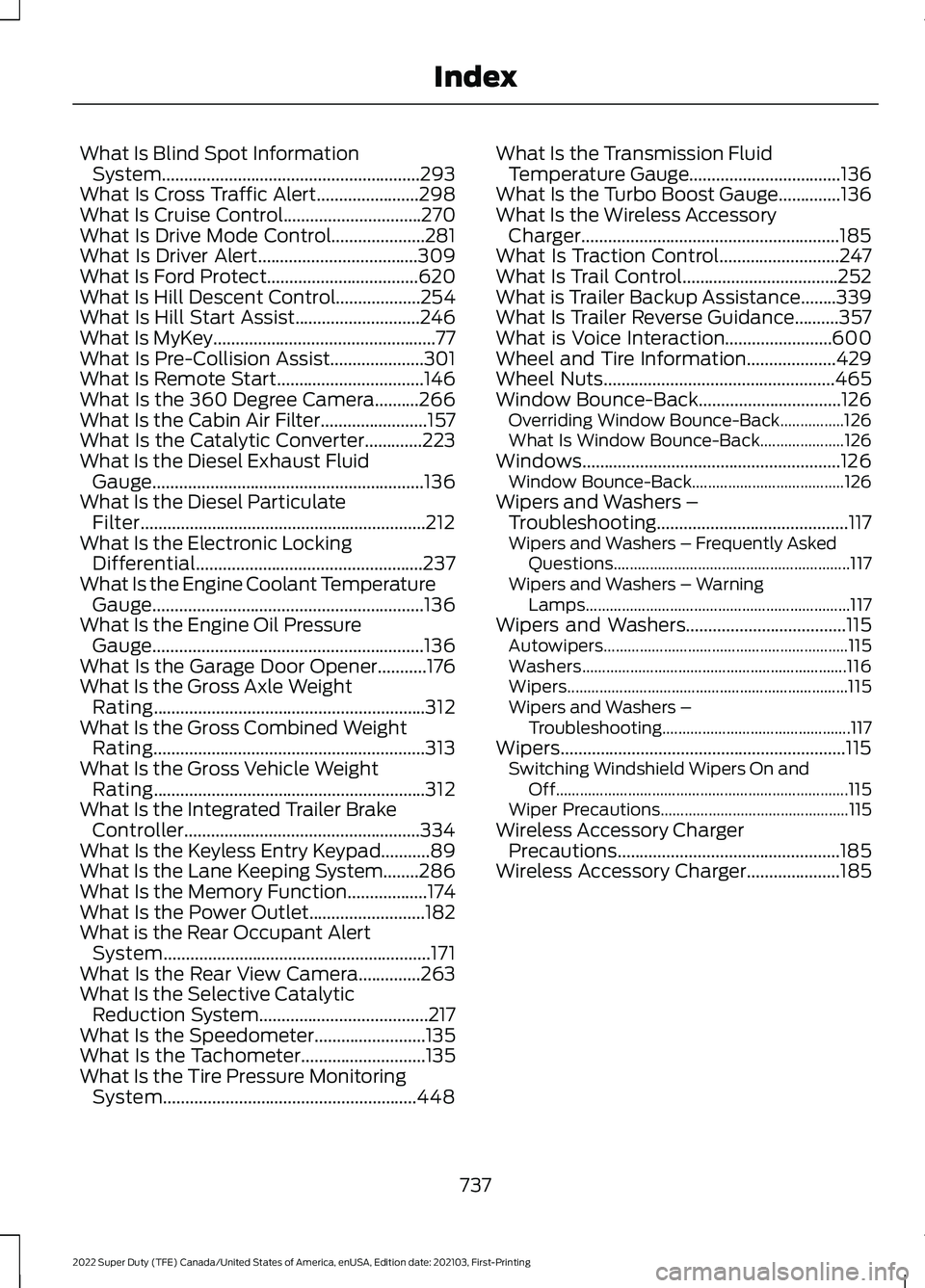

What Is Blind Spot Information
System..........................................................293
What Is Cross Traffic Alert.......................298
What Is Cruise Control...............................270
What Is Drive Mode Control.....................281
What Is Driver Alert
....................................309
What Is Ford Protect..................................620
What Is Hill Descent Control...................254
What Is Hill Start Assist............................246
What Is MyKey
..................................................77
What Is Pre-Collision Assist.....................301
What Is Remote Start.................................146
What Is the 360 Degree Camera
..........266
What Is the Cabin Air Filter........................157
What Is the Catalytic Converter.............223
What Is the Diesel Exhaust Fluid Gauge.............................................................136
What Is the Diesel Particulate Filter................................................................212
What Is the Electronic Locking Differential...................................................237
What Is the Engine Coolant Temperature Gauge.............................................................136
What Is the Engine Oil Pressure Gauge.............................................................136
What Is the Garage Door Opener
...........176
What Is the Gross Axle Weight Rating.............................................................312
What Is the Gross Combined Weight Rating.............................................................313
What Is the Gross Vehicle Weight Rating.............................................................312
What Is the Integrated Trailer Brake Controller.....................................................334
What Is the Keyless Entry Keypad...........89
What Is the Lane Keeping System........286
What Is the Memory Function..................174
What Is the Power Outlet..........................182
What is the Rear Occupant Alert System............................................................171
What Is the Rear View Camera..............263
What Is the Selective Catalytic Reduction System......................................217
What Is the Speedometer
.........................135
What Is the Tachometer............................135
What Is the Tire Pressure Monitoring System.........................................................448 What Is the Transmission Fluid
Temperature Gauge
..................................136
What Is the Turbo Boost Gauge..............136
What Is the Wireless Accessory Charger..........................................................185
What Is Traction Control...........................247
What Is Trail Control...................................252
What is Trailer Backup Assistance
........339
What Is Trailer Reverse Guidance..........357
What is Voice Interaction........................600
Wheel and Tire Information
....................429
Wheel Nuts....................................................465
Window Bounce-Back................................126
Overriding Window Bounce-Back................126
What Is Window Bounce-Back..................... 126
Windows..........................................................126 Window Bounce-Back...................................... 126
Wipers and Washers – Troubleshooting...........................................117
Wipers and Washers – Frequently Asked Questions........................................................... 117
Wipers and Washers – Warning Lamps.................................................................. 117
Wipers and Washers
....................................115
Autowipers............................................................. 115
Washers.................................................................. 116
Wipers...................................................................... 115
Wipers and Washers – Troubleshooting............................................... 117
Wipers
................................................................115
Switching Windshield Wipers On and
Off........................................................................\
. 115
Wiper Precautions............................................... 115
Wireless Accessory Charger Precautions..................................................185
Wireless Accessory Charger.....................185
737
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index
