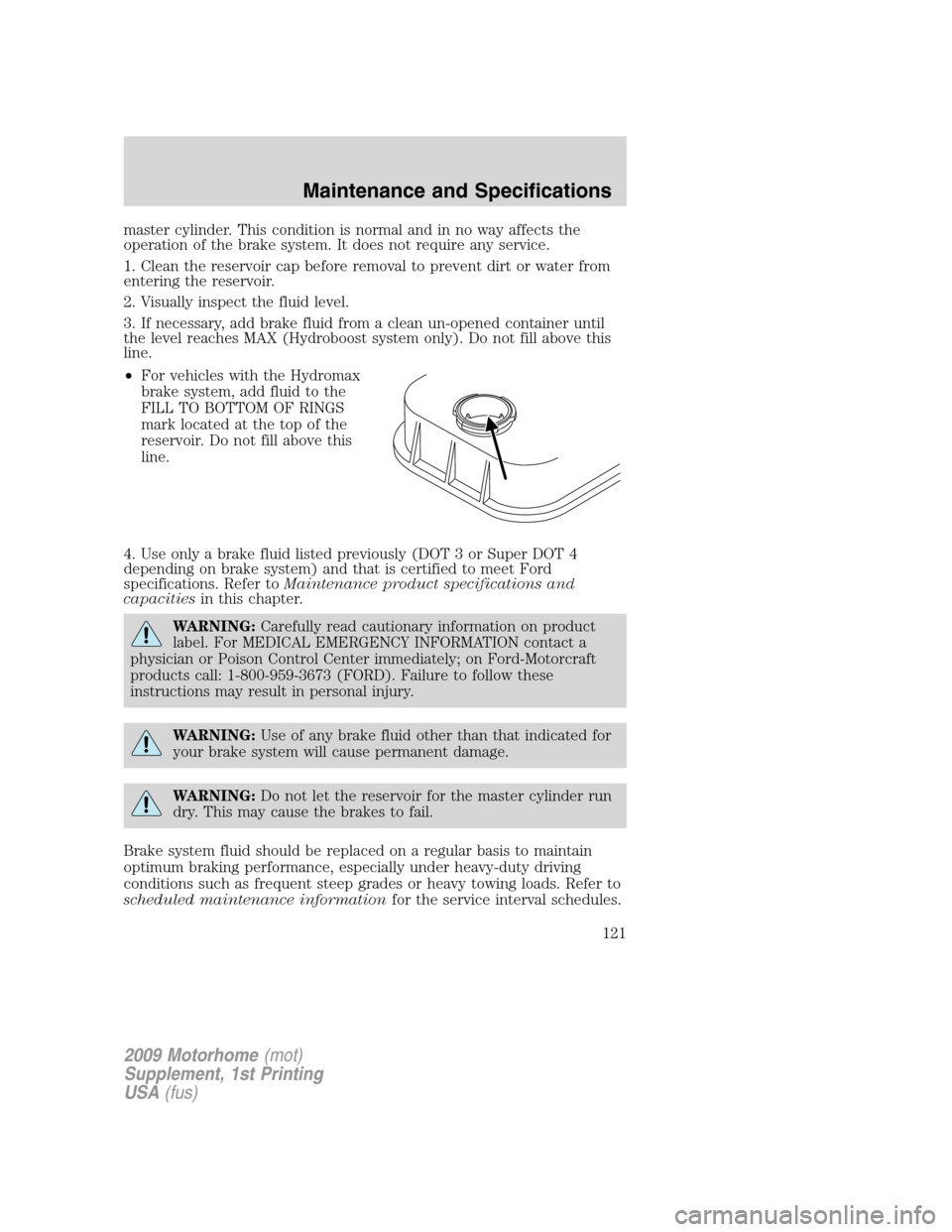

master cylinder. This condition is normal and in no way affects the
operation of the brake system. It does not require any service.
1. Clean the reservoir cap before removal to prevent dirt or water from
entering the reservoir.
2. Visually inspect the fluid level.
3. If necessary, add brake fluid from a clean un-opened container until
the level reaches MAX (Hydroboost system only). Do not fill above this
line.
•For vehicles with the Hydromax
brake system, add fluid to the
FILL TO BOTTOM OF RINGS
mark located at the top of the
reservoir. Do not fill above this
line.
4. Use only a brake fluid listed previously (DOT 3 or Super DOT 4
depending on brake system) and that is certified to meet Ford
specifications. Refer toMaintenance product specifications and
capacitiesin this chapter.
WARNING:Carefully read cautionary information on product
label. For MEDICAL EMERGENCY INFORMATION contact a
physician or Poison Control Center immediately; on Ford-Motorcraft
products call: 1-800-959-3673 (FORD). Failure to follow these
instructions may result in personal injury.
WARNING:Use of any brake fluid other than that indicated for
your brake system will cause permanent damage.
WARNING:Do not let the reservoir for the master cylinder run
dry. This may cause the brakes to fail.
Brake system fluid should be replaced on a regular basis to maintain
optimum braking performance, especially under heavy-duty driving
conditions such as frequent steep grades or heavy towing loads. Refer to
scheduled maintenance informationfor the service interval schedules.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
121

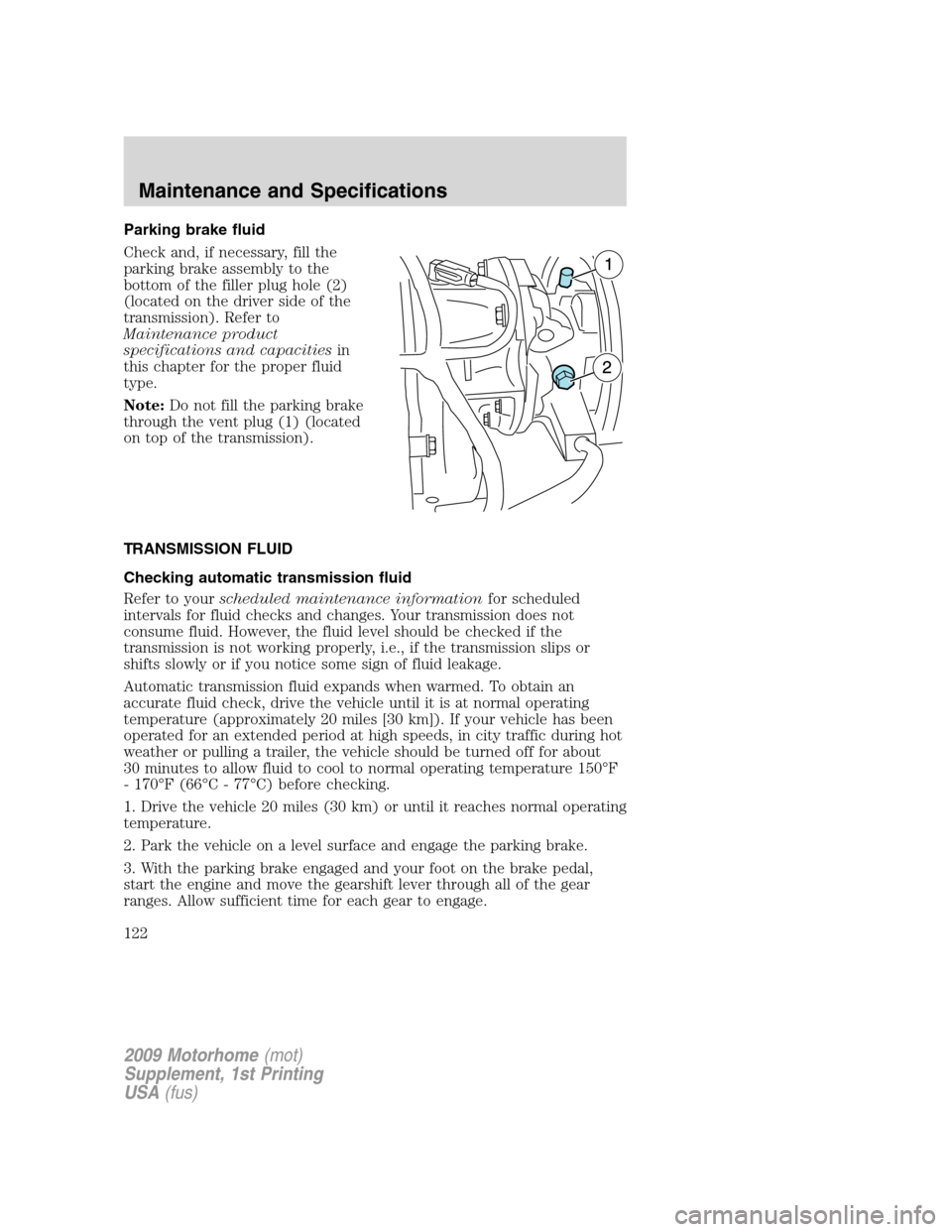

Parking brake fluid
Check and, if necessary, fill the
parking brake assembly to the
bottom of the filler plug hole (2)
(located on the driver side of the
transmission). Refer to
Maintenance product
specifications and capacitiesin
this chapter for the proper fluid
type.
Note:Do not fill the parking brake
through the vent plug (1) (located
on top of the transmission).
TRANSMISSION FLUID
Checking automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is at normal operating
temperature (approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic during hot
weather or pulling a trailer, the vehicle should be turned off for about
30 minutes to allow fluid to cool to normal operating temperature 150°F
- 170°F (66°C - 77°C) before checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
122

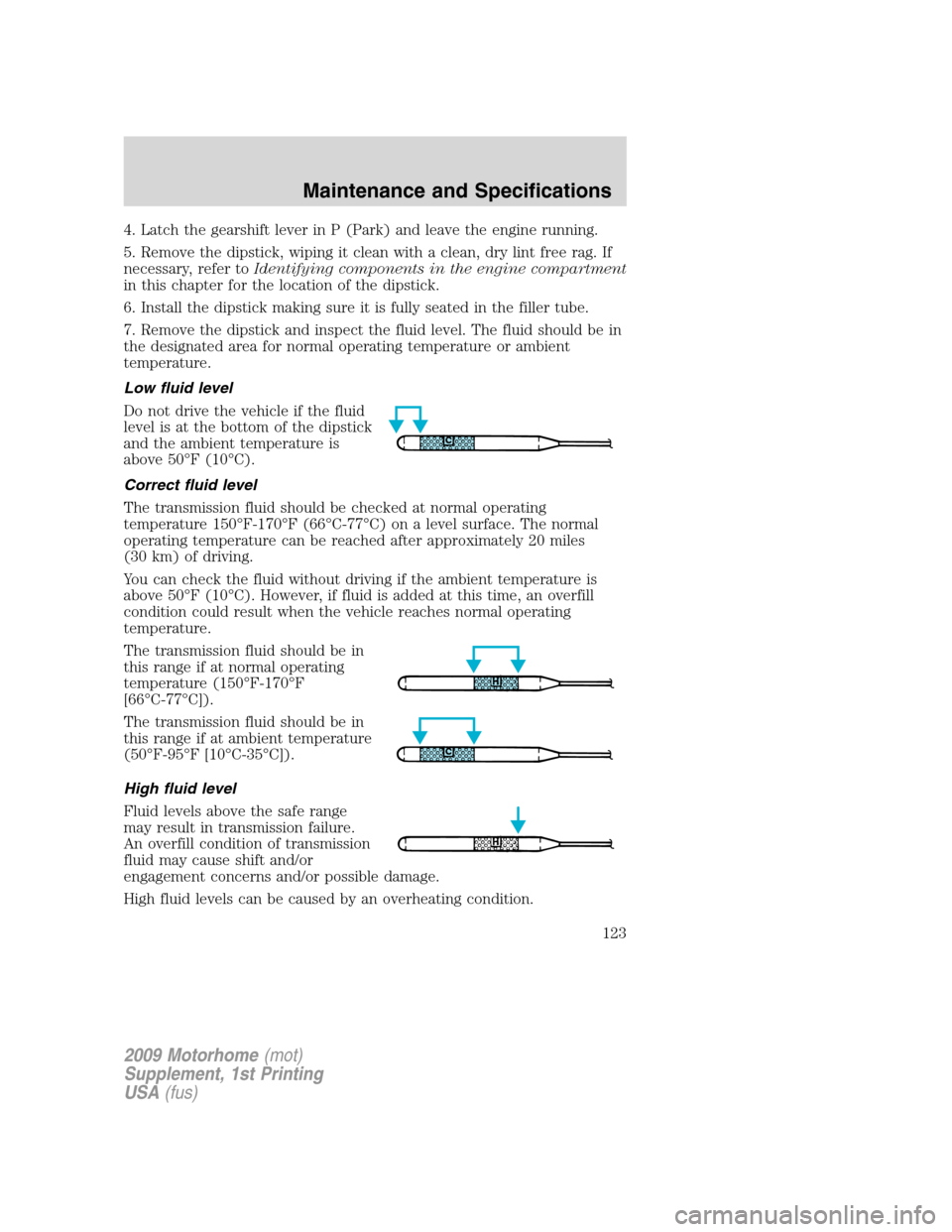

4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated area for normal operating temperature or ambient
temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the ambient temperature is
above 50°F (10°C).
Correct fluid level
The transmission fluid should be checked at normal operating
temperature 150°F-170°F (66°C-77°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles
(30 km) of driving.
You can check the fluid without driving if the ambient temperature is
above 50°F (10°C). However, if fluid is added at this time, an overfill
condition could result when the vehicle reaches normal operating
temperature.
The transmission fluid should be in
this range if at normal operating
temperature (150°F-170°F
[66°C-77°C]).
The transmission fluid should be in
this range if at ambient temperature
(50°F-95°F [10°C-35°C]).
High fluid level
Fluid levels above the safe range
may result in transmission failure.
An overfill condition of transmission
fluid may cause shift and/or
engagement concerns and/or possible damage.
High fluid levels can be caused by an overheating condition.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
123

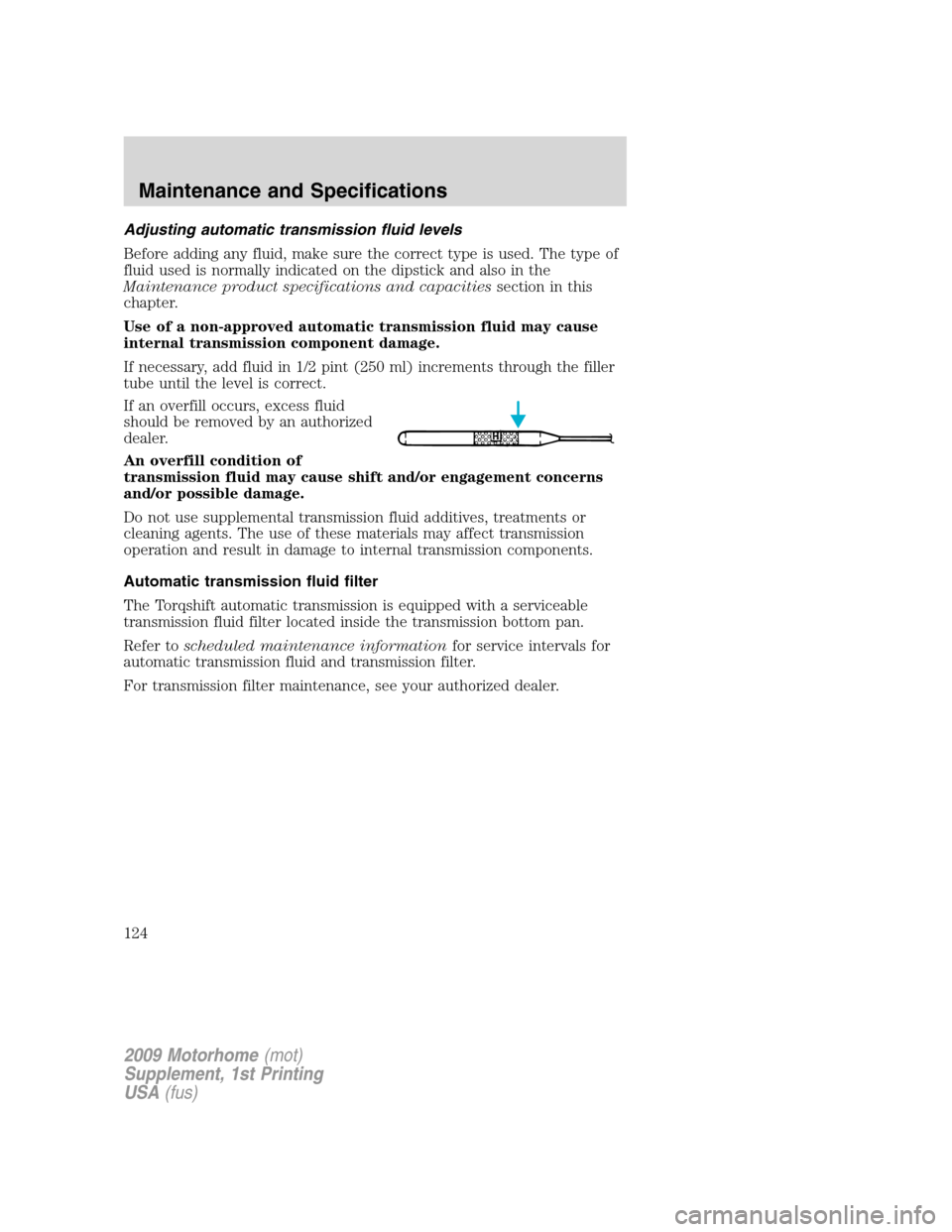

Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Maintenance product specifications and capacitiessection in this
chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 1/2 pint (250 ml) increments through the filler
tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause shift and/or engagement concerns
and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
Automatic transmission fluid filter
The Torqshift automatic transmission is equipped with a serviceable
transmission fluid filter located inside the transmission bottom pan.
Refer toscheduled maintenance informationfor service intervals for
automatic transmission fluid and transmission filter.
For transmission filter maintenance, see your authorized dealer.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
124

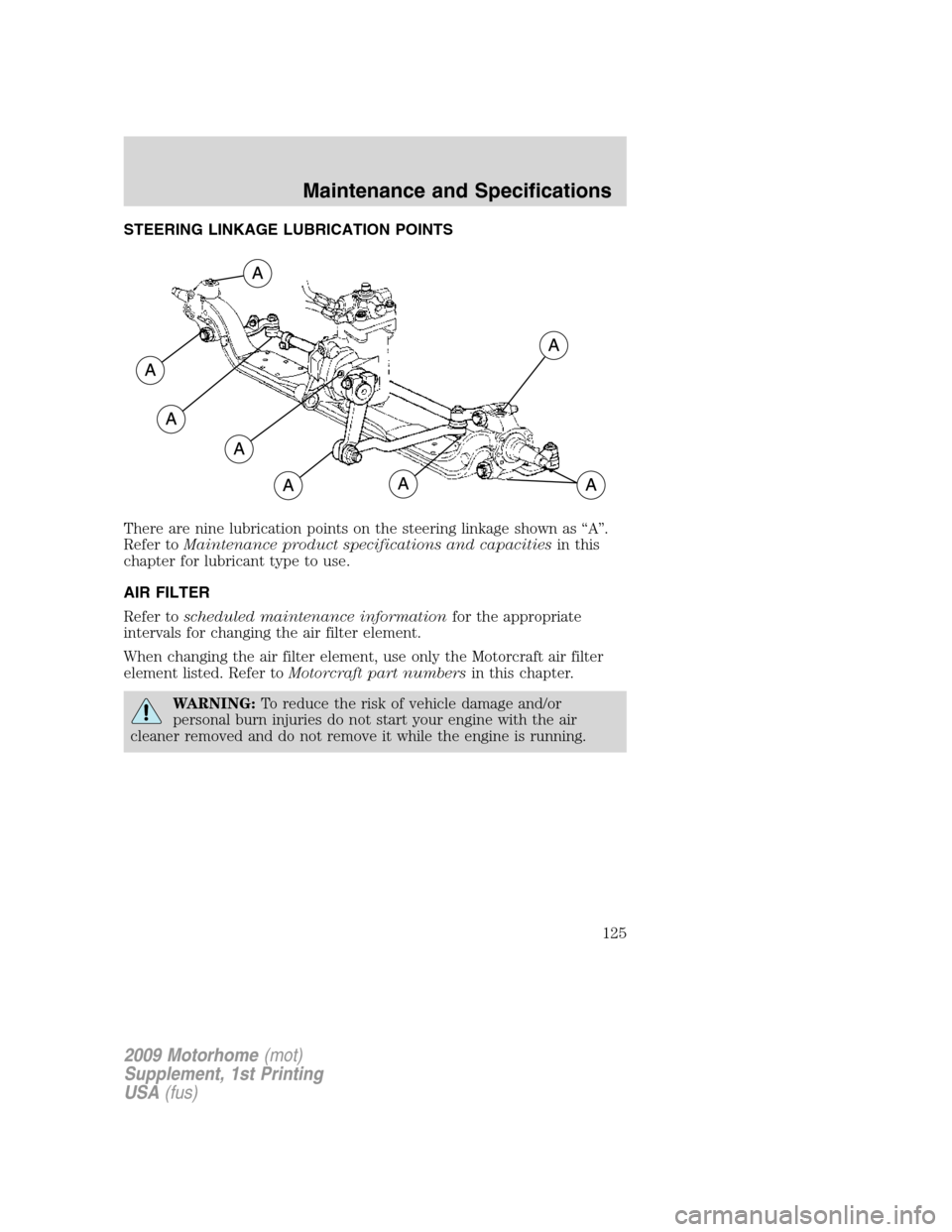

STEERING LINKAGE LUBRICATION POINTS
There are nine lubrication points on the steering linkage shown as “A”.
Refer toMaintenance product specifications and capacitiesin this
chapter for lubricant type to use.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
125

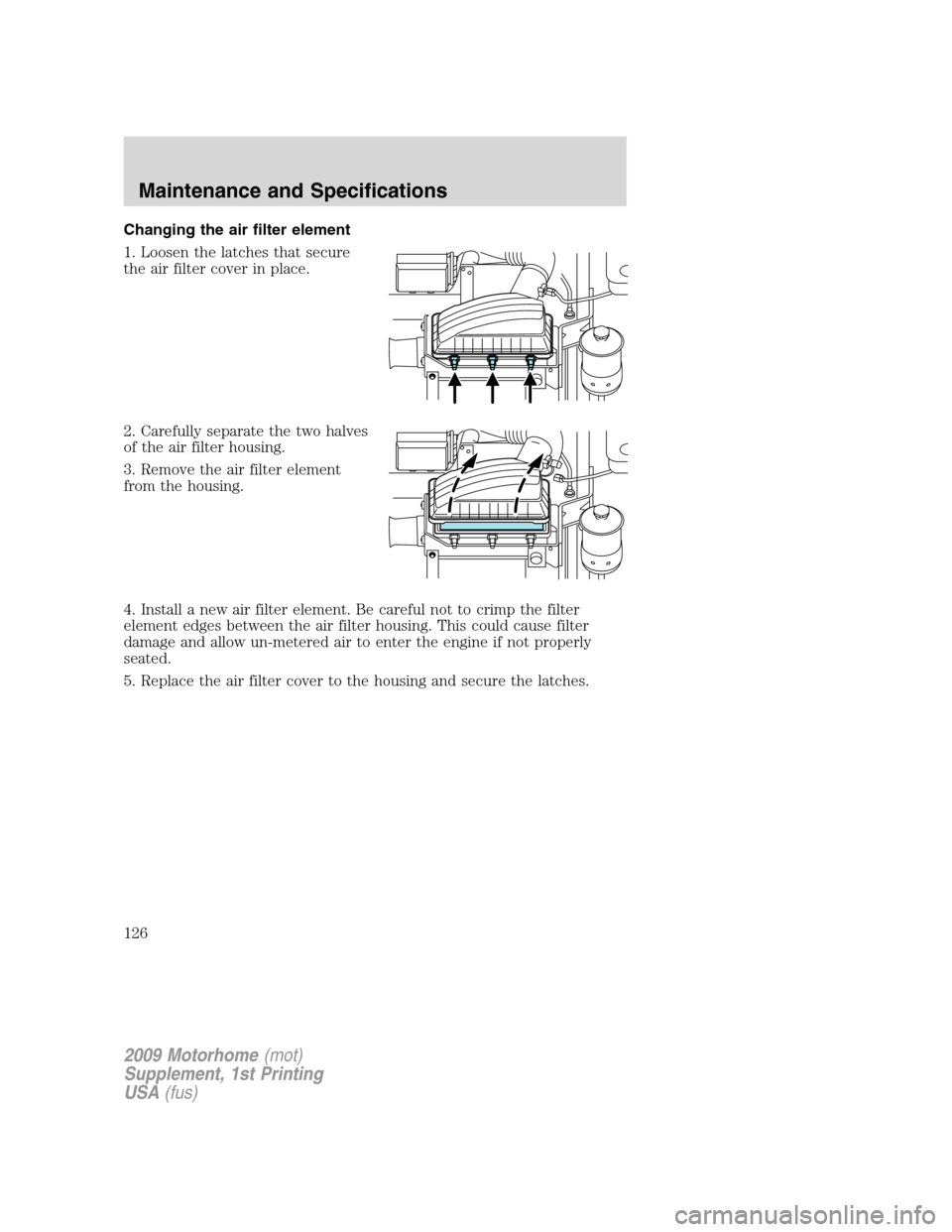

Changing the air filter element
1. Loosen the latches that secure
the air filter cover in place.
2. Carefully separate the two halves
of the air filter housing.
3. Remove the air filter element
from the housing.
4. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing. This could cause filter
damage and allow un-metered air to enter the engine if not properly
seated.
5. Replace the air filter cover to the housing and secure the latches.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
126

MOTORCRAFT PART NUMBERS
Component 6.8L V10 engine
Air filter element FA-1782
Battery BXT-65-750
Fuel filter FG-872
Oil filter FL-820-S
Spark plugs *
Transmission fluid filter FT-180
*For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
127

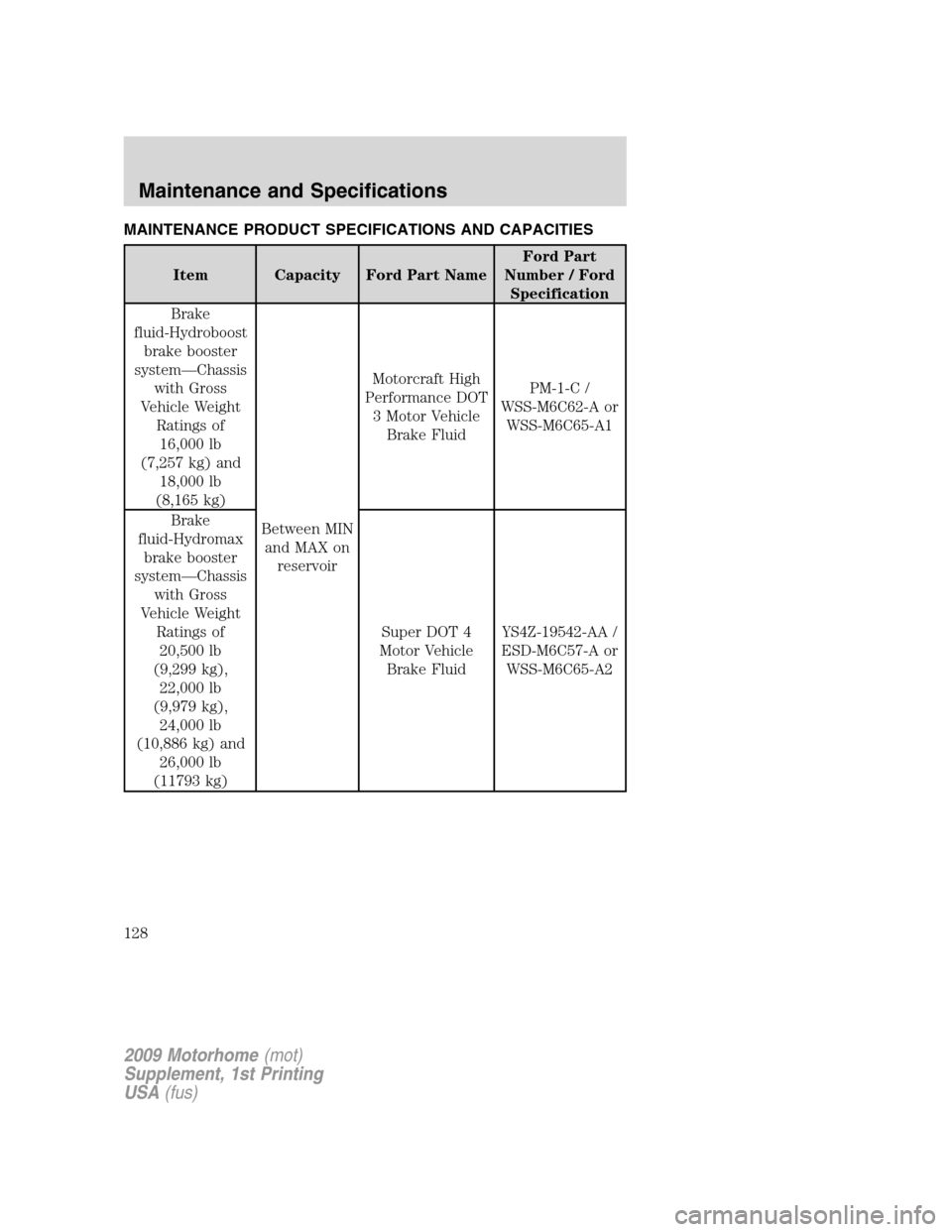

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford Part NameFord Part
Number / Ford
Specification
Brake
fluid-Hydroboost
brake booster
system—Chassis
with Gross
Vehicle Weight
Ratings of
16,000 lb
(7,257 kg) and
18,000 lb
(8,165 kg)
Between MIN
and MAX on
reservoirMotorcraft High
Performance DOT
3 Motor Vehicle
Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Brake
fluid-Hydromax
brake booster
system—Chassis
with Gross
Vehicle Weight
Ratings of
20,500 lb
(9,299 kg),
22,000 lb
(9,979 kg),
24,000 lb
(10,886 kg) and
26,000 lb
(11793 kg)Super DOT 4
Motor Vehicle
Brake FluidYS4Z-19542-AA /
ESD-M6C57-A or
WSS-M6C65-A2
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
128

Item Capacity Ford Part NameFord Part
Number / Ford
Specification
Engine coolant30.6 quarts
(29.0L)
1
Motorcraft
Premium Gold
Engine Coolant
with bittering
agent
(yellow-colored)
2
VC-7-B /
WSS-M97B51-A1
Cooling system
stop leak pellets—Motorcraft
Cooling System
Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil6.0 quarts
(5.7L)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A
with API
Certification
Mark
Automatic
transmission
Torqshift 5-speed18.2 quarts
(17.2L)
3
Motorcraft
MERCONLV
AT F
4
XT-10-QLV /
MERCONLV
WSS-M2C938-A
Power steering
fluidKeep in
FULL range
on dipstick
Motorcraft
MERCONVATFXT-5-QM /
MERCONV
Parking brake
assemblyFill to bottom
of fill plug
hole
Rear Axle
Dana 804.0 quarts
(3.9L)
5
Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
and GL-5
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
129

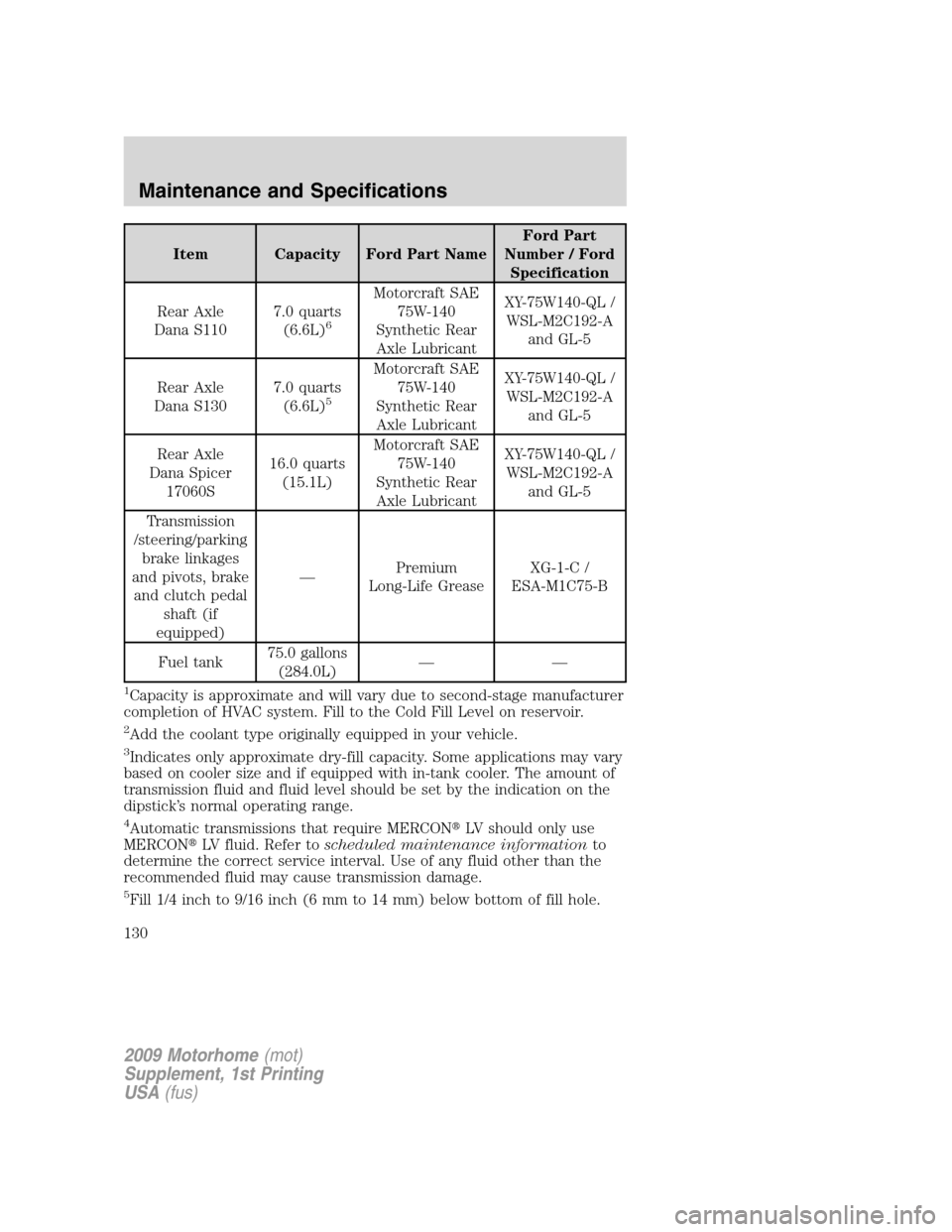

Item Capacity Ford Part NameFord Part
Number / Ford
Specification
Rear Axle
Dana S1107.0 quarts
(6.6L)
6
Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
and GL-5
Rear Axle
Dana S1307.0 quarts
(6.6L)
5
Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
and GL-5
Rear Axle
Dana Spicer
17060S16.0 quarts
(15.1L)Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
and GL-5
Transmission
/steering/parking
brake linkages
and pivots, brake
and clutch pedal
shaft (if
equipped)—Premium
Long-Life GreaseXG-1-C /
ESA-M1C75-B
Fuel tank75.0 gallons
(284.0L)——
1Capacity is approximate and will vary due to second-stage manufacturer
completion of HVAC system. Fill to the Cold Fill Level on reservoir.
2Add the coolant type originally equipped in your vehicle.
3Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with in-tank cooler. The amount of
transmission fluid and fluid level should be set by the indication on the
dipstick’s normal operating range.
4Automatic transmissions that require MERCONLV should only use
MERCONLV fluid. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the
recommended fluid may cause transmission damage.
5Fill 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
130
