instrument panel FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS 2009 12.G Owners Manual

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the low beam headlamps
on.
Daytime running lamps (DRL) (if equipped)
The daytime running light system turns the headlamps on, with a
reduced light output.
To activate:
•the ignition must be in the on position and
•the headlamp system is in the off position or parking lamp position.
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Light
(DRL) System does not activate your tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Lights
17

Flash to pass
Pull toward you slightly to activate
and release to deactivate.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle during
headlamp and parking lamp
operation.
Move the control up or down to
adjust the intensity of the panel
lighting.
Move the control to the full upright
position, past detent, to turn on the interior lamps.
Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer switch requires re-calibration. Rotate the dimmer
switch from the full dim position to the full dome/on position to reset.
This will ensure that your displays are visible under all lighting
conditions.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
BULB REPLACEMENT
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Lights
18

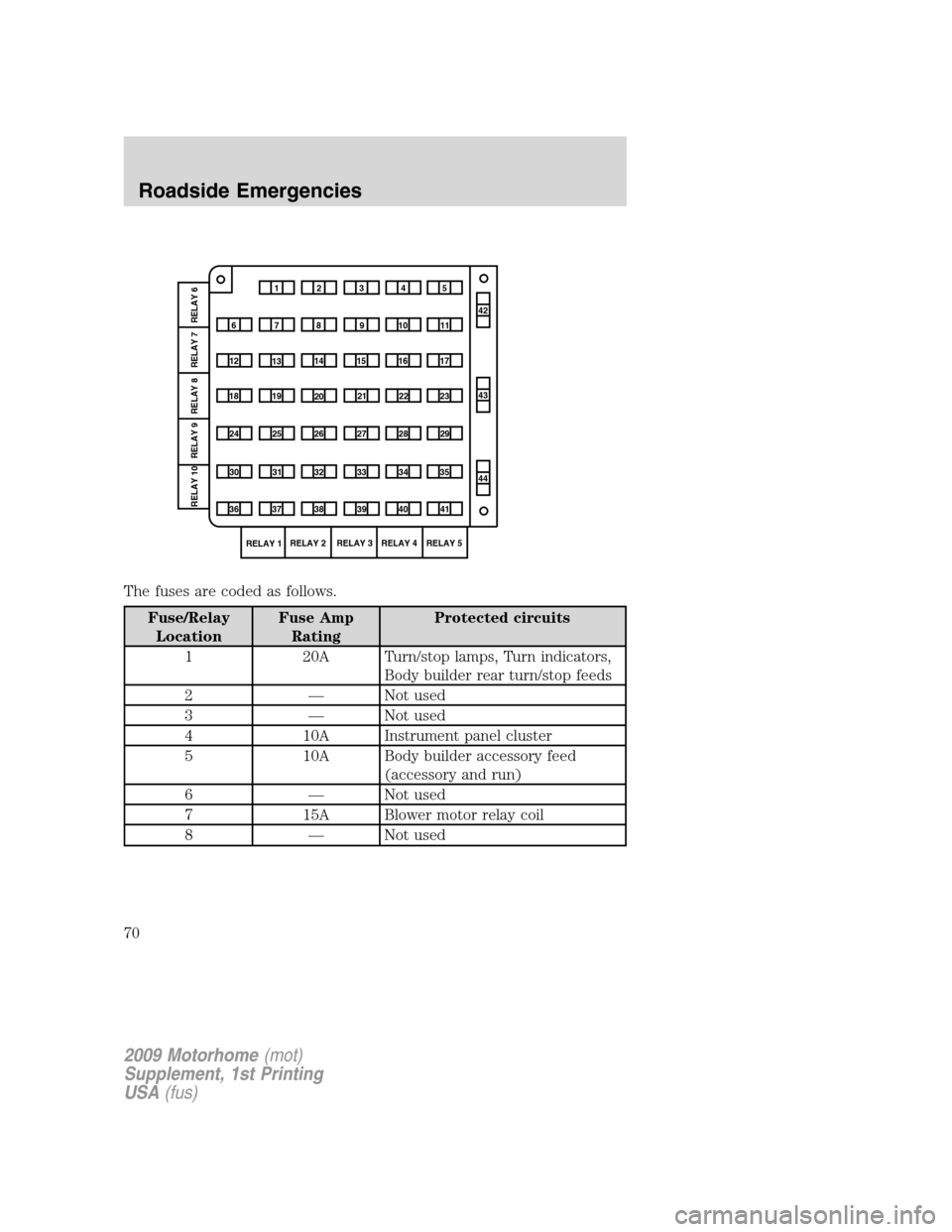

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
1 20A Turn/stop lamps, Turn indicators,
Body builder rear turn/stop feeds
2 — Not used
3 — Not used
4 10A Instrument panel cluster
5 10A Body builder accessory feed
(accessory and run)
6 — Not used
7 15A Blower motor relay coil
8 — Not used
1234
5
7
689101142
43
44 13 12 14
15 16 17
19 18
2021 22 23
25 24
26 27 28 29
31 30 32 33 3435
37
3638 3940
41
RELAY 1RELAY 2 RELAY 3 RELAY 4 RELAY 5
RELAY 7 RELAY 8 RELAY 9 RELAY 10 RELAY 6
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Roadside Emergencies
70

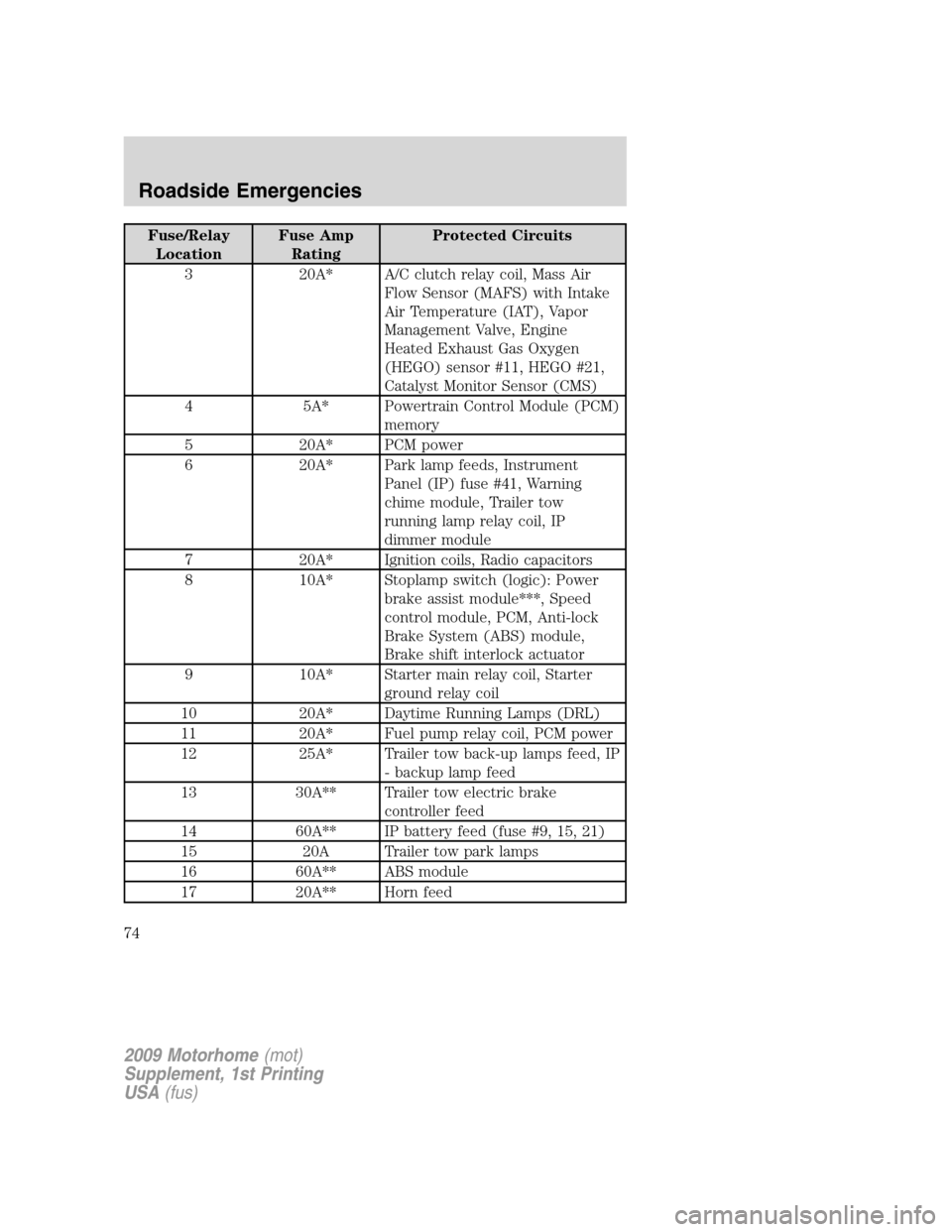

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
3 20A* A/C clutch relay coil, Mass Air
Flow Sensor (MAFS) with Intake
Air Temperature (IAT), Vapor
Management Valve, Engine
Heated Exhaust Gas Oxygen
(HEGO) sensor #11, HEGO #21,
Catalyst Monitor Sensor (CMS)
4 5A* Powertrain Control Module (PCM)
memory
5 20A* PCM power
6 20A* Park lamp feeds, Instrument
Panel (IP) fuse #41, Warning
chime module, Trailer tow
running lamp relay coil, IP
dimmer module
7 20A* Ignition coils, Radio capacitors
8 10A* Stoplamp switch (logic): Power
brake assist module***, Speed
control module, PCM, Anti-lock
Brake System (ABS) module,
Brake shift interlock actuator
9 10A* Starter main relay coil, Starter
ground relay coil
10 20A* Daytime Running Lamps (DRL)
11 20A* Fuel pump relay coil, PCM power
12 25A* Trailer tow back-up lamps feed, IP
- backup lamp feed
13 30A** Trailer tow electric brake
controller feed
14 60A** IP battery feed (fuse #9, 15, 21)
15 20A Trailer tow park lamps
16 60A** ABS module
17 20A** Horn feed
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Roadside Emergencies
74

Engine ........................................131
cleaning .....................................95
coolant .....................................102
fail-safe cooling .......................107
idle speed control ...................100
lubrication specifications .......128
refill capacities ........................128
service points ............................97
Engine oil ....................................97
checking and adding ................97
dipstick ......................................97
filter, specifications ..........99, 127
recommendations .....................99
refill capacities ........................128
specifications ..........................128
Event data recording ....................6
Exhaust fumes ............................56
F
Fail safe cooling ........................107
Fluid capacities .........................128
Fuel ............................................108
calculating fuel
economy ............................24, 112
capacity ...................................128
choosing the right fuel ...........111
comparisons with EPA fuel
economy estimates .................115
detergent in fuel .....................112
filling your vehicle with
fuel ...................................108, 112
filter, specifications ........108, 127
improving fuel economy ........112
octane rating ...................111, 131
quality ......................................111
running out of fuel .................112
safety information relating to
automotive fuels .....................108
Fuses ............................................69G
Gas mileage
(see Fuel economy) .................112
Gauges .........................................13
H
Hazard flashers ...........................68
Headlamps ...................................17
daytime running lights .............17
flash to pass ..............................18
high beam .................................17
turning on and off ....................17
I
Ignition .................................54, 131
Inspection/maintenance (I/M)
testing ........................................117
Instrument panel
cluster ........................................10
lighting up panel and
interior .......................................18
J
Jump-starting your vehicle ........82
K
Keys
positions of the ignition ...........54
L
Lamps
daytime running light ...............17
headlamps .................................17
headlamps, flash to pass ..........18
instrument panel, dimming .....18
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Index
134
