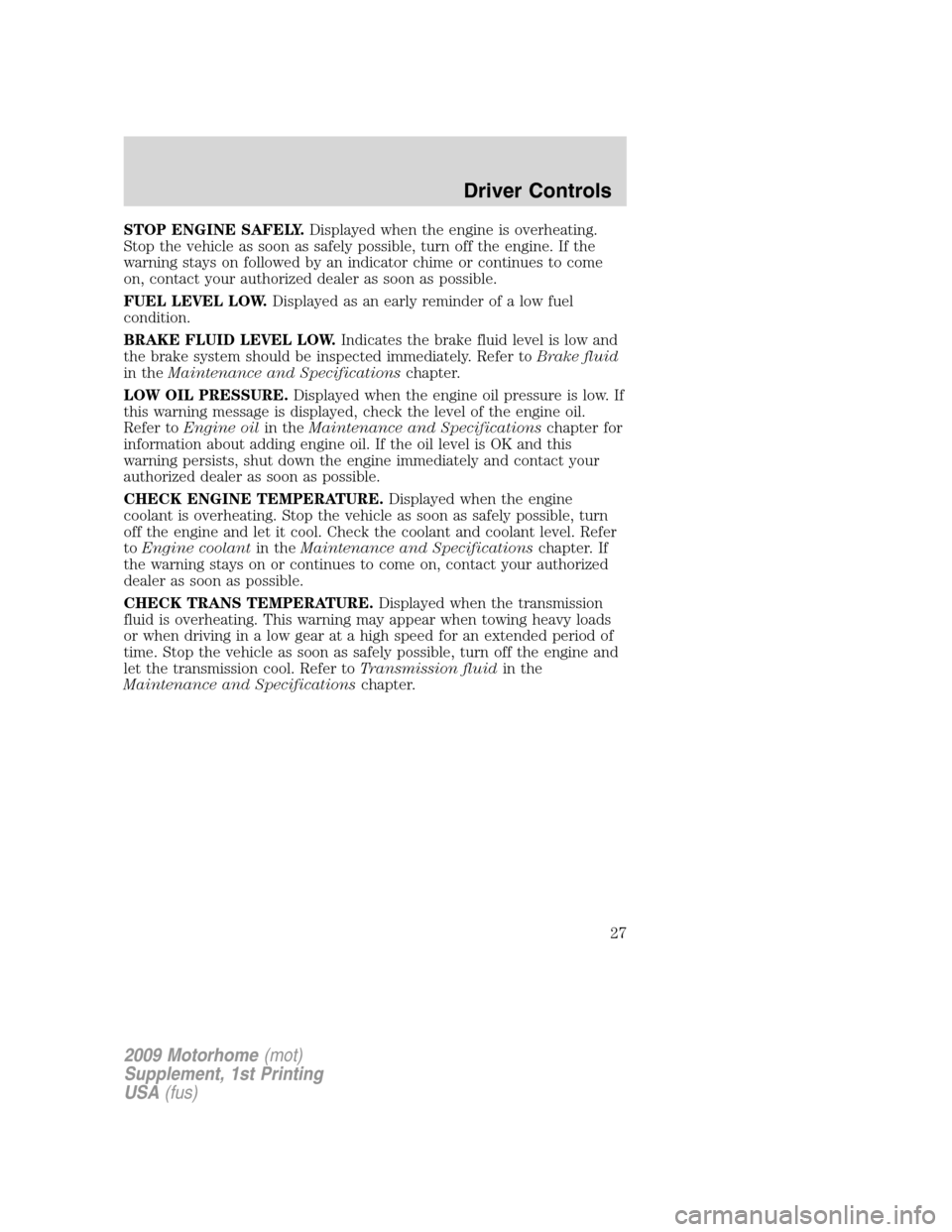

STOP ENGINE SAFELY.Displayed when the engine is overheating.
Stop the vehicle as soon as safely possible, turn off the engine. If the
warning stays on followed by an indicator chime or continues to come
on, contact your authorized dealer as soon as possible.
FUEL LEVEL LOW.Displayed as an early reminder of a low fuel
condition.
BRAKE FLUID LEVEL LOW.Indicates the brake fluid level is low and
the brake system should be inspected immediately. Refer toBrake fluid
in theMaintenance and Specificationschapter.
LOW OIL PRESSURE.Displayed when the engine oil pressure is low. If
this warning message is displayed, check the level of the engine oil.
Refer toEngine oilin theMaintenance and Specificationschapter for
information about adding engine oil. If the oil level is OK and this
warning persists, shut down the engine immediately and contact your
authorized dealer as soon as possible.
CHECK ENGINE TEMPERATURE.Displayed when the engine
coolant is overheating. Stop the vehicle as soon as safely possible, turn
off the engine and let it cool. Check the coolant and coolant level. Refer
toEngine coolantin theMaintenance and Specificationschapter. If
the warning stays on or continues to come on, contact your authorized
dealer as soon as possible.
CHECK TRANS TEMPERATURE.Displayed when the transmission
fluid is overheating. This warning may appear when towing heavy loads
or when driving in a low gear at a high speed for an extended period of
time. Stop the vehicle as soon as safely possible, turn off the engine and
let the transmission cool. Refer toTransmission fluidin the
Maintenance and Specificationschapter.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Driver Controls
27

Fuse/Relay

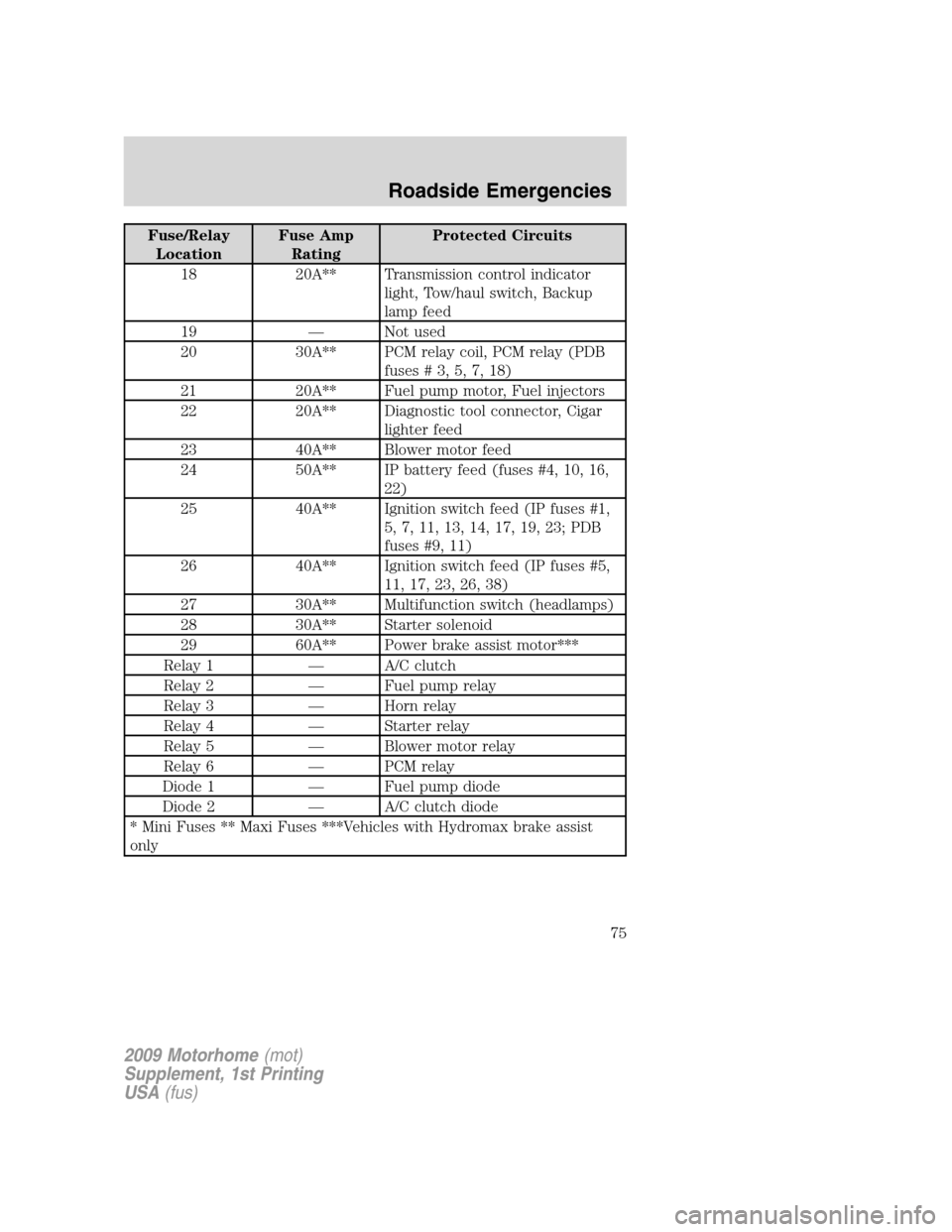

LocationFuse Amp
RatingProtected Circuits
18 20A** Transmission control indicator
light, Tow/haul switch, Backup
lamp feed
19 — Not used
20 30A** PCM relay coil, PCM relay (PDB
fuses#3,5,7,18)
21 20A** Fuel pump motor, Fuel injectors
22 20A** Diagnostic tool connector, Cigar
lighter feed
23 40A** Blower motor feed
24 50A** IP battery feed (fuses #4, 10, 16,
22)
25 40A** Ignition switch feed (IP fuses #1,
5, 7, 11, 13, 14, 17, 19, 23; PDB
fuses #9, 11)
26 40A** Ignition switch feed (IP fuses #5,
11, 17, 23, 26, 38)
27 30A** Multifunction switch (headlamps)
28 30A** Starter solenoid
29 60A** Power brake assist motor***
Relay 1 — A/C clutch
Relay 2 — Fuel pump relay
Relay 3 — Horn relay
Relay 4 — Starter relay
Relay 5 — Blower motor relay
Relay 6 — PCM relay
Diode 1 — Fuel pump diode
Diode 2 — A/C clutch diode
* Mini Fuses ** Maxi Fuses ***Vehicles with Hydromax brake assist
only
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Roadside Emergencies
75

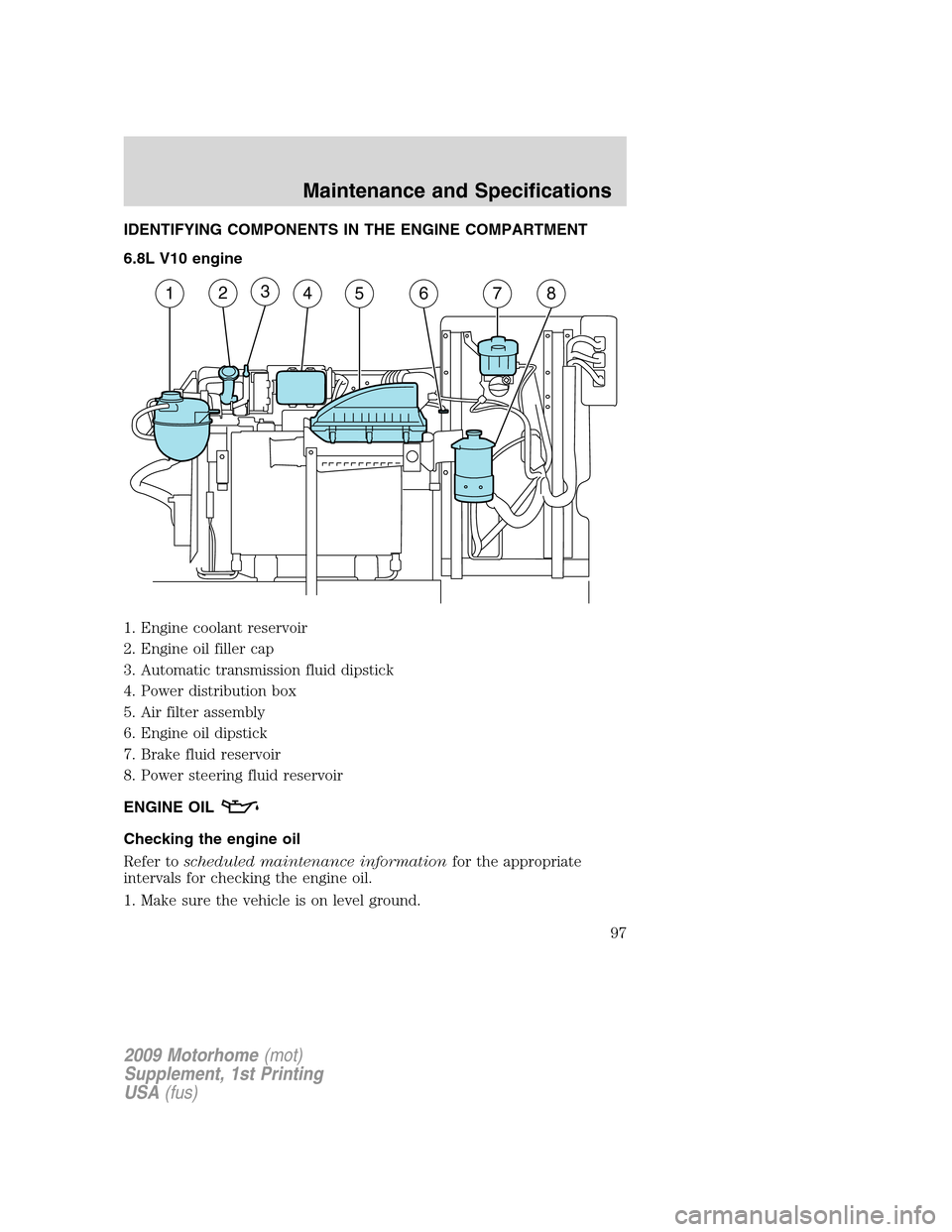

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
6.8L V10 engine
1. Engine coolant reservoir
2. Engine oil filler cap
3. Automatic transmission fluid dipstick
4. Power distribution box
5. Air filter assembly
6. Engine oil dipstick
7. Brake fluid reservoir
8. Power steering fluid reservoir
ENGINE OIL
Checking the engine oil
Refer toscheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
12345678
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
97

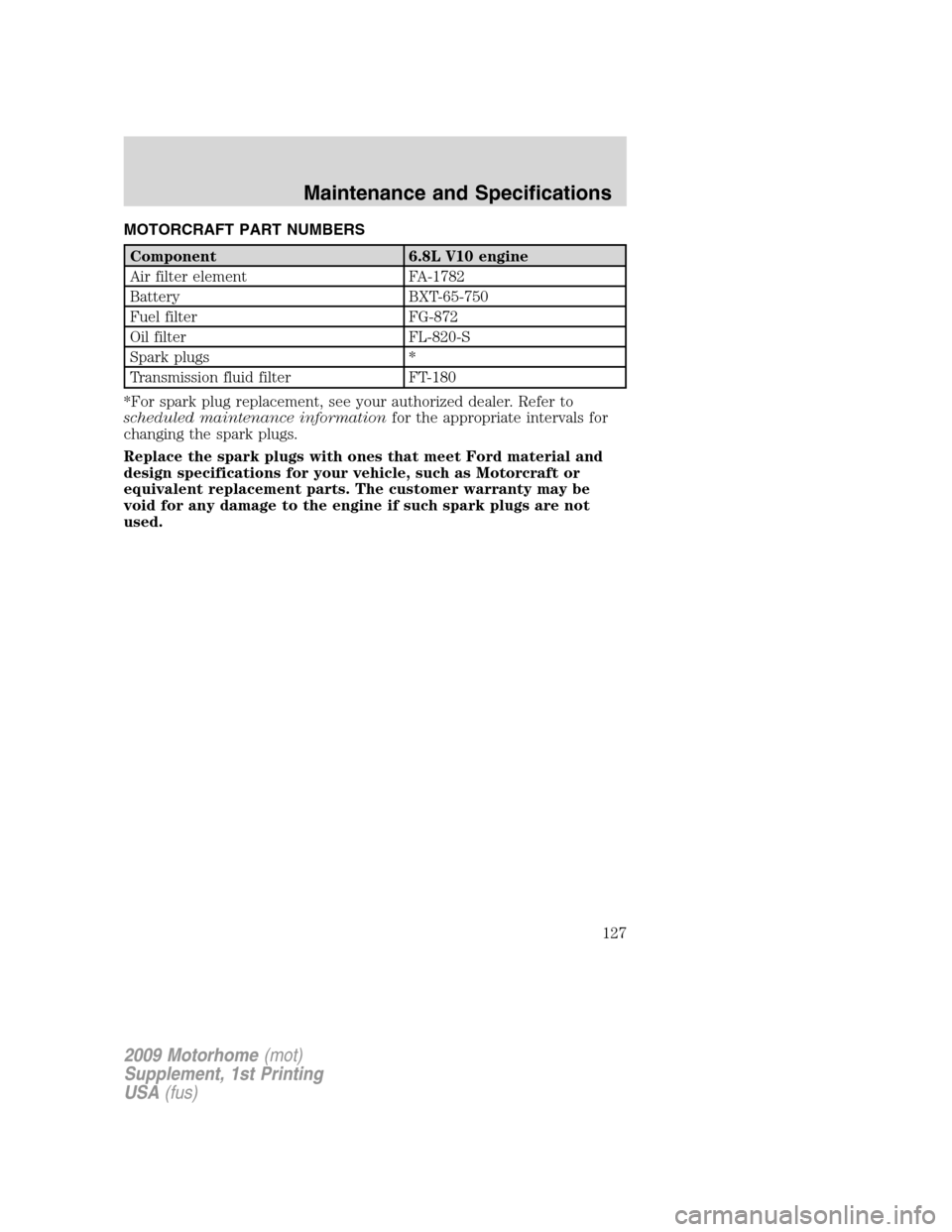

MOTORCRAFT PART NUMBERS
Component 6.8L V10 engine
Air filter element FA-1782
Battery BXT-65-750
Fuel filter FG-872
Oil filter FL-820-S
Spark plugs *
Transmission fluid filter FT-180
*For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
127

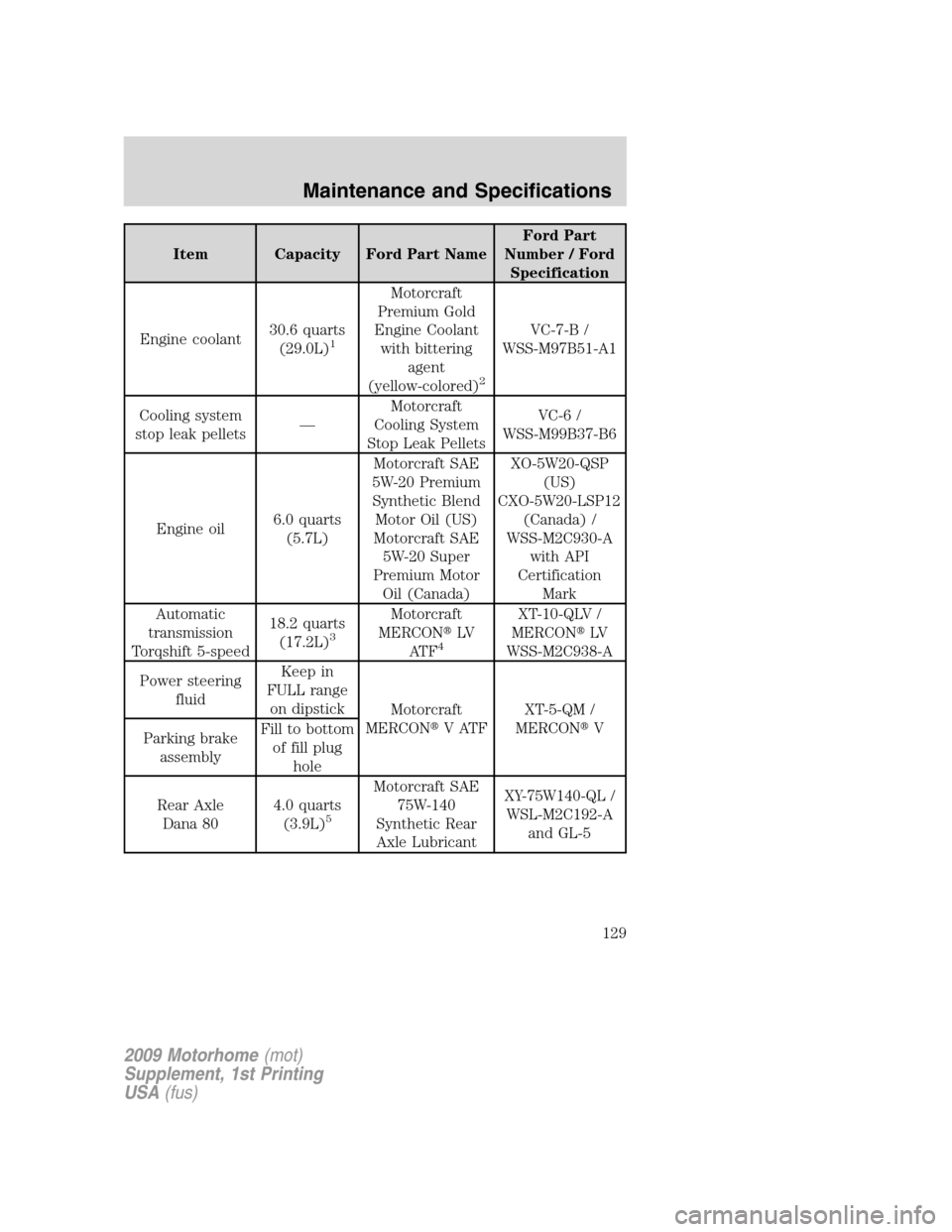

Item Capacity Ford Part NameFord Part
Number / Ford
Specification
Engine coolant30.6 quarts
(29.0L)
1
Motorcraft
Premium Gold
Engine Coolant
with bittering
agent
(yellow-colored)
2
VC-7-B /
WSS-M97B51-A1
Cooling system
stop leak pellets—Motorcraft
Cooling System
Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil6.0 quarts
(5.7L)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A
with API
Certification
Mark
Automatic
transmission
Torqshift 5-speed18.2 quarts
(17.2L)
3
Motorcraft
MERCONLV
AT F
4
XT-10-QLV /
MERCONLV
WSS-M2C938-A
Power steering
fluidKeep in
FULL range
on dipstick
Motorcraft
MERCONVATFXT-5-QM /
MERCONV
Parking brake
assemblyFill to bottom
of fill plug
hole
Rear Axle
Dana 804.0 quarts
(3.9L)
5
Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
and GL-5
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Maintenance and Specifications
129

A

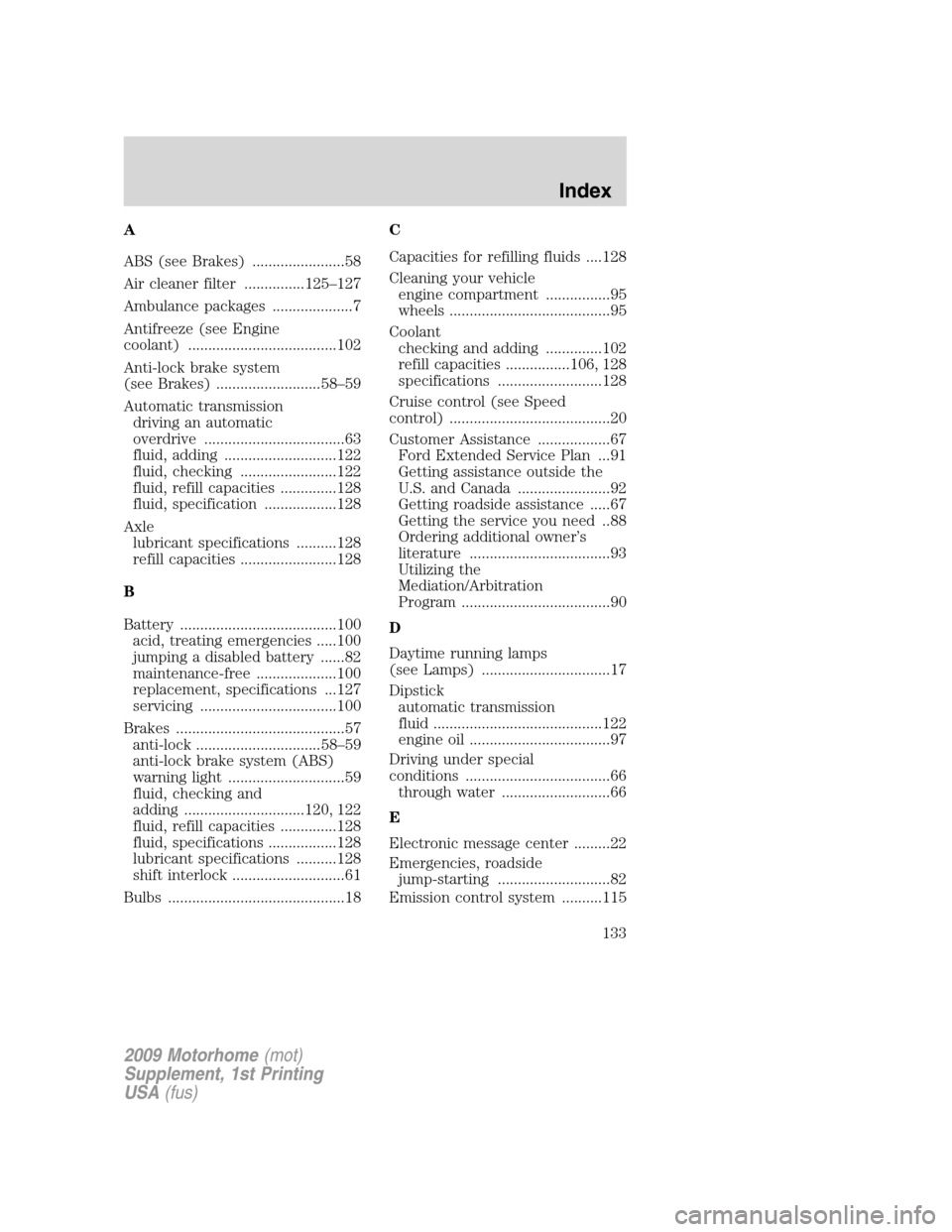

ABS (see Brakes) .......................58
Air cleaner filter ...............125–127
Ambulance packages ....................7
Antifreeze (see Engine
coolant) .....................................102
Anti-lock brake system
(see Brakes) ..........................58–59
Automatic transmission
driving an automatic
overdrive ...................................63
fluid, adding ............................122
fluid, checking ........................122
fluid, refill capacities ..............128
fluid, specification ..................128
Axle
lubricant specifications ..........128
refill capacities ........................128
B
Battery .......................................100
acid, treating emergencies .....100
jumping a disabled battery ......82
maintenance-free ....................100
replacement, specifications ...127
servicing ..................................100
Brakes ..........................................57
anti-lock ...............................58–59
anti-lock brake system (ABS)
warning light .............................59
fluid, checking and
adding ..............................120, 122
fluid, refill capacities ..............128
fluid, specifications .................128
lubricant specifications ..........128
shift interlock ............................61
Bulbs ............................................18C
Capacities for refilling fluids ....128
Cleaning your vehicle
engine compartment ................95
wheels ........................................95
Coolant
checking and adding ..............102
refill capacities ................106, 128
specifications ..........................128
Cruise control (see Speed
control) ........................................20
Customer Assistance ..................67
Ford Extended Service Plan ...91
Getting assistance outside the
U.S. and Canada .......................92
Getting roadside assistance .....67
Getting the service you need ..88
Ordering additional owner’s
literature ...................................93
Utilizing the
Mediation/Arbitration
Program .....................................90
D
Daytime running lamps
(see Lamps) ................................17
Dipstick
automatic transmission
fluid ..........................................122
engine oil ...................................97
Driving under special
conditions ....................................66
through water ...........................66
E
Electronic message center .........22
Emergencies, roadside
jump-starting ............................82
Emission control system ..........115
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Index
133

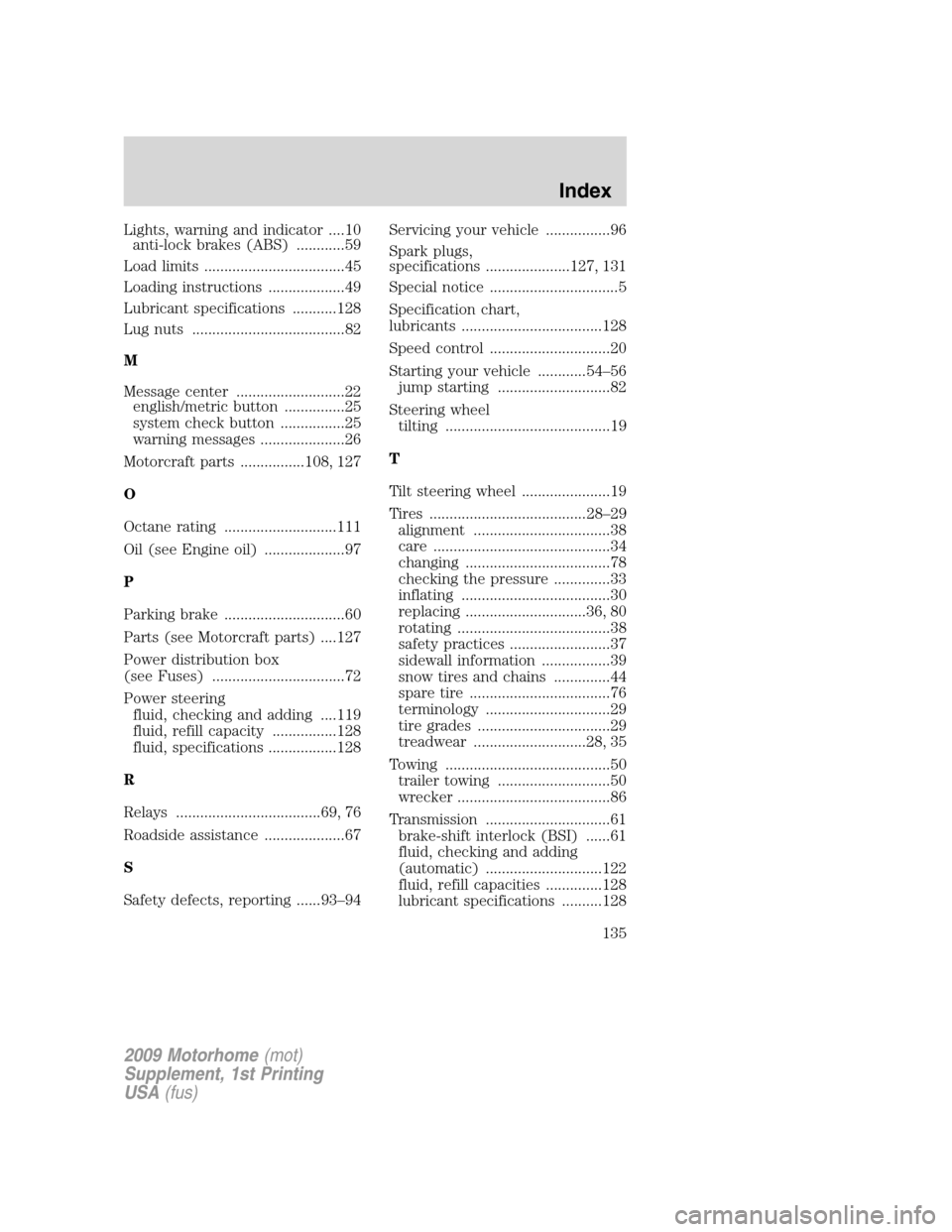

Lights, warning and indicator ....10
anti-lock brakes (ABS) ............59
Load limits ...................................45
Loading instructions ...................49
Lubricant specifications ...........128
Lug nuts ......................................82
M
Message center ...........................22
english/metric button ...............25
system check button ................25
warning messages .....................26
Motorcraft parts ................108, 127
O
Octane rating ............................111
Oil (see Engine oil) ....................97
P
Parking brake ..............................60
Parts (see Motorcraft parts) ....127
Power distribution box
(see Fuses) .................................72
Power steering
fluid, checking and adding ....119
fluid, refill capacity ................128
fluid, specifications .................128
R
Relays ....................................69, 76
Roadside assistance ....................67
S
Safety defects, reporting ......93–94Servicing your vehicle ................96
Spark plugs,
specifications .....................127, 131
Special notice ................................5
Specification chart,
lubricants ...................................128
Speed control ..............................20
Starting your vehicle ............54–56
jump starting ............................82
Steering wheel
tilting .........................................19
T
Tilt steering wheel ......................19
Tires .......................................28–29
alignment ..................................38
care ............................................34
changing ....................................78
checking the pressure ..............33
inflating .....................................30
replacing ..............................36, 80
rotating ......................................38
safety practices .........................37
sidewall information .................39
snow tires and chains ..............44
spare tire ...................................76
terminology ...............................29
tire grades .................................29
treadwear ............................28, 35
Towing .........................................50
trailer towing ............................50
wrecker ......................................86
Transmission ...............................61
brake-shift interlock (BSI) ......61
fluid, checking and adding
(automatic) .............................122
fluid, refill capacities ..............128
lubricant specifications ..........128
2009 Motorhome(mot)
Supplement, 1st Printing
USA(fus)
Index
135
