emergency towing FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS 2016 13.G Owners Manual

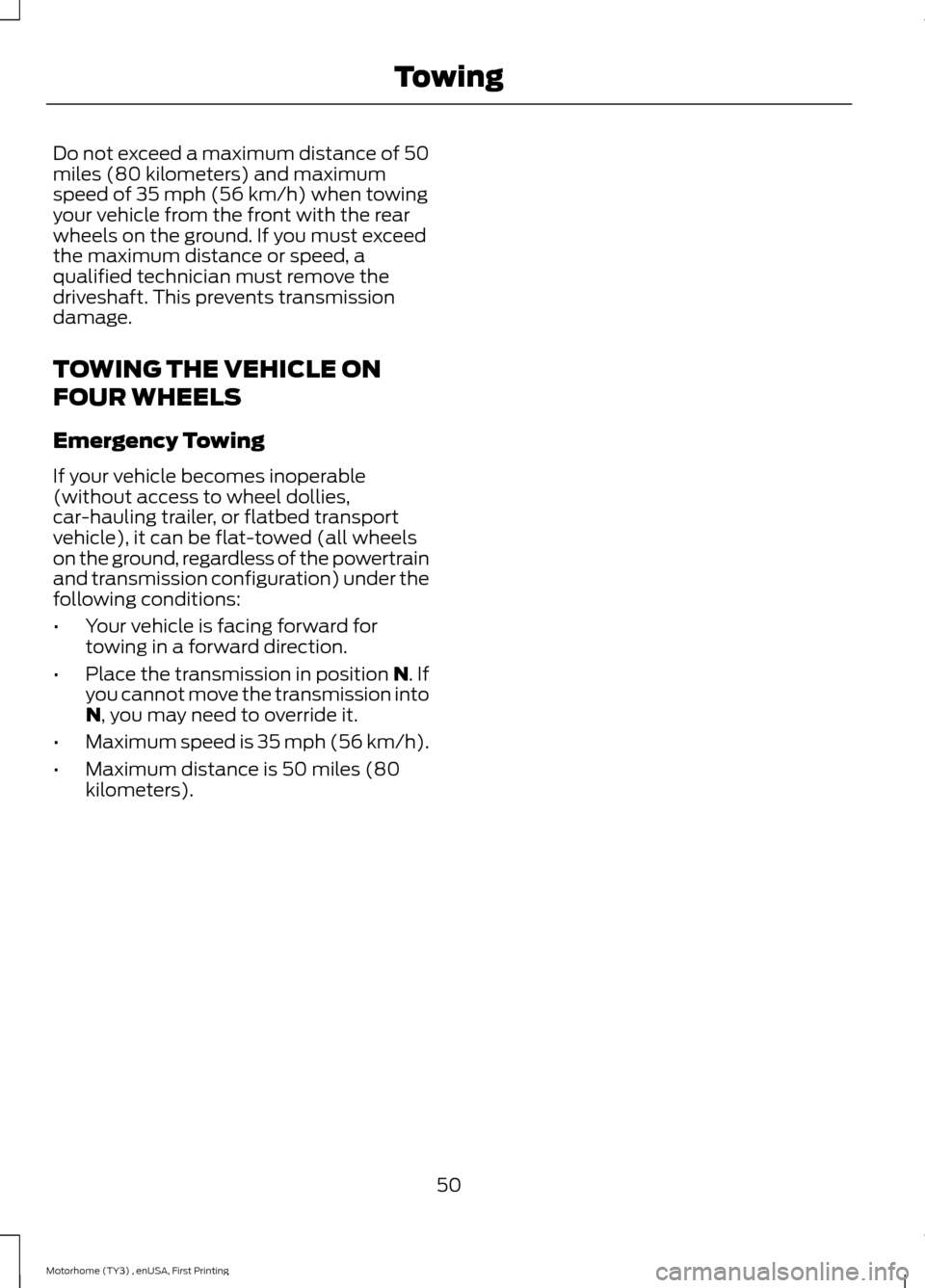

Do not exceed a maximum distance of 50miles (80 kilometers) and maximumspeed of 35 mph (56 km/h) when towingyour vehicle from the front with the rearwheels on the ground. If you must exceedthe maximum distance or speed, aqualified technician must remove thedriveshaft. This prevents transmissiondamage.
TOWING THE VEHICLE ON
FOUR WHEELS
Emergency Towing
If your vehicle becomes inoperable(without access to wheel dollies,car-hauling trailer, or flatbed transportvehicle), it can be flat-towed (all wheelson the ground, regardless of the powertrainand transmission configuration) under thefollowing conditions:
•Your vehicle is facing forward fortowing in a forward direction.
•Place the transmission in position N. Ifyou cannot move the transmission intoN, you may need to override it.
•Maximum speed is 35 mph (56 km/h).
•Maximum distance is 50 miles (80kilometers).
50Motorhome (TY3) , enUSA, First PrintingTowing

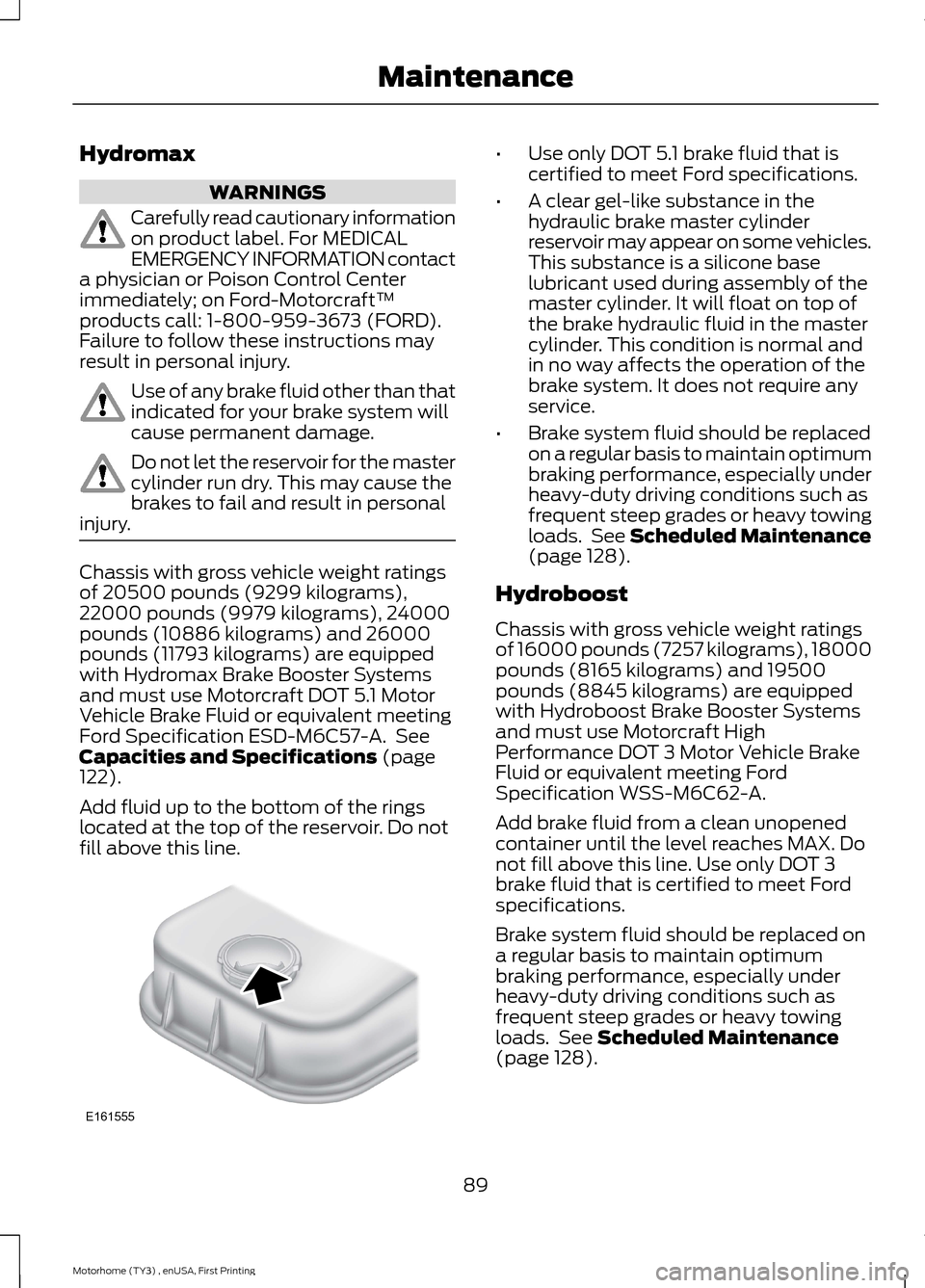

Hydromax
WARNINGS
Carefully read cautionary informationon product label. For MEDICALEMERGENCY INFORMATION contacta physician or Poison Control Centerimmediately; on Ford-Motorcraft™products call: 1-800-959-3673 (FORD).Failure to follow these instructions mayresult in personal injury.
Use of any brake fluid other than thatindicated for your brake system willcause permanent damage.
Do not let the reservoir for the mastercylinder run dry. This may cause thebrakes to fail and result in personalinjury.
Chassis with gross vehicle weight ratingsof 20500 pounds (9299 kilograms),22000 pounds (9979 kilograms), 24000pounds (10886 kilograms) and 26000pounds (11793 kilograms) are equippedwith Hydromax Brake Booster Systemsand must use Motorcraft DOT 5.1 MotorVehicle Brake Fluid or equivalent meetingFord Specification ESD-M6C57-A. SeeCapacities and Specifications (page122).
Add fluid up to the bottom of the ringslocated at the top of the reservoir. Do notfill above this line.
•Use only DOT 5.1 brake fluid that iscertified to meet Ford specifications.
•A clear gel-like substance in thehydraulic brake master cylinderreservoir may appear on some vehicles.This substance is a silicone baselubricant used during assembly of themaster cylinder. It will float on top ofthe brake hydraulic fluid in the mastercylinder. This condition is normal andin no way affects the operation of thebrake system. It does not require anyservice.
•Brake system fluid should be replacedon a regular basis to maintain optimumbraking performance, especially underheavy-duty driving conditions such asfrequent steep grades or heavy towingloads. See Scheduled Maintenance(page 128).
Hydroboost
Chassis with gross vehicle weight ratingsof 16000 pounds (7257 kilograms), 18000pounds (8165 kilograms) and 19500pounds (8845 kilograms) are equippedwith Hydroboost Brake Booster Systemsand must use Motorcraft HighPerformance DOT 3 Motor Vehicle BrakeFluid or equivalent meeting FordSpecification WSS-M6C62-A.
Add brake fluid from a clean unopenedcontainer until the level reaches MAX. Donot fill above this line. Use only DOT 3brake fluid that is certified to meet Fordspecifications.
Brake system fluid should be replaced ona regular basis to maintain optimumbraking performance, especially underheavy-duty driving conditions such asfrequent steep grades or heavy towingloads. See Scheduled Maintenance(page 128).
89Motorhome (TY3) , enUSA, First PrintingMaintenanceE161555

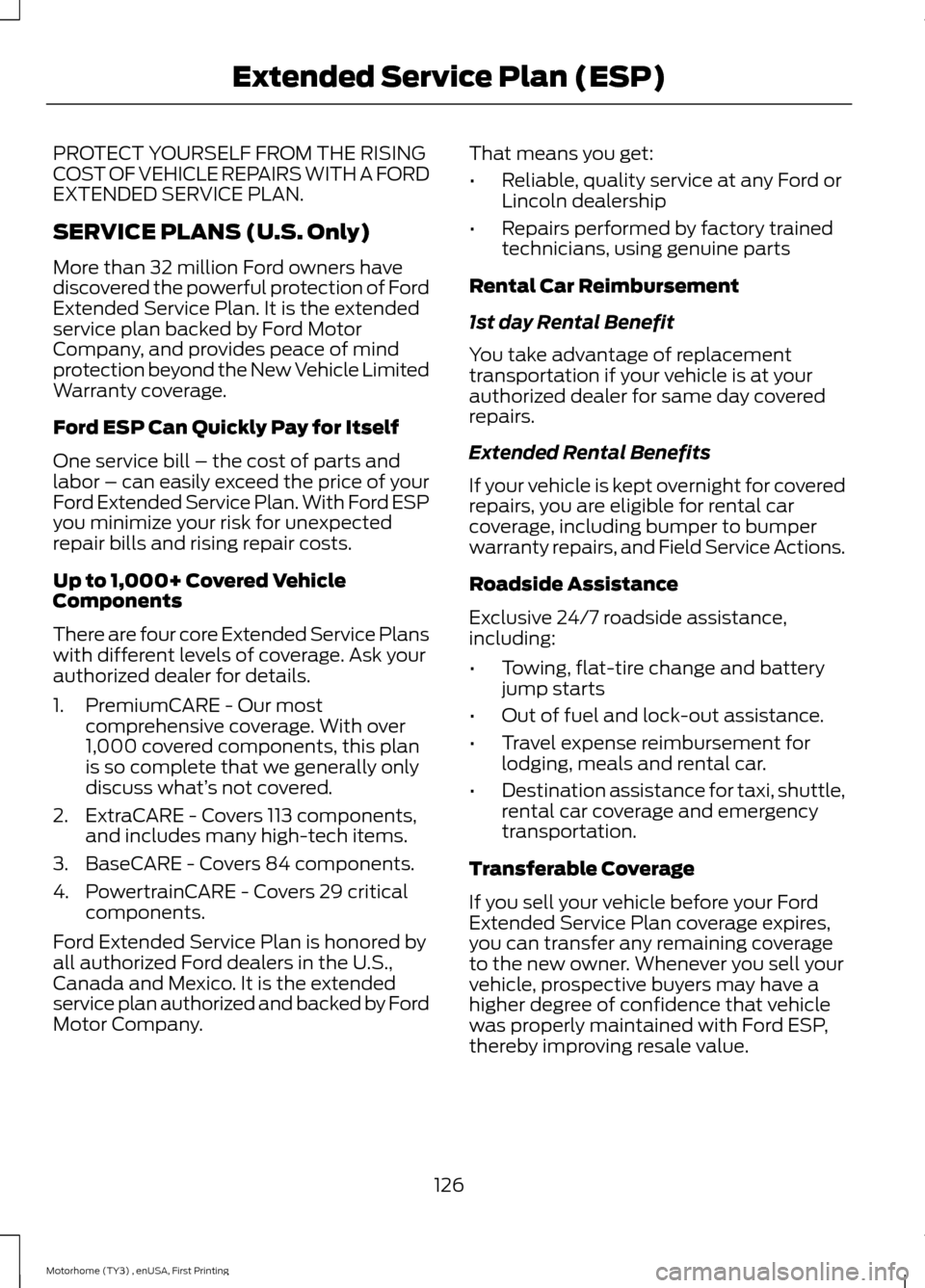

PROTECT YOURSELF FROM THE RISINGCOST OF VEHICLE REPAIRS WITH A FORDEXTENDED SERVICE PLAN.
SERVICE PLANS (U.S. Only)
More than 32 million Ford owners havediscovered the powerful protection of FordExtended Service Plan. It is the extendedservice plan backed by Ford MotorCompany, and provides peace of mindprotection beyond the New Vehicle LimitedWarranty coverage.
Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts andlabor – can easily exceed the price of yourFord Extended Service Plan. With Ford ESPyou minimize your risk for unexpectedrepair bills and rising repair costs.
Up to 1,000+ Covered VehicleComponents
There are four core Extended Service Planswith different levels of coverage. Ask yourauthorized dealer for details.
1.PremiumCARE - Our mostcomprehensive coverage. With over1,000 covered components, this planis so complete that we generally onlydiscuss what’s not covered.
2.ExtraCARE - Covers 113 components,and includes many high-tech items.
3.BaseCARE - Covers 84 components.
4.PowertrainCARE - Covers 29 criticalcomponents.
Ford Extended Service Plan is honored byall authorized Ford dealers in the U.S.,Canada and Mexico. It is the extendedservice plan authorized and backed by FordMotor Company.
That means you get:
•Reliable, quality service at any Ford orLincoln dealership
•Repairs performed by factory trainedtechnicians, using genuine parts
Rental Car Reimbursement
1st day Rental Benefit
You take advantage of replacementtransportation if your vehicle is at yourauthorized dealer for same day coveredrepairs.
Extended Rental Benefits
If your vehicle is kept overnight for coveredrepairs, you are eligible for rental carcoverage, including bumper to bumperwarranty repairs, and Field Service Actions.
Roadside Assistance
Exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and batteryjump starts
•Out of fuel and lock-out assistance.
•Travel expense reimbursement forlodging, meals and rental car.
•Destination assistance for taxi, shuttle,rental car coverage and emergencytransportation.
Transferable Coverage
If you sell your vehicle before your FordExtended Service Plan coverage expires,you can transfer any remaining coverageto the new owner. Whenever you sell yourvehicle, prospective buyers may have ahigher degree of confidence that vehiclewas properly maintained with Ford ESP,thereby improving resale value.
126Motorhome (TY3) , enUSA, First PrintingExtended Service Plan (ESP)

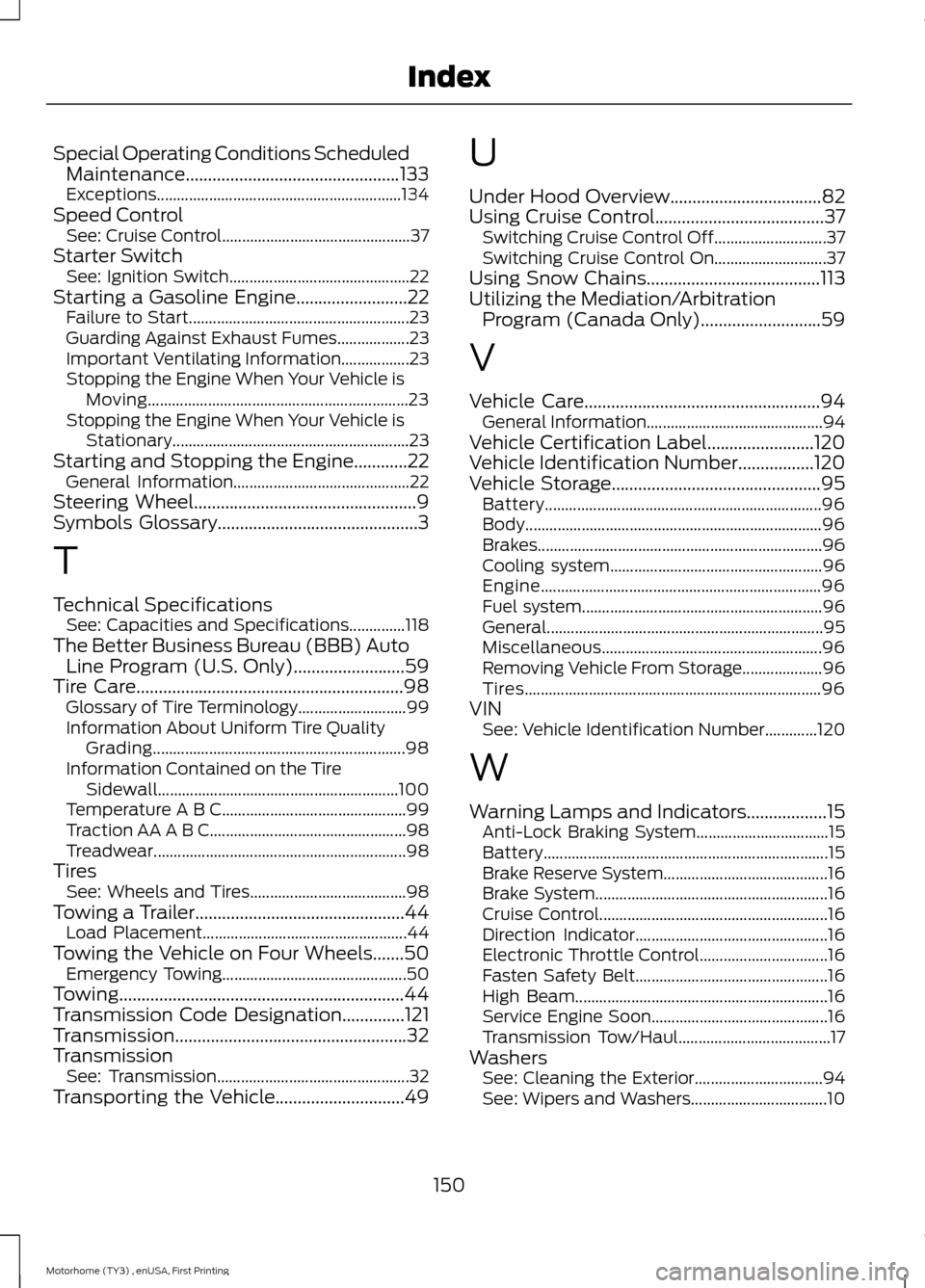

Special Operating Conditions ScheduledMaintenance................................................133Exceptions.............................................................134Speed ControlSee: Cruise Control...............................................37Starter SwitchSee: Ignition Switch.............................................22Starting a Gasoline Engine.........................22Failure to Start.......................................................23Guarding Against Exhaust Fumes..................23Important Ventilating Information.................23Stopping the Engine When Your Vehicle isMoving.................................................................23Stopping the Engine When Your Vehicle isStationary...........................................................23Starting and Stopping the Engine............22General Information............................................22Steering Wheel..................................................9Symbols Glossary.............................................3
T
Technical SpecificationsSee: Capacities and Specifications..............118The Better Business Bureau (BBB) AutoLine Program (U.S. Only).........................59Tire Care............................................................98Glossary of Tire Terminology...........................99Information About Uniform Tire QualityGrading...............................................................98Information Contained on the TireSidewall............................................................100Temperature A B C..............................................99Traction AA A B C.................................................98Treadwear...............................................................98TiresSee: Wheels and Tires.......................................98Towing a Trailer...............................................44Load Placement...................................................44Towing the Vehicle on Four Wheels.......50Emergency Towing..............................................50Towing................................................................44Transmission Code Designation..............121Transmission....................................................32TransmissionSee: Transmission................................................32Transporting the Vehicle.............................49
U
Under Hood Overview..................................82Using Cruise Control......................................37Switching Cruise Control Off............................37Switching Cruise Control On............................37Using Snow Chains.......................................113Utilizing the Mediation/ArbitrationProgram (Canada Only)...........................59
V
Vehicle Care.....................................................94General Information............................................94Vehicle Certification Label........................120Vehicle Identification Number.................120Vehicle Storage...............................................95Battery.....................................................................96Body..........................................................................96Brakes.......................................................................96Cooling system.....................................................96Engine......................................................................96Fuel system............................................................96General.....................................................................95Miscellaneous.......................................................96Removing Vehicle From Storage....................96Tires..........................................................................96VINSee: Vehicle Identification Number.............120
W
Warning Lamps and Indicators..................15Anti-Lock Braking System.................................15Battery.......................................................................15Brake Reserve System.........................................16Brake System..........................................................16Cruise Control.........................................................16Direction Indicator................................................16Electronic Throttle Control................................16Fasten Safety Belt................................................16High Beam...............................................................16Service Engine Soon............................................16Transmission Tow/Haul......................................17WashersSee: Cleaning the Exterior................................94See: Wipers and Washers..................................10
150Motorhome (TY3) , enUSA, First PrintingIndex
