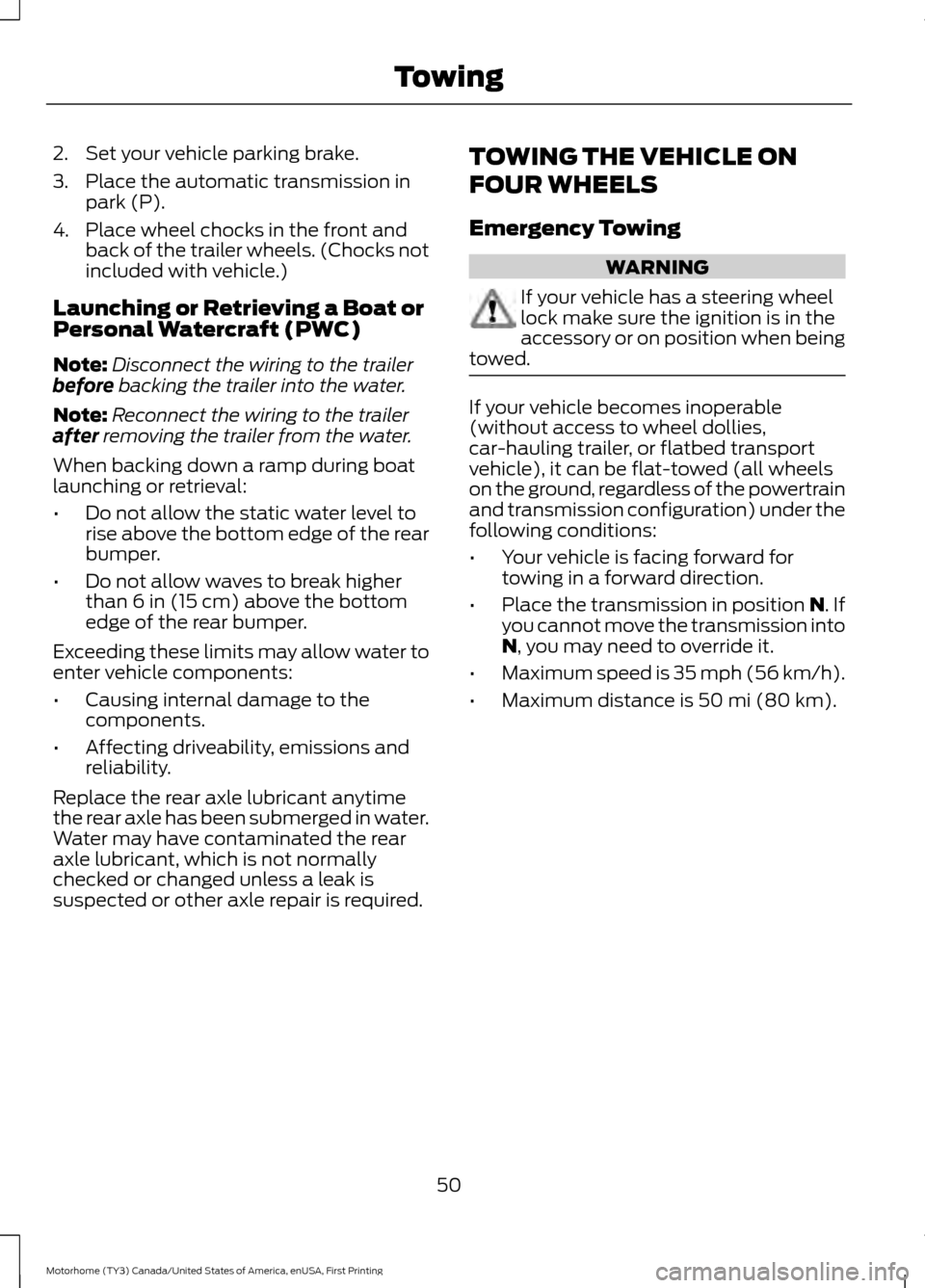

Page 53 of 164
2. Set your vehicle parking brake.
3. Place the automatic transmission in
park (P).
4. Place wheel chocks in the front and back of the trailer wheels. (Chocks not
included with vehicle.)
Launching or Retrieving a Boat or
Personal Watercraft (PWC)
Note: Disconnect the wiring to the trailer
before backing the trailer into the water.
Note: Reconnect the wiring to the trailer
after
removing the trailer from the water.
When backing down a ramp during boat
launching or retrieval:
• Do not allow the static water level to
rise above the bottom edge of the rear
bumper.
• Do not allow waves to break higher
than
6 in (15 cm) above the bottom
edge of the rear bumper.
Exceeding these limits may allow water to
enter vehicle components:
• Causing internal damage to the
components.
• Affecting driveability, emissions and
reliability.
Replace the rear axle lubricant anytime
the rear axle has been submerged in water.
Water may have contaminated the rear
axle lubricant, which is not normally
checked or changed unless a leak is
suspected or other axle repair is required. TOWING THE VEHICLE ON
FOUR WHEELS
Emergency Towing WARNING
If your vehicle has a steering wheel
lock make sure the ignition is in the
accessory or on position when being
towed. If your vehicle becomes inoperable
(without access to wheel dollies,
car-hauling trailer, or flatbed transport
vehicle), it can be flat-towed (all wheels
on the ground, regardless of the powertrain
and transmission configuration) under the
following conditions:
•
Your vehicle is facing forward for
towing in a forward direction.
• Place the transmission in position N. If
you cannot move the transmission into
N
, you may need to override it.
• Maximum speed is 35 mph (56 km/h).
• Maximum distance is
50 mi (80 km).
50
Motorhome (TY3) Canada/United States of America, enUSA, First Printing Towing

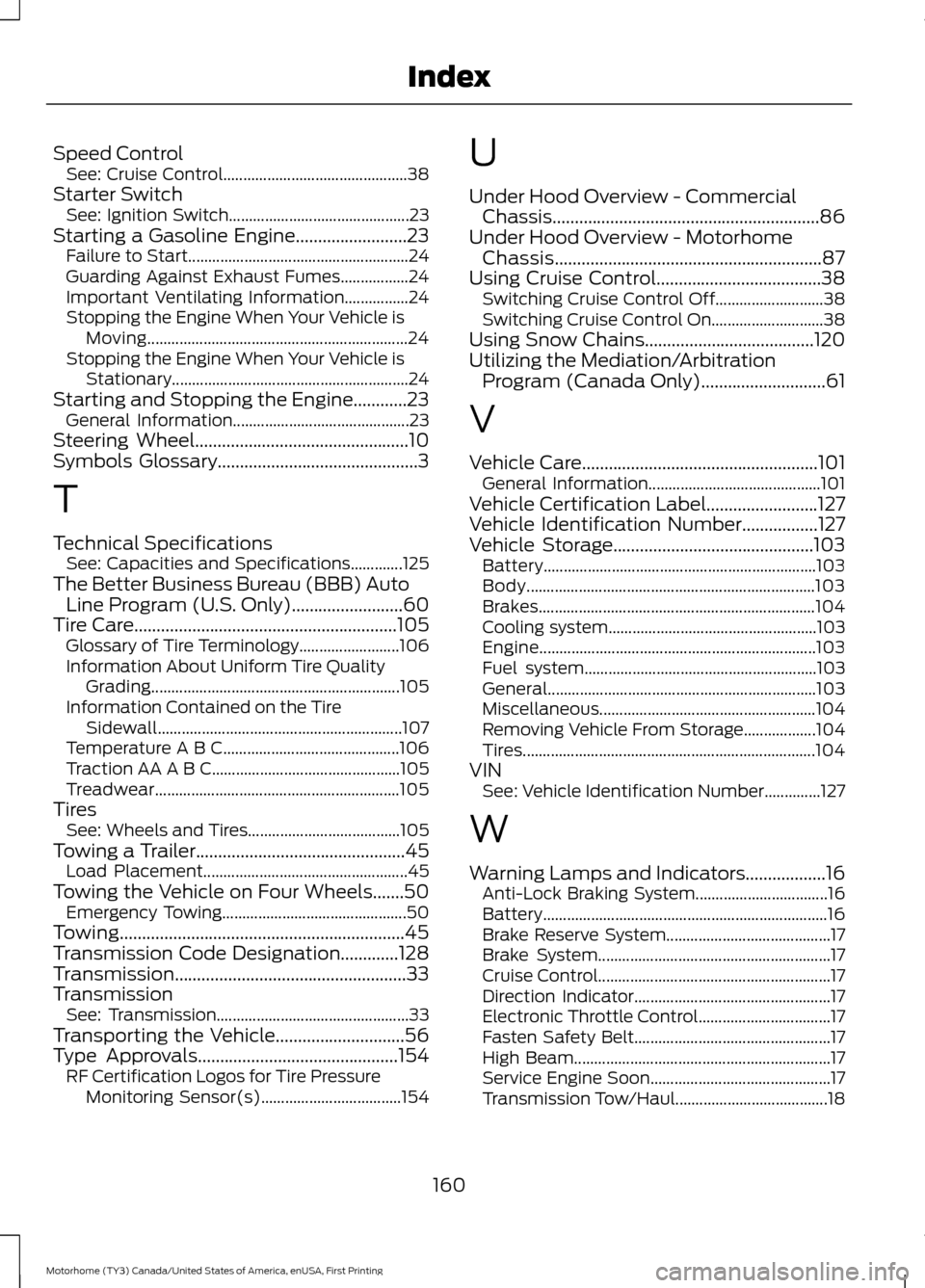

Page 163 of 164
Speed Control
See: Cruise Control.............................................. 38
Starter Switch See: Ignition Switch............................................. 23
Starting a Gasoline Engine.........................23 Failure to Start....................................................... 24
Guarding Against Exhaust Fumes.................24
Important Ventilating Information................24
Stopping the Engine When Your Vehicle is Moving................................................................. 24
Stopping the Engine When Your Vehicle is Stationary........................................................... 24
Starting and Stopping the Engine............23 General Information............................................ 23
Steering Wheel................................................10
Symbols Glossary.............................................3
T
Technical Specifications See: Capacities and Specifications.............125
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).........................60
Tire Care
...........................................................105
Glossary of Tire Terminology......................... 106
Information About Uniform Tire Quality Grading.............................................................. 105
Information Contained on the Tire Sidewall............................................................. 107
Temperature A B C............................................ 106
Traction AA A B C............................................... 105
Treadwear............................................................. 105
Tires See: Wheels and Tires...................................... 105
Towing a Trailer...............................................45 Load Placement................................................... 45
Towing the Vehicle on Four Wheels.......50 Emergency Towing.............................................. 50
Towing................................................................45
Transmission Code Designation.............128
Transmission....................................................33
Transmission See: Transmission................................................ 33
Transporting the Vehicle
.............................56
Type Approvals.............................................154
RF Certification Logos for Tire Pressure
Monitoring Sensor(s)................................... 154U
Under Hood Overview - Commercial
Chassis............................................................86
Under Hood Overview - Motorhome Chassis............................................................87
Using Cruise Control.....................................38 Switching Cruise Control Off........................... 38
Switching Cruise Control On............................ 38
Using Snow Chains
......................................120
Utilizing the Mediation/Arbitration Program (Canada Only)............................61
V
Vehicle Care.....................................................101 General Information........................................... 101
Vehicle Certification Label.........................127
Vehicle Identification Number
.................127
Vehicle Storage.............................................103 Battery.................................................................... 103
Body........................................................................\
103
Brakes..................................................................... 104
Cooling system.................................................... 103
Engine..................................................................... 103
Fuel system.......................................................... 103
General................................................................... 103
Miscellaneous...................................................... 104
Removing Vehicle From Storage.................. 104
Tires........................................................................\
. 104
VIN See: Vehicle Identification Number..............127
W
Warning Lamps and Indicators..................16 Anti-Lock Braking System................................. 16
Battery....................................................................... 16
Brake Reserve System......................................... 17
Brake System.......................................................... 17
Cruise Control.......................................................... 17
Direction Indicator................................................. 17
Electronic Throttle Control................................. 17
Fasten Safety Belt................................................. 17
High Beam................................................................ 17
Service Engine Soon............................................. 17
Transmission Tow/Haul...................................... 18
160
Motorhome (TY3) Canada/United States of America, enUSA, First Printing Index
