remove seats FORD F150 1996 10.G Owners Manual

84about50ÊF (9ÊC) orwarmer, the air will be
dehumidified to remove moisture. The air can be
cooled or heated. Rotate the
Hknob on the left
to increase the air flow.
*
[IP01494(B F )05/94]
Operating Tips
*
[IP01495(B F )02/95]
The following tips will help you to get the most
satisfaction from your air conditioning and
heater system.
*
[IP01496(B F )05/95]
q
In humid weather, selectVDEF. This will
help to prevent windshield fogging. After a
few minutes of operation, you may select
another air flow position. Rotate the control
knob to obtain your desired comfort level.
*
[IP01497(B F )05/94]
q
To prevent humidity buildup inside your
vehicle, always drive with the Air
Conditioning and Heater System turned on.
[IP01498(B F )05/95]
q
Do not put objects under the front seats that
will interfere with the flow of air under the
seats to the back seat area of your vehicle.
*
[IP01499(B F )05/94]
q
Remove any snow, ice or leaves from the air
intake area of your Air Conditioner and
Heater System which could block the air
intake. The intake area is located at the
bottom of the windshield.
*
[IP01500(B F )05/94]
Standard Heater
*
[IP01505(B F )05/94]
The control for your Heater system is located in
the center of the instrument panel below the
radio and will operate only when the ignition
key is turned to the RUN position. Your Heater
will heat and/or ventilate your vehicle interior
depending on the Function and temperature you
select. The Function Selector knob allows you to
select heating or ventilation and determine
where the air will be directed. The Temperature
knob setting determines the temperature of the
air that flows into the vehicle.
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

87 [IP01590(B F )02/95]
q
Do not put objects under the front seats that
will interfere with the flow of air under the
seats to the back seat area of your vehicle.
*
[IP01595(B F )02/95]
q
Remove any snow, ice, or leaves from the air
intake area at the bottom of the windshield.
*
[IP01801( F )05/94]
one third page art:0020104-D

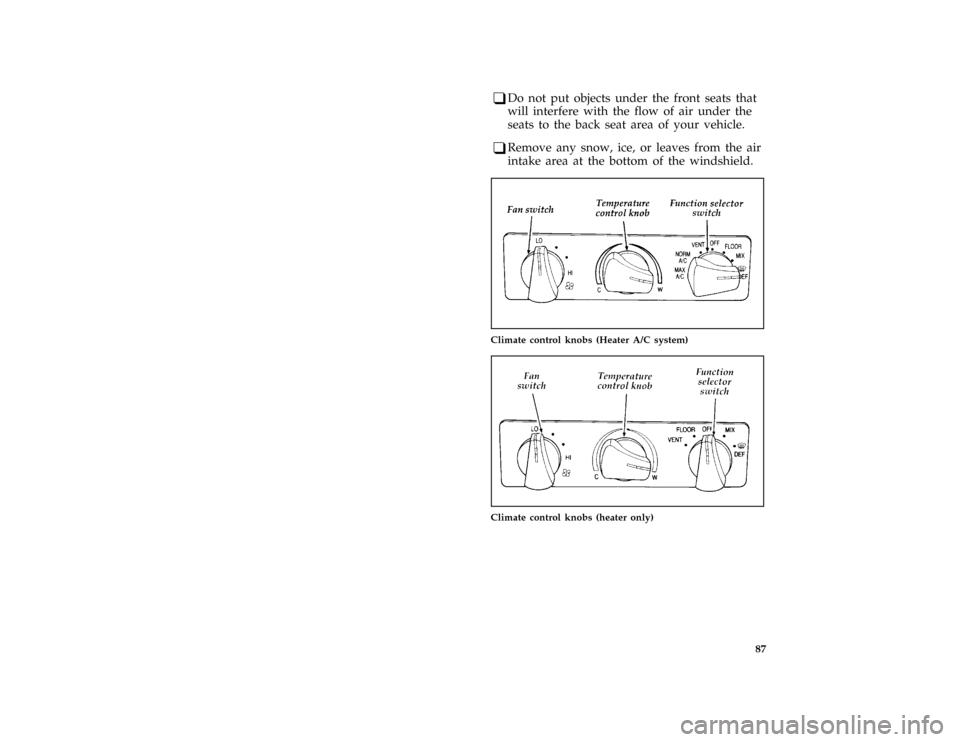

Climate control knobs (Heater A/C system)
*
[IP03901(B F )05/94]
one third page art:0020096-D
Climate control knobs (heater only)
