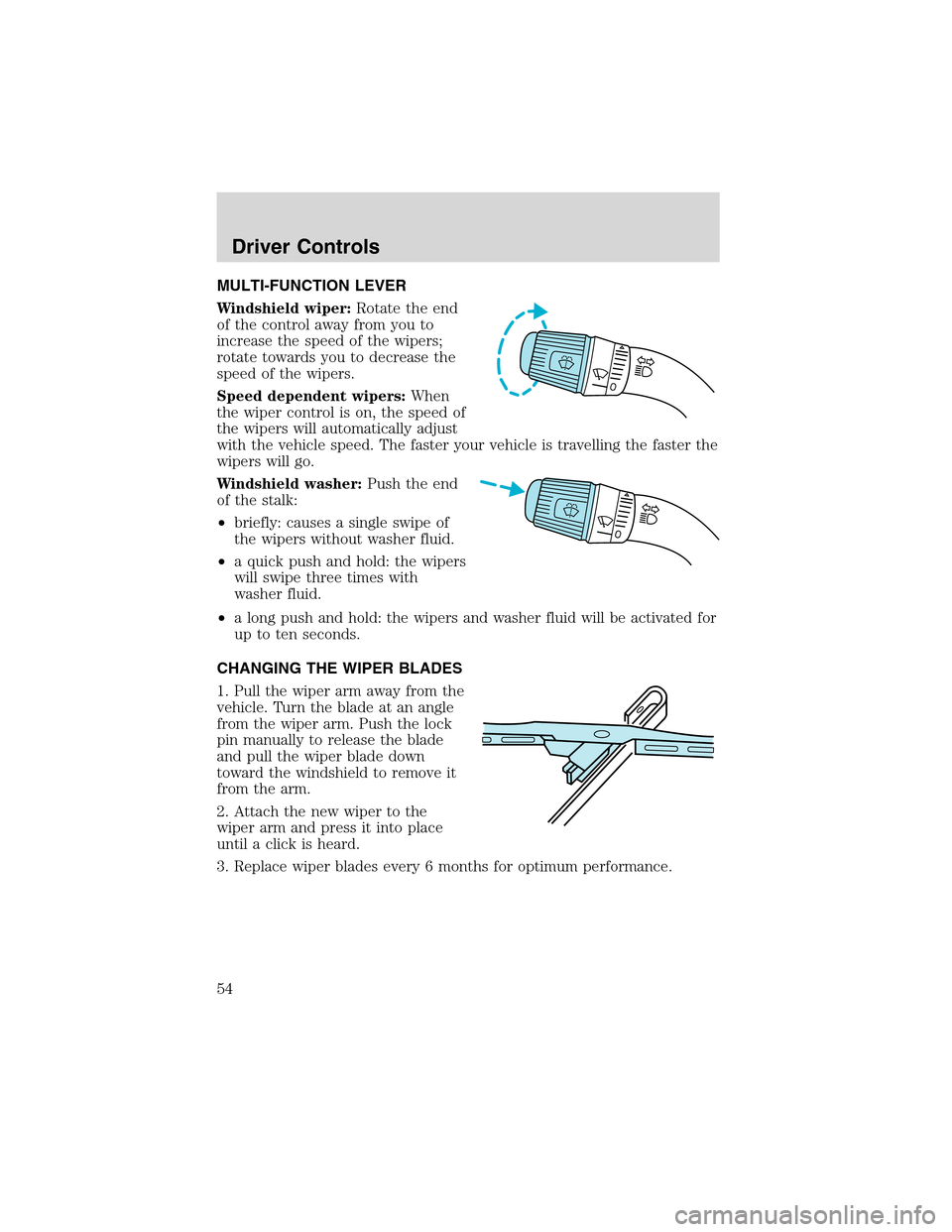

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Speed dependent wipers:When
the wiper control is on, the speed of
the wipers will automatically adjust
with the vehicle speed. The faster your vehicle is travelling the faster the
wipers will go.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
CHANGING THE WIPER BLADES
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Push the lock
pin manually to release the blade
and pull the wiper blade down
toward the windshield to remove it
from the arm.
2. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
3. Replace wiper blades every 6 months for optimum performance.
Driver Controls
54
Page 278 of 280
recreational towing .................169
trailer towing ..........................163
Traction-lok rear axle ...............142
Transfer case
fluid checking .........................249
Transmission
automatic operation ...............143
fluid, checking and adding
(automatic) .............................245
fluid, checking and adding
(manual) .................................248
fluid, refill capacities ..............256
lubricant specifications ..259, 262
manual operation ....................146
Trunk ...........................................79
Turn signal ..................................46
V
Vehicle dimensions ...........262, 265Vehicle Identification Number
(VIN)
..........................................267
Vehicle loading
..........................161
Ventilating your vehicle
...........140
W
Warning lights (see Lights)
.......12
Washer fluid
..............................221
Water, Driving through
.............161
Windows
power
.........................................60
Windshield washer fluid and
wipers
..........................................54
checking and adding fluid
.....221
replacing wiper blades
.............54
Index
278
