FORD F150 2005 11.G Owners Manual

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid
and clutch
fluidMotorcraft
High
Performance
DOT 3
Motor
Vehicle
Brake FluidAll Fill to line or step
(for clutch) on
reservoir
Engine
coolant
1Motorcraft
Premium
Gold Engine
Coolant
(yellow-
colored)4.2L V6 engine 20.1 quarts (19.0L)
4.6L V8 engine 19.8 quarts (18.7L)
5.4L V8 engine 20.6 quarts (19.5L)
Engine oil
(includes
filter
change)
8
Motorcraft
SAE 5W-20
Premium
Synthetic
Blend Motor
Oil (US)
Motorcraft
SAE 5W-20
Super
Premium
Motor Oil
(Canada)4.2L engine 6.0 quarts (5.7L)
4.6L engine 6.0 quarts (5.7L)
5.4L engine 7.0 quarts (6.6L)
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
291

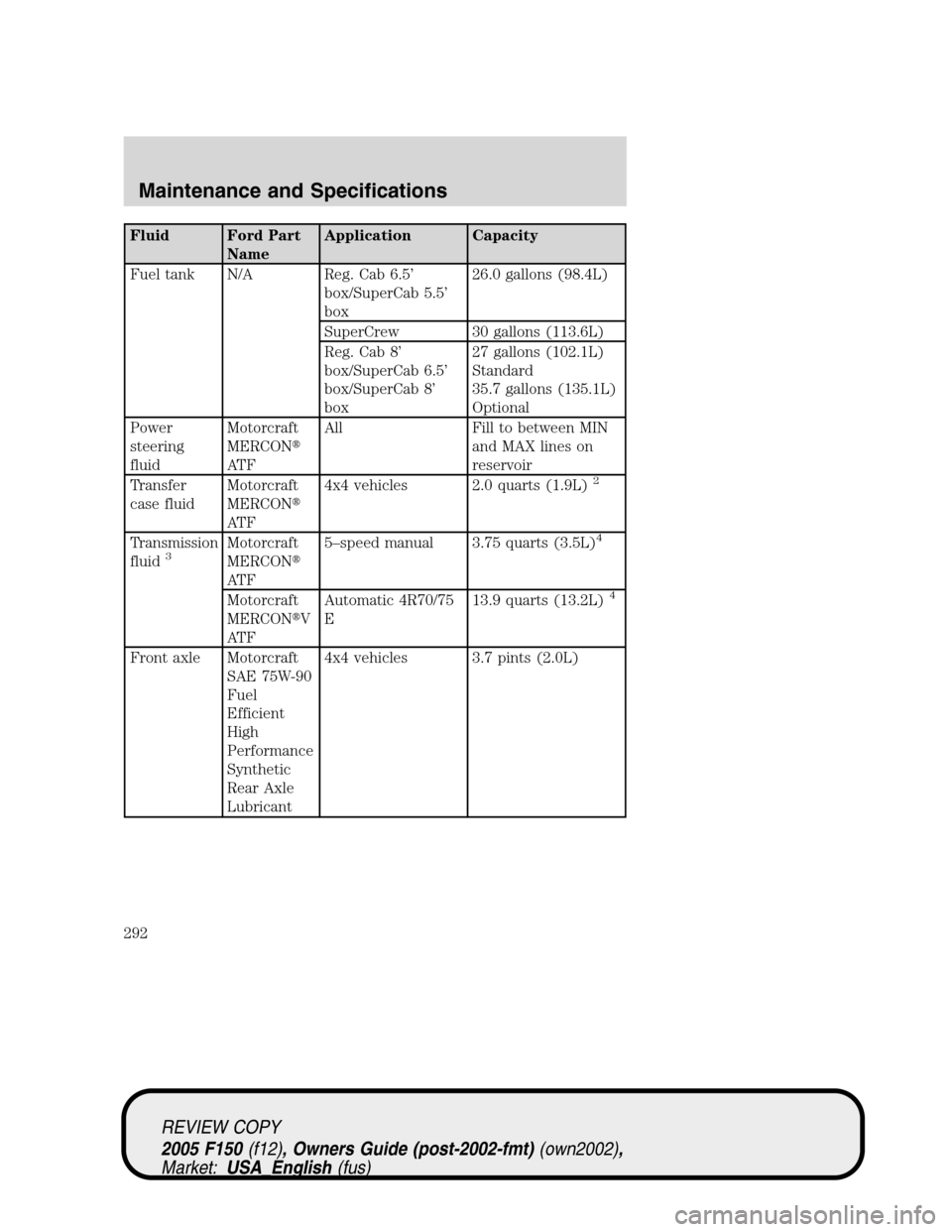

Fluid Ford Part
NameApplication Capacity
Fuel tank N/A Reg. Cab 6.5’
box/SuperCab 5.5’
box26.0 gallons (98.4L)
SuperCrew 30 gallons (113.6L)
Reg. Cab 8’
box/SuperCab 6.5’
box/SuperCab 8’
box27 gallons (102.1L)
Standard
35.7 gallons (135.1L)
Optional
Power
steering
fluidMotorcraft
MERCON
AT FAll Fill to between MIN
and MAX lines on
reservoir
Transfer
case fluidMotorcraft
MERCON
AT F4x4 vehicles 2.0 quarts (1.9L)
2
Transmission
fluid3Motorcraft
MERCON
AT F5–speed manual 3.75 quarts (3.5L)4
Motorcraft
MERCONV
AT FAutomatic 4R70/75
E13.9 quarts (13.2L)4
Front axle Motorcraft
SAE 75W-90
Fuel
Efficient
High
Performance
Synthetic
Rear Axle
Lubricant4x4 vehicles 3.7 pints (2.0L)
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
292

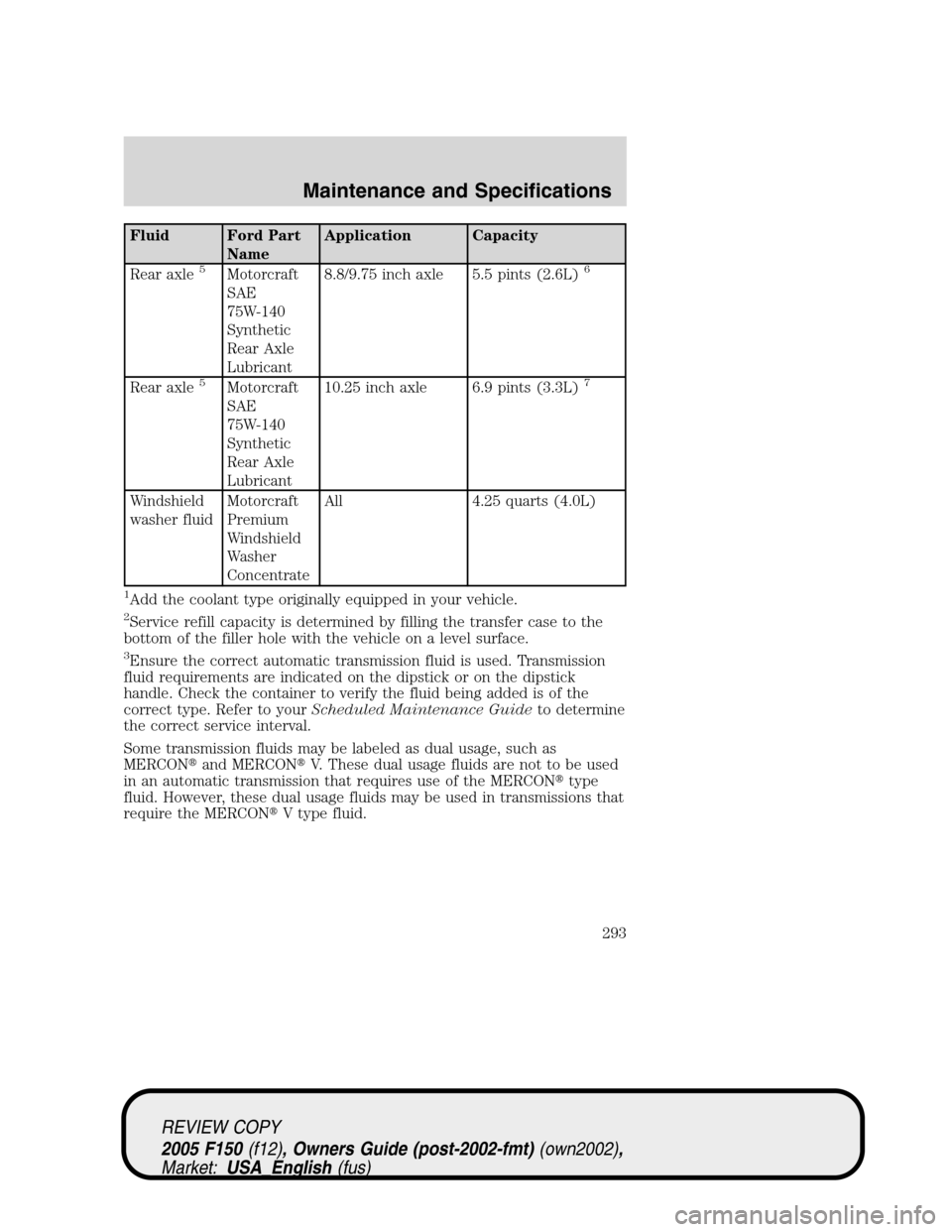

Fluid Ford PartNameApplication Capacity
Rear axle
5Motorcraft
SAE
75W-140
Synthetic
Rear Axle
Lubricant 8.8/9.75 inch axle 5.5 pints (2.6L)6
Rear axle5Motorcraft
SAE
75W-140
Synthetic
Rear Axle
Lubricant10.25 inch axle 6.9 pints (3.3L)7
Windshield
washer fluid
Motorcraft
Premium
Windshield
Washer
ConcentrateAll 4.25 quarts (4.0L)
1Add the coolant type originally equipped in your vehicle.
2Service refill capacity is determined by filling the transfer case to the
bottom of the filler hole with the vehicle on a level surface.
3Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your Scheduled Maintenance Guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCON
and MERCON
V. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCON
type
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCON
V type fluid.
REVIEW COPY
2005 F150 (f12), Owners Guide (post-2002-fmt) (own2002),
Market: USA_English (fus)
Maintenance and Specifications
293

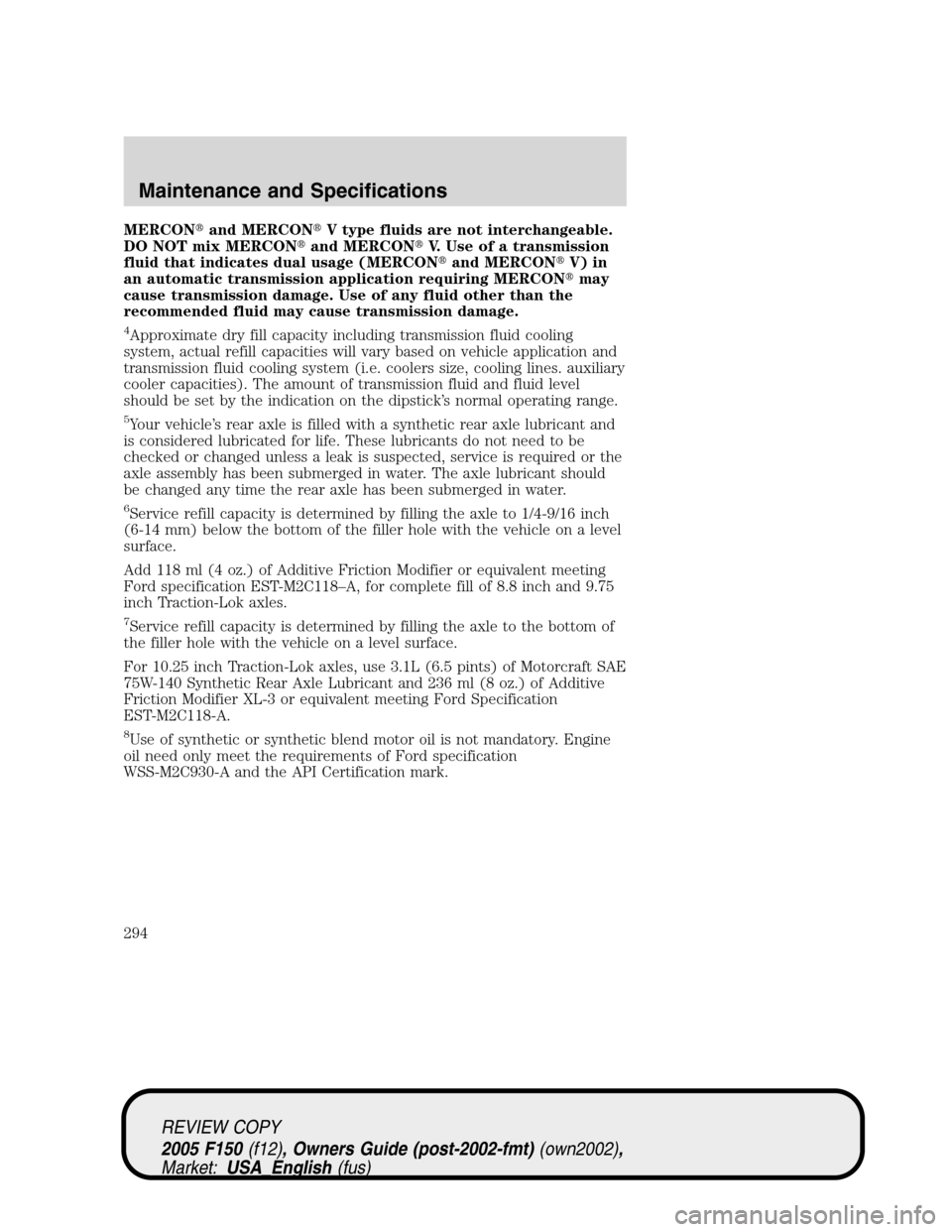

MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
4Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines. auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water.
6Service refill capacity is determined by filling the axle to 1/4-9/16 inch
(6-14 mm) below the bottom of the filler hole with the vehicle on a level
surface.
Add 118 ml (4 oz.) of Additive Friction Modifier or equivalent meeting
Ford specification EST-M2C118–A, for complete fill of 8.8 inch and 9.75
inch Traction-Lok axles.
7Service refill capacity is determined by filling the axle to the bottom of
the filler hole with the vehicle on a level surface.
For 10.25 inch Traction-Lok axles, use 3.1L (6.5 pints) of Motorcraft SAE
75W-140 Synthetic Rear Axle Lubricant and 236 ml (8 oz.) of Additive
Friction Modifier XL-3 or equivalent meeting Ford Specification
EST-M2C118-A.
8Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
294

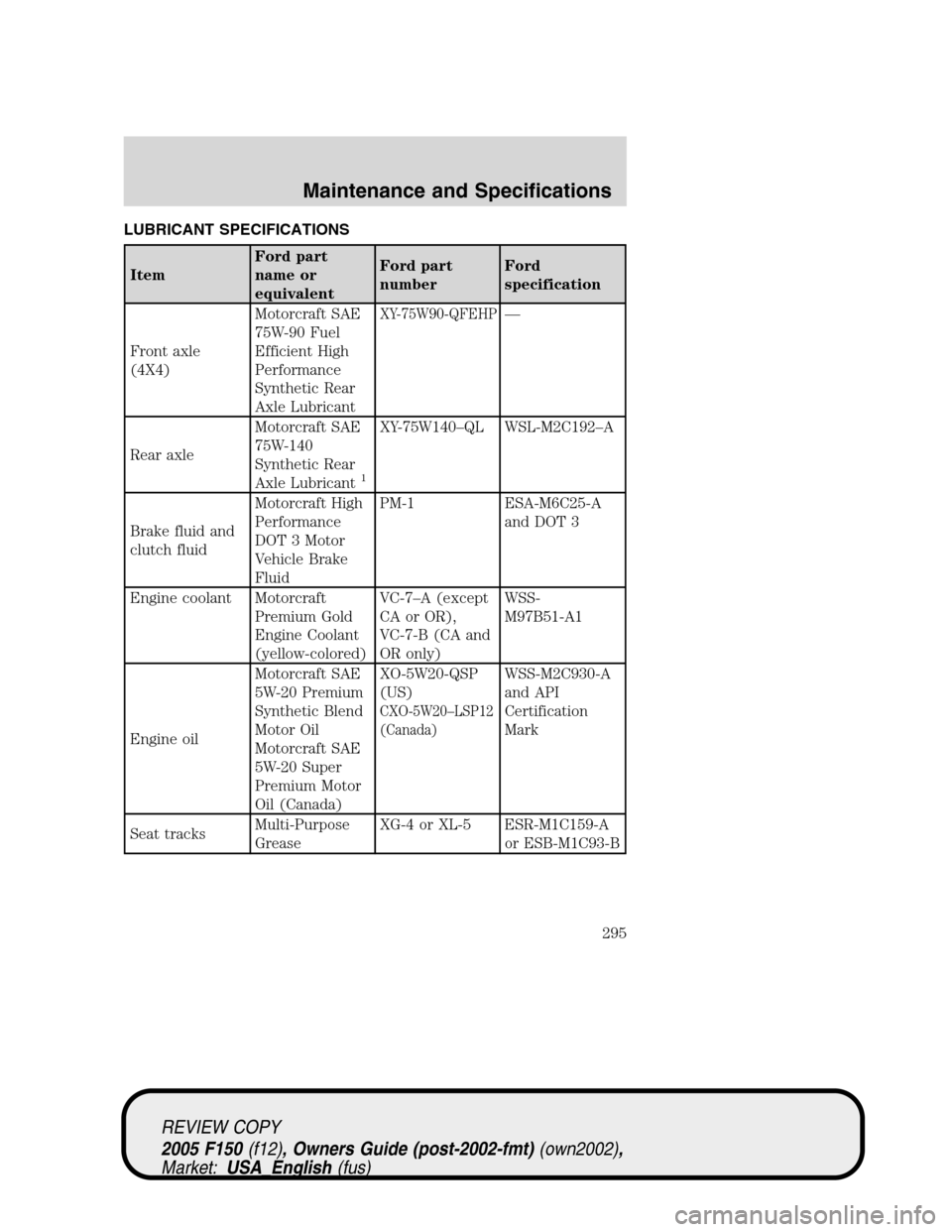

LUBRICANT SPECIFICATIONS
ItemFord part
name or
equivalentFord part
numberFord
specification
Front axle
(4X4)Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle Lubricant
XY-75W90-QFEHP—
Rear axleMotorcraft SAE
75W-140
Synthetic Rear
Axle Lubricant
1
XY-75W140–QL WSL-M2C192–A
Brake fluid and
clutch fluidMotorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A (except
CA or OR),
VC-7-B (CA and
OR only)WSS-
M97B51-A1
Engine oilMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)
WSS-M2C930-A
and API
Certification
Mark
Seat tracksMulti-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or ESB-M1C93-B
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
295

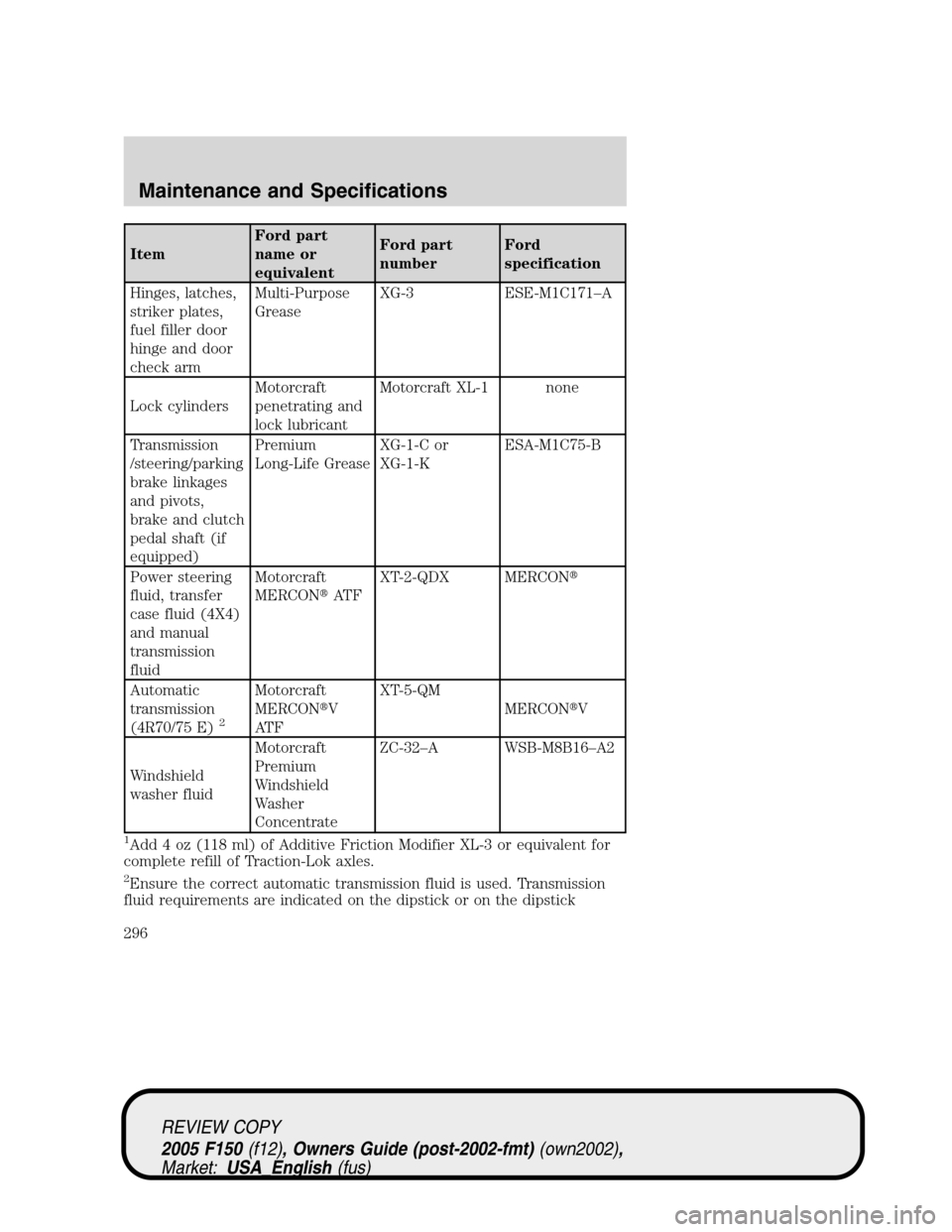

ItemFord part
name or
equivalentFord part
numberFord
specification
Hinges, latches,
striker plates,
fuel filler door
hinge and door
check armMulti-Purpose
GreaseXG-3 ESE-M1C171–A
Lock cylindersMotorcraft
penetrating and
lock lubricantMotorcraft XL-1 none
Transmission
/steering/parking
brake linkages
and pivots,
brake and clutch
pedal shaft (if
equipped)Premium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Power steering
fluid, transfer
case fluid (4X4)
and manual
transmission
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R70/75 E)
2
Motorcraft
MERCONV
AT FXT-5-QM
MERCONV
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Add 4 oz (118 ml) of Additive Friction Modifier XL-3 or equivalent for
complete refill of Traction-Lok axles.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
296

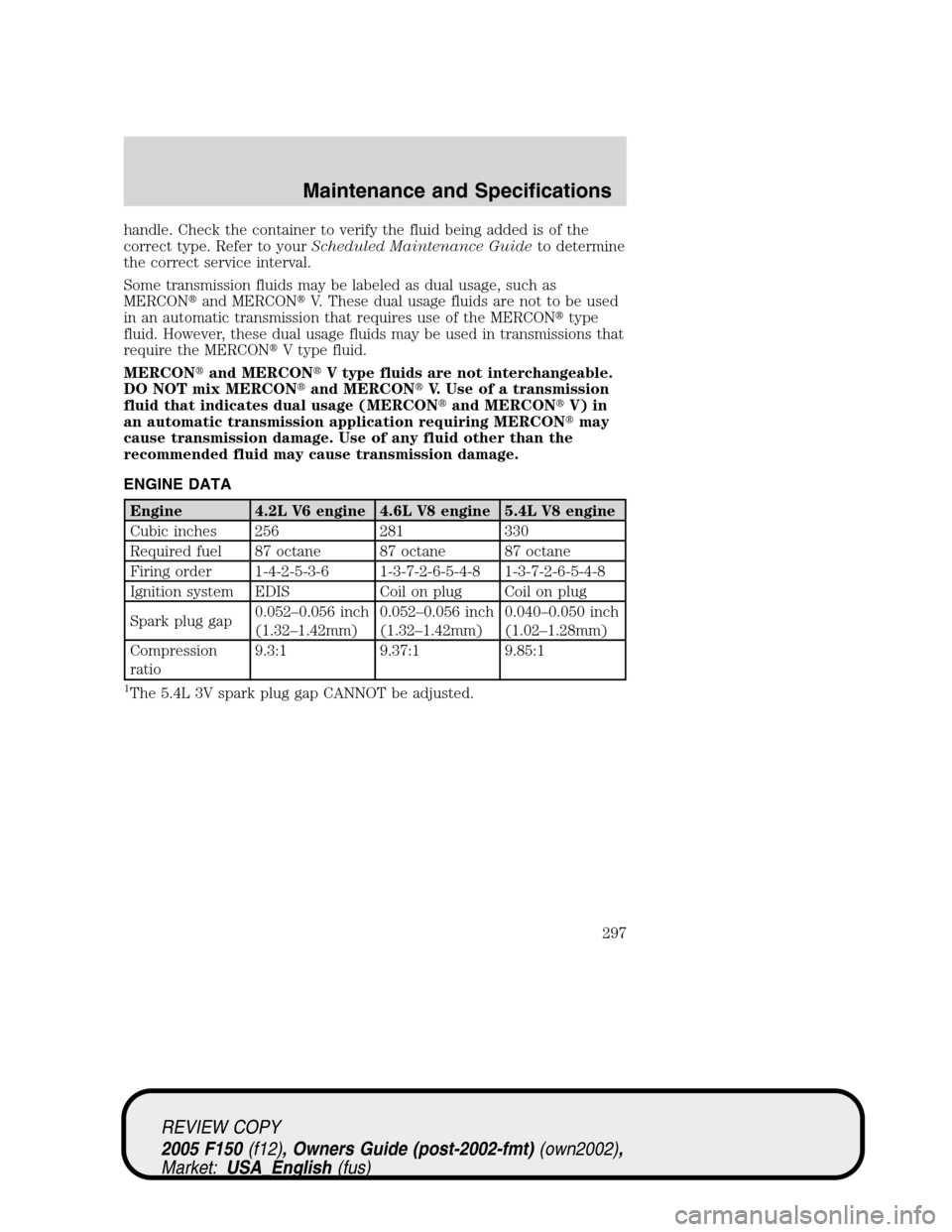

handle. Check the container to verify the fluid being added is of the
correct type. Refer to yourScheduled Maintenance Guideto determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 4.2L V6 engine 4.6L V8 engine 5.4L V8 engine
Cubic inches 256 281 330
Required fuel 87 octane 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on plug Coil on plug
Spark plug gap0.052–0.056 inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)0.040–0.050 inch
(1.02–1.28mm)
Compression
ratio9.3:1 9.37:1 9.85:1
1The 5.4L 3V spark plug gap CANNOT be adjusted.
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
297

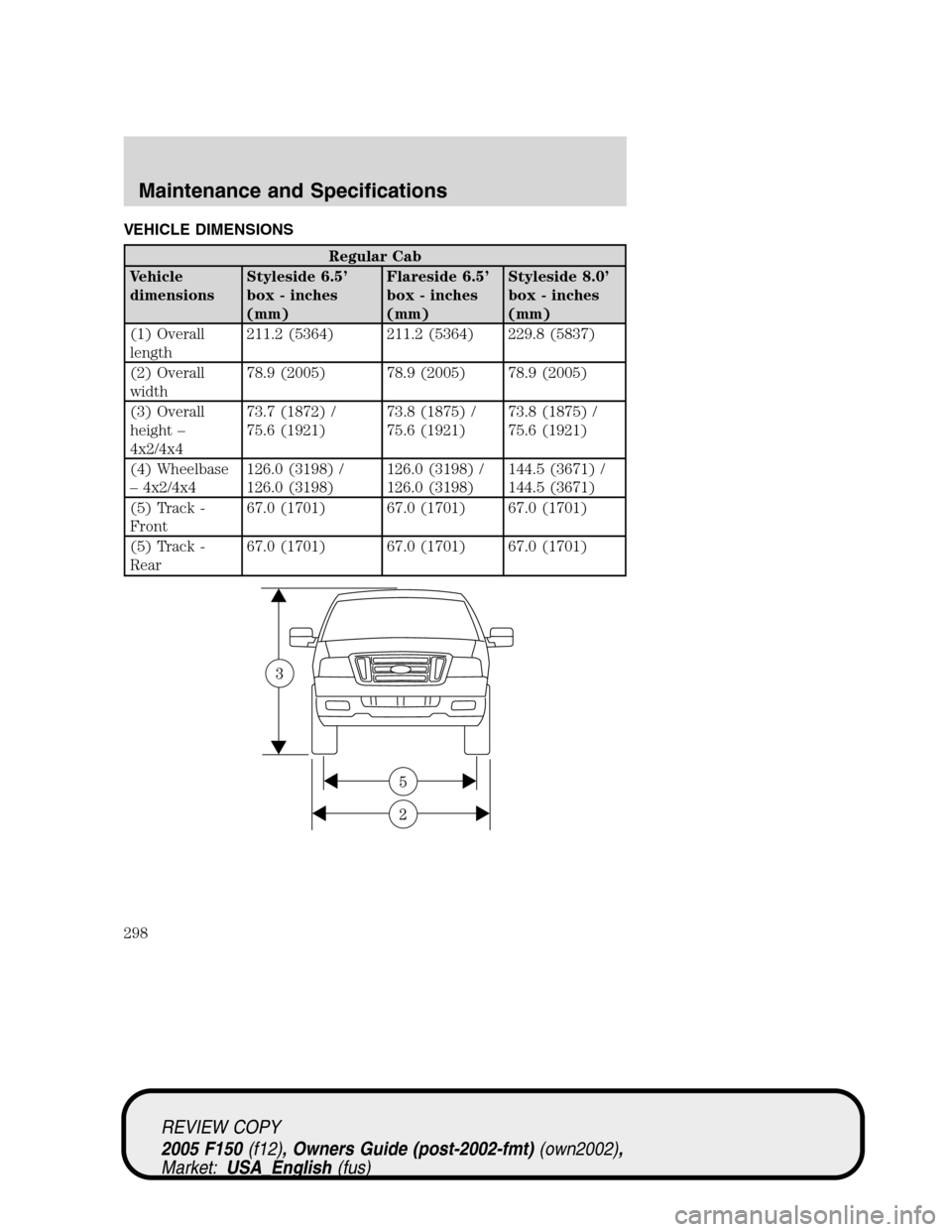

VEHICLE DIMENSIONS
Regular Cab
Vehicle
dimensionsStyleside 6.5’
box - inches
(mm)Flareside 6.5’
box - inches
(mm)Styleside 8.0’
box - inches
(mm)
(1) Overall
length211.2 (5364) 211.2 (5364) 229.8 (5837)
(2) Overall
width78.9 (2005) 78.9 (2005) 78.9 (2005)
(3) Overall
height–
4x2/4x473.7 (1872) /
75.6 (1921)73.8 (1875) /
75.6 (1921)73.8 (1875) /
75.6 (1921)
(4) Wheelbase
–4x2/4x4126.0 (3198) /
126.0 (3198)126.0 (3198) /
126.0 (3198)144.5 (3671) /
144.5 (3671)
(5) Track -
Front67.0 (1701) 67.0 (1701) 67.0 (1701)
(5) Track -
Rear67.0 (1701) 67.0 (1701) 67.0 (1701)
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
298

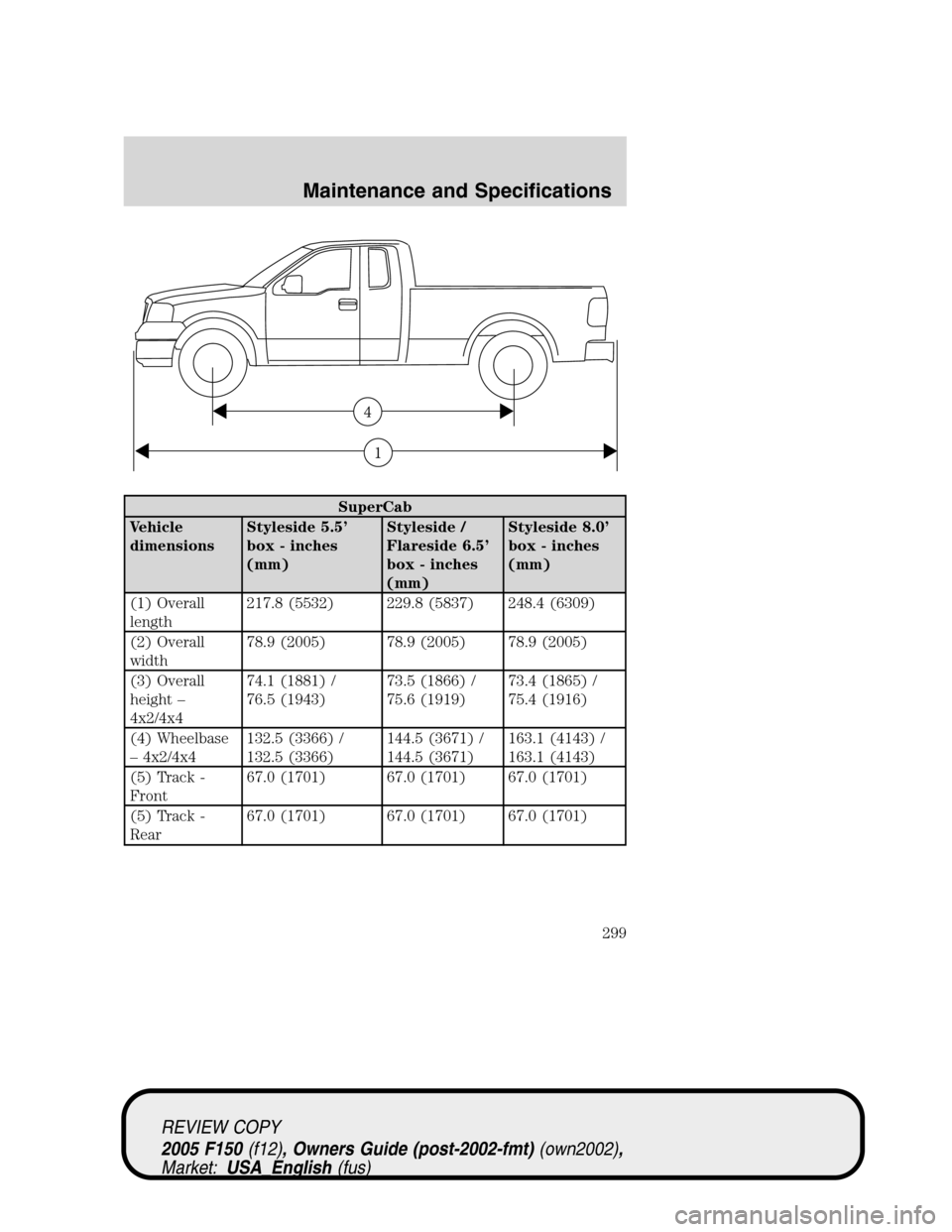

SuperCab
Vehicle
dimensionsStyleside 5.5’
box - inches
(mm)Styleside /
Flareside 6.5’
box - inches
(mm)Styleside 8.0’
box - inches
(mm)
(1) Overall
length217.8 (5532) 229.8 (5837) 248.4 (6309)
(2) Overall
width78.9 (2005) 78.9 (2005) 78.9 (2005)
(3) Overall
height–
4x2/4x474.1 (1881) /
76.5 (1943)73.5 (1866) /
75.6 (1919)73.4 (1865) /
75.4 (1916)
(4) Wheelbase
–4x2/4x4132.5 (3366) /
132.5 (3366)144.5 (3671) /
144.5 (3671)163.1 (4143) /
163.1 (4143)
(5) Track -
Front67.0 (1701) 67.0 (1701) 67.0 (1701)
(5) Track -
Rear67.0 (1701) 67.0 (1701) 67.0 (1701)
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
299

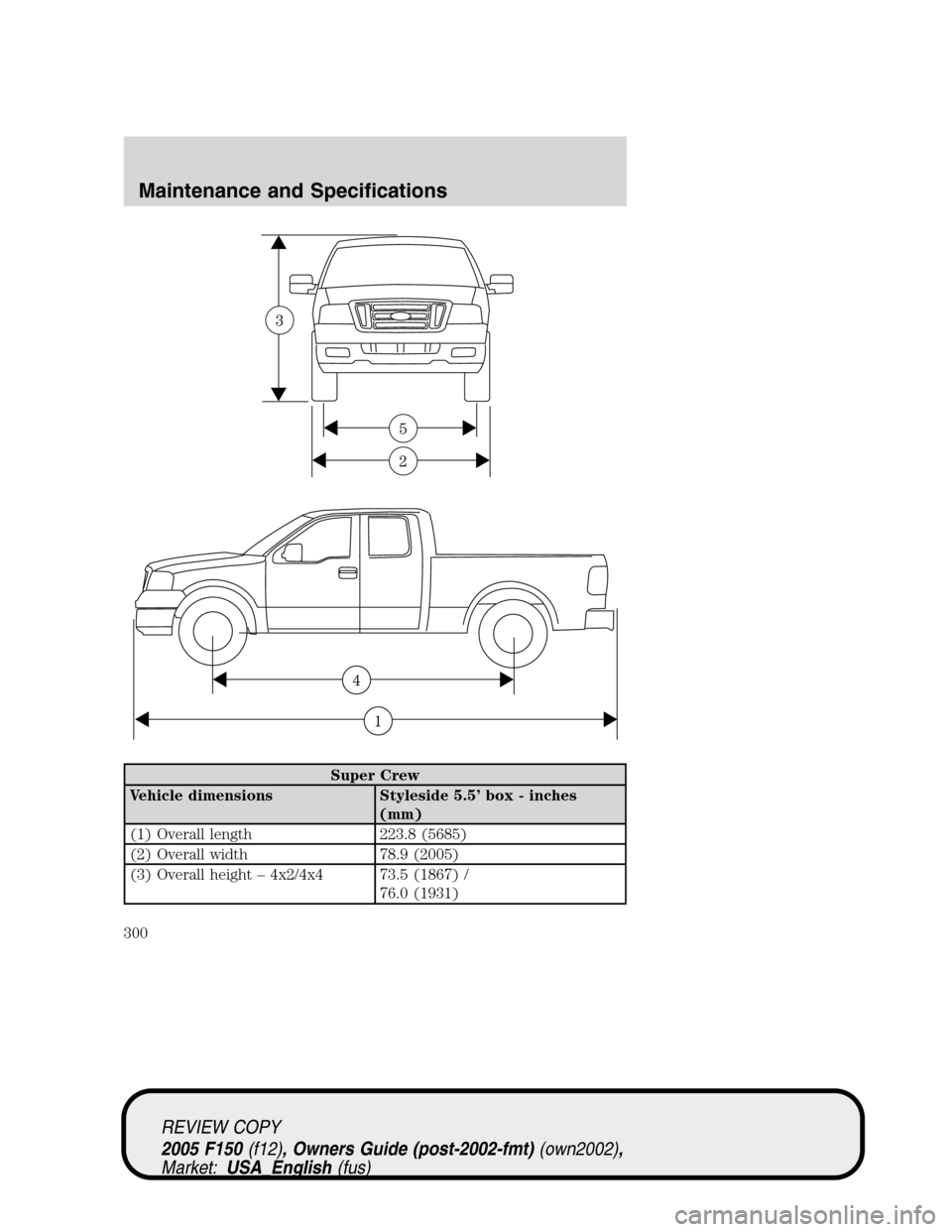

Super Crew
Vehicle dimensions Styleside 5.5’box - inches
(mm)
(1) Overall length 223.8 (5685)
(2) Overall width 78.9 (2005)
(3) Overall height–4x2/4x4 73.5 (1867) /
76.0 (1931)
