CLOCK (Setting the clock):Press MENU until SELECT HOUR or
SELECT MINS is displayed. Use
//SEEK, SEEKto adjust
the hours/minutes.
4.Aux:Press to toggle between
FES/DVD and AUX. If no auxiliary
sources are available, NO AUX
AUDIO will be displayed.
If equipped with Satellite Radio, press AUX to cycle through SAT1, SAT2
and SAT3 modes.
Satellite radio is available only in the continental United States.
5.Seek:In radio mode,
press
/to access the
previous/next strong station.
In CD mode, press
/to
access the previous/next CD track.
In Satellite Radio mode (if equipped), press
SEEKto seek to the
previous/next channel. If a specific category is selected, (Jazz, Rock,
News, etc.), press
SEEKto seek to the previous/next channel in
the selected category. Press and hold
SEEKto fast seek through
the previous /next channels.
In TEXT MODE, press
SEEKto view the previous/additional
display text.
In CATEGORY MODE, press
SEEKto select a category.
Satellite radio is available only in the continental United States.
6.Text:This control is not
operational.
7.Shuffle:Press to play tracks in
random order on the current CD.
8.Comp (Compression):Press in
CD mode to bring soft and loud CD
passages together for a more
consistent listening level.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
26

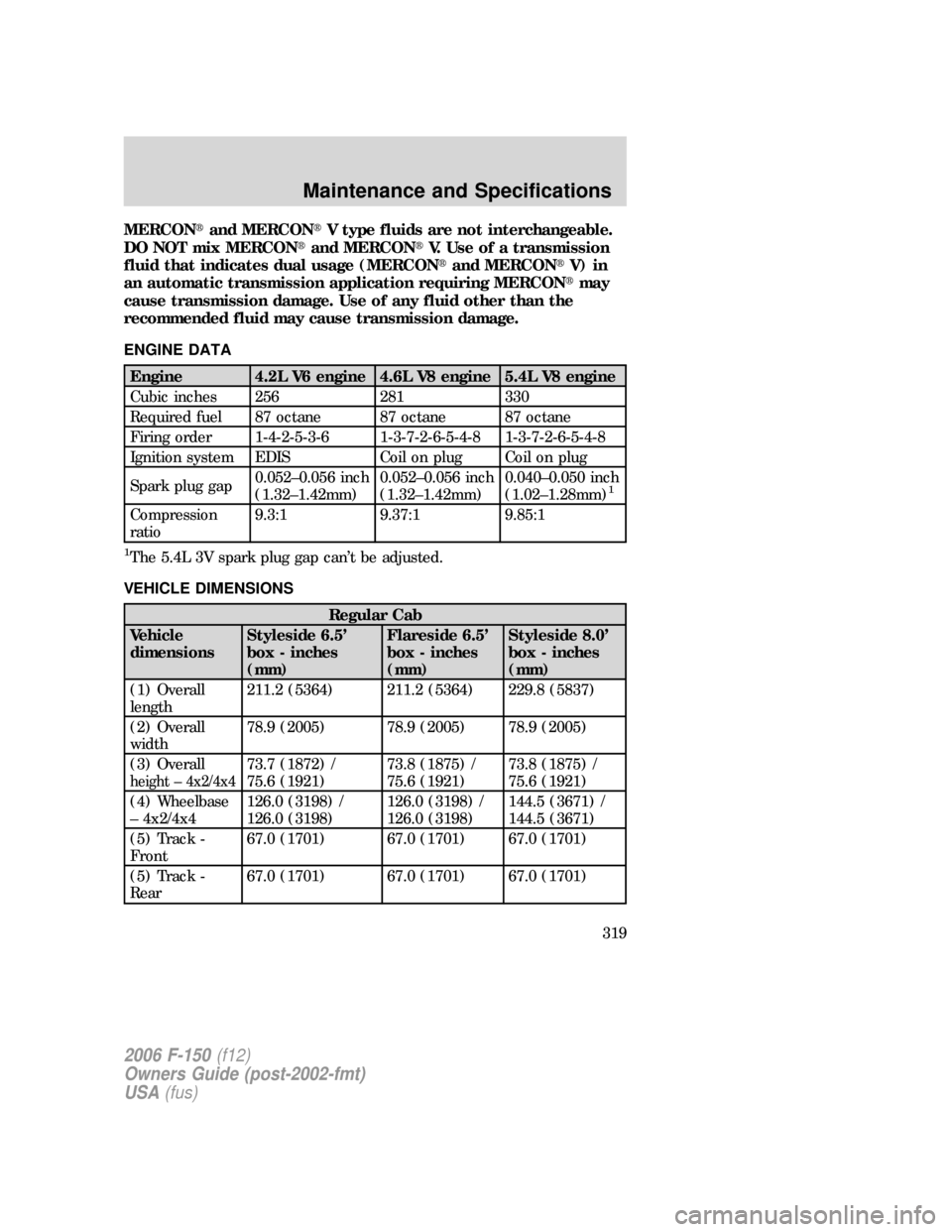

MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 4.2L V6 engine 4.6L V8 engine 5.4L V8 engine
Cubic inches 256 281 330
Required fuel 87 octane 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on plug Coil on plug
Spark plug gap0.052–0.056 inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)0.040–0.050 inch
(1.02–1.28mm)
1
Compression
ratio9.3:1 9.37:1 9.85:1
1The 5.4L 3V spark plug gap can’t be adjusted.
VEHICLE DIMENSIONS
Regular Cab
Vehicle
dimensionsStyleside 6.5’
box - inches
(mm)Flareside 6.5’
box - inches
(mm)Styleside 8.0’
box - inches
(mm)
(1) Overall
length211.2 (5364) 211.2 (5364) 229.8 (5837)
(2) Overall
width78.9 (2005) 78.9 (2005) 78.9 (2005)
(3) Overall
height – 4x2/4x4
73.7 (1872) /
75.6 (1921)73.8 (1875) /
75.6 (1921)73.8 (1875) /
75.6 (1921)
(4) Wheelbase
– 4x2/4x4126.0 (3198) /
126.0 (3198)126.0 (3198) /
126.0 (3198)144.5 (3671) /
144.5 (3671)
(5) Track -
Front67.0 (1701) 67.0 (1701) 67.0 (1701)
(5) Track -
Rear67.0 (1701) 67.0 (1701) 67.0 (1701)
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
