lock FORD F150 2006 11.G Owners Manual

Introduction 4
Instrument Cluster 12
Warning and control lights 12
Gauges 19
Entertainment Systems 22
AM/FM stereo 22
AM/FM stereo with CD 24
AM/FM stereo cassette with CD 28
AM/FM stereo with in-dash six CD 33
Climate Controls 43
Heater only 43
Manual heating and air conditioning 44
Automatic temperature control 46
Rear window defroster 52
Lights 53
Headlamps 53
Turn signal control 57
Bulb replacement 59
Driver Controls 64
Windshield wiper/washer control 64
Steering wheel adjustment 64
Power windows 70
Mirrors 72
Speed control 74
Message center 84
Tailgate 93
Locks and Security 96
Keys 96
Locks 96
Anti-theft system 108
Table of Contents
1
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat
Child Seat Installation
WarningChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemBrake Fluid -
Non-Petroleum Based
Powertrain MalfunctionSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
10

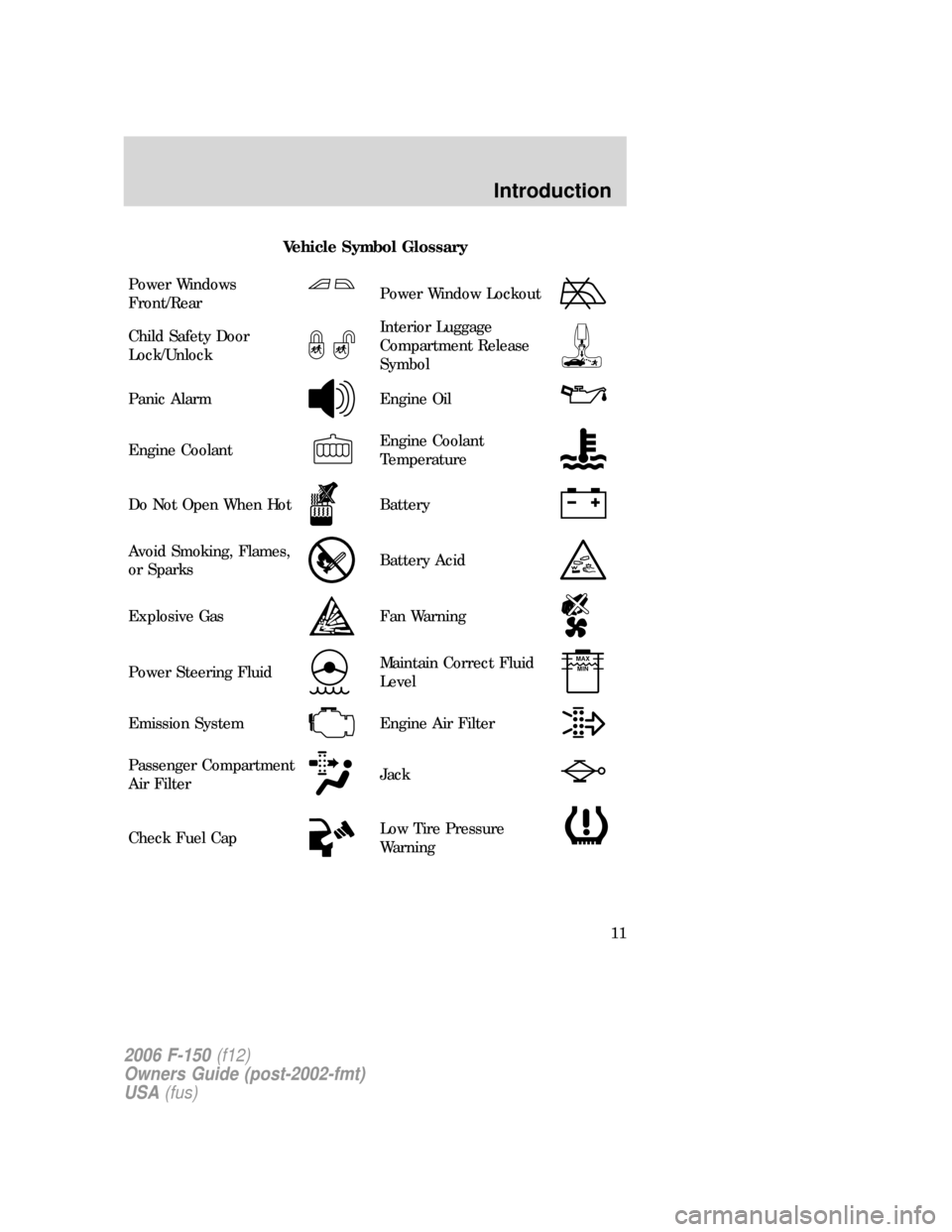

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
11

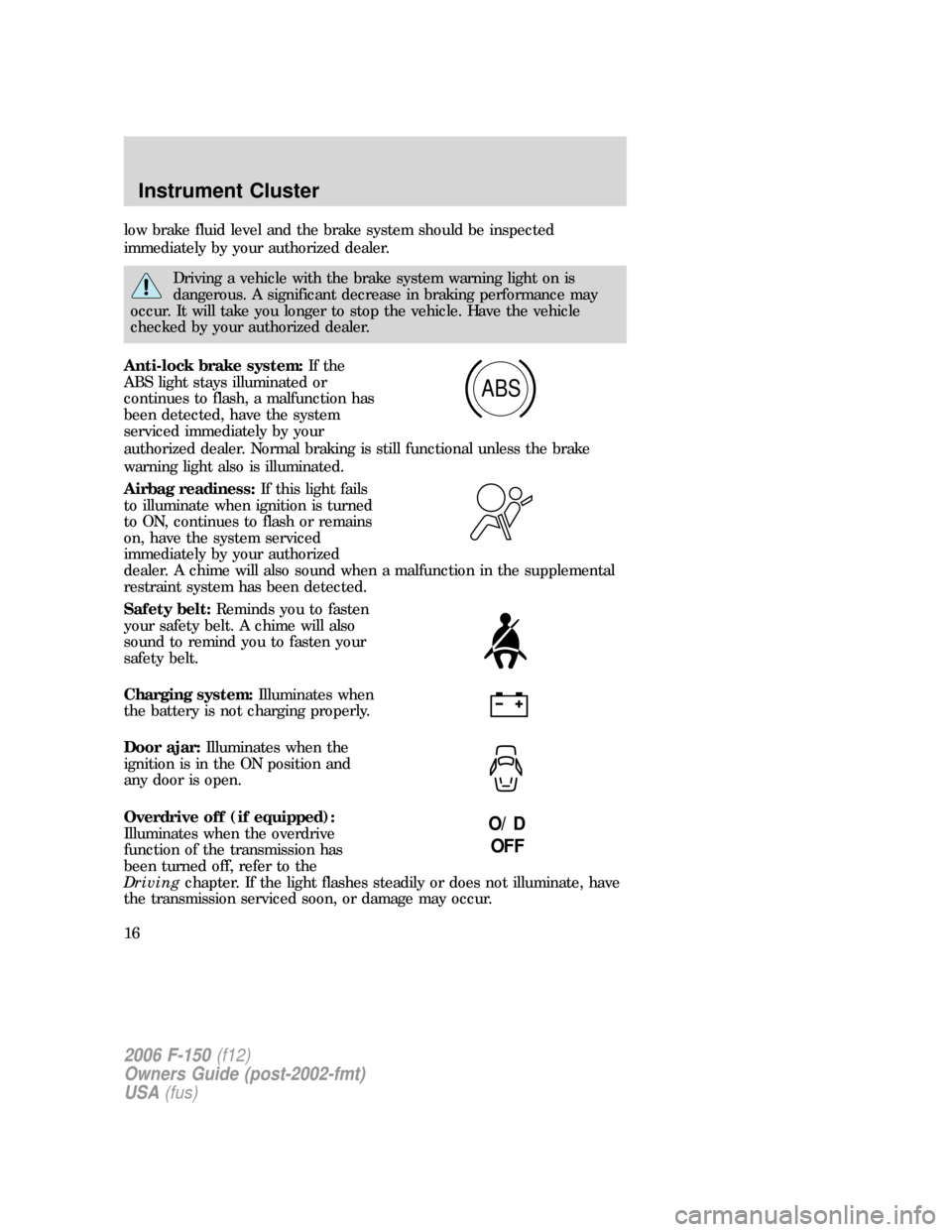

low brake fluid level and the brake system should be inspected
immediately by your authorized dealer.
Driving a vehicle with the brake system warning light on is
dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your authorized dealer.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
Airbag readiness:If this light fails
to illuminate when ignition is turned
to ON, continues to flash or remains
on, have the system serviced
immediately by your authorized
dealer. A chime will also sound when a malfunction in the supplemental
restraint system has been detected.
Safety belt:Reminds you to fasten
your safety belt. A chime will also
sound to remind you to fasten your
safety belt.
Charging system:Illuminates when
the battery is not charging properly.
Door ajar:Illuminates when the
ignition is in the ON position and
any door is open.
Overdrive off (if equipped):
Illuminates when the overdrive
function of the transmission has
been turned off, refer to the
Drivingchapter. If the light flashes steadily or does not illuminate, have
the transmission serviced soon, or damage may occur.
ABS
O/D
OFF
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
16

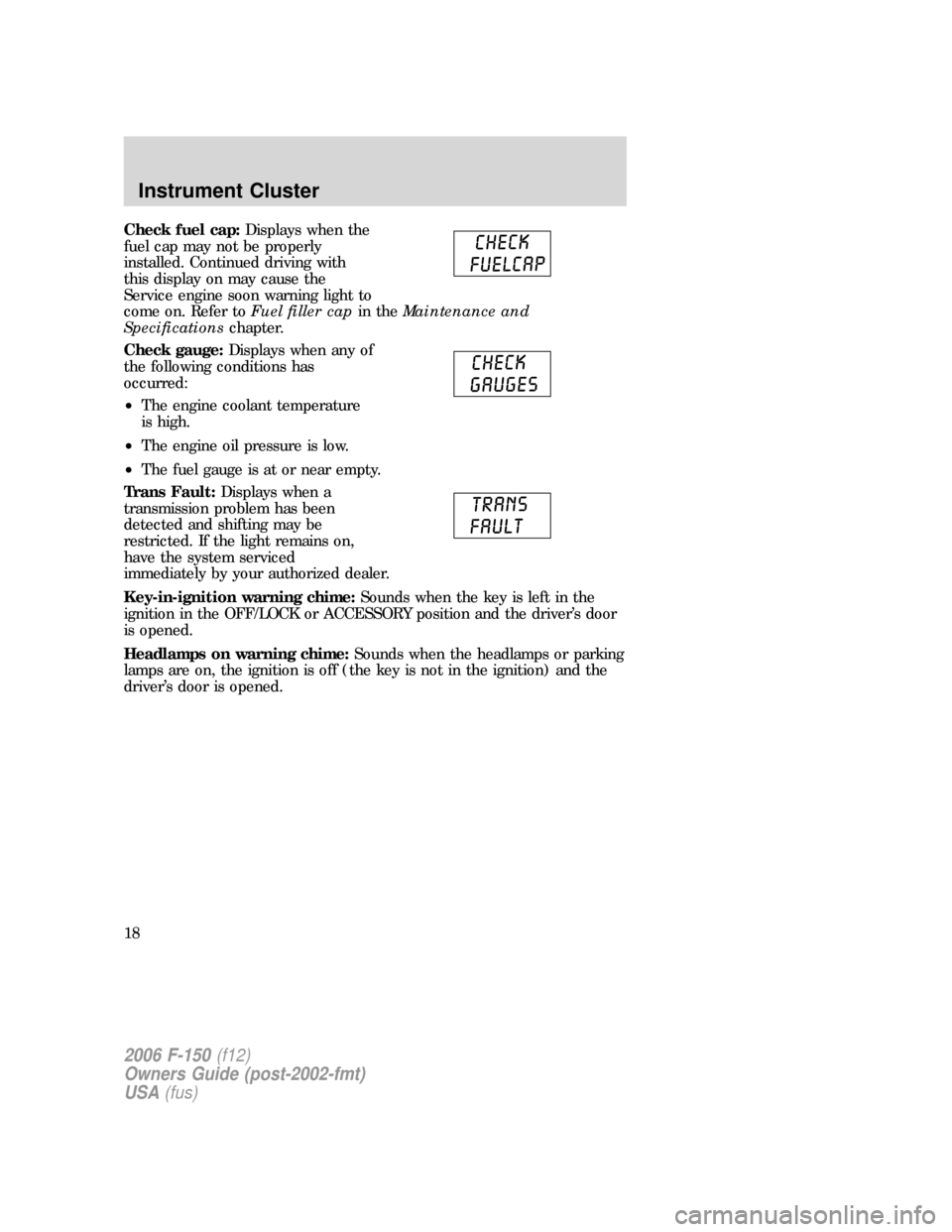

Check fuel cap:Displays when the
fuel cap may not be properly
installed. Continued driving with
this display on may cause the
Service engine soon warning light to
come on. Refer toFuel filler capin theMaintenance and
Specificationschapter.
Check gauge:Displays when any of
the following conditions has
occurred:
•The engine coolant temperature
is high.
•The engine oil pressure is low.
•The fuel gauge is at or near empty.
Trans Fault:Displays when a
transmission problem has been
detected and shifting may be
restricted. If the light remains on,
have the system serviced
immediately by your authorized dealer.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver’s door
is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
18

Setting the clock:Press until HR or Mn is displayed.
Press
//SEEKto adjust the hours/minutes.
3.Seek:Press to access the
next/previous strong station.
4.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
5.AM/FM:Press to select AM/FM
frequency band.
6.ON/OFF/Volume:Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
7.CLK (Clock):Press CLK to
toggle between displaying the radio
frequency and the clock setting.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
23

CLOCK (Setting the clock):Press MENU until SELECT HOUR or
SELECT MINS is displayed. Use
//SEEK, SEEKto adjust
the hours/minutes.
4.Aux:Press to toggle between
FES/DVD and AUX. If no auxiliary
sources are available, NO AUX
AUDIO will be displayed.
If equipped with Satellite Radio, press AUX to cycle through SAT1, SAT2
and SAT3 modes.
Satellite radio is available only in the continental United States.
5.Seek:In radio mode,
press
/to access the
previous/next strong station.
In CD mode, press
/to
access the previous/next CD track.
In Satellite Radio mode (if equipped), press
SEEKto seek to the
previous/next channel. If a specific category is selected, (Jazz, Rock,
News, etc.), press
SEEKto seek to the previous/next channel in
the selected category. Press and hold
SEEKto fast seek through
the previous /next channels.
In TEXT MODE, press
SEEKto view the previous/additional
display text.
In CATEGORY MODE, press
SEEKto select a category.
Satellite radio is available only in the continental United States.
6.Text:This control is not
operational.
7.Shuffle:Press to play tracks in
random order on the current CD.
8.Comp (Compression):Press in
CD mode to bring soft and loud CD
passages together for a more
consistent listening level.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
26

display. Press/to select a different category. You may also select
CATEGORY ALL to seek all available Sirius categories and channels.
Satellite radio is available only in the continental United States.
TREB (Treble):Press MENU until TREBLE appears in the display.
Use
//SEEKto adjust the treble levels.
BASS:Press MENU until BASS appears in the display.
Use
//SEEKto adjust the bass levels.
BAL (Balance):Press MENU until BAL appears in the display.
Use
//SEEKto adjust the audio between the left and
right speakers.
FADE:Press MENU until FADE appears in the display.
Use
//SEEKto adjust the audio between the front and
rear speakers.
SSV (Speed sensitive volume):Radio volume automatically changes
slightly with vehicle speed to compensate for road and wind noise. Press
MENU until SSV appears in the display. Use
//SEEKto
adjust the levels. The recommended level is 1–3. Level 0 turns the Speed
Sensitive Volume off and level 7 is the maximum setting.
AUTOSET:Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2.
Use
//SEEKto turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
CLOCK (Setting the clock):Press until SELECT HOUR or SELECT
MINS is displayed. Use
//SEEK, SEEKto adjust the
hours/minutes.
5.Aux:Press to toggle between
FES/DVD and AUX. If no auxiliary
sources are available, NO AUX
AUDIO will be displayed.
If equipped with Satellite Radio, press AUX to cycle through SAT1, SAT2
and SAT3 modes.
Satellite radio is available only in the continental United States.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
30

Occupancy mode:(Available on Audiophile radios only): Press MENU
repeatedly to access. Press
//SEEKto optimize sound for
ALL SEATS, DRIVERS SEAT or REAR SEATS.
CLOCK (Setting the clock):Press until SELECT HOUR or SELECT
MINS is displayed. Press
//SEEKto adjust the
hours/minutes.
Track/Folder Mode:Available only on MP3 discs in CD mode. In Track
Mode, pressing
SEEKwill scroll through all tracks on the disc.
In Folder mode, pressing
SEEKwill scroll only through tracks
within the selected folder.
Compression:Available only in CD mode, compression brings soft and
loud CD passages together for a more consistent listening level.
Repeat:Available only in CD mode. Press to repeat the current CD
track.
RDS(Available on Audiophile radios only): RDS is available in FM mode,
and allows you to search RDS-equipped stations for a certain category of
music format: Classic, Country, Info, Jazz/RB, Religious, Rock, Soft, Top
40. RDS must be activated to access Find and Show functions.
To activate,press and hold MENU until RDS (ON/OFF) appears in the
display. Use
/.SEEKto toggle RDS ON/OFF. When RDS is
on, press MENU repeatedly to scroll through Find, Show and RDS. When
RDS is Off, you will not be able to access Find and Show functions.
Find:RDS must be activated to access the Find function. Find allows
you to search RDS-equipped stations for the desired music category.
Use
/to find the desired program type, then useSEEKor
SCAN to begin the search.
Show:RDS must be activated to access the Show function. Show allows
you to display the name of the radio station or program type.
Use
//SEEKto show type, name or none.
4.Aux:Press to toggle between
FES/DVD and AUX. If no auxiliary
sources are available, NO AUX
AUDIO will be displayed.
If equipped with Satellite Radio, press AUX to cycle through SAT1, SAT2
and SAT3 modes.
Satellite radio is available only in the continental United States.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
35

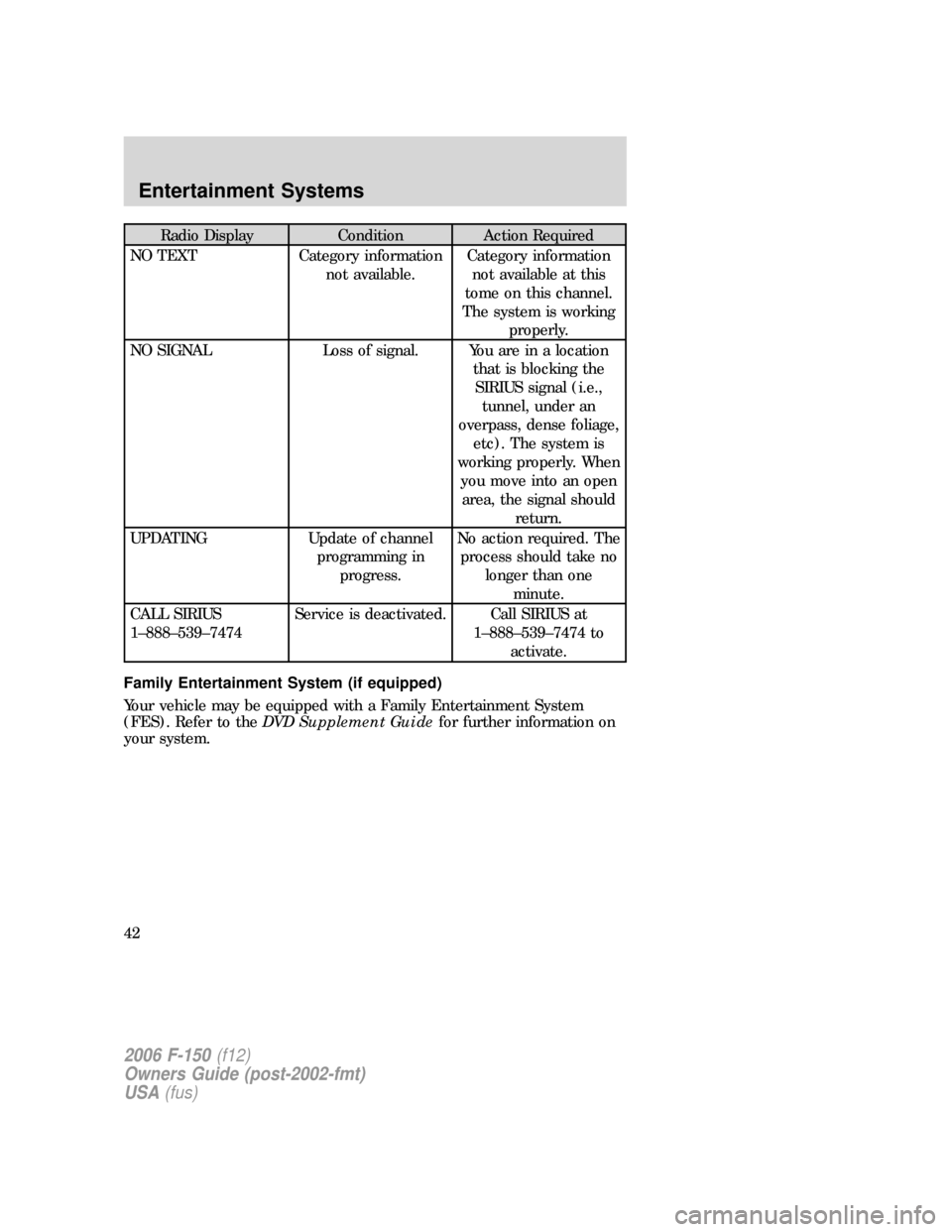

Radio Display Condition Action Required
NO TEXT Category information
not available.Category information
not available at this
tome on this channel.
The system is working
properly.
NO SIGNAL Loss of signal. You are in a location
that is blocking the
SIRIUS signal (i.e.,
tunnel, under an
overpass, dense foliage,
etc). The system is
working properly. When
you move into an open
area, the signal should
return.
UPDATING Update of channel
programming in
progress.No action required. The
process should take no
longer than one
minute.
CALL SIRIUS
1–888–539–7474Service is deactivated. Call SIRIUS at
1–888–539–7474 to
activate.
Family Entertainment System (if equipped)
Your vehicle may be equipped with a Family Entertainment System
(FES). Refer to theDVD Supplement Guidefor further information on
your system.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
42
