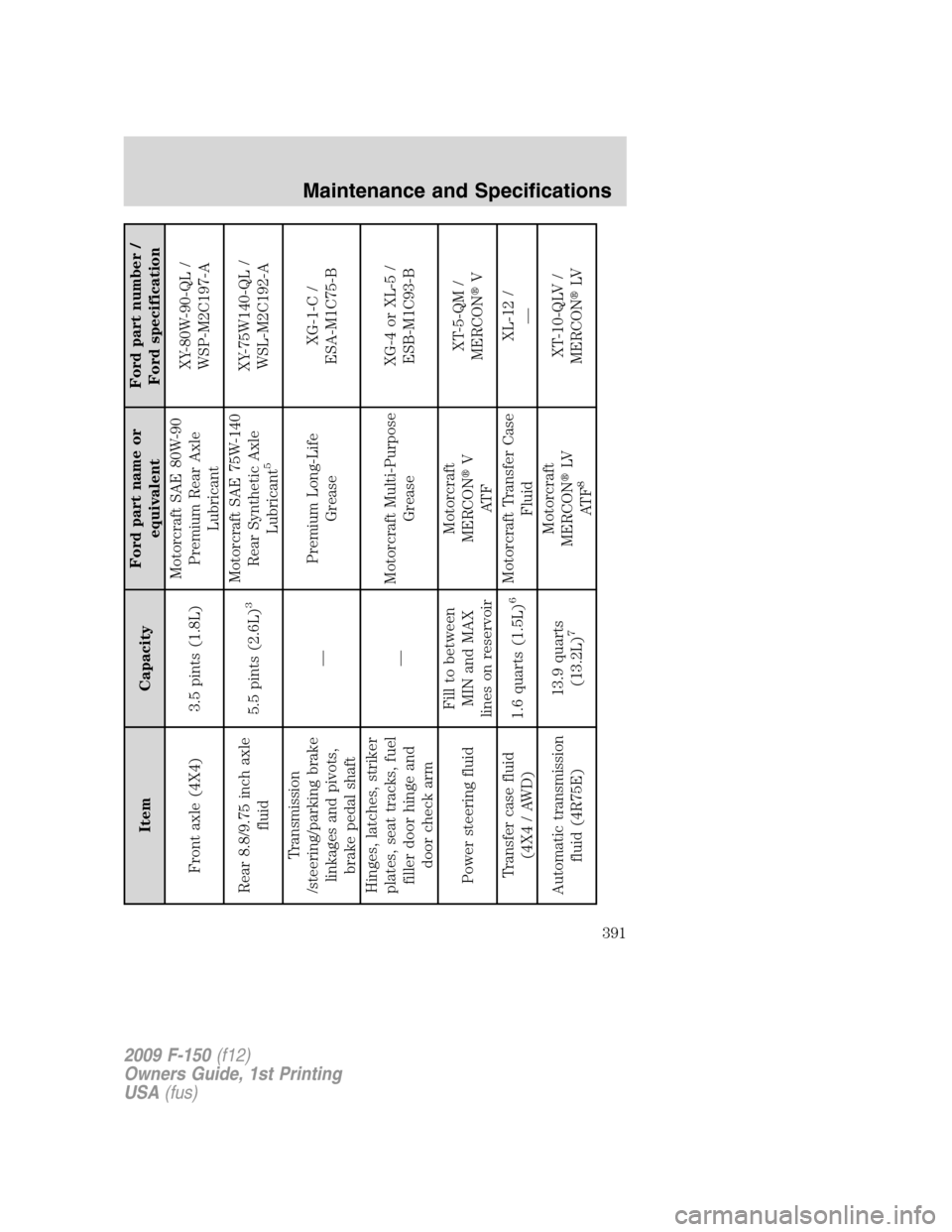

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Front axle (4X4) 3.5 pints (1.8L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W-90-QL /
WSP-M2C197-A
Rear 8.8/9.75 inch axle
fluid5.5 pints (2.6L)
3
Motorcraft SAE 75W-140
Rear Synthetic Axle
Lubricant
5
XY-75W140-QL /
WSL-M2C192-A
Transmission
/steering/parking brake
linkages and pivots,
brake pedal shaft—Premium Long-Life
GreaseXG-1-C /
ESA-M1C75-B
Hinges, latches, striker
plates, seat tracks, fuel
filler door hinge and
door check arm—Motorcraft Multi-Purpose
GreaseXG-4 or XL-5 /
ESB-M1C93-B
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft
MERCONV
AT FXT-5-QM /
MERCONV
Transfer case fluid
(4X4 / AWD)1.6 quarts (1.5L)
6
Motorcraft Transfer Case
FluidXL-12 /
—
Automatic transmission
fluid (4R75E)13.9 quarts
(13.2L)
7
Motorcraft
MERCONLV
AT F
8
XT-10-QLV /
MERCONLV
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
391

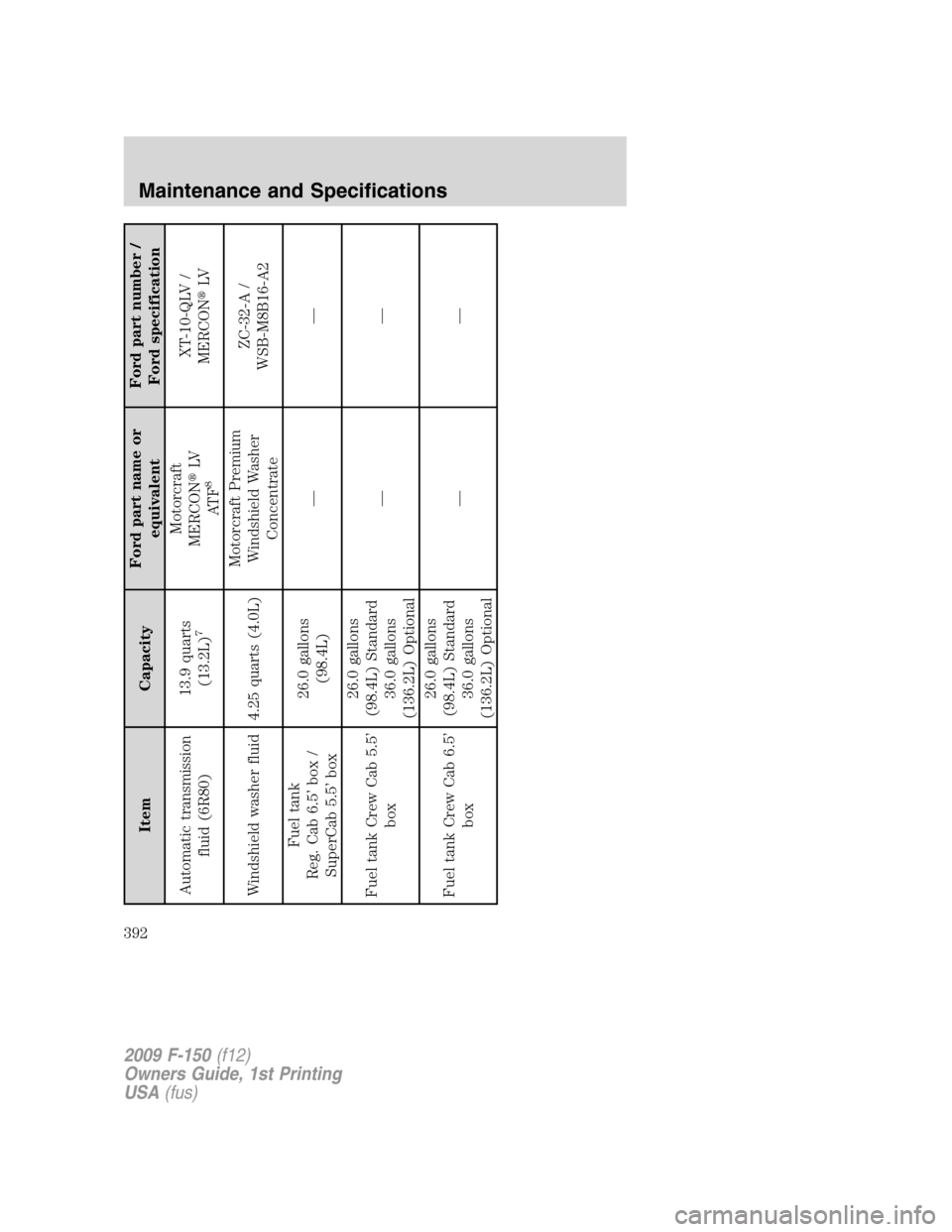

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Automatic transmission
fluid (6R80)13.9 quarts
(13.2L)
7
Motorcraft
MERCONLV
AT F
8
XT-10-QLV /
MERCONLV
Windshield washer fluid 4.25 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank
Reg. Cab 6.5’ box /
SuperCab 5.5’ box26.0 gallons
(98.4L)——
Fuel tank Crew Cab 5.5’
box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Fuel tank Crew Cab 6.5’
box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
392

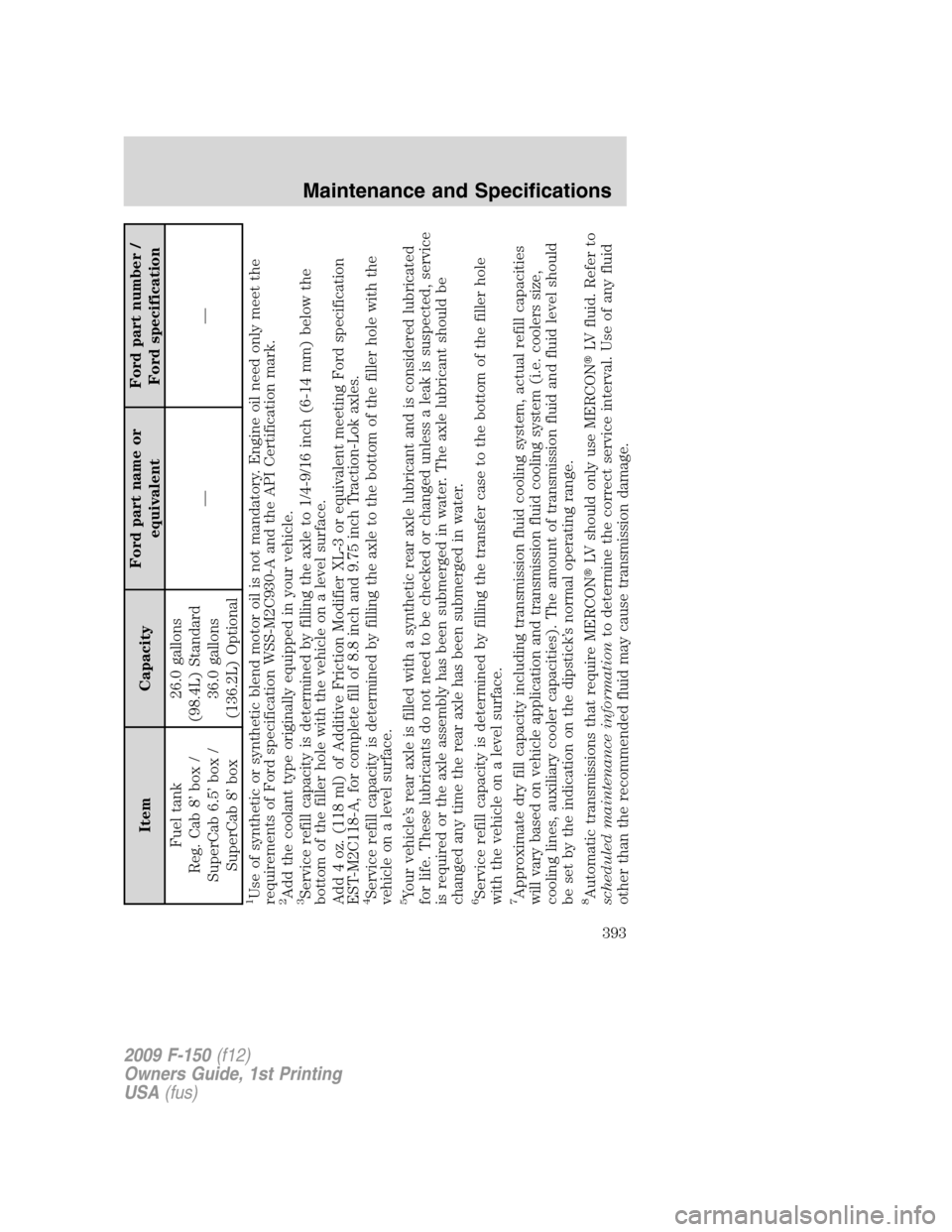

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’ box /
SuperCab 8’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch and 9.75 inch Traction-Lok axles.4Service refill capacity is determined by filling the axle to the bottom of the filler hole with the
vehicle on a level surface.5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.6Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.7Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.8Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
393

ENGINE DATA
Engine4.6L 2V V8
engine4.6L 3V V8
engine5.4L V8 engine
Cubic inches 281 281 330
Required fuel87 octane 87 octane 87 octane or
Ethanol (E85)*
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.052–0.056 inch
(1.32–1.42mm)0.039–0.043 inch
(1.0–1.1mm)0.039–0.043 inch
(1.0–1.1mm)
Compression
ratio9.4:1 9.8:1 9.85:1
*5.4L 3V FFV engines only.
Engine drivebelt routing
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
394

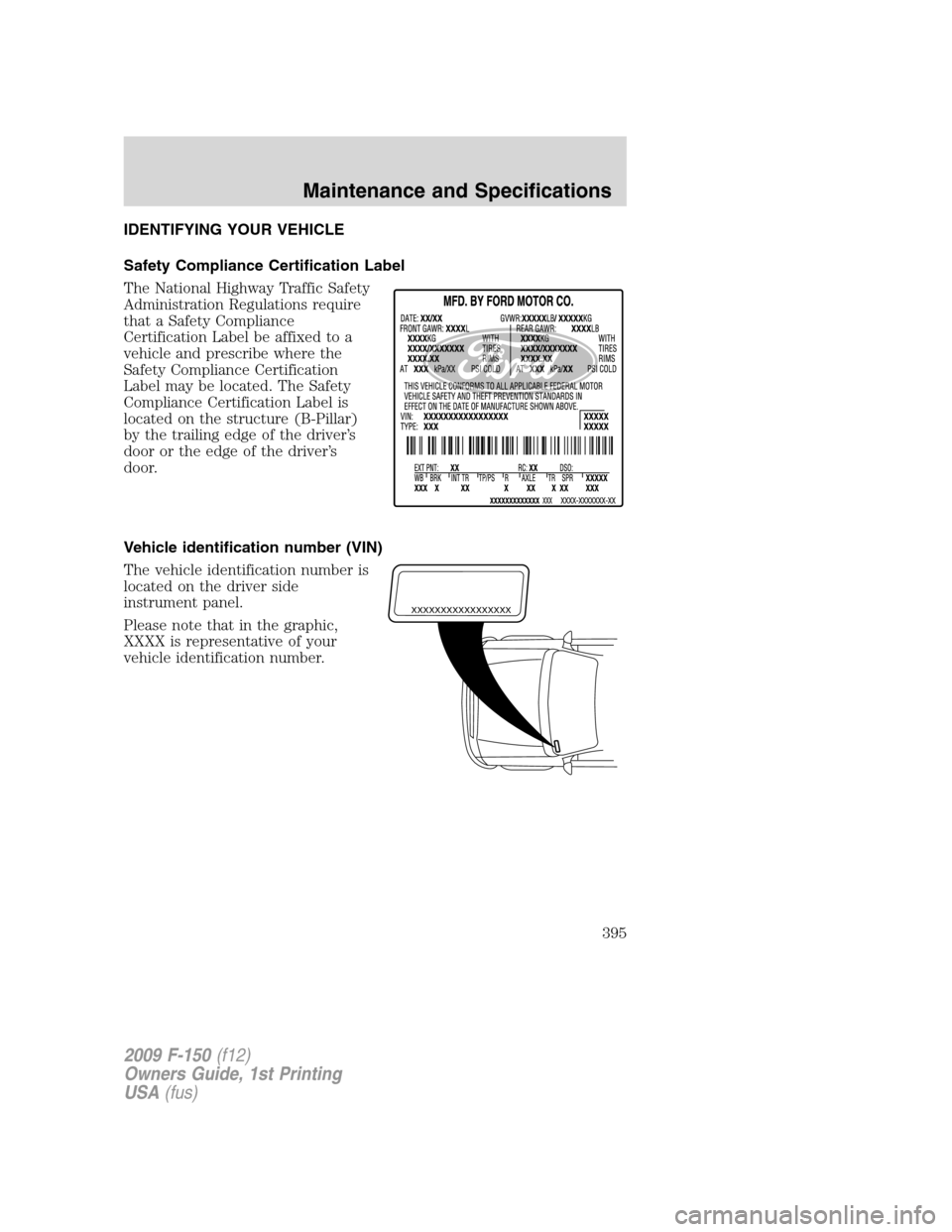

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
395

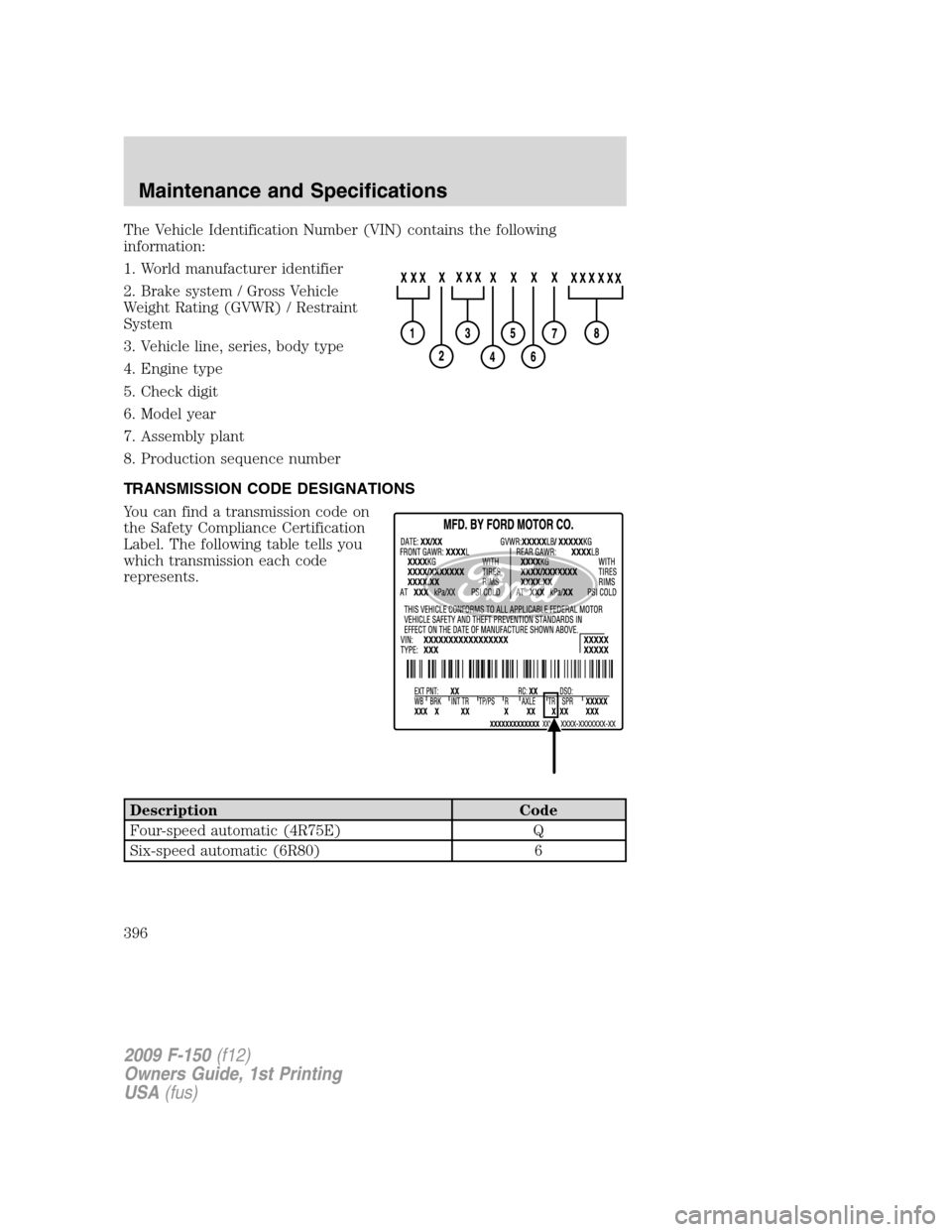

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic (4R75E) Q
Six-speed automatic (6R80) 6
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
396

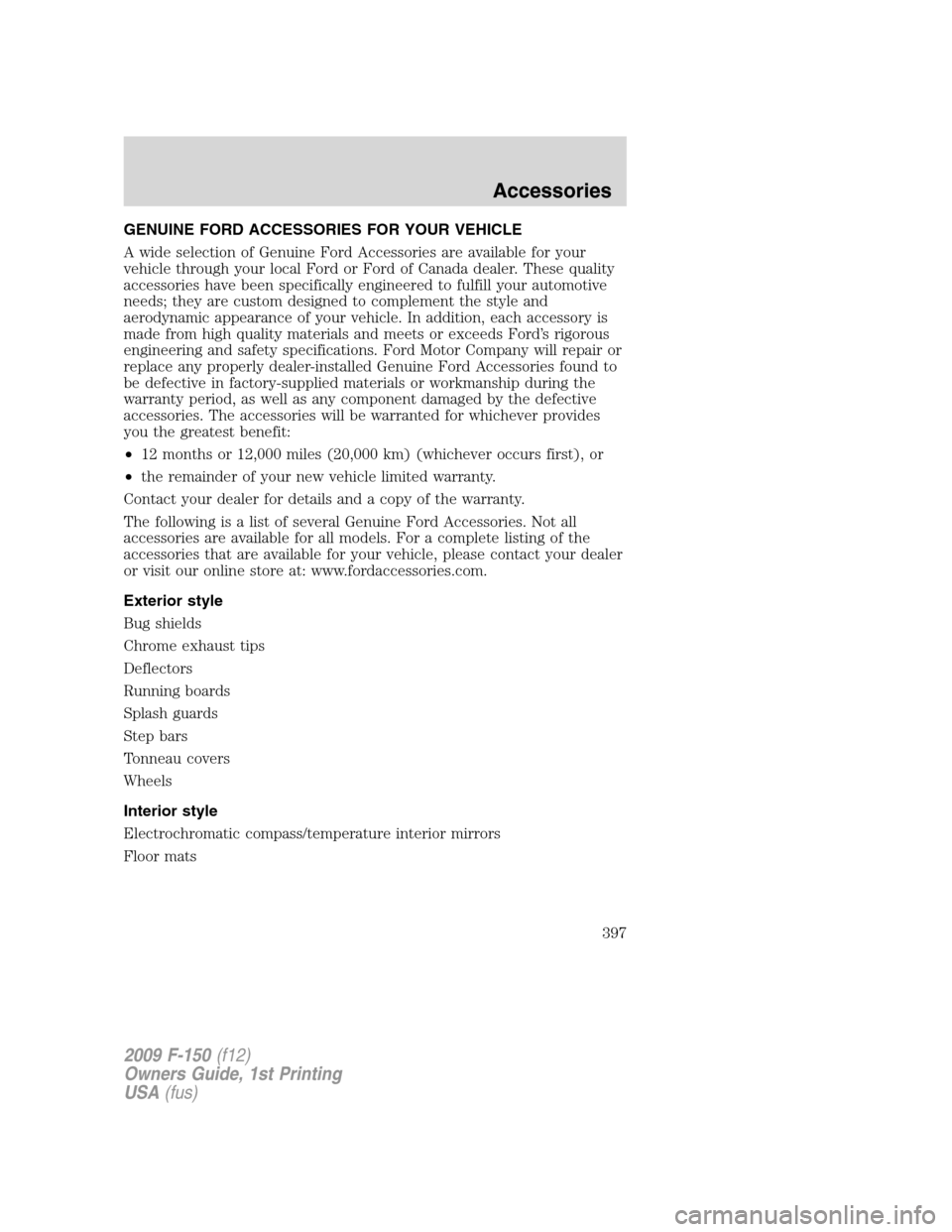

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Running boards
Splash guards
Step bars
Tonneau covers
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Accessories
397

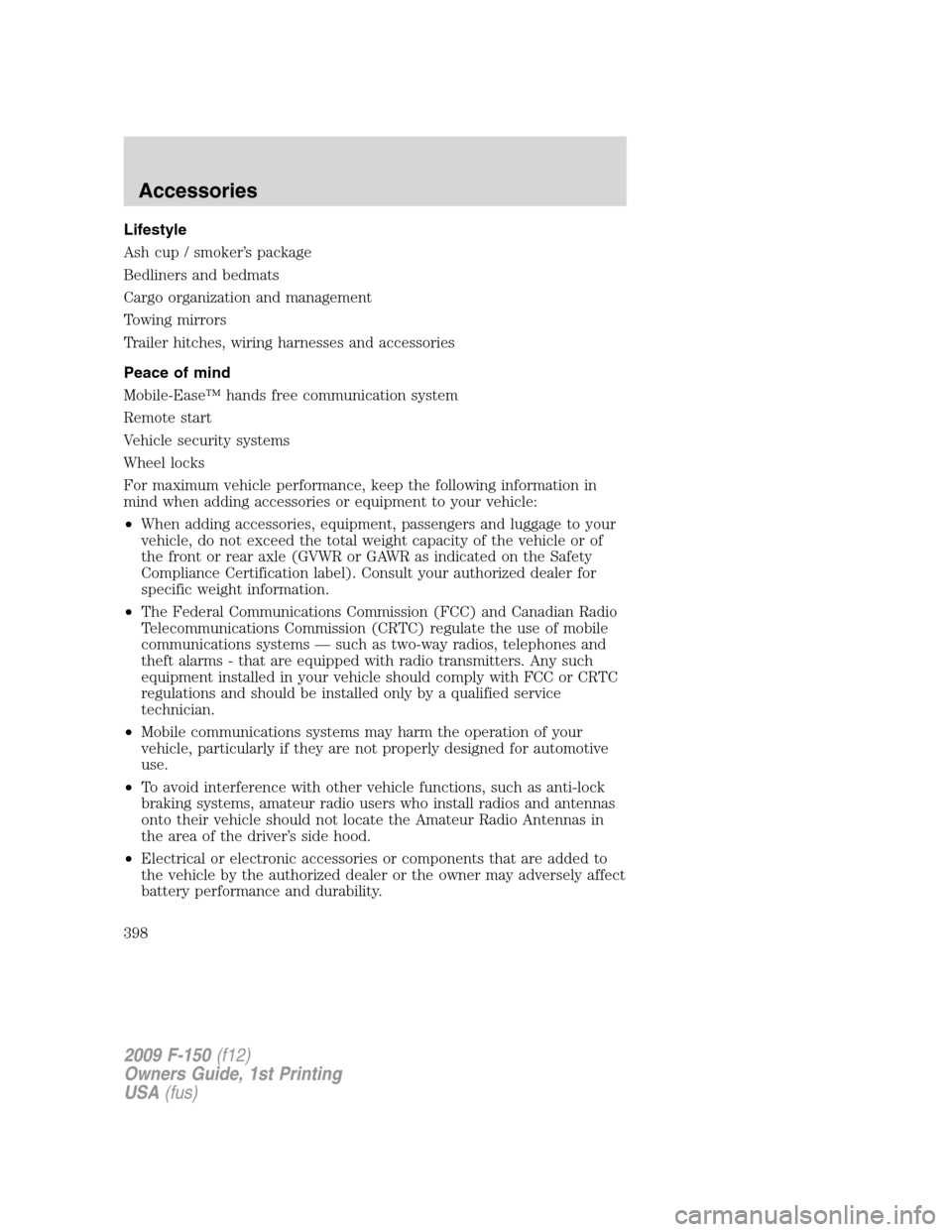

Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-Ease™ hands free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Accessories
398

A
Accessory delay ..........................74
AdvanceTrac ..............................271
Air cleaner filter ...............386, 389
Air conditioning ........41, 44, 46, 49
manual heating and air
conditioning system .................41
Airbag supplemental restraint
system ................178–179, 186, 189
and child safety seats ............180
description ..............179, 186, 189
disposal ....................................192
driver airbag ....179, 181, 187, 190
indicator light .........182, 188, 191
operation .........179, 181, 187, 190
passenger
airbag ...............179, 181, 187, 190
side airbag ...............................186
Ambulance packages ....................7
AM/FM .........................................24
Antifreeze
(see Engine coolant) ................362
Anti-lock brake system
(see Brakes) ..............................269
Anti-theft system ......................140
arming the system ..................141
Armrests ....................................147
Audio system (see Radio) ...22, 24
Automatic transmission
driving an automatic
overdrive .........................283, 286
fluid, adding ....................383, 385
fluid, checking ................383, 385
fluid, refill capacities ..............390
fluid, specification ..................390
Auxiliary input jack (Line in) ....32Axle
lubricant specifications ..........390
refill capacities ........................390
B
Battery .......................................360
acid, treating emergencies .....360
jumping a disabled battery ....328
maintenance-free ....................360
replacement, specifications ...389
servicing ..................................360
Belt-Minder.............................173
deactivating/activating the
Belt-Minder...........................176
Booster seats .............................210
Brakes ........................................269
anti-lock ...................................269
anti-lock brake system (ABS)
warning light ...........................270
fluid, checking and adding ....382
fluid, refill capacities ..............390
fluid, specifications .................390
lubricant specifications ..........390
parking ....................................270
shift interlock ..................278, 281
trailer .......................................254
Bulbs ............................................59
C
Capacities for refilling fluids ....390
Cargo management system ......119
CD ................................................24
Cell phone use ..............................8
Changing a tire .........................319
Child safety seats ......................196
attaching with tether straps ..206
in front seat ....................197, 203
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Index
399

in rear seat ......................197, 203
LATCH .....................................204
recommendations ...................194
Child safety seats - booster
seats ...........................................210
Cleaning your vehicle
engine compartment ..............345
instrument panel ....................347
interior .....................................348
plastic parts ............................346
safety belts ..............................348
washing ....................................343
waxing .....................................344
wheels ......................................344
wiper blades ............................346
Climate control
(see Air conditioning or
Heating) .....................41, 44, 46, 49
Clock adjust
AM/FM .......................................25
AM/FM Stereo ...........................23
Compass, electronic ....................68
calibration .................................69
set zone adjustment .................69
Console ........................................68
overhead ....................................73
Controls
power seat ...............................149
steering column ........................83
Coolant
checking and adding ..............362
refill capacities ................366, 390
specifications ..........................390
Cruise control
(see Speed control) ....................80
Customer Assistance ................309
Ford Extended Service
Plan ..........................................339Getting assistance outside
the U.S. and Canada ..............340
Getting roadside assistance ...309
Getting the service you
need .........................................335
Ordering additional owner’s
literature .................................341
Utilizing the
Mediation/Arbitration
Program ...................................339
D
Daytime running lamps
(see Lamps) ................................56
Defrost
rear window and rearview
mirrors ...........................44, 46, 49
windshield .....................44, 46, 49
Dipstick
automatic transmission
fluid ..................................383, 385
engine oil .................................357
Driving under special
conditions ..................289, 300, 303
sand .........................................301
snow and ice ...........................304
through water .................302, 305
E
Electronic message
center ...................................89, 100
Emergencies, roadside
jump-starting ..........................328
running out of fuel .........328, 374
Emission control system ..........379
Engine ........................................394
cleaning ...................................345
coolant .....................................362
2009 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
Index
400
