FORD F150 2012 12.G Owners Manual

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 15A Interior lighting, Puddle lamps,
Backlighting, Cargo lamp
13 15A Right turn signals/stop lamps
14 15A Left turn signals/stop lamps
15 15A Reverse lights, High-mounted stop
lamp
16 10A Right low-beam headlamp
17 10A Left low-beam headlamp
18 10A Brake-shift interlock, Keypad
illumination, PCM wakeup, PATS
19 20A Audio amplifier
20 20A Power door locks
21 10A Ambient lighting
22 20A Horn
23 15A Steering wheel control module
24 15A Datalink connector, Steering
wheel control module
25 15A Not used (spare)
26 5A Radio frequency module
27 20A Not used (spare)
28 15A Ignition switch
29 20A Radio/Navigation
30 15A Front parking lamps
31 5A BOO – IP, BOO – Engine
32 15A Delay/accessory – moon roof,
power windows, locks, Automatic
dimming mirror/Compass
33 10A Heated seats
34 10A Reverse sensing system, 4x4
switch, Rear video, Off road
indicator (SVT Raptor)
35 5A Hill descent switch (SVT Raptor)
Roadside Emergencies
331
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
36 10A Restraint control module,
Occupant classification system
module
37 10A Trailer brake control
38 10A Delayed accessory – 110V power
point, Radio (AM/FM)
39 15A High beam headlamps
40 10A Rear park lamps
41 7.5A Passenger airbag deactivation
indicator, Upfitter switch (SVT
Raptor)
42 5A Overdrive cancel switch
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate controls module
47 15A Fog lamps, Exterior mirror turn
signals
48 30A Circuit
BreakerPower rear windows, Power
sliding back window
49 Relay Delayed accessory
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
Roadside Emergencies
332
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

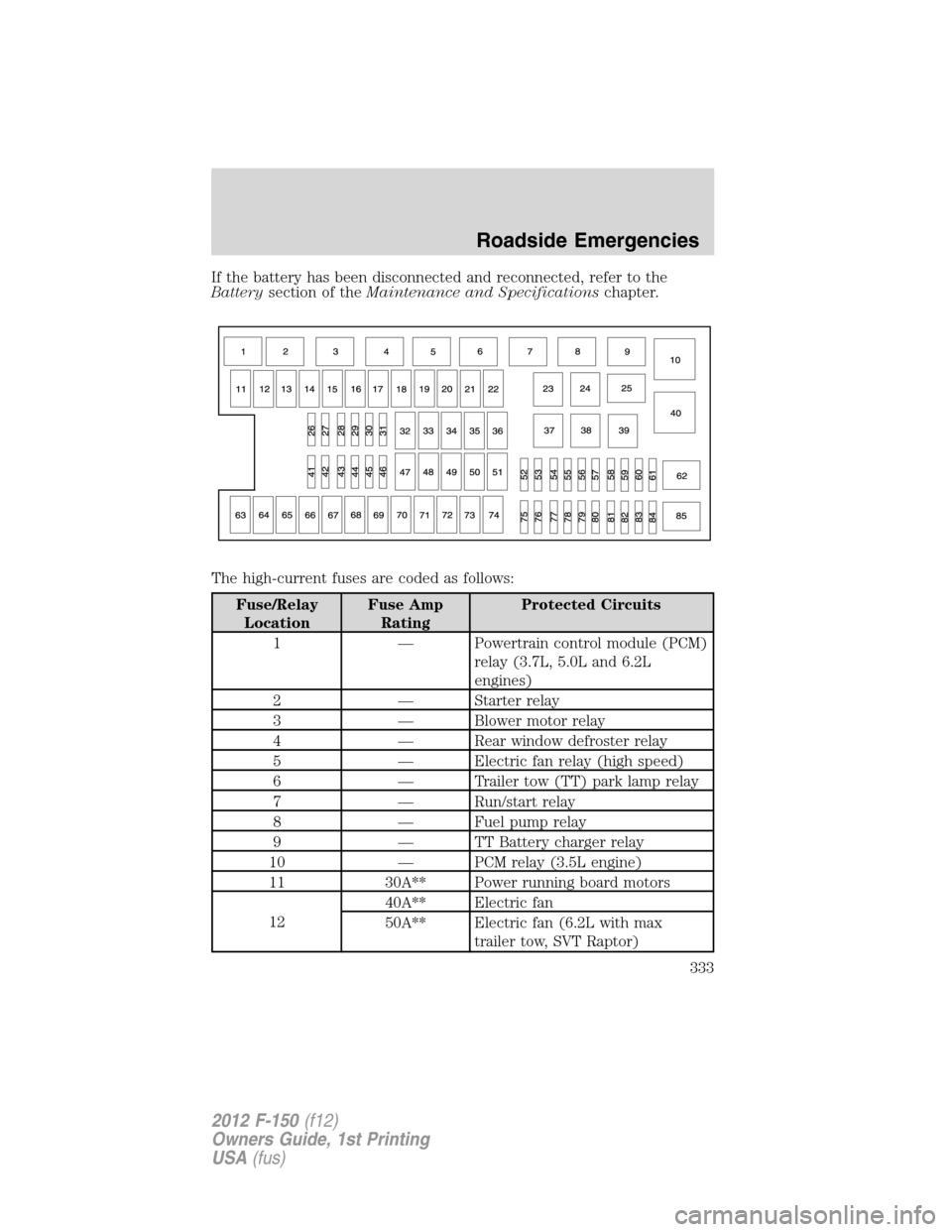

If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 — Powertrain control module (PCM)
relay (3.7L, 5.0L and 6.2L
engines)
2 — Starter relay
3 — Blower motor relay
4 — Rear window defroster relay
5 — Electric fan relay (high speed)
6 — Trailer tow (TT) park lamp relay
7 — Run/start relay
8 — Fuel pump relay
9 — TT Battery charger relay
10 — PCM relay (3.5L engine)
11 30A** Power running board motors
1240A** Electric fan
50A** Electric fan (6.2L with max
trailer tow, SVT Raptor)
Roadside Emergencies
333
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

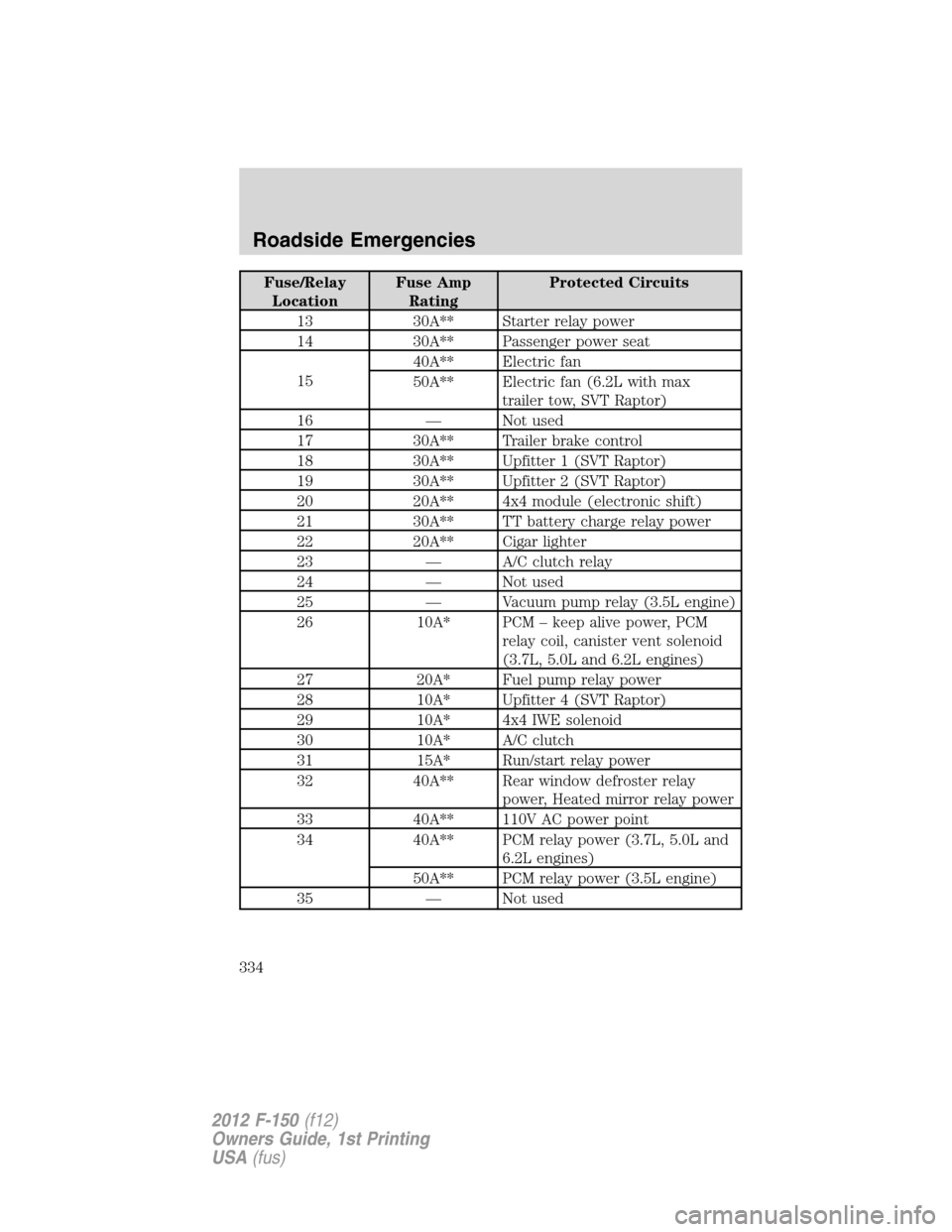

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
13 30A** Starter relay power
14 30A** Passenger power seat
1540A** Electric fan
50A** Electric fan (6.2L with max
trailer tow, SVT Raptor)
16 — Not used
17 30A** Trailer brake control
18 30A** Upfitter 1 (SVT Raptor)
19 30A** Upfitter 2 (SVT Raptor)
20 20A** 4x4 module (electronic shift)
21 30A** TT battery charge relay power
22 20A** Cigar lighter
23 — A/C clutch relay
24 — Not used
25 — Vacuum pump relay (3.5L engine)
26 10A* PCM – keep alive power, PCM
relay coil, canister vent solenoid
(3.7L, 5.0L and 6.2L engines)
27 20A* Fuel pump relay power
28 10A* Upfitter 4 (SVT Raptor)
29 10A* 4x4 IWE solenoid
30 10A* A/C clutch
31 15A* Run/start relay power
32 40A** Rear window defroster relay
power, Heated mirror relay power
33 40A** 110V AC power point
34 40A** PCM relay power (3.7L, 5.0L and
6.2L engines)
50A** PCM relay power (3.5L engine)
35 — Not used
Roadside Emergencies
334
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

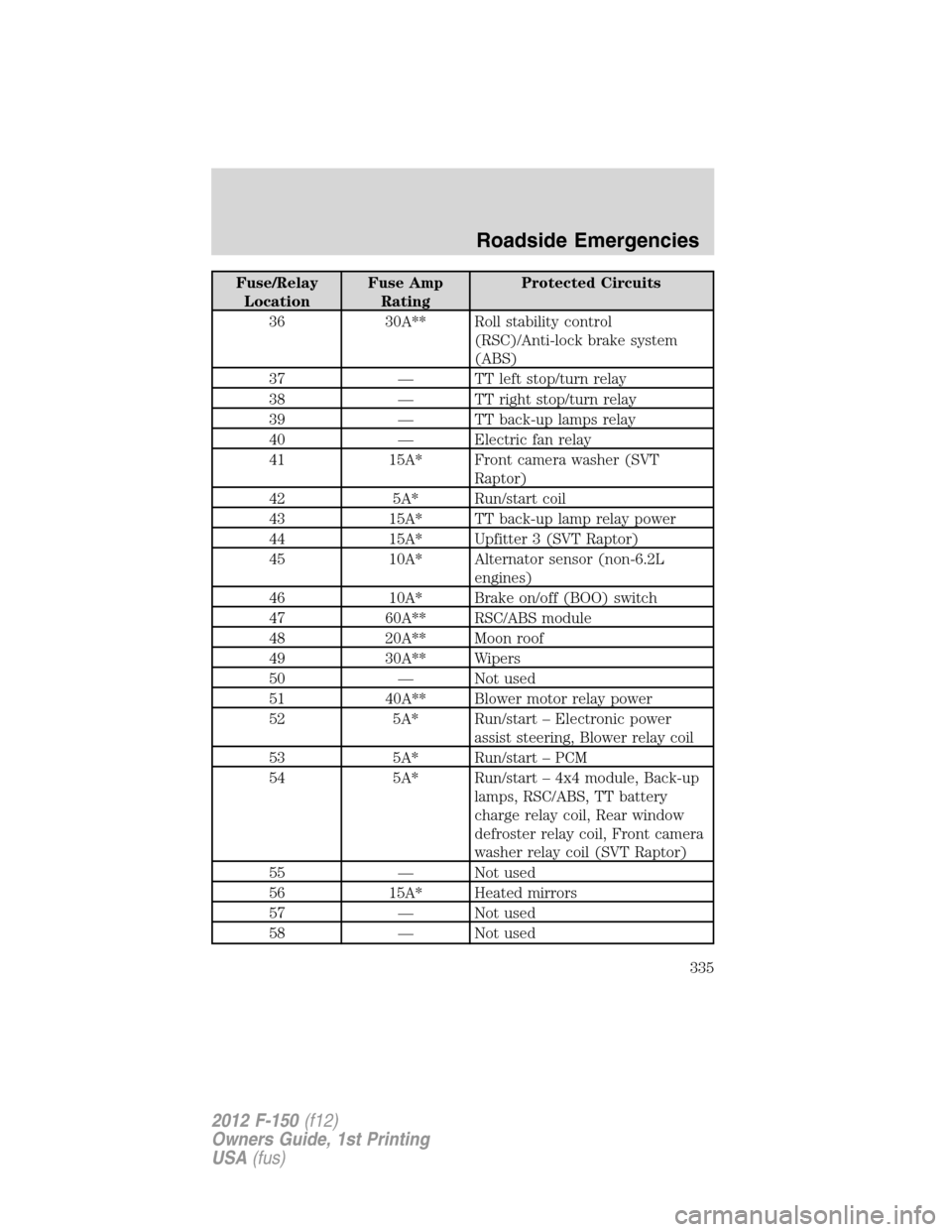

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
36 30A** Roll stability control
(RSC)/Anti-lock brake system
(ABS)
37 — TT left stop/turn relay
38 — TT right stop/turn relay
39 — TT back-up lamps relay
40 — Electric fan relay
41 15A* Front camera washer (SVT
Raptor)
42 5A* Run/start coil
43 15A* TT back-up lamp relay power
44 15A* Upfitter 3 (SVT Raptor)
45 10A* Alternator sensor (non-6.2L
engines)
46 10A* Brake on/off (BOO) switch
47 60A** RSC/ABS module
48 20A** Moon roof
49 30A** Wipers
50 — Not used
51 40A** Blower motor relay power
52 5A* Run/start – Electronic power
assist steering, Blower relay coil
53 5A* Run/start – PCM
54 5A* Run/start – 4x4 module, Back-up
lamps, RSC/ABS, TT battery
charge relay coil, Rear window
defroster relay coil, Front camera
washer relay coil (SVT Raptor)
55 — Not used
56 15A* Heated mirrors
57 — Not used
58 — Not used
Roadside Emergencies
335
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

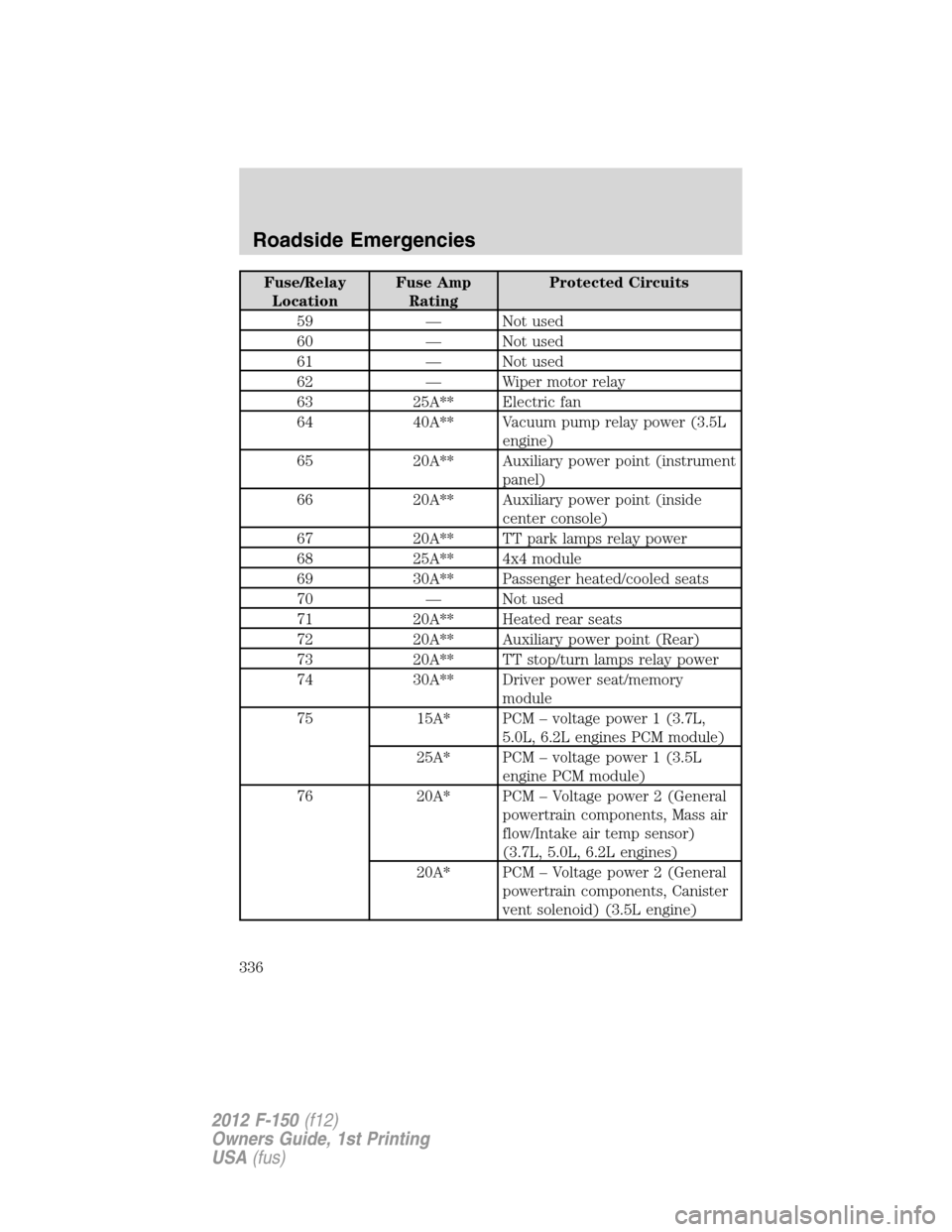

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
59 — Not used
60 — Not used
61 — Not used
62 — Wiper motor relay
63 25A** Electric fan
64 40A** Vacuum pump relay power (3.5L
engine)
65 20A** Auxiliary power point (instrument
panel)
66 20A** Auxiliary power point (inside
center console)
67 20A** TT park lamps relay power
68 25A** 4x4 module
69 30A** Passenger heated/cooled seats
70 — Not used
71 20A** Heated rear seats
72 20A** Auxiliary power point (Rear)
73 20A** TT stop/turn lamps relay power
74 30A** Driver power seat/memory
module
75 15A* PCM – voltage power 1 (3.7L,
5.0L, 6.2L engines PCM module)
25A* PCM – voltage power 1 (3.5L
engine PCM module)
76 20A* PCM – Voltage power 2 (General
powertrain components, Mass air
flow/Intake air temp sensor)
(3.7L, 5.0L, 6.2L engines)
20A* PCM – Voltage power 2 (General
powertrain components, Canister
vent solenoid) (3.5L engine)
Roadside Emergencies
336
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
77 10A* PCM – Voltage power 3 (Emission
related powertrain components,
Electric fan relays coil)
78 15A* PCM – Voltage power4–Ignition
coils (3.5L, 3.7L, 5.0L engines)
20A* PCM – Voltage power4–Ignition
coils (6.2L engine)
79 5A* Rain sensor
80 — Not used
81 — Not used
82 — Not used
83 — Not used
84 — Not used
85 — Electric fan relay (low speed)
*Mini fuse **Cartridge fuse

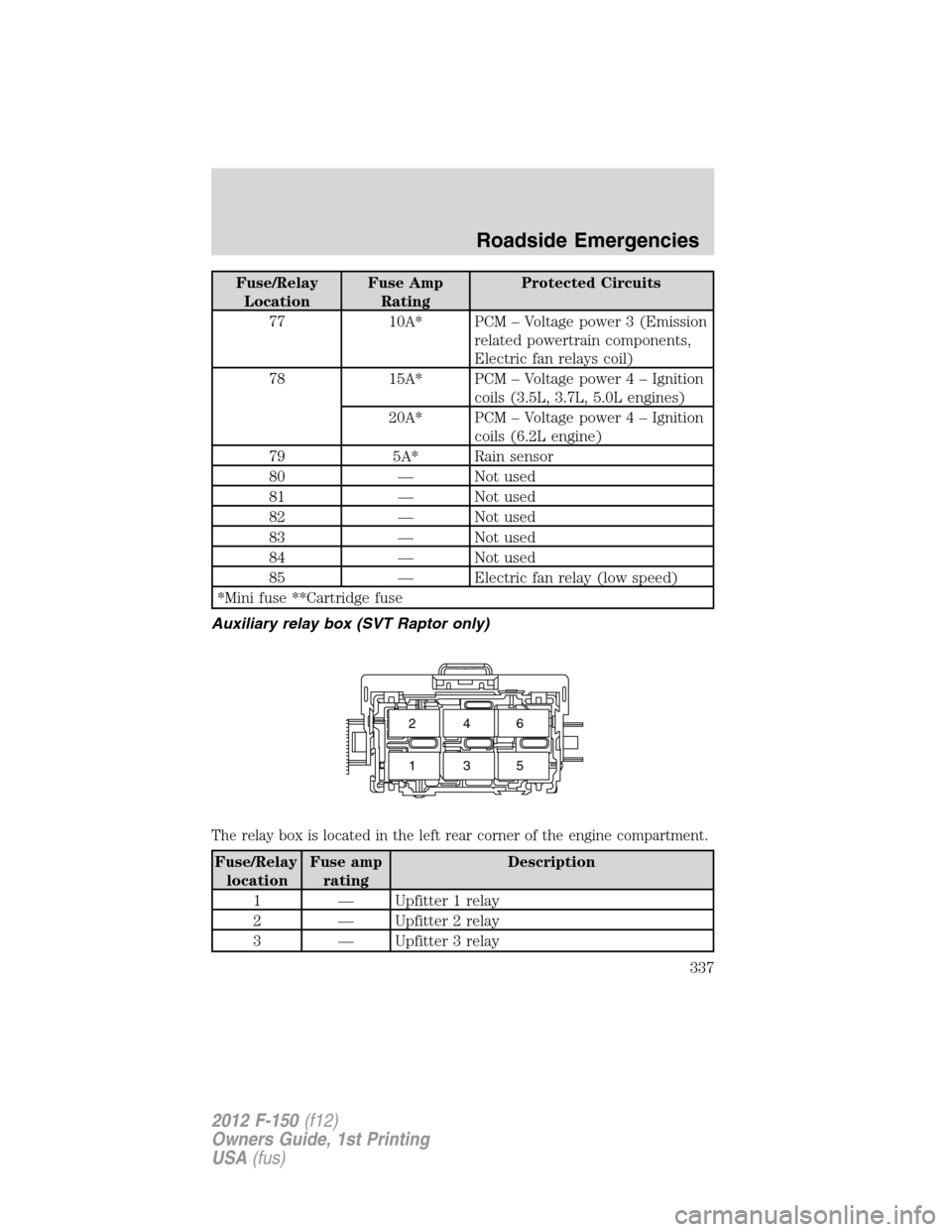

Auxiliary relay box (SVT Raptor only)
The relay box is located in the left rear corner of the engine compartment.
Fuse/Relay
locationFuse amp
ratingDescription
1 — Upfitter 1 relay
2 — Upfitter 2 relay
3 — Upfitter 3 relay
246
135
Roadside Emergencies
337
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
locationFuse amp
ratingDescription
4 — Upfitter 4 relay
5 — Front camera washer relay
6 — Not used

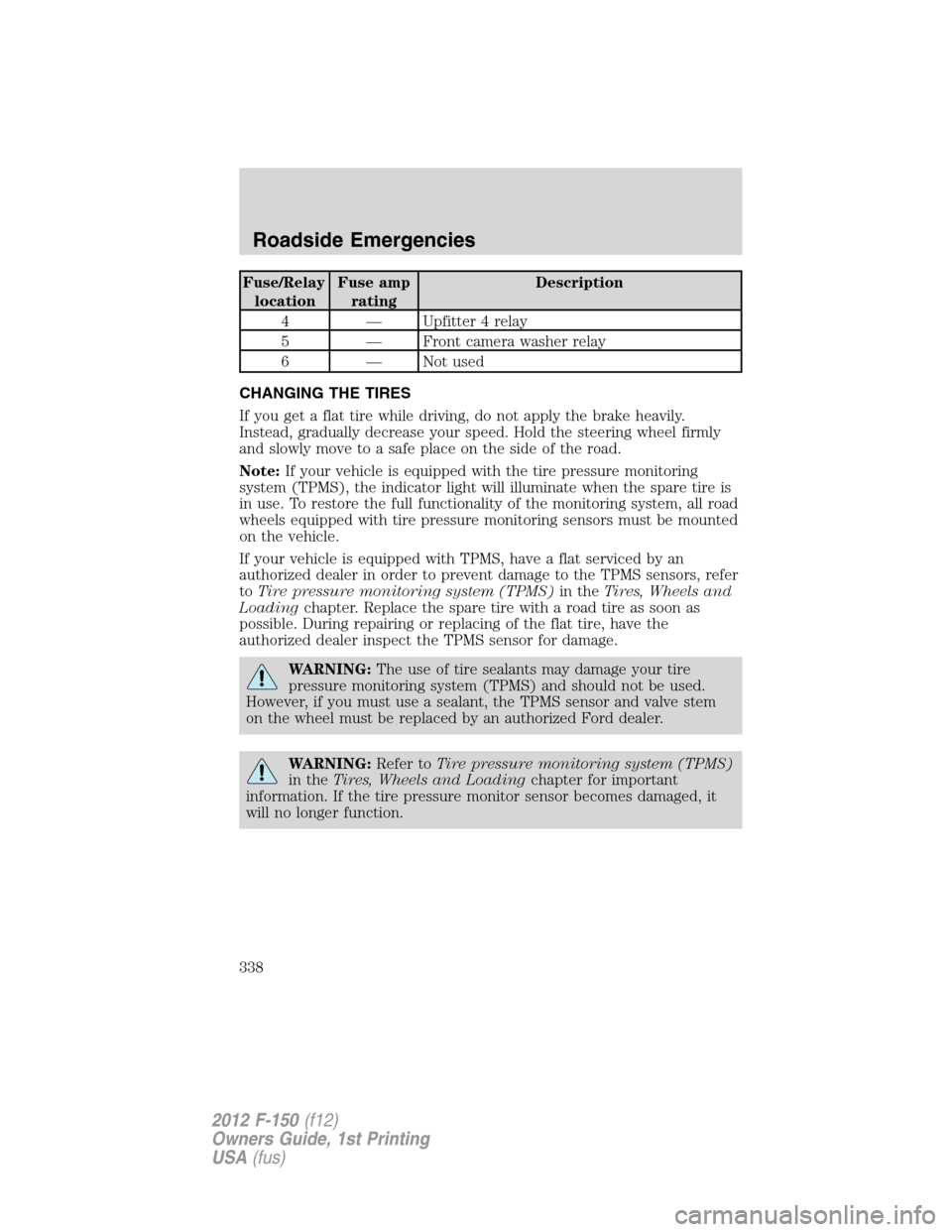

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:If your vehicle is equipped with the tire pressure monitoring
system (TPMS), the indicator light will illuminate when the spare tire is
in use. To restore the full functionality of the monitoring system, all road
wheels equipped with tire pressure monitoring sensors must be mounted
on the vehicle.
If your vehicle is equipped with TPMS, have a flat serviced by an
authorized dealer in order to prevent damage to the TPMS sensors, refer
toTire pressure monitoring system (TPMS)in theTires, Wheels and
Loadingchapter. Replace the spare tire with a road tire as soon as
possible. During repairing or replacing of the flat tire, have the
authorized dealer inspect the TPMS sensor for damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Roadside Emergencies
338
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

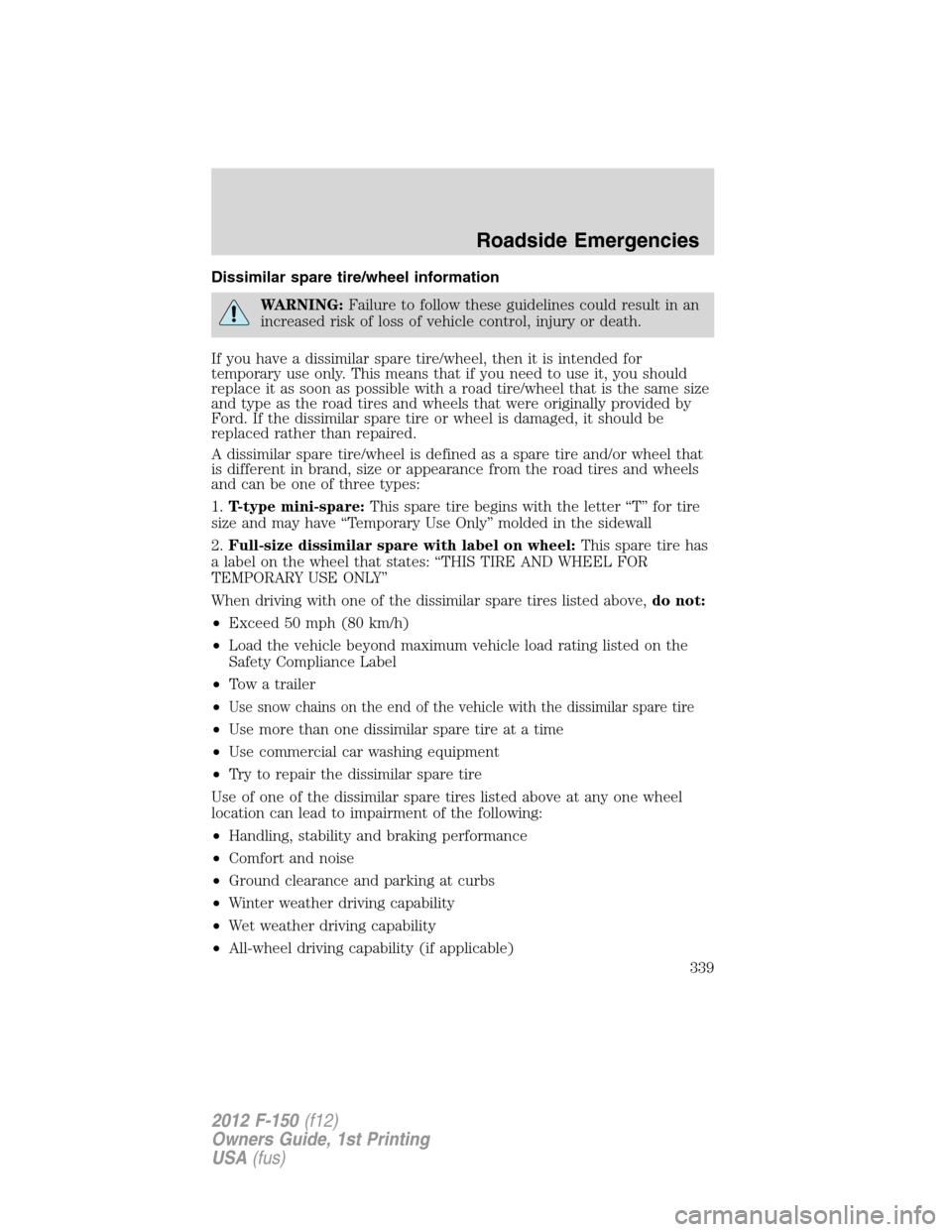

Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•
Use snow chains on the end of the vehicle with the dissimilar spare tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
Roadside Emergencies
339
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

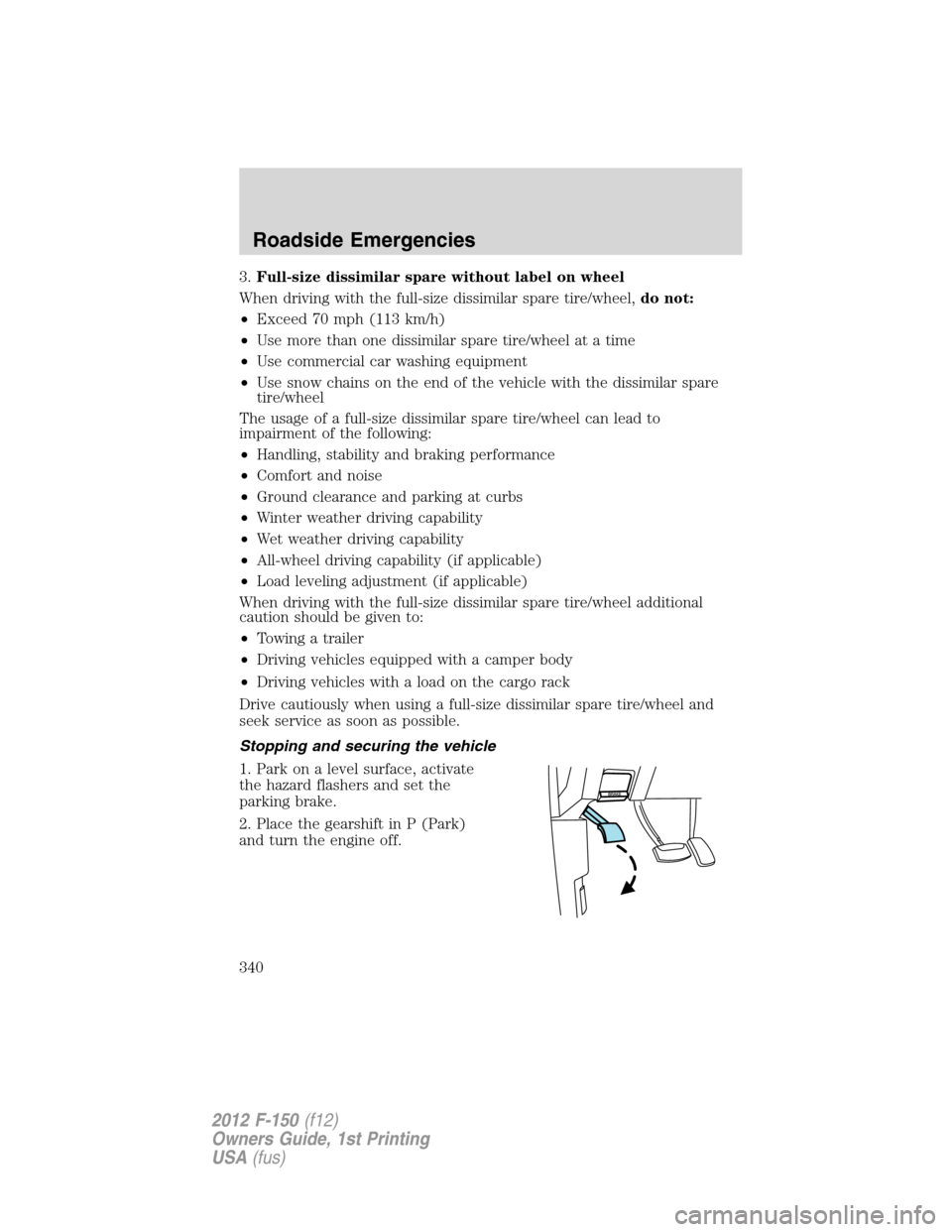

3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
•Towing a trailer
•Driving vehicles equipped with a camper body
•Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
Stopping and securing the vehicle
1. Park on a level surface, activate
the hazard flashers and set the
parking brake.
2. Place the gearshift in P (Park)
and turn the engine off.
Roadside Emergencies
340
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
