COAST DOWN MODE (if equipped)— Displayed when vehicle
enters coast down mode.
UPLEVEL MESSAGE CENTER (IF EQUIPPED)
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with informational messages and/or warnings.
The message center is also used to program/configure the different
features of your vehicle.
The message center display is located in the instrument cluster. Use the
steering wheel mounted buttons to navigate through the message center.
Press the up/down buttons to move
up/down through the message
center choices.
Press the left/right buttons to move
left/right through the message
center choices.
Press the OK button to select
highlighted options and confirm
choices/messages.
Instrument Cluster
31
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

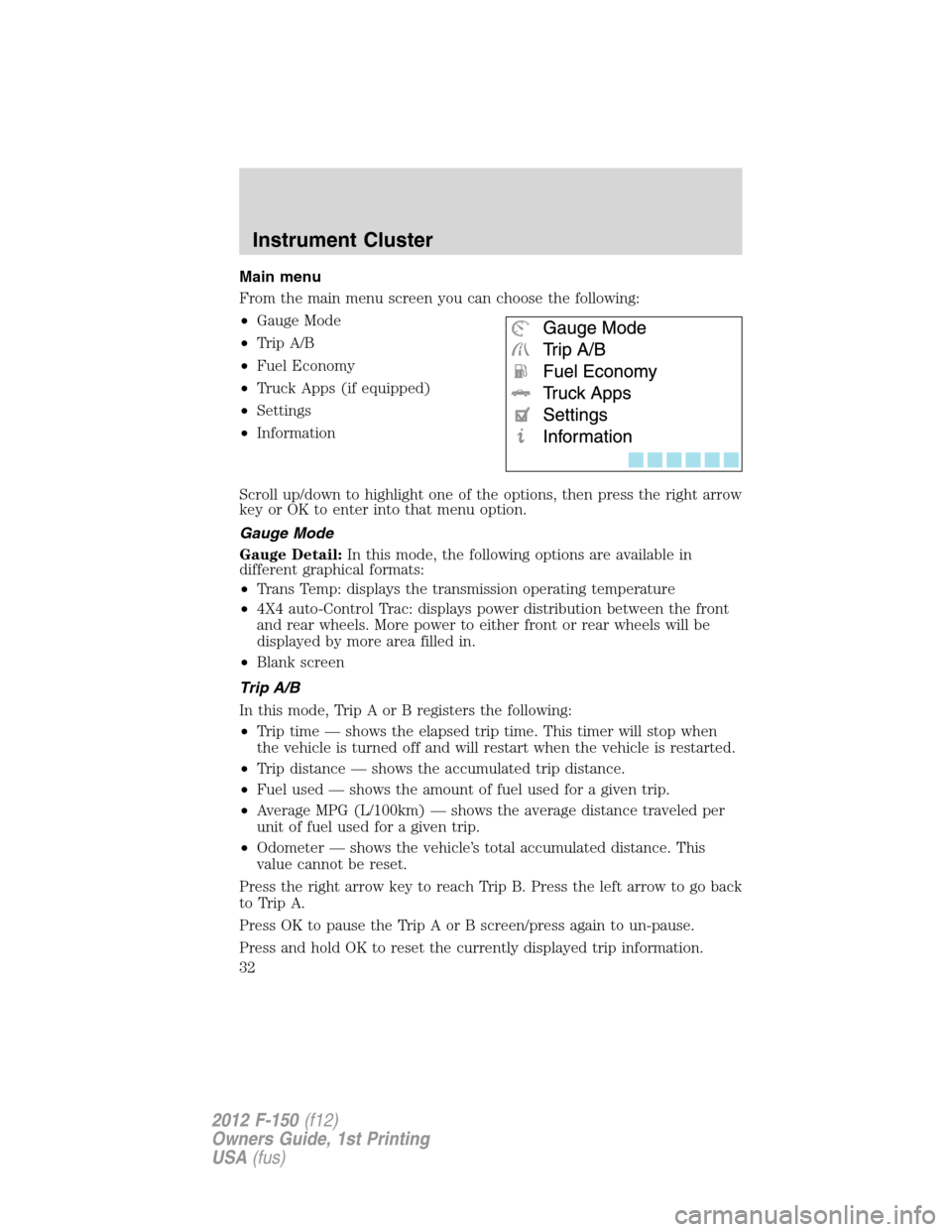

Main menu
From the main menu screen you can choose the following:
•Gauge Mode
•Trip A/B
•Fuel Economy
•Truck Apps (if equipped)
•Settings
•Information
Scroll up/down to highlight one of the options, then press the right arrow
key or OK to enter into that menu option.
Gauge Mode
Gauge Detail:In this mode, the following options are available in
different graphical formats:
•Trans Temp: displays the transmission operating temperature
•4X4 auto-Control Trac: displays power distribution between the front
and rear wheels. More power to either front or rear wheels will be
displayed by more area filled in.
•Blank screen
Trip A/B
In this mode, Trip A or B registers the following:
•Trip time — shows the elapsed trip time. This timer will stop when
the vehicle is turned off and will restart when the vehicle is restarted.
•Trip distance — shows the accumulated trip distance.
•Fuel used — shows the amount of fuel used for a given trip.
•Average MPG (L/100km) — shows the average distance traveled per
unit of fuel used for a given trip.
•Odometer — shows the vehicle’s total accumulated distance. This
value cannot be reset.
Press the right arrow key to reach Trip B. Press the left arrow to go back
to Trip A.
Press OK to pause the Trip A or B screen/press again to un-pause.
Press and hold OK to reset the currently displayed trip information.
Instrument Cluster
32
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

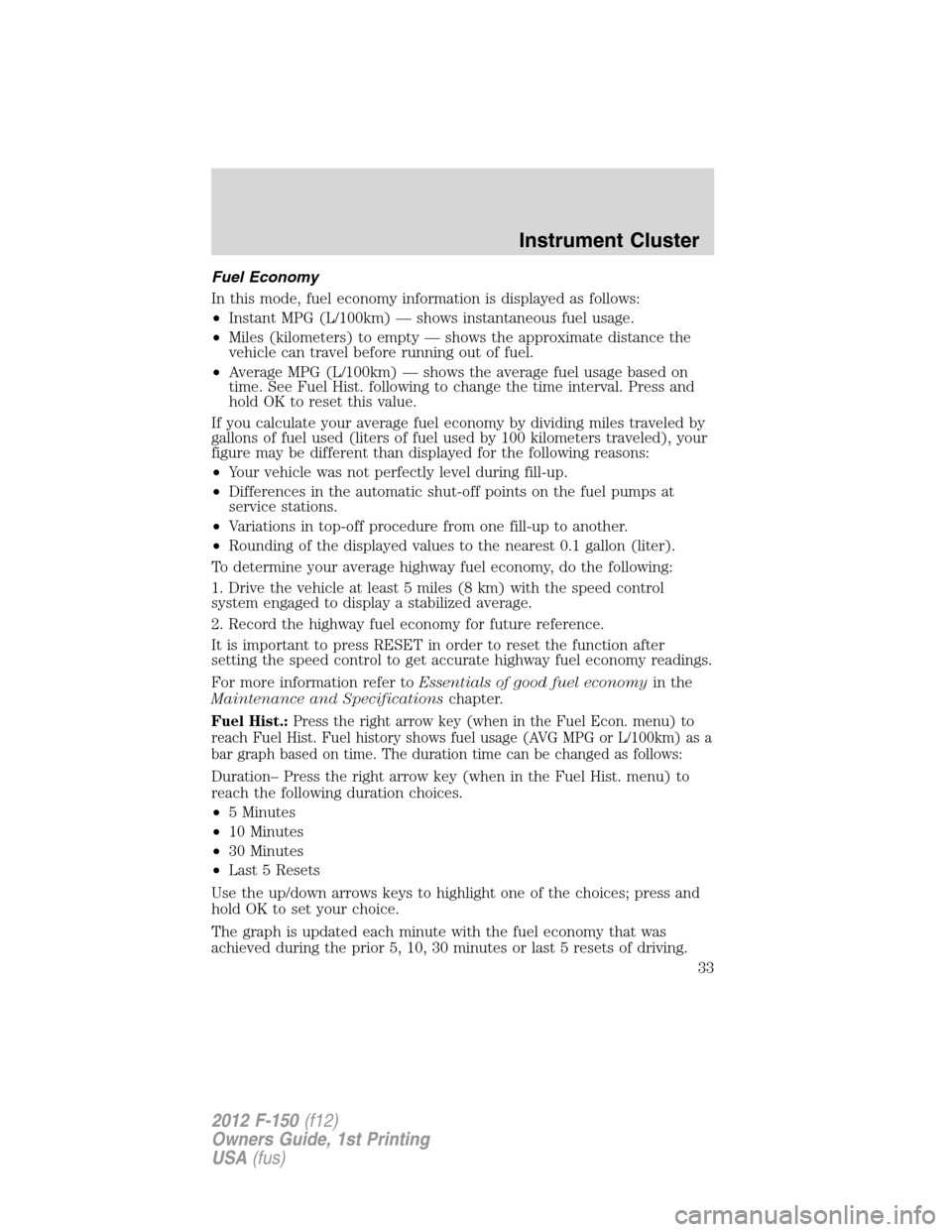

Fuel Economy
In this mode, fuel economy information is displayed as follows:
•Instant MPG (L/100km) — shows instantaneous fuel usage.
•Miles (kilometers) to empty — shows the approximate distance the
vehicle can travel before running out of fuel.
•Average MPG (L/100km) — shows the average fuel usage based on
time. See Fuel Hist. following to change the time interval. Press and
hold OK to reset this value.
If you calculate your average fuel economy by dividing miles traveled by
gallons of fuel used (liters of fuel used by 100 kilometers traveled), your
figure may be different than displayed for the following reasons:
•Your vehicle was not perfectly level during fill-up.
•Differences in the automatic shut-off points on the fuel pumps at
service stations.
•Variations in top-off procedure from one fill-up to another.
•Rounding of the displayed values to the nearest 0.1 gallon (liter).
To determine your average highway fuel economy, do the following:
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press RESET in order to reset the function after
setting the speed control to get accurate highway fuel economy readings.
For more information refer toEssentials of good fuel economyin the
Maintenance and Specificationschapter.
Fuel Hist.:Press the right arrow key (when in the Fuel Econ. menu) to
reach Fuel Hist. Fuel history shows fuel usage (AVG MPG or L/100km) as a
bar graph based on time. The duration time can be changed as follows:
Duration– Press the right arrow key (when in the Fuel Hist. menu) to
reach the following duration choices.
•5 Minutes
•10 Minutes
•30 Minutes
•Last 5 Resets
Use the up/down arrows keys to highlight one of the choices; press and
hold OK to set your choice.
The graph is updated each minute with the fuel economy that was
achieved during the prior 5, 10, 30 minutes or last 5 resets of driving.
Instrument Cluster
33
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Truck Apps (if equipped)
In this mode, off-road information depicted with graphics and trailer
towing application options are available.
*Off Road
Pitch and bank angle (in degrees): Displays the pitch angle (front to rear) and
bank angle (side to side) of the road surface.
Steering angle (in degrees): Displays the steering angle of the front wheels
after the vehicle has been driven for a period of time.
Differential lock/unlock: Displays the state (locked or unlocked) of the
electronic locking differential.
Torque flow: Displays the torque flow to the front and rear driveline and
operating mode of the transfer case: 4X2, 4X4 High, 4X4 Low, 4X4 Auto.
AdvanceTracmode, hill descent control, off-road mode, off-road camera:
Displays which modes are active.
Press OK for Info 4X4 System
AdvanceTrac
4X4 Auto
ELD (Electronic Locking Differential)
Hill Descent Control
Off-Road Mode
Off-Road Camera
*Off Road Camera
Camera Disabled /
EnabledPress OK to Enable /Disable
* If equipped—your vehicle may be equipped with some or all of these
options.
*Trailer:
Trailer disconnected. Disregard this status if your vehicle is not equipped with a
factory installed trailer brake controller. This message may appear when an
aftermarket TBC is used even when the trailer is connected.
Active trailer name or default trailer
Accumulated trailer distance
Trailer gain and output
Press OK
for optionsOptions
Instrument Cluster
34
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

*Trailer:
Change Active
TrailerWhen this is highlighted, press the right arrow key to
change the currently selected trailer. Use the up and
down arrows to select a trailer and press the OK
button to choose the highlighted trailer.
Adding a new trailer– Use the up/down arrows to
highlight “New Trailer” from the Change Active Trailer
menu and press the right arrow key to enter the New
Trailer input screen. Use the up/down arrow keys to
choose alpha, numeric and symbol characters and then
press the right arrow to move the character space over.
Continue adding characters as needed. Press the left
arrow to go back and change a previously selected
character. When finished with the new trailer name,
press OK to accept the new trailer name.
Connection
Checklist (if
equipped)Press the right arrow button when this is highlighted
to show the trailer connection types: Conventional,
Fifth Wheel and Gooseneck. Use the up/down arrows
to highlight one of these choices and press OK to
display the connection checklist. Follow the on-screen
instructions to go through the connections list.
Delete Trailer Press the right arrow button when this is highlighted
to show currently stored trailers. Use the up/down
arrows to highlight the trailer you want to delete and
press OK to delete. Follow the on-screen prompts to
exit or confirm delete.
Information
ScreenPress the right arrow button when this is highlighted
to display information on the following vehicle features:
Tow Haul mode, Trailer Brake Controller.
Rename Trailer Press the right arrow button when this is highlighted
to display saved or default trailers. Use the up/down
buttons to highlight a trailer and press OK to select it.
Use the up/down arrow buttons to change the
characters as needed. When done, press OK to accept
the change.
Reset Trailer
Mileage /
Kilometers (if
equipped)Press the right arrow button when this is highlighted
to display accumulated distance on a given trailer
within the list of trailer(s). Use the up/down buttons to
select a trailer, then press and hold OK to reset the
trailer mileage (kilometers).
* If equipped—your vehicle may be equipped with some or all of these
options.
Instrument Cluster
35
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

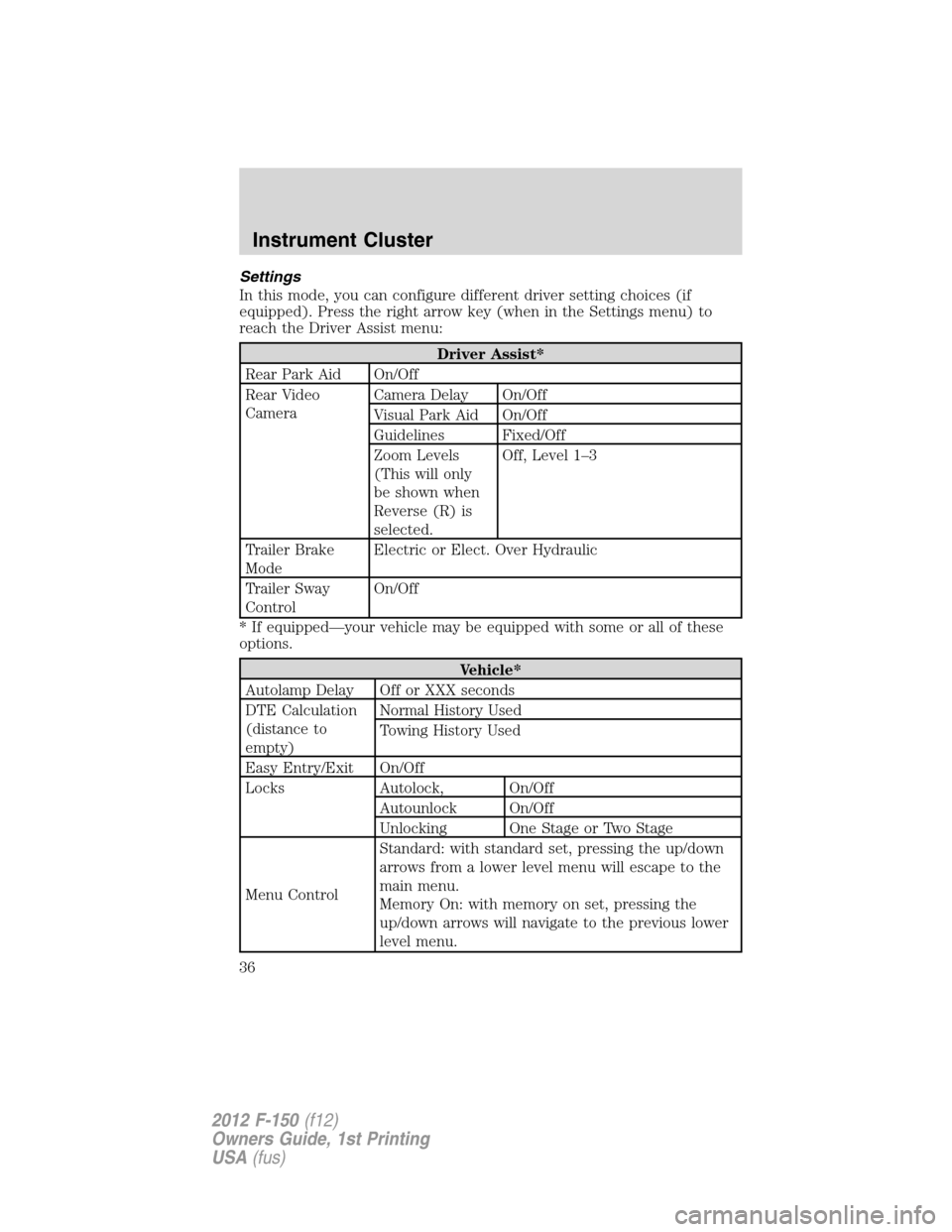

Settings
In this mode, you can configure different driver setting choices (if
equipped). Press the right arrow key (when in the Settings menu) to
reach the Driver Assist menu:
Driver Assist*
Rear Park Aid On/Off
Rear Video
CameraCamera Delay On/Off
Visual Park Aid On/Off
Guidelines Fixed/Off
Zoom Levels
(This will only
be shown when
Reverse (R) is
selected.Off, Level 1–3
Trailer Brake
ModeElectric or Elect. Over Hydraulic
Trailer Sway
ControlOn/Off
* If equipped—your vehicle may be equipped with some or all of these
options.
Vehicle*
Autolamp Delay Off or XXX seconds
DTE Calculation
(distance to
empty)Normal History Used
Towing History Used
Easy Entry/Exit On/Off
Locks Autolock, On/Off
Autounlock On/Off
Unlocking One Stage or Two Stage
Menu ControlStandard: with standard set, pressing the up/down
arrows from a lower level menu will escape to the
main menu.
Memory On: with memory on set, pressing the
up/down arrows will navigate to the previous lower
level menu.
Instrument Cluster
36
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

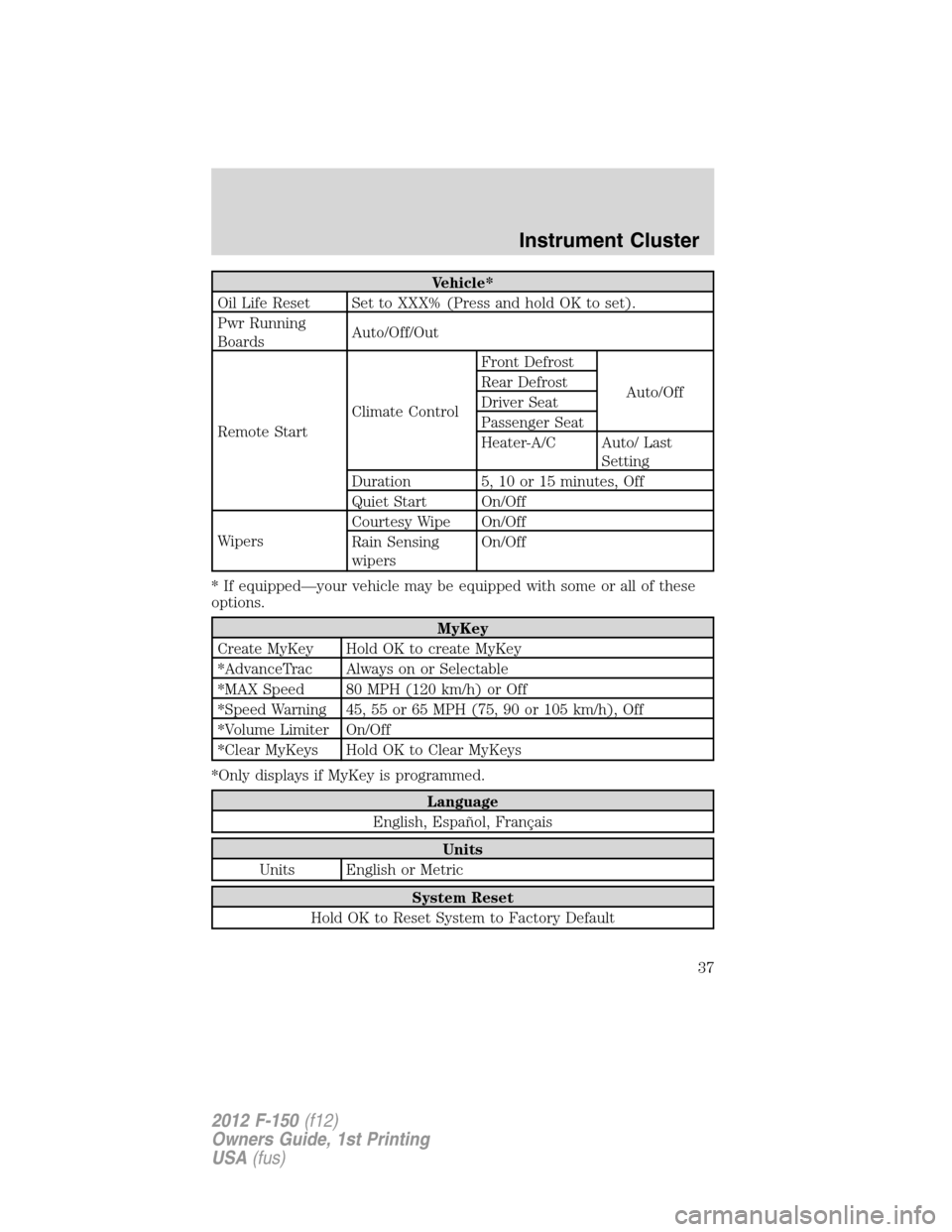

Vehicle*
Oil Life Reset Set to XXX% (Press and hold OK to set).
Pwr Running
BoardsAuto/Off/Out
Remote StartClimate ControlFront Defrost
Auto/Off Rear Defrost
Driver Seat
Passenger Seat
Heater-A/C Auto/ Last
Setting
Duration 5, 10 or 15 minutes, Off
Quiet Start On/Off
WipersCourtesy Wipe On/Off
Rain Sensing
wipersOn/Off
* If equipped—your vehicle may be equipped with some or all of these
options.
MyKey
Create MyKey Hold OK to create MyKey
*AdvanceTrac Always on or Selectable
*MAX Speed 80 MPH (120 km/h) or Off
*Speed Warning 45, 55 or 65 MPH (75, 90 or 105 km/h), Off
*Volume Limiter On/Off
*Clear MyKeys Hold OK to Clear MyKeys
*Only displays if MyKey is programmed.
Language
English, Español, Français
Units
Units English or Metric
System Reset
Hold OK to Reset System to Factory Default
Instrument Cluster
37
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

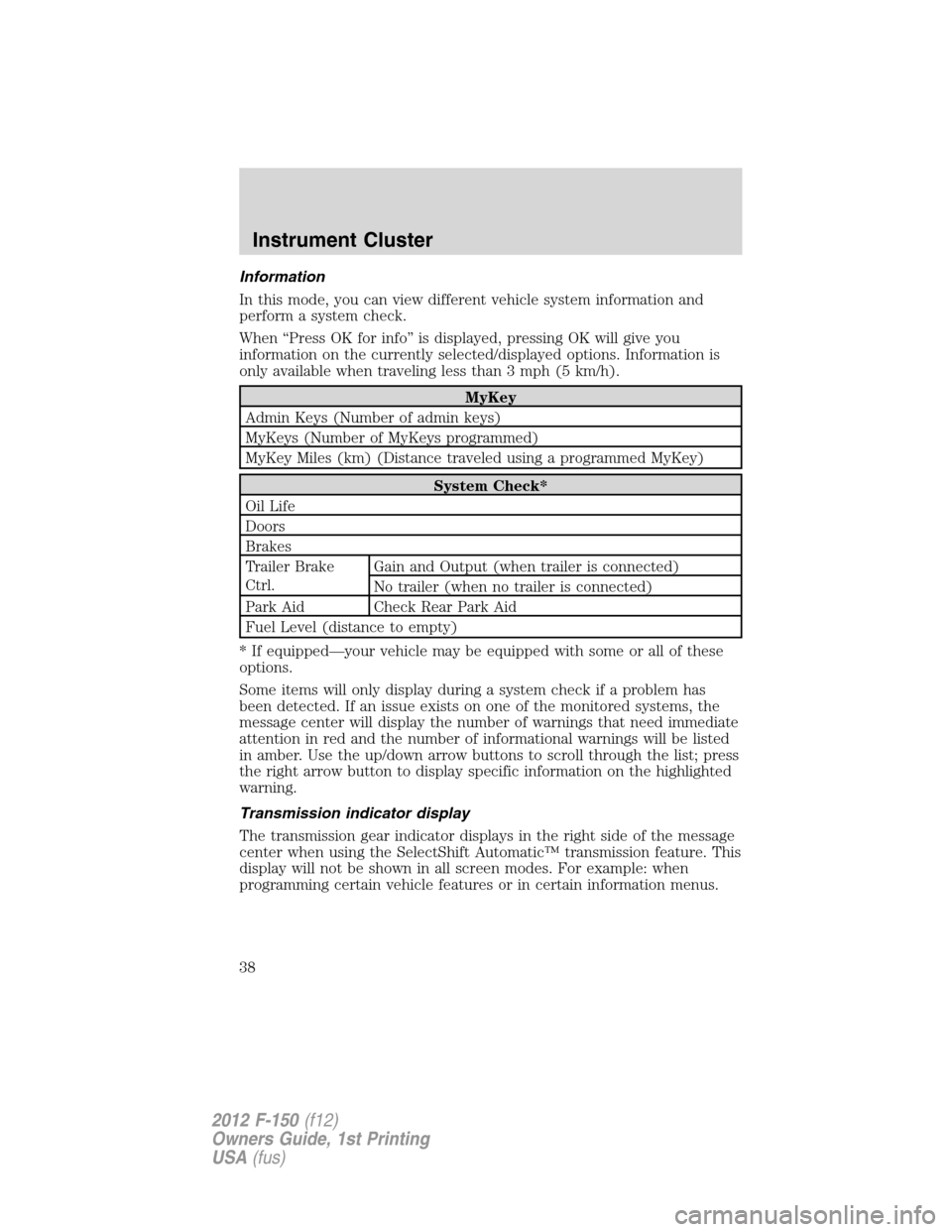

Information
In this mode, you can view different vehicle system information and
perform a system check.
When “Press OK for info” is displayed, pressing OK will give you
information on the currently selected/displayed options. Information is
only available when traveling less than 3 mph (5 km/h).
MyKey
Admin Keys (Number of admin keys)
MyKeys (Number of MyKeys programmed)
MyKey Miles (km) (Distance traveled using a programmed MyKey)
System Check*
Oil Life
Doors
Brakes
Trailer Brake
Ctrl.Gain and Output (when trailer is connected)
No trailer (when no trailer is connected)
Park Aid Check Rear Park Aid
Fuel Level (distance to empty)
* If equipped—your vehicle may be equipped with some or all of these
options.
Some items will only display during a system check if a problem has
been detected. If an issue exists on one of the monitored systems, the
message center will display the number of warnings that need immediate
attention in red and the number of informational warnings will be listed
in amber. Use the up/down arrow buttons to scroll through the list; press
the right arrow button to display specific information on the highlighted
warning.
Transmission indicator display
The transmission gear indicator displays in the right side of the message
center when using the SelectShift Automatic™ transmission feature. This
display will not be shown in all screen modes. For example: when
programming certain vehicle features or in certain information menus.
Instrument Cluster
38
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

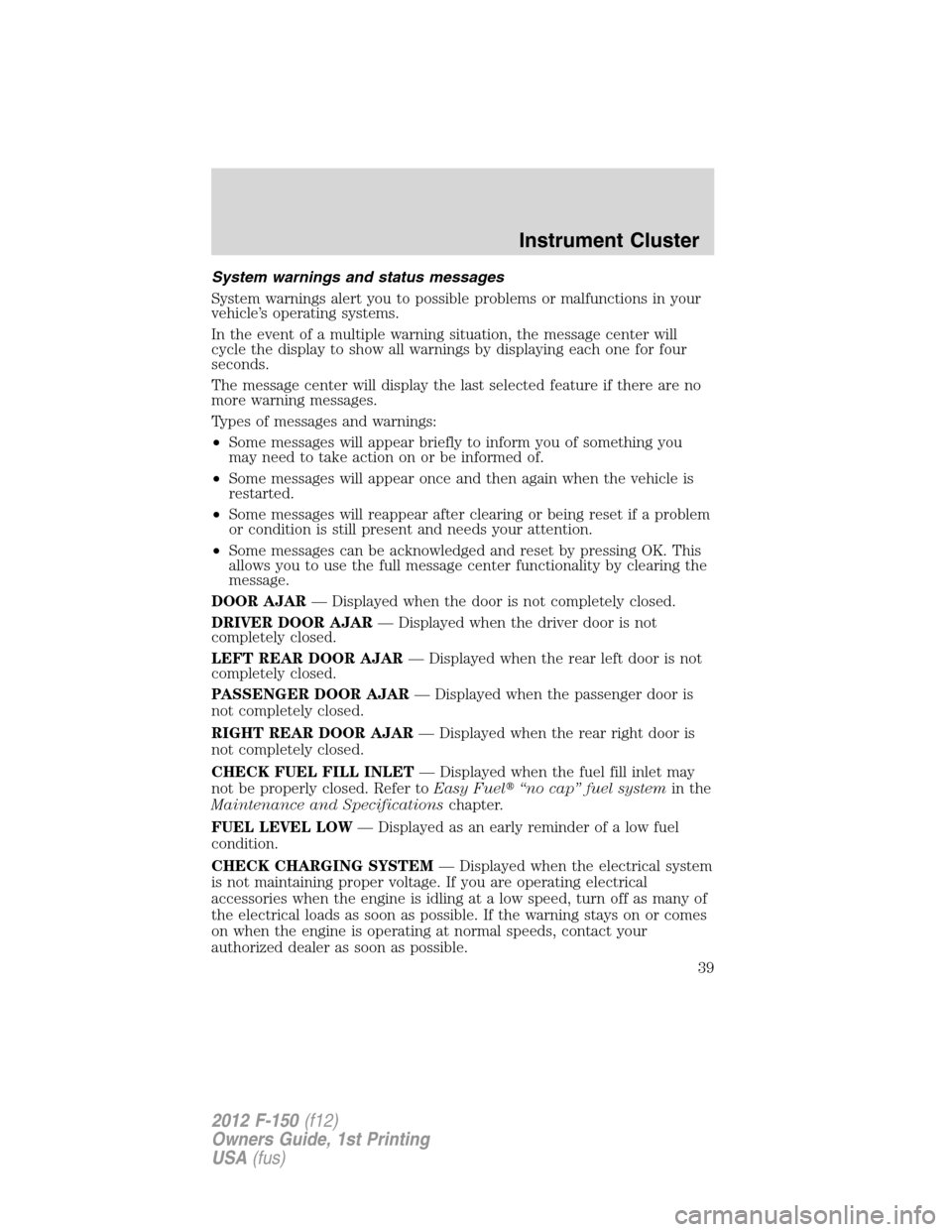

System warnings and status messages
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages.
Types of messages and warnings:
•Some messages will appear briefly to inform you of something you
may need to take action on or be informed of.
•Some messages will appear once and then again when the vehicle is
restarted.
•Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
•Some messages can be acknowledged and reset by pressing OK. This
allows you to use the full message center functionality by clearing the
message.
DOOR AJAR— Displayed when the door is not completely closed.
DRIVER DOOR AJAR— Displayed when the driver door is not
completely closed.
LEFT REAR DOOR AJAR— Displayed when the rear left door is not
completely closed.
PASSENGER DOOR AJAR— Displayed when the passenger door is
not completely closed.
RIGHT REAR DOOR AJAR— Displayed when the rear right door is
not completely closed.
CHECK FUEL FILL INLET— Displayed when the fuel fill inlet may
not be properly closed. Refer toEasy Fuel“no cap” fuel systemin the
Maintenance and Specificationschapter.
FUEL LEVEL LOW— Displayed as an early reminder of a low fuel
condition.
CHECK CHARGING SYSTEM— Displayed when the electrical system
is not maintaining proper voltage. If you are operating electrical
accessories when the engine is idling at a low speed, turn off as many of
the electrical loads as soon as possible. If the warning stays on or comes
on when the engine is operating at normal speeds, contact your
authorized dealer as soon as possible.
Instrument Cluster
39
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

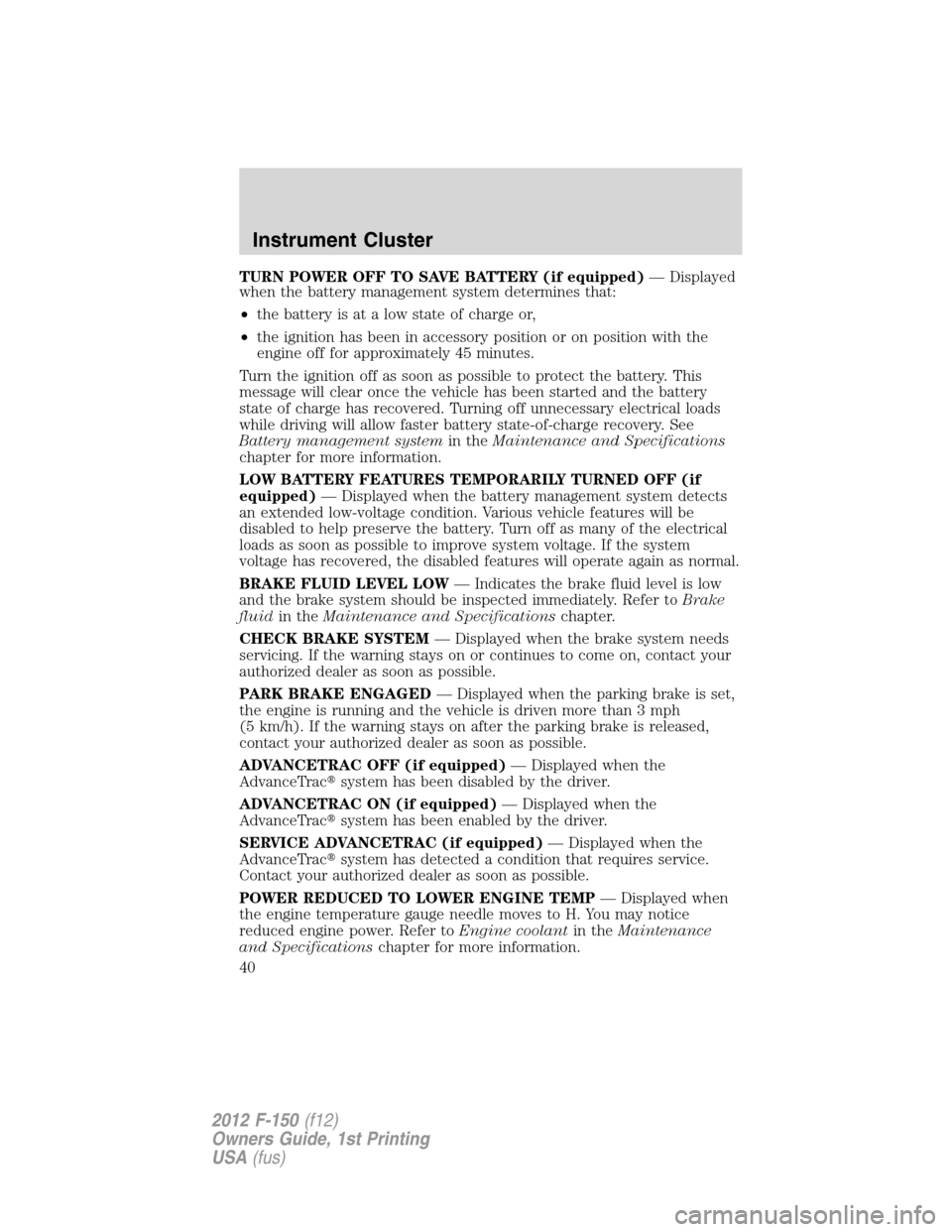

TURN POWER OFF TO SAVE BATTERY (if equipped)— Displayed
when the battery management system determines that:
•the battery is at a low state of charge or,
•the ignition has been in accessory position or on position with the
engine off for approximately 45 minutes.
Turn the ignition off as soon as possible to protect the battery. This
message will clear once the vehicle has been started and the battery
state of charge has recovered. Turning off unnecessary electrical loads
while driving will allow faster battery state-of-charge recovery. See
Battery management systemin theMaintenance and Specifications
chapter for more information.
LOW BATTERY FEATURES TEMPORARILY TURNED OFF (if
equipped)— Displayed when the battery management system detects
an extended low-voltage condition. Various vehicle features will be
disabled to help preserve the battery. Turn off as many of the electrical
loads as soon as possible to improve system voltage. If the system
voltage has recovered, the disabled features will operate again as normal.
BRAKE FLUID LEVEL LOW— Indicates the brake fluid level is low
and the brake system should be inspected immediately. Refer toBrake
fluidin theMaintenance and Specificationschapter.
CHECK BRAKE SYSTEM— Displayed when the brake system needs
servicing. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
PARK BRAKE ENGAGED— Displayed when the parking brake is set,
the engine is running and the vehicle is driven more than 3 mph
(5 km/h). If the warning stays on after the parking brake is released,
contact your authorized dealer as soon as possible.
ADVANCETRAC OFF (if equipped)— Displayed when the
AdvanceTracsystem has been disabled by the driver.
ADVANCETRAC ON (if equipped)— Displayed when the
AdvanceTracsystem has been enabled by the driver.
SERVICE ADVANCETRAC (if equipped)— Displayed when the
AdvanceTracsystem has detected a condition that requires service.
Contact your authorized dealer as soon as possible.
POWER REDUCED TO LOWER ENGINE TEMP— Displayed when
the engine temperature gauge needle moves to H. You may notice
reduced engine power. Refer toEngine coolantin theMaintenance
and Specificationschapter for more information.
Instrument Cluster
40
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
