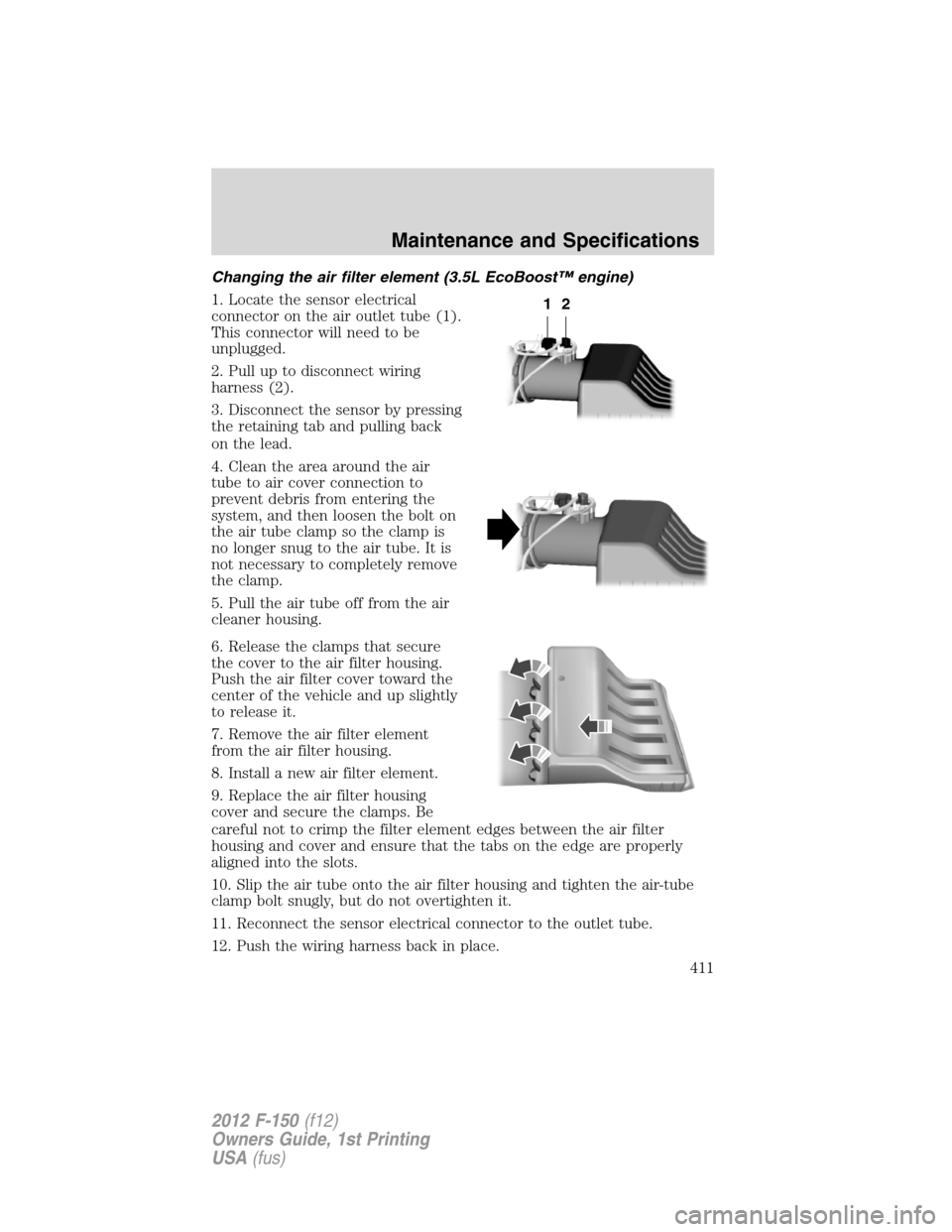

Changing the air filter element (3.5L EcoBoost™ engine)
1. Locate the sensor electrical
connector on the air outlet tube (1).
This connector will need to be
unplugged.
2. Pull up to disconnect wiring
harness (2).
3. Disconnect the sensor by pressing
the retaining tab and pulling back
on the lead.
4. Clean the area around the air
tube to air cover connection to
prevent debris from entering the
system, and then loosen the bolt on
the air tube clamp so the clamp is
no longer snug to the air tube. It is
not necessary to completely remove
the clamp.
5. Pull the air tube off from the air
cleaner housing.
6. Release the clamps that secure
the cover to the air filter housing.
Push the air filter cover toward the
center of the vehicle and up slightly
to release it.
7. Remove the air filter element
from the air filter housing.
8. Install a new air filter element.
9. Replace the air filter housing
cover and secure the clamps. Be
careful not to crimp the filter element edges between the air filter
housing and cover and ensure that the tabs on the edge are properly
aligned into the slots.
10. Slip the air tube onto the air filter housing and tighten the air-tube
clamp bolt snugly, but do not overtighten it.
11. Reconnect the sensor electrical connector to the outlet tube.
12. Push the wiring harness back in place.
12
Maintenance and Specifications
411
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

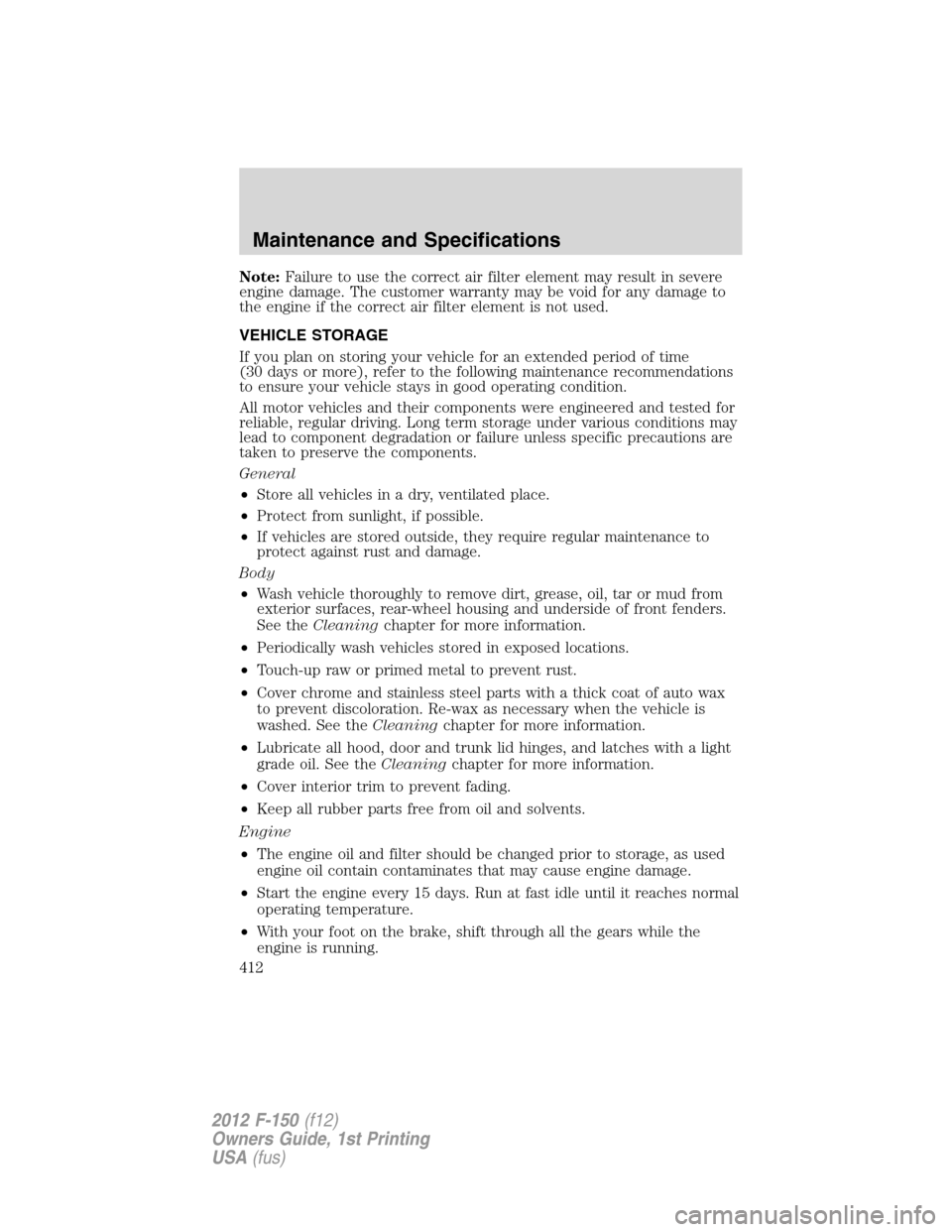

Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
VEHICLE STORAGE
If you plan on storing your vehicle for an extended period of time
(30 days or more), refer to the following maintenance recommendations
to ensure your vehicle stays in good operating condition.
All motor vehicles and their components were engineered and tested for
reliable, regular driving. Long term storage under various conditions may
lead to component degradation or failure unless specific precautions are
taken to preserve the components.
General
•Store all vehicles in a dry, ventilated place.
•Protect from sunlight, if possible.
•If vehicles are stored outside, they require regular maintenance to
protect against rust and damage.
Body
•Wash vehicle thoroughly to remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing and underside of front fenders.
See theCleaningchapter for more information.
•Periodically wash vehicles stored in exposed locations.
•Touch-up raw or primed metal to prevent rust.
•Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Re-wax as necessary when the vehicle is
washed. See theCleaningchapter for more information.
•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See theCleaningchapter for more information.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Maintenance and Specifications
412
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

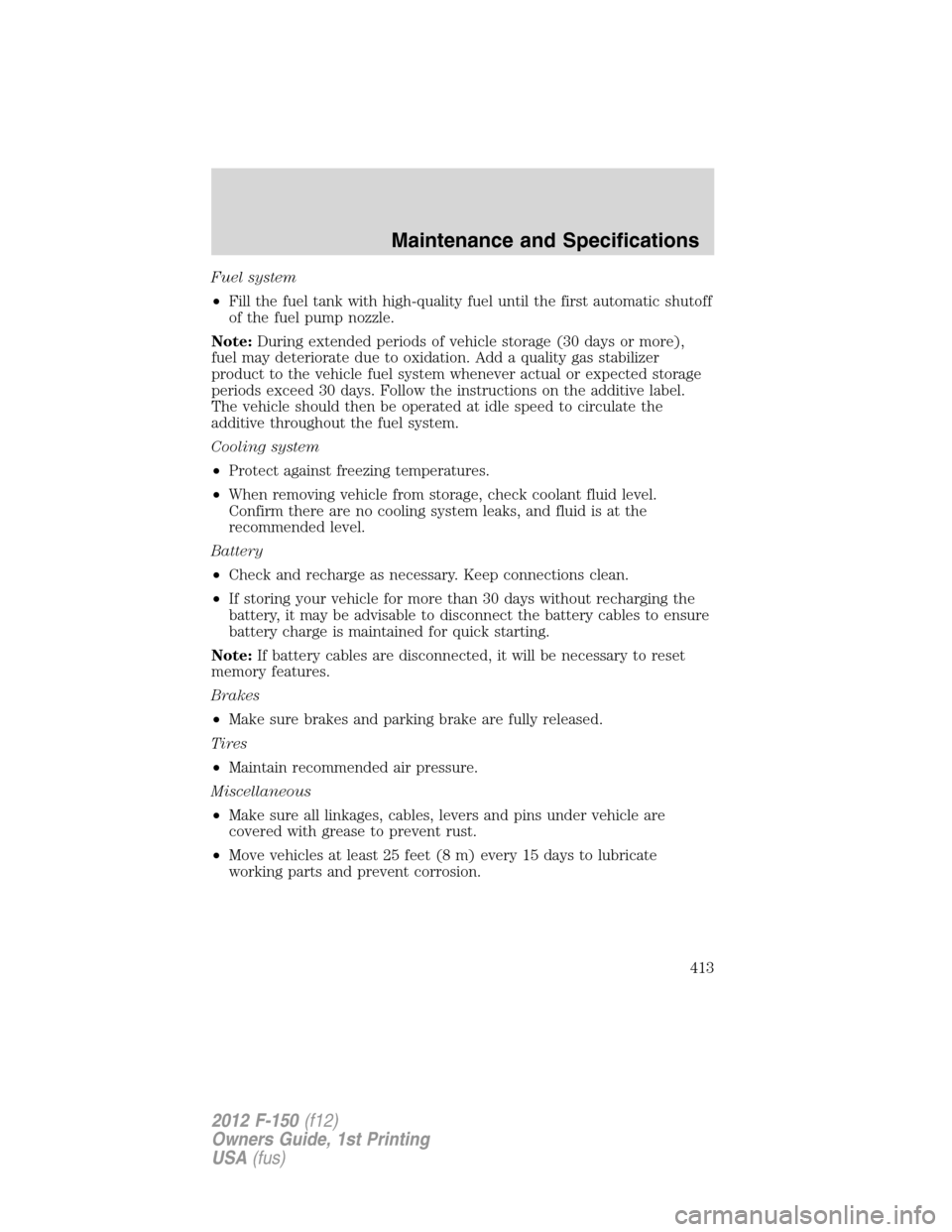

Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add a quality gas stabilizer
product to the vehicle fuel system whenever actual or expected storage
periods exceed 30 days. Follow the instructions on the additive label.
The vehicle should then be operated at idle speed to circulate the
additive throughout the fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Maintenance and Specifications
413
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

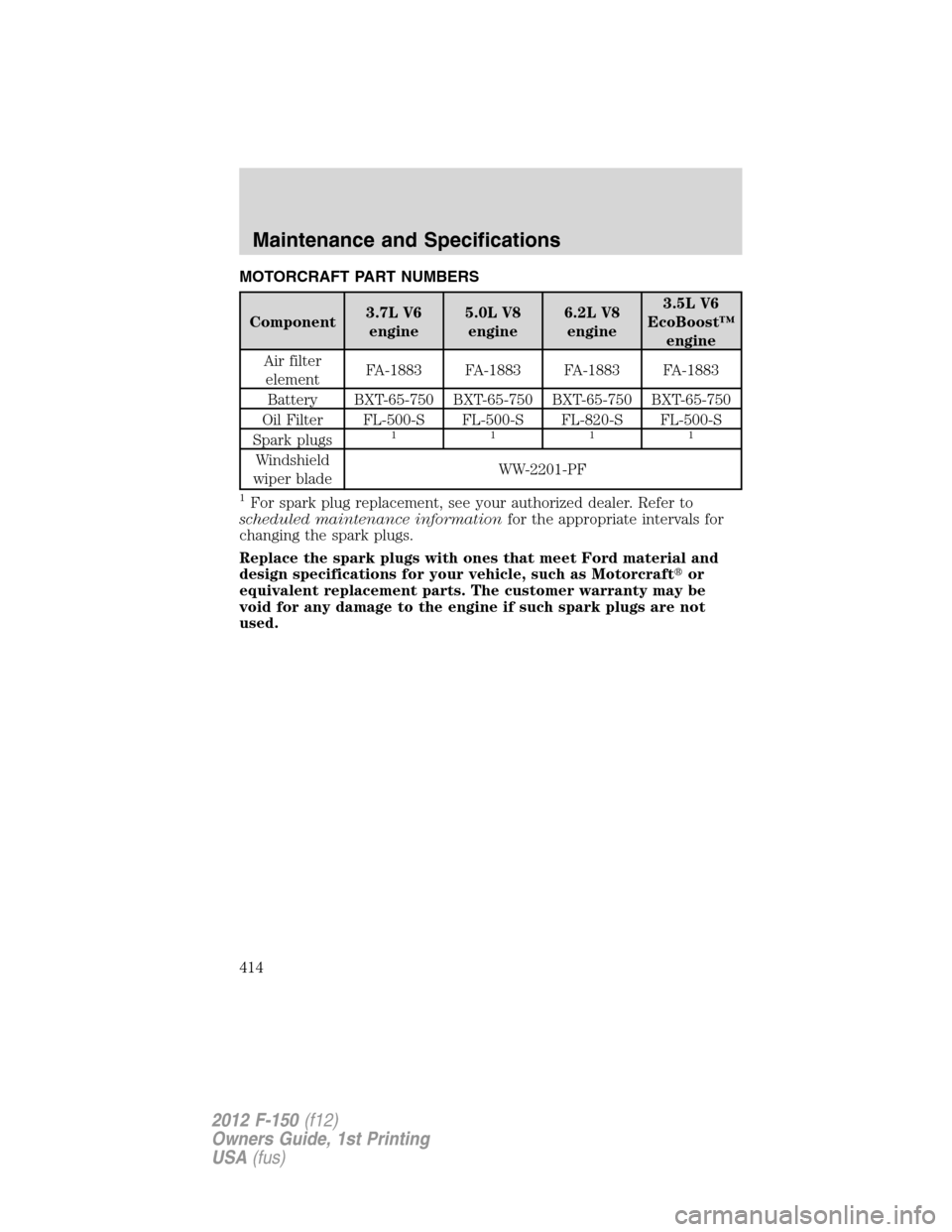

MOTORCRAFT PART NUMBERS
Component3.7L V6
engine5.0L V8
engine6.2L V8
engine3.5L V6
EcoBoost™
engine
Air filter
elementFA-1883 FA-1883 FA-1883 FA-1883
Battery BXT-65-750 BXT-65-750 BXT-65-750 BXT-65-750
Oil Filter FL-500-S FL-500-S FL-820-S FL-500-S
Spark plugs
1111
Windshield
wiper bladeWW-2201-PF
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
414
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number / Ford
specification
Brake fluidBetween
MIN/MAX on brake
fluid reservoirMotorcraftHigh
Performance DOT 3 Motor
Vehicle Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
3.7L engine oil 6.0 quarts (5.7L)•MotorcraftSAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
•MotorcraftSAE 5W-20 Full
Synthetic Motor Oil (US)
•MotorcraftSAE 5W-20
Super Premium Motor Oil
(Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil
(Canada)
1
•XO-5W20–QSP (US)
•XO-5W-20 QFS (US)
•CXO-5W20–LSP12 (Canada)
•CXO-5W-20-LFS12
(Canada) / WSS-M2C945–A
and API Certification Mark 5.0L engine oil 7.7 quarts (7.3L)
6.2L engine oil 7.0 quarts (6.6L)
3.5L EcoBoost™ engine6.0 quarts
(5.7L)•MotorcraftSAE 5W-30
Premium Synthetic Blend
Motor Oil (US)
•MotorcraftSAE 5W-30 Full
Synthetic Motor Oil (US)
•MotorcraftSAE 5W-30
Super Premium Motor Oil
(Canada)
•MotorcraftSAE 5W-30
Synthetic Motor Oil
(Canada)
2
•XO-5W30-QSP (US)
•XO-5W30-QFS (US)
•CXO-5W30-LSP12 (Canada)
•CXO-5W30-LFS12 (Canada)
/
WSS-M2C946-A with API
Certification Mark
Maintenance and Specifications
415
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number / Ford
specification

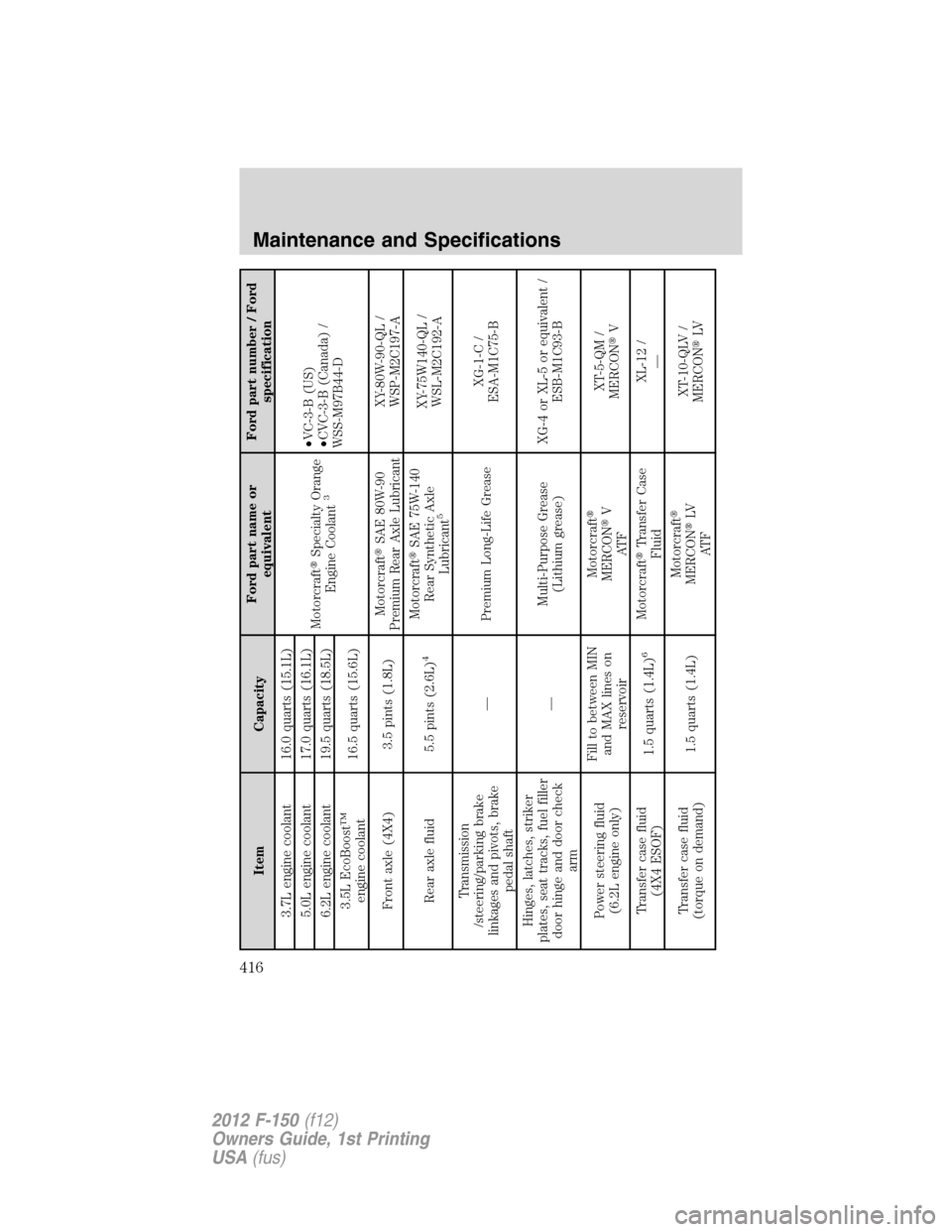

3.7L engine coolant 16.0 quarts (15.1L)
MotorcraftSpecialty Orange
Engine Coolant
3
•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D 5.0L engine coolant 17.0 quarts (16.1L)
6.2L engine coolant 19.5 quarts (18.5L)
3.5L EcoBoost™
engine coolant16.5 quarts (15.6L)
Front axle (4X4) 3.5 pints (1.8L)MotorcraftSAE 80W-90
Premium Rear Axle LubricantXY-80W-90-QL /
WSP-M2C197-A
Rear axle fluid 5.5 pints (2.6L)
4
MotorcraftSAE 75W-140
Rear Synthetic Axle
Lubricant
5
XY-75W140-QL /
WSL-M2C192-A
Transmission
/steering/parking brake
linkages and pivots, brake
pedal shaft— Premium Long-Life GreaseXG-1-C /
ESA-M1C75-B
Hinges, latches, striker
plates, seat tracks, fuel filler
door hinge and door check
arm—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or equivalent /
ESB-M1C93-B
Power steering fluid
(6.2L engine only)Fill to between MIN
and MAX lines on
reservoirMotorcraft
MERCONV
AT FXT-5-QM /
MERCONV
Transfer case fluid
(4X4 ESOF)1.5 quarts (1.4L)
6
MotorcraftTransfer Case
FluidXL-12 /
—
Transfer case fluid
(torque on demand)1.5 quarts (1.4L)Motorcraft
MERCONLV
AT FXT-10-QLV /
MERCONLV
Maintenance and Specifications
416
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number / Ford
specification

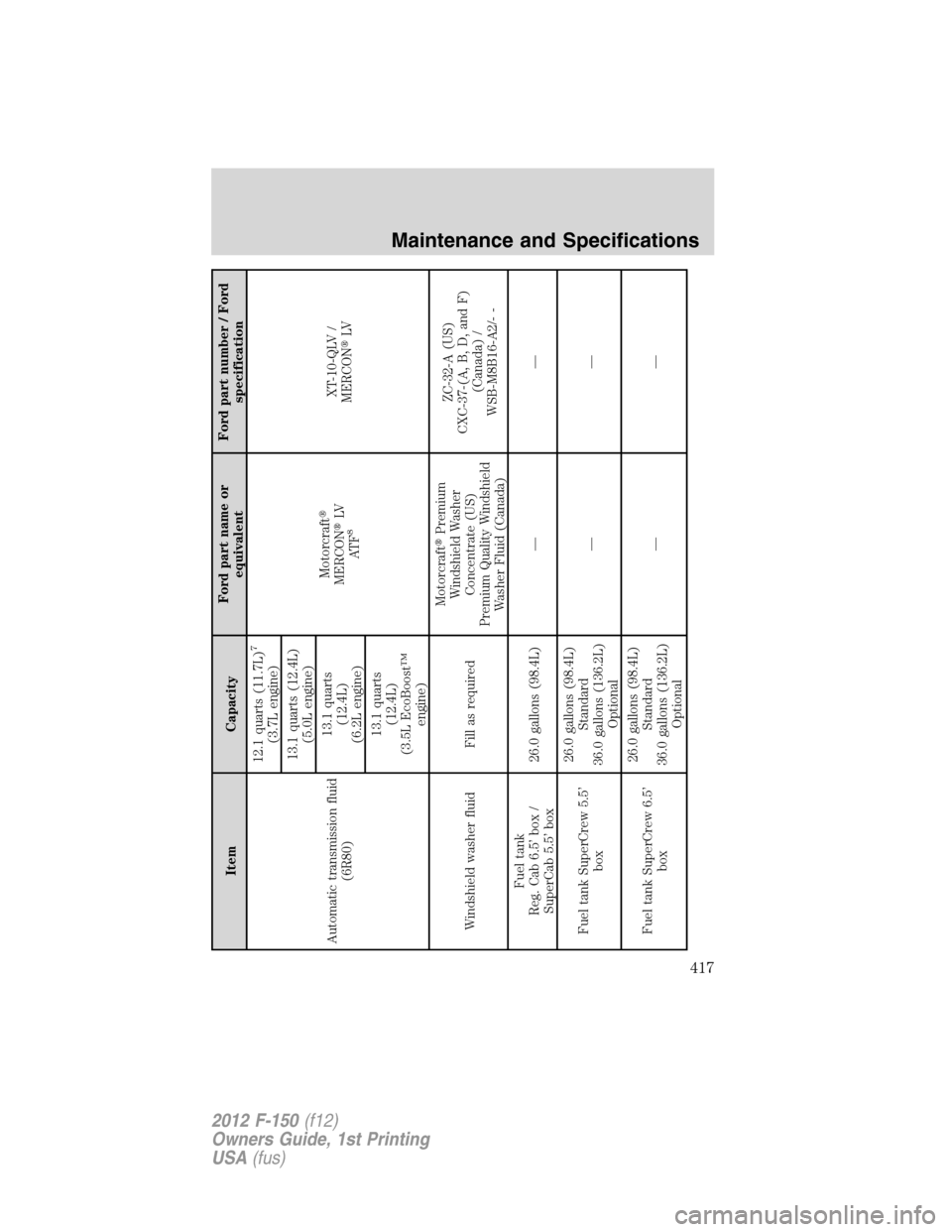

Automatic transmission fluid
(6R80)12.1 quarts (11.7L)
7
(3.7L engine)
Motorcraft
MERCONLV
AT F
8
XT-10-QLV /
MERCONLV 13.1 quarts (12.4L)
(5.0L engine)
13.1 quarts
(12.4L)
(6.2L engine)
13.1 quarts
(12.4L)
(3.5L EcoBoost™
engine)
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality Windshield
Washer Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank
Reg. Cab 6.5’ box /
SuperCab 5.5’ box26.0 gallons (98.4L) — —
Fuel tank SuperCrew 5.5’
box26.0 gallons (98.4L)
Standard
36.0 gallons (136.2L)
Optional——
Fuel tank SuperCrew 6.5’
box26.0 gallons (98.4L)
Standard
36.0 gallons (136.2L)
Optional——
Maintenance and Specifications
417
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’ box /
SuperCab 8’ box26.0 gallons (98.4L)
Standard
36.0 gallons (136.2L)
Optional——

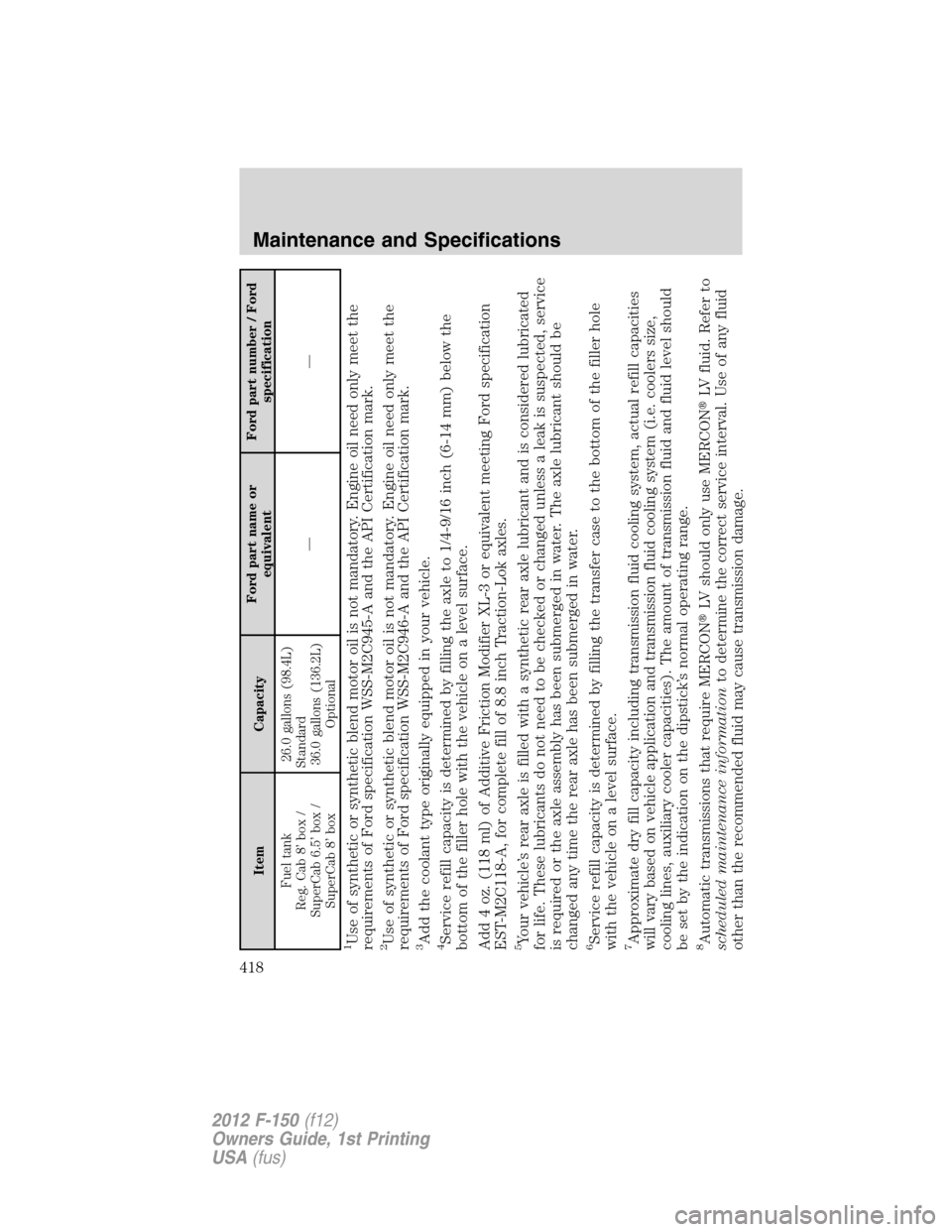

1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and the API Certification mark.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C946-A and the API Certification mark.3Add the coolant type originally equipped in your vehicle.4Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch Traction-Lok axles.5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.6Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.7Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.8Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
Maintenance and Specifications
418
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

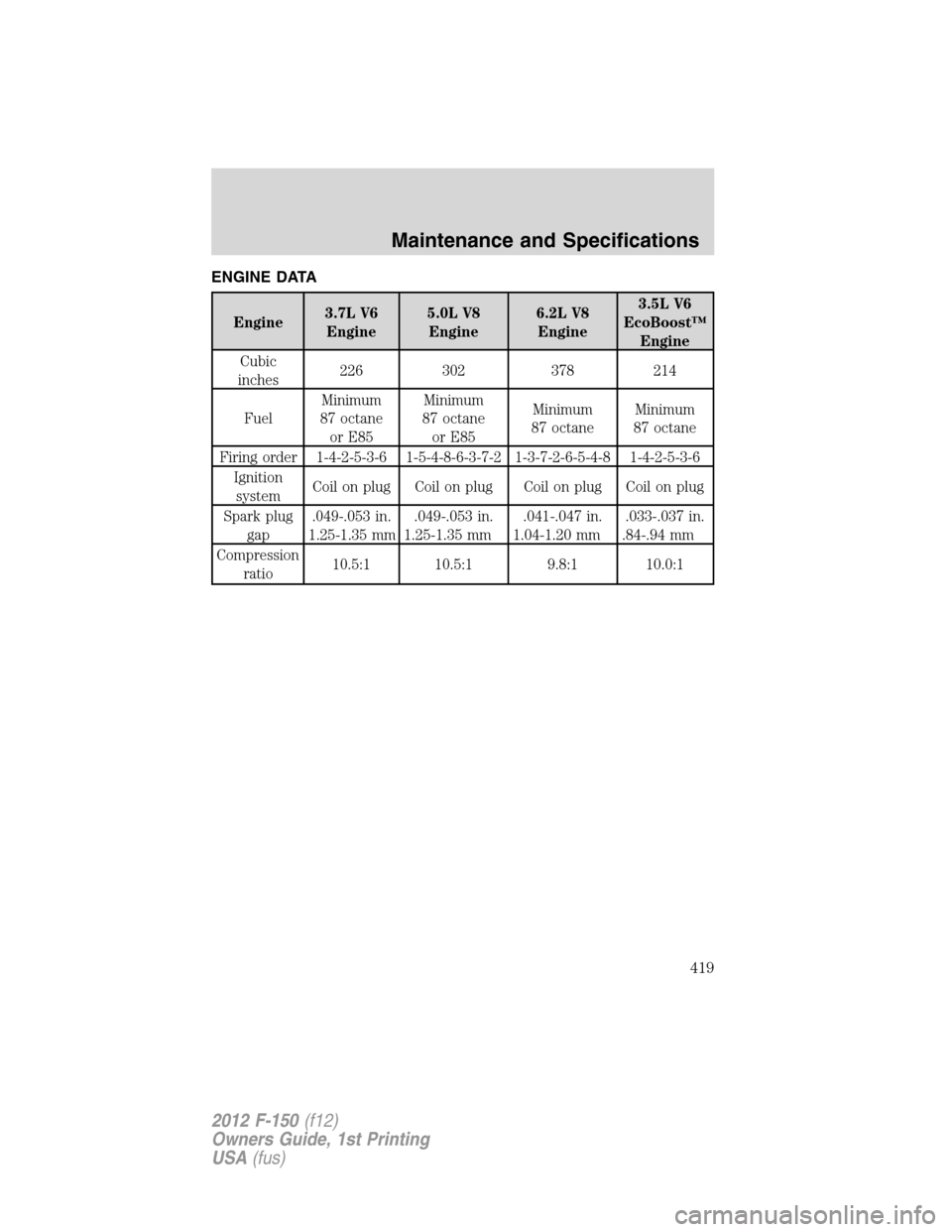

ENGINE DATA
Engine3.7L V6
Engine5.0L V8
Engine6.2L V8
Engine3.5L V6
EcoBoost™
Engine
Cubic
inches226 302 378 214
FuelMinimum
87 octane
or E85Minimum
87 octane
or E85Minimum
87 octaneMinimum
87 octane
Firing order 1-4-2-5-3-6 1-5-4-8-6-3-7-2 1-3-7-2-6-5-4-8 1-4-2-5-3-6
Ignition
systemCoil on plug Coil on plug Coil on plug Coil on plug
Spark plug
gap.049-.053 in.
1.25-1.35 mm.049-.053 in.
1.25-1.35 mm.041-.047 in.
1.04-1.20 mm.033-.037 in.
.84-.94 mm
Compression
ratio10.5:1 10.5:1 9.8:1 10.0:1
Maintenance and Specifications
419
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

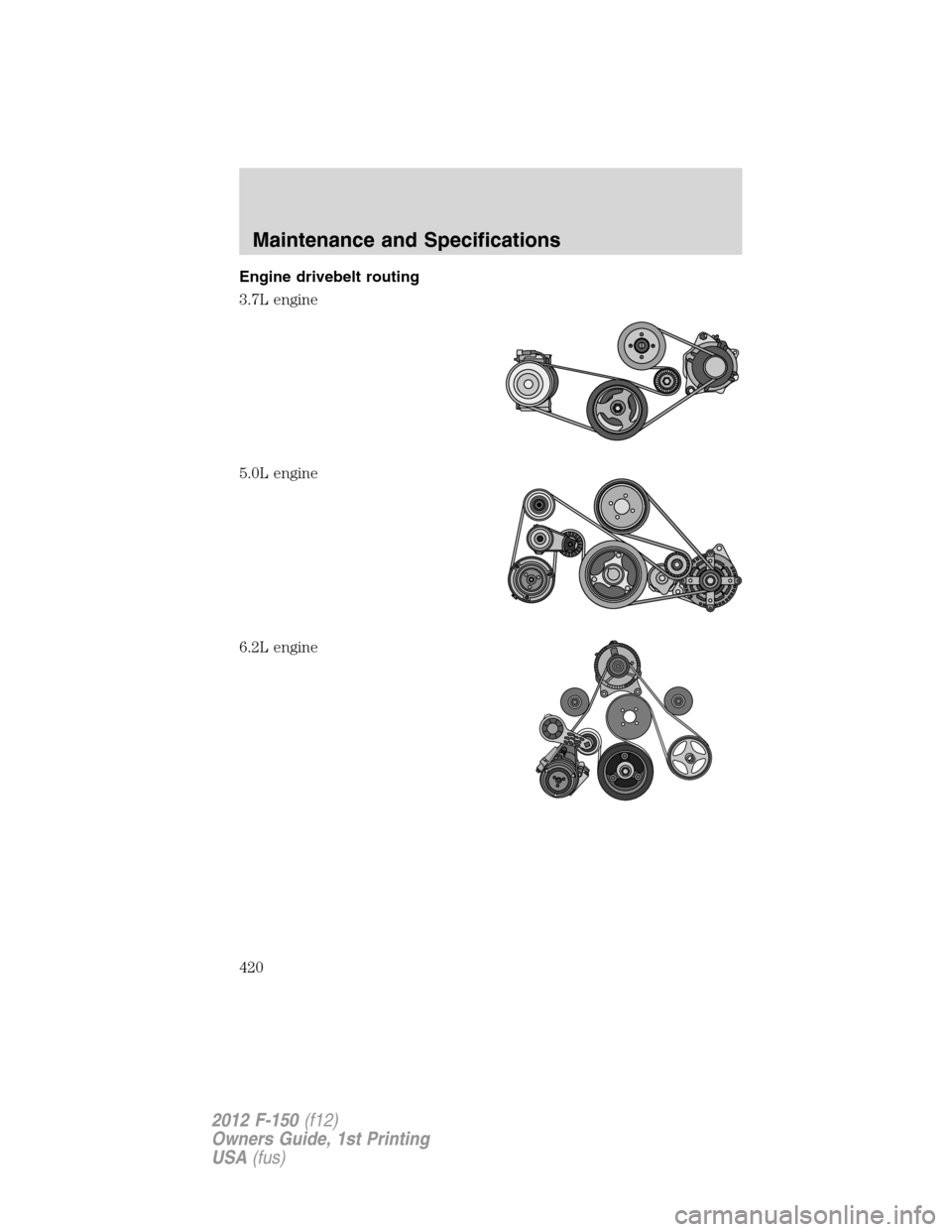

Engine drivebelt routing
3.7L engine
5.0L engine
6.2L engine
Maintenance and Specifications
420
2012 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
