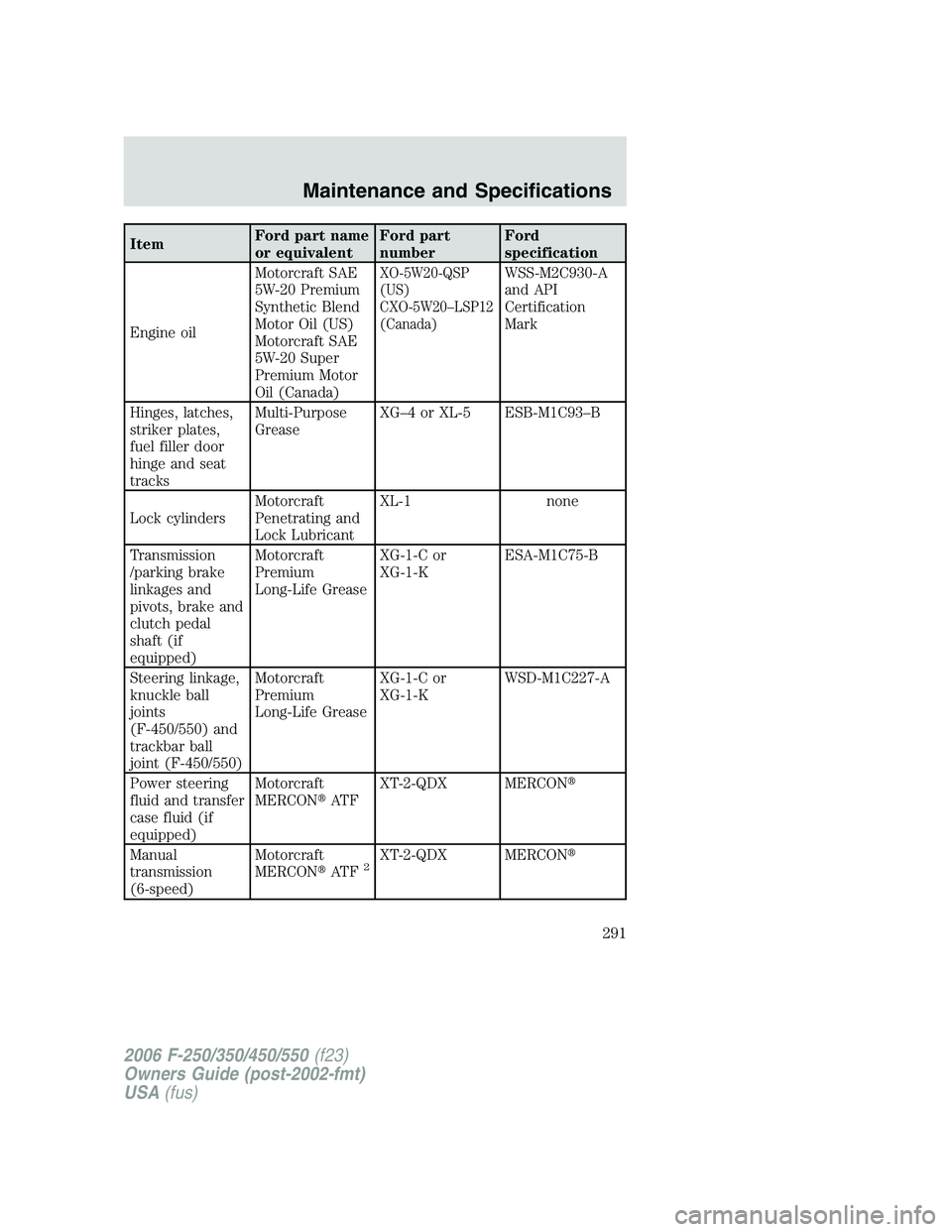

FORD F250 2006 Owners Manual

ItemFord part name
or equivalentFord part
numberFord
specification
Engine oilMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)
XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
and API
Certification
Mark
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG–4 or XL-5 ESB-M1C93–B
Lock cylindersMotorcraft
Penetrating and
Lock LubricantXL-1 none
Transmission
/parking brake
linkages and
pivots, brake and
clutch pedal
shaft (if
equipped)Motorcraft
Premium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Steering linkage,
knuckle ball
joints
(F-450/550) and
trackbar ball
joint (F-450/550)Motorcraft
Premium
Long-Life GreaseXG-1-C or
XG-1-KWSD-M1C227-A
Power steering
fluid and transfer
case fluid (if
equipped)Motorcraft
MERCONAT FXT-2-QDX MERCON
Manual
transmission
(6-speed)Motorcraft
MERCONAT F
2XT-2-QDX MERCON
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
291

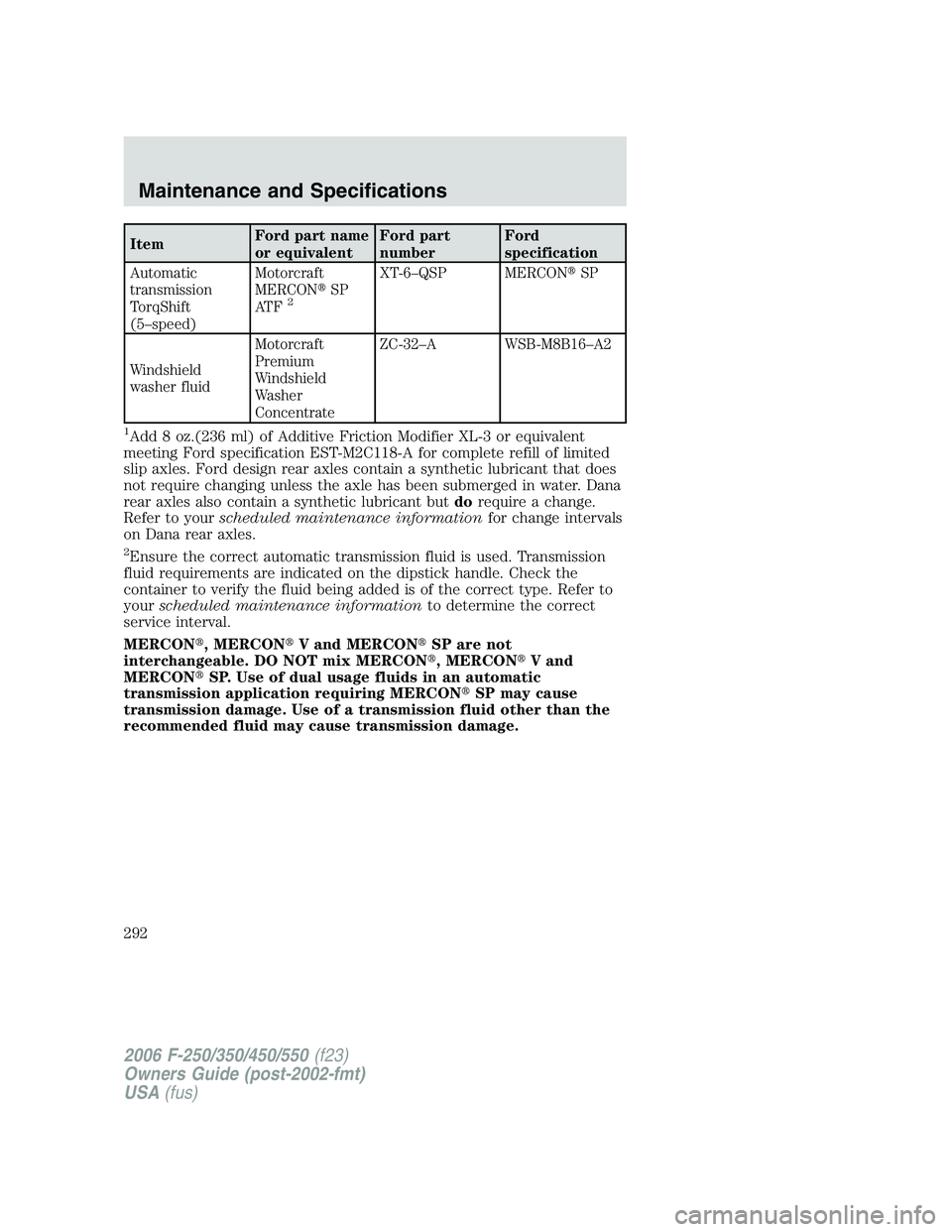

ItemFord part name
or equivalentFord part
numberFord
specification
Automatic
transmission
TorqShift
(5–speed)Motorcraft
MERCONSP
AT F
2
XT-6–QSP MERCONSP
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Add 8 oz.(236 ml) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of limited
slip axles. Ford design rear axles contain a synthetic lubricant that does
not require changing unless the axle has been submerged in water. Dana
rear axles also contain a synthetic lubricant butdorequire a change.
Refer to yourscheduled maintenance informationfor change intervals
on Dana rear axles.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick handle. Check the
container to verify the fluid being added is of the correct type. Refer to
yourscheduled maintenance informationto determine the correct
service interval.
MERCON, MERCONV and MERCONSP are not
interchangeable. DO NOT mix MERCON, MERCONV and
MERCONSP. Use of dual usage fluids in an automatic
transmission application requiring MERCONSP may cause
transmission damage. Use of a transmission fluid other than the
recommended fluid may cause transmission damage.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
292

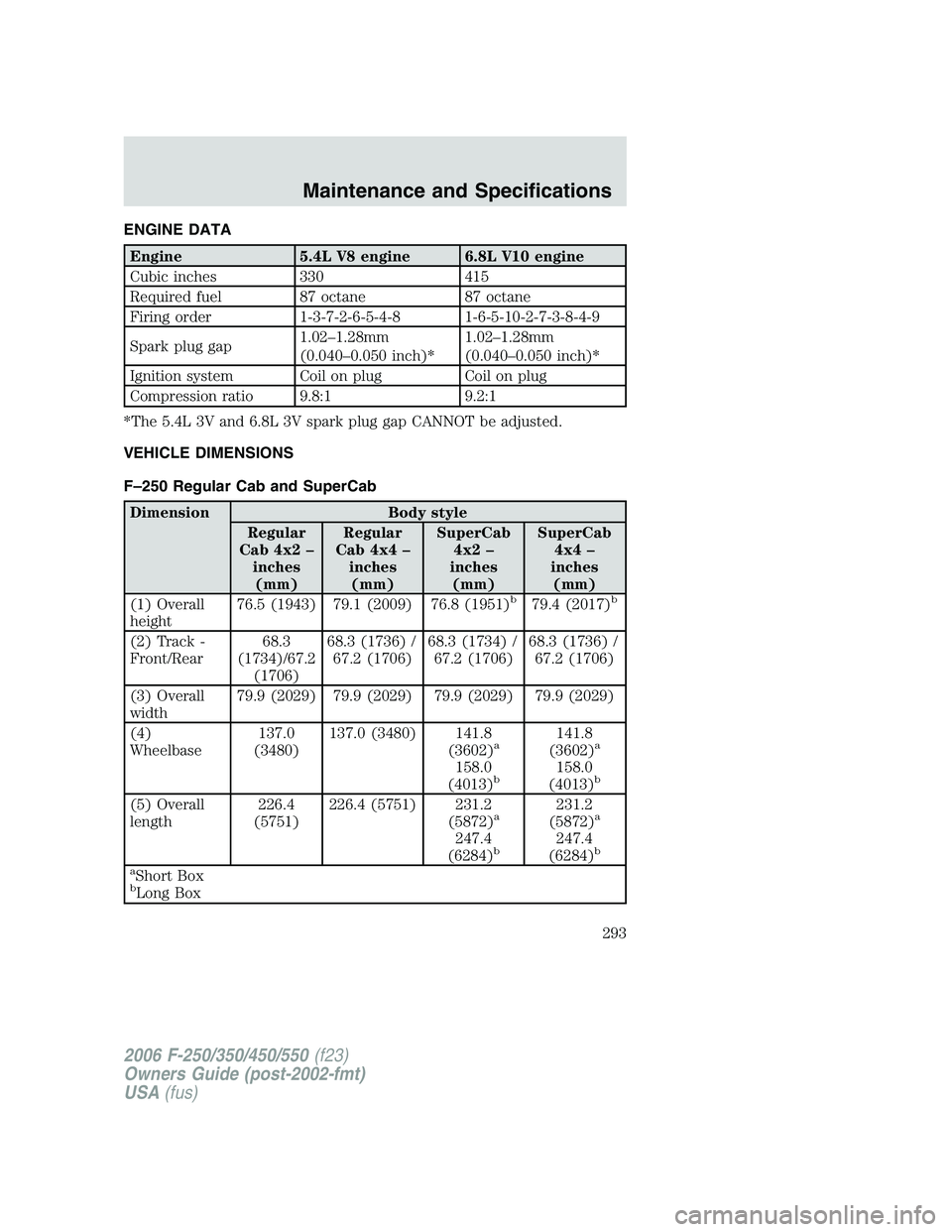

ENGINE DATA
Engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.02–1.28mm
(0.040–0.050 inch)*1.02–1.28mm
(0.040–0.050 inch)*
Ignition system Coil on plug Coil on plug
Compression ratio 9.8:1 9.2:1
*The 5.4L 3V and 6.8L 3V spark plug gap CANNOT be adjusted.
VEHICLE DIMENSIONS
F–250 Regular Cab and SuperCab
Dimension Body style
Regular
Cab 4x2 –
inches
(mm)Regular
Cab 4x4 –
inches
(mm)SuperCab
4x2 –
inches
(mm)SuperCab
4x4 –
inches
(mm)
(1) Overall
height76.5 (1943) 79.1 (2009) 76.8 (1951)
b79.4 (2017)b
(2) Track -
Front/Rear68.3
(1734)/67.2
(1706)68.3 (1736) /
67.2 (1706)68.3 (1734) /
67.2 (1706)68.3 (1736) /
67.2 (1706)
(3) Overall
width79.9 (2029) 79.9 (2029) 79.9 (2029) 79.9 (2029)
(4)
Wheelbase137.0
(3480)137.0 (3480) 141.8
(3602)
a
158.0
(4013)b
141.8
(3602)a
158.0
(4013)b
(5) Overall
length226.4
(5751)226.4 (5751) 231.2
(5872)a
247.4
(6284)b
231.2
(5872)a
247.4
(6284)b
a
Short BoxbLong Box
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
293

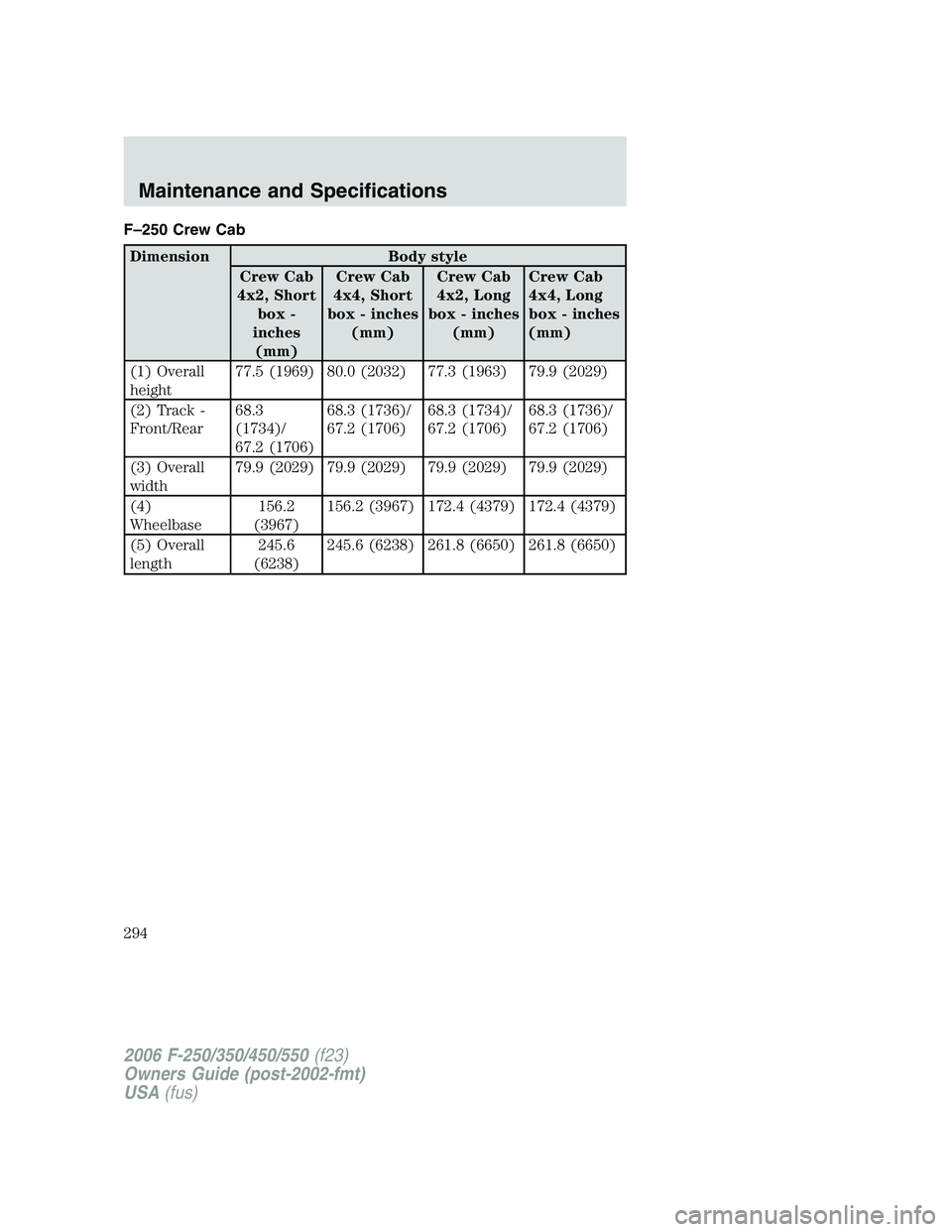

F–250 Crew Cab
Dimension Body style
Crew Cab
4x2, Short
box -
inches
(mm)Crew Cab
4x4, Short
box - inches
(mm)Crew Cab
4x2, Long
box - inches
(mm)Crew Cab
4x4, Long
box - inches
(mm)
(1) Overall
height77.5 (1969) 80.0 (2032) 77.3 (1963) 79.9 (2029)
(2) Track -
Front/Rear68.3
(1734)/
67.2 (1706)68.3 (1736)/
67.2 (1706)68.3 (1734)/
67.2 (1706)68.3 (1736)/
67.2 (1706)
(3) Overall
width79.9 (2029) 79.9 (2029) 79.9 (2029) 79.9 (2029)
(4)
Wheelbase156.2
(3967)156.2 (3967) 172.4 (4379) 172.4 (4379)
(5) Overall
length245.6
(6238)245.6 (6238) 261.8 (6650) 261.8 (6650)
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
294

F–350 (except Crew Cab)
Dimension Body style
Regular Cab
Chassis Cab
- inches
(mm)SuperCab
Chassis Cab
- inches
(mm)Regular Cab
Style Side -
inches (mm)SuperCab
Style Side -
inches (mm)
(1) Overall
height76.9 (1953)
a
77.1 (1958)b
81.6 (2073)c
80.0 (2032)d
77.4 (1966)a
77.4 (1966)b
81.5 (2070)c
80.2 (2037)d
76.8 (1951)a
76.7 (1948)b
80.8 (2052)c
79.6 (2022)d
77.3 (1963)a,e
77.1 (1958)a,f
77.0 (1956)b
81.4 (2068)c,e
81.2 (2062)c,f
79.6 (2022)d
(2a) Track -
Front68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
(2b) Track -
Rear68.1 (1730)a, c
/
71.0 (1803)b, d
68.1 (1730)a, c
/
71.0 (1803)b, d
67.2 (1706)a, c
/
74.6 (1896)b, d
67.2 (1706)a, c
/
74.6 (1896)b, d
(3) Overall
width79.9 (2029)a,c
/
92.2 (2342)b, d
79.9 (2029)a,c
/
92.2 (2342)b, d
79.9 (2029)a,c
/
95.5 (2426)b, d
79.9 (2029)a,c
/
95.5 (2426)b, d
(4)
Wheelbase140.8 (3576)
164.8 (4186)161.8 (4110) 137.0 (3480) 141.8 (3602)e/
158.0 (4013)f
(5) Overall
length225.6
(5730)a,b,c,d/
249.6
(6340)
b,d
246.6 (6264) 226.4 (5751) 231.2 (5872)e/
247.4 (6284)f
a
4x2 Single rear wheel (SRW)b4x2 Dual rear wheel (DRW)c4x4 Single rear wheel (SRW)d4x4 Dual rear wheel (DRW)eShort boxfLong box
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
295

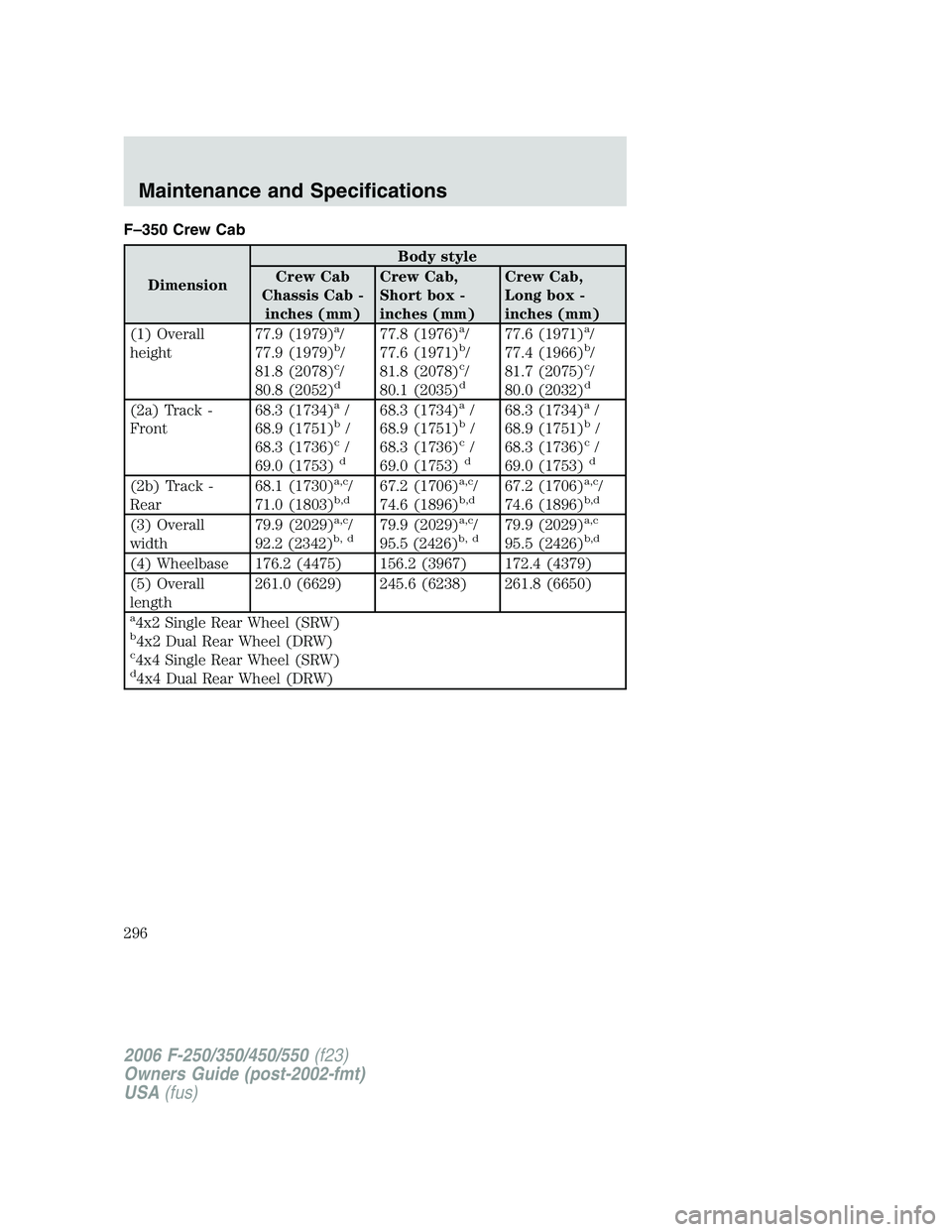

F–350 Crew Cab
DimensionBody style
Crew Cab
Chassis Cab -
inches (mm)Crew Cab,
Short box -
inches (mm)Crew Cab,
Long box -
inches (mm)
(1) Overall
height77.9 (1979)
a/
77.9 (1979)b/
81.8 (2078)c/
80.8 (2052)d
77.8 (1976)a/
77.6 (1971)b/
81.8 (2078)c/
80.1 (2035)d
77.6 (1971)a/
77.4 (1966)b/
81.7 (2075)c/
80.0 (2032)d
(2a) Track -
Front68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
(2b) Track -
Rear68.1 (1730)a,c/
71.0 (1803)b,d67.2 (1706)a,c/
74.6 (1896)b,d67.2 (1706)a,c/
74.6 (1896)b,d
(3) Overall
width79.9 (2029)a,c/
92.2 (2342)b, d79.9 (2029)a,c/
95.5 (2426)b, d79.9 (2029)a,c
95.5 (2426)b,d
(4) Wheelbase 176.2 (4475) 156.2 (3967) 172.4 (4379)
(5) Overall
length261.0 (6629) 245.6 (6238) 261.8 (6650)
a4x2 Single Rear Wheel (SRW)b4x2 Dual Rear Wheel (DRW)c4x4 Single Rear Wheel (SRW)d4x4 Dual Rear Wheel (DRW)
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
296

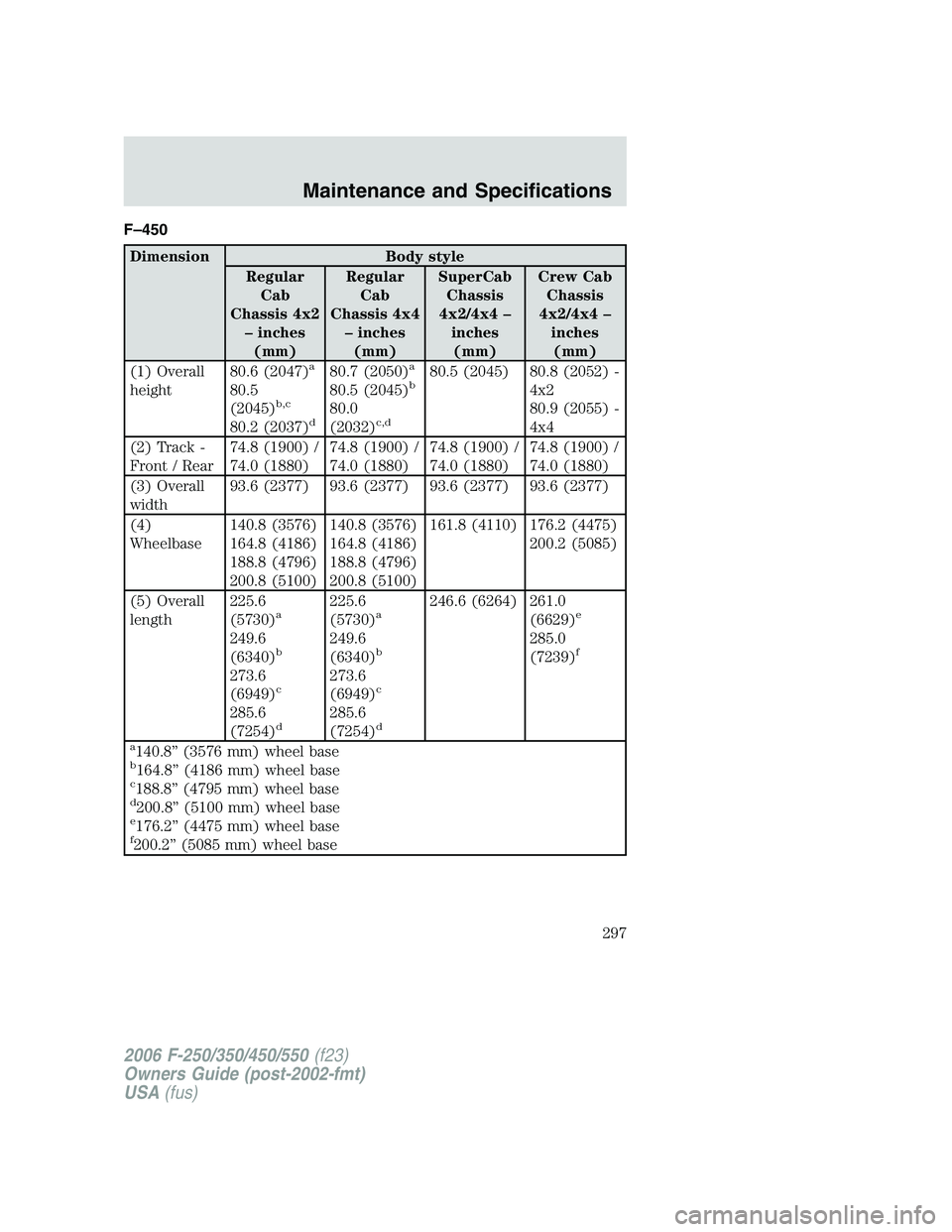

F–450
Dimension Body style
Regular
Cab
Chassis 4x2
– inches
(mm)Regular
Cab
Chassis 4x4
– inches
(mm)SuperCab
Chassis
4x2/4x4 –
inches
(mm)Crew Cab
Chassis
4x2/4x4 –
inches
(mm)
(1) Overall
height80.6 (2047)
a
80.5
(2045)b,c
80.2 (2037)d
80.7 (2050)a
80.5 (2045)b
80.0
(2032)c,d
80.5 (2045) 80.8 (2052) -
4x2
80.9 (2055) -
4x4
(2) Track -
Front / Rear74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length225.6
(5730)
a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
225.6
(5730)a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
246.6 (6264) 261.0
(6629)e
285.0
(7239)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
297

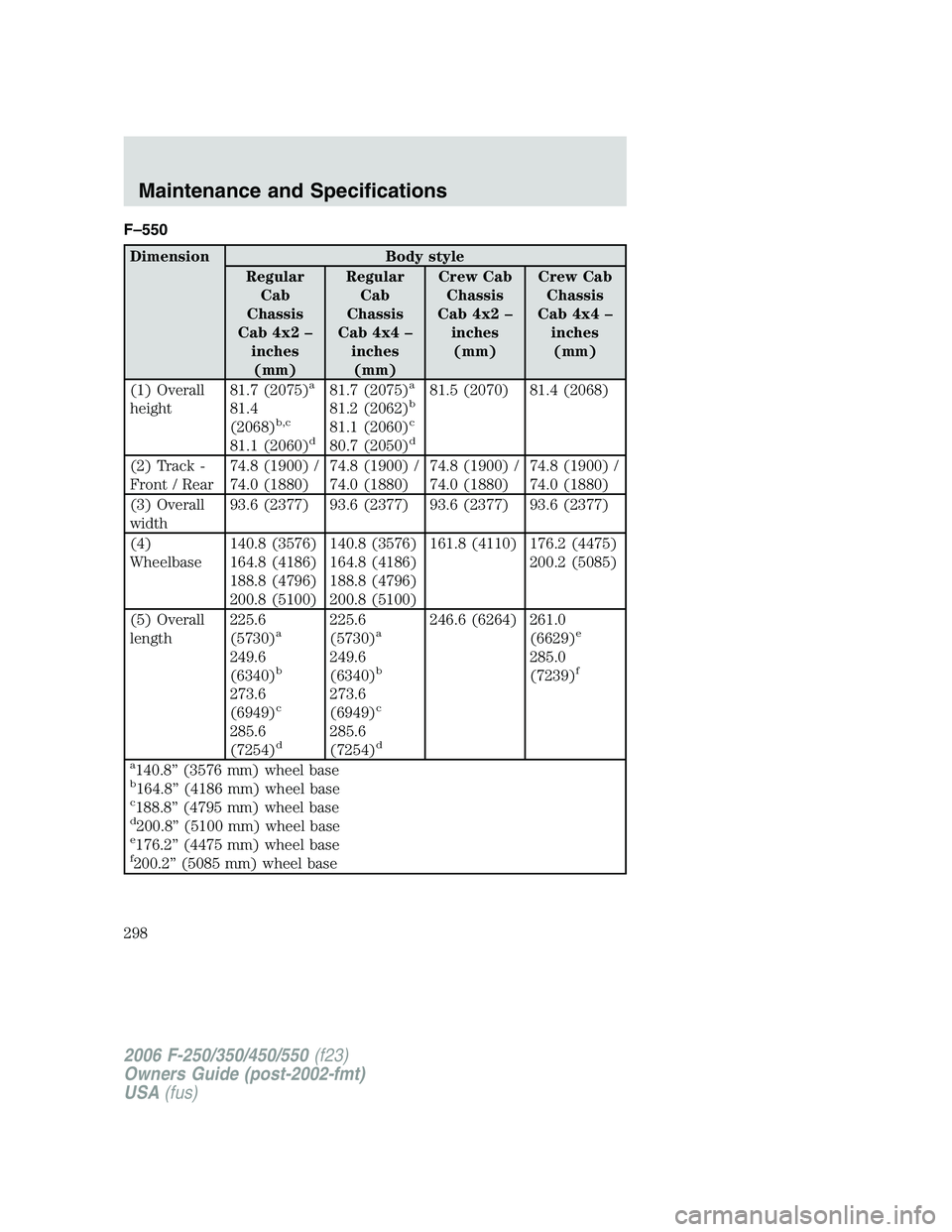

F–550
Dimension Body style
Regular
Cab
Chassis
Cab 4x2 –
inches
(mm)Regular
Cab
Chassis
Cab 4x4 –
inches
(mm)Crew Cab
Chassis
Cab 4x2 –
inches
(mm)Crew Cab
Chassis
Cab 4x4 –
inches
(mm)
(1) Overall
height81.7 (2075)
a
81.4
(2068)b,c
81.1 (2060)d
81.7 (2075)a
81.2 (2062)b
81.1 (2060)c
80.7 (2050)d
81.5 (2070) 81.4 (2068)
(2) Track -
Front / Rear74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length225.6
(5730)
a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
225.6
(5730)a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
246.6 (6264) 261.0
(6629)e
285.0
(7239)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
298

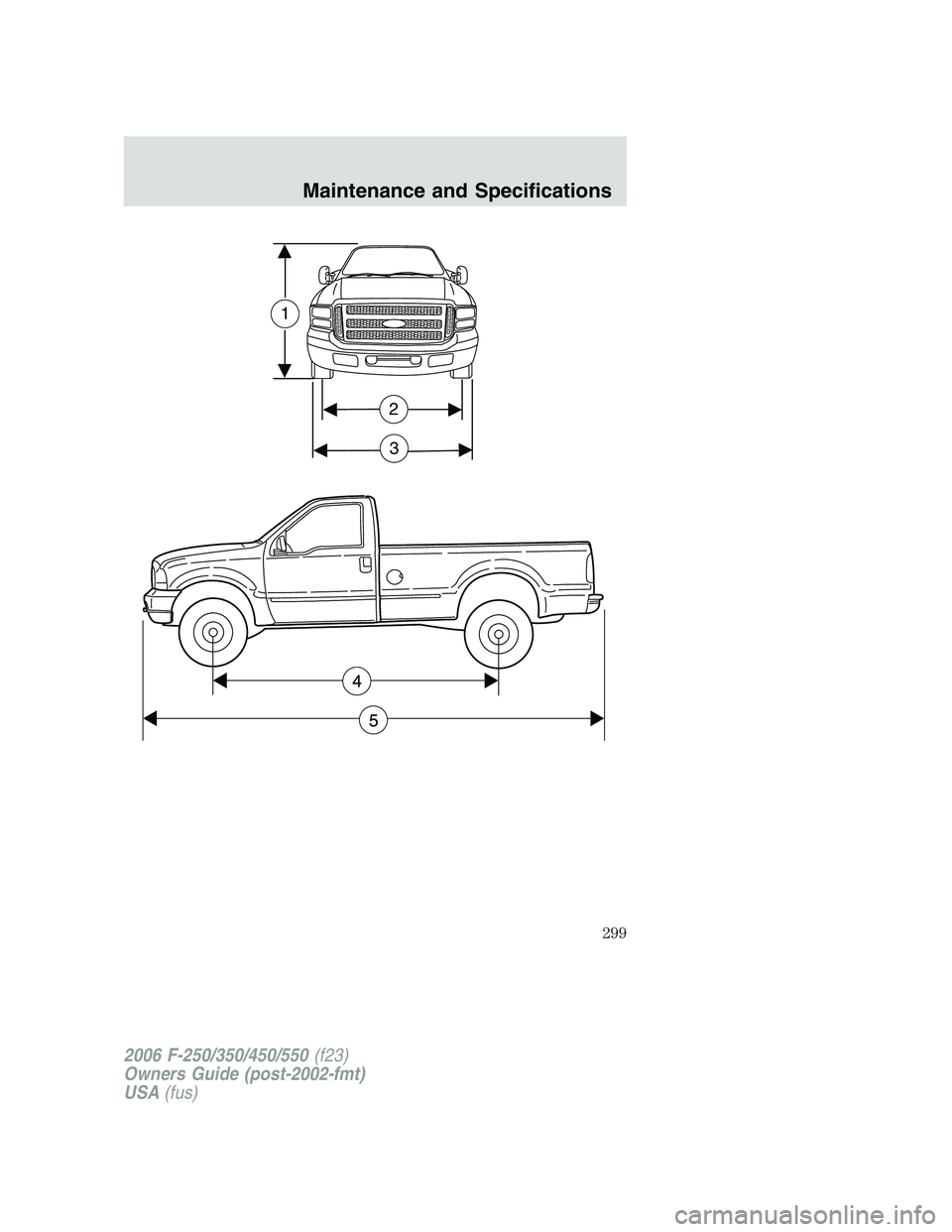

2
3
1
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
299

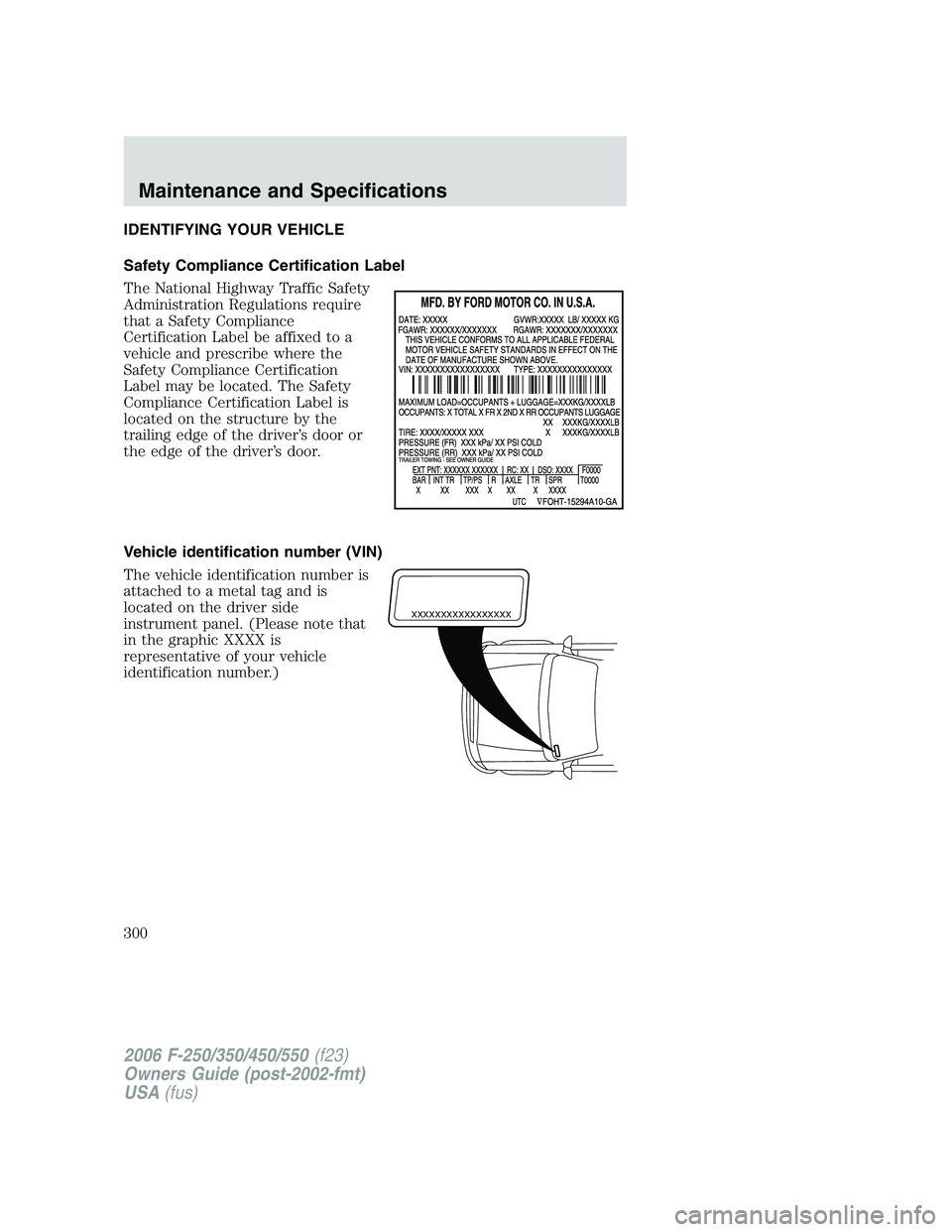

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
XXXXXXXXXXXXXXXXX
