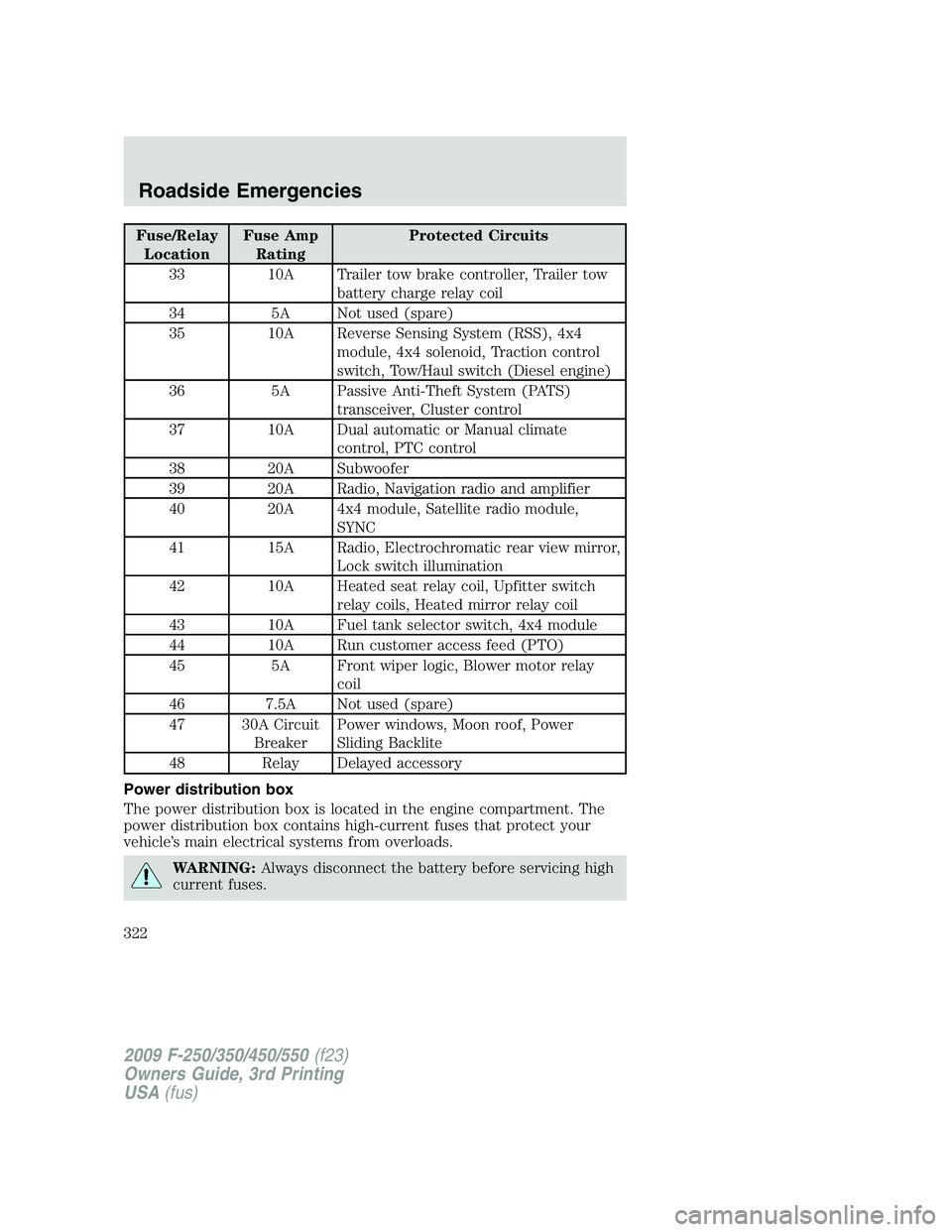

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
33 10A Trailer tow brake controller, Trailer tow
battery charge relay coil
34 5A Not used (spare)
35 10A Reverse Sensing System (RSS), 4x4
module, 4x4 solenoid, Traction control
switch, Tow/Haul switch (Diesel engine)
36 5A Passive Anti-Theft System (PATS)
transceiver, Cluster control
37 10A Dual automatic or Manual climate
control, PTC control
38 20A Subwoofer
39 20A Radio, Navigation radio and amplifier
40 20A 4x4 module, Satellite radio module,
SYNC
41 15A Radio, Electrochromatic rear view mirror,
Lock switch illumination
42 10A Heated seat relay coil, Upfitter switch
relay coils, Heated mirror relay coil
43 10A Fuel tank selector switch, 4x4 module
44 10A Run customer access feed (PTO)
45 5A Front wiper logic, Blower motor relay
coil
46 7.5A Not used (spare)
47 30A Circuit
BreakerPower windows, Moon roof, Power
Sliding Backlite
48 Relay Delayed accessory
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
2009 F-250/350/450/550(f23)
Owners Guide, 3rd Printing
USA(fus)
Roadside Emergencies
322

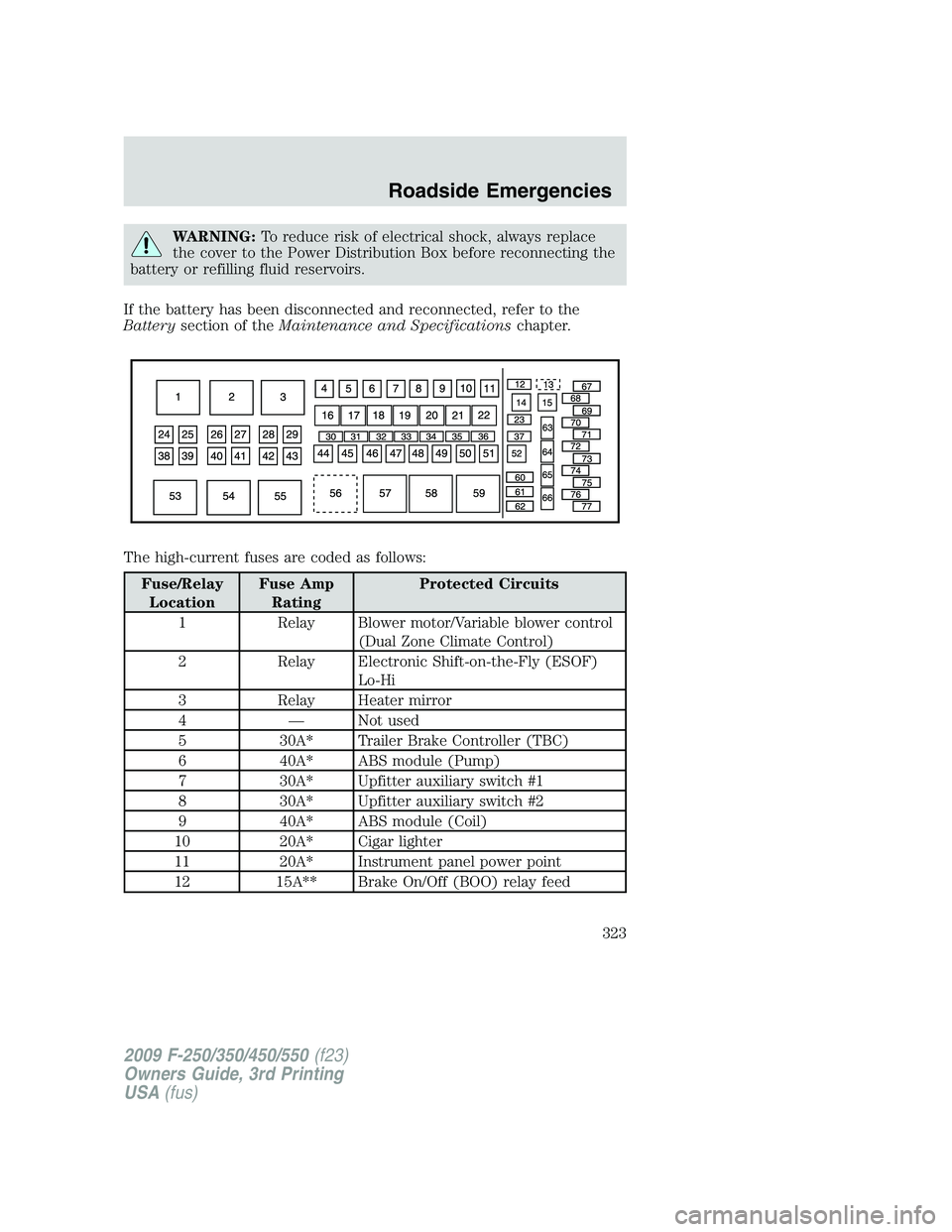

WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 Relay Blower motor/Variable blower control
(Dual Zone Climate Control)
2 Relay Electronic Shift-on-the-Fly (ESOF)
Lo-Hi
3 Relay Heater mirror
4 — Not used
5 30A* Trailer Brake Controller (TBC)
6 40A* ABS module (Pump)
7 30A* Upfitter auxiliary switch #1
8 30A* Upfitter auxiliary switch #2
9 40A* ABS module (Coil)
10 20A* Cigar lighter
11 20A* Instrument panel power point
12 15A** Brake On/Off (BOO) relay feed
2009 F-250/350/450/550(f23)
Owners Guide, 3rd Printing
USA(fus)
Roadside Emergencies
323

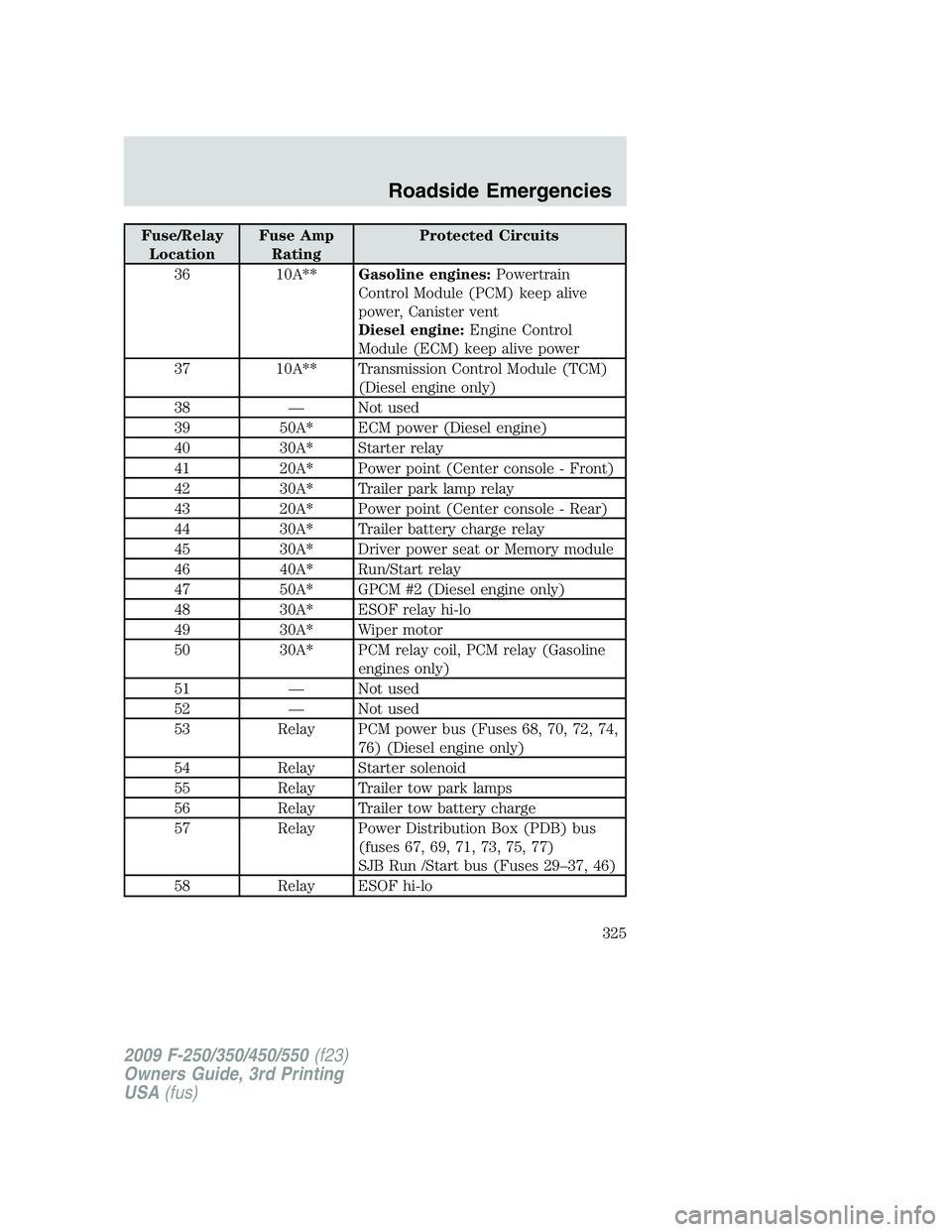

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
36 10A**Gasoline engines:Powertrain
Control Module (PCM) keep alive
power, Canister vent
Diesel engine:Engine Control
Module (ECM) keep alive power
37 10A** Transmission Control Module (TCM)
(Diesel engine only)
38 — Not used
39 50A* ECM power (Diesel engine)
40 30A* Starter relay
41 20A* Power point (Center console - Front)
42 30A* Trailer park lamp relay
43 20A* Power point (Center console - Rear)
44 30A* Trailer battery charge relay
45 30A* Driver power seat or Memory module
46 40A* Run/Start relay
47 50A* GPCM #2 (Diesel engine only)
48 30A* ESOF relay hi-lo
49 30A* Wiper motor
50 30A* PCM relay coil, PCM relay (Gasoline
engines only)
51 — Not used
52 — Not used
53 Relay PCM power bus (Fuses 68, 70, 72, 74,
76) (Diesel engine only)
54 Relay Starter solenoid
55 Relay Trailer tow park lamps
56 Relay Trailer tow battery charge
57 Relay Power Distribution Box (PDB) bus
(fuses 67, 69, 71, 73, 75, 77)
SJB Run /Start bus (Fuses 29–37, 46)
58 Relay ESOF hi-lo
2009 F-250/350/450/550(f23)
Owners Guide, 3rd Printing
USA(fus)
Roadside Emergencies
325

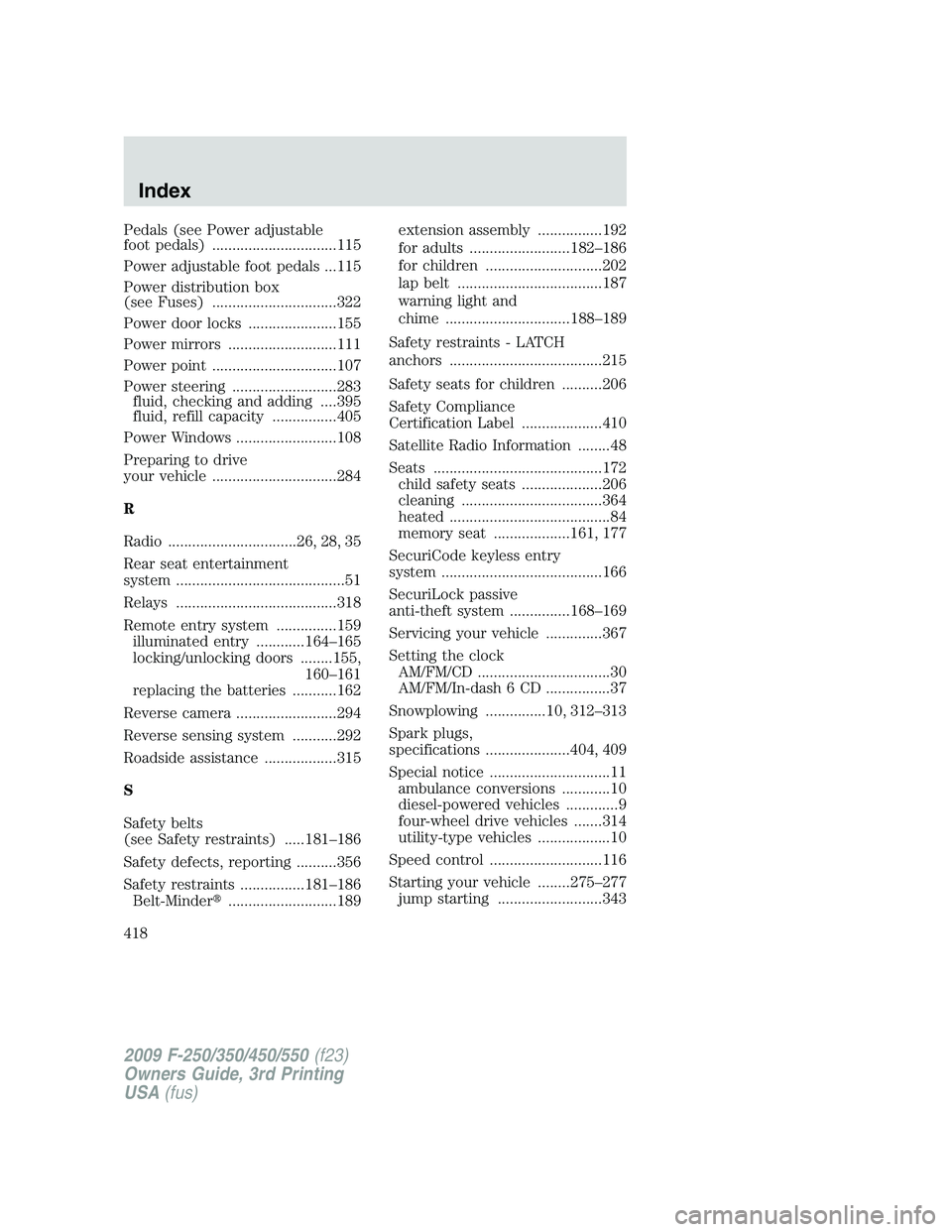

Pedals (see Power adjustable
foot pedals) ...............................115
Power adjustable foot pedals ...115
Power distribution box
(see Fuses) ...............................322
Power door locks ......................155
Power mirrors ...........................111
Power point ...............................107
Power steering ..........................283
fluid, checking and adding ....395
fluid, refill capacity ................405
Power Windows .........................108
Preparing to drive
your vehicle ...............................284
R
Radio ................................26, 28, 35
Rear seat entertainment
system ..........................................51
Relays ........................................318
Remote entry system ...............159
illuminated entry ............164–165
locking/unlocking doors ........155,
160–161
replacing the batteries ...........162
Reverse camera .........................294
Reverse sensing system ...........292
Roadside assistance ..................315
S
Safety belts
(see Safety restraints) .....181–186
Safety defects, reporting ..........356
Safety restraints ................181–186
Belt-Minder
...........................189extension assembly ................192
for adults .........................182–186
for children .............................202
lap belt ....................................187
warning light and
chime ...............................188–189
Safety restraints - LATCH
anchors ......................................215
Safety seats for children ..........206
Safety Compliance
Certification Label ....................410
Satellite Radio Information ........48
Seats ..........................................172
child safety seats ....................206
cleaning ...................................364
heated ........................................84
memory seat ...................161, 177
SecuriCode keyless entry
system ........................................166
SecuriLock passive
anti-theft system ...............168–169
Servicing your vehicle ..............367
Setting the clock
AM/FM/CD .................................30
AM/FM/In-dash 6 CD ................37
Snowplowing ...............10, 312–313
Spark plugs,
specifications .....................404, 409
Special notice ..............................11
ambulance conversions ............10
diesel-powered vehicles .............9
four-wheel drive vehicles .......314
utility-type vehicles ..................10
Speed control ............................116
Starting your vehicle ........275–277
jump starting ..........................343
2009 F-250/350/450/550(f23)
Owners Guide, 3rd Printing
USA(fus)
Index
418
