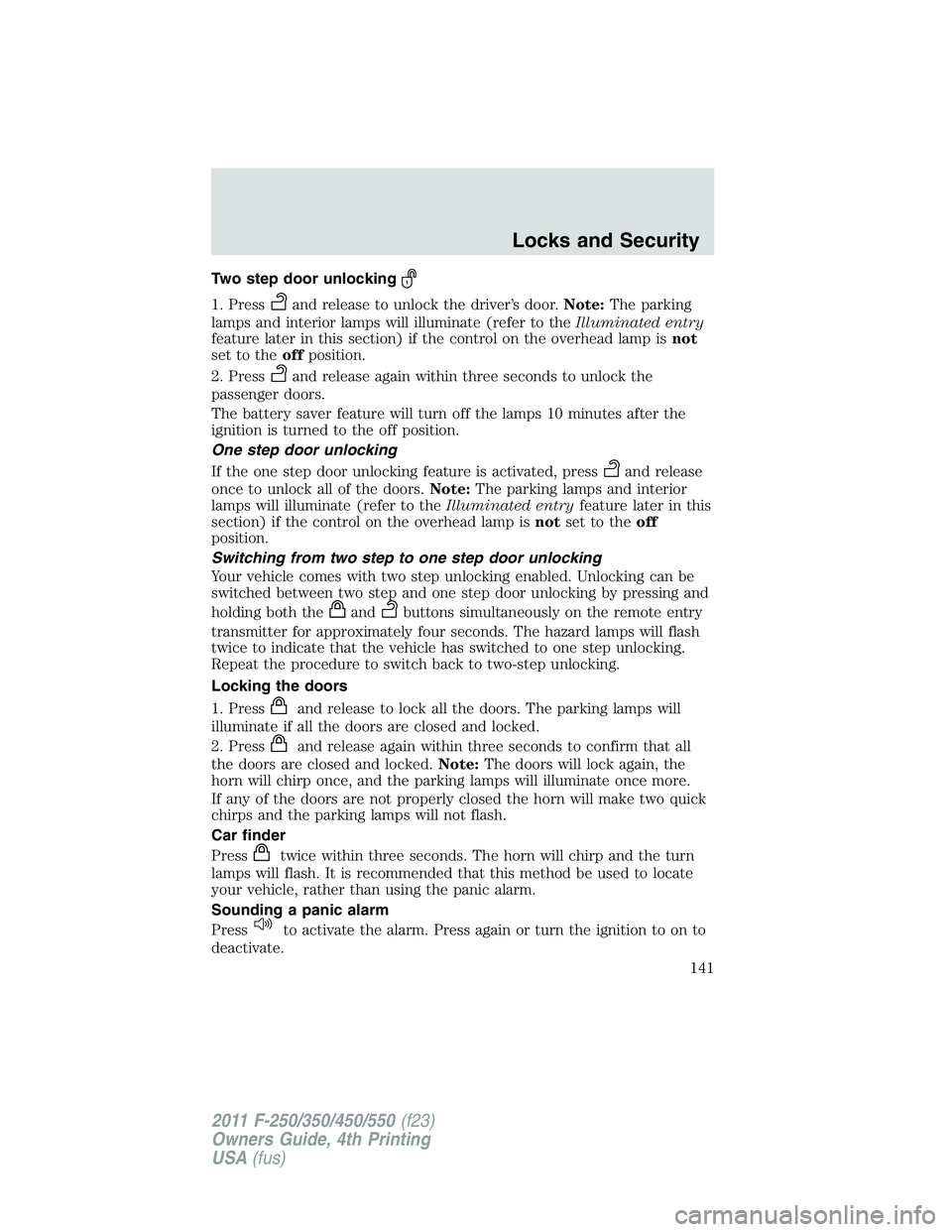

Two step door unlocking
1. Pressand release to unlock the driver’s door.Note:The parking
lamps and interior lamps will illuminate (refer to theIlluminated entry
feature later in this section) if the control on the overhead lamp isnot
set to theoffposition.
2. Press
and release again within three seconds to unlock the
passenger doors.
The battery saver feature will turn off the lamps 10 minutes after the
ignition is turned to the off position.
One step door unlocking
If the one step door unlocking feature is activated, press
and release
once to unlock all of the doors.Note:The parking lamps and interior
lamps will illuminate (refer to theIlluminated entryfeature later in this
section) if the control on the overhead lamp isnotset to theoff
position.
Switching from two step to one step door unlocking
Your vehicle comes with two step unlocking enabled. Unlocking can be
switched between two step and one step door unlocking by pressing and
holding both the
andbuttons simultaneously on the remote entry
transmitter for approximately four seconds. The hazard lamps will flash
twice to indicate that the vehicle has switched to one step unlocking.
Repeat the procedure to switch back to two-step unlocking.
Locking the doors
1. Press
and release to lock all the doors. The parking lamps will
illuminate if all the doors are closed and locked.
2. Press
and release again within three seconds to confirm that all
the doors are closed and locked.Note:The doors will lock again, the
horn will chirp once, and the parking lamps will illuminate once more.
If any of the doors are not properly closed the horn will make two quick
chirps and the parking lamps will not flash.
Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. Press again or turn the ignition to on to
deactivate.
Locks and Security
141
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

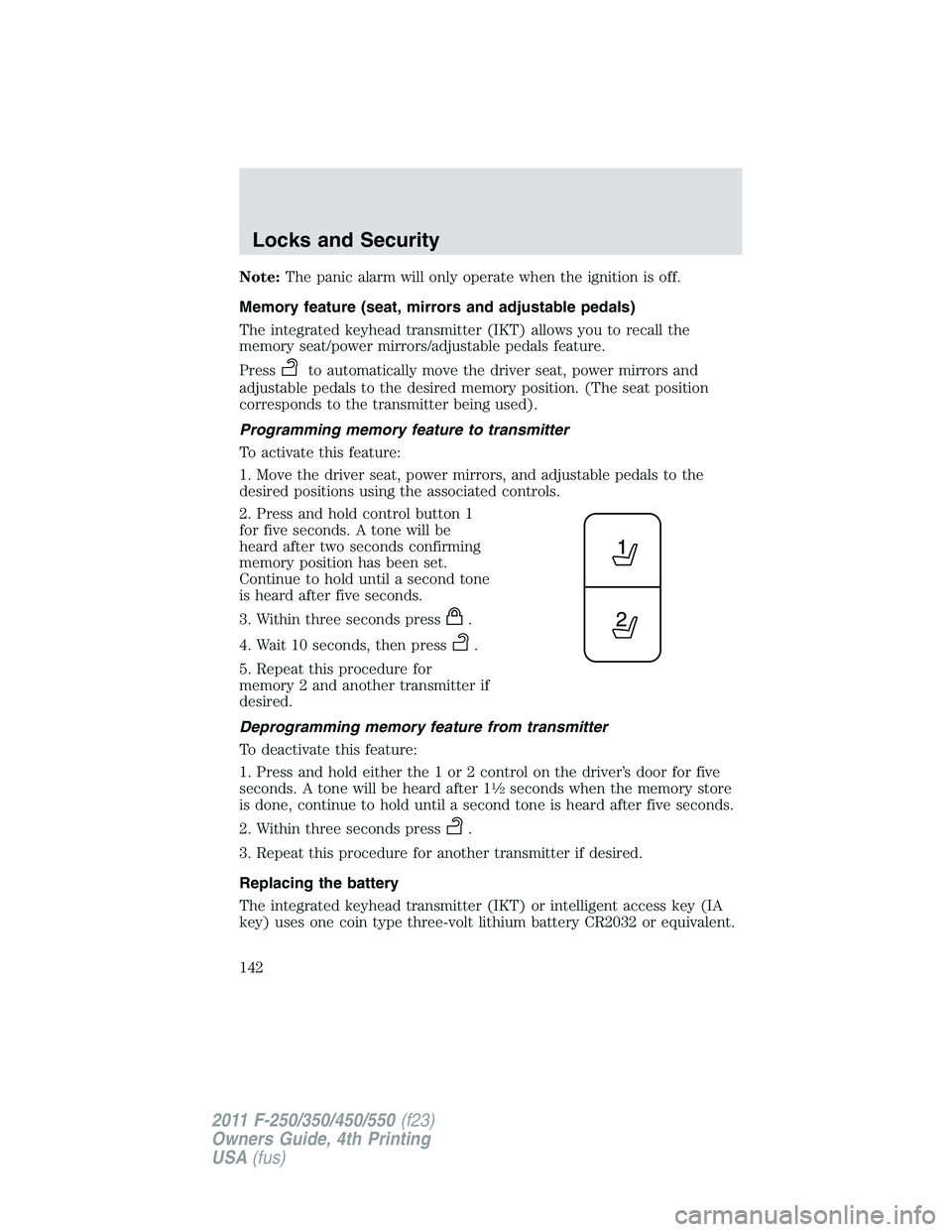

Note:The panic alarm will only operate when the ignition is off.
Memory feature (seat, mirrors and adjustable pedals)
The integrated keyhead transmitter (IKT) allows you to recall the
memory seat/power mirrors/adjustable pedals feature.
Press
to automatically move the driver seat, power mirrors and
adjustable pedals to the desired memory position. (The seat position
corresponds to the transmitter being used).
Programming memory feature to transmitter
To activate this feature:
1. Move the driver seat, power mirrors, and adjustable pedals to the
desired positions using the associated controls.
2. Press and hold control button 1
for five seconds. A tone will be
heard after two seconds confirming
memory position has been set.
Continue to hold until a second tone
is heard after five seconds.
3. Within three seconds press
.
4. Wait 10 seconds, then press
.
5. Repeat this procedure for
memory 2 and another transmitter if
desired.
Deprogramming memory feature from transmitter
To deactivate this feature:
1. Press and hold either the 1 or 2 control on the driver’s door for five
seconds. A tone will be heard after 1
12seconds when the memory store
is done, continue to hold until a second tone is heard after five seconds.
2. Within three seconds press
.
3. Repeat this procedure for another transmitter if desired.
Replacing the battery
The integrated keyhead transmitter (IKT) or intelligent access key (IA
key) uses one coin type three-volt lithium battery CR2032 or equivalent.
Locks and Security
142
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

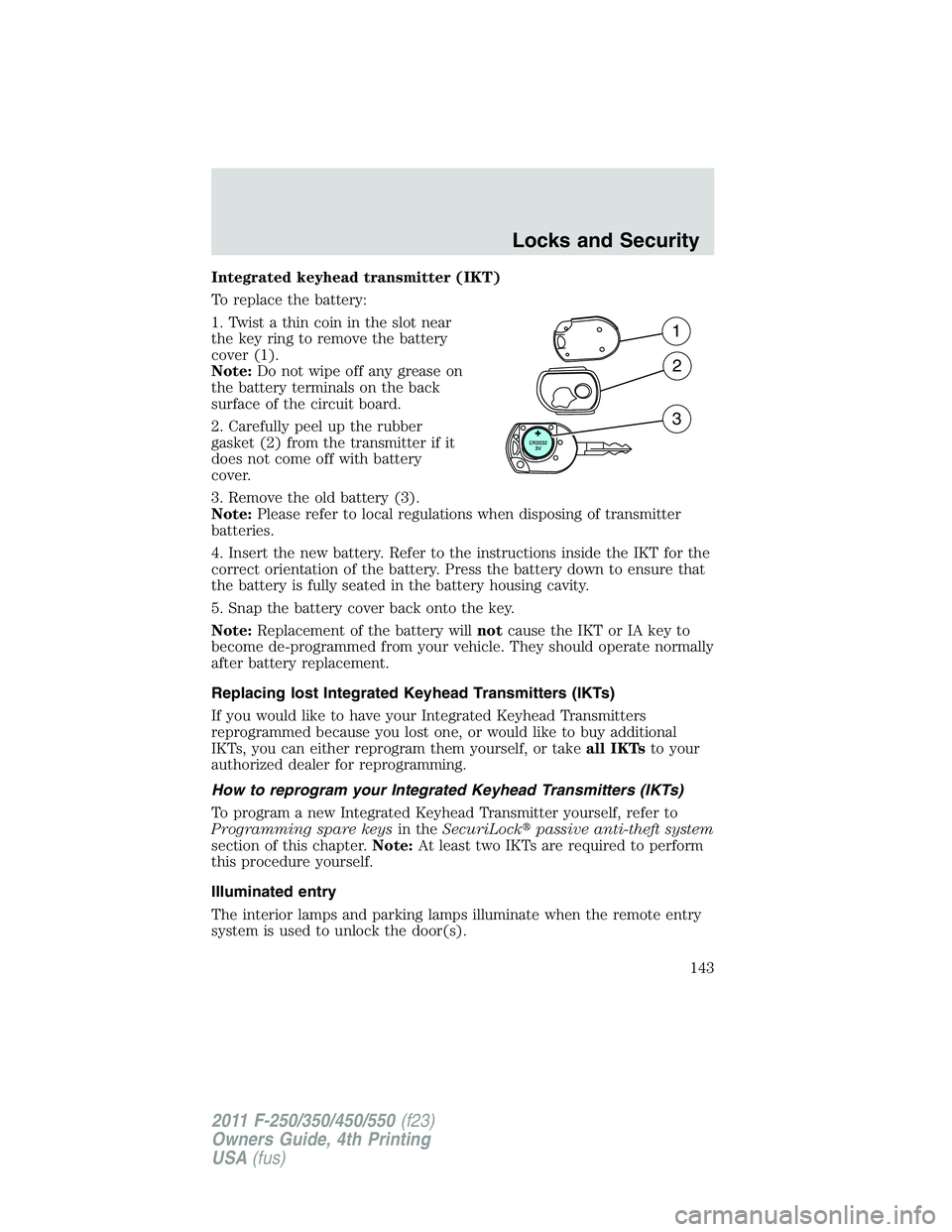

Integrated keyhead transmitter (IKT)
To replace the battery:
1. Twist a thin coin in the slot near
the key ring to remove the battery
cover (1).
Note:Do not wipe off any grease on
the battery terminals on the back
surface of the circuit board.
2. Carefully peel up the rubber
gasket (2) from the transmitter if it
does not come off with battery
cover.
3. Remove the old battery (3).
Note:Please refer to local regulations when disposing of transmitter
batteries.
4. Insert the new battery. Refer to the instructions inside the IKT for the
correct orientation of the battery. Press the battery down to ensure that
the battery is fully seated in the battery housing cavity.
5. Snap the battery cover back onto the key.
Note:Replacement of the battery willnotcause the IKT or IA key to
become de-programmed from your vehicle. They should operate normally
after battery replacement.
Replacing lost Integrated Keyhead Transmitters (IKTs)
If you would like to have your Integrated Keyhead Transmitters
reprogrammed because you lost one, or would like to buy additional
IKTs, you can either reprogram them yourself, or takeall IKTsto your
authorized dealer for reprogramming.
How to reprogram your Integrated Keyhead Transmitters (IKTs)
To program a new Integrated Keyhead Transmitter yourself, refer to
Programming spare keysin theSecuriLockpassive anti-theft system
section of this chapter.Note:At least two IKTs are required to perform
this procedure yourself.
Illuminated entry
The interior lamps and parking lamps illuminate when the remote entry
system is used to unlock the door(s).
1
2
3
Locks and Security
143
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

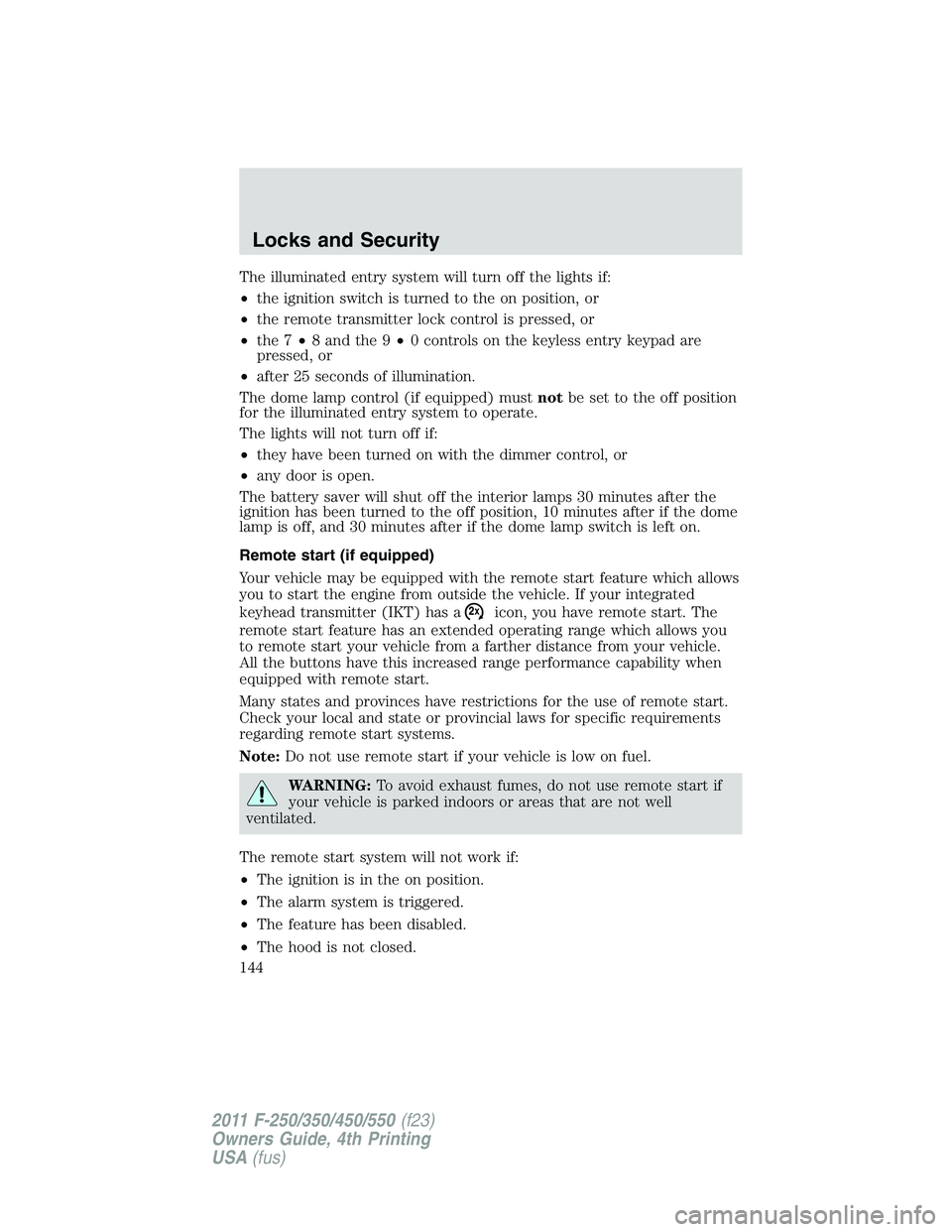

The illuminated entry system will turn off the lights if:
•the ignition switch is turned to the on position, or
•the remote transmitter lock control is pressed, or
•the 7•8 and the 9•0 controls on the keyless entry keypad are
pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the off position
for the illuminated entry system to operate.
The lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
The battery saver will shut off the interior lamps 30 minutes after the
ignition has been turned to the off position, 10 minutes after if the dome
lamp is off, and 30 minutes after if the dome lamp switch is left on.
Remote start (if equipped)
Your vehicle may be equipped with the remote start feature which allows
you to start the engine from outside the vehicle. If your integrated
keyhead transmitter (IKT) has a
icon, you have remote start. The
remote start feature has an extended operating range which allows you
to remote start your vehicle from a farther distance from your vehicle.
All the buttons have this increased range performance capability when
equipped with remote start.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
Note:Do not use remote start if your vehicle is low on fuel.
WARNING:To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well
ventilated.
The remote start system will not work if:
•The ignition is in the on position.
•The alarm system is triggered.
•The feature has been disabled.
•The hood is not closed.
Locks and Security
144
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

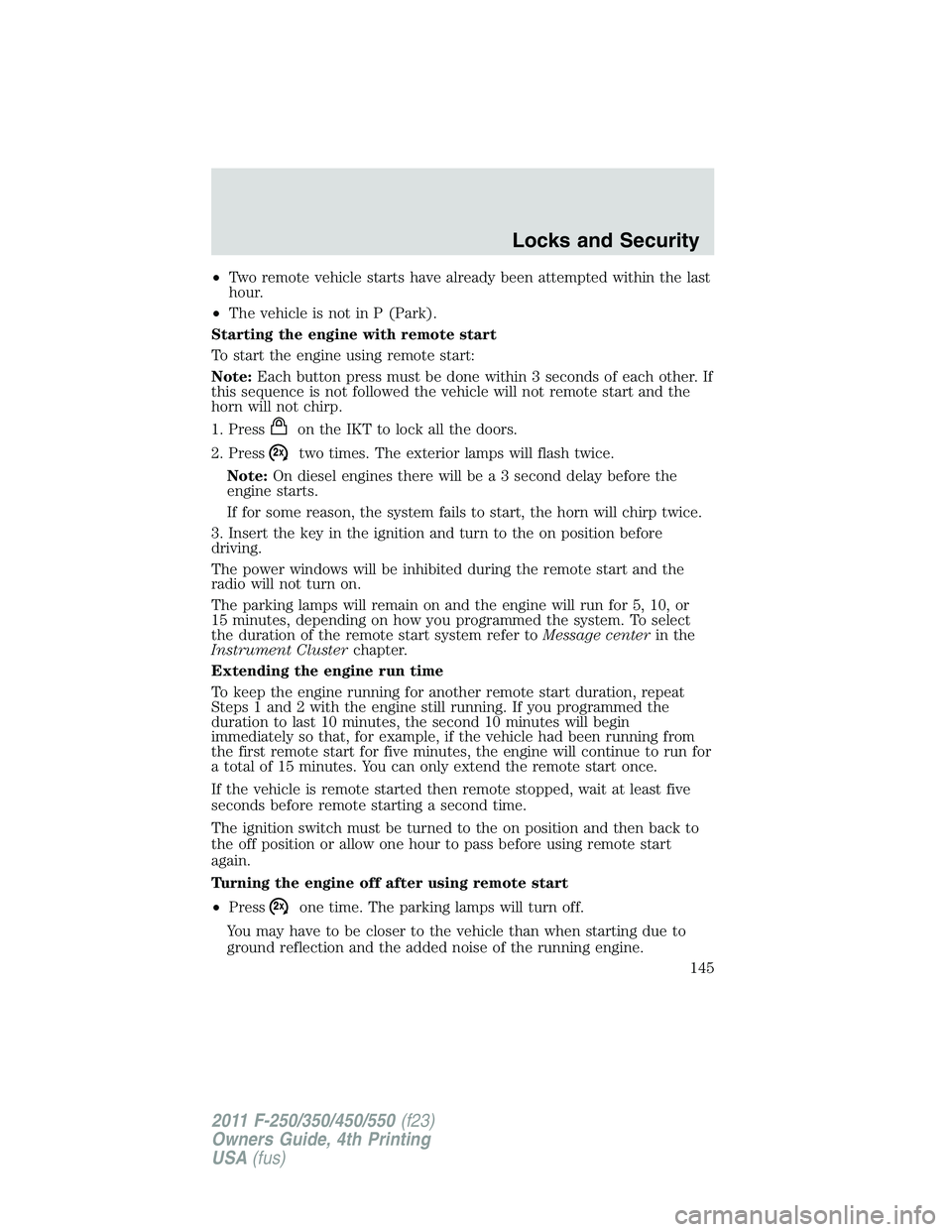

•Two remote vehicle starts have already been attempted within the last
hour.
•The vehicle is not in P (Park).
Starting the engine with remote start
To start the engine using remote start:
Note:Each button press must be done within 3 seconds of each other. If
this sequence is not followed the vehicle will not remote start and the
horn will not chirp.
1. Press
on the IKT to lock all the doors.
2. Press
two times. The exterior lamps will flash twice.
Note:On diesel engines there will be a 3 second delay before the
engine starts.
If for some reason, the system fails to start, the horn will chirp twice.
3. Insert the key in the ignition and turn to the on position before
driving.
The power windows will be inhibited during the remote start and the
radio will not turn on.
The parking lamps will remain on and the engine will run for 5, 10, or
15 minutes, depending on how you programmed the system. To select
the duration of the remote start system refer toMessage centerin the
Instrument Clusterchapter.
Extending the engine run time
To keep the engine running for another remote start duration, repeat
Steps 1 and 2 with the engine still running. If you programmed the
duration to last 10 minutes, the second 10 minutes will begin
immediately so that, for example, if the vehicle had been running from
the first remote start for five minutes, the engine will continue to run for
a total of 15 minutes. You can only extend the remote start once.
If the vehicle is remote started then remote stopped, wait at least five
seconds before remote starting a second time.
The ignition switch must be turned to the on position and then back to
the off position or allow one hour to pass before using remote start
again.
Turning the engine off after using remote start
•Press
one time. The parking lamps will turn off.
You may have to be closer to the vehicle than when starting due to
ground reflection and the added noise of the running engine.
Locks and Security
145
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

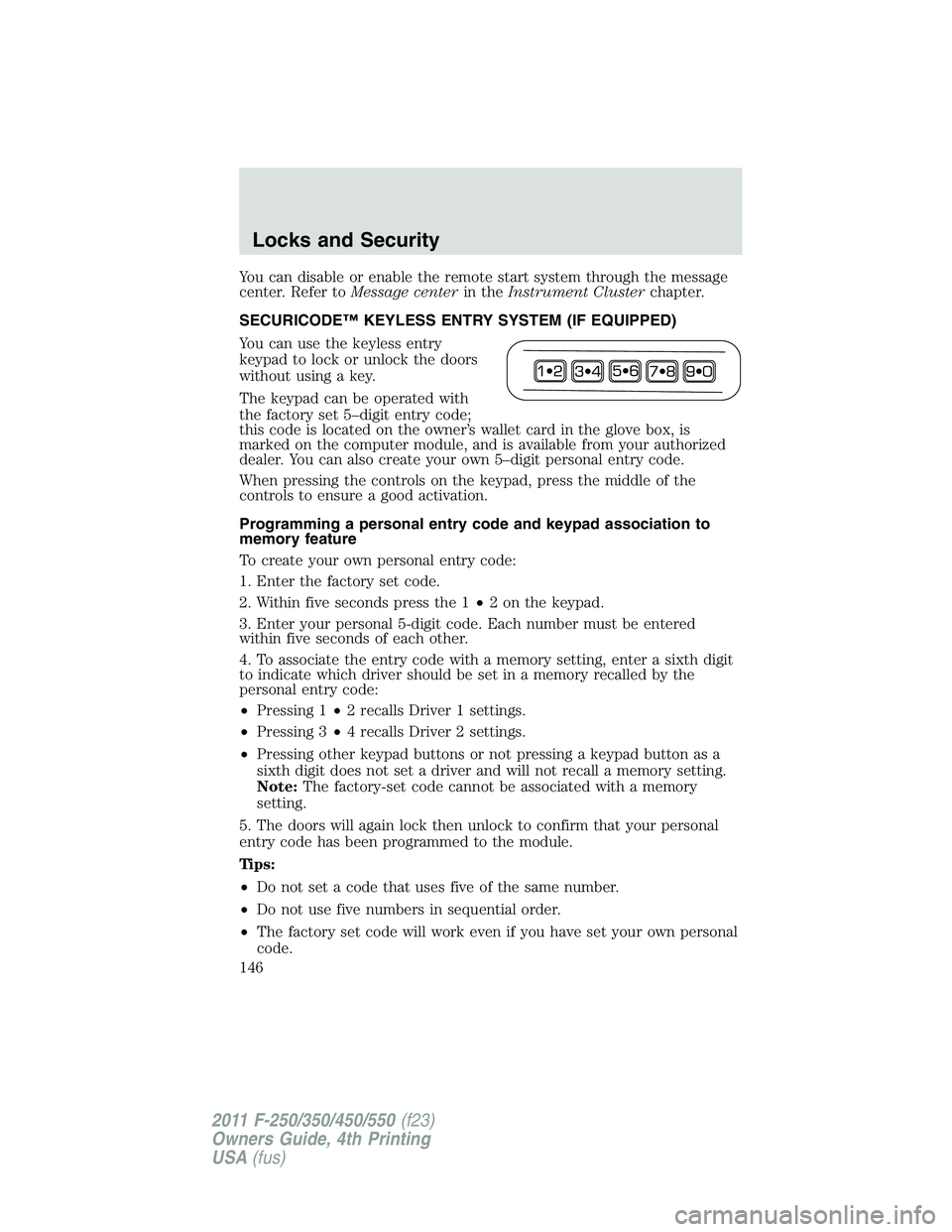

You can disable or enable the remote start system through the message
center. Refer toMessage centerin theInstrument Clusterchapter.
SECURICODE™ KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to lock or unlock the doors
without using a key.
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s wallet card in the glove box, is
marked on the computer module, and is available from your authorized
dealer. You can also create your own 5–digit personal entry code.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory feature
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. To associate the entry code with a memory setting, enter a sixth digit
to indicate which driver should be set in a memory recalled by the
personal entry code:
•Pressing 1•2 recalls Driver 1 settings.
•Pressing 3•4 recalls Driver 2 settings.
•Pressing other keypad buttons or not pressing a keypad button as a
sixth digit does not set a driver and will not recall a memory setting.
Note:The factory-set code cannot be associated with a memory
setting.
5. The doors will again lock then unlock to confirm that your personal
entry code has been programmed to the module.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Locks and Security
146
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

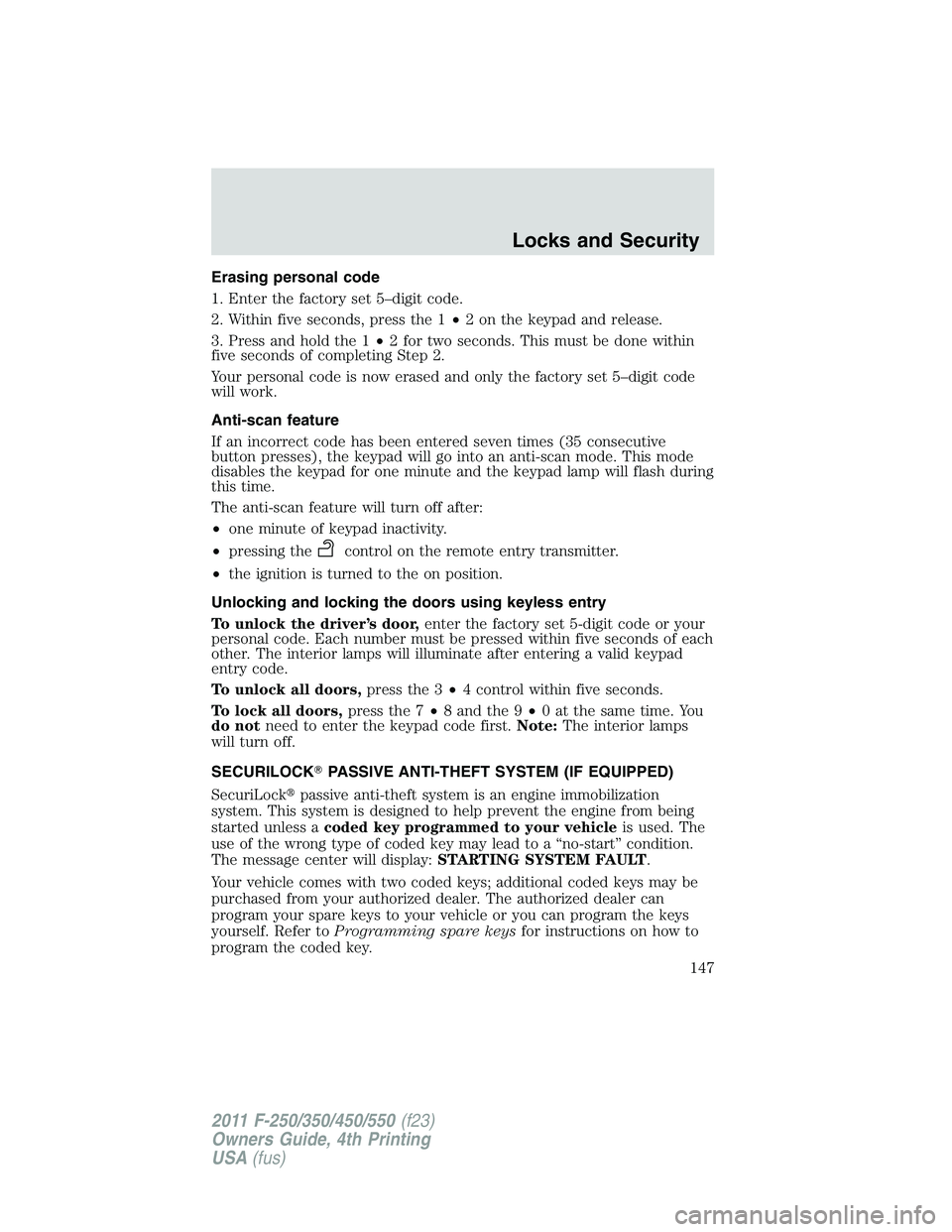

Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, press the 1•2 on the keypad and release.
3. Press and hold the 1•2 for two seconds. This must be done within
five seconds of completing Step 2.
Your personal code is now erased and only the factory set 5–digit code
will work.
Anti-scan feature
If an incorrect code has been entered seven times (35 consecutive
button presses), the keypad will go into an anti-scan mode. This mode
disables the keypad for one minute and the keypad lamp will flash during
this time.
The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the
control on the remote entry transmitter.
•the ignition is turned to the on position.
Unlocking and locking the doors using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate after entering a valid keypad
entry code.
To unlock all doors,press the 3•4 control within five seconds.
To lock all doors,press the 7•8 and the 9•0 at the same time. You
do notneed to enter the keypad code first.Note:The interior lamps
will turn off.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM (IF EQUIPPED)
SecuriLockpassive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
The message center will display:STARTING SYSTEM FAULT.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your authorized dealer. The authorized dealer can
program your spare keys to your vehicle or you can program the keys
yourself. Refer toProgramming spare keysfor instructions on how to
program the coded key.
Locks and Security
147
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

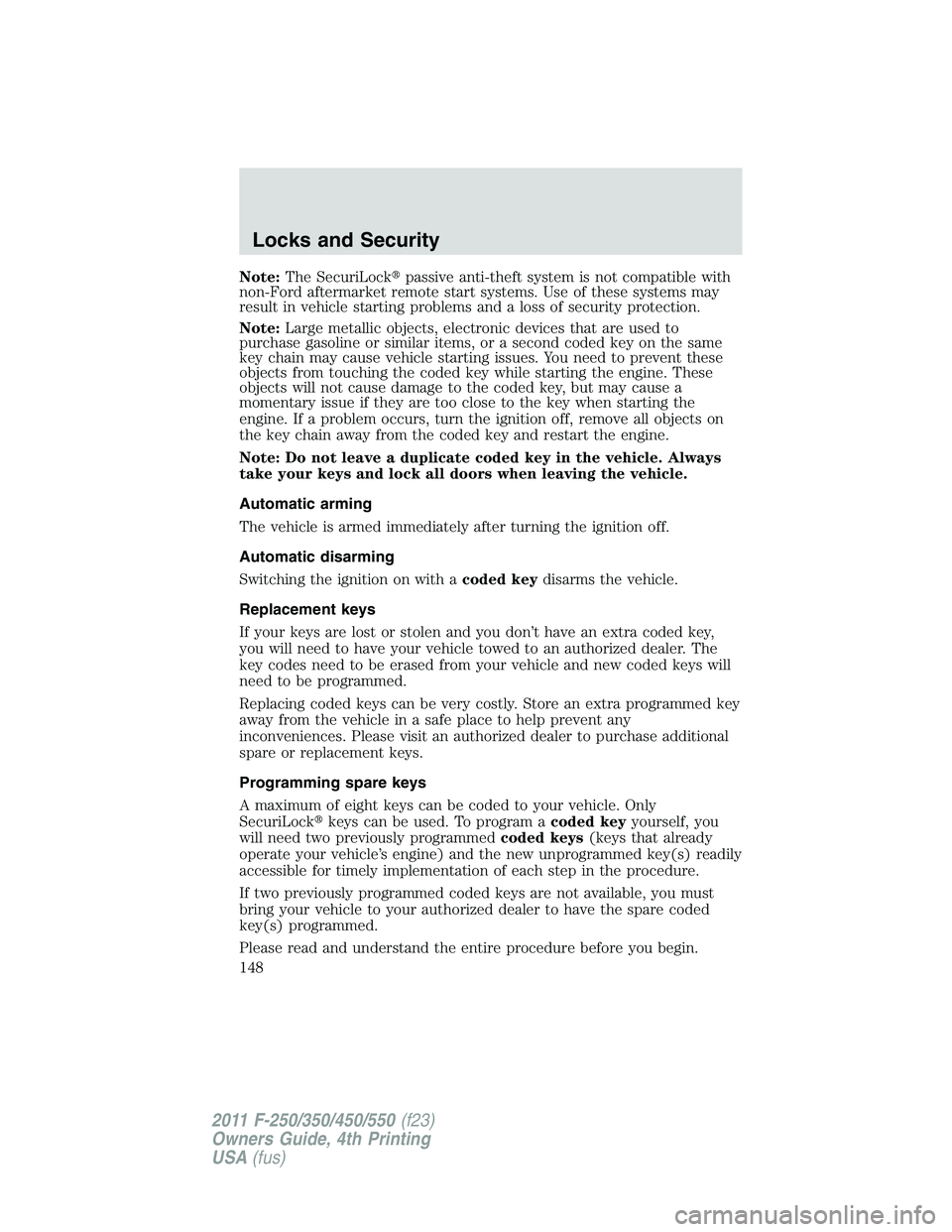

Note:The SecuriLockpassive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Automatic arming
The vehicle is armed immediately after turning the ignition off.
Automatic disarming
Switching the ignition on with acoded keydisarms the vehicle.
Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
A maximum of eight keys can be coded to your vehicle. Only
SecuriLockkeys can be used. To program acoded keyyourself, you
will need two previously programmedcoded keys(keys that already
operate your vehicle’s engine) and the new unprogrammed key(s) readily
accessible for timely implementation of each step in the procedure.
If two previously programmed coded keys are not available, you must
bring your vehicle to your authorized dealer to have the spare coded
key(s) programmed.
Please read and understand the entire procedure before you begin.
Locks and Security
148
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

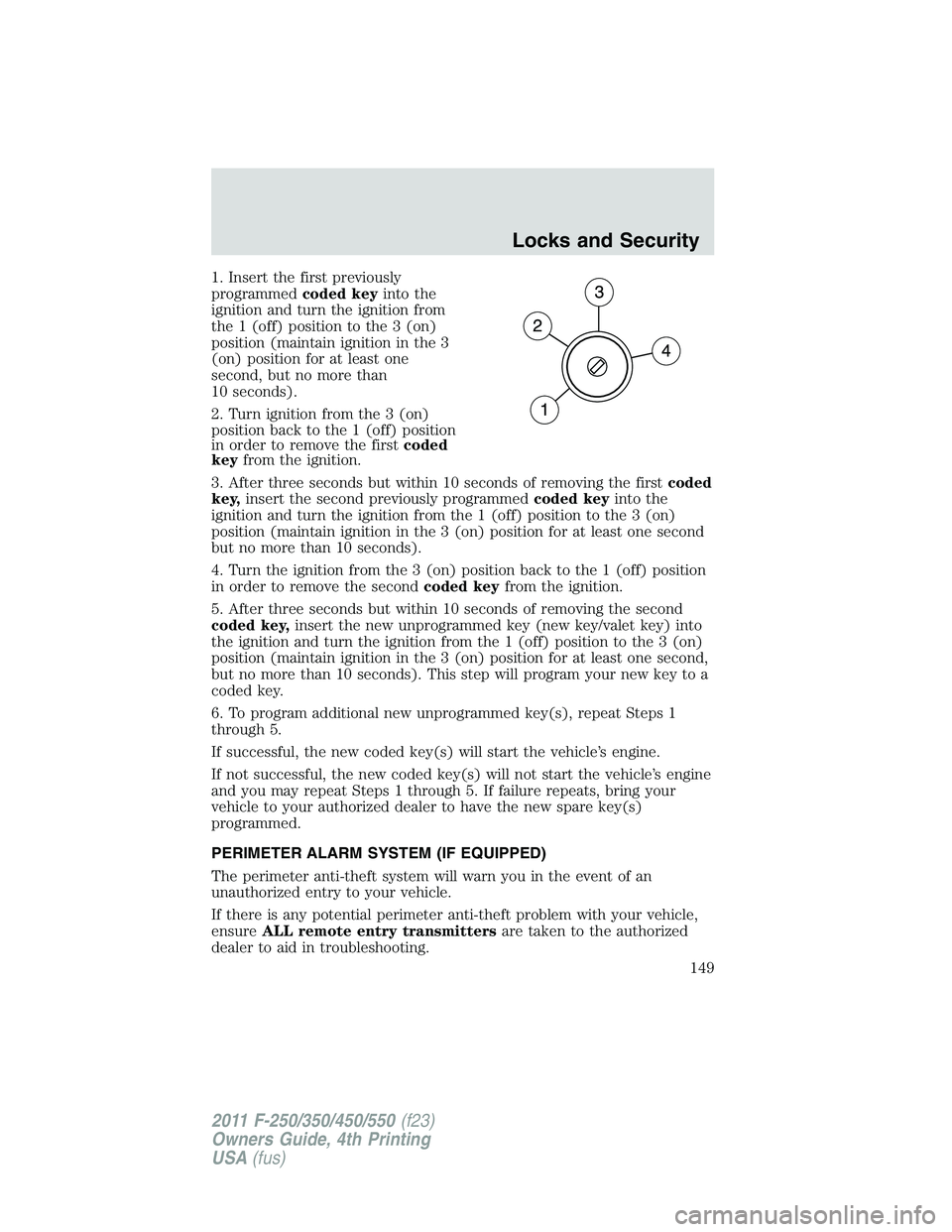

1. Insert the first previously
programmedcoded keyinto the
ignition and turn the ignition from
the 1 (off) position to the 3 (on)
position (maintain ignition in the 3
(on) position for at least one
second, but no more than
10 seconds).
2. Turn ignition from the 3 (on)
position back to the 1 (off) position
in order to remove the firstcoded
keyfrom the ignition.
3. After three seconds but within 10 seconds of removing the firstcoded
key,insert the second previously programmedcoded keyinto the
ignition and turn the ignition from the 1 (off) position to the 3 (on)
position (maintain ignition in the 3 (on) position for at least one second
but no more than 10 seconds).
4. Turn the ignition from the 3 (on) position back to the 1 (off) position
in order to remove the secondcoded keyfrom the ignition.
5. After three seconds but within 10 seconds of removing the second
coded key,insert the new unprogrammed key (new key/valet key) into
the ignition and turn the ignition from the 1 (off) position to the 3 (on)
position (maintain ignition in the 3 (on) position for at least one second,
but no more than 10 seconds). This step will program your new key to a
coded key.
6. To program additional new unprogrammed key(s), repeat Steps 1
through 5.
If successful, the new coded key(s) will start the vehicle’s engine.
If not successful, the new coded key(s) will not start the vehicle’s engine
and you may repeat Steps 1 through 5. If failure repeats, bring your
vehicle to your authorized dealer to have the new spare key(s)
programmed.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
Locks and Security
149
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)

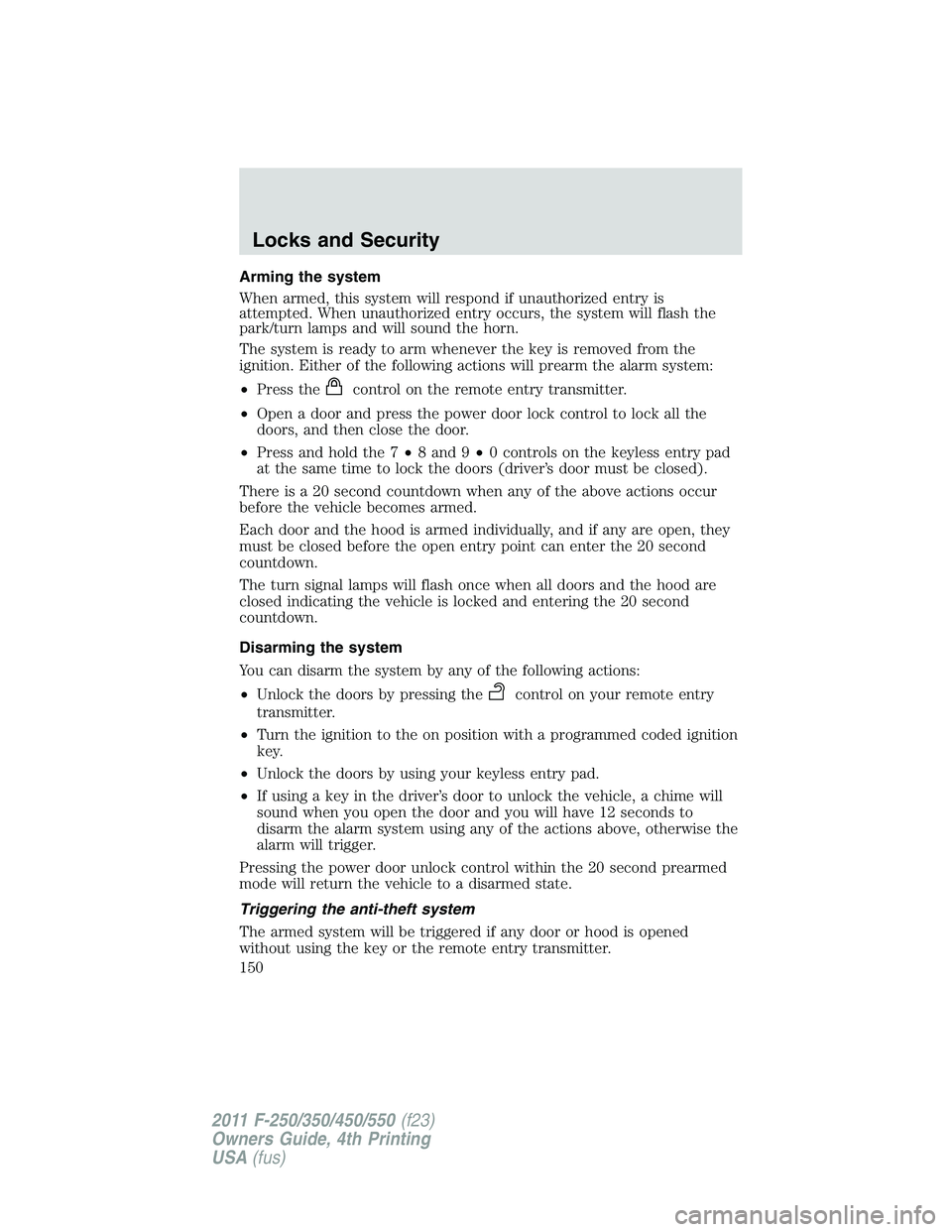

Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Open a door and press the power door lock control to lock all the
doors, and then close the door.
•Press and hold the 7•8 and 9•0 controls on the keyless entry pad
at the same time to lock the doors (driver’s door must be closed).
There is a 20 second countdown when any of the above actions occur
before the vehicle becomes armed.
Each door and the hood is armed individually, and if any are open, they
must be closed before the open entry point can enter the 20 second
countdown.
The turn signal lamps will flash once when all doors and the hood are
closed indicating the vehicle is locked and entering the 20 second
countdown.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Turn the ignition to the on position with a programmed coded ignition
key.
•Unlock the doors by using your keyless entry pad.
•If using a key in the driver’s door to unlock the vehicle, a chime will
sound when you open the door and you will have 12 seconds to
disarm the alarm system using any of the actions above, otherwise the
alarm will trigger.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if any door or hood is opened
without using the key or the remote entry transmitter.
Locks and Security
150
2011 F-250/350/450/550(f23)
Owners Guide, 4th Printing
USA(fus)
