FORD F250 SUPER DUTY 1999 Owners Manual

241

242

243

244

245

246

247

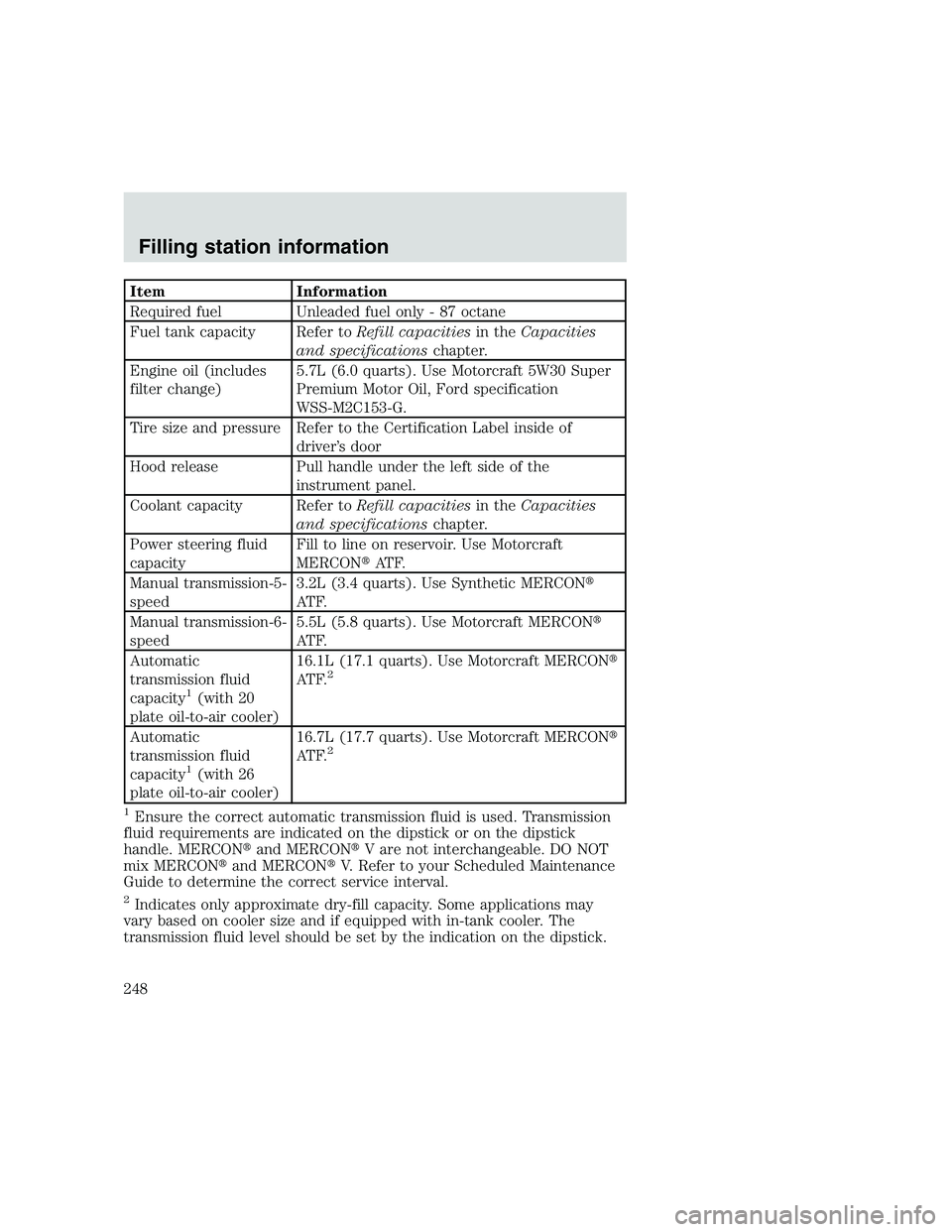

Item Information
Required fuel Unleaded fuel only - 87 octane
Fuel tank capacity Refer toRefill capacitiesin theCapacities
and specificationschapter.
Engine oil (includes
filter change)5.7L (6.0 quarts). Use Motorcraft 5W30 Super
Premium Motor Oil, Ford specification
WSS-M2C153-G.
Tire size and pressure Refer to the Certification Label inside of
driver’s door
Hood release Pull handle under the left side of the
instrument panel.
Coolant capacity Refer toRefill capacitiesin theCapacities
and specificationschapter.
Power steering fluid
capacityFill to line on reservoir. Use Motorcraft
MERCONAT F.
Manual transmission-5-
speed3.2L (3.4 quarts). Use Synthetic MERCON
AT F.
Manual transmission-6-
speed5.5L (5.8 quarts). Use Motorcraft MERCON
AT F.
Automatic
transmission fluid
capacity
1(with 20
plate oil-to-air cooler)16.1L (17.1 quarts). Use Motorcraft MERCON
AT F.
2
Automatic
transmission fluid
capacity
1(with 26
plate oil-to-air cooler)16.7L (17.7 quarts). Use Motorcraft MERCON
AT F.
2
1
Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to your Scheduled Maintenance
Guide to determine the correct service interval.
2Indicates only approximate dry-fill capacity. Some applications may
vary based on cooler size and if equipped with in-tank cooler. The
transmission fluid level should be set by the indication on the dipstick.
Filling station information
248
