manual radio set FORD F250 SUPER DUTY 2011 Owners Manual

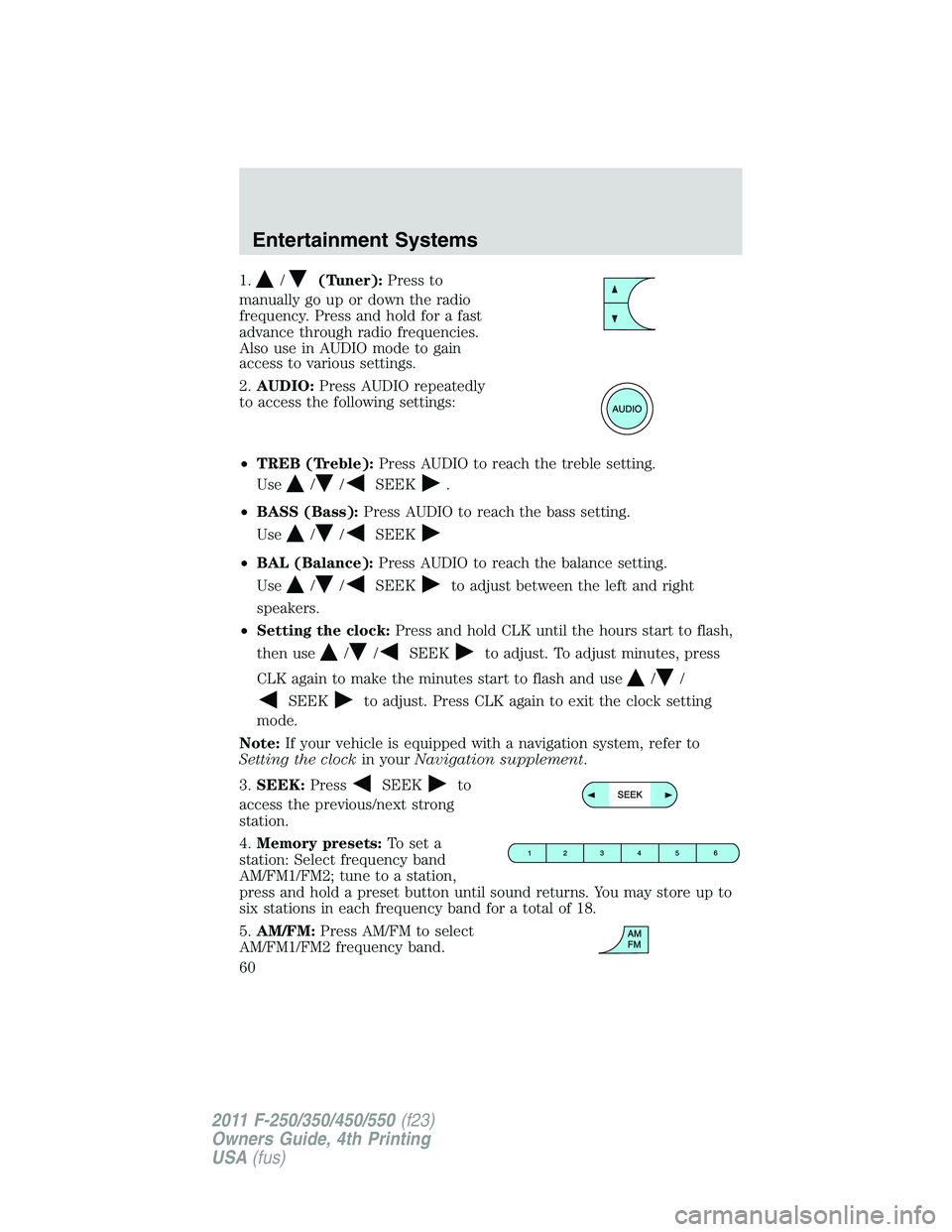

1. / (Tuner): Press to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
Also use in AUDIO mode to gain
access to various settings.
2. AUDIO: Press AUDIO repeatedly
to access the following settings:
• TREB (Treble): Press AUDIO to reach the treble setting.
Use / / SEEK .
• BASS (Bass): Press AUDIO to reach the bass setting.
Use / / SEEK
• BAL (Balance): Press AUDIO to reach the balance setting.
Use / / SEEK to adjust between the left and right
speakers.
• Setting the clock: Press and hold CLK until the hours start to flash,
then use / / SEEK to adjust. To adjust minutes, press
CLK again to make the minutes start to flash and use / /
SEEK to adjust. Press CLK again to exit the clock setting
mode.
Note: If your vehicle is equipped with a navigation system, refer to
Setting the clock in your Navigation supplement .
3. SEEK: Press SEEK to
access the previous/next strong
station.
4. Memory presets: To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You may store up to
six stations in each frequency band for a total of 18.
5. AM/FM: Press AM/FM to select
AM/FM1/FM2 frequency band.Entertainment Systems
60
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

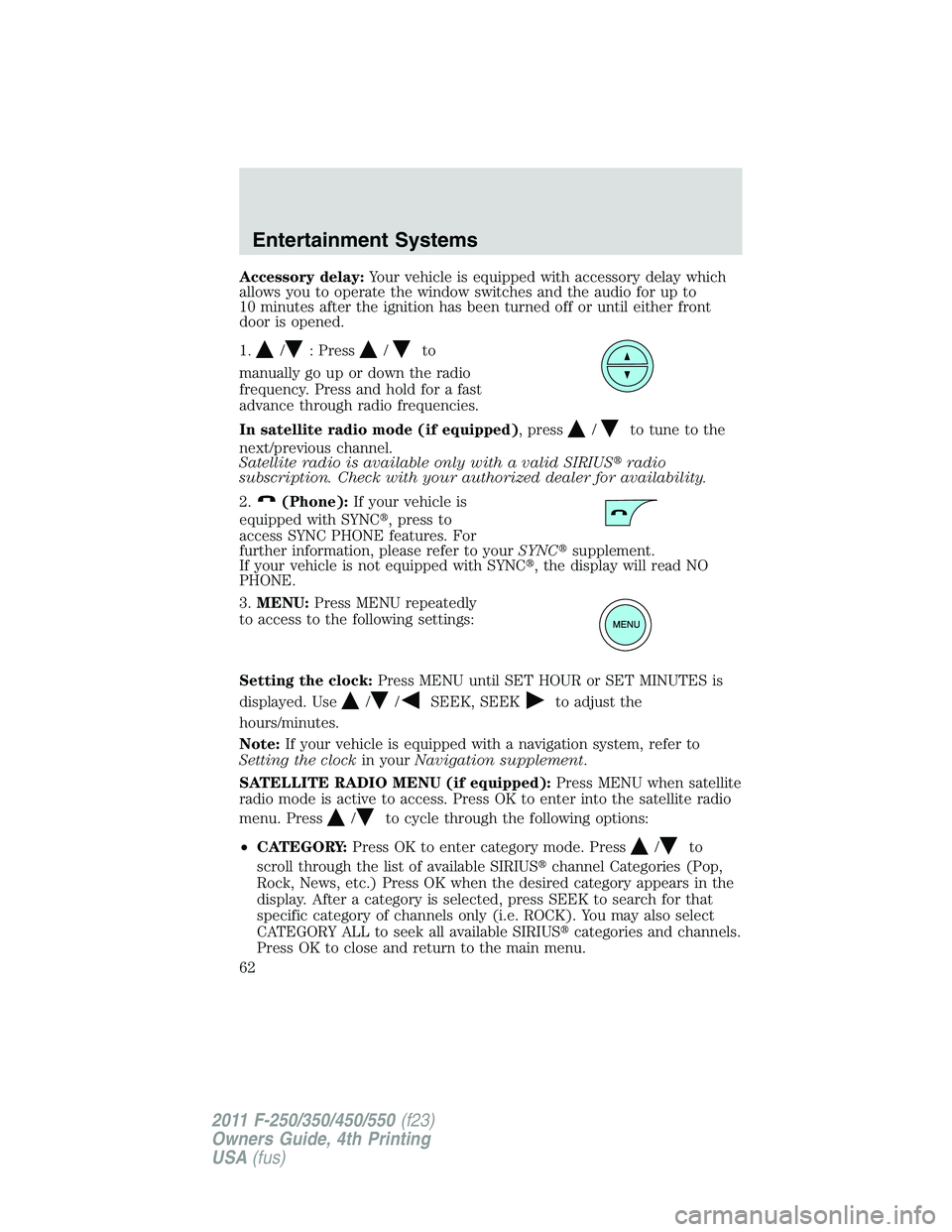

Accessory delay: Your vehicle is equipped with accessory delay which
allows you to operate the window switches and the audio for up to
10 minutes after the ignition has been turned off or until either front
door is opened.
1. / : Press / to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
In satellite radio mode (if equipped) , press / to tune to the
next/previous channel.
Satellite radio is available only with a valid SIRIUS  radio
subscription. Check with your authorized dealer for availability.
2. (Phone): If your vehicle is
equipped with SYNC  , press to
access SYNC PHONE features. For
further information, please refer to your SYNC  supplement.
If your vehicle is not equipped with SYNC  , the display will read NO
PHONE.
3. MENU: Press MENU repeatedly
to access to the following settings:
Setting the clock: Press MENU until SET HOUR or SET MINUTES is
displayed. Use / / SEEK, SEEK to adjust the
hours/minutes.
Note: If your vehicle is equipped with a navigation system, refer to
Setting the clock in your Navigation supplement .
SATELLITE RADIO MENU (if equipped): Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press / to cycle through the following options:
• CATEGORY: Press OK to enter category mode. Press / to
scroll through the list of available SIRIUS  channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS  categories and channels.
Press OK to close and return to the main menu.Entertainment Systems
62
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

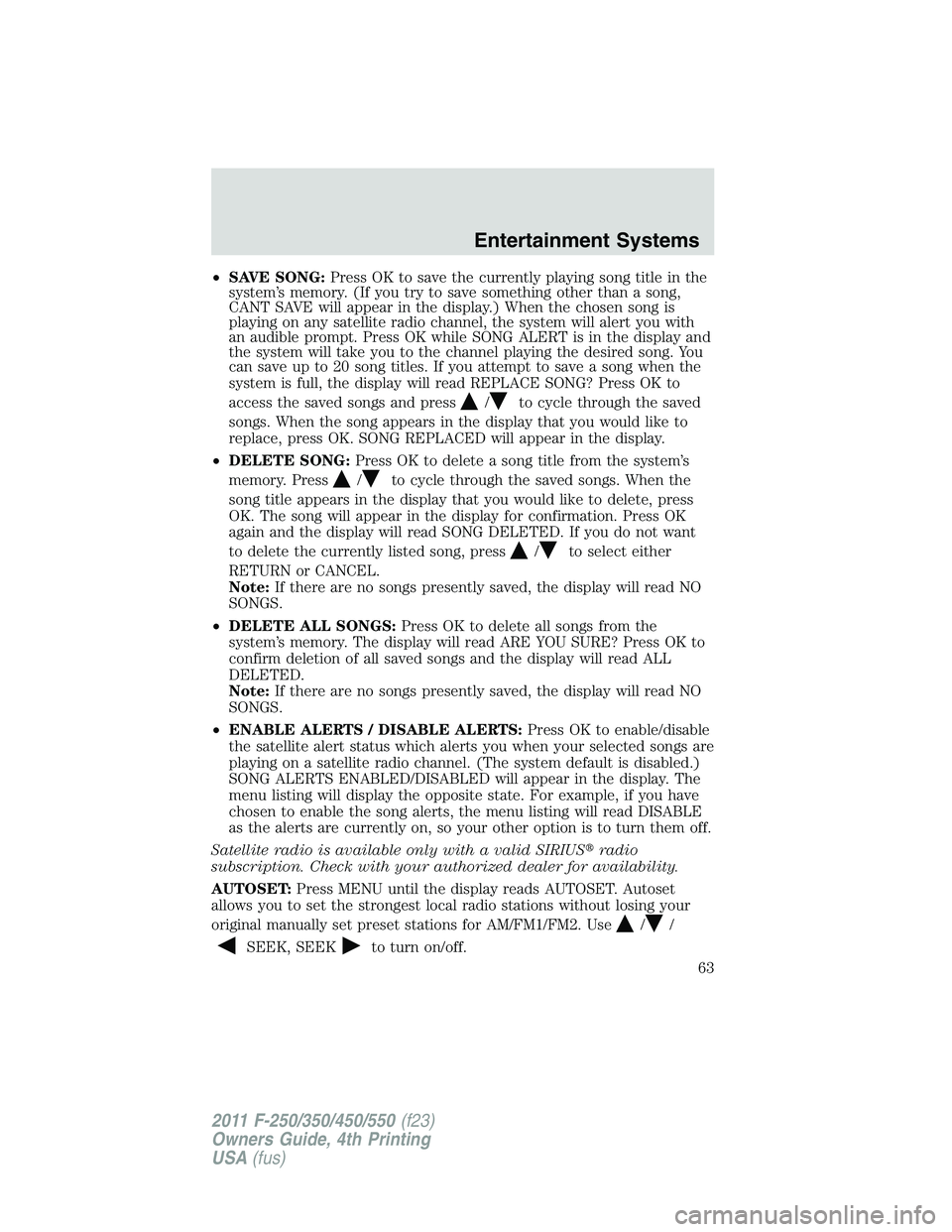

• SAVE SONG: Press OK to save the currently playing song title in the
system’s memory. (If you try to save something other than a song,
CANT SAVE will appear in the display.) When the chosen song is
playing on any satellite radio channel, the system will alert you with
an audible prompt. Press OK while SONG ALERT is in the display and
the system will take you to the channel playing the desired song. You
can save up to 20 song titles. If you attempt to save a song when the
system is full, the display will read REPLACE SONG? Press OK to
access the saved songs and press / to cycle through the saved
songs. When the song appears in the display that you would like to
replace, press OK. SONG REPLACED will appear in the display.
• DELETE SONG: Press OK to delete a song title from the system’s
memory. Press / to cycle through the saved songs. When the
song title appears in the display that you would like to delete, press
OK. The song will appear in the display for confirmation. Press OK
again and the display will read SONG DELETED. If you do not want
to delete the currently listed song, press / to select either
RETURN or CANCEL.
Note: If there are no songs presently saved, the display will read NO
SONGS.
• DELETE ALL SONGS: Press OK to delete all songs from the
system’s memory. The display will read ARE YOU SURE? Press OK to
confirm deletion of all saved songs and the display will read ALL
DELETED.
Note: If there are no songs presently saved, the display will read NO
SONGS.
• ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are
playing on a satellite radio channel. (The system default is disabled.)
SONG ALERTS ENABLED/DISABLED will appear in the display. The
menu listing will display the opposite state. For example, if you have
chosen to enable the song alerts, the menu listing will read DISABLE
as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS  radio
subscription. Check with your authorized dealer for availability.
AUTOSET: Press MENU until the display reads AUTOSET. Autoset
allows you to set the strongest local radio stations without losing your
original manually set preset stations for AM/FM1/FM2. Use / /
SEEK, SEEK to turn on/off.Entertainment Systems
63
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

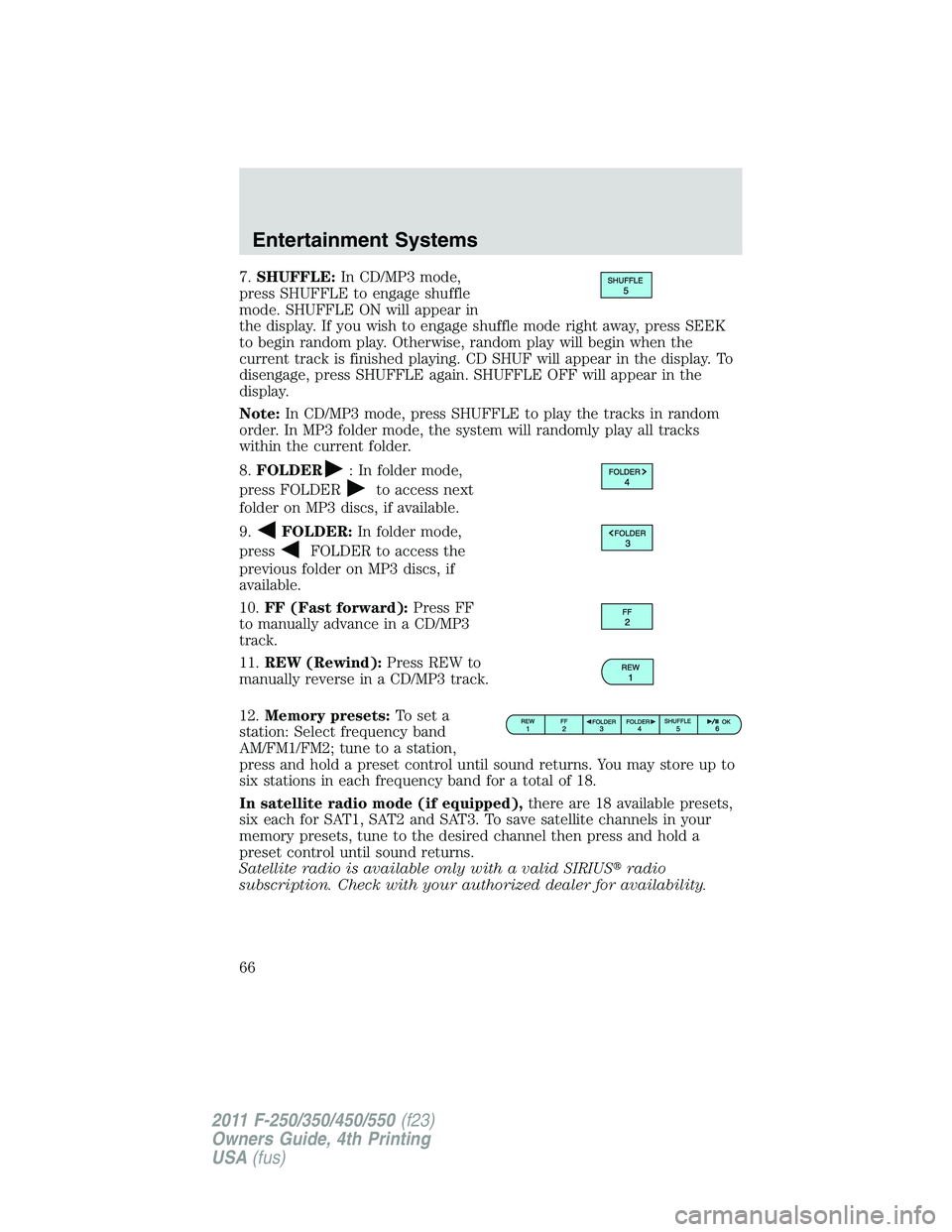

7. SHUFFLE: In CD/MP3 mode,
press SHUFFLE to engage shuffle
mode. SHUFFLE ON will appear in
the display. If you wish to engage shuffle mode right away, press SEEK
to begin random play. Otherwise, random play will begin when the
current track is finished playing. CD SHUF will appear in the display. To
disengage, press SHUFFLE again. SHUFFLE OFF will appear in the
display.
Note: In CD/MP3 mode, press SHUFFLE to play the tracks in random
order. In MP3 folder mode, the system will randomly play all tracks
within the current folder.
8. FOLDER : In folder mode,
press FOLDER to access next
folder on MP3 discs, if available.
9. FOLDER: In folder mode,
press FOLDER to access the
previous folder on MP3 discs, if
available.
10. FF (Fast forward): Press FF
to manually advance in a CD/MP3
track.
11. REW (Rewind): Press REW to
manually reverse in a CD/MP3 track.
12. Memory presets: To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset control until sound returns. You may store up to
six stations in each frequency band for a total of 18.
In satellite radio mode (if equipped), there are 18 available presets,
six each for SAT1, SAT2 and SAT3. To save satellite channels in your
memory presets, tune to the desired channel then press and hold a
preset control until sound returns.
Satellite radio is available only with a valid SIRIUS  radio
subscription. Check with your authorized dealer for availability.Entertainment Systems
66
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

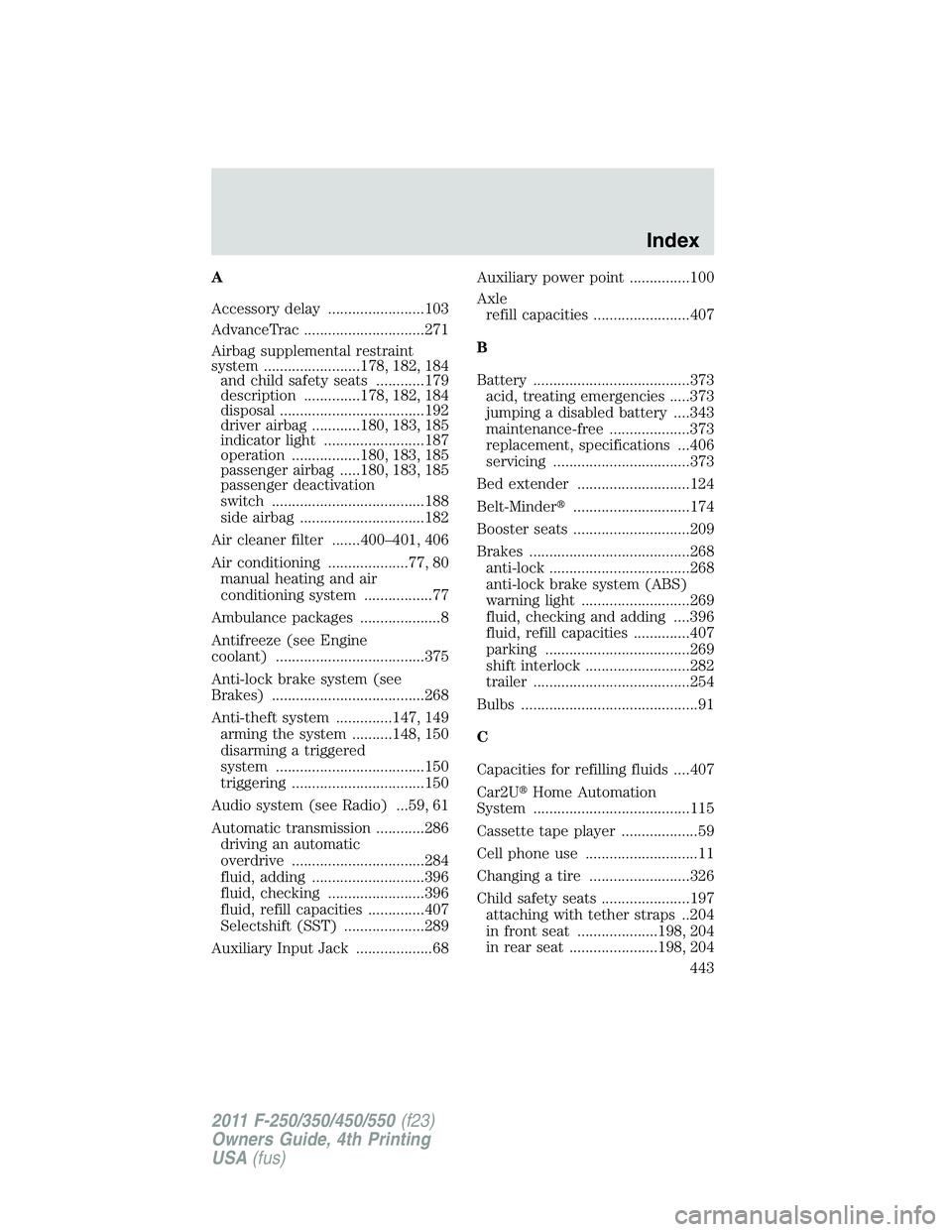

A
Accessory delay ........................103
AdvanceTrac ..............................271
Airbag supplemental restraint
system ........................178, 182, 184
and child safety seats ............179
description ..............178, 182, 184
disposal ....................................192
driver airbag ............180, 183, 185
indicator light .........................187
operation .................180, 183, 185
passenger airbag .....180, 183, 185
passenger deactivation
switch ......................................188
side airbag ...............................182
Air cleaner filter .......400–401, 406
Air conditioning ....................77, 80
manual heating and air
conditioning system .................77
Ambulance packages ....................8
Antifreeze (see Engine
coolant) .....................................375
Anti-lock brake system (see
Brakes) ......................................268
Anti-theft system ..............147, 149
arming the system ..........148, 150
disarming a triggered
system .....................................150
triggering .................................150
Audio system (see Radio) ...59, 61
Automatic transmission ............286
driving an automatic
overdrive .................................284
fluid, adding ............................396
fluid, checking ........................396
fluid, refill capacities ..............407
Selectshift (SST) ....................289
Auxiliary Input Jack ...................68 Auxiliary power point ...............100
Axle
refill capacities ........................407
B
Battery .......................................373
acid, treating emergencies .....373
jumping a disabled battery ....343
maintenance-free ....................373
replacement, specifications ...406
servicing ..................................373
Bed extender ............................124
Belt-Minder  .............................174
Booster seats .............................209
Brakes ........................................268
anti-lock ...................................268
anti-lock brake system (ABS)
warning light ...........................269
fluid, checking and adding ....396
fluid, refill capacities ..............407
parking ....................................269
shift interlock ..........................282
trailer .......................................254
Bulbs ............................................91
C
Capacities for refilling fluids ....407
Car2U  Home Automation
System .......................................115
Cassette tape player ...................59
Cell phone use ............................11
Changing a tire .........................326
Child safety seats ......................197
attaching with tether straps ..204
in front seat ....................198, 204
in rear seat ......................198, 204 Index
443
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
