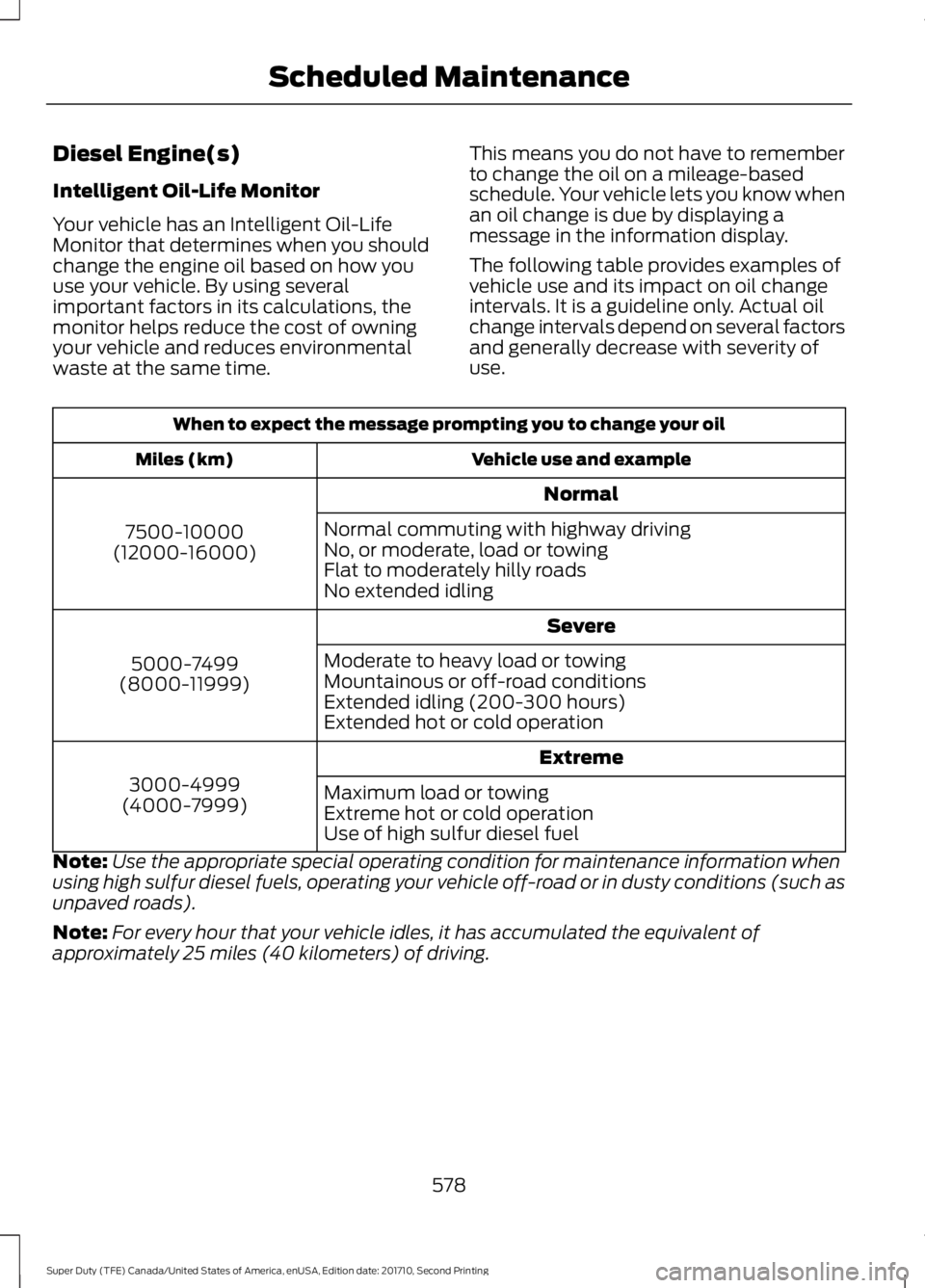

Diesel Engine(s)
Intelligent Oil-Life Monitor
Your vehicle has an Intelligent Oil-LifeMonitor that determines when you shouldchange the engine oil based on how youuse your vehicle. By using severalimportant factors in its calculations, themonitor helps reduce the cost of owningyour vehicle and reduces environmentalwaste at the same time.
This means you do not have to rememberto change the oil on a mileage-basedschedule. Your vehicle lets you know whenan oil change is due by displaying amessage in the information display.
The following table provides examples ofvehicle use and its impact on oil changeintervals. It is a guideline only. Actual oilchange intervals depend on several factorsand generally decrease with severity ofuse.
When to expect the message prompting you to change your oil
Vehicle use and exampleMiles (km)
Normal
7500-10000(12000-16000)
Normal commuting with highway drivingNo, or moderate, load or towingFlat to moderately hilly roadsNo extended idling
Severe
5000-7499(8000-11999)
Moderate to heavy load or towingMountainous or off-road conditionsExtended idling (200-300 hours)Extended hot or cold operation
Extreme
3000-4999(4000-7999)Maximum load or towingExtreme hot or cold operationUse of high sulfur diesel fuel
Note:Use the appropriate special operating condition for maintenance information whenusing high sulfur diesel fuels, operating your vehicle off-road or in dusty conditions (such asunpaved roads).
Note:For every hour that your vehicle idles, it has accumulated the equivalent ofapproximately 25 miles (40 kilometers) of driving.
578
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

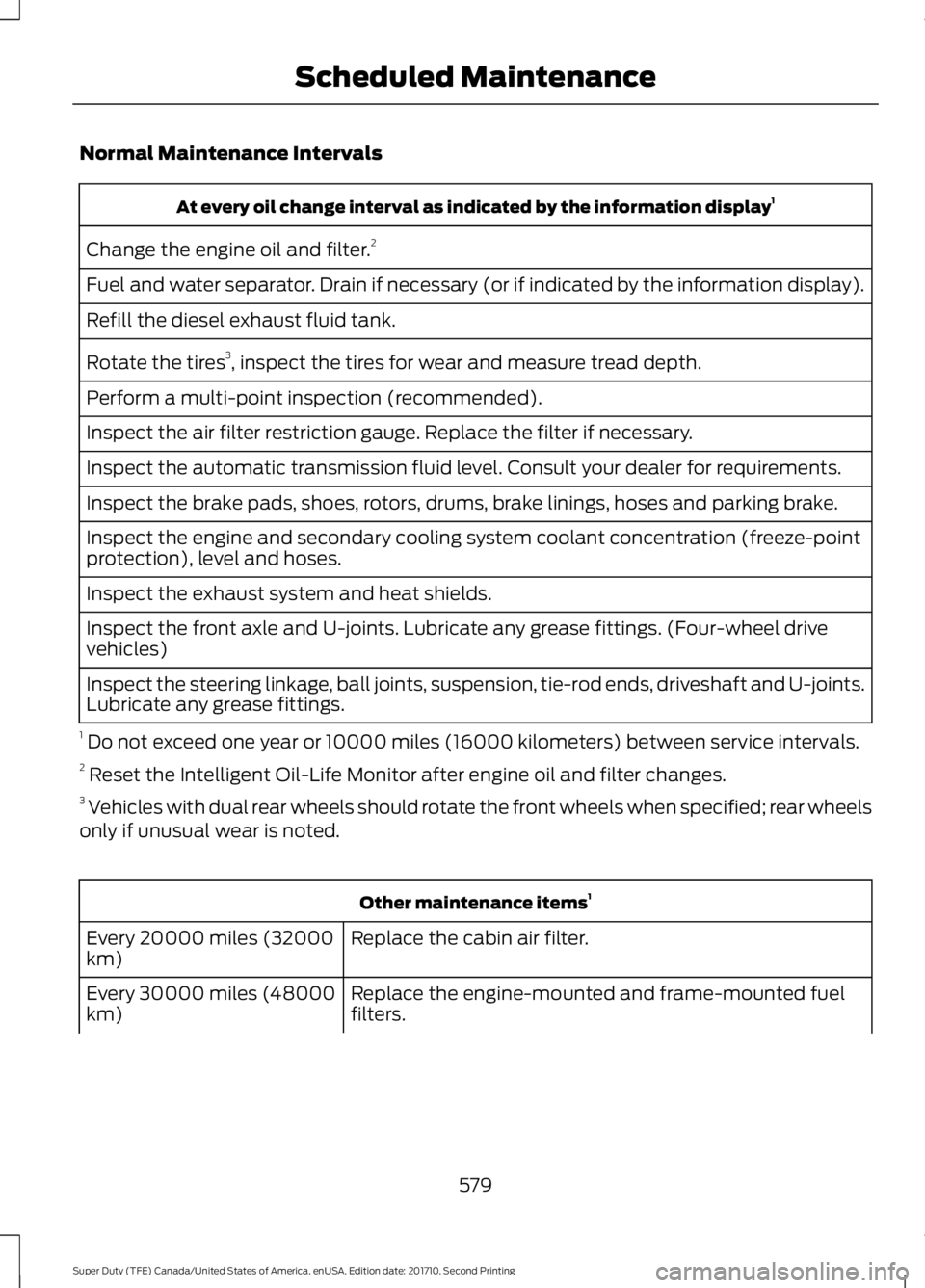

Normal Maintenance Intervals
At every oil change interval as indicated by the information display1
Change the engine oil and filter.2
Fuel and water separator. Drain if necessary (or if indicated by the information display).
Refill the diesel exhaust fluid tank.
Rotate the tires3, inspect the tires for wear and measure tread depth.
Perform a multi-point inspection (recommended).
Inspect the air filter restriction gauge. Replace the filter if necessary.
Inspect the automatic transmission fluid level. Consult your dealer for requirements.
Inspect the brake pads, shoes, rotors, drums, brake linings, hoses and parking brake.
Inspect the engine and secondary cooling system coolant concentration (freeze-pointprotection), level and hoses.
Inspect the exhaust system and heat shields.
Inspect the front axle and U-joints. Lubricate any grease fittings. (Four-wheel drivevehicles)
Inspect the steering linkage, ball joints, suspension, tie-rod ends, driveshaft and U-joints.Lubricate any grease fittings.
1 Do not exceed one year or 10000 miles (16000 kilometers) between service intervals.2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes.3 Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheelsonly if unusual wear is noted.
Other maintenance items1
Replace the cabin air filter.Every 20000 miles (32000km)
Replace the engine-mounted and frame-mounted fuelfilters.Every 30000 miles (48000km)
579
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

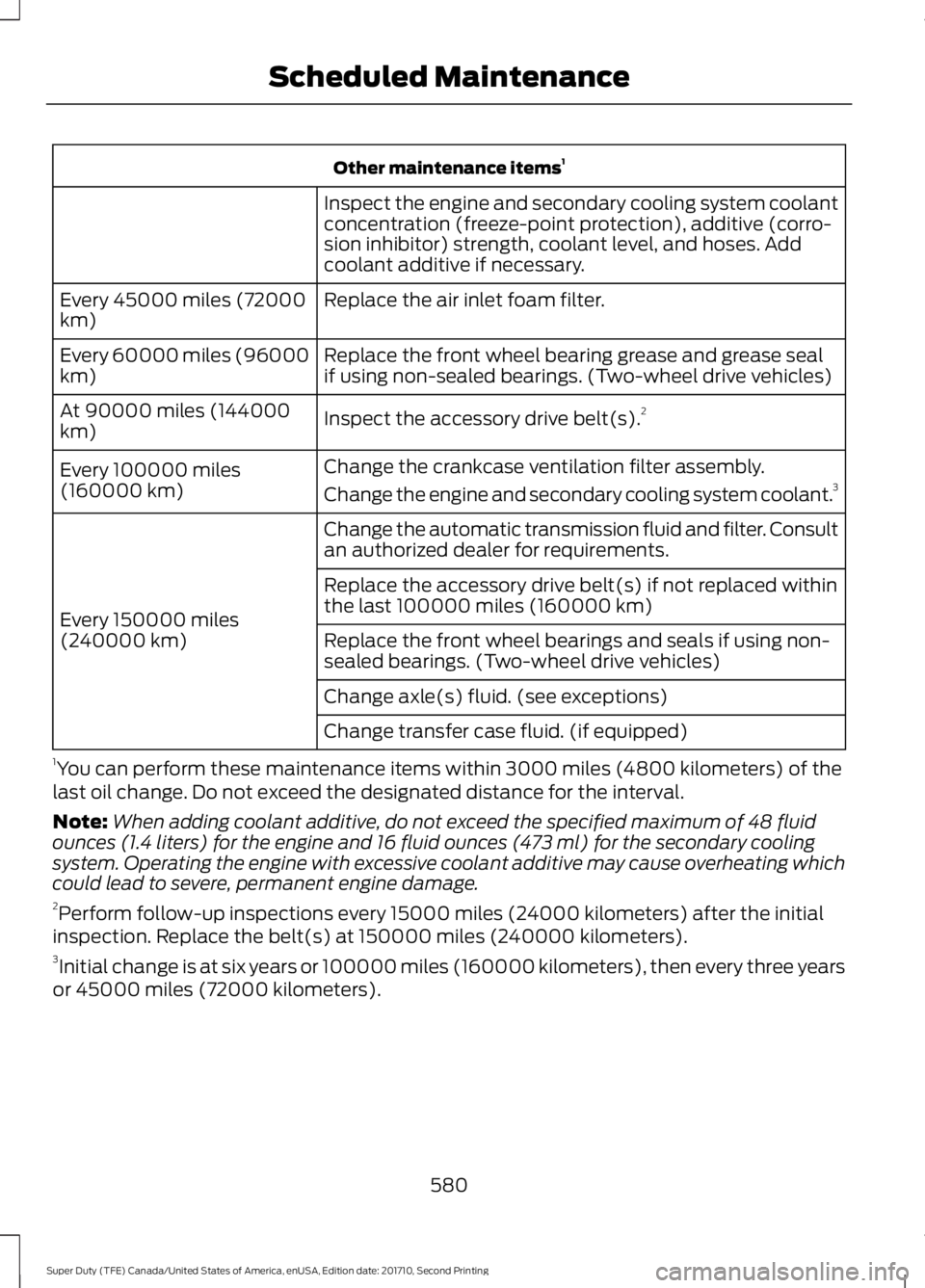

Other maintenance items1
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection), additive (corro-sion inhibitor) strength, coolant level, and hoses. Addcoolant additive if necessary.
Replace the air inlet foam filter.Every 45000 miles (72000km)
Replace the front wheel bearing grease and grease sealif using non-sealed bearings. (Two-wheel drive vehicles)Every 60000 miles (96000km)
Inspect the accessory drive belt(s).2At 90000 miles (144000km)
Change the crankcase ventilation filter assembly.Every 100000 miles(160000 km)Change the engine and secondary cooling system coolant.3
Change the automatic transmission fluid and filter. Consultan authorized dealer for requirements.
Every 150000 miles(240000 km)
Replace the accessory drive belt(s) if not replaced withinthe last 100000 miles (160000 km)
Replace the front wheel bearings and seals if using non-sealed bearings. (Two-wheel drive vehicles)
Change axle(s) fluid. (see exceptions)
Change transfer case fluid. (if equipped)
1You can perform these maintenance items within 3000 miles (4800 kilometers) of thelast oil change. Do not exceed the designated distance for the interval.
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.2Perform follow-up inspections every 15000 miles (24000 kilometers) after the initial
inspection. Replace the belt(s) at 150000 miles (240000 kilometers).3Initial change is at six years or 100000 miles (160000 kilometers), then every three yearsor 45000 miles (72000 kilometers).
580
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

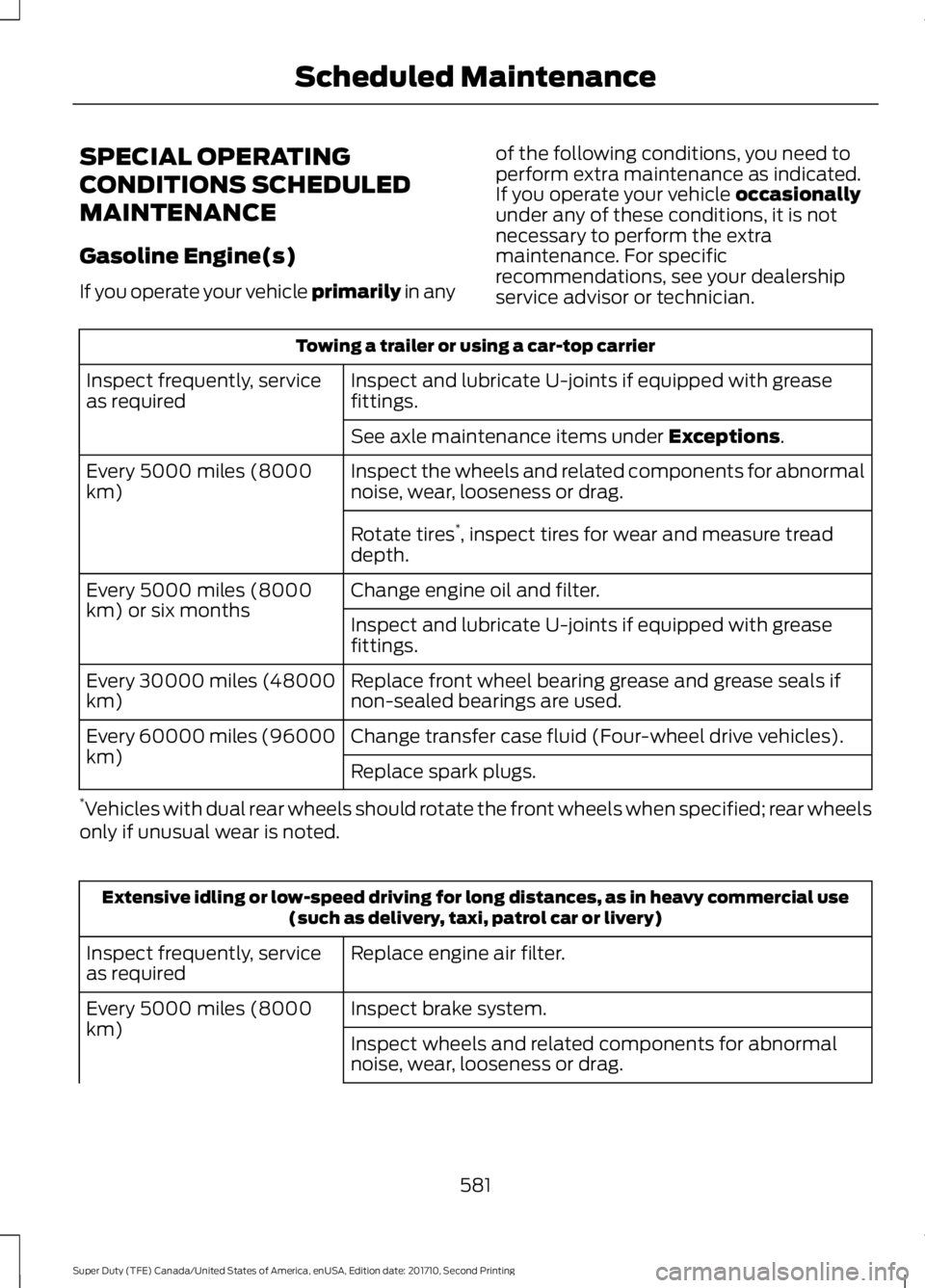

SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE
Gasoline Engine(s)
If you operate your vehicle primarily in any
of the following conditions, you need toperform extra maintenance as indicated.If you operate your vehicle occasionallyunder any of these conditions, it is notnecessary to perform the extramaintenance. For specificrecommendations, see your dealershipservice advisor or technician.
Towing a trailer or using a car-top carrier
Inspect and lubricate U-joints if equipped with greasefittings.Inspect frequently, serviceas required
See axle maintenance items under Exceptions.
Inspect the wheels and related components for abnormalnoise, wear, looseness or drag.Every 5000 miles (8000km)
Rotate tires*, inspect tires for wear and measure treaddepth.
Change engine oil and filter.Every 5000 miles (8000km) or six monthsInspect and lubricate U-joints if equipped with greasefittings.
Replace front wheel bearing grease and grease seals ifnon-sealed bearings are used.Every 30000 miles (48000km)
Change transfer case fluid (Four-wheel drive vehicles).Every 60000 miles (96000km)Replace spark plugs.
*Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheelsonly if unusual wear is noted.
Extensive idling or low-speed driving for long distances, as in heavy commercial use(such as delivery, taxi, patrol car or livery)
Replace engine air filter.Inspect frequently, serviceas required
Inspect brake system.Every 5000 miles (8000km)Inspect wheels and related components for abnormalnoise, wear, looseness or drag.
581
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

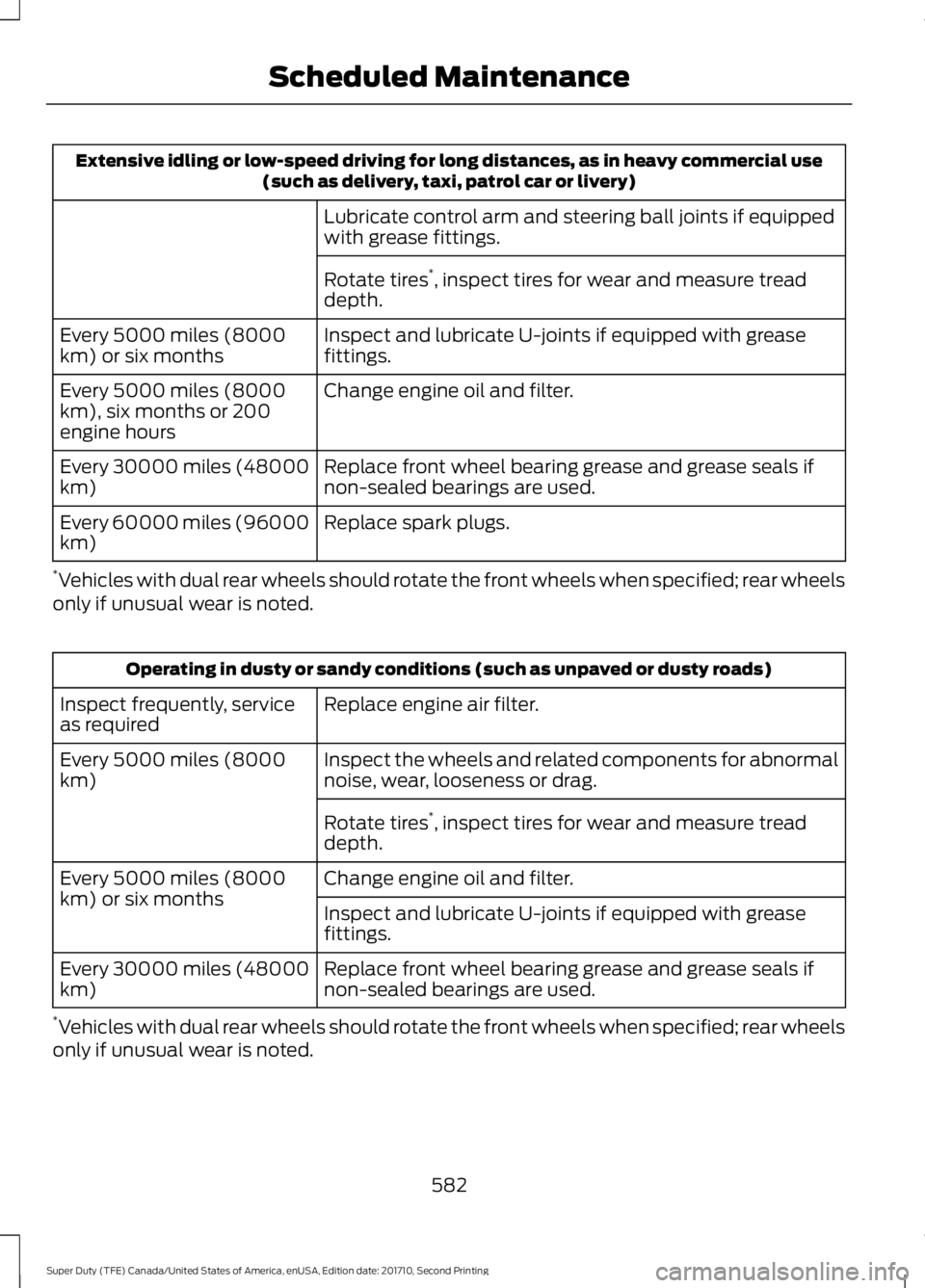

Extensive idling or low-speed driving for long distances, as in heavy commercial use(such as delivery, taxi, patrol car or livery)
Lubricate control arm and steering ball joints if equippedwith grease fittings.
Rotate tires*, inspect tires for wear and measure treaddepth.
Inspect and lubricate U-joints if equipped with greasefittings.Every 5000 miles (8000km) or six months
Change engine oil and filter.Every 5000 miles (8000km), six months or 200engine hours
Replace front wheel bearing grease and grease seals ifnon-sealed bearings are used.Every 30000 miles (48000km)
Replace spark plugs.Every 60000 miles (96000km)
*Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheelsonly if unusual wear is noted.
Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Replace engine air filter.Inspect frequently, serviceas required
Inspect the wheels and related components for abnormalnoise, wear, looseness or drag.Every 5000 miles (8000km)
Rotate tires*, inspect tires for wear and measure treaddepth.
Change engine oil and filter.Every 5000 miles (8000km) or six monthsInspect and lubricate U-joints if equipped with greasefittings.
Replace front wheel bearing grease and grease seals ifnon-sealed bearings are used.Every 30000 miles (48000km)
*Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheelsonly if unusual wear is noted.
582
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

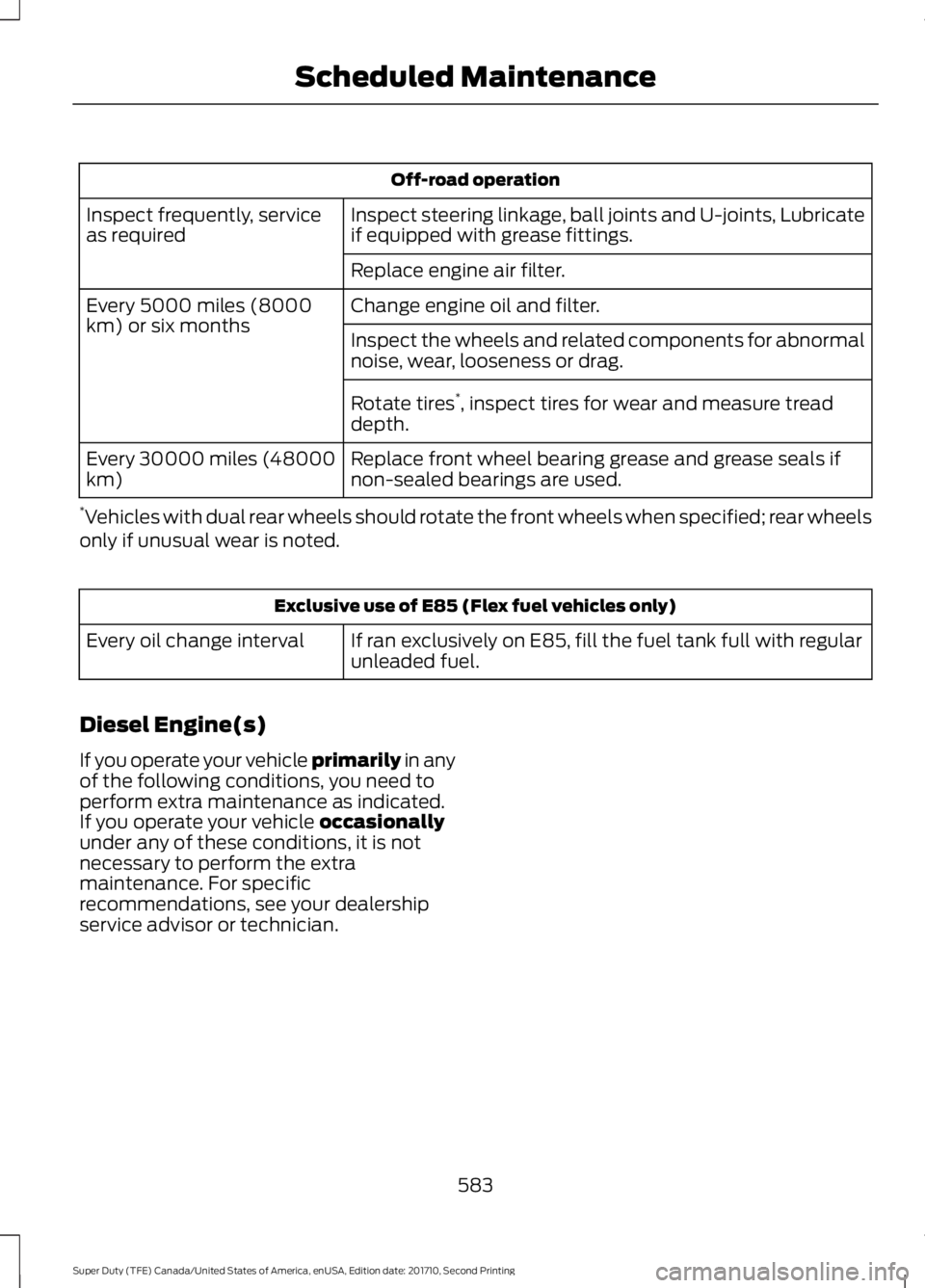

Off-road operation
Inspect steering linkage, ball joints and U-joints, Lubricateif equipped with grease fittings.Inspect frequently, serviceas required
Replace engine air filter.
Change engine oil and filter.Every 5000 miles (8000km) or six monthsInspect the wheels and related components for abnormalnoise, wear, looseness or drag.
Rotate tires*, inspect tires for wear and measure treaddepth.
Replace front wheel bearing grease and grease seals ifnon-sealed bearings are used.Every 30000 miles (48000km)
*Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheelsonly if unusual wear is noted.
Exclusive use of E85 (Flex fuel vehicles only)
If ran exclusively on E85, fill the fuel tank full with regularunleaded fuel.Every oil change interval
Diesel Engine(s)
If you operate your vehicle primarily in anyof the following conditions, you need toperform extra maintenance as indicated.If you operate your vehicle occasionallyunder any of these conditions, it is notnecessary to perform the extramaintenance. For specificrecommendations, see your dealershipservice advisor or technician.
583
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

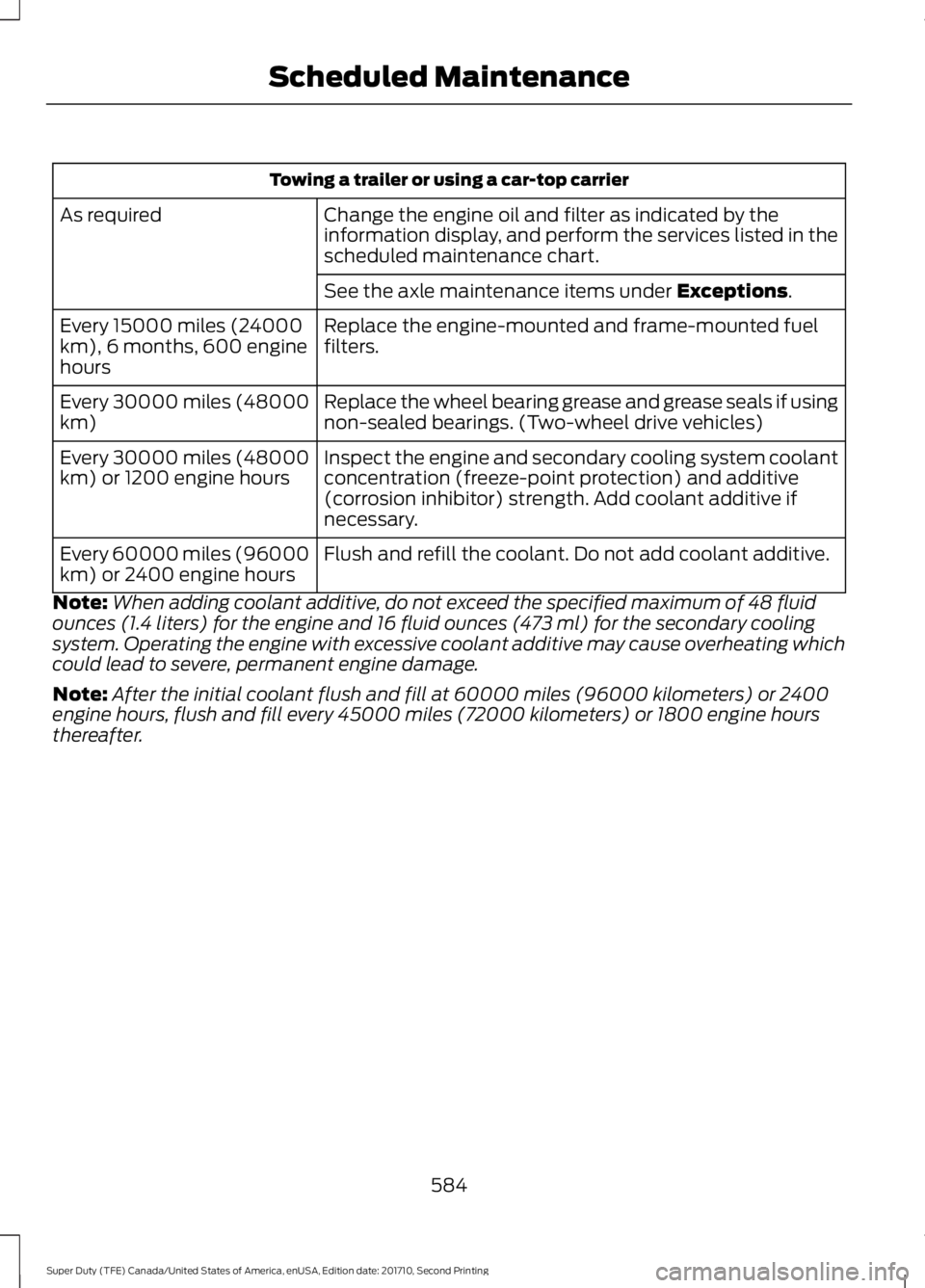

Towing a trailer or using a car-top carrier
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
See the axle maintenance items under Exceptions.
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), 6 months, 600 enginehours
Replace the wheel bearing grease and grease seals if usingnon-sealed bearings. (Two-wheel drive vehicles)Every 30000 miles (48000km)
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection) and additive(corrosion inhibitor) strength. Add coolant additive ifnecessary.
Every 30000 miles (48000km) or 1200 engine hours
Flush and refill the coolant. Do not add coolant additive.Every 60000 miles (96000km) or 2400 engine hours
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.
Note:After the initial coolant flush and fill at 60000 miles (96000 kilometers) or 2400engine hours, flush and fill every 45000 miles (72000 kilometers) or 1800 engine hoursthereafter.
584
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

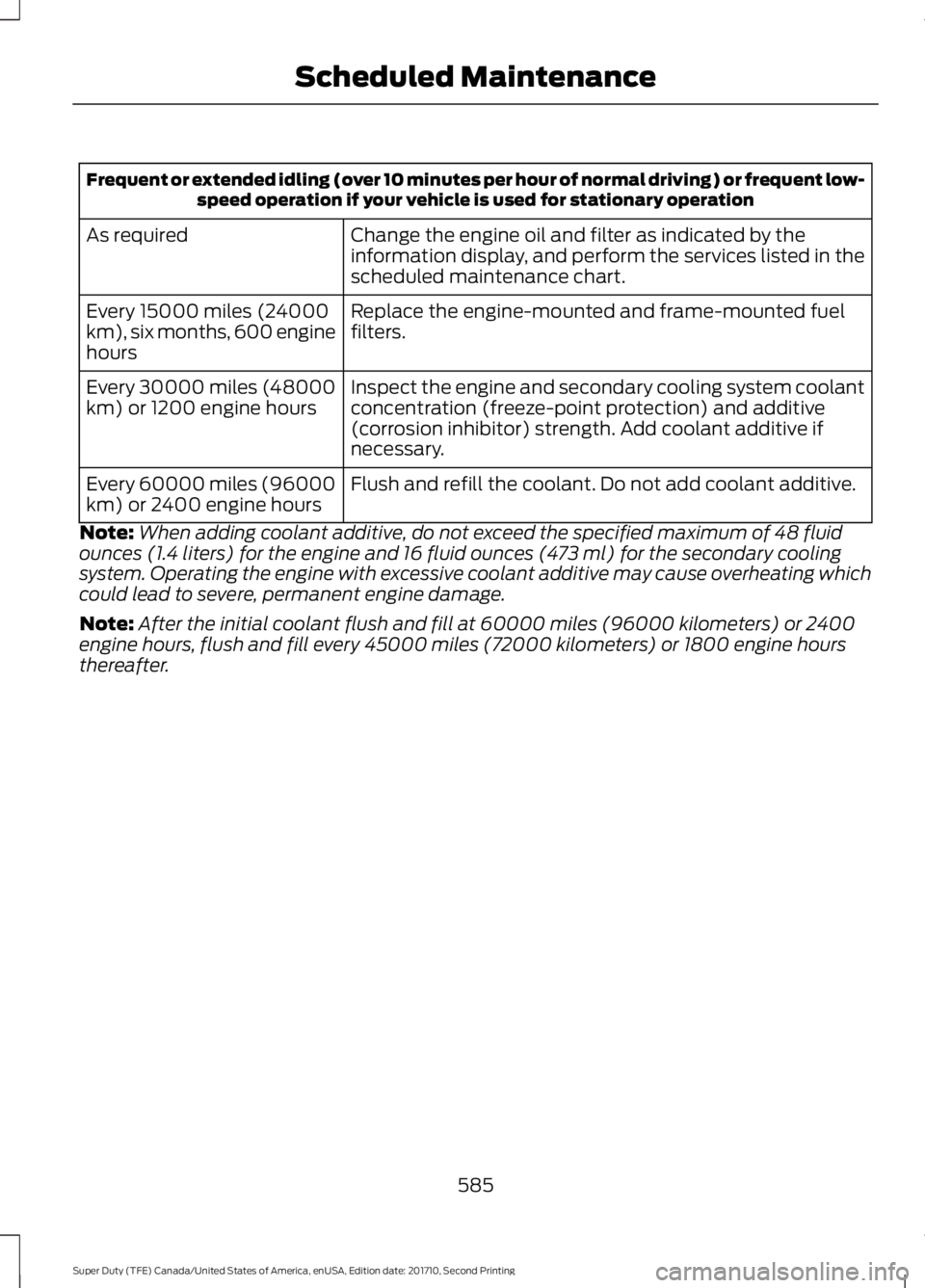

Frequent or extended idling (over 10 minutes per hour of normal driving) or frequent low-speed operation if your vehicle is used for stationary operation
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), six months, 600 enginehours
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection) and additive(corrosion inhibitor) strength. Add coolant additive ifnecessary.
Every 30000 miles (48000km) or 1200 engine hours
Flush and refill the coolant. Do not add coolant additive.Every 60000 miles (96000km) or 2400 engine hours
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.
Note:After the initial coolant flush and fill at 60000 miles (96000 kilometers) or 2400engine hours, flush and fill every 45000 miles (72000 kilometers) or 1800 engine hoursthereafter.
585
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

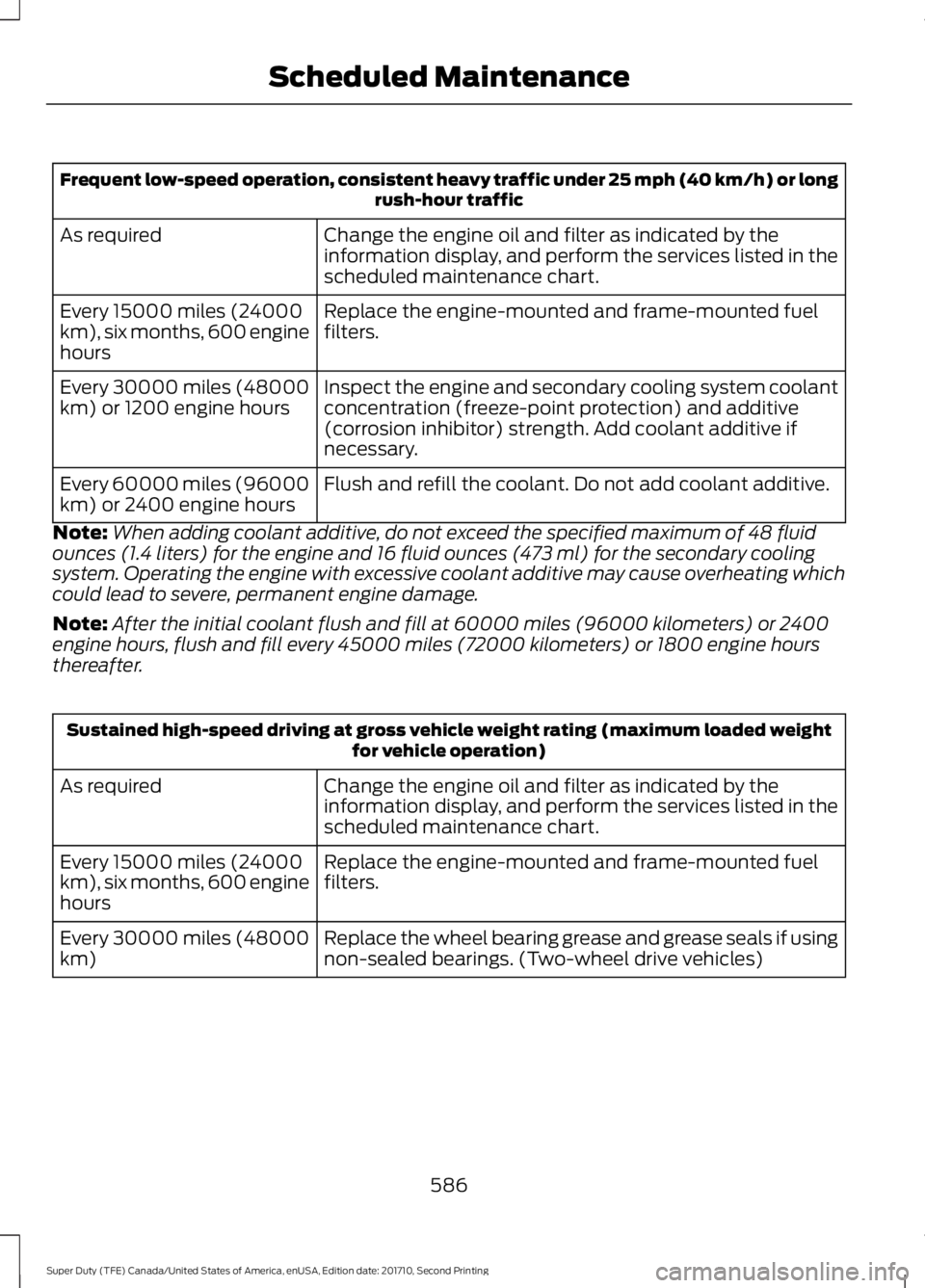

Frequent low-speed operation, consistent heavy traffic under 25 mph (40 km/h) or longrush-hour traffic
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), six months, 600 enginehours
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection) and additive(corrosion inhibitor) strength. Add coolant additive ifnecessary.
Every 30000 miles (48000km) or 1200 engine hours
Flush and refill the coolant. Do not add coolant additive.Every 60000 miles (96000km) or 2400 engine hours
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.
Note:After the initial coolant flush and fill at 60000 miles (96000 kilometers) or 2400engine hours, flush and fill every 45000 miles (72000 kilometers) or 1800 engine hoursthereafter.
Sustained high-speed driving at gross vehicle weight rating (maximum loaded weightfor vehicle operation)
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), six months, 600 enginehours
Replace the wheel bearing grease and grease seals if usingnon-sealed bearings. (Two-wheel drive vehicles)Every 30000 miles (48000km)
586
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

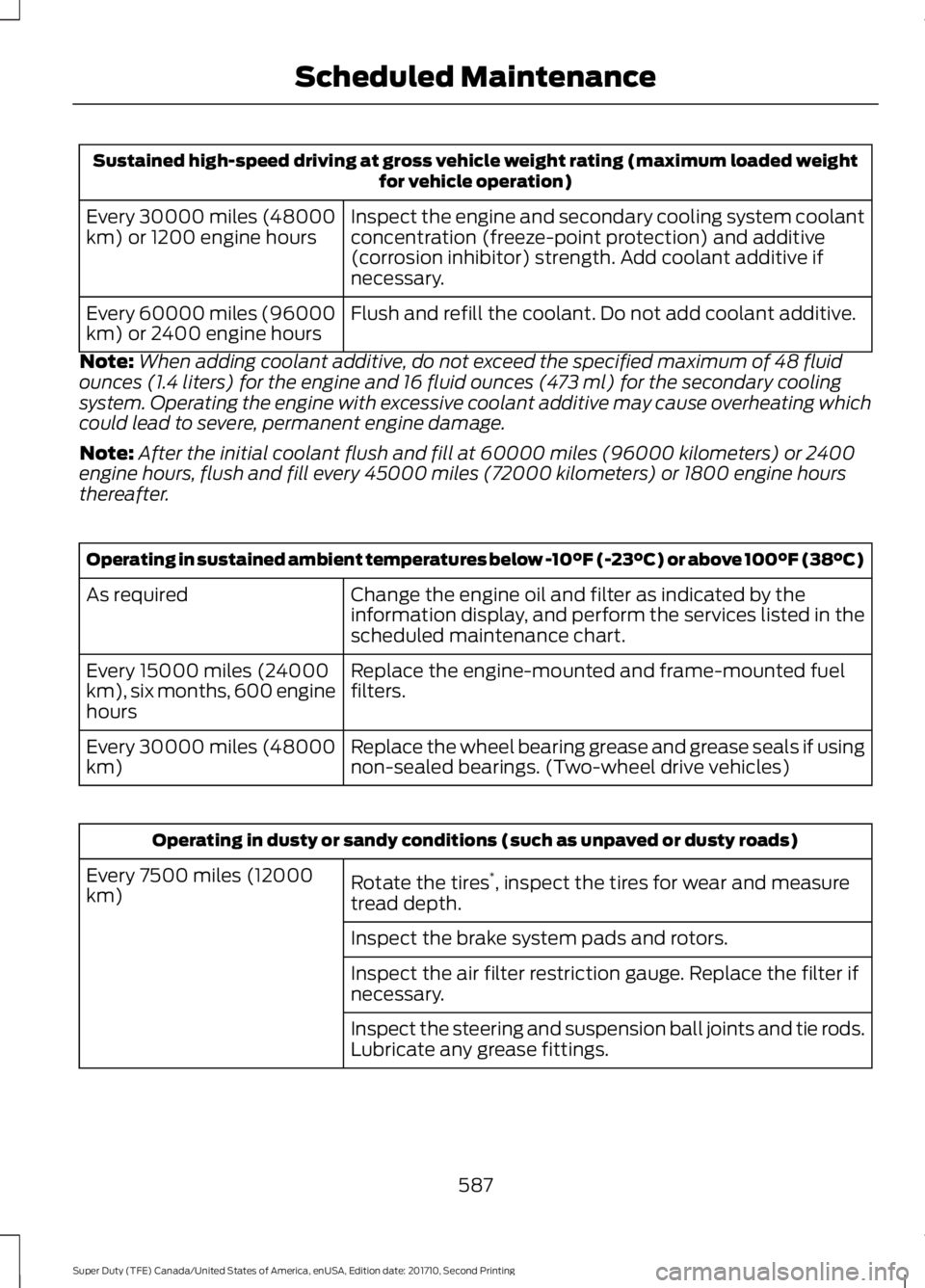

Sustained high-speed driving at gross vehicle weight rating (maximum loaded weightfor vehicle operation)
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection) and additive(corrosion inhibitor) strength. Add coolant additive ifnecessary.
Every 30000 miles (48000km) or 1200 engine hours
Flush and refill the coolant. Do not add coolant additive.Every 60000 miles (96000km) or 2400 engine hours
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.
Note:After the initial coolant flush and fill at 60000 miles (96000 kilometers) or 2400engine hours, flush and fill every 45000 miles (72000 kilometers) or 1800 engine hoursthereafter.
Operating in sustained ambient temperatures below -10°F (-23°C) or above 100°F (38°C)
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), six months, 600 enginehours
Replace the wheel bearing grease and grease seals if usingnon-sealed bearings. (Two-wheel drive vehicles)Every 30000 miles (48000km)
Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Rotate the tires*, inspect the tires for wear and measuretread depth.
Every 7500 miles (12000km)
Inspect the brake system pads and rotors.
Inspect the air filter restriction gauge. Replace the filter ifnecessary.
Inspect the steering and suspension ball joints and tie rods.Lubricate any grease fittings.
587
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
