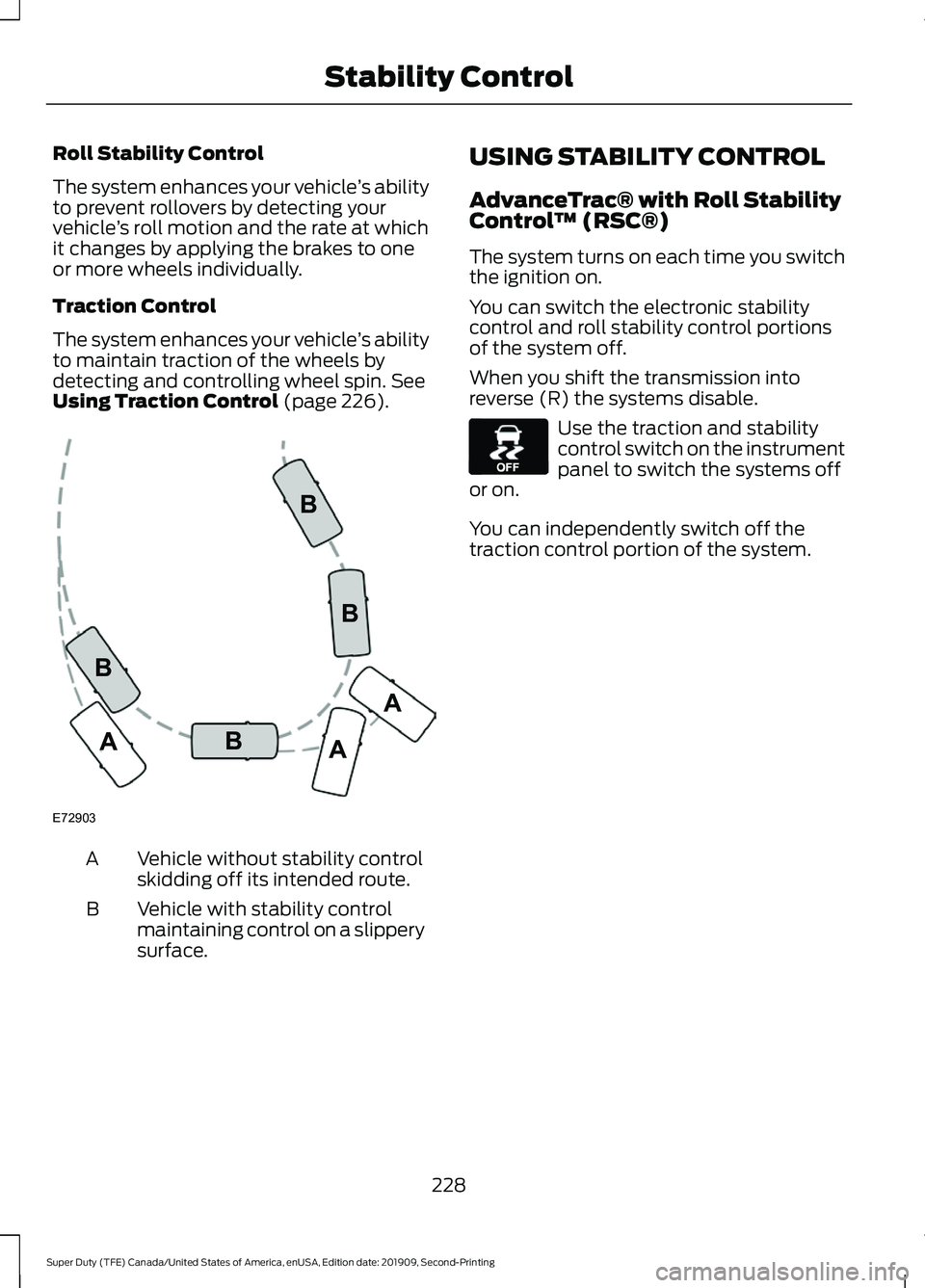

Page 231 of 633

FORD F250 SUPER DUTY 2020  Owners Manual Roll Stability Control
The system enhances your vehicle
’s ability
to prevent rollovers by detecting your
vehicle ’s roll motion and the rate at which
it changes by applying the brakes to one
or m

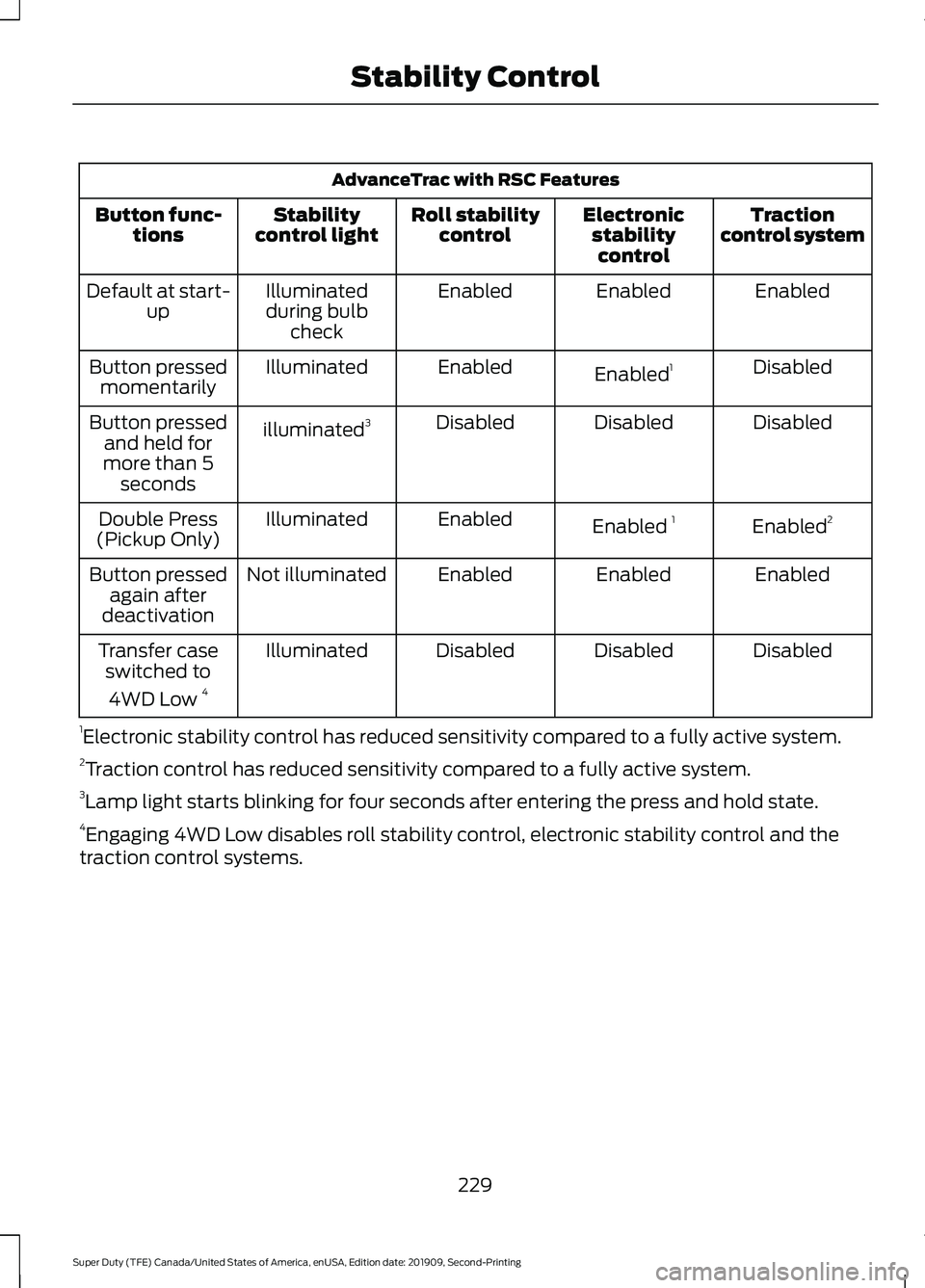

Page 232 of 633

FORD F250 SUPER DUTY 2020  Owners Manual AdvanceTrac with RSC Features
Traction
control system
Electronic
stabilitycontrol
Roll stability
control
Stability
control light
Button func-
tions
Enabled
Enabled
Enabled
Illuminated
during bulb chec

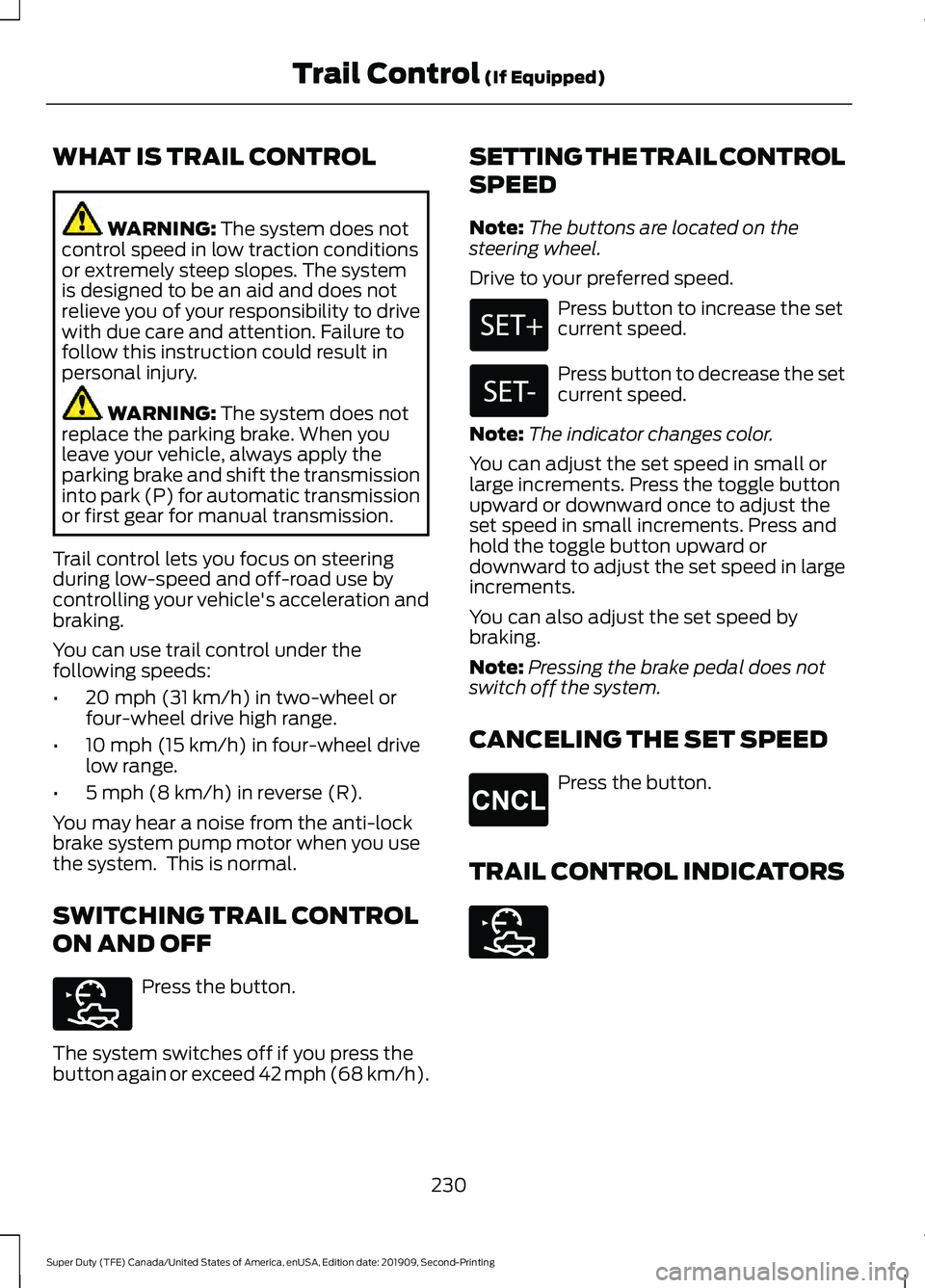

Page 233 of 633

FORD F250 SUPER DUTY 2020  Owners Manual WHAT IS TRAIL CONTROL
WARNING: The system does not
control speed in low traction conditions
or extremely steep slopes. The system
is designed to be an aid and does not
relieve you of your responsibili

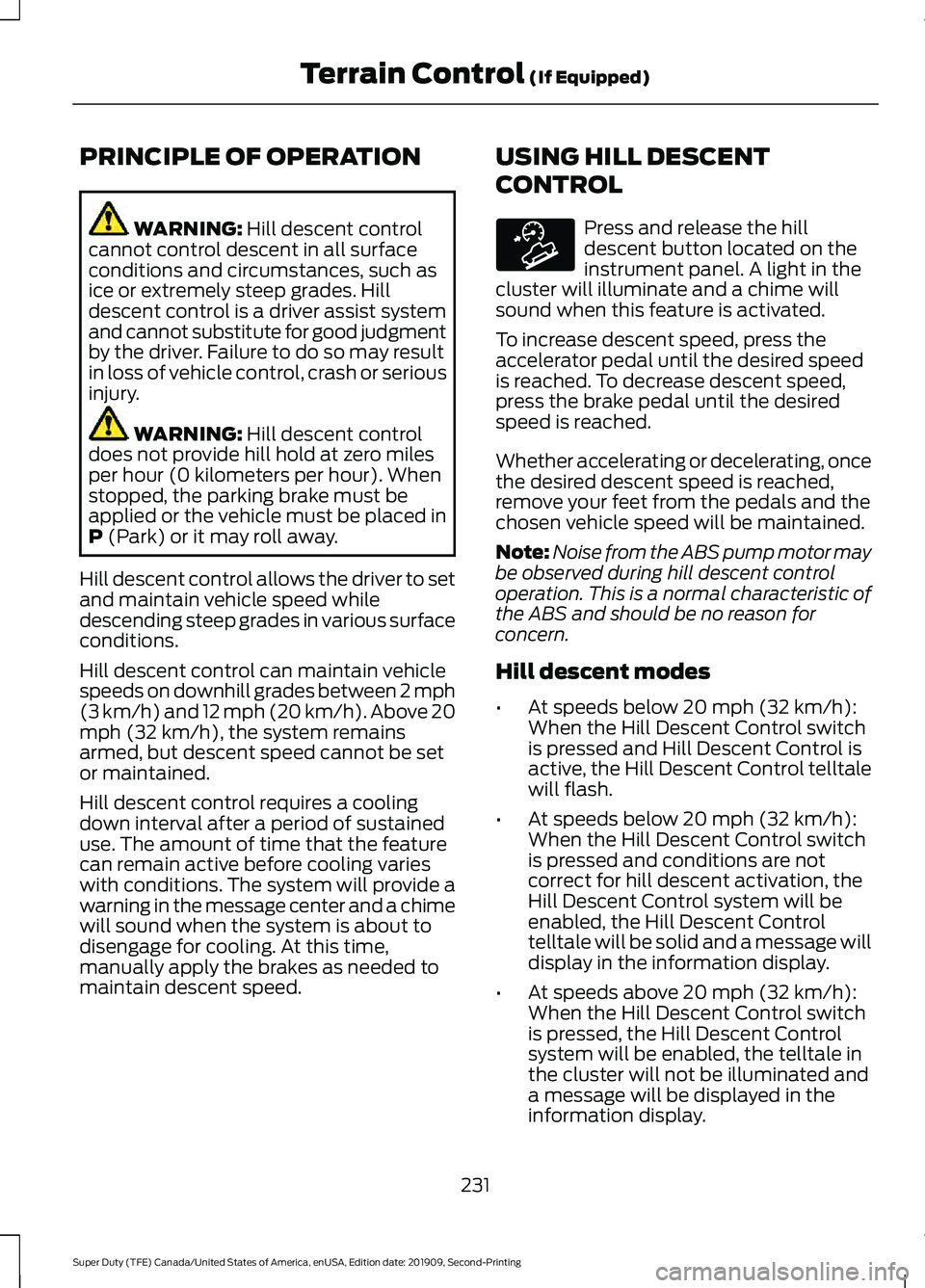

Page 234 of 633

FORD F250 SUPER DUTY 2020  Owners Manual PRINCIPLE OF OPERATION
WARNING: Hill descent control
cannot control descent in all surface
conditions and circumstances, such as
ice or extremely steep grades. Hill
descent control is a driver assist

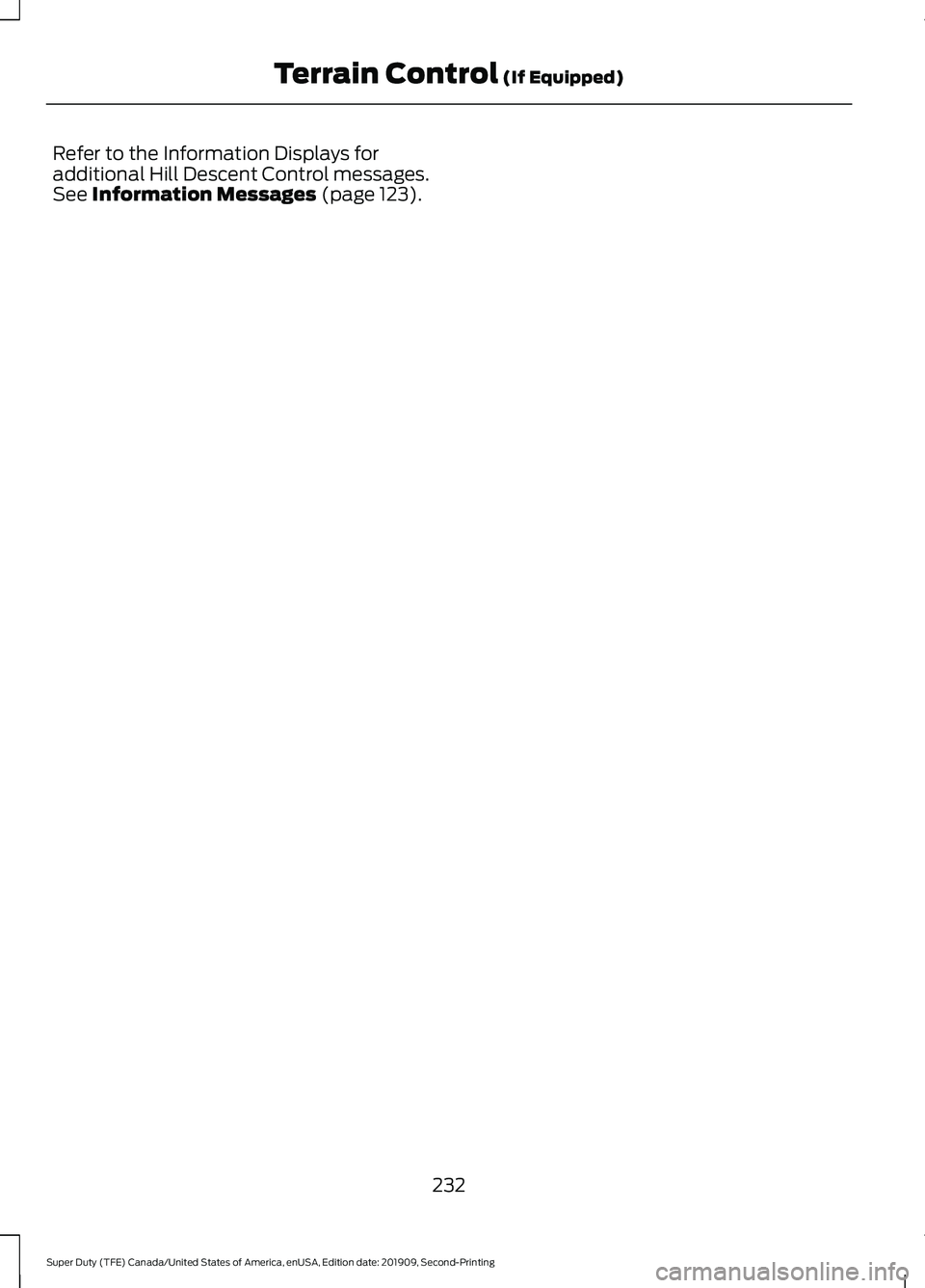

Page 235 of 633

FORD F250 SUPER DUTY 2020  Owners Manual Refer to the Information Displays for
additional Hill Descent Control messages.
See Information Messages (page 123).
232
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201909,

Page 236 of 633

FORD F250 SUPER DUTY 2020  Owners Manual PRINCIPLE OF OPERATION
WARNING: To help avoid personal
injury, always use caution when in
reverse (R) and when using the sensing
system. WARNING:
The system may not
detect objects with surfaces that

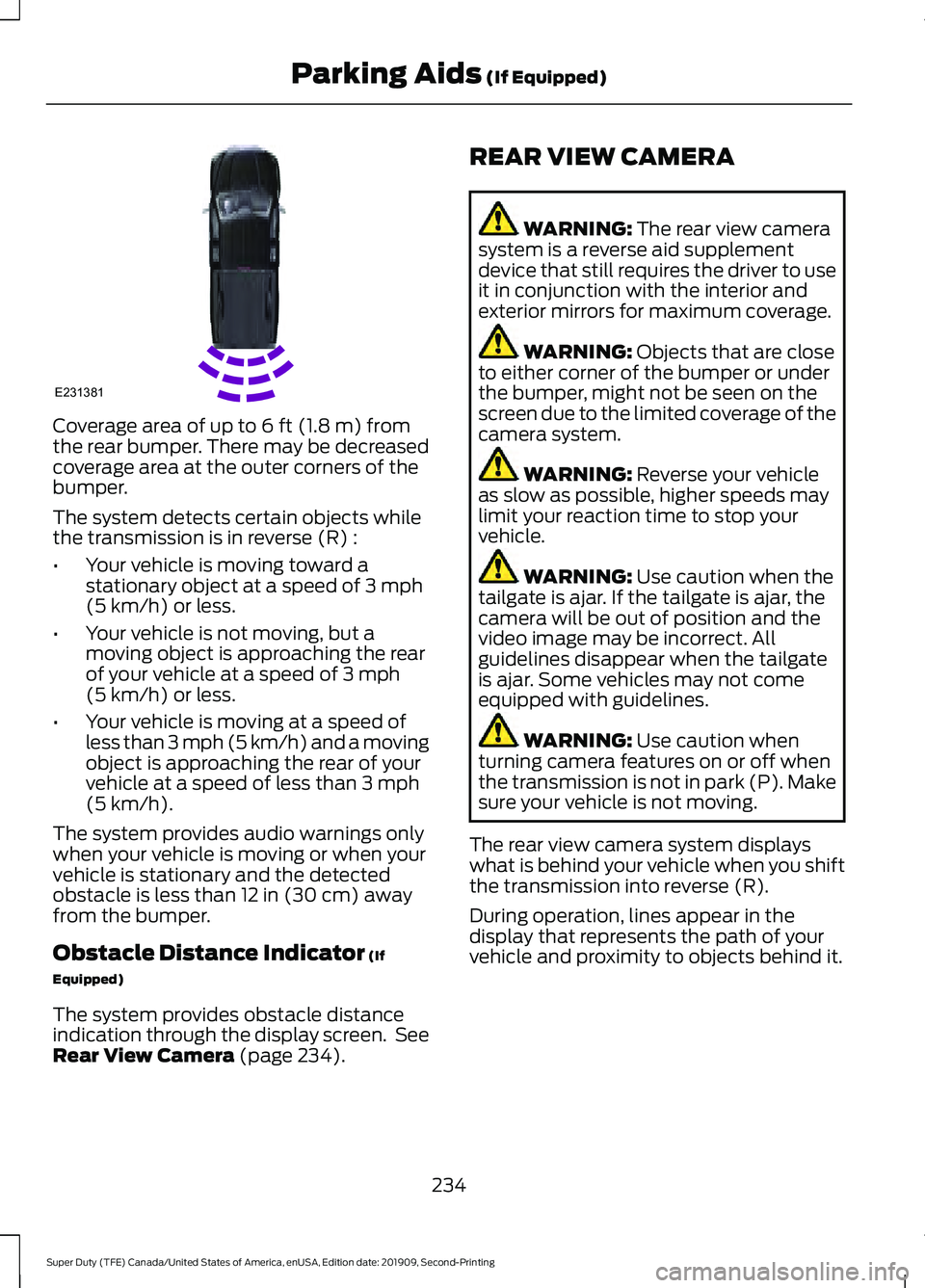

Page 237 of 633

FORD F250 SUPER DUTY 2020  Owners Manual Coverage area of up to 6 ft (1.8 m) from
the rear bumper. There may be decreased
coverage area at the outer corners of the
bumper.
The system detects certain objects while
the transmission is in rever

Page 238 of 633

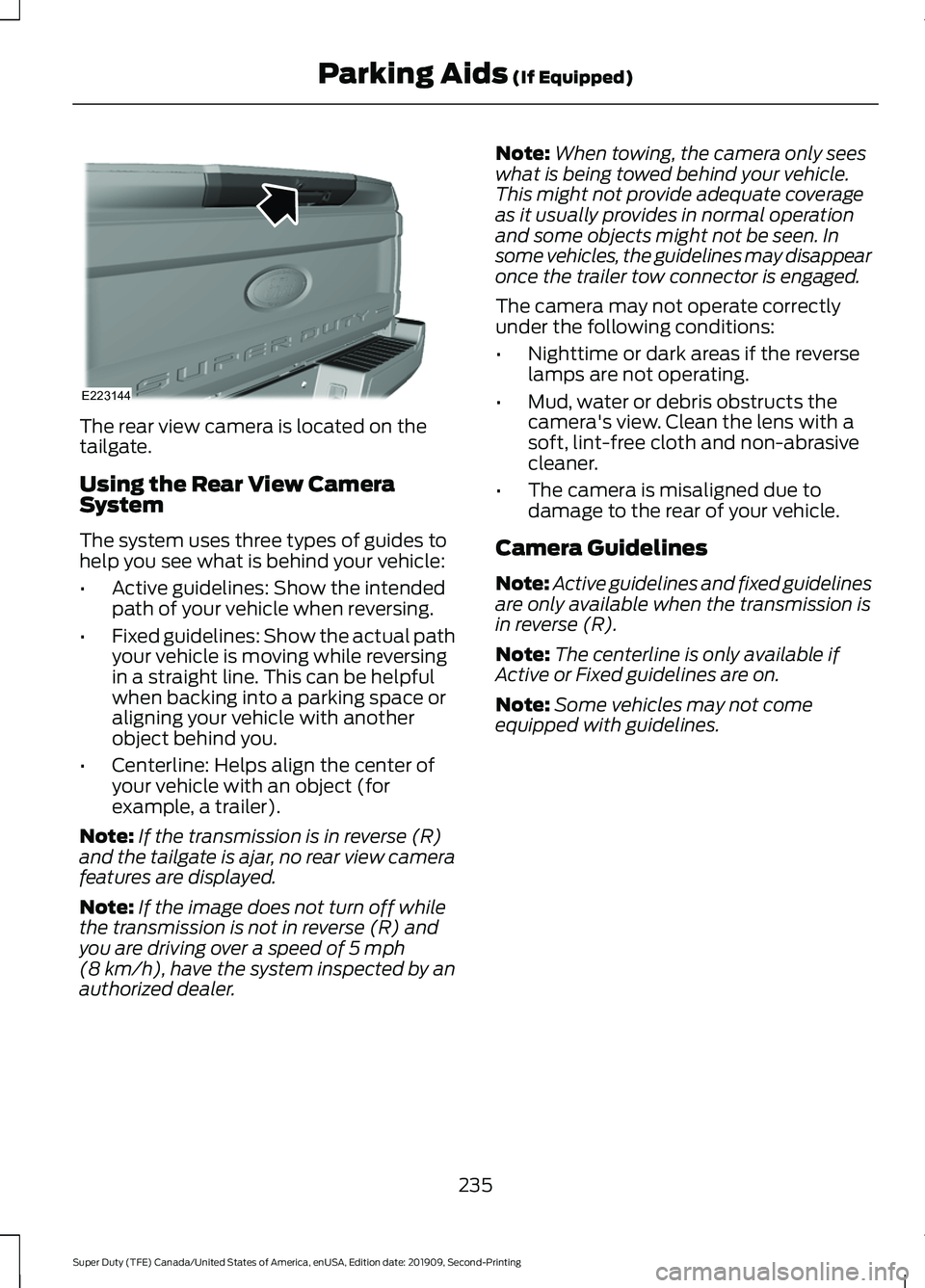

FORD F250 SUPER DUTY 2020  Owners Manual The rear view camera is located on the
tailgate.
Using the Rear View Camera
System
The system uses three types of guides to
help you see what is behind your vehicle:
•
Active guidelines: Show the in

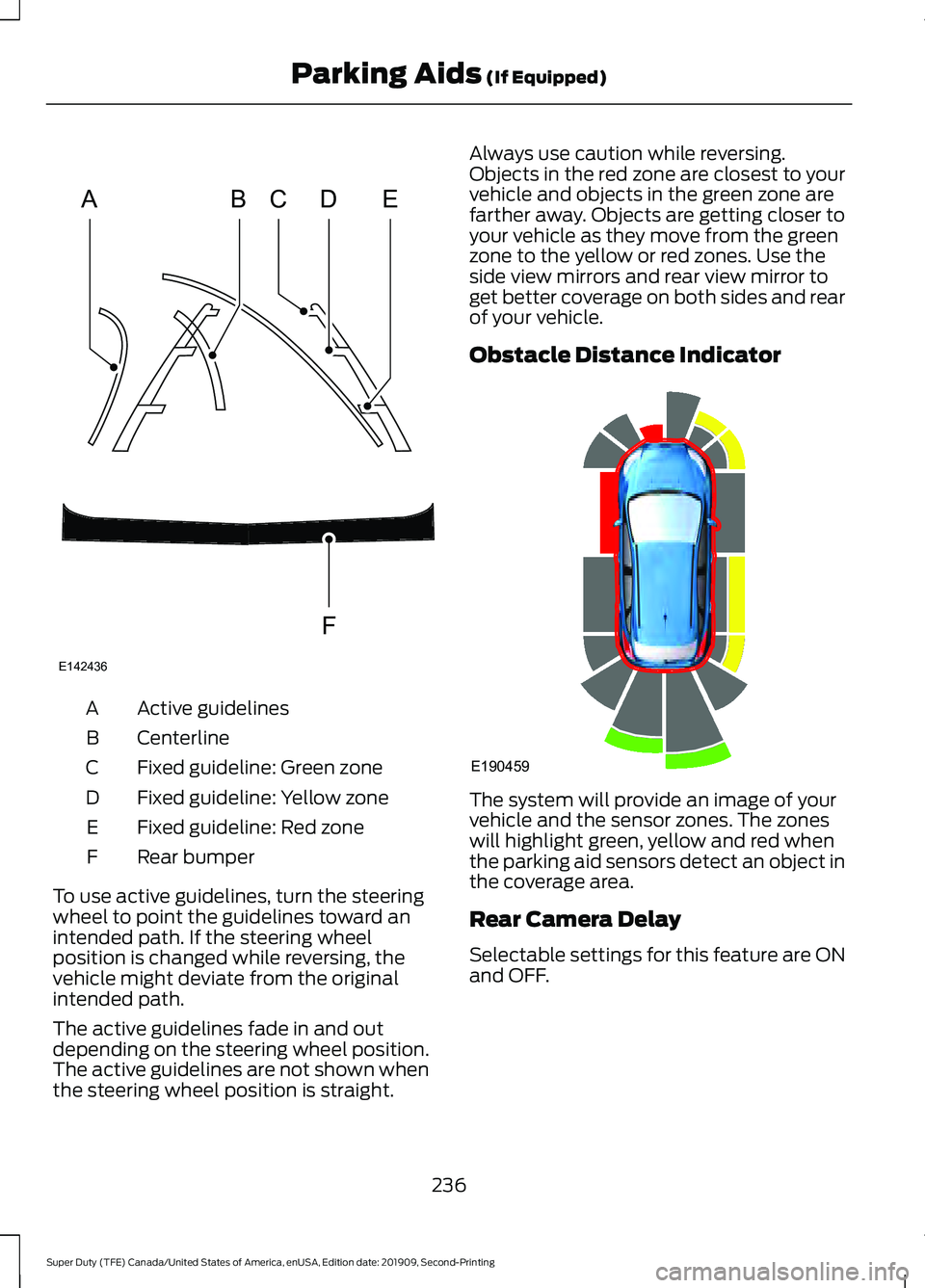

Page 239 of 633

FORD F250 SUPER DUTY 2020  Owners Manual Active guidelines
A
Centerline
B
Fixed guideline: Green zone
C
Fixed guideline: Yellow zone
D
Fixed guideline: Red zone
E
Rear bumper
F
To use active guidelines, turn the steering
wheel to point the g

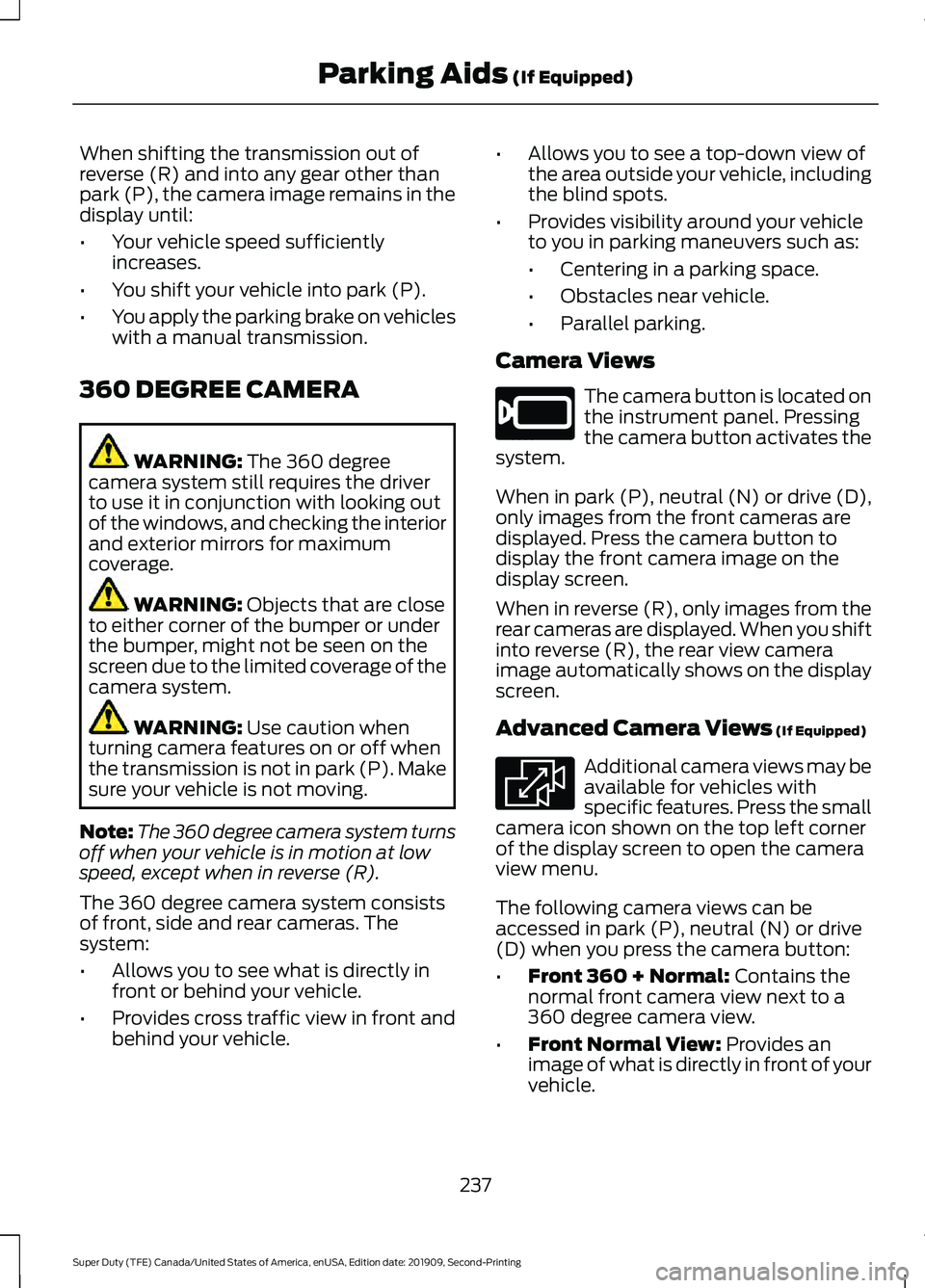

Page 240 of 633

FORD F250 SUPER DUTY 2020  Owners Manual When shifting the transmission out of
reverse (R) and into any gear other than
park (P), the camera image remains in the
display until:
•
Your vehicle speed sufficiently
increases.
• You shift you
