Set all four tires to the recommended
air pressure as indicated on the
Safety Compliance Certification
Label, affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch post,
next to the driver seating position or
Tire Label located on the B-Pillar or
the edge of the driver door.

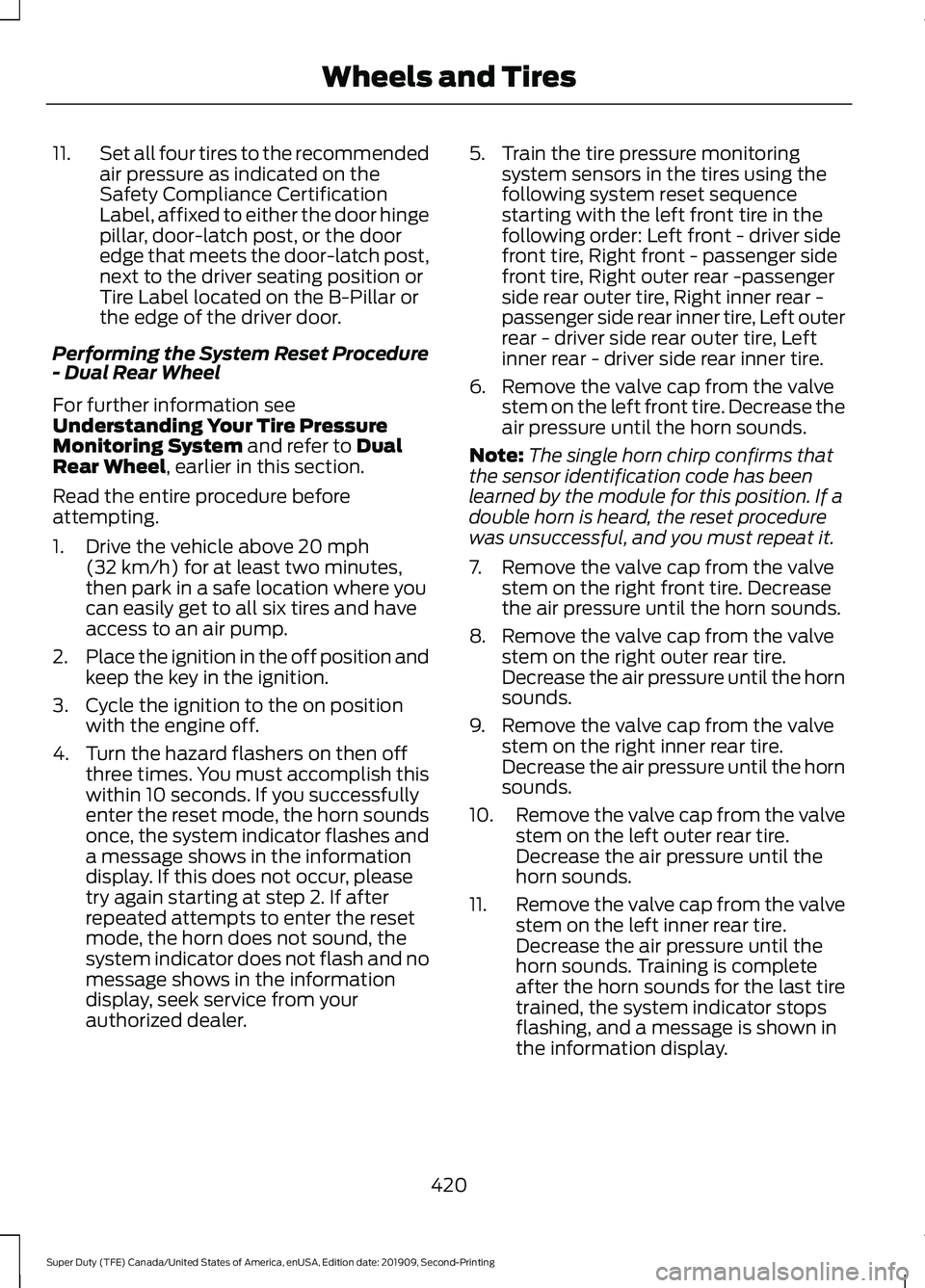

Performing the System Reset Procedure
- Dual Rear Wheel
For further information see
Understanding Your Tire Pressure
Monitoring System and refer to Dual
Rear Wheel, earlier in this section.
Read the entire procedure before
attempting.
1. Drive the vehicle above
20 mph
(32 km/h) for at least two minutes,
then park in a safe location where you
can easily get to all six tires and have
access to an air pump.
2. Place the ignition in the off position and
keep the key in the ignition.
3. Cycle the ignition to the on position with the engine off.
4. Turn the hazard flashers on then off three times. You must accomplish this
within 10 seconds. If you successfully
enter the reset mode, the horn sounds
once, the system indicator flashes and
a message shows in the information
display. If this does not occur, please
try again starting at step 2. If after
repeated attempts to enter the reset
mode, the horn does not sound, the
system indicator does not flash and no
message shows in the information
display, seek service from your
authorized dealer. 5. Train the tire pressure monitoring
system sensors in the tires using the
following system reset sequence
starting with the left front tire in the
following order: Left front - driver side
front tire, Right front - passenger side
front tire, Right outer rear -passenger
side rear outer tire, Right inner rear -
passenger side rear inner tire, Left outer
rear - driver side rear outer tire, Left
inner rear - driver side rear inner tire.
6. Remove the valve cap from the valve stem on the left front tire. Decrease the
air pressure until the horn sounds.
Note: The single horn chirp confirms that
the sensor identification code has been
learned by the module for this position. If a
double horn is heard, the reset procedure
was unsuccessful, and you must repeat it.
7. Remove the valve cap from the valve stem on the right front tire. Decrease
the air pressure until the horn sounds.
8. Remove the valve cap from the valve stem on the right outer rear tire.
Decrease the air pressure until the horn
sounds.
9. Remove the valve cap from the valve stem on the right inner rear tire.
Decrease the air pressure until the horn
sounds.
10. Remove the valve cap from the valve
stem on the left outer rear tire.
Decrease the air pressure until the
horn sounds.
11. Remove the valve cap from the valve
stem on the left inner rear tire.
Decrease the air pressure until the
horn sounds. Training is complete
after the horn sounds for the last tire
trained, the system indicator stops
flashing, and a message is shown in
the information display.
420
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201909, Second-Printing Wheels and Tires

12.
Turn the ignition off. If two short horn
beeps are heard, the reset procedure
was unsuccessful and you must
repeat it. If after repeating the
procedure and two short beeps are
heard when the ignition is turned to
off, seek assistance from your
authorized dealer.
13. Set all six tires to the recommended air pressure as indicated on the
Safety Compliance Certification
Label, affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch post,
next to the driver seating position or
Tire Label located on the B-Pillar or
the edge of the driver door.

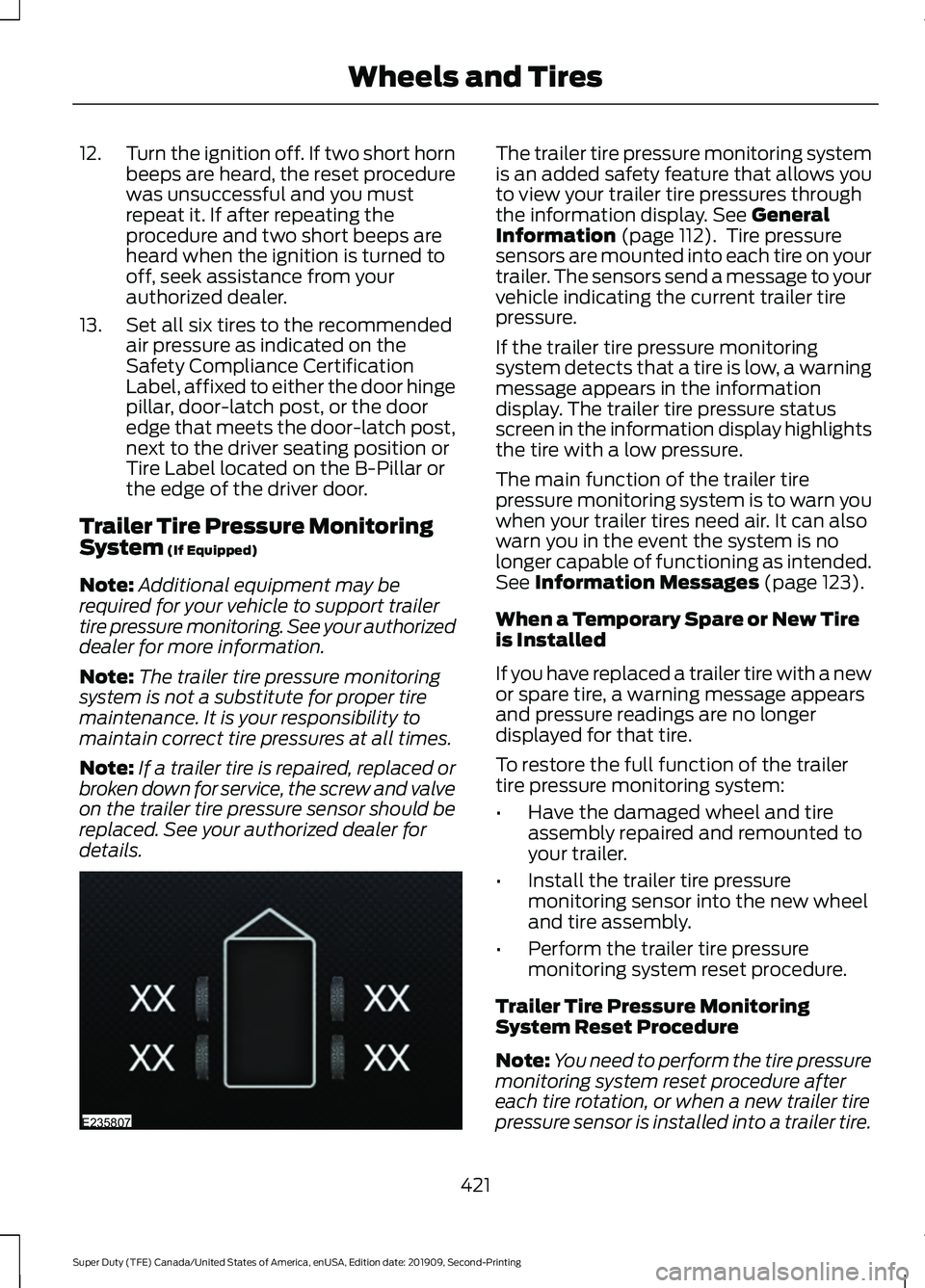

Trailer Tire Pressure Monitoring
System (If Equipped)
Note: Additional equipment may be
required for your vehicle to support trailer
tire pressure monitoring. See your authorized
dealer for more information.
Note: The trailer tire pressure monitoring
system is not a substitute for proper tire
maintenance. It is your responsibility to
maintain correct tire pressures at all times.
Note: If a trailer tire is repaired, replaced or
broken down for service, the screw and valve
on the trailer tire pressure sensor should be
replaced. See your authorized dealer for
details. The trailer tire pressure monitoring system
is an added safety feature that allows you
to view your trailer tire pressures through
the information display.
See General
Information (page 112). Tire pressure
sensors are mounted into each tire on your
trailer. The sensors send a message to your
vehicle indicating the current trailer tire
pressure.
If the trailer tire pressure monitoring
system detects that a tire is low, a warning
message appears in the information
display. The trailer tire pressure status
screen in the information display highlights
the tire with a low pressure.
The main function of the trailer tire
pressure monitoring system is to warn you
when your trailer tires need air. It can also
warn you in the event the system is no
longer capable of functioning as intended.
See
Information Messages (page 123).
When a Temporary Spare or New Tire
is Installed
If you have replaced a trailer tire with a new
or spare tire, a warning message appears
and pressure readings are no longer
displayed for that tire.
To restore the full function of the trailer
tire pressure monitoring system:
• Have the damaged wheel and tire
assembly repaired and remounted to
your trailer.
• Install the trailer tire pressure
monitoring sensor into the new wheel
and tire assembly.
• Perform the trailer tire pressure
monitoring system reset procedure.
Trailer Tire Pressure Monitoring
System Reset Procedure
Note: You need to perform the tire pressure
monitoring system reset procedure after
each tire rotation, or when a new trailer tire
pressure sensor is installed into a trailer tire.
421
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201909, Second-Printing Wheels and TiresE235807

The trailer tire pressure monitoring system
can be reset through the menu in the
information display. See General
Information (page 112). Performing the
trailer setup process also resets the trailer
tire pressure monitoring system.

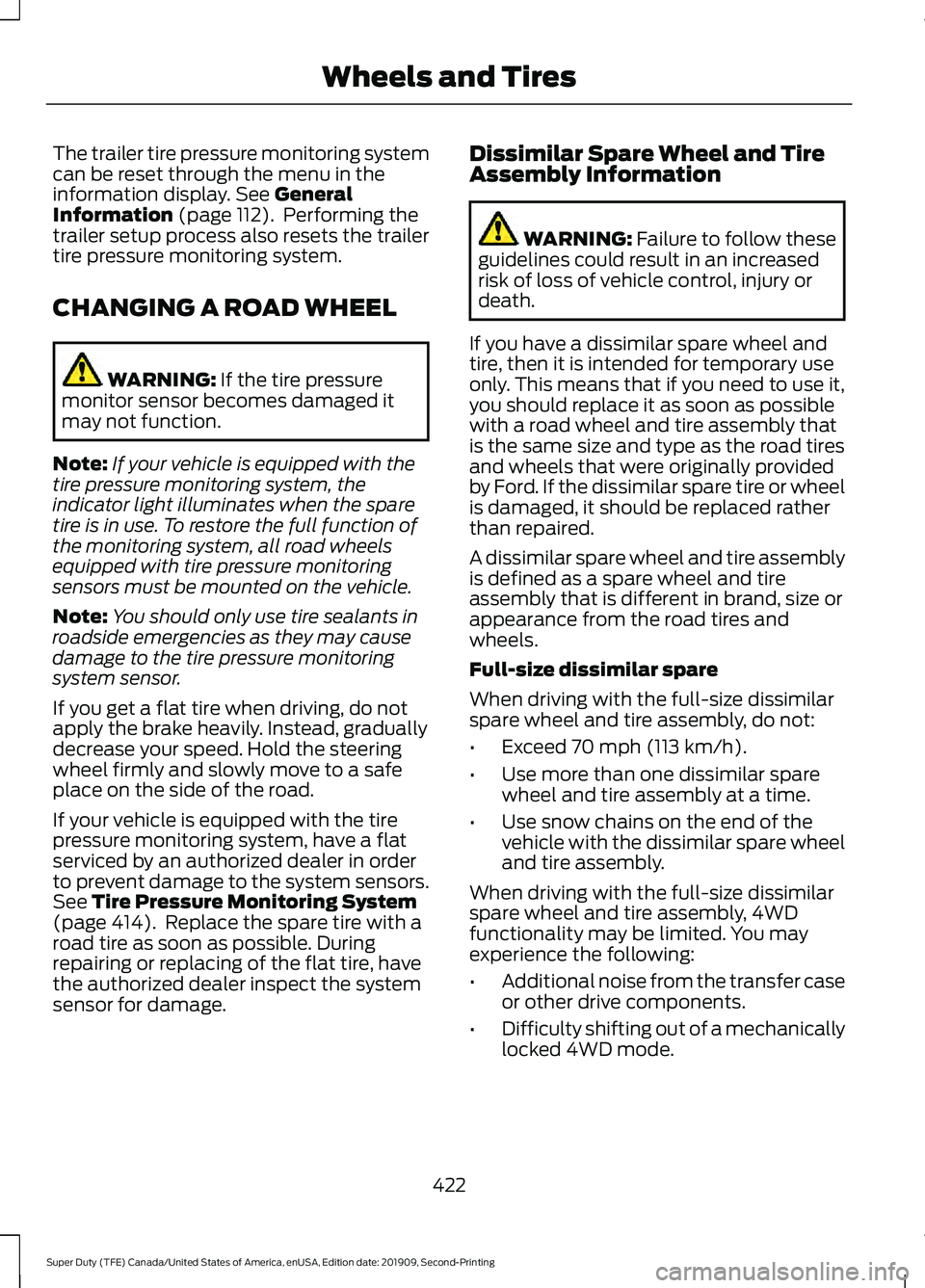

CHANGING A ROAD WHEEL WARNING:
If the tire pressure
monitor sensor becomes damaged it
may not function.
Note: If your vehicle is equipped with the
tire pressure monitoring system, the
indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on the vehicle.
Note: You should only use tire sealants in
roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor.
If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.
If your vehicle is equipped with the tire
pressure monitoring system, have a flat
serviced by an authorized dealer in order
to prevent damage to the system sensors.
See
Tire Pressure Monitoring System
(page 414). Replace the spare tire with a
road tire as soon as possible. During
repairing or replacing of the flat tire, have
the authorized dealer inspect the system
sensor for damage. Dissimilar Spare Wheel and Tire
Assembly Information WARNING:
Failure to follow these
guidelines could result in an increased
risk of loss of vehicle control, injury or
death.
If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and
wheels.
Full-size dissimilar spare
When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
• Exceed
70 mph (113 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time.
• Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.
When driving with the full-size dissimilar
spare wheel and tire assembly, 4WD
functionality may be limited. You may
experience the following:
• Additional noise from the transfer case
or other drive components.
• Difficulty shifting out of a mechanically
locked 4WD mode.
422
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201909, Second-Printing Wheels and Tires

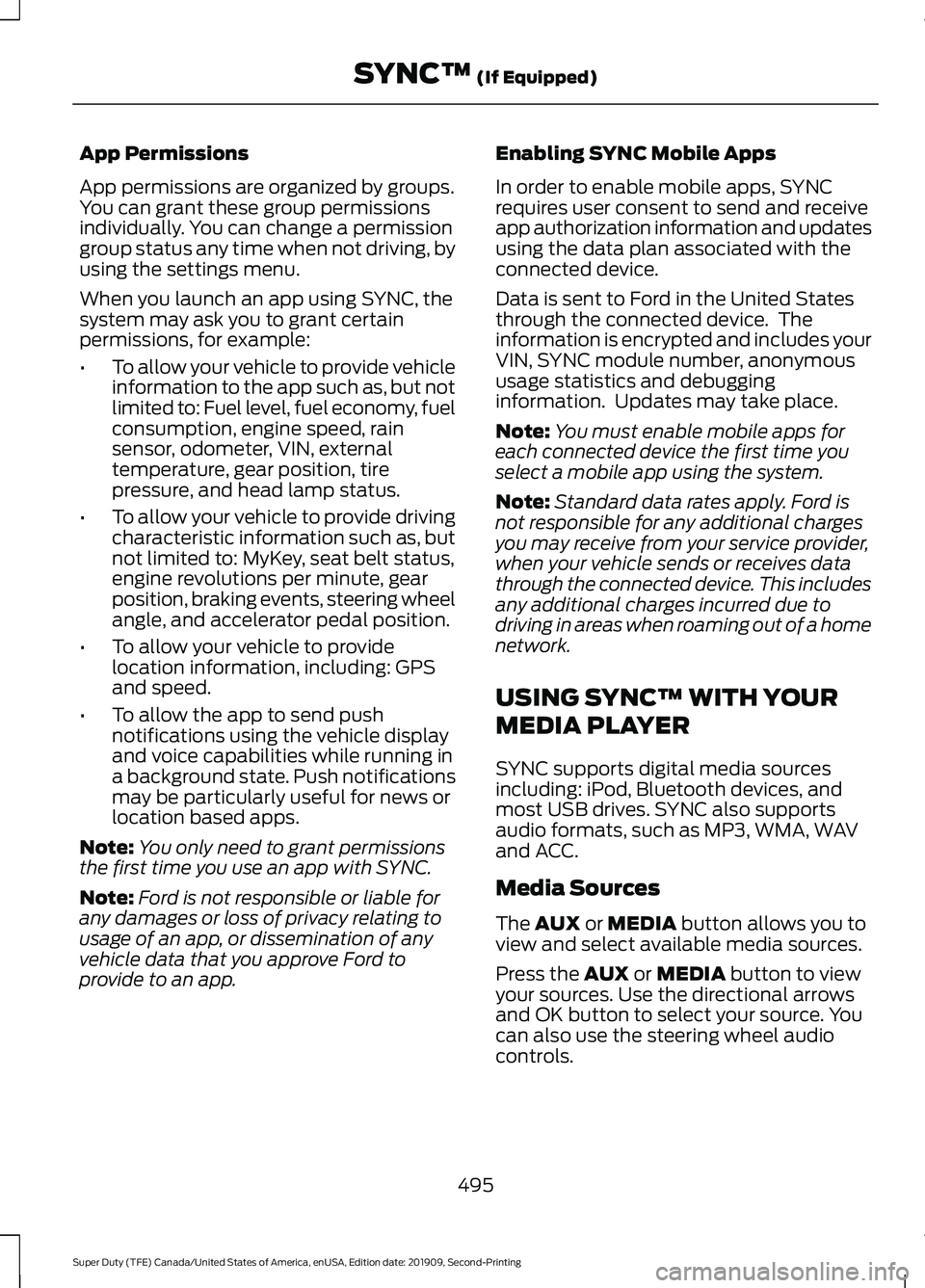

App Permissions
App permissions are organized by groups.
You can grant these group permissions
individually. You can change a permission
group status any time when not driving, by
using the settings menu.
When you launch an app using SYNC, the
system may ask you to grant certain
permissions, for example:
•
To allow your vehicle to provide vehicle
information to the app such as, but not
limited to: Fuel level, fuel economy, fuel
consumption, engine speed, rain
sensor, odometer, VIN, external
temperature, gear position, tire
pressure, and head lamp status.
• To allow your vehicle to provide driving
characteristic information such as, but
not limited to: MyKey, seat belt status,
engine revolutions per minute, gear
position, braking events, steering wheel
angle, and accelerator pedal position.
• To allow your vehicle to provide
location information, including: GPS
and speed.
• To allow the app to send push
notifications using the vehicle display
and voice capabilities while running in
a background state. Push notifications
may be particularly useful for news or
location based apps.
Note: You only need to grant permissions
the first time you use an app with SYNC.
Note: Ford is not responsible or liable for
any damages or loss of privacy relating to
usage of an app, or dissemination of any
vehicle data that you approve Ford to
provide to an app. Enabling SYNC Mobile Apps
In order to enable mobile apps, SYNC
requires user consent to send and receive
app authorization information and updates
using the data plan associated with the
connected device.
Data is sent to Ford in the United States
through the connected device. The
information is encrypted and includes your
VIN, SYNC module number, anonymous
usage statistics and debugging
information. Updates may take place.
Note:
You must enable mobile apps for
each connected device the first time you
select a mobile app using the system.
Note: Standard data rates apply. Ford is
not responsible for any additional charges
you may receive from your service provider,
when your vehicle sends or receives data
through the connected device. This includes
any additional charges incurred due to
driving in areas when roaming out of a home
network.
USING SYNC™ WITH YOUR
MEDIA PLAYER
SYNC supports digital media sources
including: iPod, Bluetooth devices, and
most USB drives. SYNC also supports
audio formats, such as MP3, WMA, WAV
and ACC.
Media Sources
The AUX or MEDIA button allows you to
view and select available media sources.
Press the
AUX or MEDIA button to view
your sources. Use the directional arrows
and OK button to select your source. You
can also use the steering wheel audio
controls.
495
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201909, Second-Printing SYNC™
(If Equipped)

Connecting the Vehicle to a Mobile
Network........................................................474
Enabling the Modem Using FordPass........................................................... 474
Enabling the Modem Using the Touchscreen.................................................... 474
What Is the Modem.......................................... 474
Coolant Check See: Engine Coolant Check - 6.2L...............358
See: Engine Coolant Check - 6.7L
Diesel................................................................. 362
See: Engine Coolant Check - 7.3L................365
Crash Sensors and Airbag Indicator........53
Creating a MyKey............................................63
Programming or Changing Configurable
Settings............................................................... 63
Creating a Vehicle Wi-Fi Hotspot...........477 Connecting a Device to the Wi-Fi
Hotspot............................................................. 477
Finding the Wi-Fi Hotspot Name and Password.......................................................... 477
Cross Traffic Alert
........................................258
Cross Traffic Alert Behavior When Trailer
is Attached...................................................... 260
Cross Traffic Alert Indicator........................... 260
Cross Traffic Alert Information Messages......................................................... 260
Cross Traffic Alert System Limitations...................................................... 259
Cross Traffic Alert System Sensors............259
Switching the System On and Off..............260
Using Cross Traffic Alert................................. 258
Cruise Control................................................241
Cruise Control Indicators..........................242
Cruise Control - Vehicles With: Adaptive Cruise Control
...............................................85
Cruise Control - Vehicles With: Cruise Control............................................................84
Customer Assistance
..................................327
D
Data Recording.................................................12 Comfort, Convenience and Entertainment
Data....................................................................... 14
Event Data................................................................ 13
Service Data............................................................ 13
Services That Third Parties Provide...............14 Services That We Provide..................................
14
Vehicles With a Modem...................................... 14
Vehicles With an Emergency Call System.................................................................. 15
Vehicles With SYNC............................................. 15
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps.............................................................90
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL).............91
Declaration of Conformity
........................613
Declaration of Conformity - Vehicles With: SYNC 3
...............................................613
Radio Frequency Statement.......................... 613
Diesel Particulate Filter.............................202 Oxidation Catalytic Converter and Diesel
Particulate Filter System........................... 202
Regeneration....................................................... 202
Digital Radio
..................................................482
HD Radio Reception and Station
Troubleshooting............................................ 483
Direction Indicators.......................................92
Doors and Locks.............................................66
Draining the Fuel Filter Water Trap - 6.7L Diesel
.............................................................355
Draining the Diesel Fuel Conditioner
Module.............................................................. 356
Filter Location..................................................... 356
Drive Control
..................................................267
Selectable Drive Modes................................... 267
Driver Alert.....................................................249 Using Driver Alert............................................... 249
Driver and Passenger Airbags...................46 Children and Airbags............................................ 51
Passenger Airbag On and Off Switch .........46
Proper Driver and Front Passenger Seating Adjustment....................................................... 50
Driving Aids
....................................................249
Driving Hints....................................................312
Driving Through Water
................................315
For Vehicles without Tremor Off-Road
Package............................................................. 315
For Vehicles with Tremor Off-Road Package............................................................. 316
619
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201909, Second-Printing Index

Ordering Additional Owner's
Literature......................................................332
Obtaining a French Owner ’s Manual..........332
Overhead Console.........................................171
Overriding Automatic High Beam Control............................................................95
P
Parking Aids...................................................233
Principle of Operation...................................... 233
Parking Brake
.................................................224
Passive Anti-Theft System.........................76
SecuriLock®........................................................... 76
PATS See: Passive Anti-Theft System..................... 76
Perchlorate........................................................16
Phone...............................................................525 Android Auto........................................................ 527
Apple CarPlay...................................................... 527
Pairing Your Cell Phone for the First Time................................................................... 526
Text Messaging................................................... 526
Using Your Cell Phone..................................... 526
Post-Crash Alert System..........................324
Power Door Locks See: Locking and Unlocking............................. 66
Power Running Boards................................80
Power Seats....................................................153 Adjusting the Lumbar Support...................... 154
Adjusting the Multi-Contour Front Seats With Active Motion ...................................... 154
Power Steering Fluid Check.....................372
Power Take-Off
..............................................211
Split Shaft Capability......................................... 211
Power Windows
..............................................97
Accessory Delay................................................... 98
Bounce-Back.......................................................... 97
One-Touch Up or Down..................................... 97
Window Lock......................................................... 98
Pre-Collision Assist
.....................................263
Adjusting the Pre-Collision Assist
Settings............................................................ 265
Blocked Sensors................................................ 266
Distance Indication and Alert....................... 264
Using the Pre-Collision Assist System.............................................................. 263
Protecting the Environment
........................19 Puncture
See: Changing a Road Wheel........................ 422
R
Rear Axle.........................................................220
Rear Occupant Alert System Audible Warnings.......................................................162
Rear Occupant Alert System Indicators - Vehicles With: SYNC 3..........................162
Rear Occupant Alert System Indicators - Vehicles With: SYNC..............................162
Rear Occupant Alert System Limitations....................................................161
Rear Occupant Alert System Precautions...................................................161
Rear Occupant Alert System
....................161
Rear Parking Aid...........................................233 Obstacle Distance Indicator.......................... 234
Rear Seats
........................................................157
Folding Up the Rear Seat Cushion ...............157
Rear Under Seat Storage................................. 158
Returning the Seat to the Seating Position............................................................. 158
Rear View Camera.......................................234 Camera Guidelines............................................ 235
Obstacle Distance Indicator.......................... 236
Rear Camera Delay........................................... 236
Using the Rear View Camera System........235
Rear View Camera See: Rear View Camera................................... 234
Recommended Towing Weights...........295 Calculating the Maximum Loaded Trailer
Weight for Your Vehicle.............................. 299
Refueling - Diesel
.........................................190
Dual Fuel Tanks................................................... 192
Fueling Tips............................................................ 191
Refueling................................................................. 191
Refueling - Gasoline
....................................189
Fuel Filler Cap...................................................... 190
Remote Control..............................................55 Car Finder............................................................... 60
Integrated Keyhead Transmitter..................... 55
Intelligent Access Key.........................................56
Memory Feature................................................... 59
Remote Start......................................................... 60
Replacing the Battery......................................... 57
Sounding the Panic Alarm............................... 60
625
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201909, Second-Printing Index

Navigation............................................................
543
Personal Profiles................................................ 547
Phone...................................................................... 541
Resetting the System...................................... 549
USB and Bluetooth Audio.............................. 538
Voice Recognition.............................................. 537
Wi-Fi Connectivity............................................. 546
SYNC™ Applications and Services........................................................492
911 Assist............................................................... 492
SYNC Mobile Apps........................................... 494
SYNC™...........................................................488 General Information......................................... 488
SYNC™ Troubleshooting.........................496
T
Tailgate Lock.....................................................71
Tailgate Step.....................................................72
Closing the Step.................................................... 73
Opening the Step................................................. 73
Tailgate................................................................71
Technical Specifications See: Capacities and Specifications............433
Terrain Control
...............................................231
Principle of Operation....................................... 231
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................329
Tire Care
..........................................................397
Glossary of Tire Terminology........................ 398
Information About Uniform Tire Quality Grading.............................................................. 397
Information Contained on the Tire Sidewall........................................................... 399
Temperature A B C............................................ 398
Traction AA A B C............................................... 397
Treadwear............................................................. 397
Tire Pressure Monitoring System...........414 Trailer Tire Pressure Monitoring
System............................................................... 421
Vehicle Tire Pressure Monitoring System............................................................... 414
Tires See: Wheels and Tires..................................... 395
Towing a Trailer.............................................277 Load Placement................................................. 278
Towing Points
................................................325 Towing the Vehicle on Four
Wheels.........................................................309
Emergency Towing........................................... 309
Recreational Towing........................................ 309
Towing..............................................................277
Traction Control
...........................................226
Principle of Operation...................................... 226
Trail Control Indicators
..............................230
Trail Control...................................................230
Trailer Reversing Aids.................................279 Conventional Trailer Setup............................. 281
Fifth Wheel and Gooseneck Trailer Setup................................................................. 283
Positioning Your Vehicle and Trailer...........280
Pro Trailer Backup Assist With Trailer Reverse Guidance......................................... 279
Setting Up the System.................................... 280
Troubleshooting - Conventional Trailer................................................................. 287
Troubleshooting - Fifth Wheel and Gooseneck Trailer......................................... 292
Using Pro Trailer Backup Assist................... 284
Using Trailer Reverse Guidance................... 285
Trailer Sway Control...................................295
Transfer Case Fluid Check.........................371
Transmission Code Designation...........440
Transmission.................................................207
Transporting the Vehicle
...........................324
U
Under Hood Overview - 6.2L...................343
Under Hood Overview - 6.7L Diesel............................................................344
Under Hood Overview - 7.3L
....................345
Under Seat Storage.......................................171
Front Under Seat Storage Compartment -
Vehicles With Locking Storage.................. 172
Front Under Seat Storage Compartment - Vehicles Without Locking Storage............171
Rear Under Seat Storage.................................. 172
Universal Garage Door Opener
...............163
HomeLink Wireless Control System............163
USB Port
.........................................................487
Locating the USB Ports................................... 487
Using Adaptive Cruise Control................242 Automatic Cancellation.................................. 245
Blocked Sensor................................................... 247
628
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201909, Second-Printing Index
