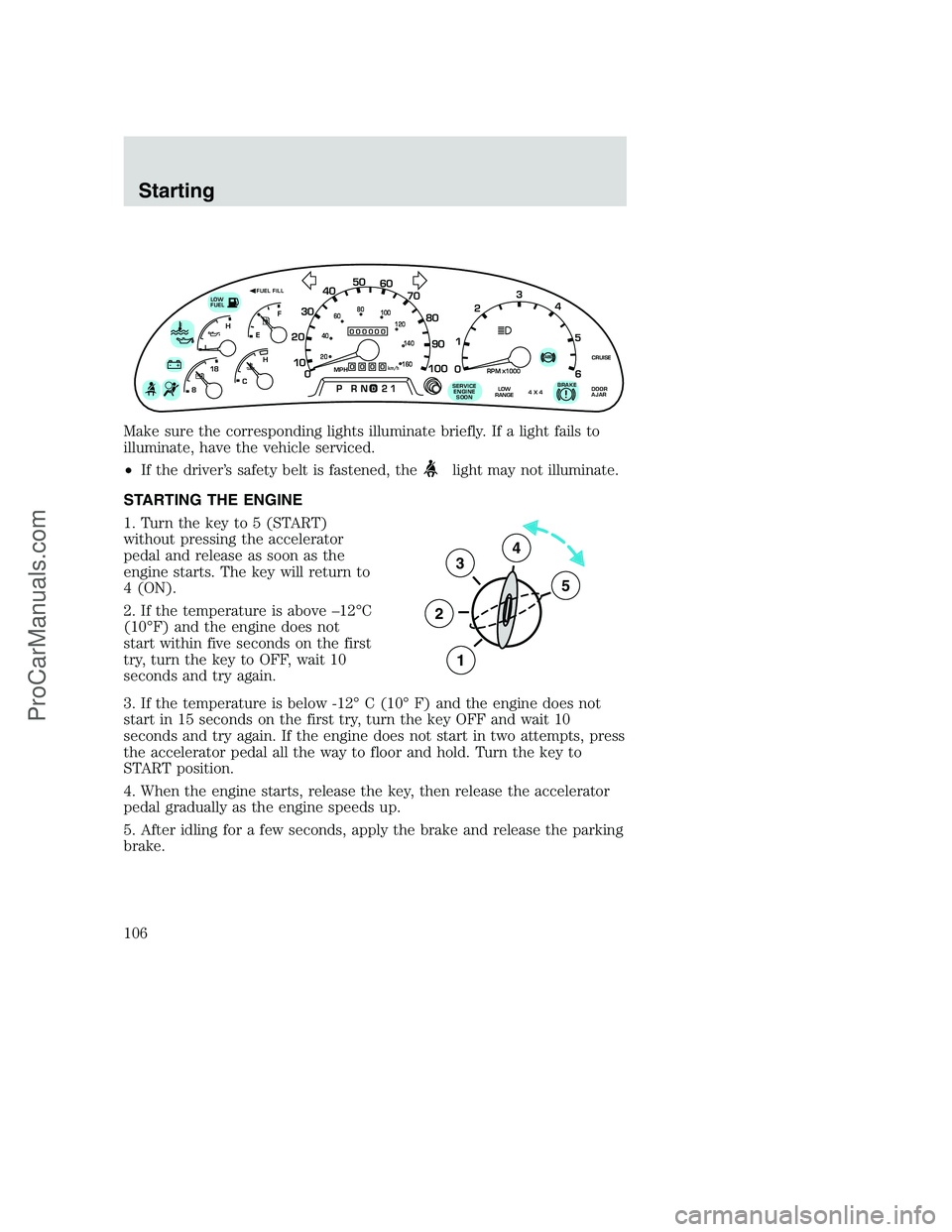

Make sure the corresponding lights illuminate briefly. If a light fails to
illuminate, have the vehicle serviced.
•If the driver’s safety belt is fastened, the
light may not illuminate.
STARTING THE ENGINE
1. Turn the key to 5 (START)
without pressing the accelerator
pedal and release as soon as the
engine starts. The key will return to
4 (ON).
2. If the temperature is above –12°C
(10°F) and the engine does not
start within five seconds on the first
try, turn the key to OFF, wait 10
seconds and try again.
3. If the temperature is below -12° C (10° F) and the engine does not
start in 15 seconds on the first try, turn the key OFF and wait 10
seconds and try again. If the engine does not start in two attempts, press
the accelerator pedal all the way to floor and hold. Turn the key to
START position.
4. When the engine starts, release the key, then release the accelerator
pedal gradually as the engine speeds up.
5. After idling for a few seconds, apply the brake and release the parking
brake.
0
000000000
MPH20km/h
406080
100
120
140
160
010 20304050
60
70
80
90
100
LOW
FUEL
CRUISEABS+ -
LEF
H
RPM1000X0123
5
6 4
PRN 218C 18
H
D
FUEL FILL
DOOR
AJARLOW
RANGE4 X 4BRAKE!SERVICE
ENGINE
SOON
3
2
1
5
4
Starting
106
ProCarManuals.com

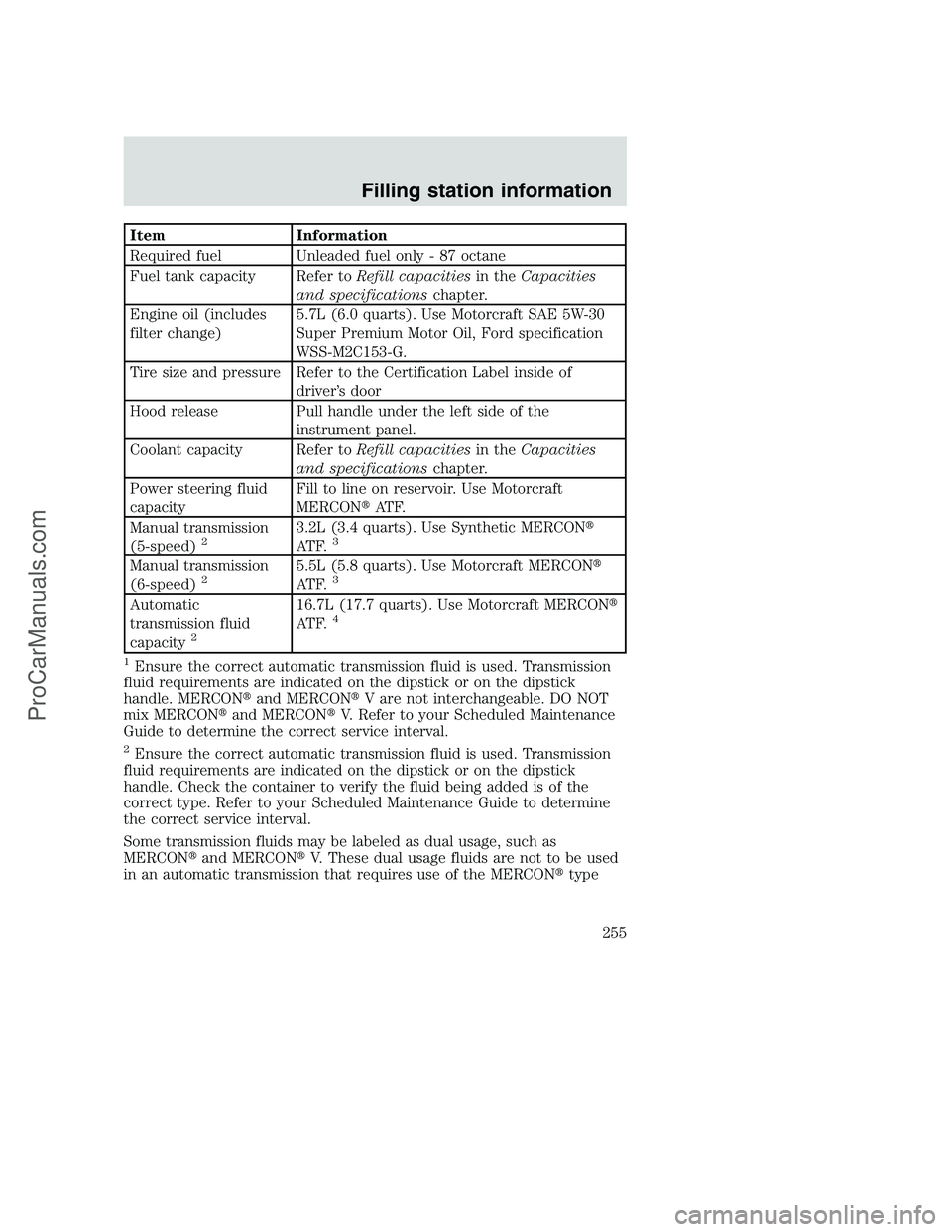

Item Information
Required fuel Unleaded fuel only - 87 octane
Fuel tank capacity Refer toRefill capacitiesin theCapacities
and specificationschapter.
Engine oil (includes
filter change)5.7L (6.0 quarts). Use Motorcraft SAE 5W-30
Super Premium Motor Oil, Ford specification
WSS-M2C153-G.
Tire size and pressure Refer to the Certification Label inside of
driver’s door
Hood release Pull handle under the left side of the
instrument panel.
Coolant capacity Refer toRefill capacitiesin theCapacities
and specificationschapter.
Power steering fluid
capacityFill to line on reservoir. Use Motorcraft
MERCONAT F.
Manual transmission
(5-speed)
23.2L (3.4 quarts). Use Synthetic MERCON
AT F.3
Manual transmission
(6-speed)25.5L (5.8 quarts). Use Motorcraft MERCON
AT F.3
Automatic
transmission fluid
capacity
2
16.7L (17.7 quarts). Use Motorcraft MERCON
AT F.4
1
Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to your Scheduled Maintenance
Guide to determine the correct service interval.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your Scheduled Maintenance Guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
Filling station information
