MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part name Ford part number /
Ford specification
Front axle 5.8 pints (2.8L) Motorcraft SAE 80W-90
Premium Rear Axle
Lubricant XY-80W-90–QL /
WSP-M2C197–A
Spindle bearing — High Temperature 4X4
Front Axle and Wheel
Bearing Grease XG-11 /
WSS-M1C267-A1
Rear axle - F-250/350
(10.50 inch axle)
16.9 pints (3.3L) Motorcraft SAE 75W-140
Synthetic Rear Axle
Lubricant XY-75W140–QL /
WSL-M2C192-A
Rear axle - F-350
(DANA M80) 8.5 pints (4.0L) Motorcraft SAE 75W-90
Synthetic Rear Axle
Lubricant XY-75W90–QLS /
WSS–M2C918–A
Rear axle - F-450/550
(Dana S110/S130) 14.0 pints (6.6L) Motorcraft SAE 75W-140
Synthetic Rear Axle
Lubricant XY-75W140–QL /
WSL-M2C192-A
Brake fluid (and clutch
fluid, if equipped) Fill to line or step
(for clutch) on
reservoir Motorcraft High
Performance DOT 3
Motor Vehicle Brake
Fluid PM-1–C / WSS-M6C62-A
or WSS-M6C65-A1
Engine coolant
(5.4L V8 engine)
225.7 quarts
(24.3L) Motorcraft Premium
Gold Engine Coolant
(yellow-colored) VC-7-B /
WSS-M97B51-A1Maintenance and Specifications
391
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Item Capacity Ford part name Ford part number /
Ford specification
Engine coolant
(6.8L V10 engine)
226.7 quarts
(25.3L) Motorcraft Premium
Gold Engine Coolant
(yellow-colored) VC-7-B /
WSS-M97B51-A1
Engine and fuel coolant
- diesel engine Refer to the 6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement
Engine oil (includes
filter change) - 5.4L V8
and 6.8L V10 gas
engines
67.0 quarts (6.6L) • Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
• Motorcraft SAE 5W-20
Full Synthetic Motor Oil
(US)
• Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
• Motorcraft SAE 5W-20
Synthetic Motor Oil
(Canada) • XO-5W20-QSP (US)
• XO-5W20-QFS (US)
• CXO-5W20–LSP12
(Canada)
• CXO-5W-20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine oil (includes
filter change) - diesel
engine Refer to the 6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement
Fuel tank - Mid-ship
tank (optional on
Chassis Cab) 19.0 gallons
(71.9L) ——Maintenance and Specifications
392
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Item Capacity Ford part name Ford part number /
Ford specification
Fuel tank - Short box 30.0 gallons
(113.4L) ——
Fuel tank - Long box 38.0 gallons
(143.9L) ——
Fuel tank - Aft axle
(Chassis cab only) 40.0 gallons
(151.4L) ——
Hinges, latches, striker
plates, fuel filler door
hinge and seat tracks — Multi-Purpose Grease XG–4 or XL-5 /
ESB-M1C93–B
Lock cylinders — Motorcraft Penetrating
and Lock Lubricant XL-1 / None
Transmission / parking
brake linkages and
pivots, brake and clutch
pedal shaft (if
equipped) — Motorcraft Premium
Long-Life Grease XG-1-C or XG-1-K /
WSD-M1C227-A
Power steering fluid Keep fluid level
between MIN and
MAX on reservoir Motorcraft
MERCON
VATF XT-5-QM /
MERCON
V
Transfer case fluid 2.0 quarts (1.9L) Motorcraft Transfer Case
Fluid XL-12 / —
Manual transmission
fluid (S6-650) - gas
engine 5.8 quarts (5.5L)
4Motorcraft
MERCON
VATF XT-5-QM/DM /
MERCON
VMaintenance and Specifications
393
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Item Capacity Ford part name Ford part number /
Ford specification
Manual transmission
fluid (M6HDW) - diesel
engine Refer to the 6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement
Automatic transmission
fluid (5R110)
317.5 quarts
(16.6L)
5Motorcraft
MERCON
LV AT F XT-10–QLV /
MERCON
LV
Windshield washer fluid 3.5 quarts (3.3L) Motorcraft Premium
Windshield Washer
Concentrate ZC-32–A /
WSB-M8B16–A2
1Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford Specification
EST-M2C118–A for complete refill of limited slip Ford axles. Ford design rear axles contain a
synthetic lubricant that does not require changing unless the axle has been submerged in water.
2Add the coolant type originally equipped in your vehicle.
3Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick blade or the dipstick handle. Check the container to verify the fluid being
added is of the correct type. Refer to your scheduled maintenance information to determine the
correct service interval.
Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid.
Use of any fluid other than the recommended fluid may cause transmission damage.
4Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface. The 6-speed manual transmission is equipped with an in-tank cooler.
Verify the fluid level after operating vehicle to ensure correct fluid level.
5Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.
6Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.Maintenance and Specifications
394
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

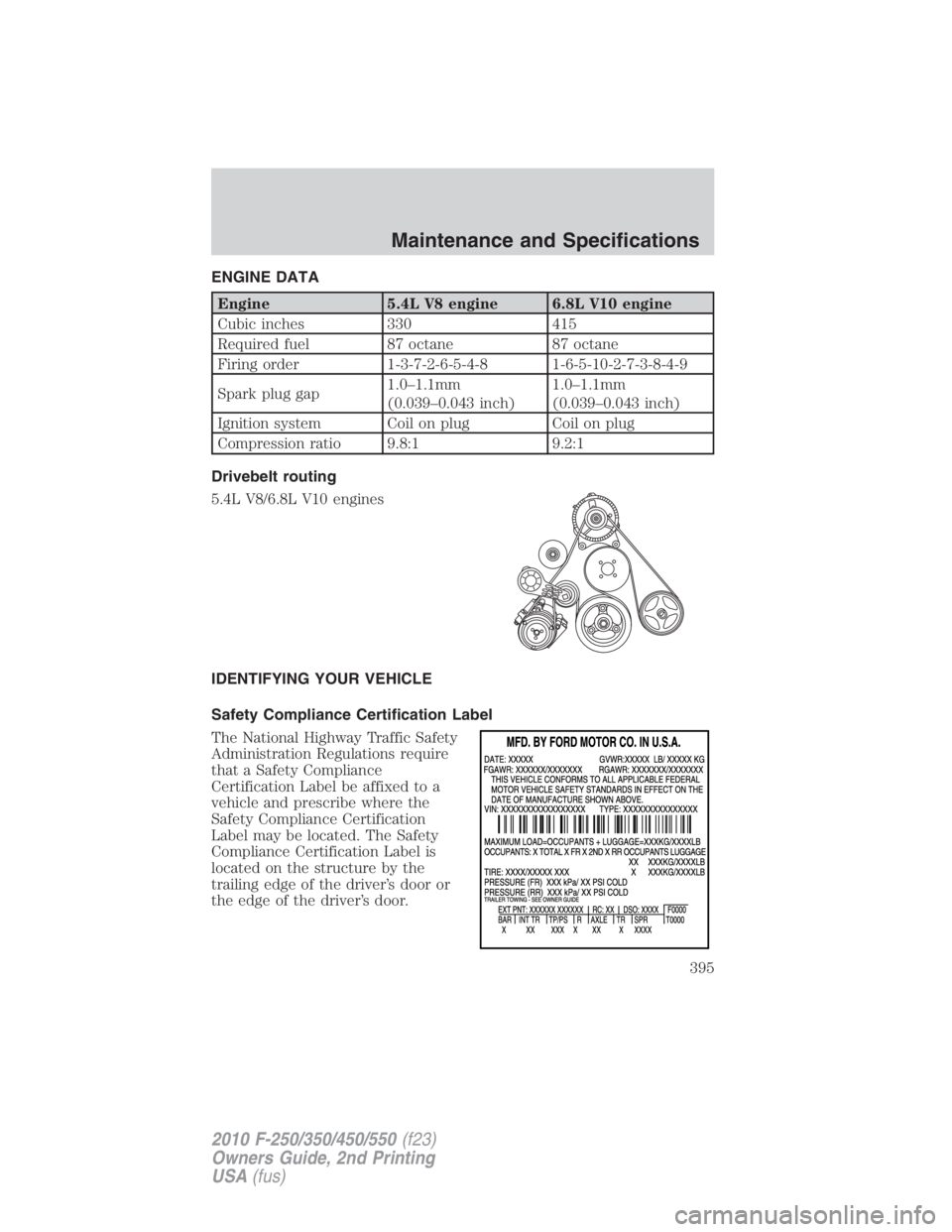

ENGINE DATA
Engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap 1.0–1.1mm
(0.039–0.043 inch) 1.0–1.1mm
(0.039–0.043 inch)
Ignition system Coil on plug Coil on plug
Compression ratio 9.8:1 9.2:1
Drivebelt routing
5.4L V8/6.8L V10 engines
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door. Maintenance and Specifications
395
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

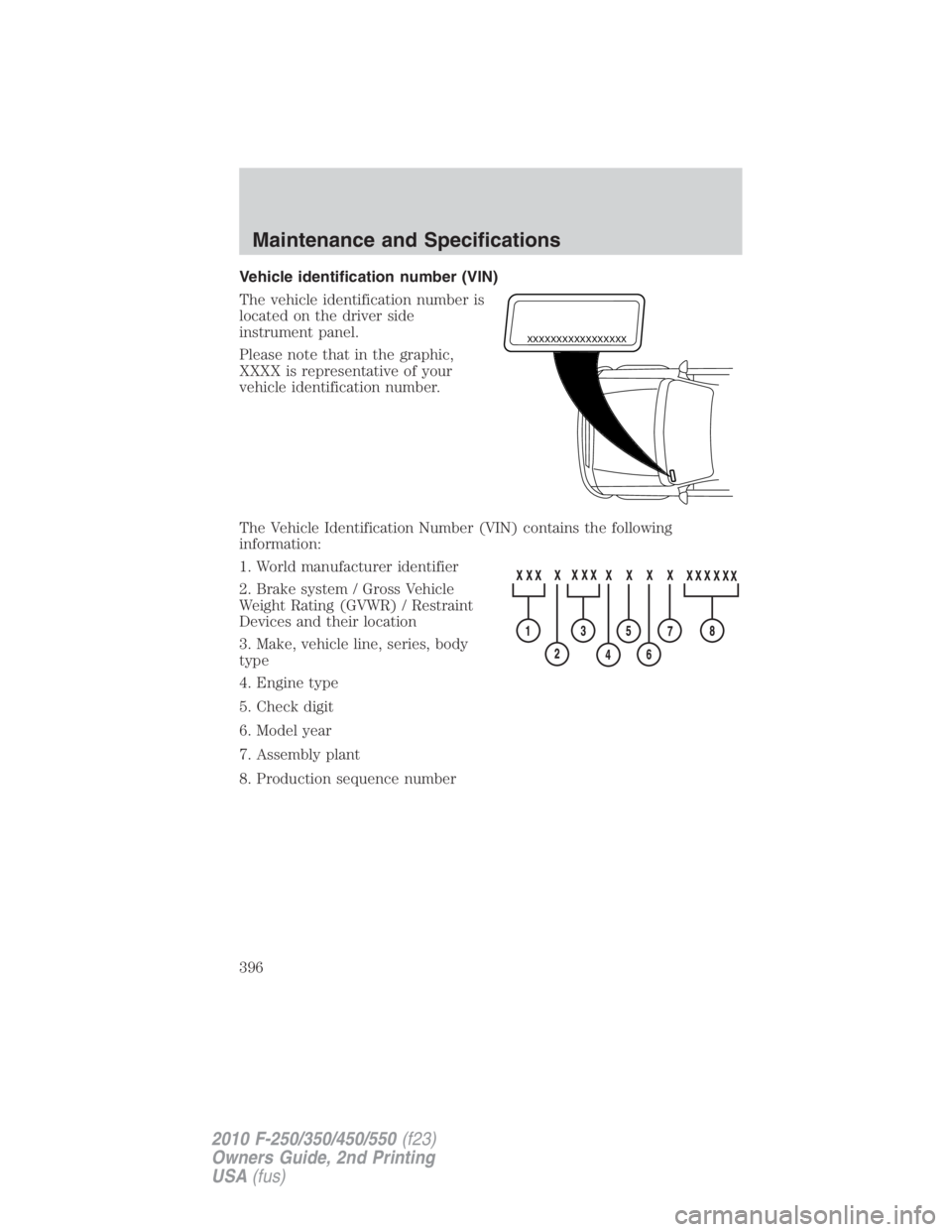

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number XXXXXXXXXXXXXXXXX
Maintenance and Specifications
396
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

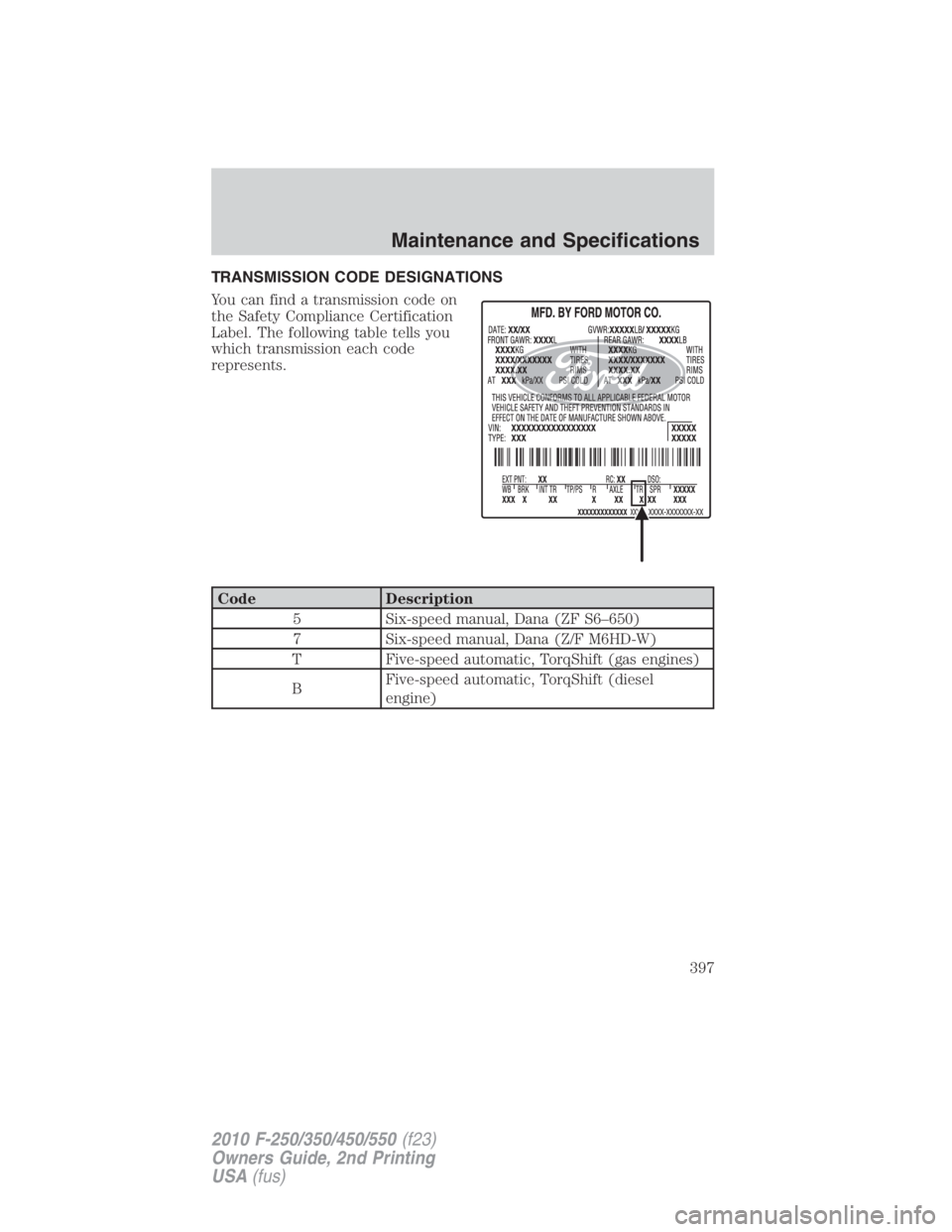

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Code Description
5 Six-speed manual, Dana (ZF S6–650)
7 Six-speed manual, Dana (Z/F M6HD-W)
T Five-speed automatic, TorqShift (gas engines)
B Five-speed automatic, TorqShift (diesel
engine)Maintenance and Specifications
397
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

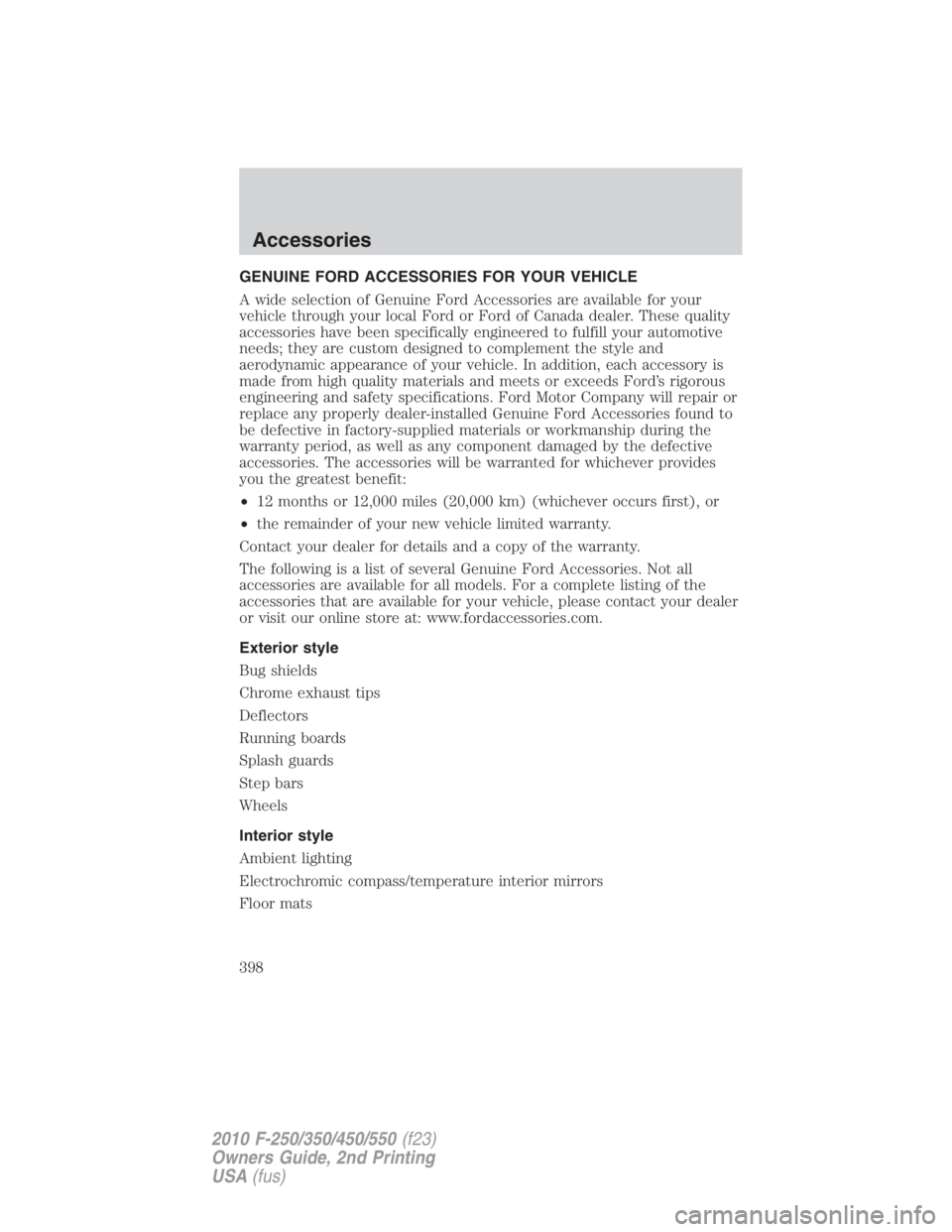

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
• 12 months or 12,000 miles (20,000 km) (whichever occurs first), or
• the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Running boards
Splash guards
Step bars
Wheels
Interior style
Ambient lighting
Electrochromic compass/temperature interior mirrors
Floor matsAccessories
398
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

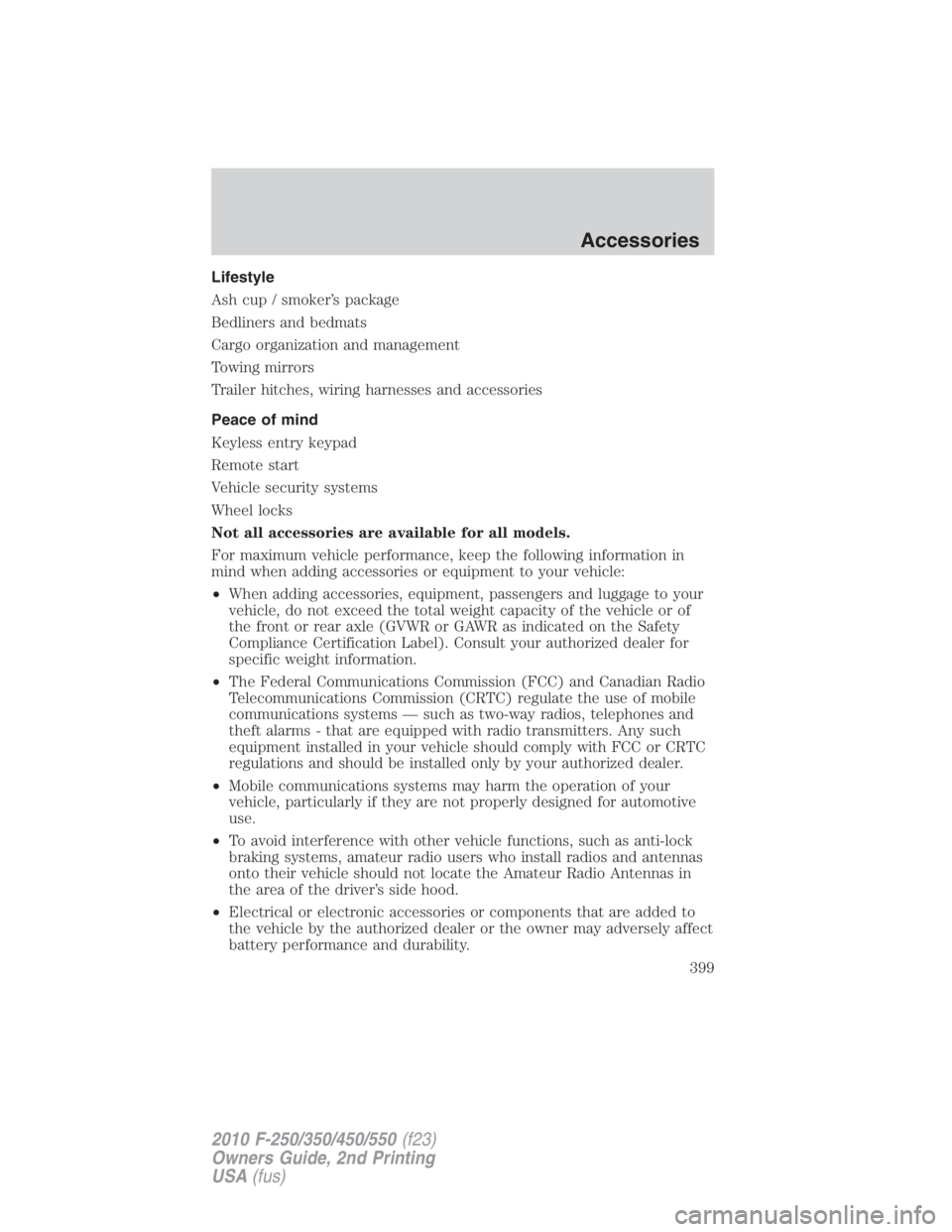

Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Keyless entry keypad
Remote start
Vehicle security systems
Wheel locks
Not all accessories are available for all models.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.
• The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by your authorized dealer.
• Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
• To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
• Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability. Accessories
399
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare – Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare – Covers 113 components, and includes many high-tech
items.
BaseCare – Covers 84 components.
PowertrainCare – Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and Canada It’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
• Reliable, quality service anywhere you go.
• Factory-trained technicians.
• Genuine Ford and Motorcraft
Parts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs, you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus, exclusive 24/7 roadside assistance, including:
• Towing, flat-tire change and battery jump starts.
• Out-of-fuel and lock-out assistance.
• Travel expense reimbursement for lodging, meals and rental car.
• Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.Ford Extended Service Plan
400
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
