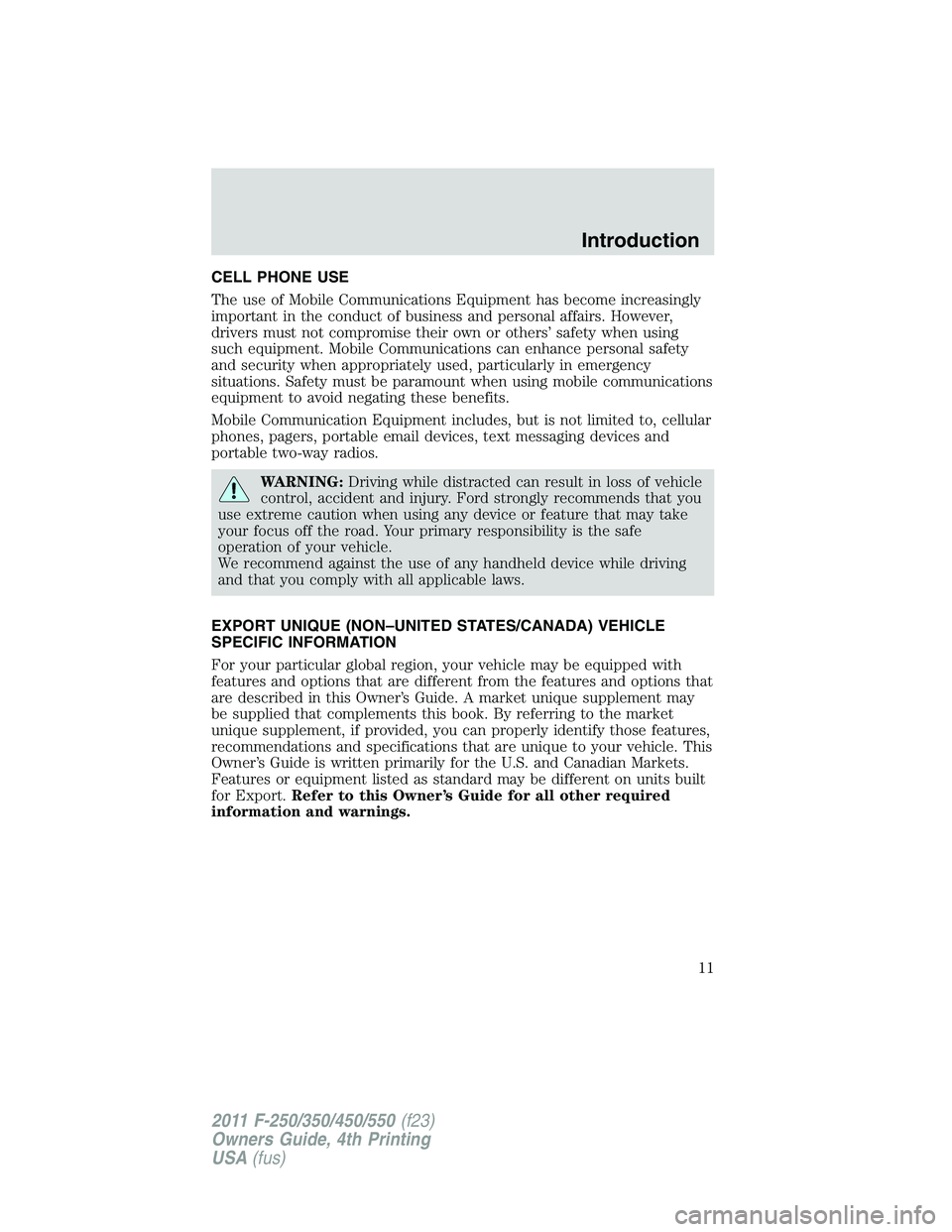

CELL PHONE USE
The use of Mobile Communications Equipment has become increasingly
important in the conduct of business and personal affairs. However,
drivers must not compromise their own or others’ safety when using
such equipment. Mobile Communications can enhance personal safety
and security when appropriately used, particularly in emergency
situations. Safety must be paramount when using mobile communications
equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to, cellular
phones, pagers, portable email devices, text messaging devices and
portable two-way radios.
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe
operation of your vehicle.
We recommend against the use of any handheld device while driving
and that you comply with all applicable laws.
EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE
SPECIFIC INFORMATION
For your particular global region, your vehicle may be equipped with
features and options that are different from the features and options that
are described in this Owner’s Guide. A market unique supplement may
be supplied that complements this book. By referring to the market
unique supplement, if provided, you can properly identify those features,
recommendations and specifications that are unique to your vehicle. This
Owner’s Guide is written primarily for the U.S. and Canadian Markets.
Features or equipment listed as standard may be different on units built
for Export. Refer to this Owner’s Guide for all other required
information and warnings. Introduction
11
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
Page 12 of 449
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert See Owner’s Guide
Fasten Safety Belt Airbag - Front
Airbag - Side Child Seat Lower
Anchor
Child Seat Tether
Anchor Brake System
Anti-Lock Brake System Parking Brake System
Brake Fluid -
Non-Petroleum Based Parking Aid System
Stability Control System Speed Control
Master Lighting Switch Hazard Warning Flasher
Fog Lamps-Front Fuse Compartment
Fuel Pump Reset Windshield Wash/Wipe
Windshield
Defrost/Demist Rear Window
Defrost/DemistIntroduction
12
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
Page 13 of 449
Vehicle Symbol Glossary
Power Windows
Front/Rear Power Window Lockout
Child Safety Door
Lock/Unlock Interior Luggage
Compartment Release
Panic Alarm Engine Oil
Engine Coolant Engine Coolant
Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames,
or Sparks Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid Maintain Correct Fluid
Level MAX
MIN
Service Engine Soon Engine Air Filter
Passenger Compartment
Air Filter Jack
Check Fuel Cap Low Tire Pressure
WarningIntroduction
13
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
Page 14 of 449
WARNING LIGHTS AND CHIMES
Base instrument cluster with standard measure shown; metric
similar
Optional instrument cluster with standard measure shown; metric
similar
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the km/h
RPMx100
0
0 010 20 30 40 50
60
70
80
90
100
1 2 3
4
5
6
7 ECHCHHL
F
0 2 0 40608 0100
120
1
4
0
1
6
0 MPH km/h
RPMx1000
0 010 20 30 40 50
60
70
80
90
1001 2 3
4
5
6
7 HL
0 2 0 4 0 608 01 0 01 2 0
1
4
0
1
6
0 MPH
E
FCH
CH
Instrument Cluster
14
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
Page 15 of 449
bulb works. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Standard message center
Note: Some warning lights are
reconfigurable telltale (RTT)
indicator lights and will illuminate in
the message center. These lights
function the same as the other
warning lights.
Optional message center
Note: Some warning lights are
reconfigurable telltale (RTT)
indicator lights and will illuminate in
the message center. These lights
function the same as the other
warning lights. The first three
positions will only display one
warning telltale at a time; the last
three positions can cycle between
different warning telltales.
Service engine soon: The service
engine soon indicator
illuminates when the ignition is first
turned to the on position to check
the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. Normally, the service engine soon
indicator will stay on until the engine is cranked, then turn itself off if no
malfunctions are present. However, if after 15 seconds the service engine
soon indicator blinks eight times, it means that the vehicle is not ready
for I/M testing. See the Readiness for Inspection/Maintenance (I/M)
testing in the Maintenance and Specifications chapter.
Solid illumination after the engine is started indicates the on-board
diagnostics system (OBD-II) has detected a malfunction. Refer to
On-board diagnostics (OBD-II) in the Maintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer. Instrument Cluster
15
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
Page 16 of 449
WARNING: Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.

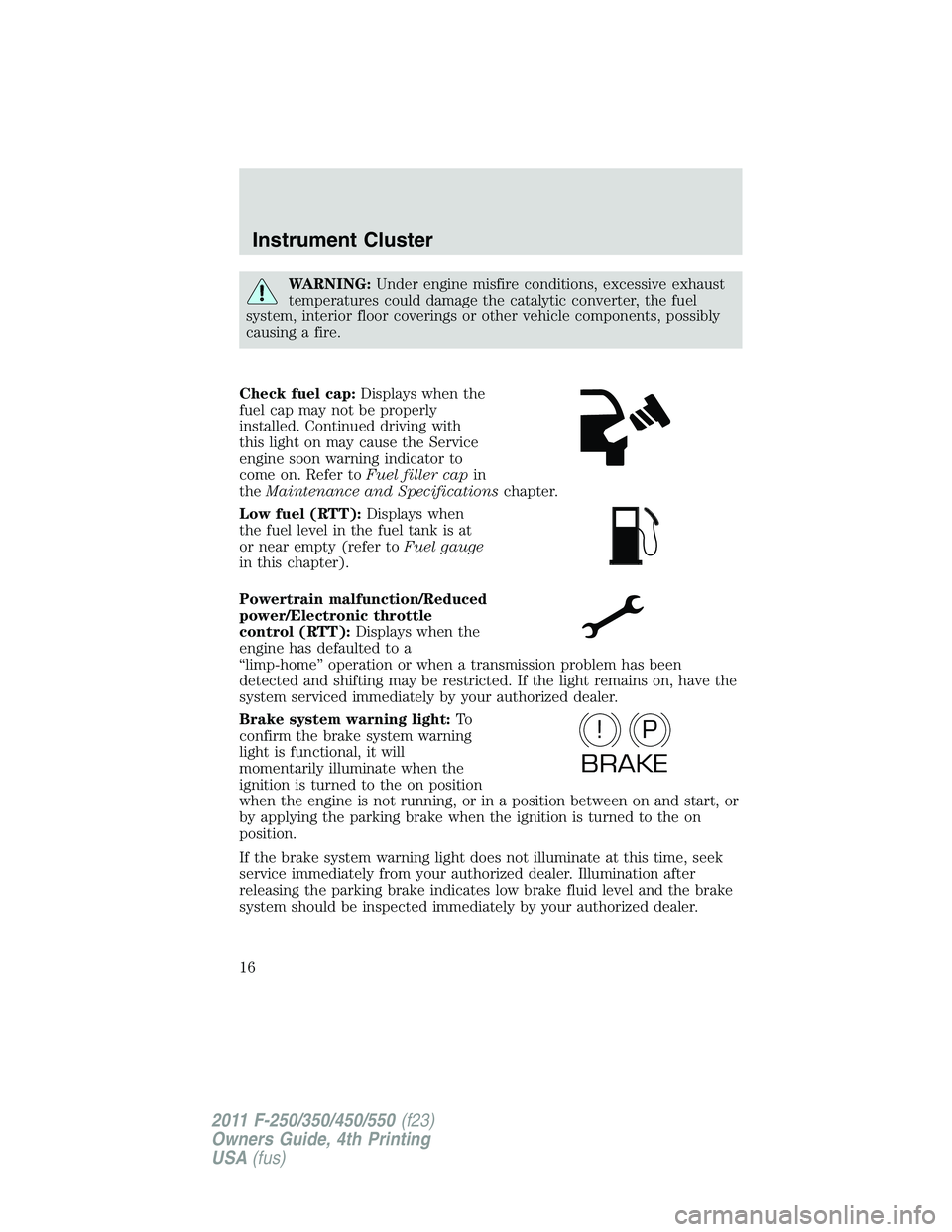

Check fuel cap: Displays when the
fuel cap may not be properly
installed. Continued driving with
this light on may cause the Service
engine soon warning indicator to
come on. Refer to Fuel filler cap in
the Maintenance and Specifications chapter.
Low fuel (RTT): Displays when
the fuel level in the fuel tank is at
or near empty (refer to Fuel gauge
in this chapter).
Powertrain malfunction/Reduced
power/Electronic throttle
control (RTT): Displays when the
engine has defaulted to a
“limp-home” operation or when a transmission problem has been
detected and shifting may be restricted. If the light remains on, have the
system serviced immediately by your authorized dealer.
Brake system warning light: To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the on position
when the engine is not running, or in a position between on and start, or
by applying the parking brake when the ignition is turned to the on
position.
If the brake system warning light does not illuminate at this time, seek
service immediately from your authorized dealer. Illumination after
releasing the parking brake indicates low brake fluid level and the brake
system should be inspected immediately by your authorized dealer. P!
BRAKEInstrument Cluster
16
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
Page 17 of 449
WARNING: Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
Anti-lock brake system: If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
Airbag readiness: If this light fails
to illuminate when the ignition is
turned to on, continues to flash or
remains on, have the system
serviced immediately by your
authorized dealer. A chime will sound if there is a malfunction in the
indicator light.
Safety belt: Reminds you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you
to fasten your safety belt. Refer to
the Seating and Safety Restraints
chapter to activate/deactivate the Belt-Minder chime feature.
Charging system: Illuminates when
the battery is not charging properly.
If it stays on while the engine is
running, there may be a malfunction
with the charging system. Contact your authorized dealer as soon as
possible. This indicates a problem with the electrical system or a related
component.
Engine oil pressure (RTT and
static warning light): Displays
when the oil pressure falls below the
normal range. Refer to Engine oil
in the Maintenance and Specifications chapter.ABSInstrument Cluster
17
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
Page 18 of 449
Door ajar (RTT): Displays when
the ignition is in the on position and
any door is not completely closed.
Engine coolant temperature
(RTT): Illuminates when the engine
coolant temperature is high. Stop
the vehicle as soon as possible, switch off the engine and let cool. Refer
to Engine coolant in the Maintenance and Specifications chapter.
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.
Low tire pressure warning (if
equipped): Illuminates when your
tire pressure is low. If the light
remains on at start up or while
driving, the tire pressure should be
checked. Refer to Inflating your tires in the Tires, Wheels and
Loading chapter. When the ignition is first turned to on, the light will
illuminate for three seconds to ensure the bulb is working. If the light
does not turn on, have the system inspected by your authorized dealer.
For more information on this system, refer to Tire pressure monitoring
system (TPMS) in the Tires, Wheels and Loading chapter.
Hill descent (if equipped):
Displays when using the hill descent
mode. Refer to the Driving chapter
for transmission function and
operation.
Transmission Tow/Haul Feature
(if equipped): Displays when the
Tow/Haul feature has been
activated. Refer to the Driving
chapter for transmission function and operation. If the light flashes
steadily, have the system serviced immediately, damage to the
transmission could occur.Instrument Cluster
18
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
Page 19 of 449

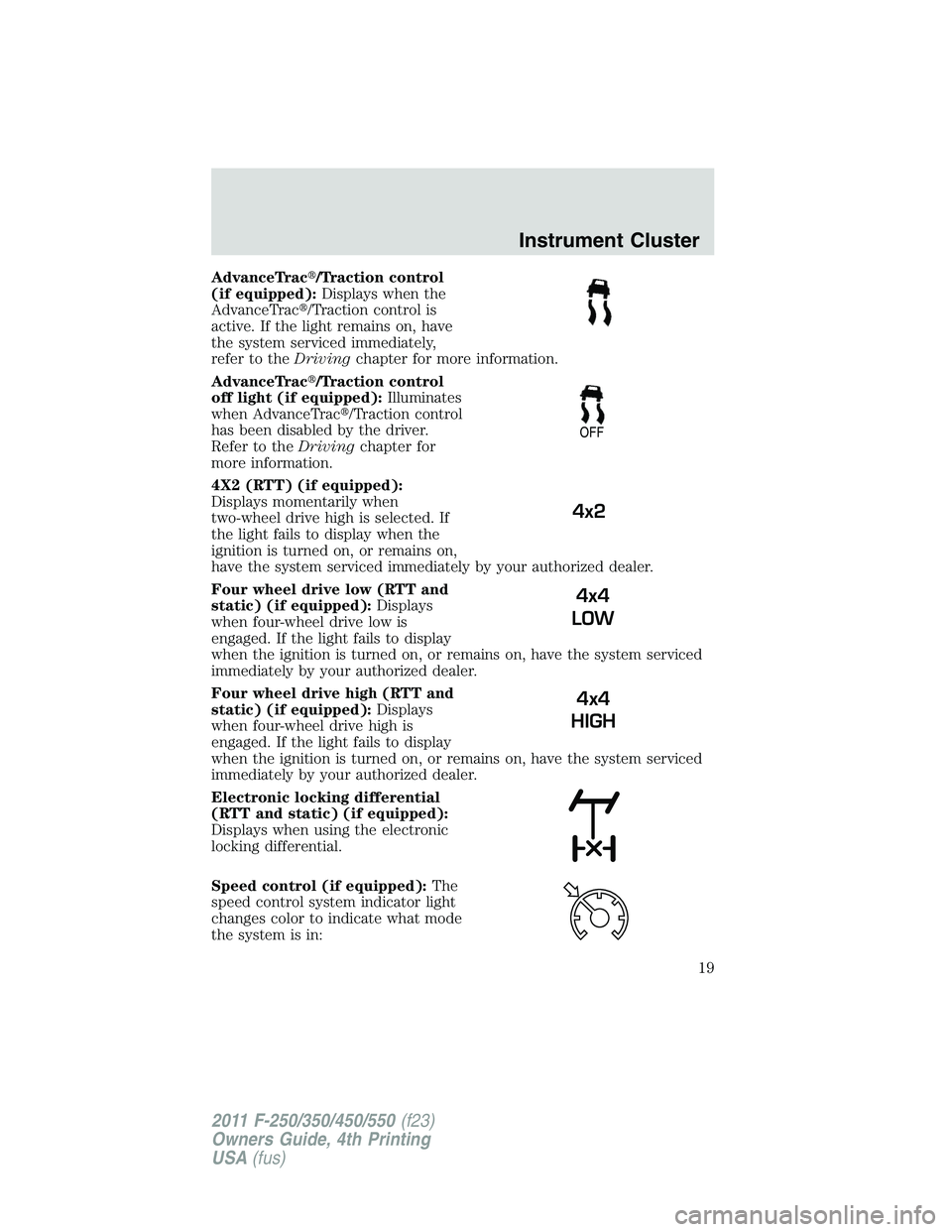

AdvanceTrac /Traction control
(if equipped): Displays when the
AdvanceTrac /Traction control is
active. If the light remains on, have
the system serviced immediately,
refer to the Driving chapter for more information.
AdvanceTrac /Traction control
off light (if equipped): Illuminates
when AdvanceTrac /Traction control
has been disabled by the driver.
Refer to the Driving chapter for
more information.
4X2 (RTT) (if equipped):
Displays momentarily when
two-wheel drive high is selected. If
the light fails to display when the
ignition is turned on, or remains on,
have the system serviced immediately by your authorized dealer.
Four wheel drive low (RTT and
static) (if equipped): Displays
when four-wheel drive low is
engaged. If the light fails to display
when the ignition is turned on, or remains on, have the system serviced
immediately by your authorized dealer.
Four wheel drive high (RTT and
static) (if equipped): Displays
when four-wheel drive high is
engaged. If the light fails to display
when the ignition is turned on, or remains on, have the system serviced
immediately by your authorized dealer.
Electronic locking differential
(RTT and static) (if equipped):
Displays when using the electronic
locking differential.
Speed control (if equipped): The
speed control system indicator light
changes color to indicate what mode
the system is in: OFF
4x2
4x4
LOW
4x4
HIGHInstrument Cluster
19
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
Page 20 of 449
• On (amber light): Illuminates when the speed control system is
turned on. Turns off when the speed control system is engaged or
turned off.
• Engaged (green light): Illuminates when the speed control system is
engaged. Turns off when the speed control system is disengaged.
Turn signal: Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams: Illuminates when the
high-beam headlamps are turned on.
Diesel warning lights: If your vehicle is equipped with a diesel engine,
it has some unique warning lights; refer to Instrument Cluster in your
diesel supplement for detailed information on their function.
• Glow plug pre-heat
• Waterinfuel
• Diesel exhaust fluid
Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.Instrument Cluster
20
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
