Page 401 of 449

FORD F450 2011  Owners Manual The following procedure is for vehicles equipped with a gasoline engine.
If your vehicle is equipped with a diesel engine, refer to the diesel
supplement.
Note: Do not start your engine with the air c

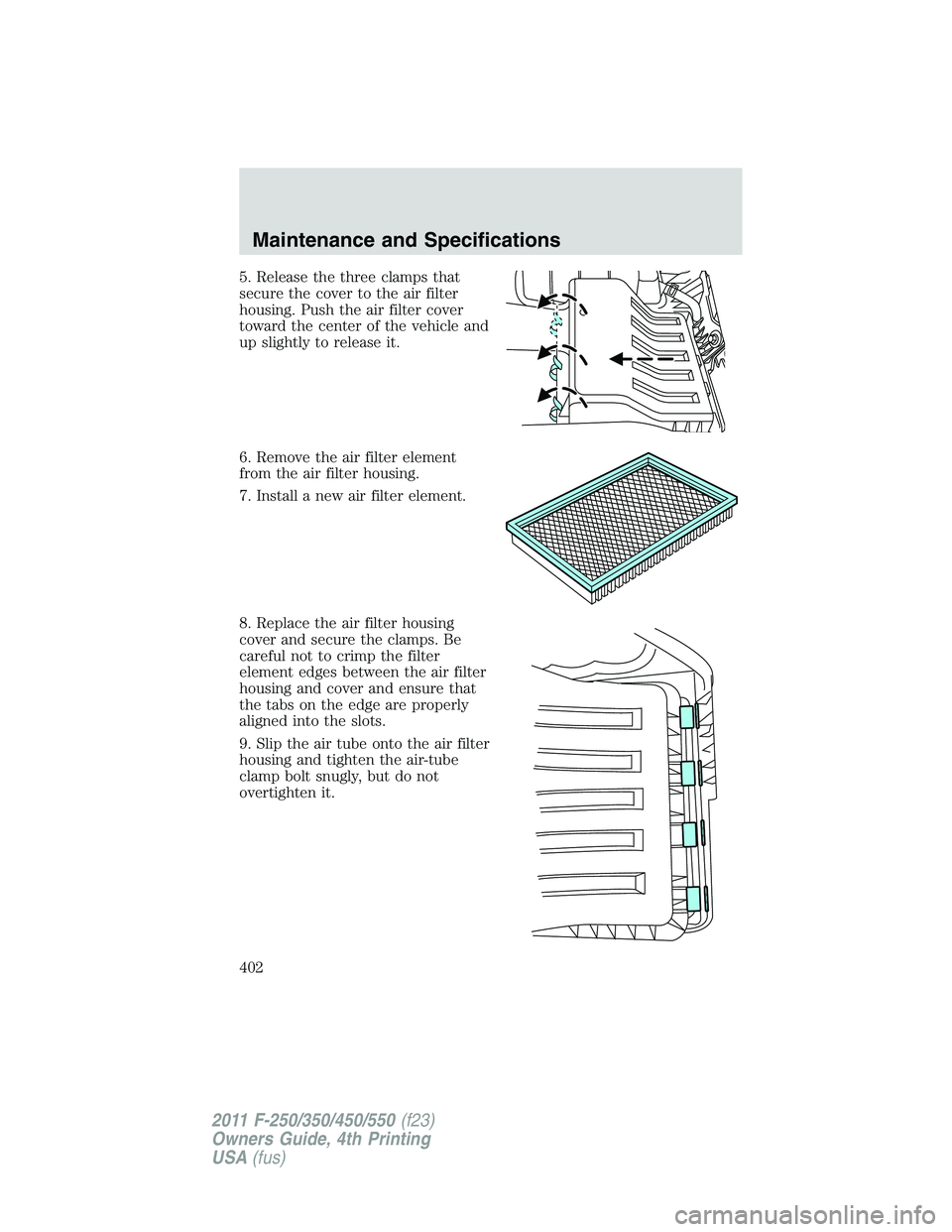

Page 402 of 449

FORD F450 2011  Owners Manual 5. Release the three clamps that
secure the cover to the air filter
housing. Push the air filter cover
toward the center of the vehicle and
up slightly to release it.
6. Remove the air filter element

Page 403 of 449

FORD F450 2011  Owners Manual 10. Reconnect the mass air flow
sensor electrical connector to the
outlet tube. Make sure the locking
tab on the connector is in the
“locked” position (connector shown
from below for clarity).
Not

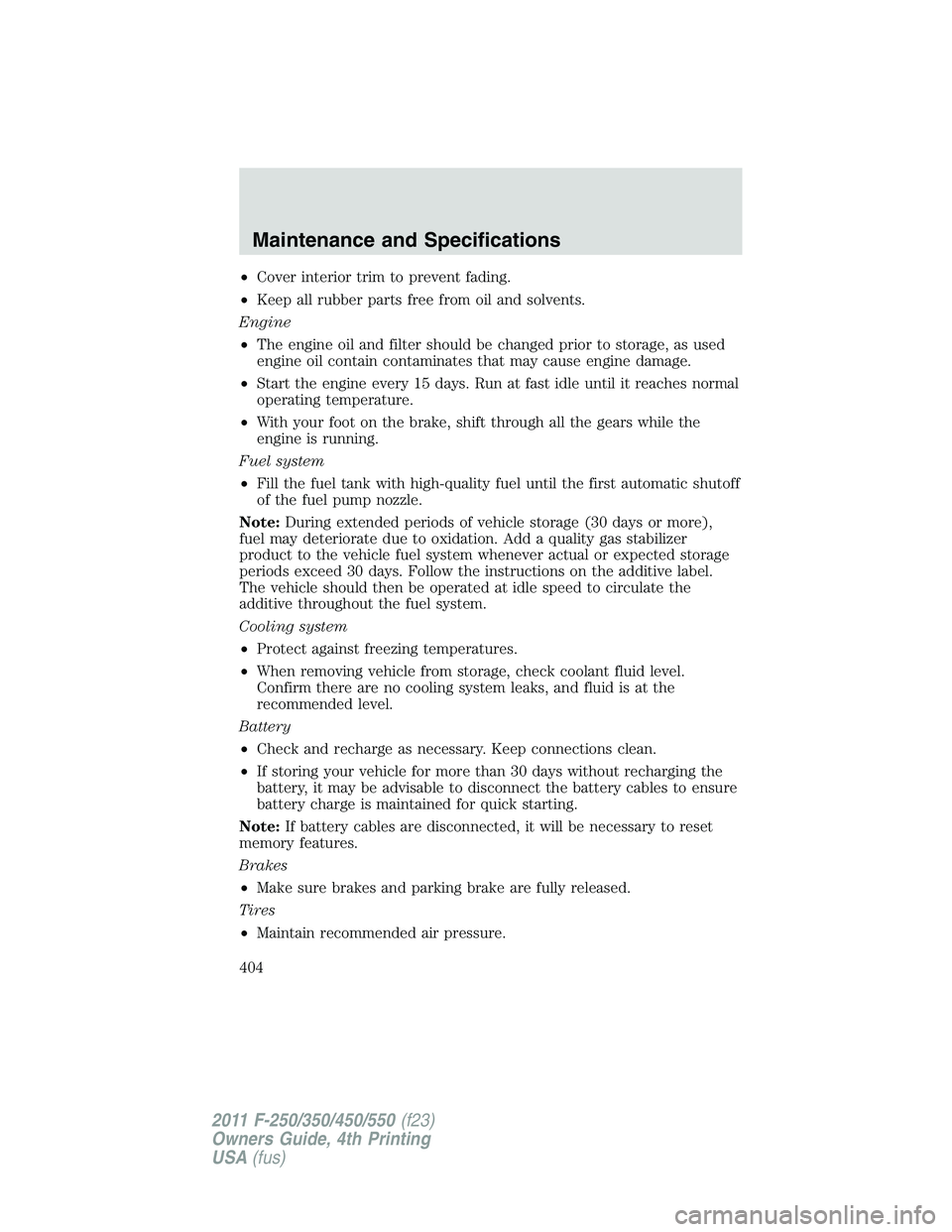

Page 404 of 449

FORD F450 2011  Owners Manual • Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and solvents.
Engine
• The engine oil and filter should be changed prior to storage, as used
engine oil contain con

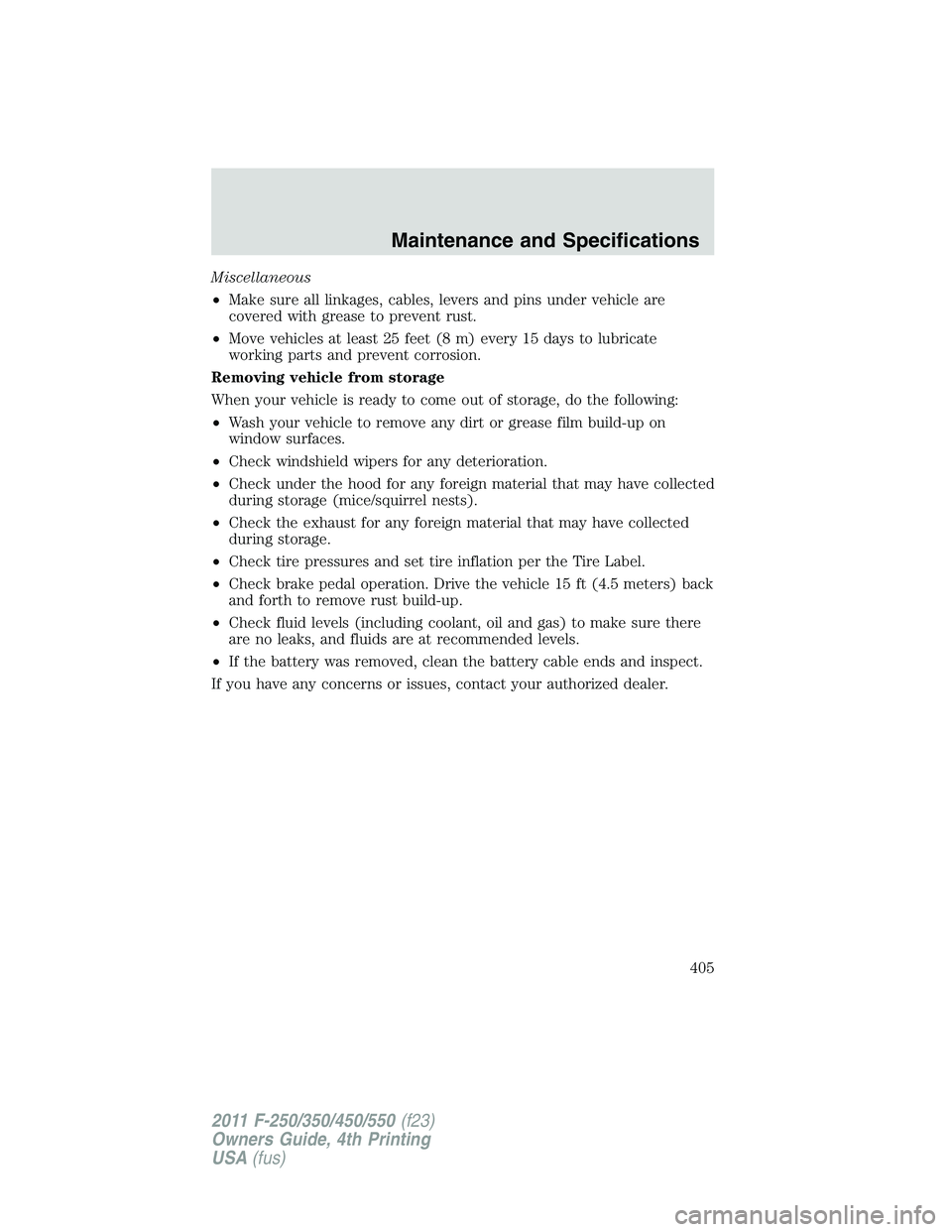

Page 405 of 449

FORD F450 2011  Owners Manual Miscellaneous
• Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
• Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working par

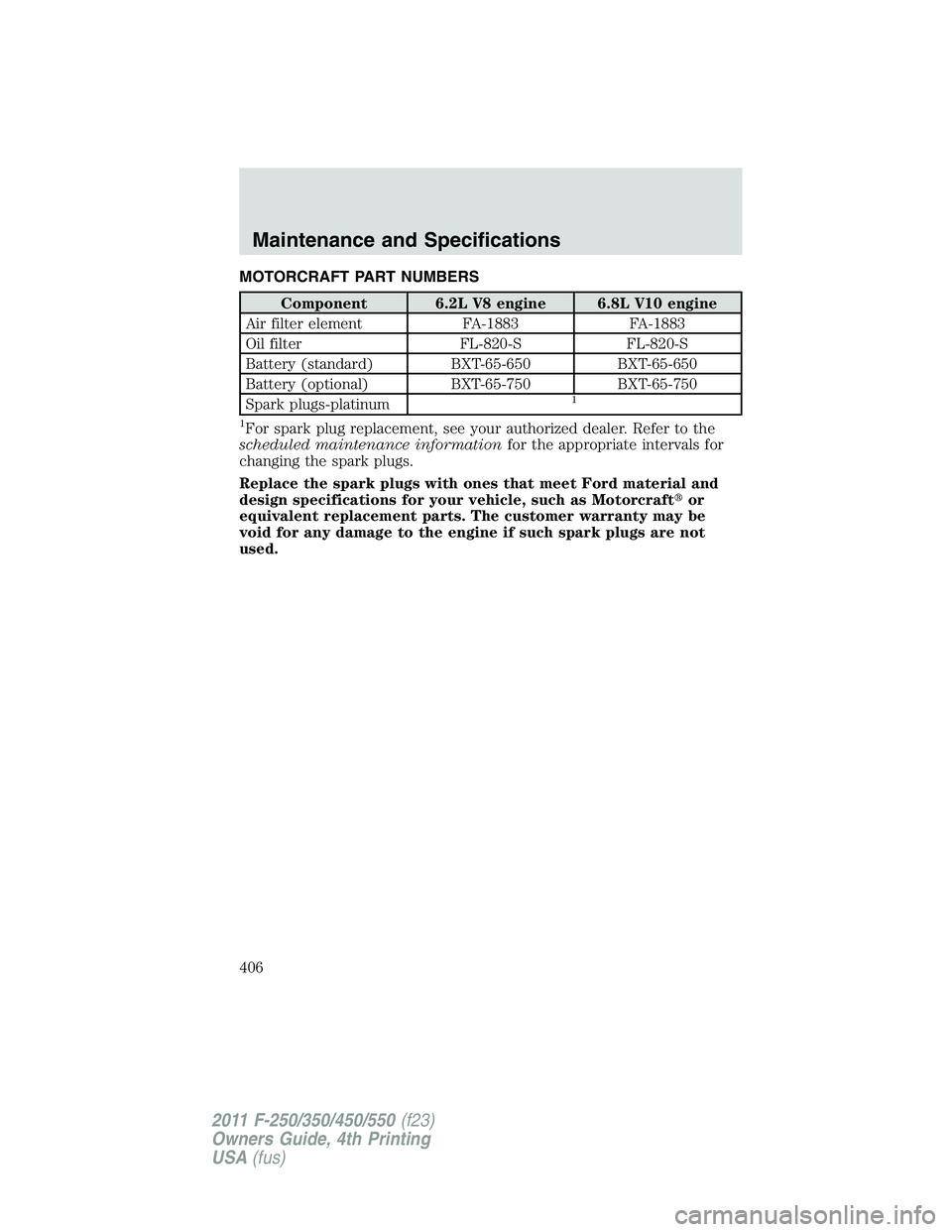

Page 406 of 449

FORD F450 2011  Owners Manual MOTORCRAFT PART NUMBERS
Component 6.2L V8 engine 6.8L V10 engine
Air filter element FA-1883 FA-1883
Oil filter FL-820-S FL-820-S
Battery (standard) BXT-65-650 BXT-65-650
Battery (optional) BXT-65-750

Page 407 of 449

FORD F450 2011  Owners Manual MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part name Ford part number /
Ford specification
Front axle 5.8 pints (2.8L) Motorcraft  SAE 80W-90
Premium Rear Axle
Lubricant XY-

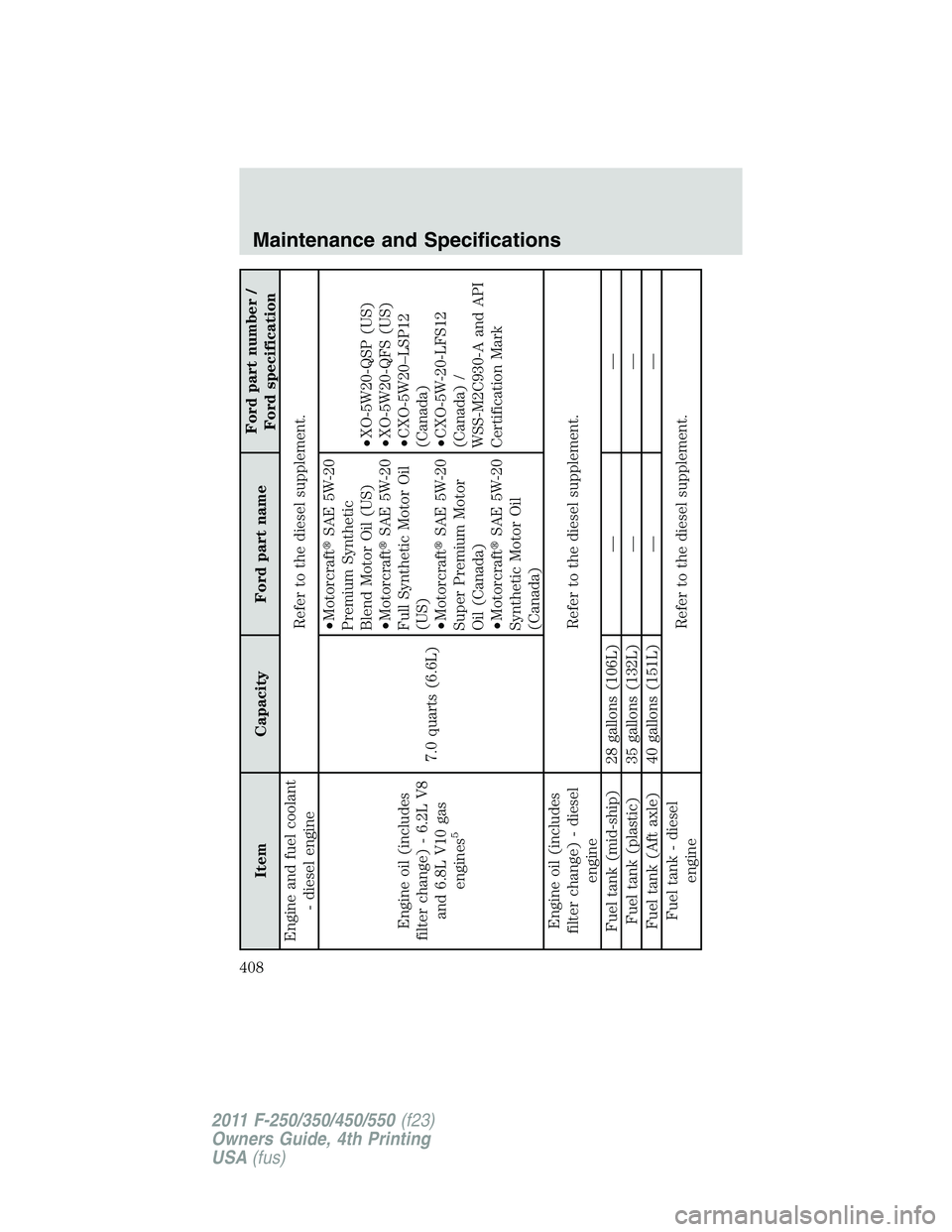

Page 408 of 449

FORD F450 2011  Owners Manual Item Capacity Ford part name Ford part number /
Ford specification
Engine and fuel coolant
- diesel engine Refer to the diesel supplement.
Engine oil (includes
filter change) - 6.2L V8
and 6.8L V10 ga

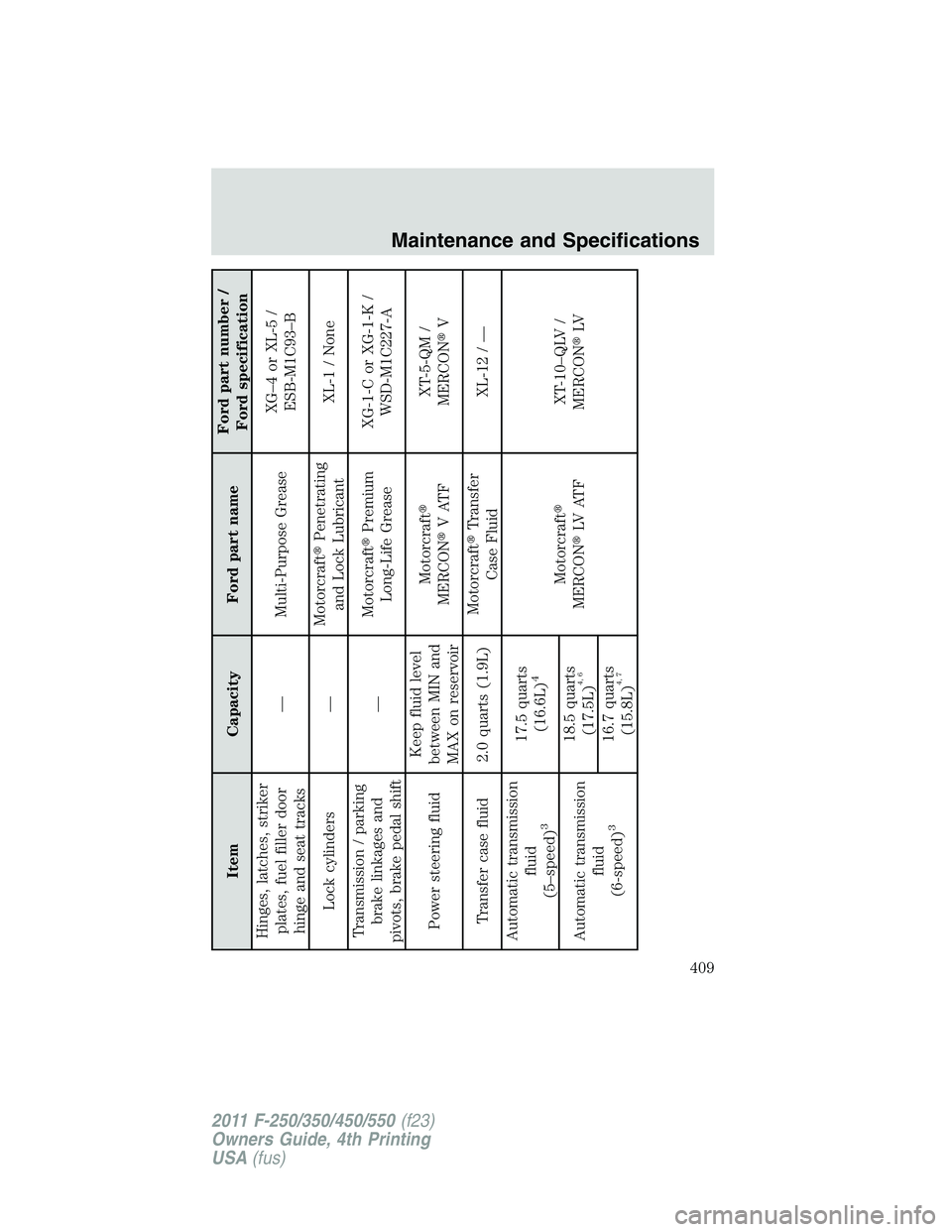

Page 409 of 449

FORD F450 2011  Owners Manual Item Capacity Ford part name Ford part number /
Ford specification
Hinges, latches, striker
plates, fuel filler door
hinge and seat tracks — Multi-Purpose Grease XG–4 or XL-5 /
ESB-M1C93–B
Lock

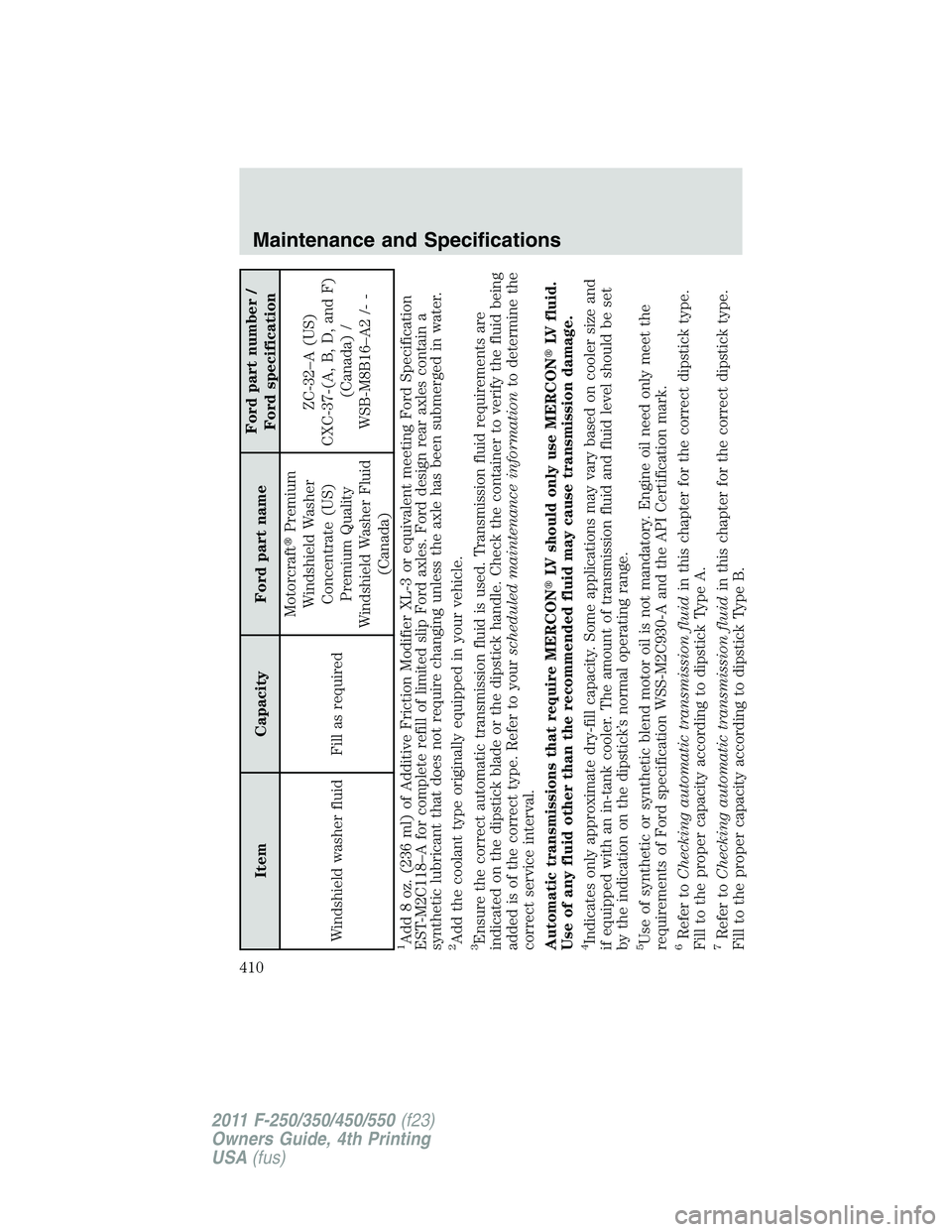

Page 410 of 449

FORD F450 2011  Owners Manual Item Capacity Ford part name Ford part number /
Ford specification
Windshield washer fluid Fill as required Motorcraft  Premium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fl
