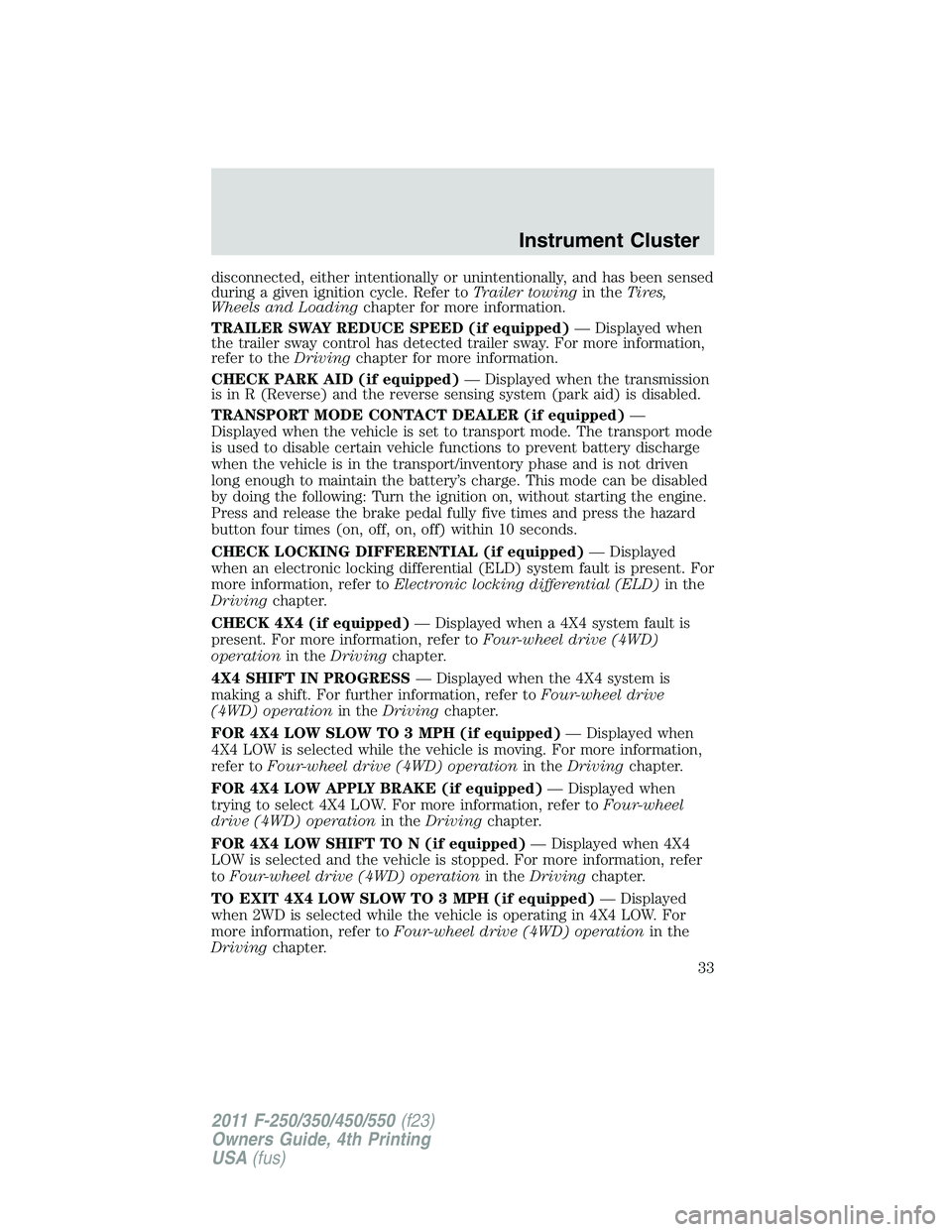

disconnected, either intentionally or unintentionally, and has been sensed
during a given ignition cycle. Refer to Trailer towing in the Tires,
Wheels and Loading chapter for more information.
TRAILER SWAY REDUCE SPEED (if equipped) — Displayed when
the trailer sway control has detected trailer sway. For more information,
refer to the Driving chapter for more information.
CHECK PARK AID (if equipped) — Displayed when the transmission
is in R (Reverse) and the reverse sensing system (park aid) is disabled.
TRANSPORT MODE CONTACT DEALER (if equipped) —
Displayed when the vehicle is set to transport mode. The transport mode
is used to disable certain vehicle functions to prevent battery discharge
when the vehicle is in the transport/inventory phase and is not driven
long enough to maintain the battery’s charge. This mode can be disabled
by doing the following: Turn the ignition on, without starting the engine.
Press and release the brake pedal fully five times and press the hazard
button four times (on, off, on, off) within 10 seconds.
CHECK LOCKING DIFFERENTIAL (if equipped) — Displayed
when an electronic locking differential (ELD) system fault is present. For
more information, refer to Electronic locking differential (ELD) in the
Driving chapter.
CHECK 4X4 (if equipped) — Displayed when a 4X4 system fault is
present. For more information, refer to Four-wheel drive (4WD)
operation in the Driving chapter.
4X4 SHIFT IN PROGRESS — Displayed when the 4X4 system is
making a shift. For further information, refer to Four-wheel drive
(4WD) operation in the Driving chapter.
FOR 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when
4X4 LOW is selected while the vehicle is moving. For more information,
refer to Four-wheel drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW APPLY BRAKE (if equipped) — Displayed when
trying to select 4X4 LOW. For more information, refer to Four-wheel
drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer
to Four-wheel drive (4WD) operation in the Driving chapter.
TO EXIT 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed
when 2WD is selected while the vehicle is operating in 4X4 LOW. For
more information, refer to Four-wheel drive (4WD) operation in the
Driving chapter. Instrument Cluster
33
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

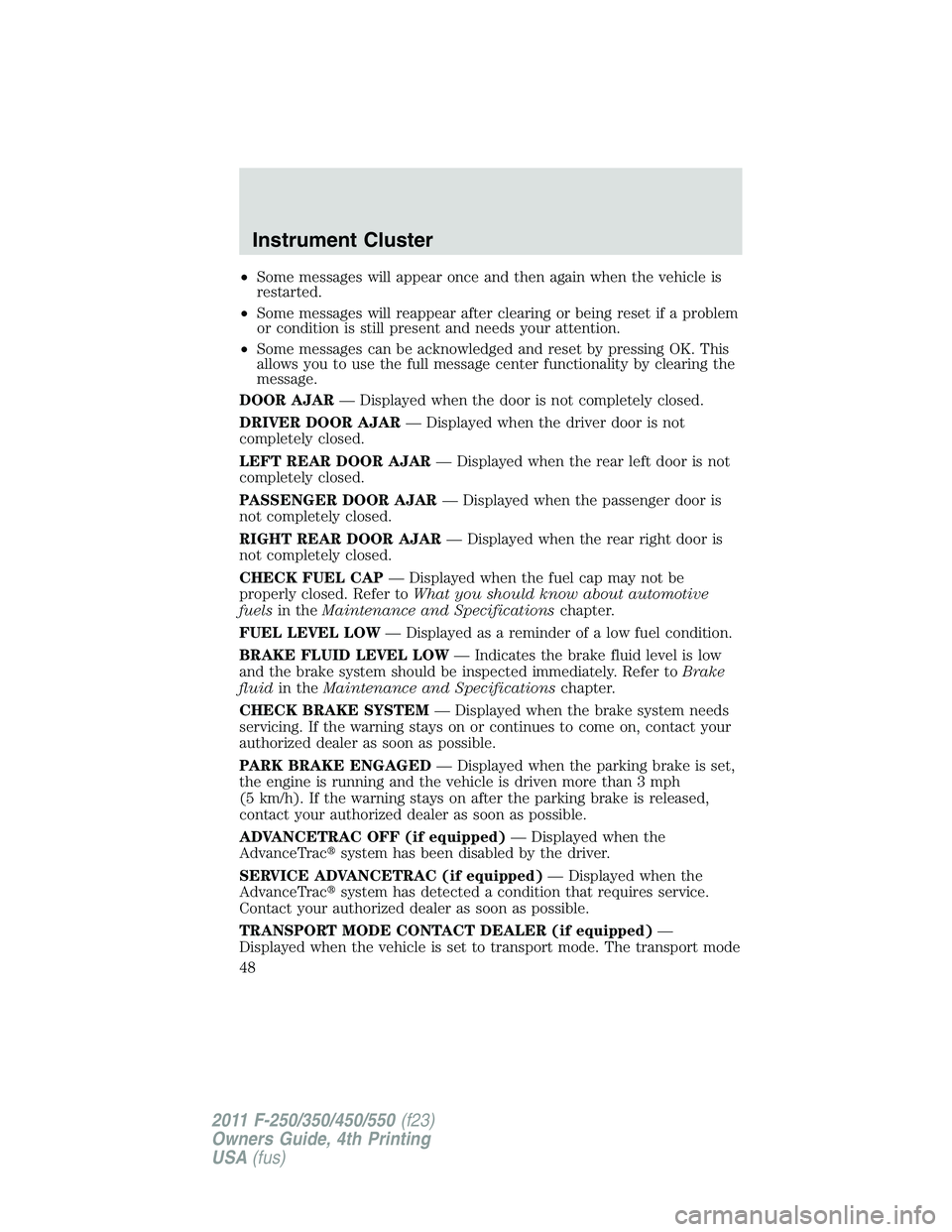

• Some messages will appear once and then again when the vehicle is
restarted.
• Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
• Some messages can be acknowledged and reset by pressing OK. This
allows you to use the full message center functionality by clearing the
message.
DOOR AJAR — Displayed when the door is not completely closed.
DRIVER DOOR AJAR — Displayed when the driver door is not
completely closed.
LEFT REAR DOOR AJAR — Displayed when the rear left door is not
completely closed.
PASSENGER DOOR AJAR — Displayed when the passenger door is
not completely closed.
RIGHT REAR DOOR AJAR — Displayed when the rear right door is
not completely closed.
CHECK FUEL CAP — Displayed when the fuel cap may not be
properly closed. Refer to What you should know about automotive
fuels in the Maintenance and Specifications chapter.
FUEL LEVEL LOW — Displayed as a reminder of a low fuel condition.
BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low
and the brake system should be inspected immediately. Refer to Brake
fluid in the Maintenance and Specifications chapter.
CHECK BRAKE SYSTEM — Displayed when the brake system needs
servicing. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
PARK BRAKE ENGAGED — Displayed when the parking brake is set,
the engine is running and the vehicle is driven more than 3 mph
(5 km/h). If the warning stays on after the parking brake is released,
contact your authorized dealer as soon as possible.
ADVANCETRAC OFF (if equipped) — Displayed when the
AdvanceTrac  system has been disabled by the driver.
SERVICE ADVANCETRAC (if equipped) — Displayed when the
AdvanceTrac  system has detected a condition that requires service.
Contact your authorized dealer as soon as possible.
TRANSPORT MODE CONTACT DEALER (if equipped) —
Displayed when the vehicle is set to transport mode. The transport modeInstrument Cluster
48
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

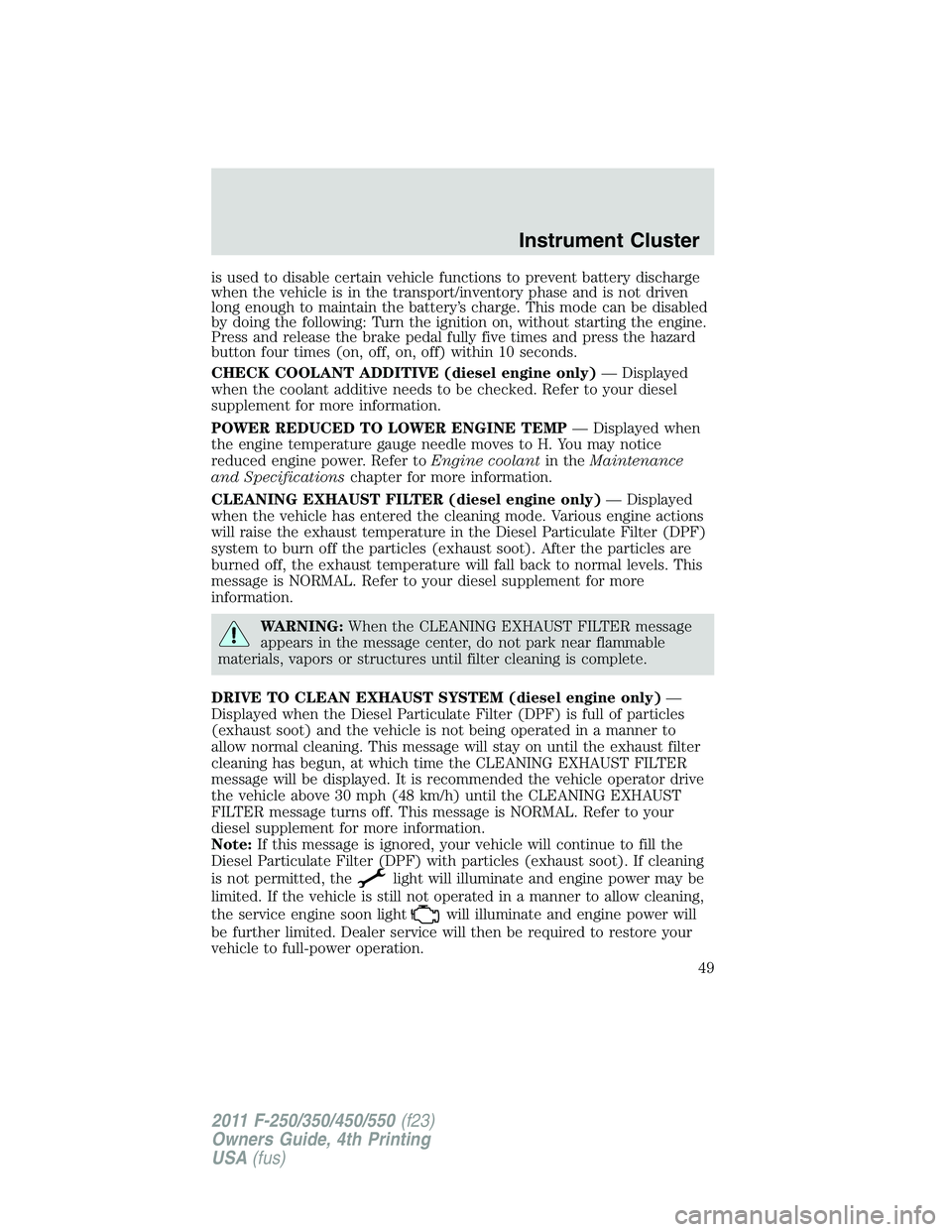

is used to disable certain vehicle functions to prevent battery discharge
when the vehicle is in the transport/inventory phase and is not driven
long enough to maintain the battery’s charge. This mode can be disabled
by doing the following: Turn the ignition on, without starting the engine.
Press and release the brake pedal fully five times and press the hazard
button four times (on, off, on, off) within 10 seconds.
CHECK COOLANT ADDITIVE (diesel engine only) — Displayed
when the coolant additive needs to be checked. Refer to your diesel
supplement for more information.
POWER REDUCED TO LOWER ENGINE TEMP — Displayed when
the engine temperature gauge needle moves to H. You may notice
reduced engine power. Refer to Engine coolant in the Maintenance
and Specifications chapter for more information.
CLEANING EXHAUST FILTER (diesel engine only) — Displayed
when the vehicle has entered the cleaning mode. Various engine actions
will raise the exhaust temperature in the Diesel Particulate Filter (DPF)
system to burn off the particles (exhaust soot). After the particles are
burned off, the exhaust temperature will fall back to normal levels. This
message is NORMAL. Refer to your diesel supplement for more
information.
WARNING: When the CLEANING EXHAUST FILTER message
appears in the message center, do not park near flammable
materials, vapors or structures until filter cleaning is complete.
DRIVE TO CLEAN EXHAUST SYSTEM (diesel engine only) —
Displayed when the Diesel Particulate Filter (DPF) is full of particles
(exhaust soot) and the vehicle is not being operated in a manner to
allow normal cleaning. This message will stay on until the exhaust filter
cleaning has begun, at which time the CLEANING EXHAUST FILTER
message will be displayed. It is recommended the vehicle operator drive
the vehicle above 30 mph (48 km/h) until the CLEANING EXHAUST
FILTER message turns off. This message is NORMAL. Refer to your
diesel supplement for more information.
Note: If this message is ignored, your vehicle will continue to fill the
Diesel Particulate Filter (DPF) with particles (exhaust soot). If cleaning
is not permitted, the light will illuminate and engine power may be
limited. If the vehicle is still not operated in a manner to allow cleaning,
the service engine soon light will illuminate and engine power will
be further limited. Dealer service will then be required to restore your
vehicle to full-power operation. Instrument Cluster
49
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

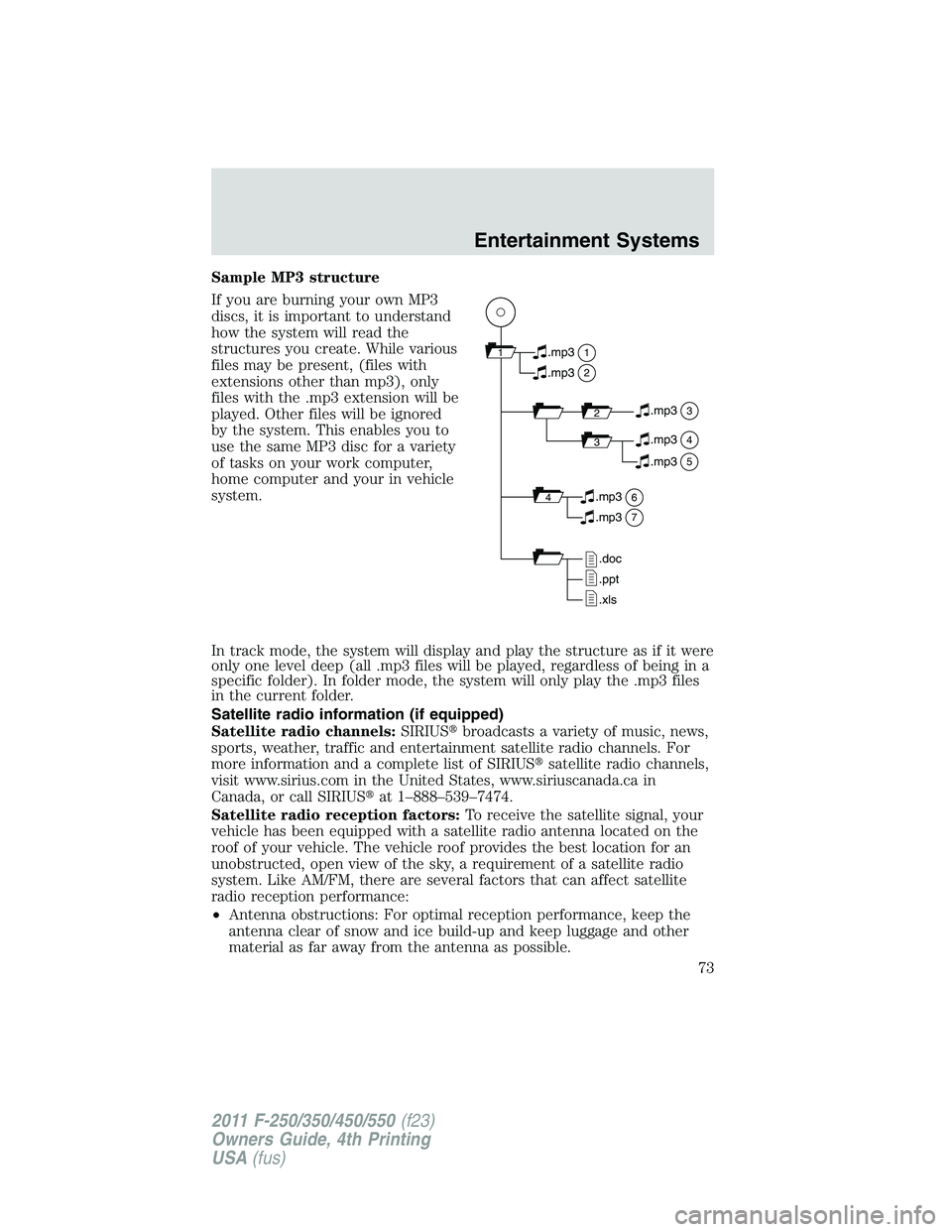

Sample MP3 structure
If you are burning your own MP3
discs, it is important to understand
how the system will read the
structures you create. While various
files may be present, (files with
extensions other than mp3), only
files with the .mp3 extension will be
played. Other files will be ignored
by the system. This enables you to
use the same MP3 disc for a variety
of tasks on your work computer,
home computer and your in vehicle
system.
In track mode, the system will display and play the structure as if it were
only one level deep (all .mp3 files will be played, regardless of being in a
specific folder). In folder mode, the system will only play the .mp3 files
in the current folder.
Satellite radio information (if equipped)
Satellite radio channels: SIRIUS  broadcasts a variety of music, news,
sports, weather, traffic and entertainment satellite radio channels. For
more information and a complete list of SIRIUS  satellite radio channels,
visit www.sirius.com in the United States, www.siriuscanada.ca in
Canada, or call SIRIUS  at 1–888–539–7474.
Satellite radio reception factors: To receive the satellite signal, your
vehicle has been equipped with a satellite radio antenna located on the
roof of your vehicle. The vehicle roof provides the best location for an
unobstructed, open view of the sky, a requirement of a satellite radio
system. Like AM/FM, there are several factors that can affect satellite
radio reception performance:
• Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible. 11
2
.mp3 2
.mp3 3
.mp3 3 4
.mp3 64
.mp3 7
.mp3
.doc
.ppt
.xls 5
.mp3
Entertainment Systems
73
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

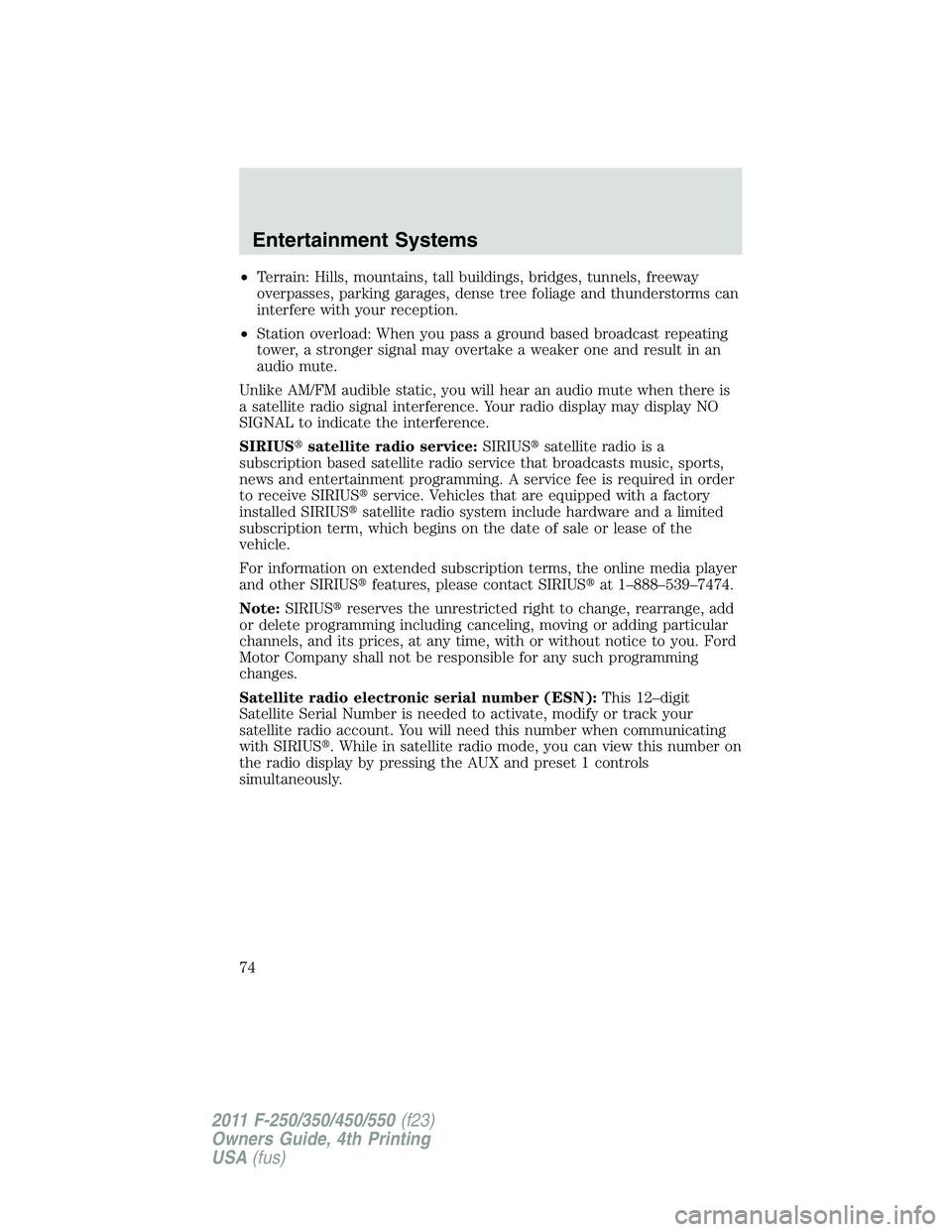

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
• Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is
a satellite radio signal interference. Your radio display may display NO
SIGNAL to indicate the interference.
SIRIUS  satellite radio service: SIRIUS  satellite radio is a
subscription based satellite radio service that broadcasts music, sports,
news and entertainment programming. A service fee is required in order
to receive SIRIUS  service. Vehicles that are equipped with a factory
installed SIRIUS  satellite radio system include hardware and a limited
subscription term, which begins on the date of sale or lease of the
vehicle.
For information on extended subscription terms, the online media player
and other SIRIUS  features, please contact SIRIUS  at 1–888–539–7474.
Note: SIRIUS  reserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
Satellite radio electronic serial number (ESN): This 12–digit
Satellite Serial Number is needed to activate, modify or track your
satellite radio account. You will need this number when communicating
with SIRIUS  . While in satellite radio mode, you can view this number on
the radio display by pressing the AUX and preset 1 controls
simultaneously.Entertainment Systems
74
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

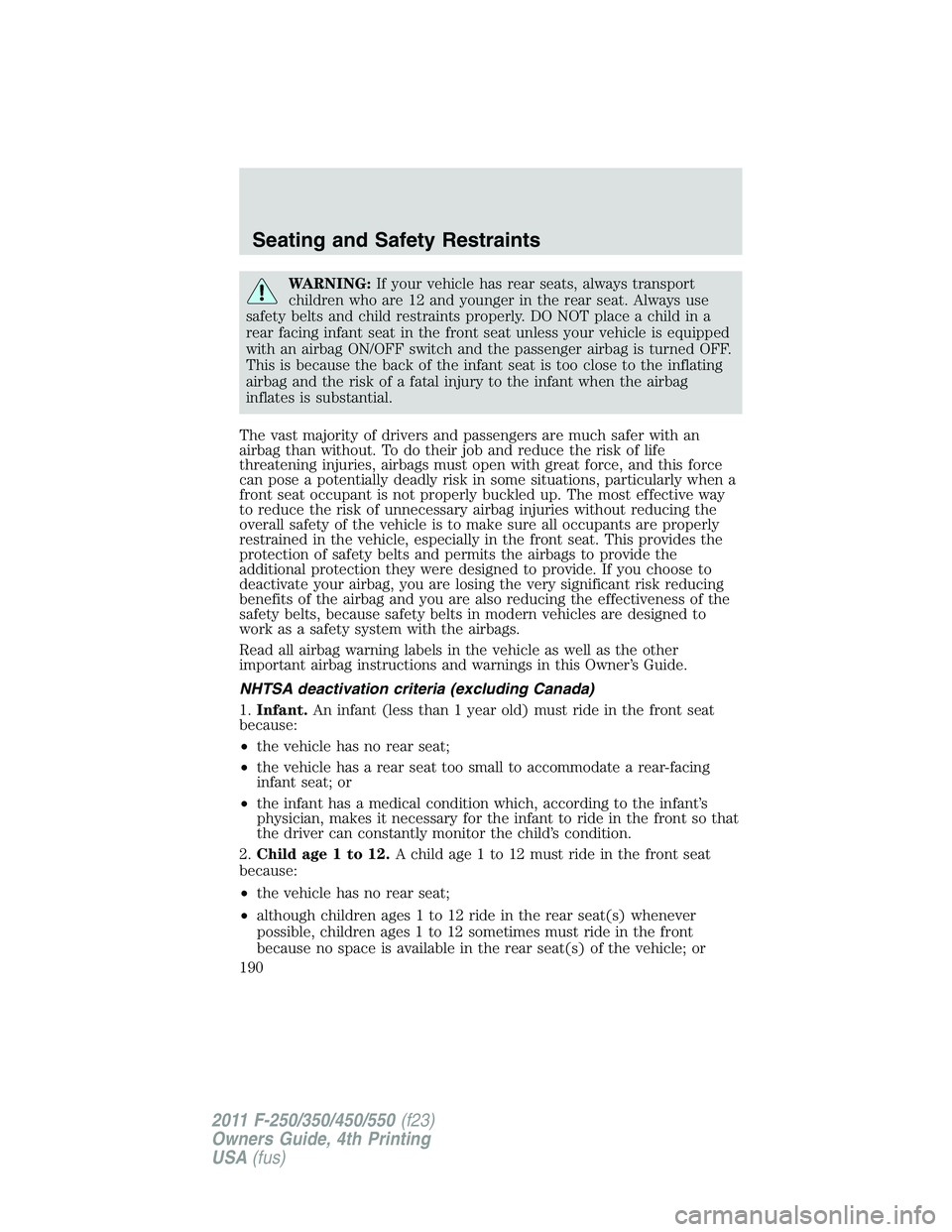

WARNING: If your vehicle has rear seats, always transport
children who are 12 and younger in the rear seat. Always use
safety belts and child restraints properly. DO NOT place a child in a
rear facing infant seat in the front seat unless your vehicle is equipped
with an airbag ON/OFF switch and the passenger airbag is turned OFF.
This is because the back of the infant seat is too close to the inflating
airbag and the risk of a fatal injury to the infant when the airbag
inflates is substantial.
The vast majority of drivers and passengers are much safer with an
airbag than without. To do their job and reduce the risk of life
threatening injuries, airbags must open with great force, and this force
can pose a potentially deadly risk in some situations, particularly when a
front seat occupant is not properly buckled up. The most effective way
to reduce the risk of unnecessary airbag injuries without reducing the
overall safety of the vehicle is to make sure all occupants are properly
restrained in the vehicle, especially in the front seat. This provides the
protection of safety belts and permits the airbags to provide the
additional protection they were designed to provide. If you choose to
deactivate your airbag, you are losing the very significant risk reducing
benefits of the airbag and you are also reducing the effectiveness of the
safety belts, because safety belts in modern vehicles are designed to
work as a safety system with the airbags.
Read all airbag warning labels in the vehicle as well as the other
important airbag instructions and warnings in this Owner’s Guide.
NHTSA deactivation criteria (excluding Canada)
1. Infant. An infant (less than 1 year old) must ride in the front seat
because:
• the vehicle has no rear seat;
• the vehicle has a rear seat too small to accommodate a rear-facing
infant seat; or
• the infant has a medical condition which, according to the infant’s
physician, makes it necessary for the infant to ride in the front so that
the driver can constantly monitor the child’s condition.
2. Child age 1 to 12. A child age 1 to 12 must ride in the front seat
because:
• the vehicle has no rear seat;
• although children ages 1 to 12 ride in the rear seat(s) whenever
possible, children ages 1 to 12 sometimes must ride in the front
because no space is available in the rear seat(s) of the vehicle; orSeating and Safety Restraints
190
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Lifestyle
• Ash cup / smoker’s package • Racks and carriers*
• Bedliners and bedmats • Truck bed camping tent*
• Subwoofer* • Sportliner cargo liner*
• Towing mirrors • Trailer hitch balls*
• Navigation* • Rear seat entertainment*
• Tonneau covers*
• Trailer hitches, wiring harnesses and accessories
Peace of mind
• Keyless entry keypad • Back up camera*
• Remote start • Back up alarm*
• Vehicle security systems • Cable lock*
• Wheel locks • Bed hooks*
• Vehicle tracking and recovery* • Tool/Cargo boxes*
• Protective seat covers*
• Bumper and hitch mounted parking sensors*
Not all accessories are available for all models.
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.Accessories
416
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
