Page 401 of 656

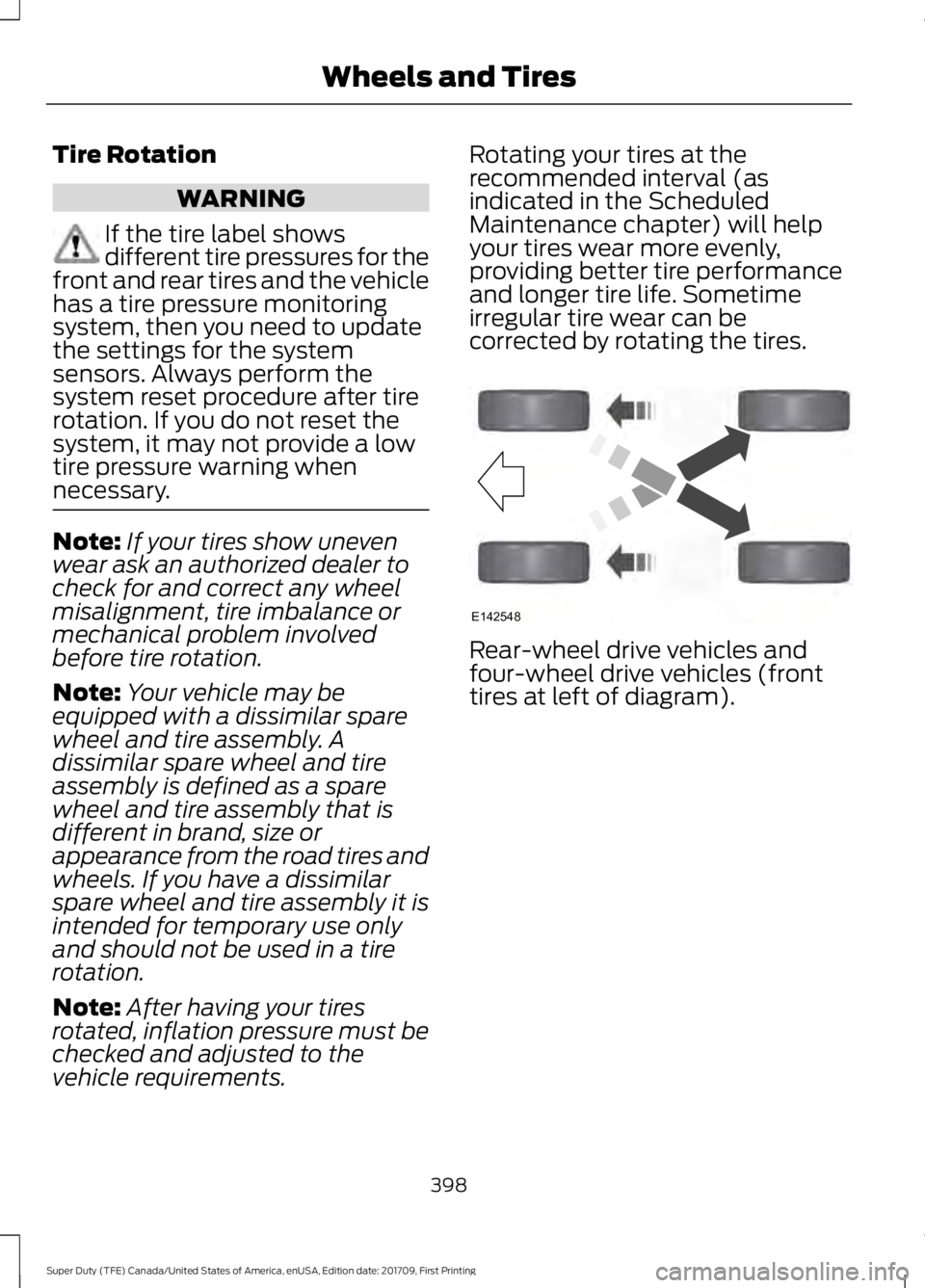

FORD F450 SUPER DUTY 2018  Owners Manual Tire Rotation
WARNING
If the tire label shows
different tire pressures for the
front and rear tires and the vehicle
has a tire pressure monitoring
system, then you need to update
the settings for the

Page 402 of 656

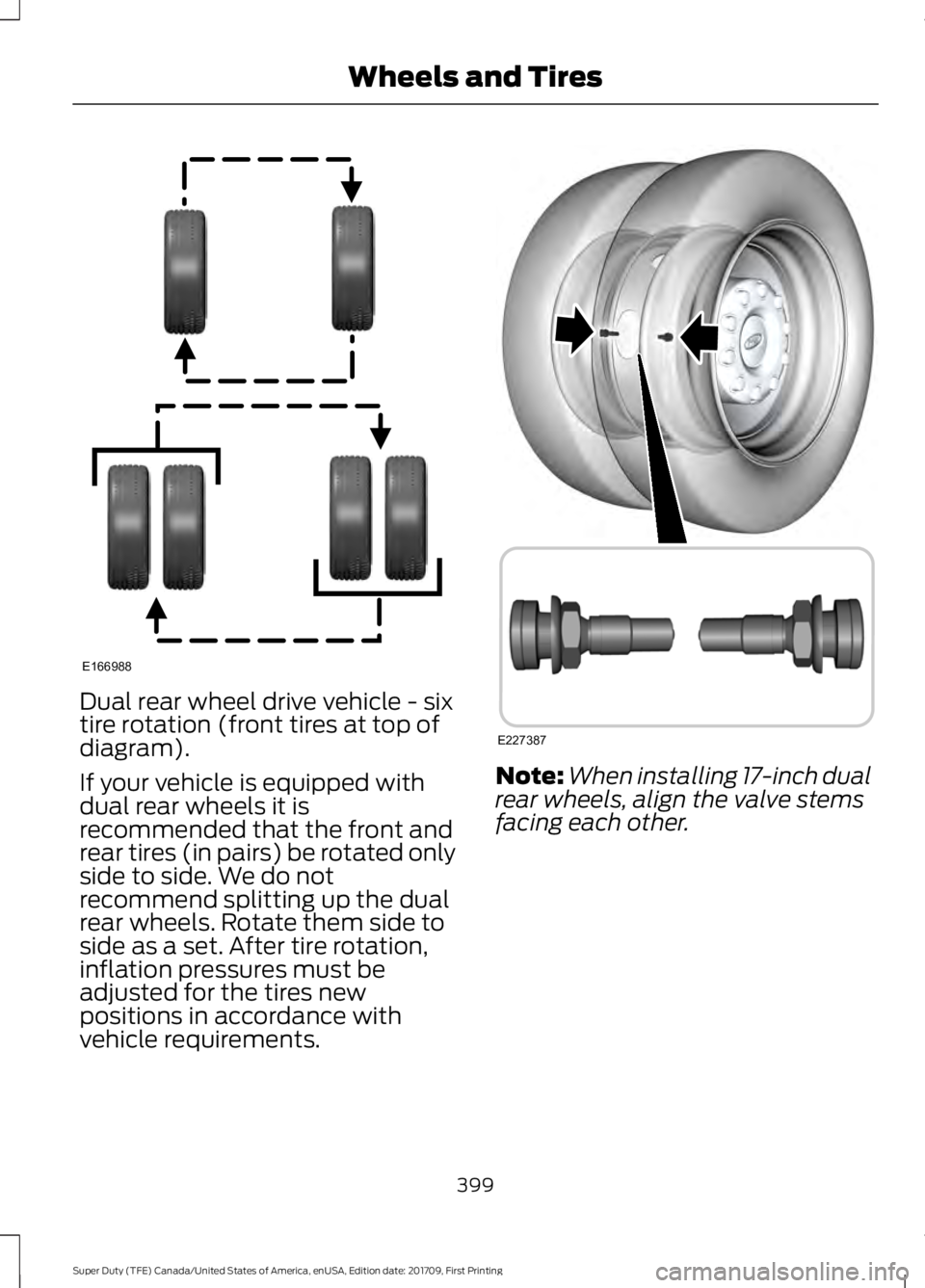

FORD F450 SUPER DUTY 2018  Owners Manual Dual rear wheel drive vehicle - six
tire rotation (front tires at top of
diagram).
If your vehicle is equipped with
dual rear wheels it is
recommended that the front and
rear tires (in pairs) be rotat

Page 403 of 656

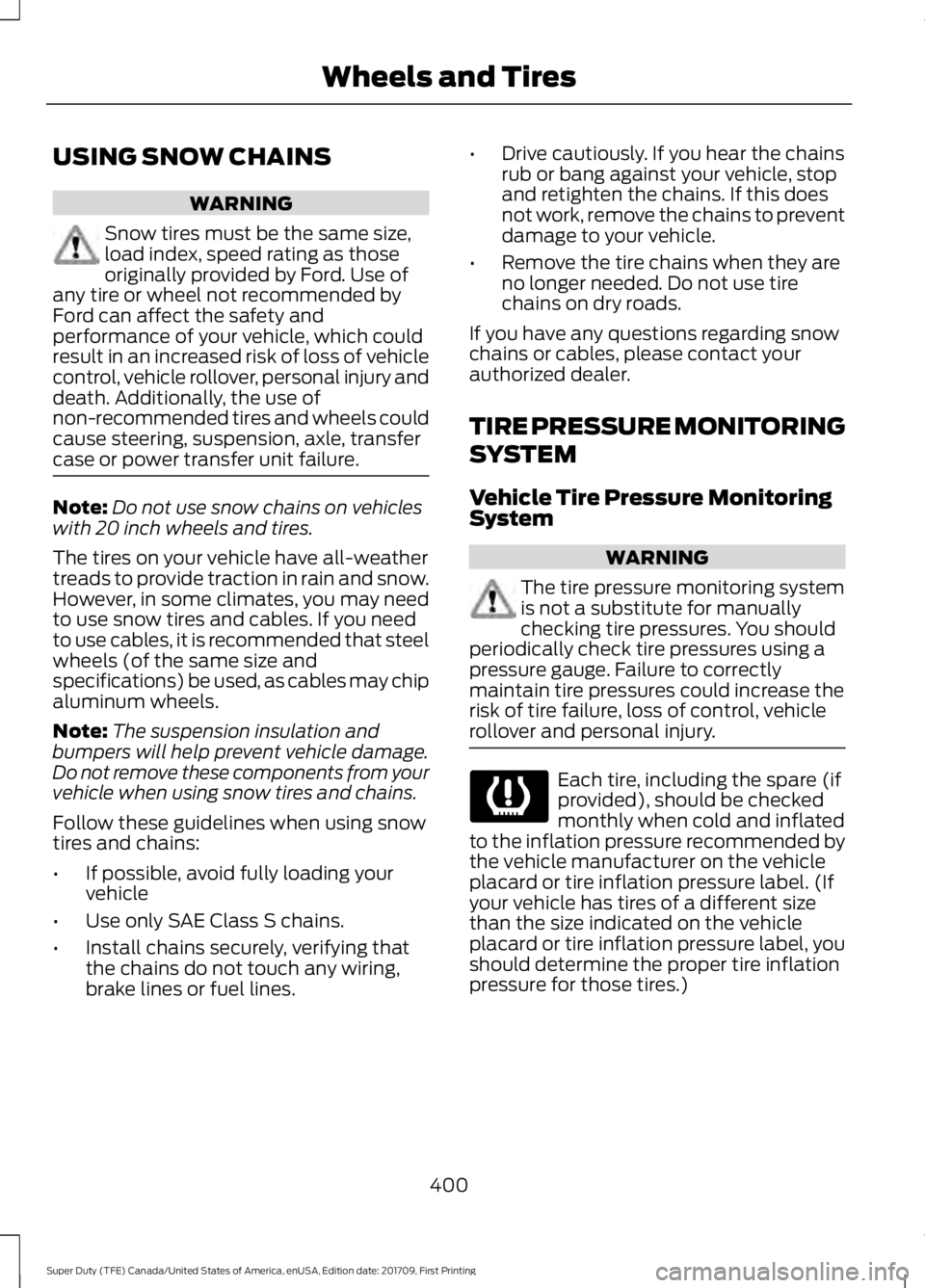

FORD F450 SUPER DUTY 2018  Owners Manual USING SNOW CHAINS
WARNING
Snow tires must be the same size,
load index, speed rating as those
originally provided by Ford. Use of
any tire or wheel not recommended by
Ford can affect the safety and
pe

Page 404 of 656

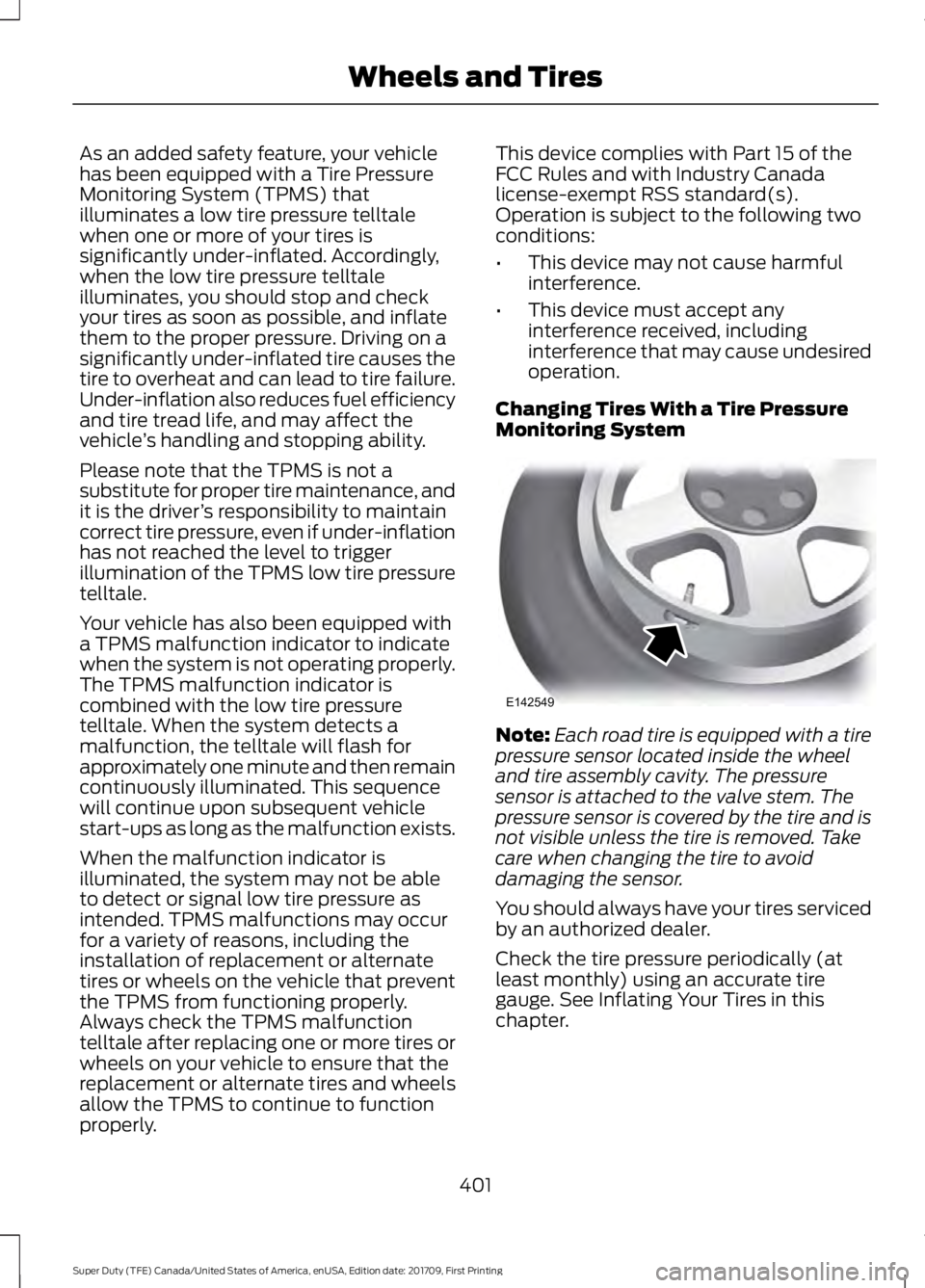

FORD F450 SUPER DUTY 2018  Owners Manual As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly u

Page 405 of 656

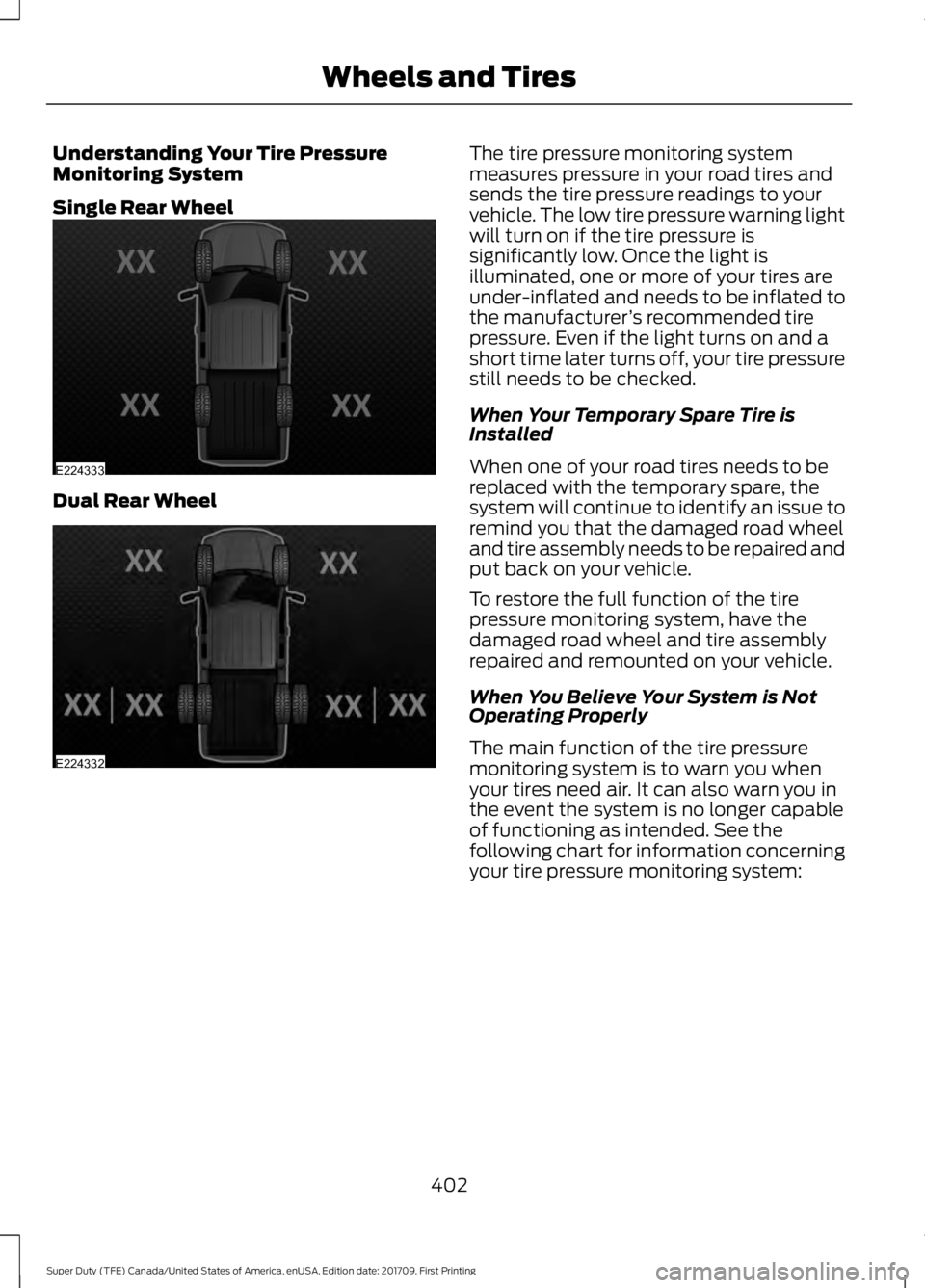

FORD F450 SUPER DUTY 2018  Owners Manual Understanding Your Tire Pressure
Monitoring System
Single Rear Wheel
Dual Rear Wheel The tire pressure monitoring system
measures pressure in your road tires and
sends the tire pressure readings to yo

Page 406 of 656

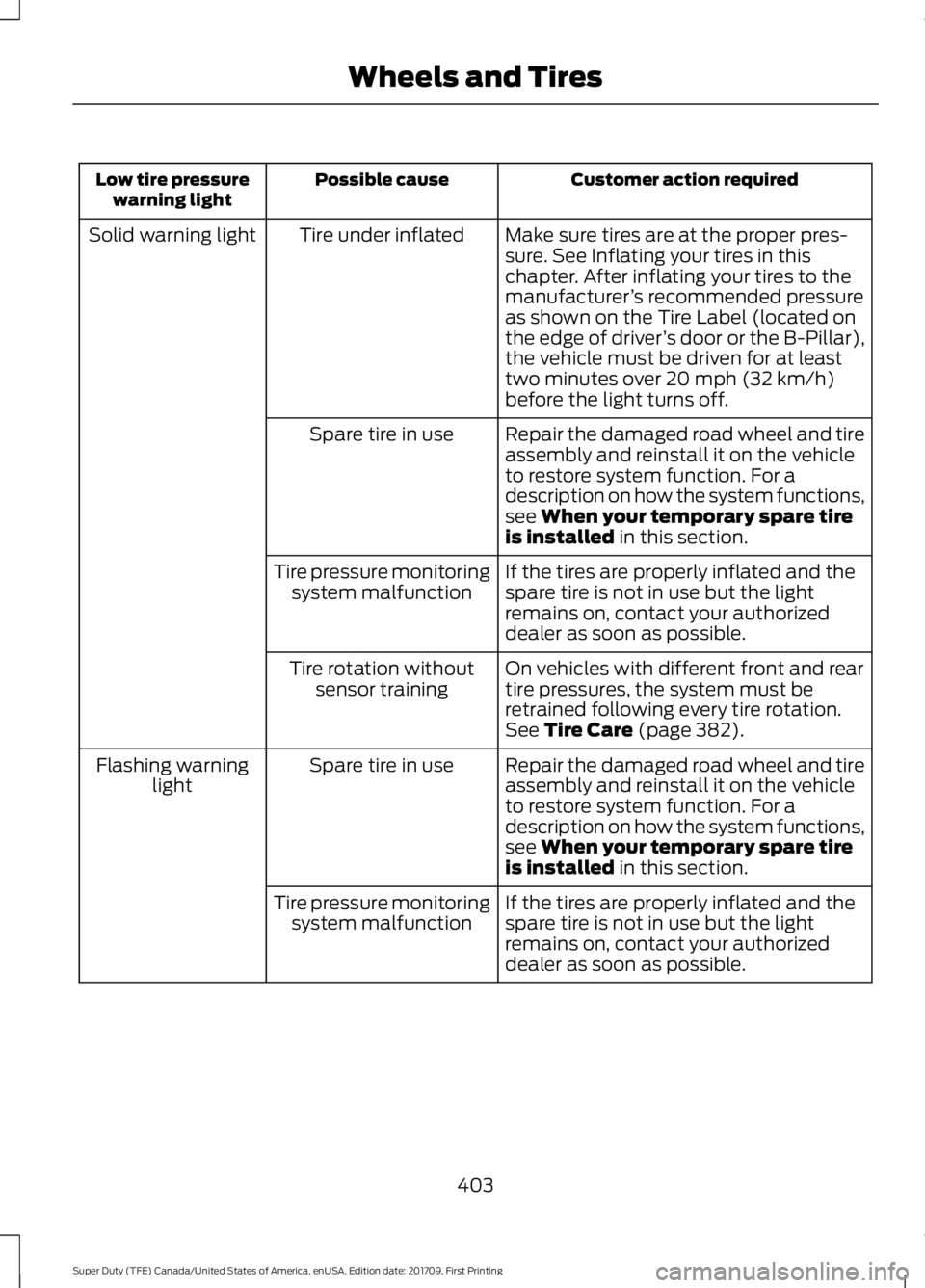

FORD F450 SUPER DUTY 2018  Owners Manual Customer action required
Possible cause
Low tire pressure
warning light
Make sure tires are at the proper pres-
sure. See Inflating your tires in this
chapter. After inflating your tires to the
manufa

Page 407 of 656

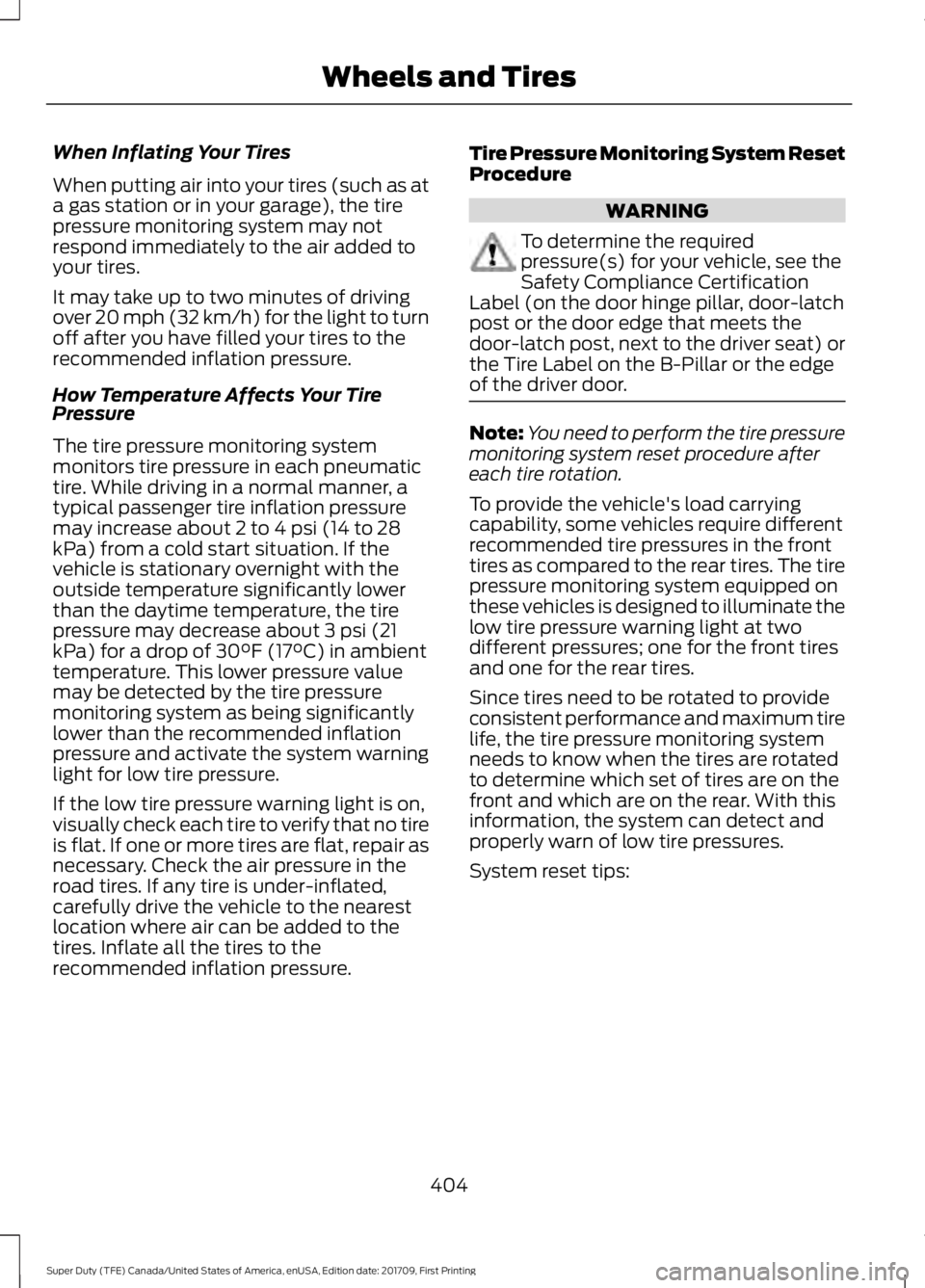

FORD F450 SUPER DUTY 2018  Owners Manual When Inflating Your Tires
When putting air into your tires (such as at
a gas station or in your garage), the tire
pressure monitoring system may not
respond immediately to the air added to
your tires.

Page 408 of 656

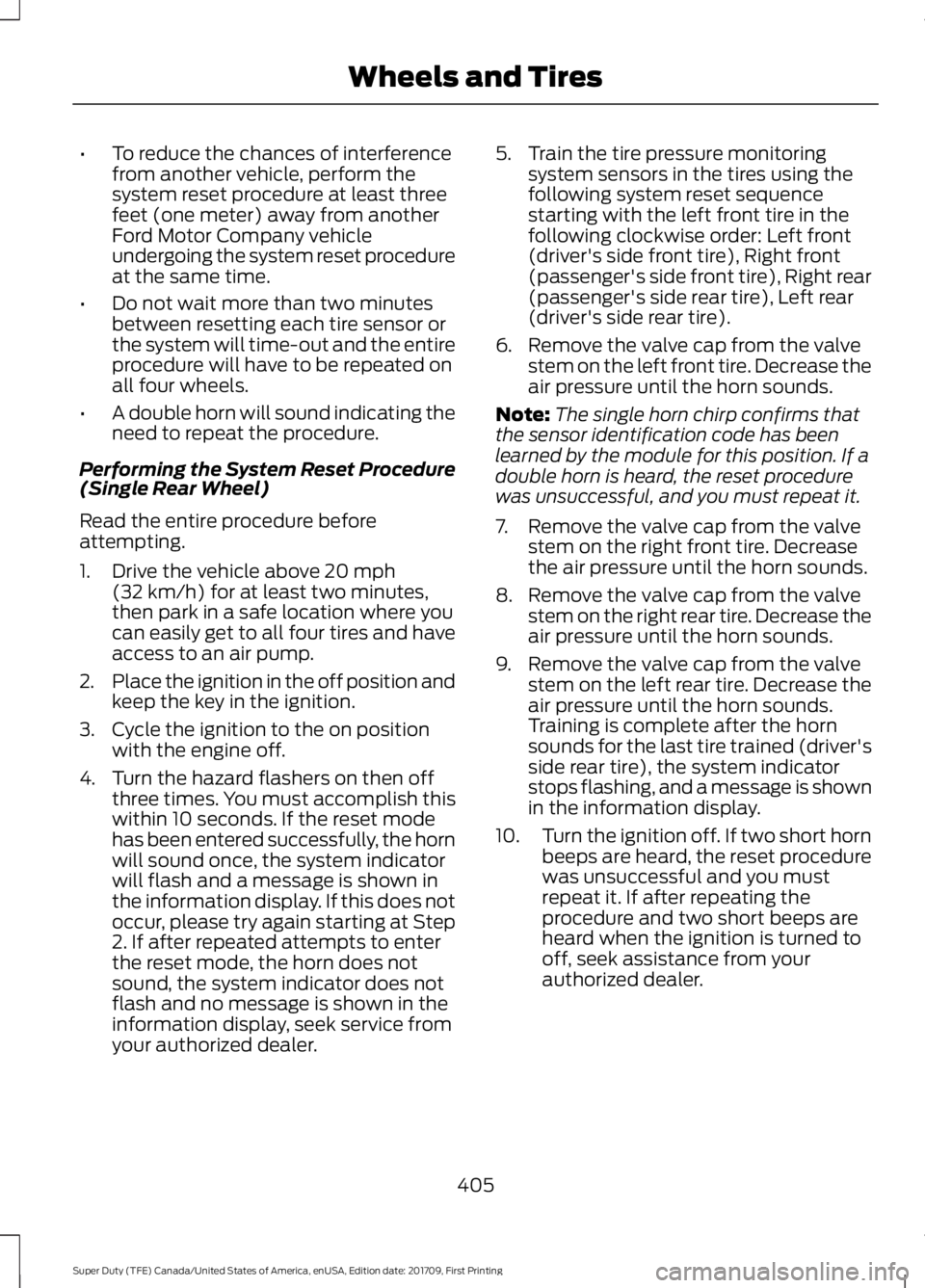

FORD F450 SUPER DUTY 2018  Owners Manual •
To reduce the chances of interference
from another vehicle, perform the
system reset procedure at least three
feet (one meter) away from another
Ford Motor Company vehicle
undergoing the system re

Page 409 of 656

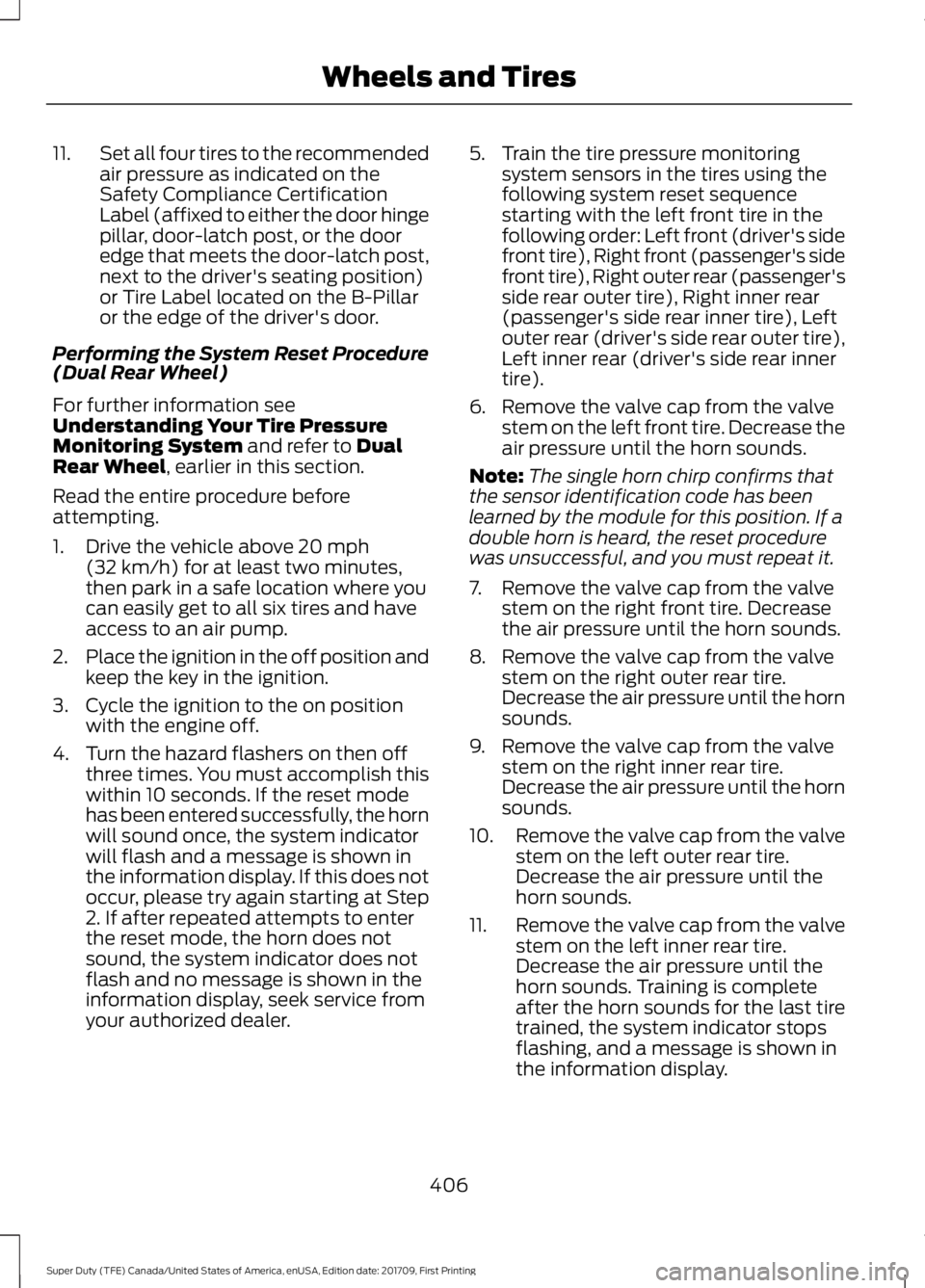

FORD F450 SUPER DUTY 2018  Owners Manual 11.
Set all four tires to the recommended
air pressure as indicated on the
Safety Compliance Certification
Label (affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets

Page 410 of 656

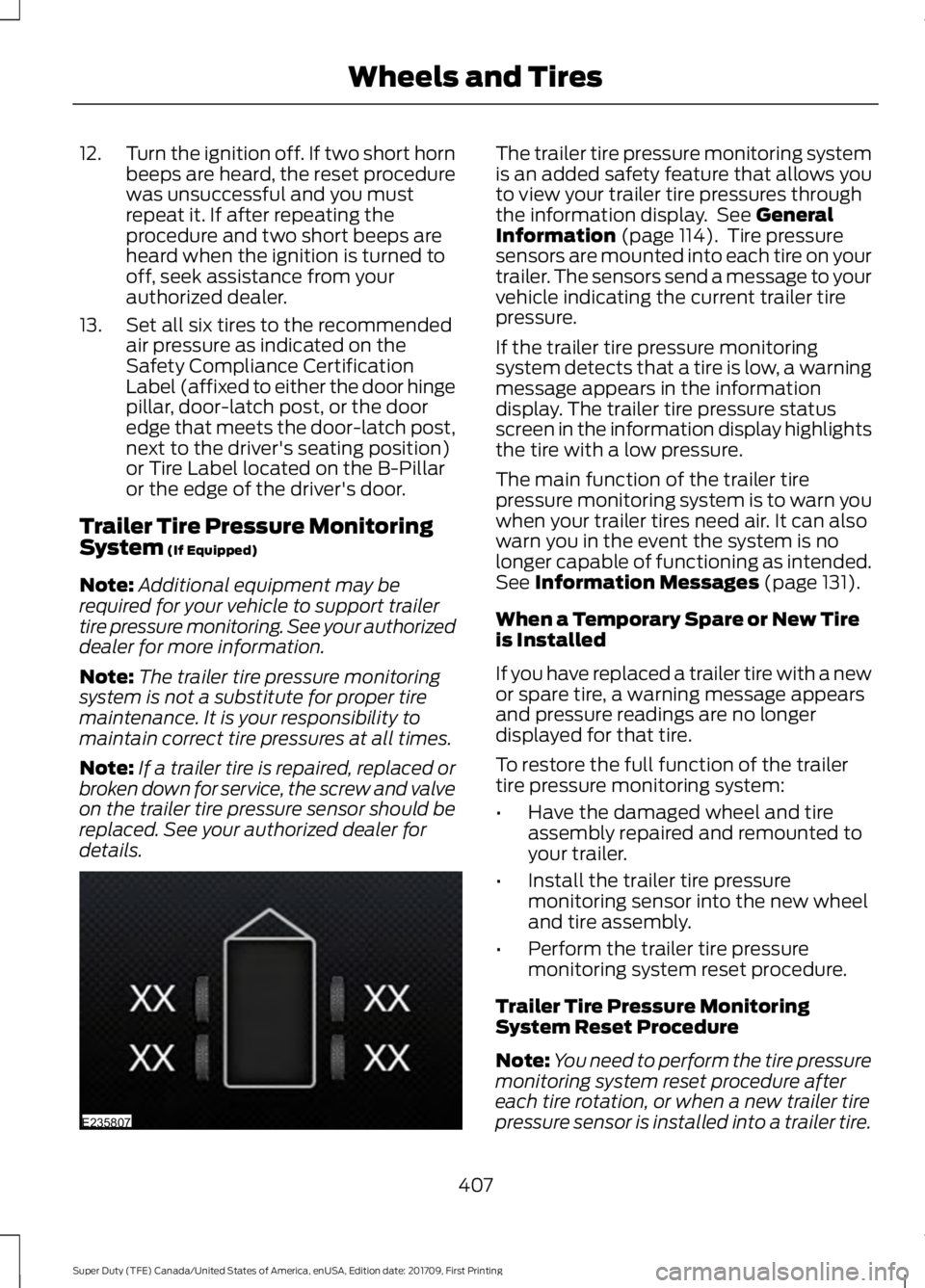

FORD F450 SUPER DUTY 2018  Owners Manual 12.
Turn the ignition off. If two short horn
beeps are heard, the reset procedure
was unsuccessful and you must
repeat it. If after repeating the
procedure and two short beeps are
heard when the ignit
