fuel consumption FORD F450 SUPER DUTY 2018 Owners Manual

Auxiliary Power Points
Auxiliary Power Points.................................172
Storage Compartments
Center Console..............................................174
Overhead Console........................................174
Under Seat Storage.....................................174
Starting and Stopping the Engine
General Information
.....................................177
Ignition Switch................................................177
Keyless Starting
.............................................178
Starting a Gasoline Engine - 6.2L/ 6.8L................................................................178
Starting a Diesel Engine - 6.7L Diesel............................................................180
Switching Off the Engine - 6.7L Diesel
............................................................185
Engine Idle Shutdown................................185
Engine Block Heater....................................185
Fuel and Refueling
Safety Precautions
.......................................187
Fuel Quality - E85........................................188
Fuel Quality - Diesel....................................189
Fuel Quality - Gasoline................................191
Running Out of Fuel.....................................192
Refueling - Gasoline....................................192
Refueling - Diesel.........................................193
Fuel Consumption.......................................195
Engine Emission Control
Emission Law.................................................197
Catalytic Converter......................................198
Selective Catalytic Reductant System - Diesel...........................................................200
Diesel Particulate Filter
.............................204 Transmission
Automatic Transmission
...........................210
Power Take-Off
.............................................215
Four-Wheel Drive
Using Four-Wheel Drive.............................216
Rear Axle
Limited Slip Differential............................225
Electronic Locking Differential
................225
Brakes
General Information
....................................227
Hints on Driving With Anti-Lock Brakes..........................................................229
Parking Brake................................................229
Hill Start Assist.............................................229
Traction Control
Principle of Operation.................................231
Using Traction Control................................231
Stability Control
Principle of Operation
................................232
Using Stability Control...............................233
Terrain Control
Principle of Operation................................235
Using Hill Descent Control.......................235
Parking Aids
Principle of Operation
................................237
Rear Parking Aid...........................................237
Rear View Camera.......................................238
360 Degree Camera....................................241
Cruise Control
Principle of Operation................................245
Using Cruise Control...................................245
3
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, First Printing Table of Contents

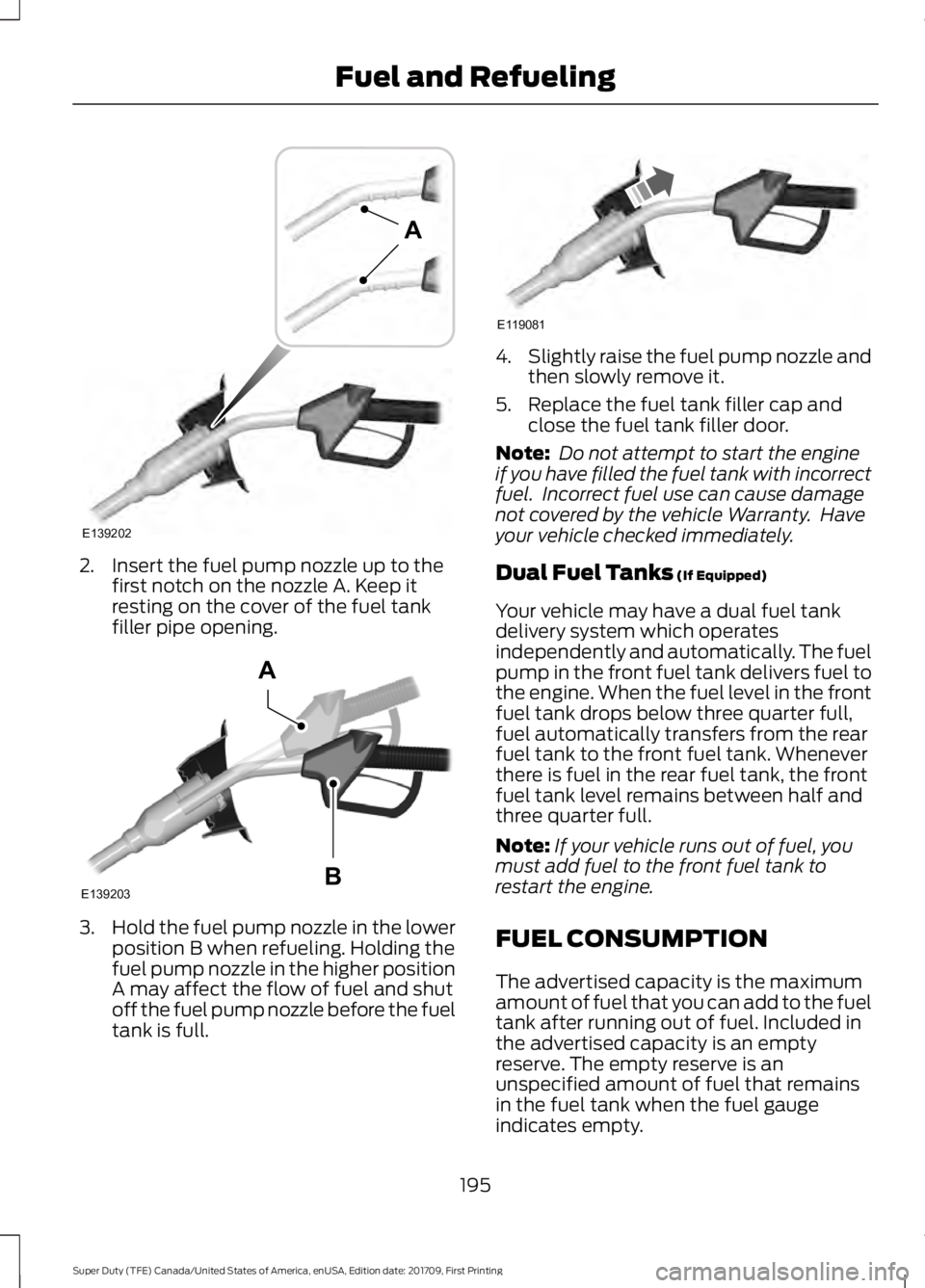

2. Insert the fuel pump nozzle up to the
first notch on the nozzle A. Keep it
resting on the cover of the fuel tank
filler pipe opening. 3.
Hold the fuel pump nozzle in the lower
position B when refueling. Holding the
fuel pump nozzle in the higher position
A may affect the flow of fuel and shut
off the fuel pump nozzle before the fuel
tank is full. 4.
Slightly raise the fuel pump nozzle and
then slowly remove it.
5. Replace the fuel tank filler cap and close the fuel tank filler door.
Note: Do not attempt to start the engine
if you have filled the fuel tank with incorrect
fuel. Incorrect fuel use can cause damage
not covered by the vehicle Warranty. Have
your vehicle checked immediately.
Dual Fuel Tanks (If Equipped)
Your vehicle may have a dual fuel tank
delivery system which operates
independently and automatically. The fuel
pump in the front fuel tank delivers fuel to
the engine. When the fuel level in the front
fuel tank drops below three quarter full,
fuel automatically transfers from the rear
fuel tank to the front fuel tank. Whenever
there is fuel in the rear fuel tank, the front
fuel tank level remains between half and
three quarter full.
Note: If your vehicle runs out of fuel, you
must add fuel to the front fuel tank to
restart the engine.
FUEL CONSUMPTION
The advertised capacity is the maximum
amount of fuel that you can add to the fuel
tank after running out of fuel. Included in
the advertised capacity is an empty
reserve. The empty reserve is an
unspecified amount of fuel that remains
in the fuel tank when the fuel gauge
indicates empty.
195
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, First Printing Fuel and RefuelingE139202
A E139203
A
B E119081

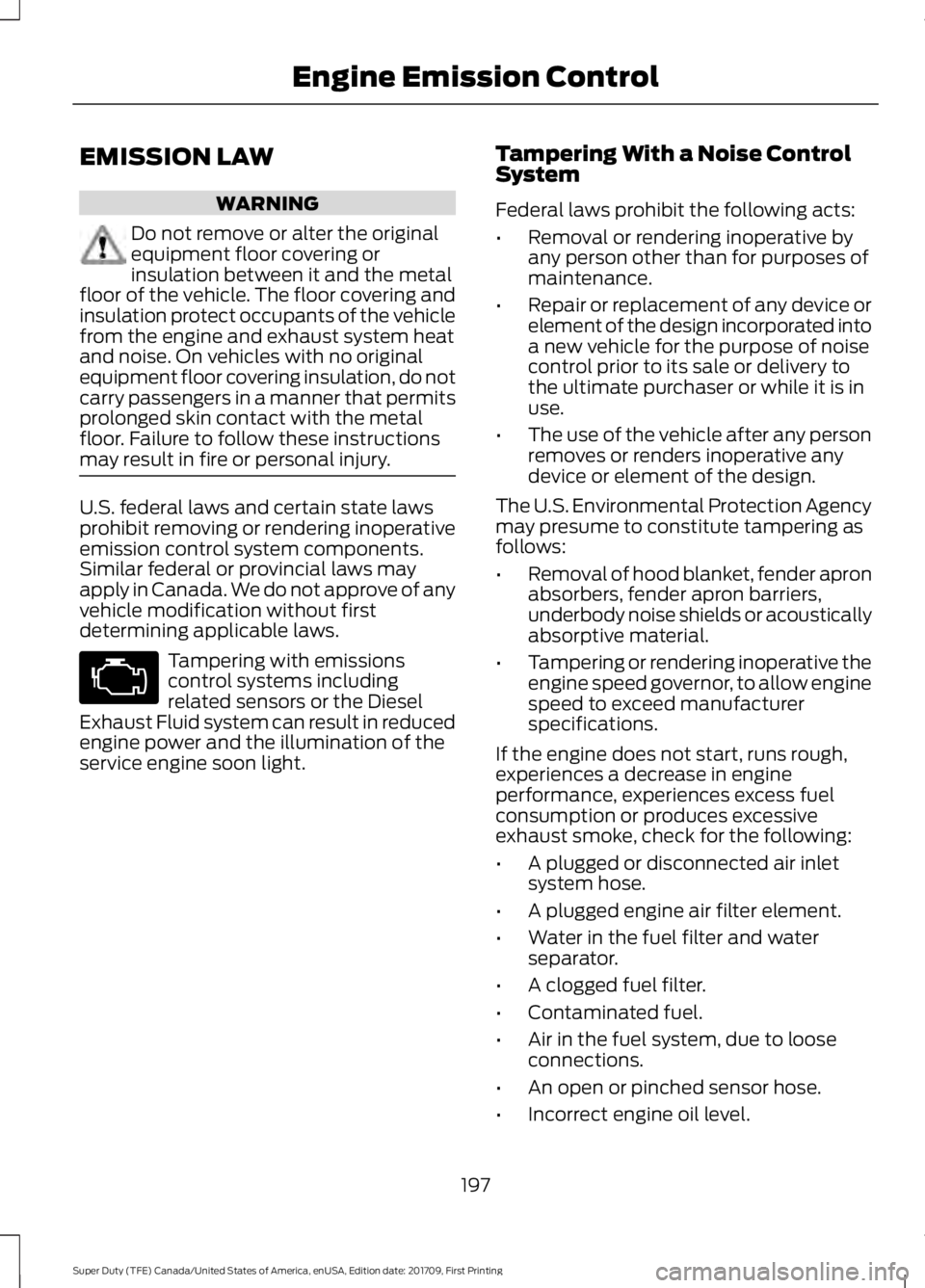

EMISSION LAW
WARNING
Do not remove or alter the original
equipment floor covering or
insulation between it and the metal
floor of the vehicle. The floor covering and
insulation protect occupants of the vehicle
from the engine and exhaust system heat
and noise. On vehicles with no original
equipment floor covering insulation, do not
carry passengers in a manner that permits
prolonged skin contact with the metal
floor. Failure to follow these instructions
may result in fire or personal injury. U.S. federal laws and certain state laws
prohibit removing or rendering inoperative
emission control system components.
Similar federal or provincial laws may
apply in Canada. We do not approve of any
vehicle modification without first
determining applicable laws.
Tampering with emissions
control systems including
related sensors or the Diesel
Exhaust Fluid system can result in reduced
engine power and the illumination of the
service engine soon light. Tampering With a Noise Control
System
Federal laws prohibit the following acts:
•
Removal or rendering inoperative by
any person other than for purposes of
maintenance.
• Repair or replacement of any device or
element of the design incorporated into
a new vehicle for the purpose of noise
control prior to its sale or delivery to
the ultimate purchaser or while it is in
use.
• The use of the vehicle after any person
removes or renders inoperative any
device or element of the design.
The U.S. Environmental Protection Agency
may presume to constitute tampering as
follows:
• Removal of hood blanket, fender apron
absorbers, fender apron barriers,
underbody noise shields or acoustically
absorptive material.
• Tampering or rendering inoperative the
engine speed governor, to allow engine
speed to exceed manufacturer
specifications.
If the engine does not start, runs rough,
experiences a decrease in engine
performance, experiences excess fuel
consumption or produces excessive
exhaust smoke, check for the following:
• A plugged or disconnected air inlet
system hose.
• A plugged engine air filter element.
• Water in the fuel filter and water
separator.
• A clogged fuel filter.
• Contaminated fuel.
• Air in the fuel system, due to loose
connections.
• An open or pinched sensor hose.
• Incorrect engine oil level.
197
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, First Printing Engine Emission Control

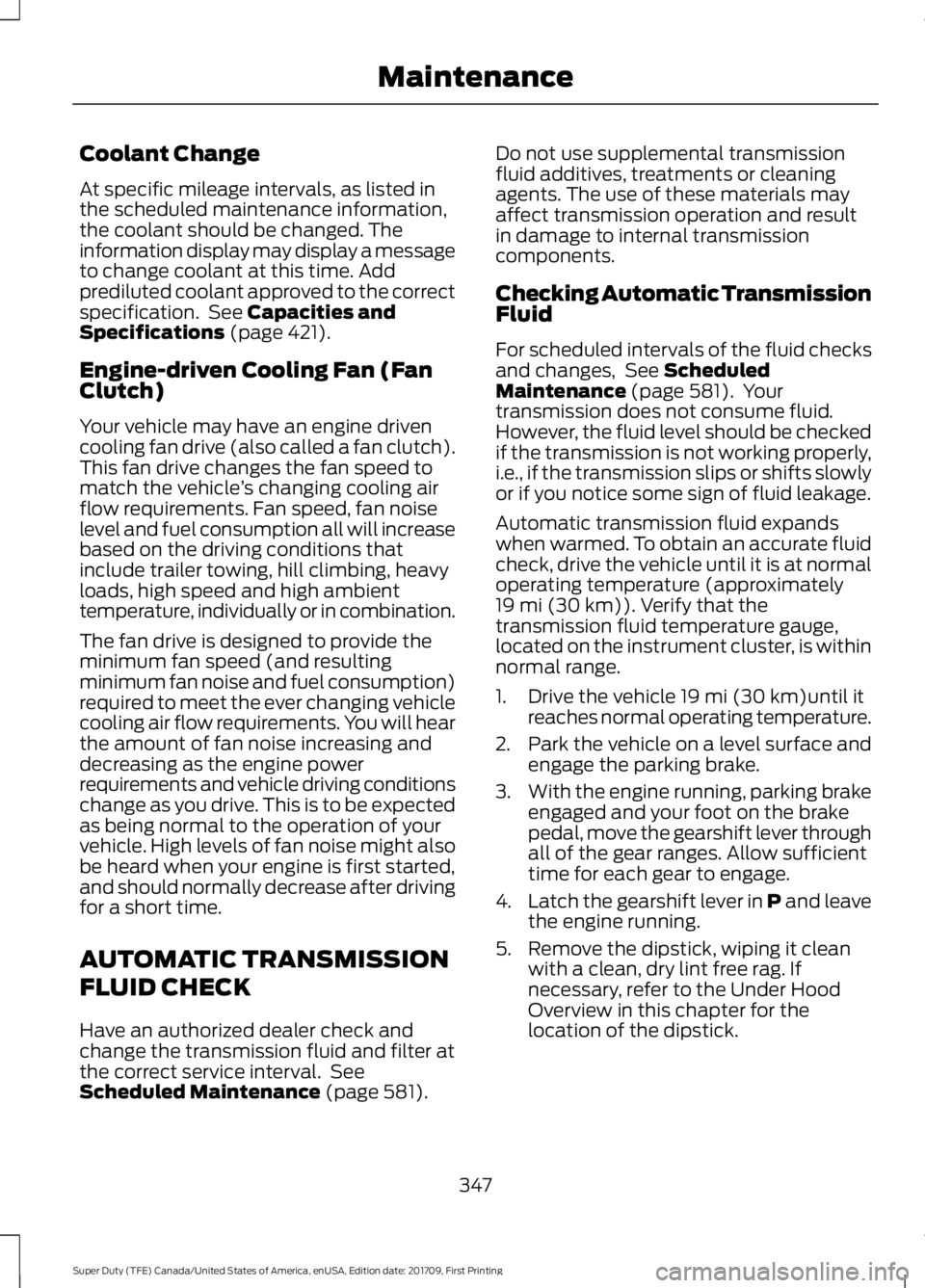

Coolant Change
At specific mileage intervals, as listed in
the scheduled maintenance information,
the coolant should be changed. The
information display may display a message
to change coolant at this time. Add
prediluted coolant approved to the correct
specification. See Capacities and
Specifications (page 421).
Engine-driven Cooling Fan (Fan
Clutch)
Your vehicle may have an engine driven
cooling fan drive (also called a fan clutch).
This fan drive changes the fan speed to
match the vehicle ’s changing cooling air
flow requirements. Fan speed, fan noise
level and fuel consumption all will increase
based on the driving conditions that
include trailer towing, hill climbing, heavy
loads, high speed and high ambient
temperature, individually or in combination.
The fan drive is designed to provide the
minimum fan speed (and resulting
minimum fan noise and fuel consumption)
required to meet the ever changing vehicle
cooling air flow requirements. You will hear
the amount of fan noise increasing and
decreasing as the engine power
requirements and vehicle driving conditions
change as you drive. This is to be expected
as being normal to the operation of your
vehicle. High levels of fan noise might also
be heard when your engine is first started,
and should normally decrease after driving
for a short time.
AUTOMATIC TRANSMISSION
FLUID CHECK
Have an authorized dealer check and
change the transmission fluid and filter at
the correct service interval. See
Scheduled Maintenance
(page 581). Do not use supplemental transmission
fluid additives, treatments or cleaning
agents. The use of these materials may
affect transmission operation and result
in damage to internal transmission
components.
Checking Automatic Transmission
Fluid
For scheduled intervals of the fluid checks
and changes, See
Scheduled
Maintenance (page 581). Your
transmission does not consume fluid.
However, the fluid level should be checked
if the transmission is not working properly,
i.e., if the transmission slips or shifts slowly
or if you notice some sign of fluid leakage.
Automatic transmission fluid expands
when warmed. To obtain an accurate fluid
check, drive the vehicle until it is at normal
operating temperature (approximately
19 mi (30 km)
). Verify that the
transmission fluid temperature gauge,
located on the instrument cluster, is within
normal range.
1. Drive the vehicle
19 mi (30 km)until it
reaches normal operating temperature.
2. Park the vehicle on a level surface and
engage the parking brake.
3. With the engine running, parking brake
engaged and your foot on the brake
pedal, move the gearshift lever through
all of the gear ranges. Allow sufficient
time for each gear to engage.
4. Latch the gearshift lever in P and leave
the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer to the Under Hood
Overview in this chapter for the
location of the dipstick.
347
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, First Printing Maintenance

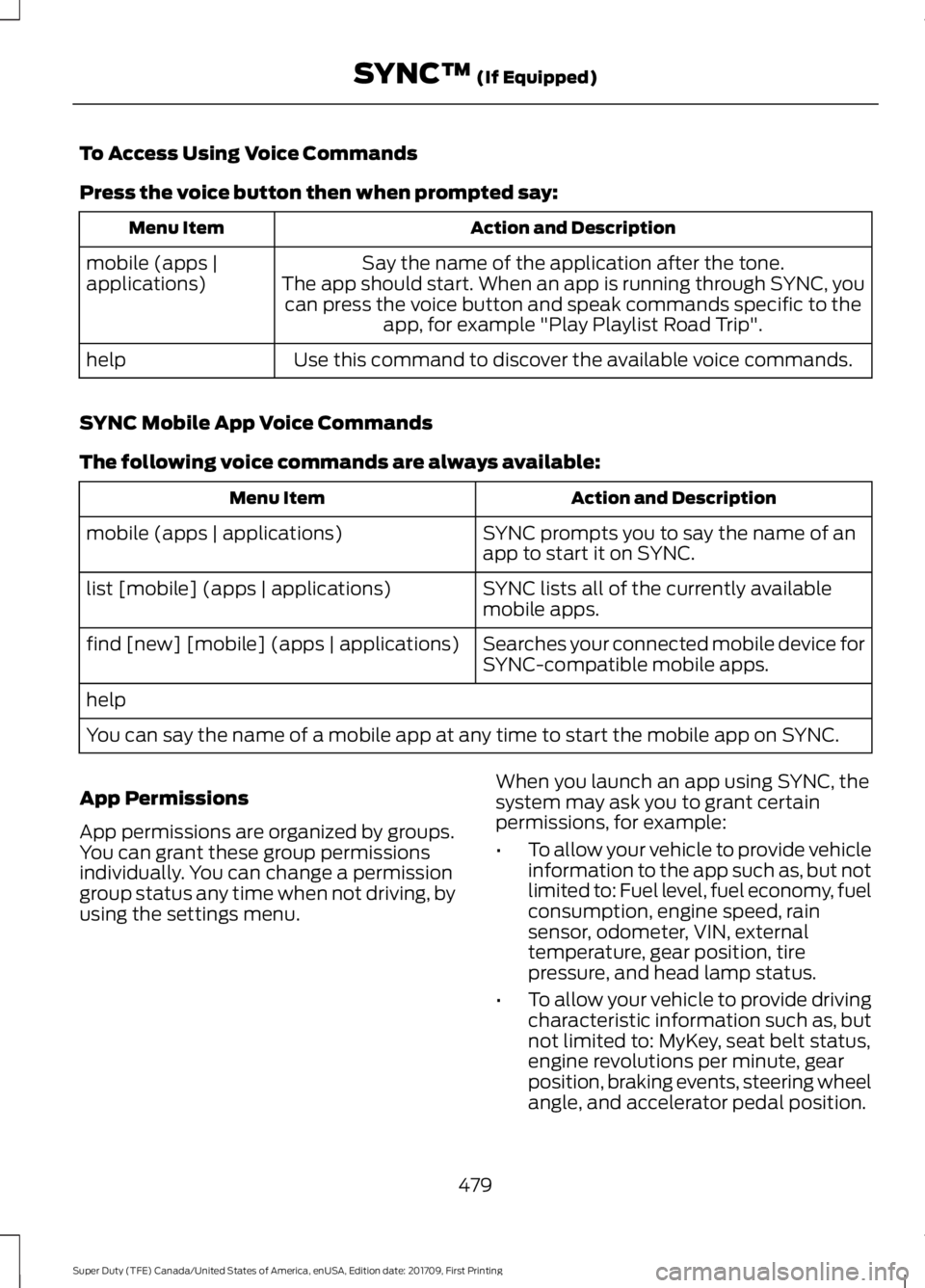

To Access Using Voice Commands
Press the voice button then when prompted say:
Action and Description
Menu Item
Say the name of the application after the tone.
The app should start. When an app is running through SYNC, you can press the voice button and speak commands specific to the app, for example "Play Playlist Road Trip".
mobile (apps |
applications)
Use this command to discover the available voice commands.
help
SYNC Mobile App Voice Commands
The following voice commands are always available: Action and Description
Menu Item
SYNC prompts you to say the name of an
app to start it on SYNC.
mobile (apps | applications)
SYNC lists all of the currently available
mobile apps.
list [mobile] (apps | applications)
Searches your connected mobile device for
SYNC-compatible mobile apps.
find [new] [mobile] (apps | applications)
help
You can say the name of a mobile app at any time to start the mobile app on SYNC.
App Permissions
App permissions are organized by groups.
You can grant these group permissions
individually. You can change a permission
group status any time when not driving, by
using the settings menu. When you launch an app using SYNC, the
system may ask you to grant certain
permissions, for example:
•
To allow your vehicle to provide vehicle
information to the app such as, but not
limited to: Fuel level, fuel economy, fuel
consumption, engine speed, rain
sensor, odometer, VIN, external
temperature, gear position, tire
pressure, and head lamp status.
• To allow your vehicle to provide driving
characteristic information such as, but
not limited to: MyKey, seat belt status,
engine revolutions per minute, gear
position, braking events, steering wheel
angle, and accelerator pedal position.
479
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, First Printing SYNC™ (If Equipped)

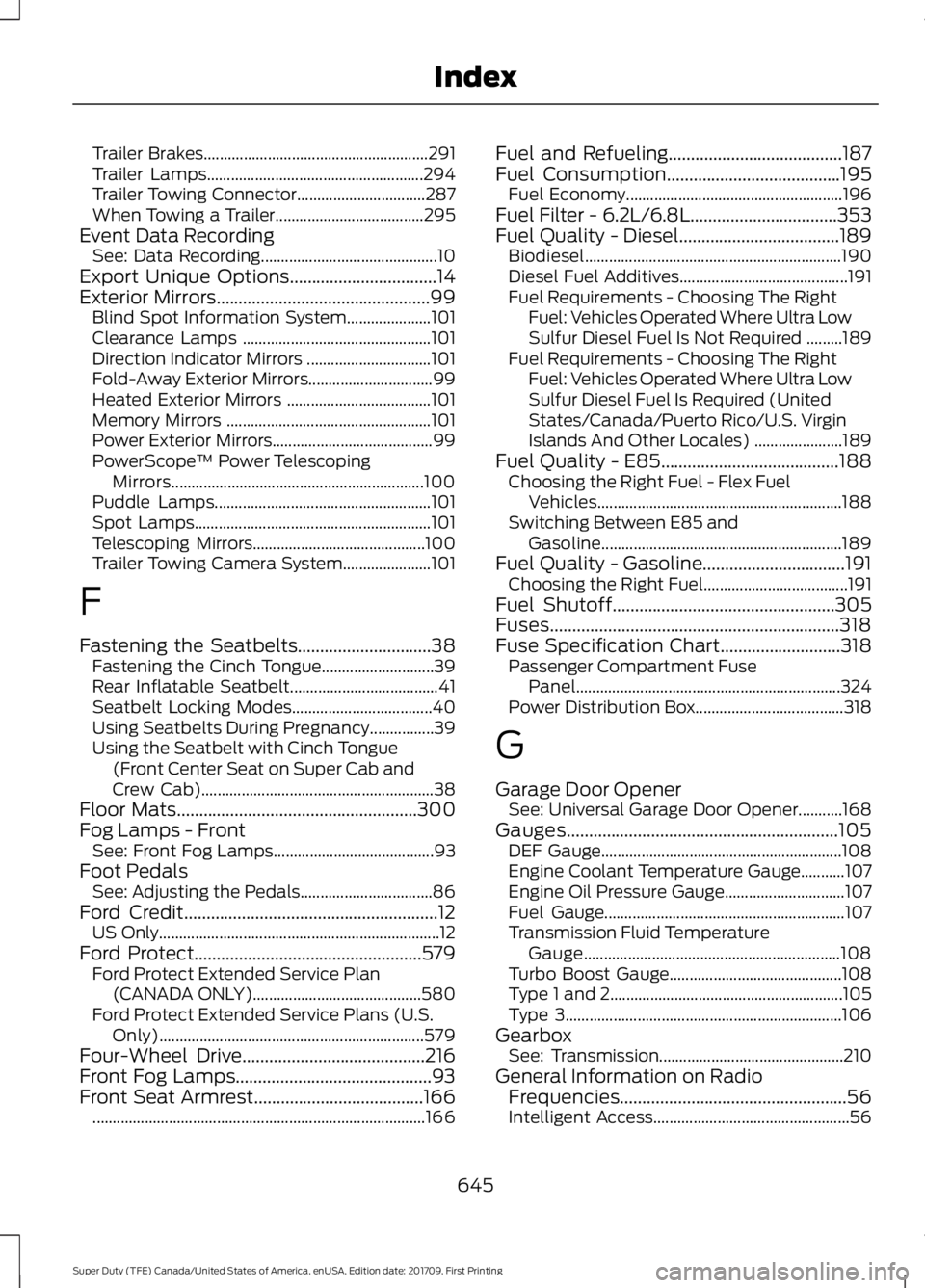

Trailer Brakes........................................................
291
Trailer Lamps...................................................... 294
Trailer Towing Connector................................ 287
When Towing a Trailer..................................... 295
Event Data Recording See: Data Recording............................................ 10
Export Unique Options.................................14
Exterior Mirrors................................................99
Blind Spot Information System..................... 101
Clearance Lamps ............................................... 101
Direction Indicator Mirrors ............................... 101
Fold-Away Exterior Mirrors............................... 99
Heated Exterior Mirrors .................................... 101
Memory Mirrors ................................................... 101
Power Exterior Mirrors........................................ 99
PowerScope ™ Power Telescoping
Mirrors............................................................... 100
Puddle Lamps...................................................... 101
Spot Lamps........................................................... 101
Telescoping Mirrors........................................... 100
Trailer Towing Camera System...................... 101
F
Fastening the Seatbelts..............................38 Fastening the Cinch Tongue............................ 39
Rear Inflatable Seatbelt..................................... 41
Seatbelt Locking Modes................................... 40
Using Seatbelts During Pregnancy................39
Using the Seatbelt with Cinch Tongue (Front Center Seat on Super Cab and
Crew Cab).......................................................... 38
Floor Mats......................................................300
Fog Lamps - Front See: Front Fog Lamps........................................ 93
Foot Pedals See: Adjusting the Pedals................................. 86
Ford Credit
.........................................................12
US Only...................................................................... 12
Ford Protect
...................................................579
Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 580
Ford Protect Extended Service Plans (U.S. Only).................................................................. 579
Four-Wheel Drive
.........................................216
Front Fog Lamps............................................93
Front Seat Armrest
......................................166
........................................................................\
........... 166Fuel and Refueling
.......................................187
Fuel Consumption.......................................195 Fuel Economy...................................................... 196
Fuel Filter - 6.2L/6.8L.................................353
Fuel Quality - Diesel
....................................189
Biodiesel................................................................ 190
Diesel Fuel Additives.......................................... 191
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Not Required .........189
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Required (United
States/Canada/Puerto Rico/U.S. Virgin
Islands And Other Locales) ...................... 189
Fuel Quality - E85........................................188 Choosing the Right Fuel - Flex Fuel
Vehicles............................................................. 188
Switching Between E85 and Gasoline............................................................ 189
Fuel Quality - Gasoline................................191 Choosing the Right Fuel.................................... 191
Fuel Shutoff..................................................305
Fuses.................................................................318
Fuse Specification Chart...........................318 Passenger Compartment Fuse
Panel.................................................................. 324
Power Distribution Box..................................... 318
G
Garage Door Opener See: Universal Garage Door Opener...........168
Gauges
.............................................................105
DEF Gauge............................................................ 108
Engine Coolant Temperature Gauge...........107
Engine Oil Pressure Gauge.............................. 107
Fuel Gauge............................................................ 107
Transmission Fluid Temperature Gauge................................................................ 108
Turbo Boost Gauge........................................... 108
Type 1 and 2.......................................................... 105
Type 3..................................................................... 106
Gearbox See: Transmission.............................................. 210
General Information on Radio Frequencies...................................................56
Intelligent Access................................................. 56
645
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, First Printing Index
