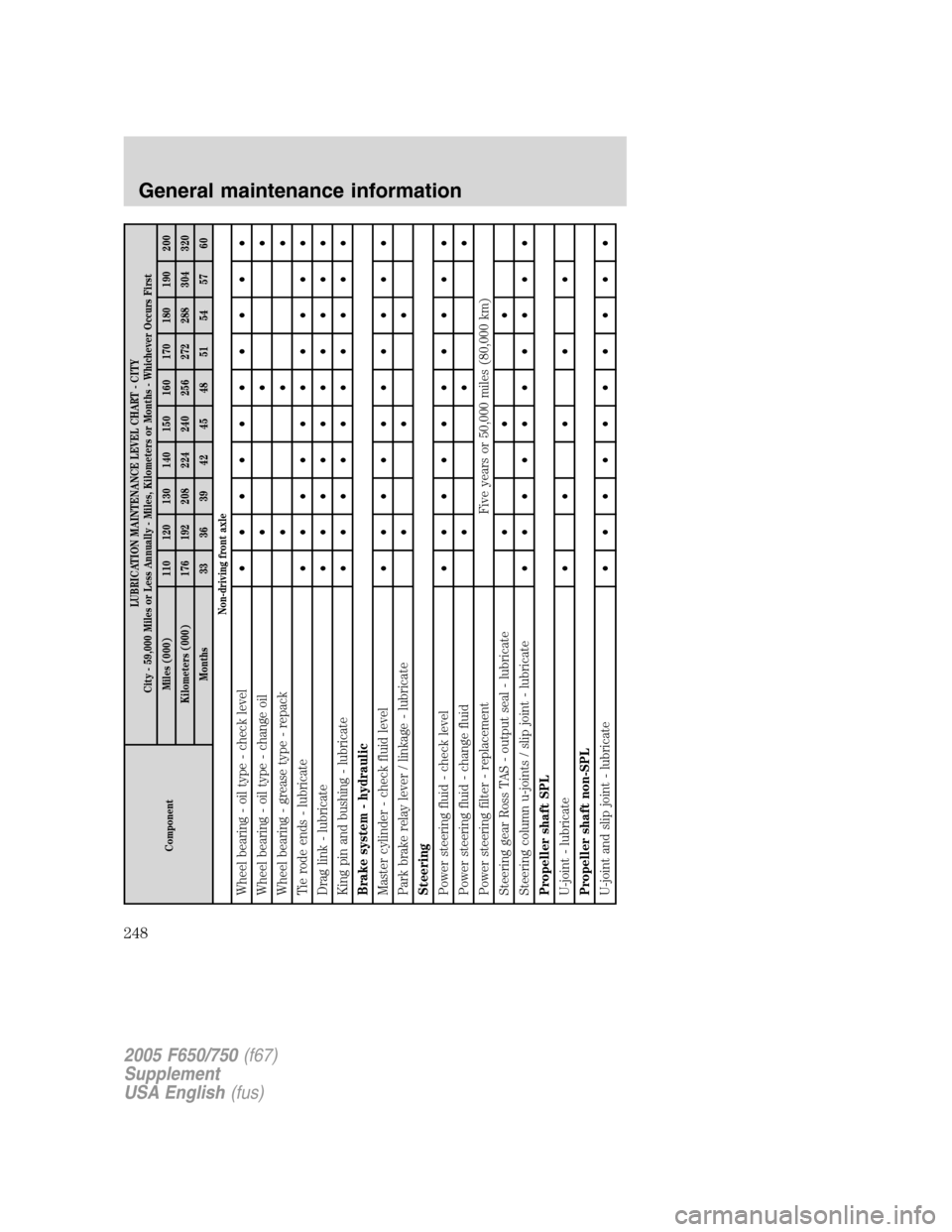

ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 110 120 130 140 150 160 170 180 190 200
Kilometers (000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rode ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement Five years or 50,000 miles (80,000 km)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Propeller shaft SPL
U-joint - lubricate•••••
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
248

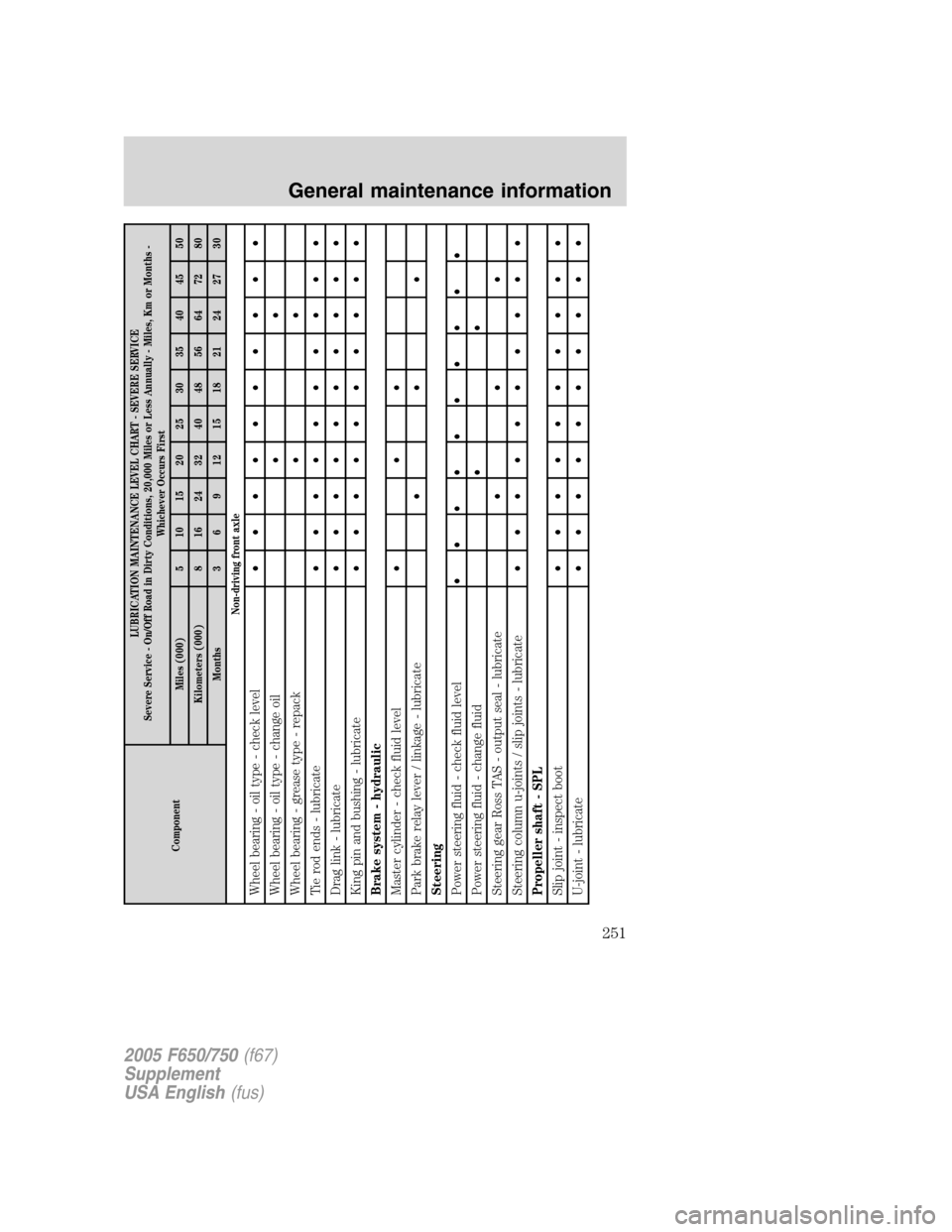

ComponentLUBRICATION MAINTENANCE LEVEL CHART - SEVERE SERVICE
Severe Service - On/Off Road in Dirty Conditions, 20,000 Miles or Less Annually - Miles, Km or Months -
Whichever Occurs First
Miles (000) 5 10 15 20 25 30 35 40 45 50
Kilometers (000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level•••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check fluid level••••••••••
Power steering fluid - change fluid••
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joints - lubricate••••••••••
Propeller shaft - SPL
Slip joint - inspect boot••••••••••
U-joint - lubricate••••••••••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
251

ComponentLUBRICATION MAINTENANCE LEVEL CHART - SEVERE SERVICE
Severe Service - On/Off Road in Dirty Conditions, 20,000 Miles or Less Annually - Miles, Km or Months -
Whichever Occurs First
Miles (000) 55 60 65 70 75 80 85 90 95 100
Kilometers (000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement•
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Propeller shaft SPL
Slip joint - inspect boot••••••••••
U-joint - lubricate••••••••••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
254
