WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, tree sap, or other
organic contamination. To clean these items, please follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23), available from your dealer.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
•Wiper blades can be cleaned with isopropyl (rubbing) alcohol or
windshield washer solution. Be sure to replace wiper blades when they
appear worn or do not function properly.
INSTRUMENT PANEL AND CLUSTER LENS
Clean the instrument panel with a damp cloth, then dry with a dry cloth.
•Avoid cleaners or polish that increase the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
•Be certain to wash or wipe your hands clean if you have been in
contact with certain products such as insect repellent and suntan
lotion in order to avoid possible damage to the painted surfaces.
INTERIOR TRIM
•Clean the interior trim areas with a damp cloth, then dry by wiping
with a dry, soft, clean cloth.
•Do not use household or glass cleaners as these may damage the
finish.
INTERIOR
For fabric, carpets, cloth seats and safety belts:
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with Ford Extra Strength Upholstery
Cleaner (E8AZ-19523–AA).
•If grease or tar is present on the material, spot-clean the area first
with Motorcraft Spot and Stain Remover (ZC-14).
•Never saturate the seat covers with cleaning solution.
2006 F-650/750(f67)
Supplement
USA(fus)
Cleaning
165

WINDSHIELD WASHER FLUID
The reservoir capacity is 4.0 quarts
(3.8L); use windshield washer fluid
that meets the Ford specification
listed. Refer toLubricant
specificationsin this chapter.
Inspect the fluid level in the washer
reservoir when insufficient fluid is
sprayed.
State or local regulations on volatile
organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
Do not put engine coolant in the washer fluid reservoir. Engine
coolant can severely reduce visibility if sprayed on the
windshield.
CHANGING THE WIPER BLADES
To replace the wiper blades:
1. Pull the wiper arm away from the
windshield and lock into the service
position.
2. Turn the blade at an angle from
the wiper arm. Push the lock pin
manually to release the blade and
pull the wiper blade down toward
the windshield to remove it from the
arm.
3. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
2006 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
185

Maintenance Operation Frequency - Observation
Check fuel pump pressure Insufficient full-throttle power or
backfiring.
Clean radiator cap seal. Clean
and inspect the cap surface on
the radiatorWhen the cap does not hold pressure.
Check the battery terminals for
corrosionWhenever electrical power supply has
diminished.
Tighten the wheel mounting
nuts to the specified torque.
Refer toServicing your
wheels and tiresin the
Maintenance and
SpecificationschapterRequired initially at 500 and 1000
miles (800 and 1600 km). Perform
again at 500 and 1000 mile (800 and
1600 km) intervals after each tire
removal/replacement.
Clean body/door drain holes At least twice annually.
Clean windshield wiper blades As required.
Replace windshield wiper
bladesIf wiping the blades with a clean cloth
and mild detergent and washing with
a cleaner does not restore a clean
wipe.
Lubricate body lock cylinders Noisy or difficult to operate.
Check headlamp alignment Lamp beams in wrong position when
vehicle operating loaded.
Check windshield washer fluid
level; add fluid if requiredIf washes do not spray when operated.
1- During maintenance and repair, protect the fuel tube and the hose
assemblies, the power steering lines, and the brake lines from the
external heat, the acids and the abrasion that could damage the lines.
2- Check for (free) linkage action and ensure that (return) spring
force is adequate to maintain pedal free play.
3- Adjust, repair or replace as required with the same or equivalent
parts.
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
245

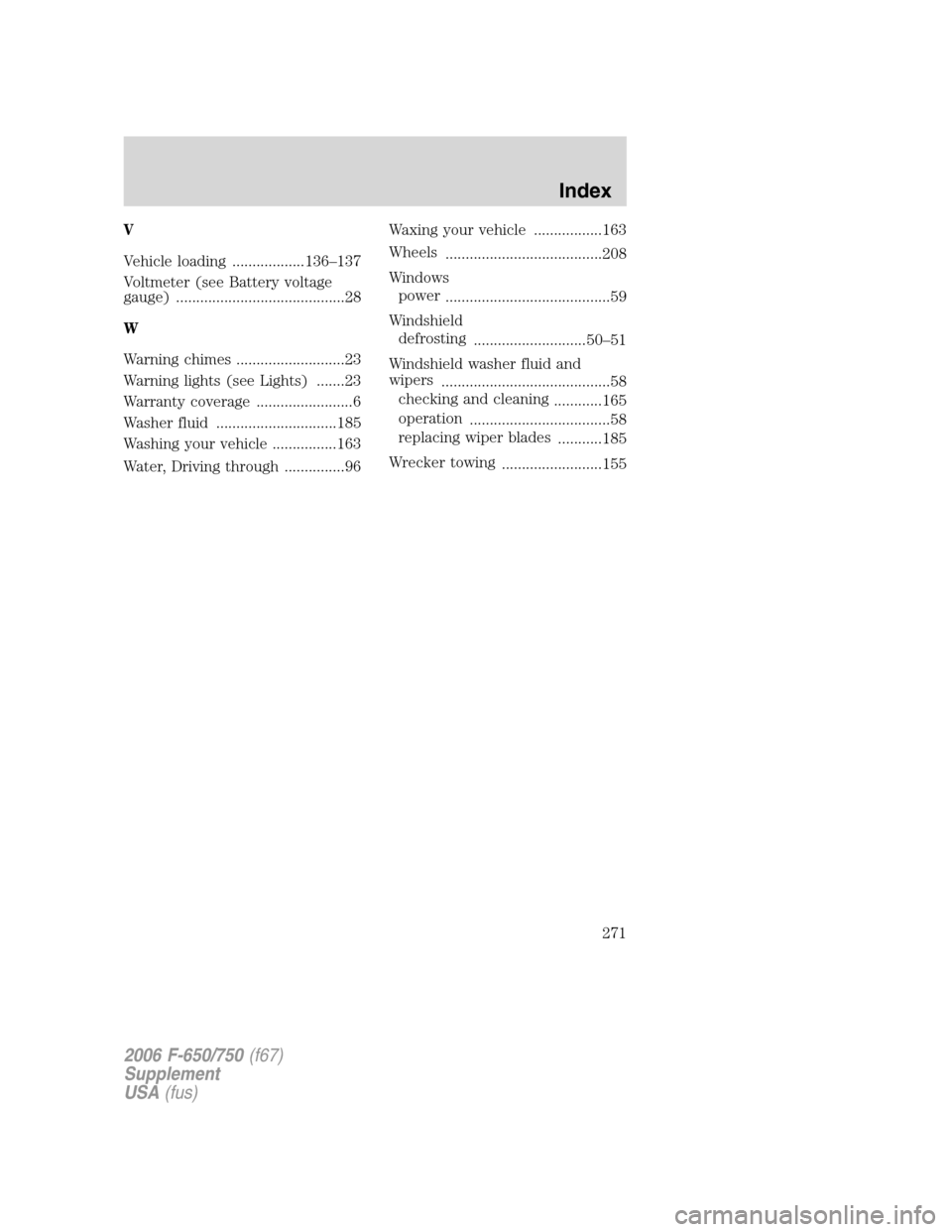

V
Vehicle loading ..................136–137
Voltmeter (see Battery voltage
gauge) ..........................................28
W
Warning chimes ...........................23
Warning lights (see Lights) .......23
Warranty coverage ........................6
Washer fluid ..............................185
Washing your vehicle ................163
Water, Driving through ...............96Waxing your vehicle .................163
Wheels
.......................................208
Windows
power
.........................................59
Windshield
defrosting
............................50–51
Windshield washer fluid and
wipers
..........................................58
checking and cleaning
............165
operation
...................................58
replacing wiper blades
...........185
Wrecker towing
.........................155
2006 F-650/750(f67)
Supplement
USA(fus)
Index
271
